Cleerline SSF-TKITE-300 User manual

SSF-TKITE-300

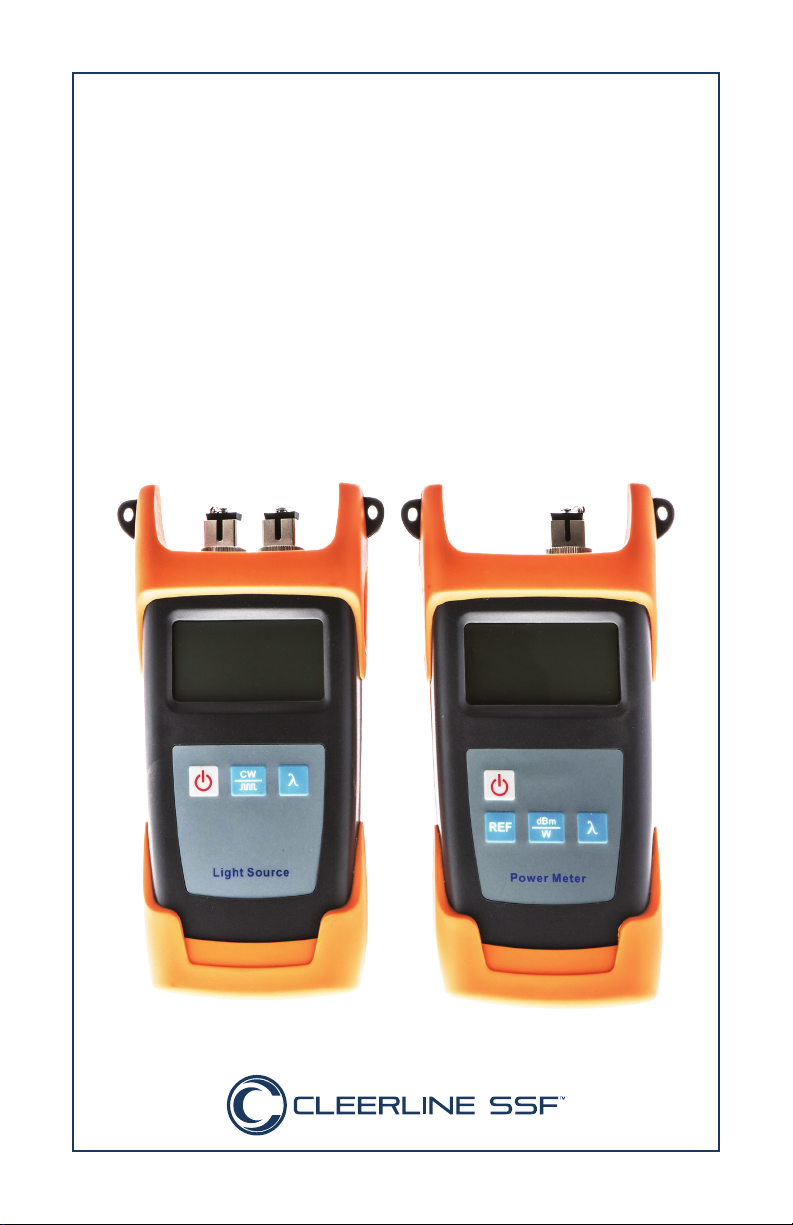

SSF™ Basic Fiber Test Kit
Manual

Warning
To avoid risk of eye damage, do not look into the laser
beam when unit is on.

Contents
Handheld Optical Light Source
Overview 5
Functions 6
Maintenance and Troubleshooting 8
Warranty 9
Handheld Optical Power Meter
Overview 11
Specifications 12
Functions 13
Maintenance and Troubleshooting 15
Warranty 16

Handheld Optical Light Source
4

Handheld Optical Light Source
5
Overview
The SSF-FLS-300 optical light source provides single to quad
wavelength output, including 850/1300nm wavelengths for
multimode fiber and 1310/1550nm wavelengths for single mode
fiber. Together with the SSF-FPM-300 power meter, this optical light
source provides an accurate test solution for optical fiber networks.
Features
• Rugged design
• Portable size and easy operation
• Large LCD screen
• Auto shut-down function
• High stable single or quad wavelength output at CW or
modulated mode
• Low power self-inspecting function
Specifications
Type Light Source
Wavelength (nm) 850 / 1300 / 1310 / 1550nm
Emitter Type FP-LD
Output Power (dBm) 650nm(>0dBm), 1310/1550(-6 - -7dBm)
Modulation CW / 2Hz (650) / 270Hz, 1KHz, 2KHz
(1310, 1550)
Fiber Type SM, MM
Connector FC/PC, SC/PC, ST/PC
Power Supply AA 1.5V (3pcs batteries), 9V AC Adapter
Operating Temperature (°C) -10 - +60
Storage Temperature (°C) -25 - +70
Battery Life (h) 45
Dimension (mm) 185x84x48
Weight (g) 180
Accessories
(1) Power supply/Adapter
(1) Instruction Manual

Handheld Optical Light Source
6
1
Power On/Off: Press to turn the unit on or off.
Auto Shut-Off Selection: Press this key quickly to turn
the auto shut-off function on or off. When auto shut-
off is active the unit will automatically shut off after ten
minutes idle.
2
Wavelength Selection: Press this key to change the
wavelength and display it in the center of the LCD
screen.
3
Modulation: Press this key to switch modulation
between continuous and modulated light.
Modulated light frequency: 650nm (CW, 2HZ) 13/15
(270Hz, 1kHz, 2kHz), displayed on the top right
corner of the LCD screen.
Continuous light mode displays 0Hz.
Functions
12
3

Handheld Optical Light Source
7
1
Battery Indicator: displays when battery power in use.
The capacity shown will decrease with battery power.
Replace batteries as needed.
2AC Adapter Indicator: displays when AC power in use
3Auto-o
Auto-off: the light source will automatically shut off
when idle for ten minutes. Press power button ( )
quickly to turn Auto-Off function on or off.
4
nm
Wavelength: (nm)
850/1300: Multimode fiber testing
1310/1550: Single mode fiber testing
5
Hz
Frequency: (Hz)
1
2
3
4
5

Handheld Optical Light Source
8
Maintenance and Troubleshooting
1. Always keep the connector ports of the power meter clean.
2. Use the regulated optical connector for testing.
3. Shut off the power and cover laser with dust-proof cap after use.
4. When using AC adapter, ensure power supply is within the
required voltage range.
5. Remove the batteries when light source not in use for extended
periods of time
Troubleshooting
Issue Possible Reason Solution
Faint screen display Low battery power Charge or replace
the battery.
Unit fails to turn on
Low battery power
or battery inserted
incorrectly
(A) Replace the
battery
(B) Re-insert the
battery
Optical power is not
stable after when
light source turned
on
Allow a 5 minute
warm-up period
Warning
1. Ensure the connector is clean before testing.
2. Do not plug in the power supply when batteries are installed.
3. Do not look into the laser beam when unit is on.
4. Charge the batteries before use. Do not charge in unit.
5. Cover with laser with dust-proof cap when not in operation.

Handheld Optical Light Source
9
Warranty
Caution: Do not attempt to repair as doing so will void warranty.
This Optical Power Meter is covered by an 18 month warranty
1. We warrant that this power meter will be free from defects in
material and workmanship for 18 months. Should the device
fail at any time during this warranty period, we will, at our sole
discretion, replace and repair or refund the purchase price of
the product. The worth of the repair or replacement will not be
higher than purchasing price of this unit.
2. If device issues cannot be solved by the troubleshooting
methods, please contact us or the local distributor directly.
3. We will repair or replace the unit free of charge in case of defects
in production, workmanship or material. This warranty only
applies to the unit under normal operation without any damage
or misuse/abuse.
4. The shipping costs incurred by repair or replacement for the unit
under warranty will be shared by both parties.

Handheld Optical Power Meter
10
SSF-TKITE-300
Optical Power Meter

Handheld Optical Power Meter
11
Overview
The SSF-FPM-300 is a handheld optical power meter which can
be used for absolute optical power measurements and relative
loss measurements on both SM and MM fibers. Its Ø1.0mm
photosensitive area photodiode significantly improves stability and
provides accurate measurements. This power meter features a
rugged design, wide range of power measurement, high accuracy,
and reference power level storage.
Features
• Wide dynamic measurement range (up to 80dB)
• Reference power level storage (Ref Setting)
• User self-calibration function
• Backlit LCD display supports low light operation
• Power measurements in dBm or mw and insertion loss in dB
• 10 minute auto-off function can be activated or deactivated.
AA alkaline batteries can last more than 140 hours, AC
adaptor also available
• Low battery power indication
Accessories
(1) Operation Manual
(1) Cleaning Swabs
(1) AC Power Supply Adapter
(1) Carrying Case

Handheld Optical Power Meter
12
Specifications
Wavelength (nm) 800 - 1700nm
Detector Type InGaAs
Detector Size Ø 1.0mm
Measurement Range (dBm) -70 - +10 -50 - +30
Uncertainty ±5%
Calibrated Wavelength (nm) 850, 1300, 1310, 1490, 1550, 1625
Resolution (dB) 0.01
Optical Connector FC (interchangeable SC,ST) as well as
2.5mm universal
Power Supply Alkaline Battery (3 AA 1.5V batteries)
AC Adaptor(9V)
Battery Operating Time 140 h with 1.5V Battery (3pcs)
Operating Temperature (°C) -10 - +60
Storage Temperature (°C) -25 - +70
Relative Humidity 0 to 95% (non-condensing)
Dimension (mm) 190x100x50
Weight (g) 370

Handheld Optical Power Meter
13
1
Power On/Off: Press to turn the unit on or off.
Auto Shut-Off Selection: Press this key quickly to turn
the auto shut-off function on or off. When auto shut-
off is active the unit will automatically shut off after ten
minutes idle.
2
REF: Press and hold this key to store current power
value as the reference value.
Quickly press this key to enter the relative
measurement mode. This mode compares the
current power with the reference power and shows
the relative power value in dB.
3
Measurement Setting: Press this key to switch
between the absolute measurement and relative
measurement of the optical power.
4Wavelength Selection: Press this key to change the
wavelength
Functions
1
2
3
4

Handheld Optical Power Meter
14
1
Battery Indicator: displays when battery power in use.
The capacity shown will decrease with battery power.
Replace batteries as needed.
2AC Adapter Indicator: displays when AC power in use
3Auto-o
Auto-off: the power meter will automatically shut off
when idle for ten minutes. Press power button ( )
quickly to turn Auto-Off function on or off.
4
nm
Wavelength: (nm)
850/1300: Multimode fiber testing
1310/1550: Single mode fiber testing
5Reference Power Value: (dbm)
6Power Value: (dBm, W, dB)
1
2
3
5
6
4

Handheld Optical Power Meter
15
Maintenance and Troubleshooting
1. Always keep the connector ports of the power meter clean.
2. Use the regulated optical connector for testing.
3. Shut off the power and cover laser with dust-proof cap after use.
4. When using AC adapter, ensure power supply is within the
required voltage range.
5. Remove the batteries when light source not in use for extended
periods of time
Troubleshooting
Issue Possible Reason Solution
Faint screen display Low battery power Charge or replace
the battery.
Unit fails to turn on
Low battery power
or battery inserted
incorrectly
(A) Replace the
battery
(B) Re-insert the
battery
Optical power is not
stable after when
light source turned
on
Allow a 5 minute
warm-up period
Warning
1. Ensure the connector is clean before testing.
2. Do not plug in the power supply when batteries are installed.
3. Do not look into the laser beam when unit is on.
4. Charge the batteries before use. Do not charge in unit.
5. Cover laser with dust-proof cap when not in operation.

Handheld Optical Power Meter
16
Warranty
Caution: Do not attempt to repair as doing so will void warranty.
This Optical Power Meter is covered by an 18 month warranty
1. We warrant that this power meter will be free from defects in
material and workmanship for 18 months. Should the device
fail at any time during this warranty period, we will, at our sole
discretion, replace and repair or refund the purchase price of
the product. The worth of the repair or replacement will not be
higher than purchasing price of this unit.
2. If device issues cannot be solved by the troubleshooting
methods, please contact us or the local distributor directly.
3. We will repair or replace the unit free of charge in case of defects
in production, workmanship or material. This warranty only
applies to the unit under normal operation without any damage
or misuse/abuse.
4. The shipping costs incurred by repair or replacement for the unit
under warranty will be shared by both parties.
