Cleo Steam Brain
Installation manual
Item no: 90179999
EN2018/09 R01

2
Cleopatra B.V.
Oostzijde 295
1508 EN Zaandam
Netherlands
www.cleopatra.nl
www.cleopatra-wellness.com
[e-mail]
Copyright
All information in this technical document, together with the drawings and technical specifications made
available by Cleopatra B.V., remain the property of Cleopatra B.V. and may not be copied without
permission. Cleopatra B.V. reserves the right to make changes in the interest of further developments.
Up to date on: 01- 01-2019

3
Table of contents
Installation manual
1 Introduction and safety .................................................................................................................. 4
2 Warnings ............................................................................................................................... 5
3 Required tools and materials ..........................................................................................................6
4 Overview steam generator............................................................................................................. 7
5 Steam generator dimensions........................................................................................................... 8
6 Installation in the technical area...................................................................................................... 9
7 Mounting on the wall.....................................................................................................................9
8 Water connection and waste water ............................................................................................... 11
9 Electrical connection.................................................................................................................... 12
9.1 Next steps: electrical connections ...................................................................................... 13
10 Steam pipe ............................................................................................................................. 14
11 Overview of sensors.................................................................................................................... 15
12 Overview operation .................................................................................................................... 15
13 Overview of steam inlet ............................................................................................................... 16
14 Placing components in the cabin................................................................................................... 16
14.1 Explanation recess holes................................................................................................... 17
14.2 Explanation laying cables................................................................................................. 18
15 Finishing ............................................................................................................................. 19
15.1 Placing sensors................................................................................................................ 20
15.2 Placing steam outlet .........................................................................................................22
15.3 Installation of control........................................................................................................ 23
16 Removing the control ...................................................................................................................25
17 Overview of electrical connections................................................................................................ 26
17.1 Connecting electronics Brain............................................................................................. 26
17.1.a Connecting electronics Brain - option white light .................................................... 28
17.2 Connecting Multimedia Module......................................................................................... 30
17.3 Connection LED spots module ........................................................................................... 32
17.4 Connection LED rails module ............................................................................................ 34
18 Electrical connections .................................................................................................................. 36
19 Declaration of conformity.............................................................................................................39

4
These instructions are intented for the installer. Read these instructions carefully to get to know the product, the
parts and the installation method. The Cleo Steam Brain must be installed by qualified and well-trained personnel.
The Cleo Steam Brain complies with the applicable standards and regulations and does not pose any direct
danger for the user if the Cleo Steam Brain is installed according to the manufacturer’s instructions and is used in
accordance with this manual. The electronic and mechanical parts must be carefully maintained so that the Cleo
Steam Brain remains fully operational. For this reason, the instructions must be followed closely.
All information and instructions in this manual have been compiled in accordance to the applicable standards and
regulations, the current technique and our years of experience and findings. National and local regulations must
be followed.
Check the product for possible transport damage. After the installation, a claim for (surface) damage will not be
accepted by Cleopatra.
Every right to warranty expires if adjustments have been made to the original product or parts. This manual must
be kept close to the product for quick access if needed.
Use screws and plugs to mount the Cleo Steam Brain on the wall. Walls that support the Cleo Steam Brain must
be strong enough to carry the weight; otherwise they need to be strengthened. The supplied plugs and screws are
intended for use on concrete or solid stone walls. If the walls are made of a different material than concrete or
solid stones, use material that is suitable for that specific wall. (not included in delivery).
Cleopatra accepts no liability for damage caused by:
- Failure to follow the manual.
- Wrong use.
- Installation by unqualified personnel.
- Unauthorized changes to the product.
- Technical changes.
- The use of non-original spare parts.
Correct use:
- The Cleo Steam Brain may only be used indoors.
- Use in another way is not permitted and is for the user’s own risk.
- Do not use the Cleo Steam Brain when it is not in perfect condition.
- Do not use this product in an environment where it is exposed to corrosion.
1 Introduction and safety
Important instruction or description Pay attention: General danger

5
2 Warnings
Without permission and without instructions, the use of a steam cabin is
forbidden for the following persons:
- Children.
- Adults with disabilities.
- Persons who have not been instructed about what a steam cabin is
meant for.
- Persons who are intoxicated.
Bringing electrical devices in the cabin is forbidden!
Warning hot surfaces.
The steam inlet, the surrounding area and the steam itself are very hot. Do not touch them
because of danger of injuries.
Warning for slipping.
The floor of the cabin can be slippery.
Read the user manual carefully before using the steam cabin!
Maximum time to stay in the cabin: 15 min
Humidity in the cabin: max. 100%
Maximum temperature in the cabin: 45-48 ˚C

6

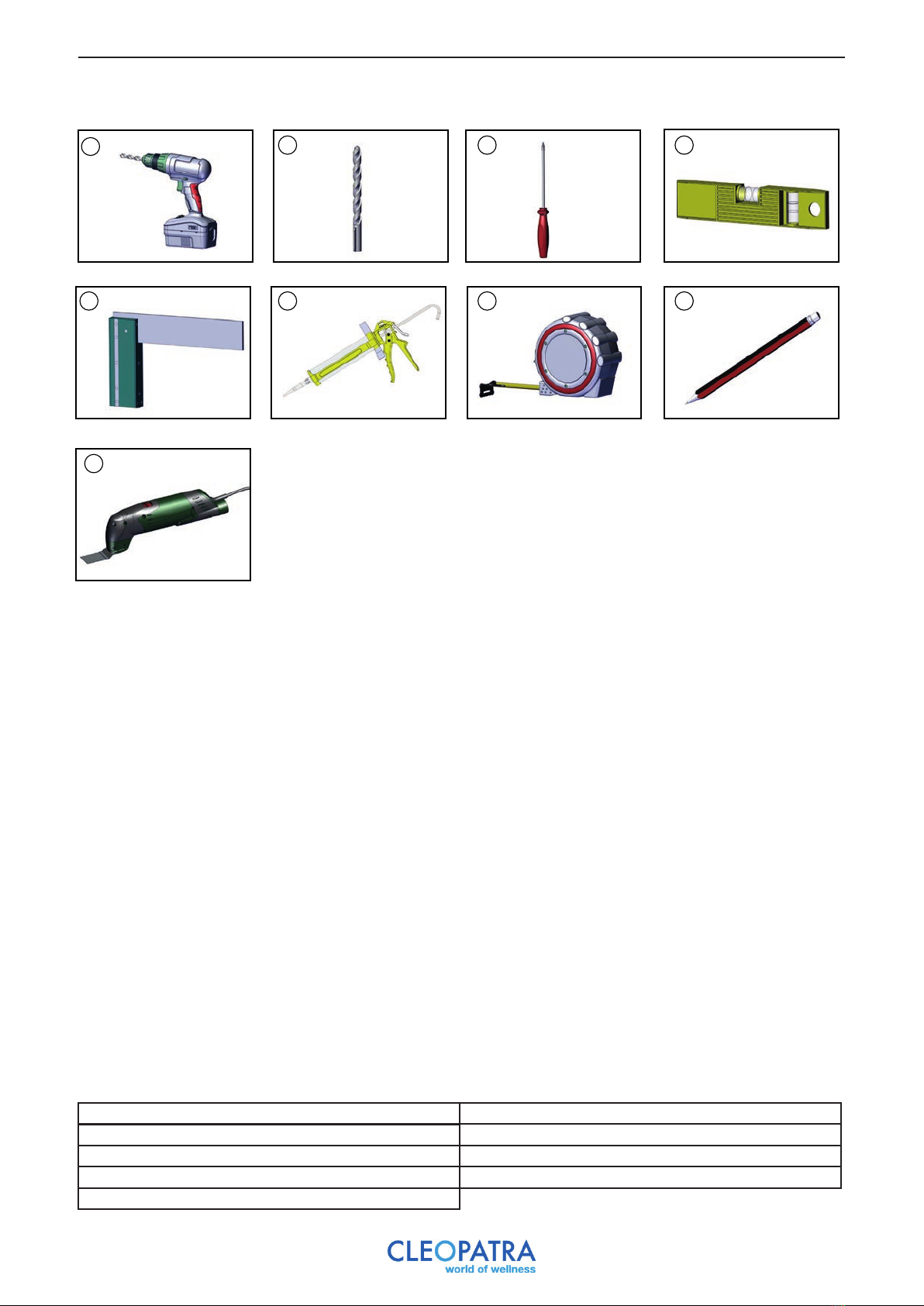

3 Required tools and materials
3: Screwdriver (cross)
2: Drill set
6: Kit gun1: Drill
4: Spirit level
8: Pencil
5: Square
7: Tapeline
9: Multitool
2 3
14
6 75 8
9

7

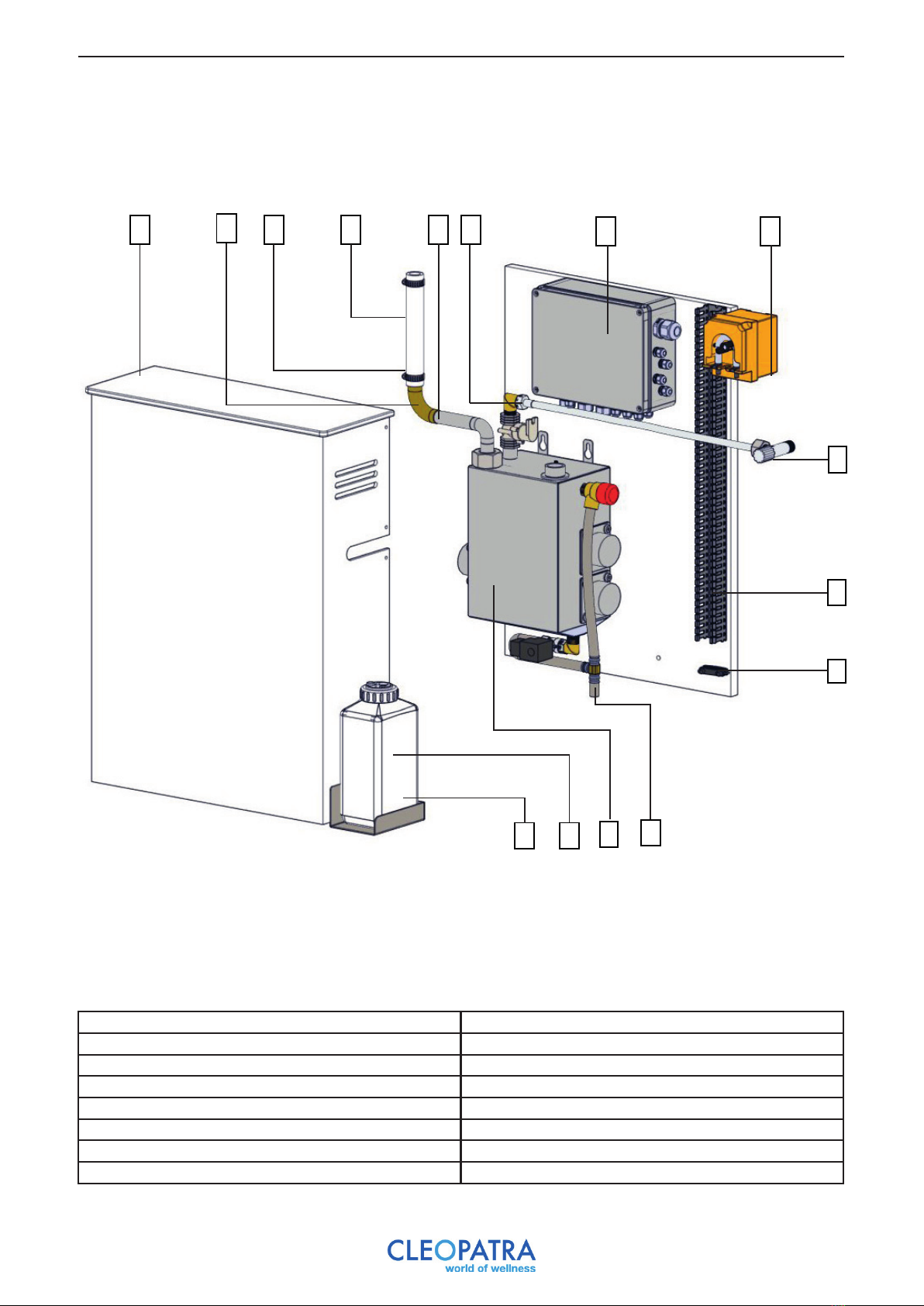

4 Overview steam generator
A: Casing
E: Steam outlet
F: Water pipe
I: Water pipe tap
G: Control box
H: Fragrance pump*
J: Cable tray
K: Cable clamp
L: Drain (DO NOT DEFORM)
*Only applicable with the optional fragrance dispenser
AG
CF
I
J
H
K
O N M
M: Steam generator
N: Fragrance reservoir*
O: Fragrance reservoir holder*
L
D
B
B: Steam outlet knee fitting
C: Hose clamp
D: Flexible hose
E

8

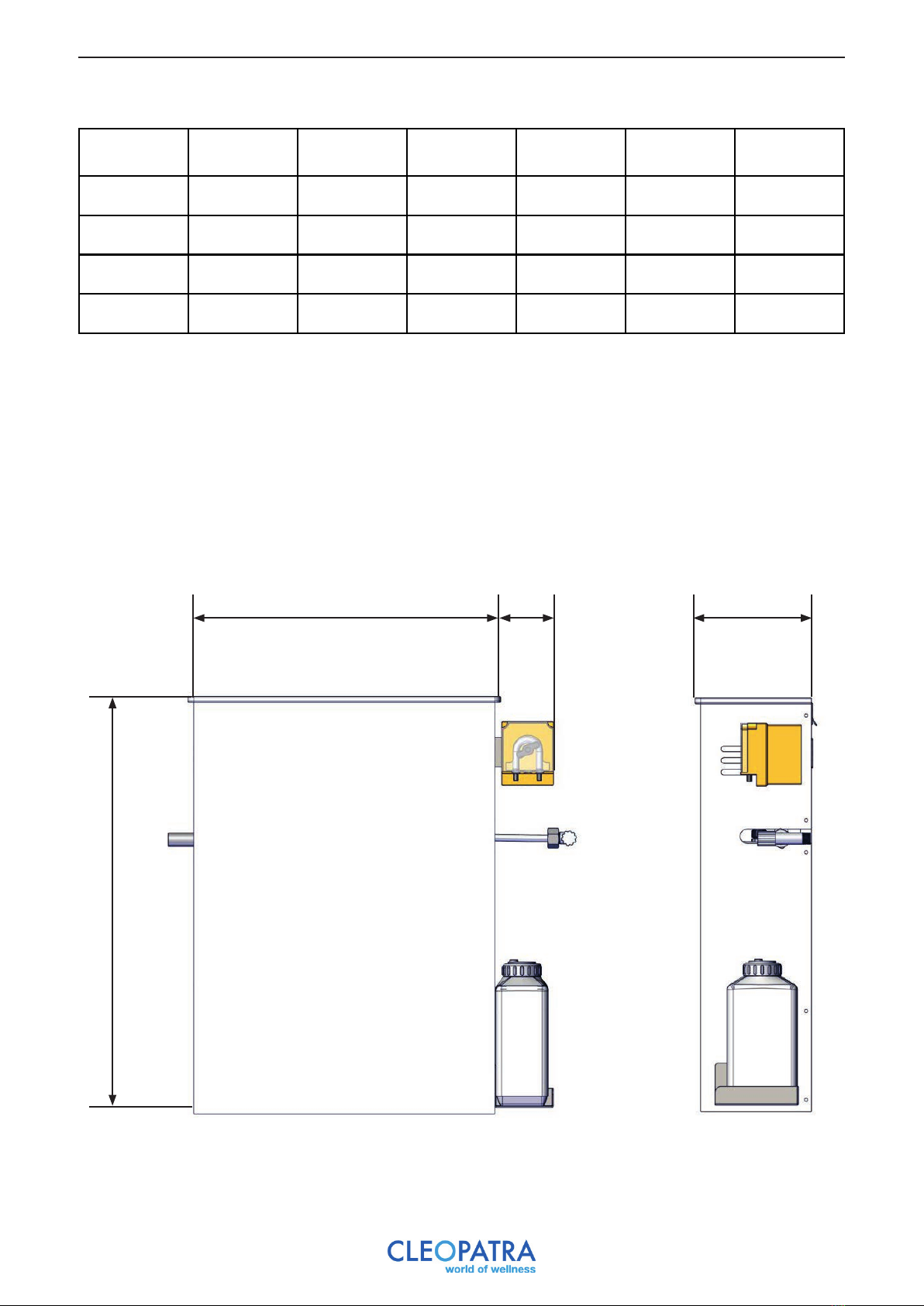

5 Steam generator dimensions
Power
(kW)
A
(mm)
B
(mm)
C
(mm)
D*
(mm)
Weight
(kg)
3532 710 190 90 +/-17 kg
4.5 532 710 190 90 +/-17 kg
6532 710 190 90 +/-17 kg
9532 710 190 90 +/-17 kg
A
B
C
D
*Only applicable with the optional fragrance dispenser
Steam outlet
(Ø)
22
22
22
28

9
6 Installation in the technical area
1
Use the minimum distances as shown in the drawing.

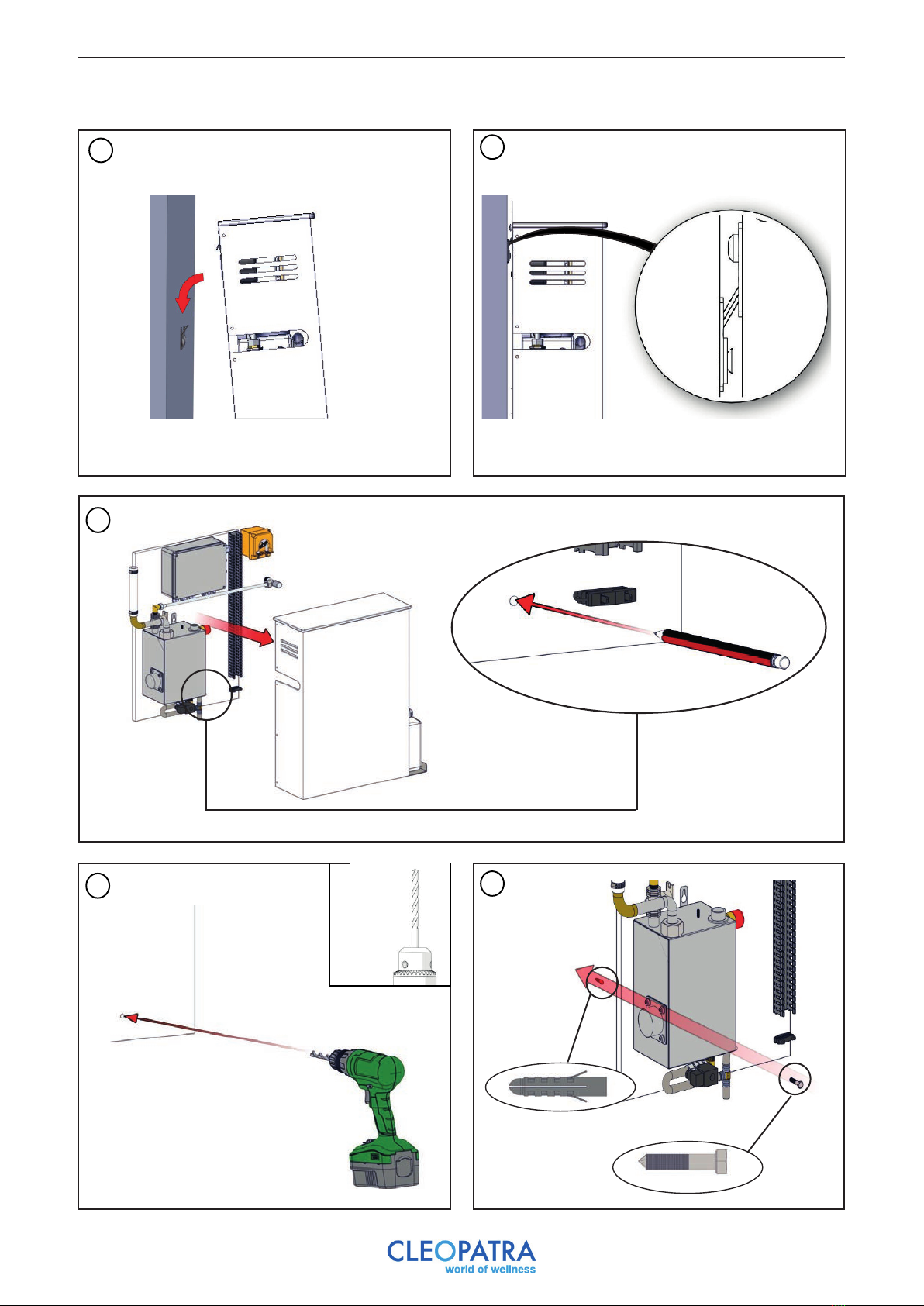

7 Mounting on the wall
12
3 4
200 mm
200 mm
100 mm
XX: Space for water drainage and siphon

10
56
7
89
m8
8mm

11
8 Water connection and waste water
Air must flow freely into the drain.
Drain
Drain
Air Air
Maximum water pressure: 10 bar / 1 MPa
Water pressure when working: max. 1 bar
Water temperature: min. 5 ˚C
Recommended water temperature: < 20 ˚C
Connections: G 1/2 external
Desired installation conditions:
- Maximum ambient temperature: + 40 ˚C
- Minimum ambient temperature: + 5 ˚C
- Maximum humidity: 80% not condensing
- Main voltage: -8% + 10% P
- Maximum pressure steam cylinder exit: 100 mm water
Water quality: The Cleo Steam Brain generators can use both hard and soft water.
Recommended is untreated tap water.
Water hardness: The water hardness is measured to the international Millimol / l calcium and
magnesium ions per liter (former DH).
Soft water: < 1.3 mmol/l
Medium hard water: 1.3 - 2.5 mmol/l > 7 DH
Hard water: 2.5 - 3.8 mmol/l > 14 DH
Very hard water: > 3.8 mmol/l > 21 DH
The water drainage must be brought to the drain.
12

12
The electrical connection may only be carried out by a qualified electrician. For the electrical
installation the current applicable VDE, country specific and EU regulations must be observed.
All installation and test activities must be carried out by a qualified electrician and according to the latest
standards. Electrical outlets must be equiped with a breaker. The electricity network (230 VAC 50Hz or 400 VAC
50 Hz) to which components are connected must be equipped with a 30 mA fault current protector (earth
leakage breaker), as stated in the DIN EN 60335-2-41 / VDE 0700 standard. If the electrical connection cable is
damaged, it must be replaced. Turn off the power before you start working.
Local regulations must be observed. The steam generator must be installed in an area intended for this purpose.
This area must be equipped with adequate ventilation. During installation, a multi-pole main switch must be
installed with a contact distance of at least 3 mm.
The steam bath generator belongs to “Protection class I” (electrical divices) and must be connected via an earth
leakage breaker. The steam generator must be connected correct in the same way as all Class I devices.
Components that have a higher voltage than 12V must be installed out of reach of people for safety reasons. The
electricity scheme is attached. All connections must be done according to this scheme, respecting all regional and
national regulations. The work may only be carried out by a qualified electrician.
In the electrical scheme the maximum connection value of the external components is shown. These values may
not be exceeded. No modification may be made to the original wiring. External components may only be
connected to the appropriate clamps.
Connect all cables in accordance with NEN 1010.

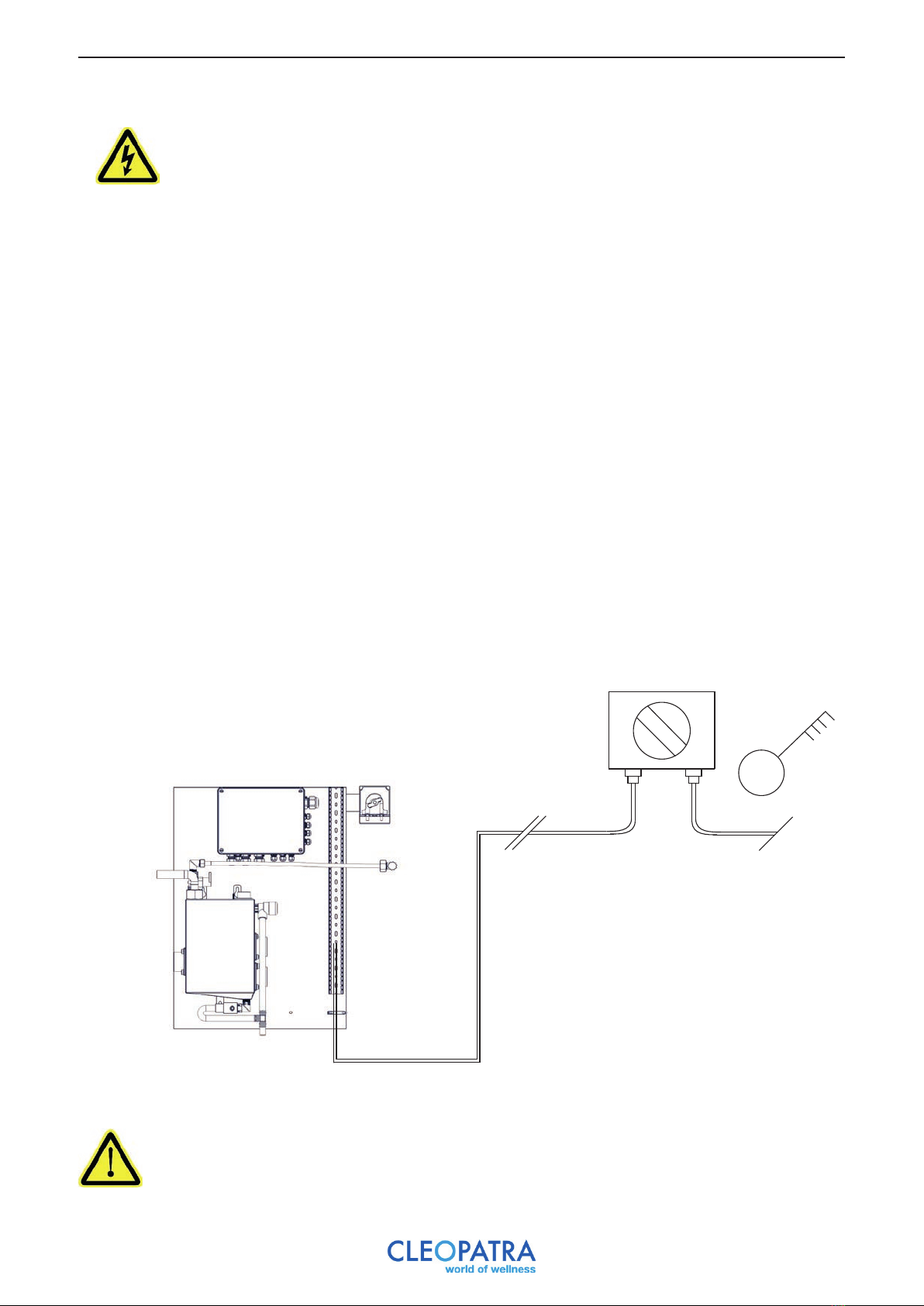

9 Electrical connection
Circuit breaker
(Not included in delivery)
Electricity supply 230 / 400 V

13
Overview of electrical connections.
A power cable of +/- 2 meters is included and connected.
Connect the Cleo Steam Brain to the power supply according to the scheme below:
Power Connection Electricity
3 kW 230VAC-1N-50/60Hz 13A
4.5 kW 400VAC-1N-50/60Hz 13A
6 kW 400VAC-1N-50/60Hz 13A
9.1 Next steps: electrical connections
9 kW 400VAC-1N-50/60Hz 13A
3 kW
4.5/6/9 kW
Junction box Generator
Brown
PE NL1
PE NL1
PE NL1
PE NL1
L2 L3 L2 L3
Blue
Yellow/Green
Brown
Blue
Yellow/Green
Black
Grey
Black
Grey
Shutting down
Shutting down

14

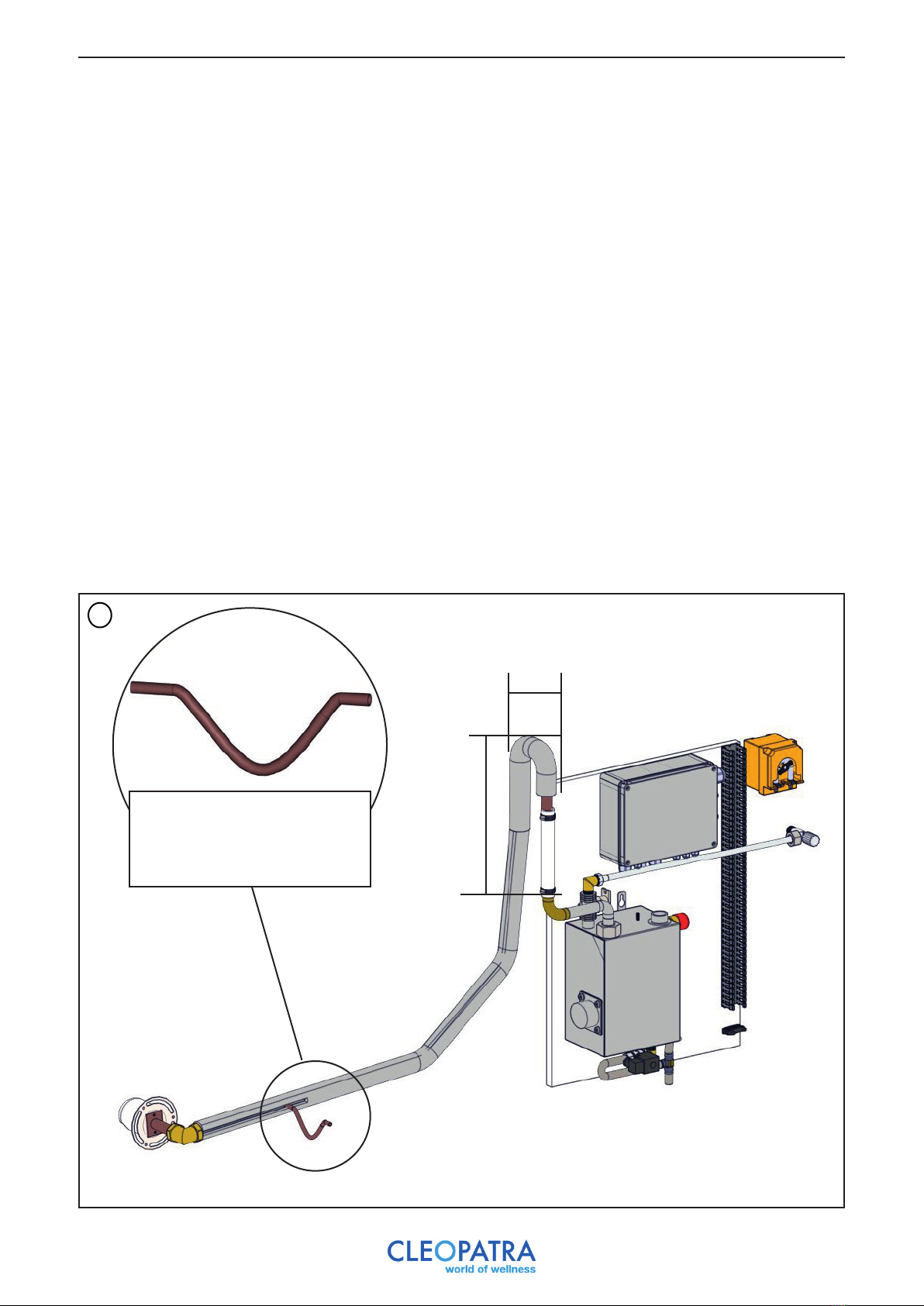

10 Steam pipe
1
The steam pipe must always be made of an isolated copper pipe with a specified minimum diameter. This is 22
mm for generators up to 6 kW. At 9 kW a pipe diameter of 28 mm is used. The steam line is connected to the
generator by means of the supplied rubber, steam hose and the supplied brass bend. It is forbidden to use knees
in the steam pipe. All bends must be carried out with a minimum radius of 50 mm. A knee is only used for the
direct steam inlet in the cabin.
The steam pipe must always be placed at least 600 mm upwards to prevent the flow of hot water drops. The
maximum length of a steam pipe is 3 meters. Make sure the steam pipe runs down to two sides: the steam outlet
and the steam generator. In this way no so-called ‘saggers’ are created, so that gurgling noises can not arise from
stagnant water.
When the installation is provided with a fragrance dispenser, make sure that this pipe does not have any ‘sagger’
in which fragrance remains. For the quality and longtivity of the fragrance it is important that it can flow
directly downwards to the inlet piece. A small ‘curved siphon’ (see drawing) in the inlet piece guarantees the
correct operation.
> 600 mm
> 50 mm
Euca / Fragrance connection
piece preferably near the
steam inlet and accessible

15
11 Overview of sensors
B: Built-in part sensor
C: Safety sensor
A: Tube input for the purpose of putting in flexible tube
A
B
C D
D: Temperature sensor
12 Overview operation
A: iBox for Steam Brain
B: Steam Brain control
C: Rotary knob Steam Brain
A CB
10107000
10107100
10107200

16

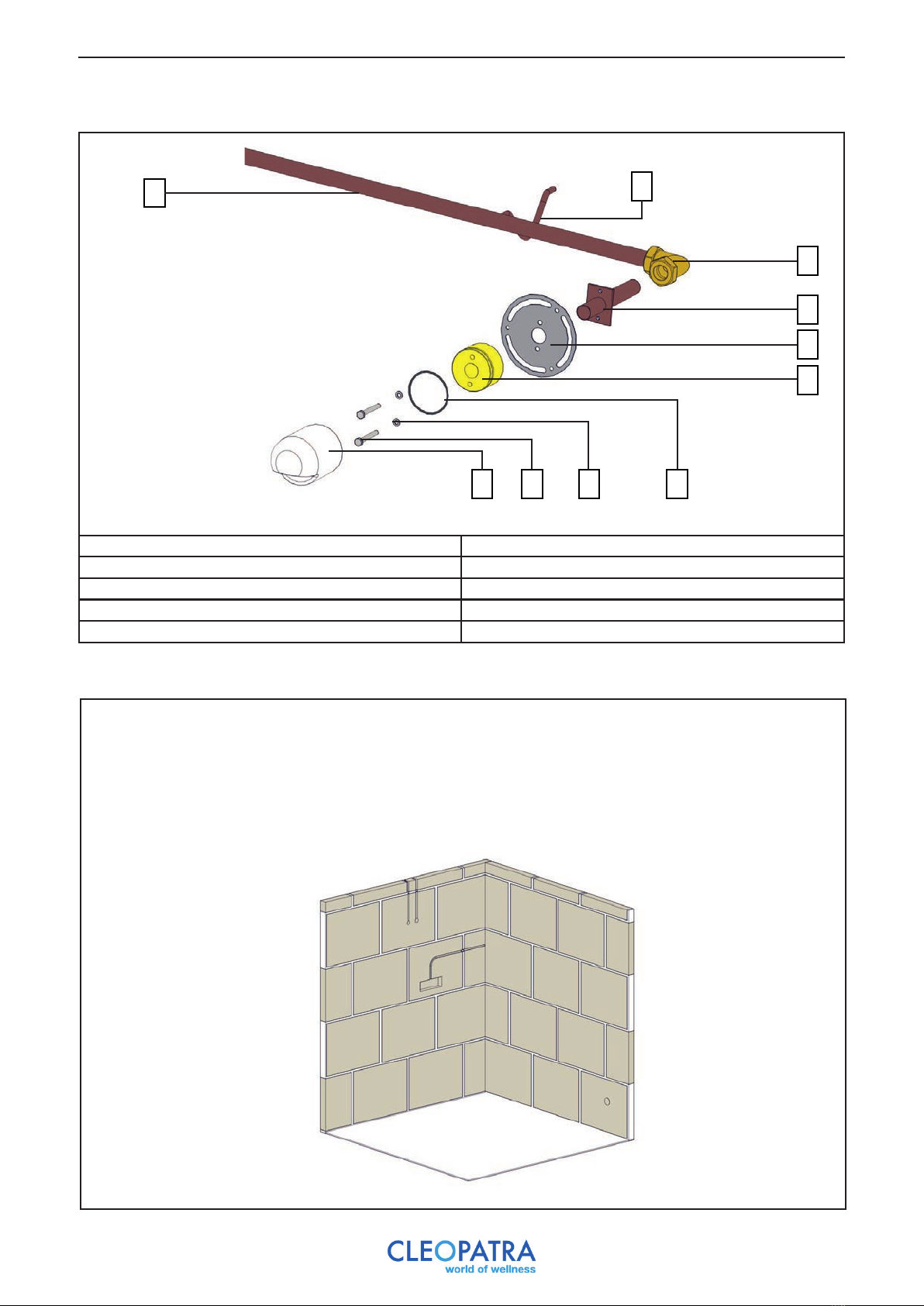

13 Overview of steam inlet
AB
C
D
F
E
I H G J
14 Placing components in the cabin
A: Brass pipe Ø 22mm
B: Siphon for fragrance application
C: Knee piece
D: Coupling tube
E: Wall plate
F: Steam outlet
G: O-ring
H: Ring m6
J: Steam hood
I: Bolt m6x50

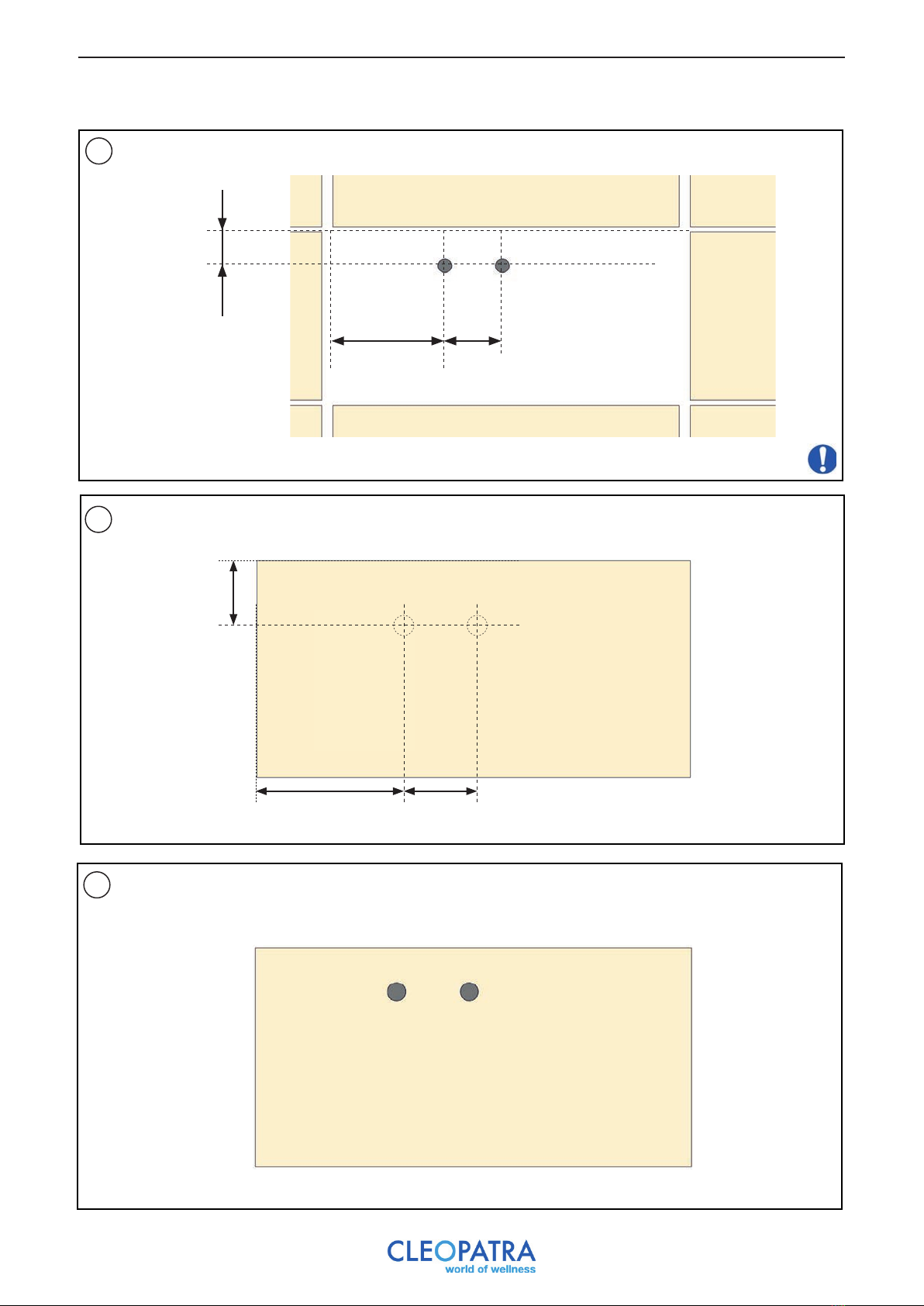

To make clear how the components can be placed in a cabin, we give an example. The cabin in the
example is made up of aerated concrete blocks.
First indicate the position of the various components and then cut the recesses as they are
indicated.

17
1
2
Drill two recesses for the
pipes (for the cables) and
the built-in part for the control.
Drill two recesses for the pipes
(for the cables) and the built-in
parts for the safety sensor and
the temperature sensor.
Min. depth: 40mm
Ø 35mm
Min. 100mm
3Drill a recess for the pipe for the
steam inlet.
Min. 150 mm
Max. 180 mm
from the floor
surface
Min. 70 mm
14.1 Explanation recess holes
Always keep a radius of 100 mm
around a sensor.
Sensors should be placed 1.8
meters from the floor surface
260 mm
95 mm
Min. depth: 50mm

18
2
1Assemble 2x:
1 Built-in part sensor
2 Tube input
3 Cable tube
1
2
3
14.2 Explanation laying cables
4Place the piping of the steam inlet through the
milled hole.
Guide the cable through the hole in the template.
3Pull the extension cable through the cable tube to the steam generator.
Make sure there is at least 10 cm of play in the cable.
10 cm
Pay attention!

19
15 Finishing
Stuc de wand
1Plaster the wall and attach the steam outlet with o-ring to the wall plate.
Provide the back of the steam outlet with kit.
5Place the piping of the steam inlet through the recess.
When finishing the walls, part of the steam outlet must be placed after plastering is done.
Next, tile the rest of the room to install the remaining parts.

20
1
15.1 Placing sensors
Measure the distances to the center lines of the hole.
61 mm
100 mm194 mm
All distances serve as an example
2
3
Measure and mark these distances on the tile.
Cut off 2x a hole in the tile with drill Ø25 and place it in the wall.
100 mm194 mm
61 mm
