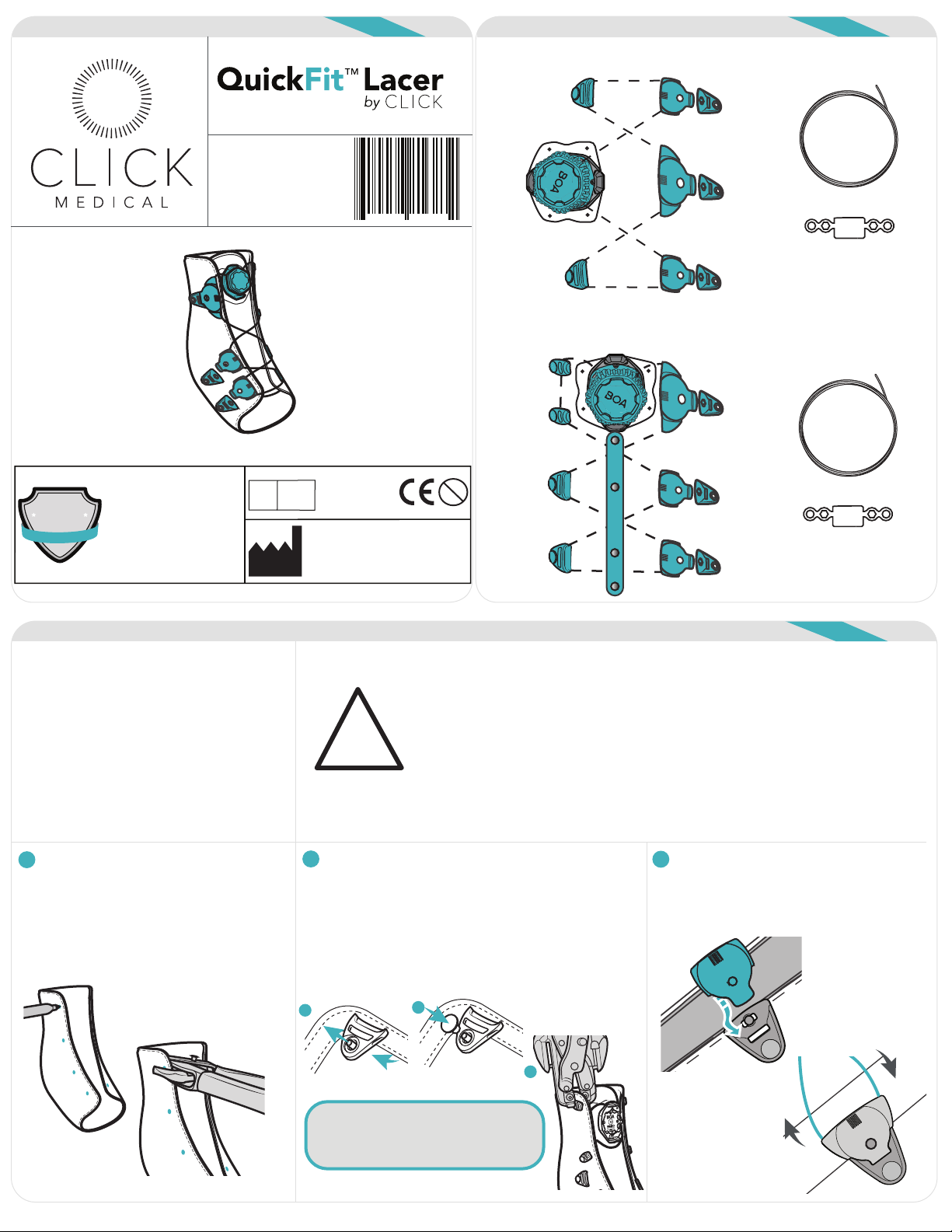

Click Medical QuickFit Lacer User manual

AFO and Boot Configuration
Advisory:
Large Releasing
Guide
Lace Locks
Boa®Reel
+
Reel Base
Lace x 1.3m
Webbing
Paired Rivet
Guides
Small Releasing
Guide x 2
Large Rivet
Guides x 2
Cuff Configuration
Large Releasing
Guide
Boa®Reel
+
Reel Base
Small Releasing
Guide x 2
Large Rivet
Guides x 2
Recommended Tools:
• QuickFit™ Tool TL-001
• QuickFit™ Rivet Pack SP1040
• Scissors
• Marker Pen
Lace Locks
Lace x 1.3m
2 a. Attach guides, reel base, and webbing
by inserting male rivet from inside
device.
b. Apply rivet cap by hand.
c. After verifying fit, permanently set
the rivets using the QuickFit tool.
1 Determine guide and reel
locations using configurations
listed above.
Punch 1/8" holes using the
QuickFit tool.
ab
c
3 Attach releasing guides to
riveted base.
Feed lace through all guides
and webbing.
Revised 2019
Size: Large
Releasing Lacer
OK0165-230
For help and video instructions, visit clickmedical.co/quickfit-lacer
WARRANTY
clickmedical.co/terms/#warranty
US customers contact
Click Medical directly:
[email protected]
Help Line: +1.970.670.7012
International customers,
please contact your
local distributor
Click Medical, LLC
1205 Hilltop Parkway, W101
Steamboat Springs, CO,
80487, USA
[phone]
EC REP
MDSS GmbH
Schiffgraben 41
30175 Hannover,
Germany
6
W
A
R
R
A
N
T
Y
MONTHS
2
Must be installed by a trained professional.
Lace will wear. At minimum, inspect monthly.
Overtightening could reduce circulation.
Do not use on patients with nerve issues.
Keep lace away from sharp edges.
For advisories in other languages, visit clickmedical.co/advisories.
!
NOTE: You can lightly test the congu-
ration on your patient for function
prior to permanently setting the rivets.
6 14458 81683 2

V.aV4O
10cm to 15cm
+ 3cm
5 Press down on reel to ensure it is closed.
On back side of reel, twist dial to align arrows.
6 Feed lace through top exit port and pull through rear cartridge window. Repeat for opposite side lace.
Assure lace is correctly inserted in reel.
Hold lace lock with pliers. Push lace
through back of hole, then loop around
backside and through the second hole.
Lace tail should be 2.5-5.0mm.
8 Pull lace tight to set lace lock. Flex lace lock back and forth to break
off connector. Pull lace firmly into reel. Ensure lace lock is not visible.
Repeat for opposite lace.
9 Insert reel into base by aligning the notch with the #1 on the
mounting plate and pushing into place. Then turn reel counter
clockwise. The #2 will then be visible. Pull outward on dial to
ensure proper installation.
10 Cycle system to test function. Push to
engage. Twist to tighten. Pull to release.
2.5 mm -
5.0 mm.
4 Check for proper lace feeding through each guide. Then
insert plaster model into the device. Pull the laces until
tight and measure 10-15cm from the upper guide to the
end of the lace. Add 3cm to each lace and cut.
7
CLICK!
