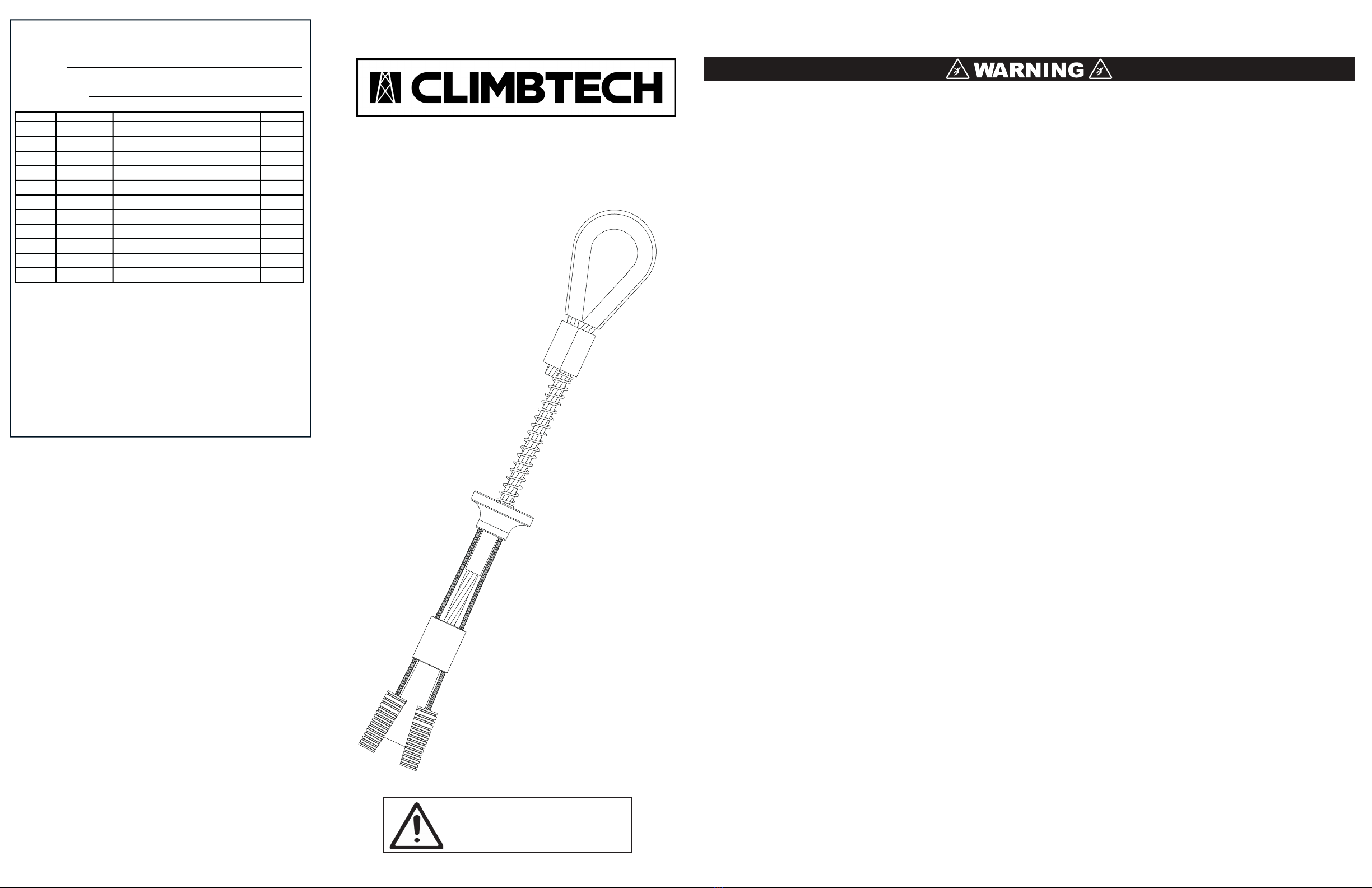

ClimbTech FBAM47N User manual

User Instructions must always be available to the user and are not to be removed except by the user of this equipment. For proper use, see
supervisor, User Instructions, or contact the manufacturer.
Compliant fall protection and emergency rescue systems help prevent serious injury during fall arrest. Users and purchasers of this equipment
must read and understand the User Instructions provided for correct use and care of this product. All users of this equipment must understand the
instructions, operation, limitations and consequences of improper use of this equipment and be properly trained prior to use per OSHA 29 CFR
1910.66 and 1926.503 or applicable local standards.
Misuse or failure to follow warnings and instructions may result in serious personal injury or death.
PURPOSE
The FBAM47N is an anchorage connector designed to function as an interface between the anchorage and a fall protection, work positioning, rope
access, or rescue system for the purpose of coupling the system to the anchorage. Any references to “anchorage connector” in this manual include,
and apply to, the FBAM47N.
USE INSTRUCTIONS
1. A user must be of sound mind and body to properly and safely use this equipment in normal and emergency situations. Users
must have a physician ensure they are clear of any medical conditions that may aect the proper and safe use of this equipment
in normal and emergency situations.
2. Before using a personal fall arrest system, user must be trained in accordance with the requirements of OSHA 29 CFR 1910.66 in
the safe use of the system and its components.
3. Use only with ANSI/OSHA compliant personal fall arrest or restraint systems. The anchorage must have the strength capable
of supporting a static load, applied in the directions permitted by the system, of at least 10,000-lbf (44kN) in the absence
of certication.
4. The user shall be equipped with a means of limiting the maximum dynamic forces exerted on the user during the arrest of a fall
to a maximum of 8 kN (1800-lbf).
5. Use of this product must be approved by an engineer or other qualied person to be compatible with any and all structural
& operational characteristics of the selected installation location and system to be connected to this anchorage connector.
6. The anchorage connector must be inspected prior to each use for wear, damage, and other deterioration. If defective
components are found the anchorage connector must be immediately removed from service in accordance with the
requirements of OSHA 29 CFR 1910.66 and 1926.502.
7. The anchorage connector should be positioned in such a way that minimizes the potential for falls and the potential fall distance
during use. The complete fall protection system must be planned (including all components, calculating fall clearance and
swing fall) before using.
8. A rescue plan, and the means at hand to implement it, must be in place that provides the prompt rescue of users in the event of
a fall, or assures that users are able to rescue themselves.
9. After a fall occurs the anchorage connector must be removed from service and destroyed immediately.
USE LIMITATIONS: The anchorage connector shall not be used outside its limitations, or for any purpose other than that for which it is
intended.
1. The anchorage connector is designed for single user, with a capacity up to 310 lbs (140 kg) including
clothing, tools, etc.
2. The anchorage connector may only be loaded as shown under INSTALLATION.
3. The anchorage connector is designed to be used in temperatures ranging from -40ºF to +130ºF (-40°C to +54°C).
4. Do not expose the anchorage connector to chemicals or harsh solutions which may have a harmful eect.
5. Do not alter or modify this product in anyway.
6. Caution must be taken when using any component of a fall protection, work positioning, rope access, or rescue system near
moving machinery, electrical hazards, sharp edges, or abrasive surfaces, as contact may cause equipment failure, personal
injury, or death.
7. Do not use/install equipment without proper training by a“competent person”as defined by OSHA 29 CFR 1926.32(f).
8. Do not remove the labeling from this product.
9. Additional requirements and limitations may apply depending on anchorage type and fastening option utilized for installation.
All placements must be approved by an engineer or other qualied person.
10. This anchorage connector should not be used as part of a horizontal lifeline system that has not been designed and or
approved to be used with 10,000-lbf anchorage connectors.
11. The anchorage connector should only be used for personal fall protection and not for lifting equipment.
COMPATIBILITY LIMITATIONS
Anchorage connector must only be coupled to compatible connectors. OSHA 29 CFR 1926.502 prohibits snaphooks from being engaged to certain
objects unless two requirements are met: it must be a locking type snaphook, and it must be “designed for” making such a connection. “Designed
for” means that the manufacturer of the snaphook specifically designed the snaphook to be used to connect to the equipment listed. The following
connections must be avoided, because they can result in rollout* when a nonlocking snaphook is used:
• Direct connection of a snaphook to horizontal lifeline.
• Two (or more) snaphooks connected to one D-ring.
• Two snaphooks connected to each other.
• A snaphook connected back on its integral lanyard.
• A snaphook connected to a webbing loop or webbing lanyard.
• Improper dimensions of the D-ring, rebar, or other connection point in relation to the snaphook dimensions that would allow the
snaphook keeper to be depressed by a turning motion of the snaphook.
*Rollout: A process by which a snaphook or carabiner unintentionally disengages from another connector or object to which it is
coupled. (ANSI Z359.0-2007)
MAINTENANCE, CLEANING AND STORAGE
Cleaning periodically will prolong the life and proper functioning of the product. The frequency of cleaning should be determined by inspection and
by severity of the environment. Clean with compressed air and/or a sti brush using plain water or a mild soap and water solution. Do not use any
corrosive chemicals that could damage the product. Wipe all surfaces with a clean, dry cloth and hang to dry, or use compressed air. When not in use,
store anchorage connectors in a cool, dry, clean environment, out of direct sunlight and free of corrosive or other degrading elements.
Read This Instruction Manual Carefully Before Using This Equipment.
WARNING: ALL PERSONS USING THIS EQUIPMENT MUST
READ AND UNDERSTAND ALL INSTRUCTIONS. FAILURE TO DO
SO MAY RESULT IN SERIOUS INJURY OR DEATH. USERS SHOULD
BE FAMILIAR WITH PERTINENT REGULATIONS GOVERNING THIS
EQUIPMENT. ALL INDIVIDUALS WHO USE THIS PRODUCT MUST
BE PROPERLY INSTRUCTED ON HOW TO USE THE DEVICE. AVOID
CONTACT WITH PHYSICAL HAZARDS (THERMAL, CHEMICAL,
ELECTRICAL, ETC.). MAKE ONLY COMPATIBLE CONNECTIONS.
Mining Bolt Anchor
10,000-lbf / 44kN
Model: FBAM47N
Assembled in USA
V2.0-A
46-47mm
ONLY
INSPECTION AND MAINTENANCE LOG
MODEL NUMBER:
DATE OF MANUFACTURE:
Part Number Comments Inspector Name
Inspection:
Ocial periodic inspection must be made at least annually. The inspection must be
performed by a qualied person other than the intended user. If severe weather or
conditions exist then inspections must be carried out more frequently. All inspection
results must be logged in the space provided above.
1. Inspect unit for visible signs of damage or wear that could aect operation. For
example: kinked or frayed cables.
2. Make sure all labeling is axed to the unit.
3. Check spoons and end termination operate smoothly with no metal burrs.
4. Inspect and clean rock bolt for dirt and debris.
5. Record inspection results in the space provided above.
* If any damage that could aect the strength or operation of the device,
or unsafe conditions are found, proper disposal is required. The anchorage
connector must be rendered unusable and then properly discarded.
Product Warranty, Limited Remedy and Limitation of
Liability
WARRANTY: THE FOLLOWING IS MADE IN LIEU OF ALL WARRANTIES
OR CONDITIONS, EXPRESS OR IMPLIED, INCLUDING THE IMPLIED
WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE. Equipment oered by ClimbTech is
warranted against factory defects in workmanship and materials for a
period of one year from date of purchase.
LIMITED REMEDY: Upon notice in writing, ClimbTech will repair or
replace all defective items at ClimbTech’s sole discretion. ClimbTech
reserves the right to require that the defective item be returned to its
plant for inspection before determining the appropriate course of action.
Warranty does not cover equipment damage resulting from wear, abuse,
damage in transit, failure to maintain the product or other damage
beyond the control of ClimbTech. ClimbTech shall be the sole judge of
product condition and warranty options. This warranty applies only to
original purchaser and is the only warranty applicable to this product.
Please contact ClimbTech technical service department for assistance.
LIMITATION OF LIABILITY: IN NO EVENT WILL CLIMBTECH BE LIABLE
FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL
DAMAGES INCLUDING, BUT NOT LIMITED TO LOSS OF PROFITS, IN
ANY WAY RELATED TO THE PRODUCTS REGARDLESS OF THE LEGAL
THEORY ASSERTED.
ClimbTech, LLC.
7303 Burleson Rd. Suite 901 Austin, TX 78744
1(512)308-6440 / www.climbtech.com
Date

Compliance: OSHA 1926.502 , OSHA 1910.66
Mining Bolt Anchor
Model: FBAM47N
Batch# FB47-XXX
MFD: MM/YYYY
Stainless Steel, Aluminium, Zinc Plated Copper, 7x19 Aircraft Cable
Pat# US 7,357,363 B2 / US 7,011,281 B2 / US 6,729,821 B2
WARNING: ALL PERSONS USING THIS EQUIPMENT MUST
READ AND UNDERSTAND ALL INSTRUCTIONS. FAILURE TO DO
SO MAY RESULT IN SERIOUS INJURY OR DEATH. USERS SHOULD
BE FAMILIAR WITH PERTINENT REGULATIONS GOVERNING THIS
EQUIPMENT. ALL INDIVIDUALS WHO USE THIS PRODUCT MUST
BE PROPERLY INSTRUCTED ON HOW TO USE THE DEVICE. AVOID
CONTACT WITH PHYSICAL HAZARDS (THERMAL, CHEMICAL,
ELECTRICAL, ETC.). MAKE ONLY COMPATIBLE CONNECTIONS.
Max Capacity: 310-lbs
10000-lbs (22 kN) MBS
Compliance: OSHA 1926.502 , OSHA 1910.66
Mining Bolt Anchor
Model: FBAM47N
Batch# FB47-XXX
MFD: MM/YYYY
Stainless Steel, Aluminium, Zinc Plated Copper, 7x19 Aircraft Cable
Pat# US 7,357,363 B2 / US 7,011,281 B2 / US 6,729,821 B2
WARNING:
ALL PERSONS USING THIS EQUIPMENT MUST
READ AND UNDERSTAND ALL INSTRUCTIONS. FAILURE TO DO
SO MAY RESULT IN SERIOUS INJURY OR DEATH. USERS SHOULD
BE FAMILIAR WITH PERTINENT REGULATIONS GOVERNING THIS
EQUIPMENT. ALL INDIVIDUALS WHO USE THIS PRODUCT MUST
BE PROPERLY INSTRUCTED ON HOW TO USE THE DEVICE. AVOID
CONTACT WITH PHYSICAL HAZARDS (THERMAL, CHEMICAL,
ELECTRICAL, ETC.). MAKE ONLY COMPATIBLE CONNECTIONS.
Max Capacity: 310-lbs
10000-lbs (22 kN) MBS
FRICTION ROCK BOLT
FB Brush
47mm
only : Installed Size:
36-39mm
IMPORTANT!!!
Installation location of the friction rock bolt to be able
to handle a 10,000-lbf (44kN) load and to be approved
by a qualied person.
PERFORMANCE:
Minimum Breaking Strength (MBS): 10,000-lbf (44kN)
Maximum Capacity: 310-lbs (140kg)
DIMENSIONS:
Weight: 1.4-lbs (635g)
Length: 17” (432mm)
Diameter 1.85” (47mm)
REGULATORY COMPLIANCE:
OSHA 1926.502, OSHA 1910.66
COMPONENT MATERIALS:
Aluminum: Trigger
Aircraft Cable: Main Cable, Activator Wire
Coated Steel: Thimble Loop
Stainless Steel: Cone, Spoons, Stop Sleeve
Zinc Plated Steel: Spring
Zinc Plated Copper: Swage
Zinc Plated Copper: Swage
TAP!!!
Warning:
Spoons should not rest
on the split of the friction
rock bolt.
DO NOT REMOVE
WARNING LABEL!
WORK SURFACE
WORK SURFACE
Free fall distance (limit) must
not exceed 6’ (1.8 m).
(ANCHOR POINT)
WARNING!!! SWING FALLS MAY OCCUR WHEN THE WORKER IS NOT DIRECTLY UNDER ANCHOR POINT.
MINIMUM CLEARANCE 3ft (1m)
DECK/FLOOR/GROUND LEVEL
All products subjected to fall arresting forces should be removed
from service immediately!

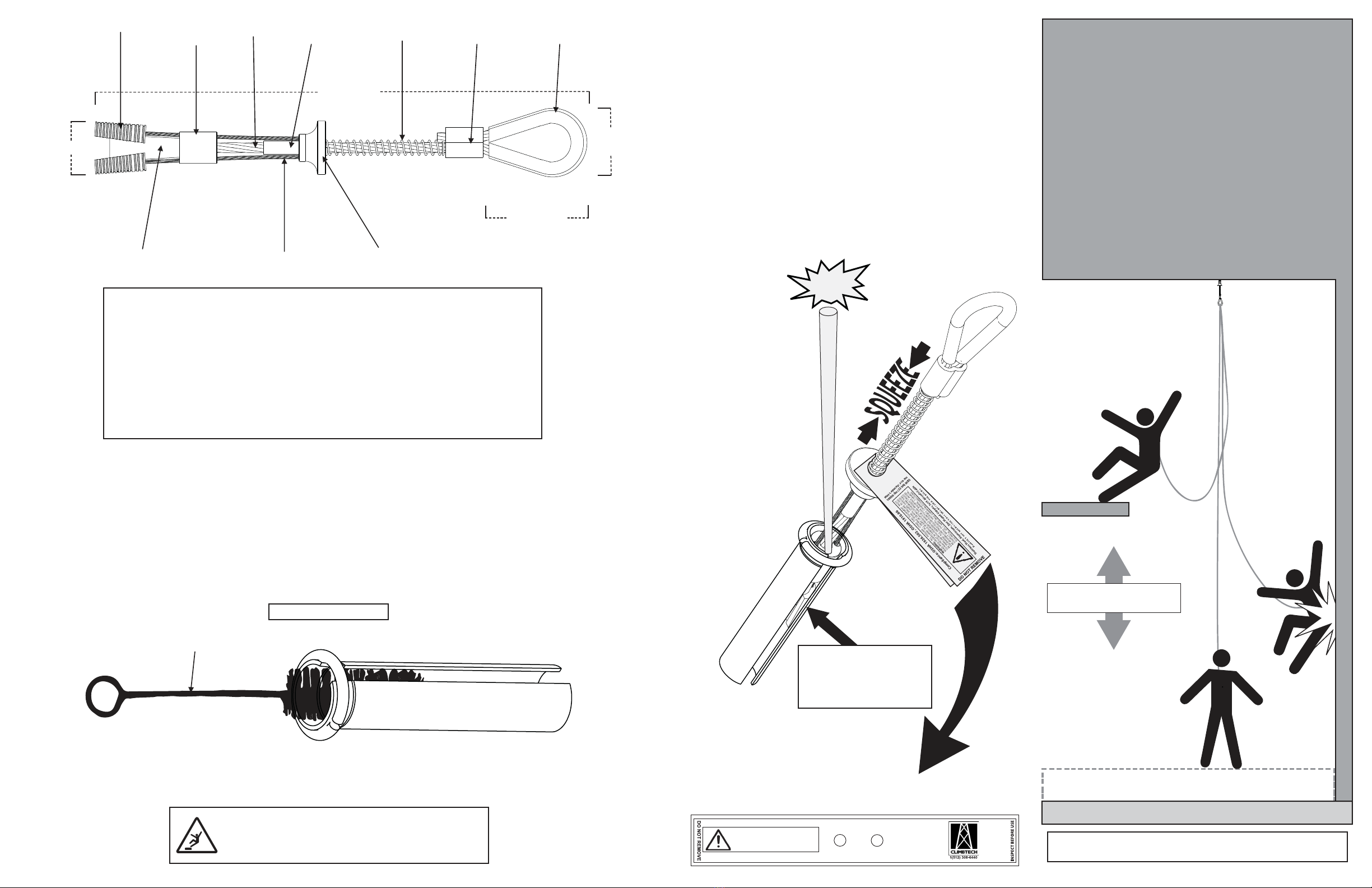

1.85 (47mm)
Spoon Cleaning Bushing
Main Cable Stop Sleeve
17” (431.8mm)
Spring Swage
Cone Trigger
Return Wire
Thimble Loop
3.0” (76mm)
2.5”
(63.5mm)
INSTALLATION:
1. Use the provided FB brush to clean and remove any debris in the friction rock bolt.
2. When placing anchorage connector, place your thumb inside the anchor loop and your rst two ngers
around the trigger. Squeeze ngers and thumb together until the trigger and spring fully compress.
3. Insert unit at least 4” (102mm) deep into friction rock bolt (do not force) and release the trigger.
4. Set the unit with a slight tug on the anchor loop.
5. The stop sleeve must always be partially inserted into the hole.
*Clean friction rock bolt with FB brush before installation.
REMOVAL INSTRUCTIONS:
1. When removing anchor, place your thumb inside the anchor loop
and your rst two ngers around the trigger. Squeeze ngers and
thumb together until the trigger and spring fully compress.
2. While squeezing the trigger pull the anchor out of the splitset.
3. If the anchor becomes stuck, insert a punch, screwdriver or other
object into the splitset until it touches the top of the cleaning
bushing.
4. Lightly tap with a hammer making sure the tool is touching the top
of the cleaning bushing while squeezing the trigger. (The cleaning
bushing should be easily visible at the edge of the hole).
5. If tool was required to remove the anchor inspect thoroughly for
damage after removal. If damage is found remove from service and
destroy immediately.
*The user shall be equipped with
a means of limiting the maximum
dynamic forces exerted on the
user during the arrest of a fall to a
maximum of 8 kN (1800-lbf).
