ClimbTech SWS100N Guide

V4.2-APatent US # 8,424,638
OPERATION AND INSTRUCTION MANUAL
Swivel Anchor Model: SWS100N
WARNING: ALL PERSONS USING THIS EQUIPMENT MUST
READ AND UNDERSTAND ALL INSTRUCTIONS. FAILURE TO DO
SO MAY RESULT IN SERIOUS INJURY OR DEATH. USERS SHOULD
BE FAMILIAR WITH PERTINENT REGULATIONS GOVERNING THIS
EQUIPMENT. ALL INDIVIDUALS WHO USE THIS PRODUCT MUST
BE PROPERLY INSTRUCTED ON HOW TO USE THE DEVICE. AVOID
CONTACT WITH PHYSICAL HAZARDS (THERMAL, CHEMICAL,
ELECTRICAL, ETC.). MAKE ONLY COMPATIBLE CONNECTIONS.

User Instructions must always be available to the user and are not to be removed except by the user of this equipment. For proper
use, see supervisor, User Instructions, or contact the manufacturer.
Compliant fall protection and emergency rescue systems help prevent serious injury during fall arrest. Users and purchasers of
this equipment must read and understand the User Instructions provided for correct use and care of this product. All users of this
equipment must understand the instructions, operation, limitations and consequences of improper use of this equipment and be
properly trained prior to use per OSHA 29 CFR 1910.66 and 1926.503 or applicable local standards.
Misuse or failure to follow warnings and instructions may result in serious personal injury or death.
PURPOSE
The SWS100N is an anchorage connector designed to function as an interface between the anchorage and a fall protection, work
positioning, rope access, or rescue system for the purpose of coupling the system to the anchorage. Any references to “anchorage
connector” in this manual include, and apply to, the SWS100N.
USE INSTRUCTIONS
1. A user must be of sound mind and body to properly and safely use this equipment in normal and emergency
situations. Users must have a physician ensure they are clear of any medical conditions that may aect the proper
and safe use of this equipment in normal and emergency situations.
2. Before using a personal fall arrest system, user must be trained in accordance with the requirements of OSHA 29
CFR 1910.66 in the safe use of the system and its components.
3. Use only with ANSI/OSHA compliant personal fall arrest or restraint systems. The anchorage must have the
strength capable of supporting a static load, applied in the directions permitted by the system, of at least 5,000-lbf
(22kN) in the absence of certication.
4. The user shall be equipped with a means of limiting the maximum dynamic forces exerted on the user during the
arrest of a fall to a maximum of 8 kN (1800-lbf).
5. Use of this product must be approved by an engineer or other qualied person to be compatible with any and
all structural & operational characteristics of the selected installation location and system to be connected to this
anchorage connector.
6. The anchorage connector must be inspected prior to each use for wear, damage, and other deterioration. If
defective components are found the anchorage connector must be immediately removed from service in
accordance with the requirements of OSHA 29 CFR 1910.66 and 1926.502.
7. The anchorage connector should be positioned in such a way that minimizes the potential for falls and the
potential fall distance during use. The complete fall protection system must be planned (including all components,
calculating fall clearance, and swing fall) before using.
8. A rescue plan, and the means at hand to implement it, must be in place that provides the prompt rescue of users
in the event of a fall, or assures that users are able to rescue themselves.
9. After a fall occurs the anchorage connector must be removed from service and destroyed immediately.
USE LIMITATIONS: The anchorage connector shall not be used outside its limitations, or for any purpose other than that
for which it is intended.
1. The anchorage connector is designed for single user, with a capacity up to 310 lbs (140 kg) including
clothing, tools, etc.
2. The anchorage connector may only be loaded as shown in the LOADING CONDITIONS DIAGRAM.
3. The anchorage connector is designed to be used in temperatures ranging from -40ºF to +130ºF (-40°C to +54°C).
4. Do not expose the anchorage connector to chemicals or harsh solutions which may have a harmful eect.
5. Do not alter or modify this product in any way.
6. Caution must be taken when using any component of a fall protection, work positioning, rope access, or rescue
system near moving machinery, electrical hazards, sharp edges, or abrasive surfaces, as contact may cause
equipment failure, personal injury, or death.
7. Do not use/install equipment without proper training by a“competent person”as defined by OSHA 29
CFR 1926.32(f).
8. Do not remove the labeling from this product.
9. Additional requirements and limitations may apply depending on anchorage type and fastening option utilized
for installation. All placements must be approved by an engineer or other qualied person.
10. This anchorage connector should not be used as part of a horizontal lifeline system that has not been designed
and or approved to be used with 5,000-lbf anchorage connectors.
11. The anchorage connector should only be used for personal fall protection and not for lifting equipment.
COMPATIBILITY LIMITATIONS
Anchorage connector must only be coupled to compatible connectors. OSHA 29 CFR 1926.502 prohibits snaphooks from being
engaged to certain objects unless two requirements are met: it must be a locking type snaphook, and it must be “designed for”
making such a connection. “Designed for” means that the manufacturer of the snaphook specifically designed the snaphook to be
used to connect to the equipment listed. The following connections must be avoided, because they can result in rollout* when a
nonlocking snaphook is used:
• Direct connection of a snaphook to horizontal lifeline.
• Two (or more) snaphooks connected to one D-ring.
• Two snaphooks connected to each other.
• A snaphook connected back on its integral lanyard.
• A snaphook connected to a webbing loop or webbing lanyard.
• Improper dimensions of the D-ring, rebar, or other connection point in relation to the snaphook dimensions that
would allow the snaphook keeper to be depressed by a turning motion of the snaphook.
*Rollout: A process by which a snaphook or carabiner unintentionally disengages from another connector or object
to which it is coupled. (ANSI Z359.0-2007)
Read This Instruction Manual Carefully Before Using This Equipment.

LOAD LOAD
LOAD
LOAD

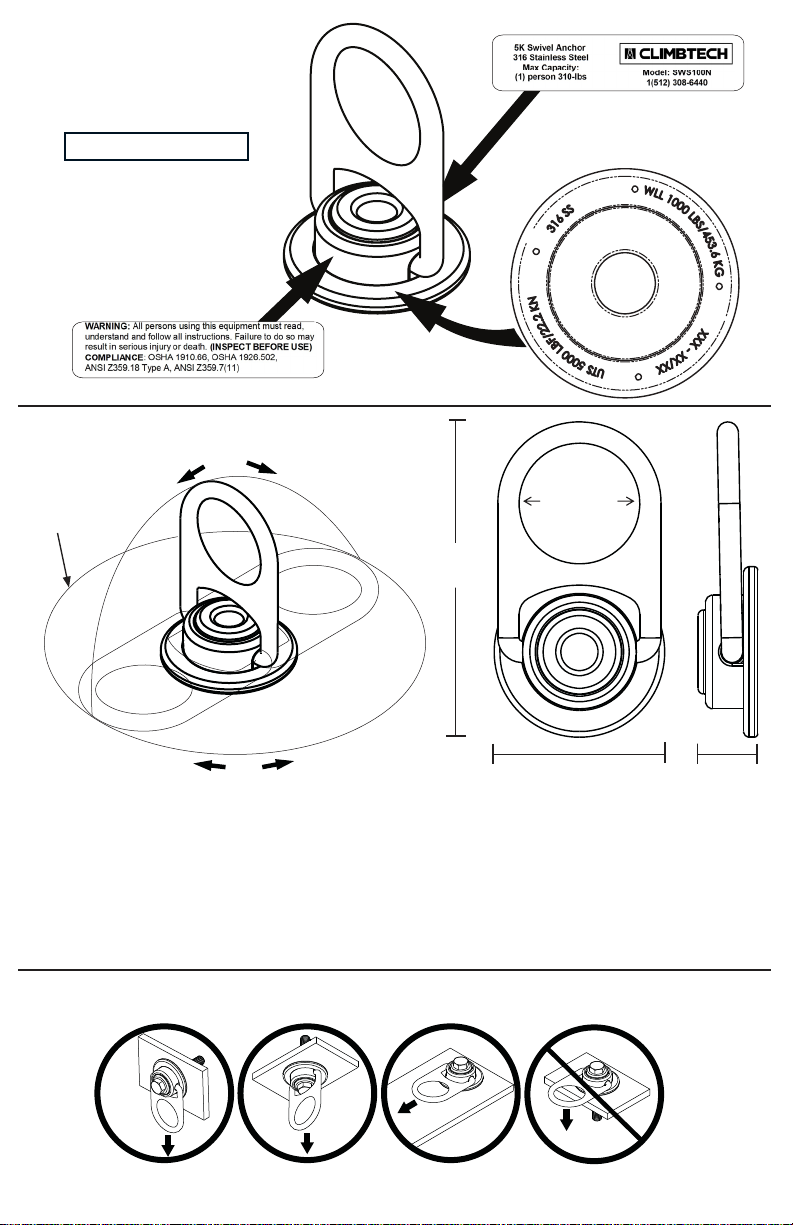

LABEL LOCATIONS
8”ø
(203.2mm)
180°
360°
5.5”
(139.7mm)
2.25”ø
(57.15mm)
3”
(76.2mm)
1”
(25.4mm)
LOADING CONDITIONS DIAGRAM
ACCEPTABLE ACCEPTABLE IMPROPER
ACCEPTABLE
Minimum Breaking Strength (MBS): 5,000-lbf (22kN)
Working Load (WLL): 1,000-lbs (454kg)
Max Capacity: 310-lbs (140kg)
Weight: 1.2-lbs (544.3g)
Materials: Stainless Steel
Regulatory Compliance: Meets or exceeds ANSI Z359.18 Type A,
ANSI Z359.7-2011, OSHA 1926.502, OSHA 1910.66

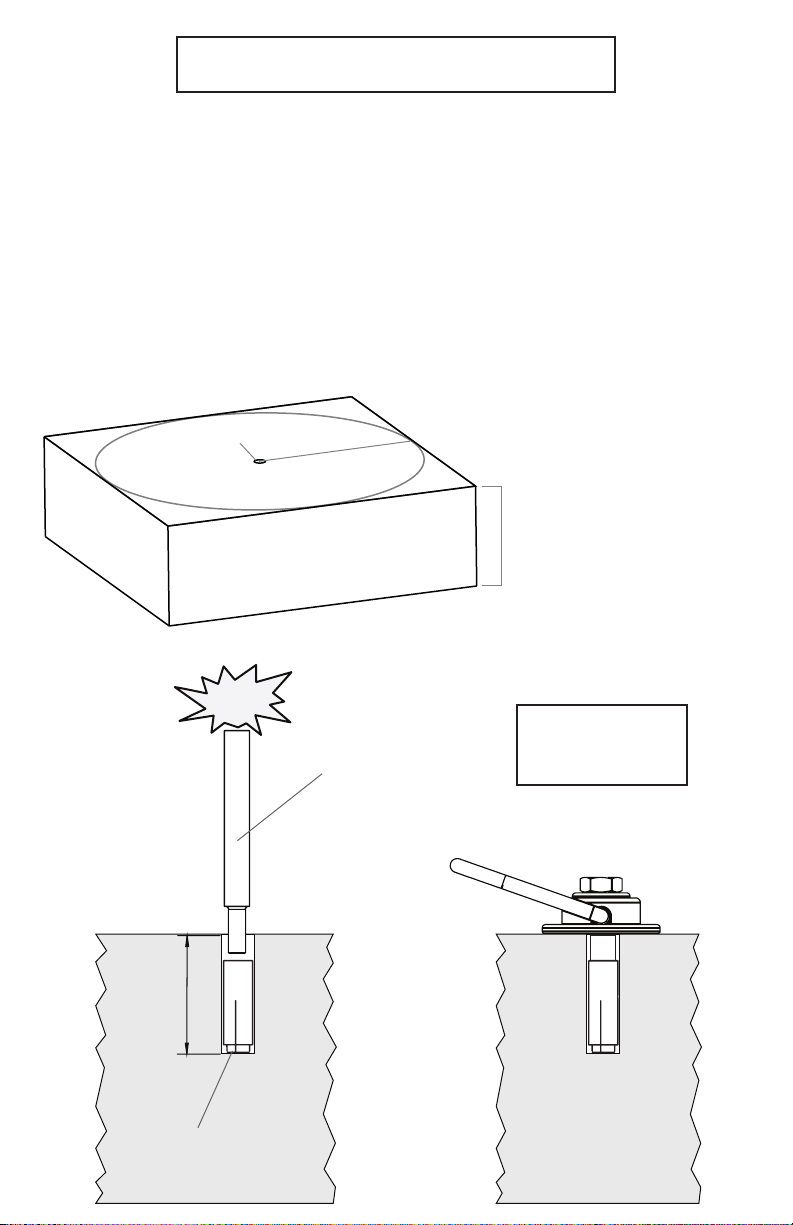

CONCRETE MOUNTING
drill 7/8” (22mm)Ø
9” (229mm)
min from any edge
7”
(178mm)
min
- Use a proper drill & bit for concrete (SDS drill bit).
- Drill a 7/8” (22mm) hole no less than 3” to 3.5“ (76mm-89mm) deep 9”(229mm)
away from any edge.
- Hole must be straight & perpendicular to surface.
- Hole must be free of debris.
- Concrete strength must be at least 3000psi (20.7MPa) and no less than
7” (178mm) thick.
- Drop expansion sleeve into hole.
- Use the Setting Tool by placing it in the hole resting on the expansion sleeve. Tap
tool until the inner blue sleeve is at the bottom of the expansion sleeve.
- Place swivel over the hole and install the bolt provided.
TAP!!!
Torque Range:
30 to 40 ft-lbs
(22-30Nm)
Setting Tool
(DNC-TOOL)
Expansion
Sleeve
3” min and 3.5” max
(76mm-89mm)
Embedment Depth

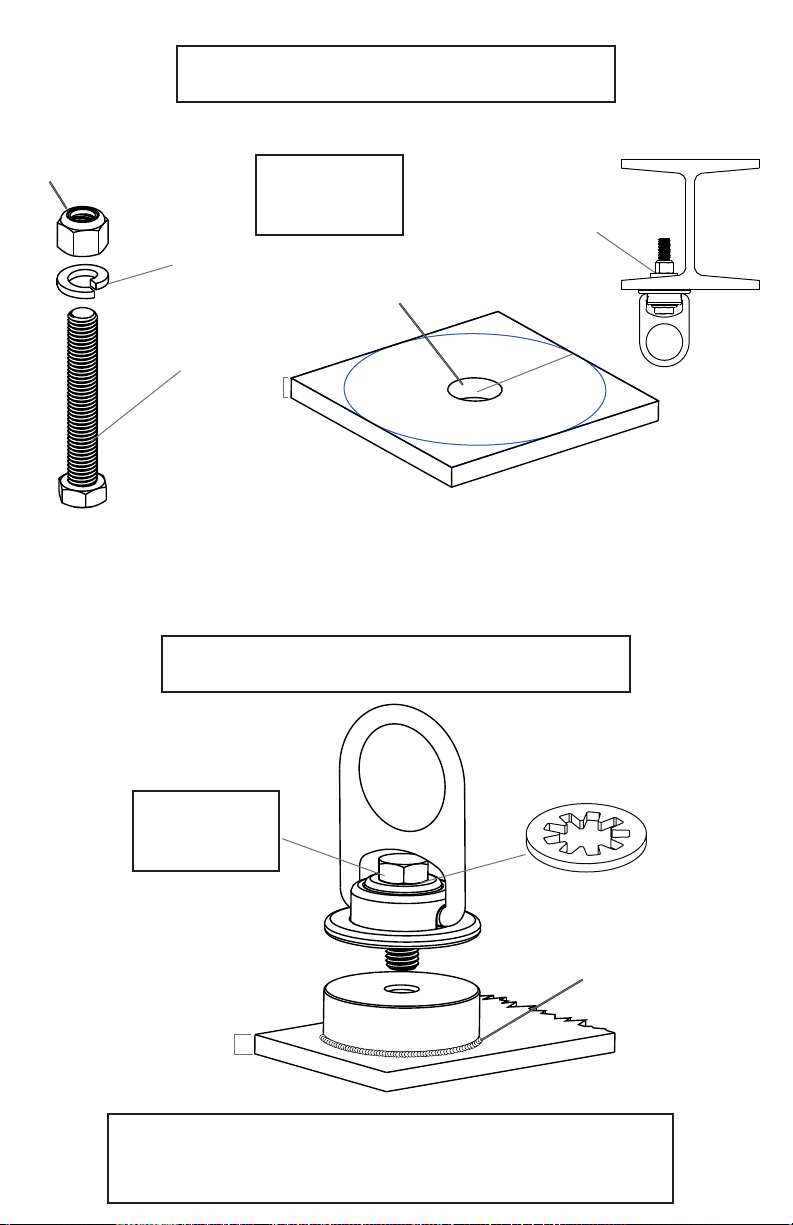

WELD ON MOUNTING
* Welding procedure must be approved by a engineer or other
qualied person to be compatible with any and all structural &
operational characteristics of the selected installation location.
STEEL MOUNTING
Lock Nut
5/8” Lock
Washer
5/8”-11x4”
Hex Bolt *
Torque Range:
75 ft-lbs
(100Nm)
.25”
(6mm)
min
drill 5/8” (16mm)Ø
* Use tapered washer with I-beams
that have tapered anges.
3”(76mm)
min from any edge
5/8”-11
* For steel applications, a grade-5, 8 (or equivalent) bolt no short-
er than 4” (100mm) with a locking nut and washer must be used.
Swivel anchor must be ush with steel surface. A 16mm bolt may
be used in place of a 5/8”-11 for metric applications.
316 Stainless Steel
5/8”-11 x 1-3/4” Bolt
Torque Range:
75 to 90 ft-lbs
(100-120Nm)
3/8” min
(9.5mm)
* Weld
Internal Tooth Lock Washer

WORK SURFACE
*All products subjected to fall arresting
forces should be removed from service
immediately!
(ANCHOR POINT)
*The structure the
anchorage is attached
to must be able to
support 5,000-lbf
(22kN) and installed
under the supervision
of a qualied person.
MINIMUM CLEARANCE 3ft (1m)
DECK/FLOOR/GROUND LEVEL

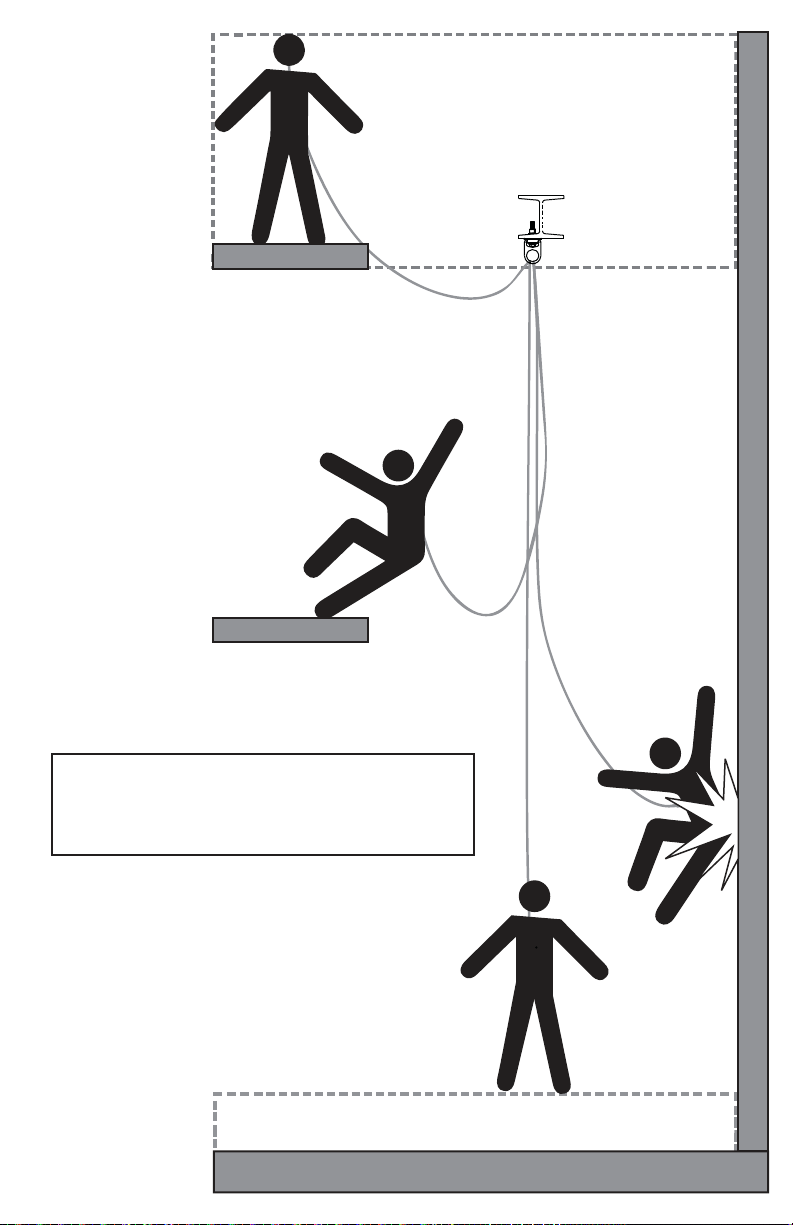

WARNING!!! SWING FALLS MAY OCCUR WHEN THE WORKER IS NOT DIRECTLY UNDER ANCHOR POINT.
*The user shall be equipped with a means of
limiting the maximum dynamic forces exerted
on the user during the arrest of a fall to a
maximum of 8 kN (1800-lbf).
WORK SURFACE

CONCRETE METALACCESSORIES
KIT CONTENTS PART NUMBER
SWS1SBA
(Steel Mounting Hardware Kit)
SWS100S
(Swivel with Steel Mounting kit)
SWS1DNC
(Concrete Hardware Kit)
SWS100C
(Swivel with Concrete Mounting Kit)
SWP100S-KIT
(Weld-on Mounting Kit)
DNC-TOOL
(Concrete Anchor Tool)
+
+
+
For more information:

Part Number Comments Inspector Name Date
Inspection:
Ocial periodic inspection must be made at least annually. The inspection must be performed by a qualied
person other than the intended user. If severe weather or conditions exist then inspections must be carried
out more frequently. All inspection results must be logged in the space provided above.
1. Inspect Swivel to make sure it is ush with mounting surface.
2. Make sure all labeling is axed to the unit.
3. Make sure the unit can rotate 360° and D-ring can ip from side to side.
4. When reusing a previously drilled hole, inspect for debris or wallowing.
5. Record inspection results in the space provided above.
*If any damage that could aect the strength or operation of the device, or unsafe condi-
tions are found, proper disposal is required. The anchorage connector must be rendered
unusable and then properly discarded.
MAINTENANCE, CLEANING AND STORAGE
Cleaning periodically will prolong the life and proper functioning of the product. The frequency
of cleaning should be determined by inspection and by severity of the environment. Clean with
compressed air and/or a sti brush using plain water or a mild soap and water solution. Do not use
any corrosive chemicals that could damage the product. Wipe all surfaces with a clean, dry cloth
and hang to dry, or use compressed air. When not in use, store anchorage connectors in a cool, dry,
clean environment, out of direct sunlight and free of corrosive or other degrading elements.
INSPECTION AND MAINTENANCE LOG
Product Warranty, Limited Remedy and Limitation of Liability
WARRANTY: THE FOLLOWING IS MADE IN LIEU OF ALL WARRANTIES OR CONDITIONS, EXPRESS OR
IMPLIED, INCLUDING THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE. Equipment oered by ClimbTech is warranted against factory defects in
workmanship and materials for a period of one year from date of purchase or rst use by the original owner.
LIMITED REMEDY: Upon notice in writing, ClimbTech will repair or replace all defective items at ClimbTech’s
sole discretion. ClimbTech reserves the right to require that the defective item be returned to its plant
for inspection before determining the appropriate course of action. Warranty does not cover equipment
damage resulting from wear, abuse, damage in transit, failure to maintain the product or other damage
beyond the control of ClimbTech. ClimbTech shall be the sole judge of product condition and warranty
options. This warranty applies only to original purchaser and is the only warranty applicable to this product.
Please contact ClimbTech technical service department for assistance.
LIMITATION OF LIABILITY: IN NO EVENT WILL CLIMBTECH BE LIABLE FOR ANY INDIRECT, INCIDENTAL,
SPECIAL OR CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO LOSS OF PROFITS, IN ANY
WAY RELATED TO THE PRODUCTS REGARDLESS OF THE LEGAL THEORY ASSERTED.
ClimbTech, LLC.
7303 Burleson Rd. Suite 901 Austin, TX 78744
1(512) 308-6440 / www.climbtech.com
MODEL NUMBER:
DATE OF MANUFACTURE:
