CLIVET SPINchiller2 Duct User manual

M01Z40E12-03 06/05/2014
SPINchiller² Duct
Installation and
operating manual
HIGH EFFICIENCY WATER COOLED LIQUID CHILLER FOR INDOOR INSTALLATION
WSA-XSC2 432-120D

Dear Customer,
We congratulate you on choosing this product
For many years Clivet has been oering systems that provide maximum comfort, together with high
reliability, eciency, quality and safety.
The aim of the company is to oer advanced systems, that assure the best comfort, reduce energy
consumption and the installation and maintenance cost for the life cycle of the system.
The purpose of this manual is to provide you with information that is useful from reception of
the equipment, through installation, operational usage and nally disposal so that this advanced
system oers the beat solution.
Yours faithfully.
CLIVET Spa
The data contained in this manual is not binding and may be changed by the manufacturer without
prior notice.
Reproduction, even is part, is FORBIDDEN © Copyright - CLIVET S.p.A. - Feltre (BL) - Italia

M01Z40E12-03 WSA-XSC2 432-120D 3
Index of contents
1 General description 4
2 Reception 6
3 Positioning 9
4 Water connections 11
5 Electrical connections 13
6 Start-up 21
7 Control 29
8 Maintenance 33
9 Decommissioning 36
10 Residual risks 37
11 Dimensional drawings 38
12 Technical information 41
13 Accessories 45
14 Alarms - Status 46

4 WSA-XSC2 432-120D M01Z40E12-03
1 General description
1.1 Manual
The manual provides correct unit installation, use and maintenance.
Pay particular attention to:
Warning, identies particularly important operations or information.
Prohibited operations that must not be carried out, that compromise the operating of the unit or may cause damage to persons or things.
• It is advisable to read it carefully so you will save time during operations.
• Follow the written indications so you will not cause damages to things and injuries people.
1.2 Preliminaries
Only qualied personnel can operate on the unit, as required by the regulation in force.
1.3 Risk situations
The unit has been designed and created to prevent injures to people.
During designing it is not possible to plane and operate on all risk situation.
Read carefully “Residual risk”section where all situation which may cause damages to things and injuries to people are reported.
Installation, starting, maintenance and repair required specic knowledge; if they are carried out by inexperienced personnel, they may cause
damages to things and injuries people.
1.4 Intended use
Use the unit only:
• for cooling/heating water or a water and glycol mix for air-conditioning only
• Keep to the limits foreseen in the technical schedule and in this manual
The manufacturer accepts no responsibility if the equipment is used for any purpose other than the intended use.
1.5 Installation
The positioning, hydraulic system, refrigerating, electrics and the ducting of the air must be determined by the system designer in accordance
with local regulations in force.
Follow local safety regulations.
Verify that the electrical line characteristics are in compliance with data quotes on the unit serial number label.
1.6 Maintenance
Plan periodic inspection and maintenance in order to avoid or reduce repairing costs.
Turn the unit o before any operation.
1.7 Modication
All unit modications will end the warranty coverage and the manufacturer responsibility.
1.8 Breakdown/Malfuction
Disable the unit immediately in case of breakdown or malfunction.
Contact a certied service agent.
Use original spares parts only.
Using the unit in case of breakdown or malfunction:
• voids the warranty
• it may compromise the safety of the unit
• may increase time and repair costs

M01Z40E12-03 WSA-XSC2 432-120D 5
1.9 User training
The installer has to train the user on:
• Start-up/shutdown
• Set points change
• Standby mode
• Maintenance
• What to do / what not to do in case of breakdown
1.10 Data update
Continual product improvements may imply manual data changes.
Visit manufacturer web site for updated data.
1.11 Indications for the User
Keep this manual with the wiring diagram in an accessible place for the operator.
Note the unit data label so you can provide them to the assistance centre in case of intervention (see “Unit identication”section).
Provide a unit notebook that allows any interventions carried out on the unit to be noted and tracked making it easier to suitably note the
various interventions and aids the search for any breakdowns.
In case of breakdown or malfunction:
• Immediately deactivate the unit
• Contact a service centre authorized by the manufacturer
The installer must train the user, particularly on:
• Start-up/shutdown
• Set points change
• Standby mode
• Maintenance
• What to do / what not to do in case of breakdown
1.12 Unit indentication
The serial number label is positioned on the unit and allows to indentify all the unit features.
The matriculation plate must never be removed.
The matriculation plate shows the indications foreseen by the standards, in particular:
• unit type
• serial number (12 characters)
• year of manufacture
• wiring diagram number
• electrical data
• manufacturer logo and address
1.13 Serial number
It identies uniquely each unit.
Must be quoted when ordering spare parts.
1.14 Assistance request
Note data from the serial number label and write them in the chart on side, so you will nd them easily when needed.
Series
Size
Serial number
Year of manufacture
Electrical wiringdiagram

6 WSA-XSC2 432-120D M01Z40E12-03
2 Reception
You have to check before accepting the delivery:
• That the unit hasn’t been damaged during transport
• That the materials delivered correspond with that indicated on the transport document comparing the data with the identication label
positioned on the packaging.
In case of damage or anomaly:
• Write down on the transport document the damage you found and quote this sentence: “Conditional acceptance clear evidence of
deciencies/damages during transport”
• Contact by fax and registered mail with advice of receipt to supplier and the carrier.
Any disputes must be made within 8 days from the date of the delivery. Complaints after this period are invalid.
2.1 Storage
Observe external packaging instructions.
2.2 Handling
1. Verify unit weight and handling equipment lifting capacity.
2. Identify critical points during handling (disconnected routes, ights, steps, doors).
3. Supports for handling: remove after the handling.
4. Suitably protect the unit to prevent damage.
5. Lifting bracket

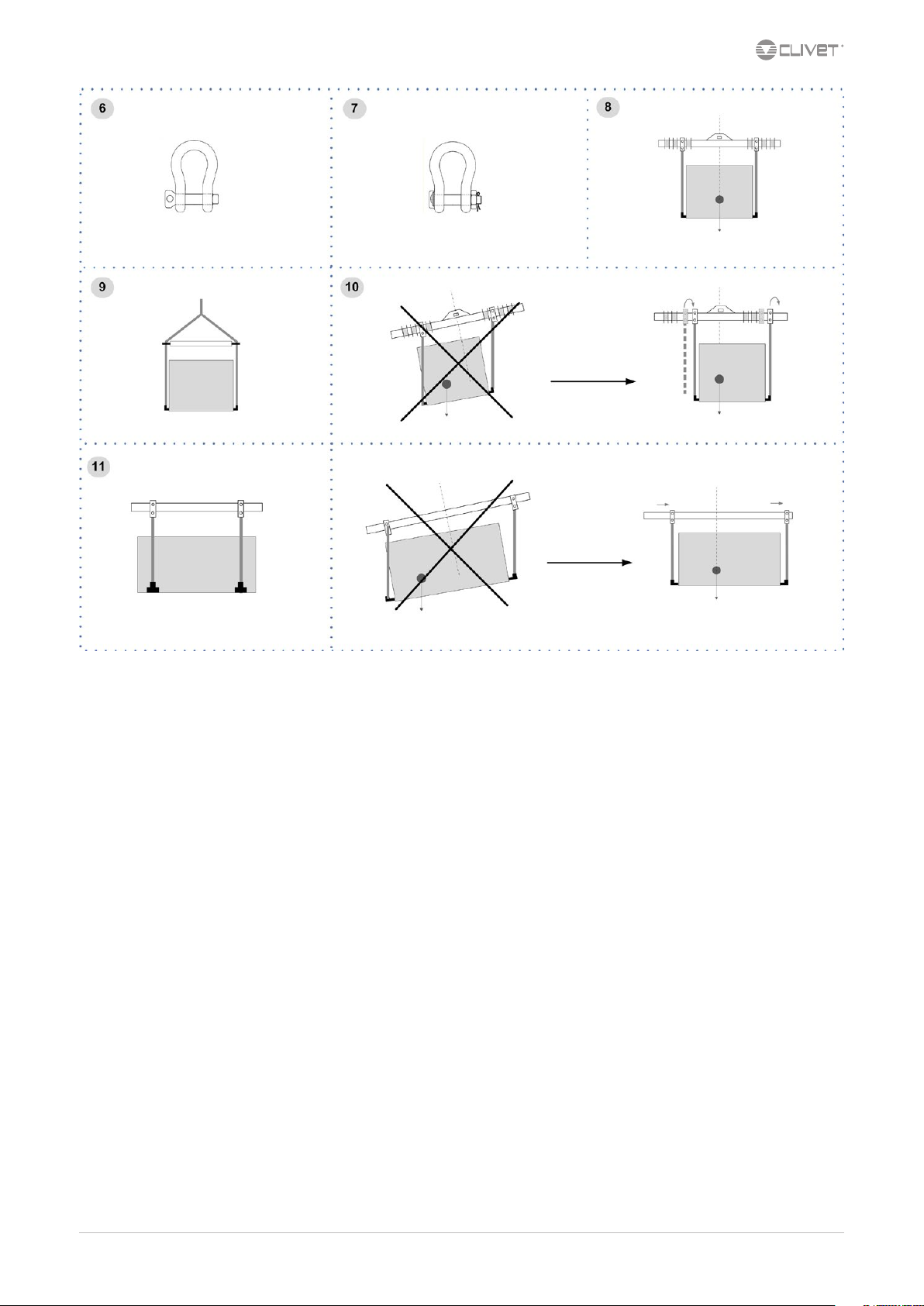

6. Screw pin shackle.
7. Safety pin shackle.
8. Lifting with balance
9. Lifting with spacer bar
10. Align the barycenter to the lifting point
11. Use all the lifting brackets (see the dimensional section)
12. Gradually bring the lifting belts under tension, making sure they are positioned correctly.
13. Before starting the handling, make sure that the unit is stable.
A. Protections
B. Supports for handling:

M01Z40E12-03 WSA-XSC2 432-120D 7
2.3 Packaging removing
Be careful not to damage the unit.
Keep packing material out of children’s reach it may be dangerous.
Recycle and dispose of the packaging material in conformity with local regulations.

8 WSA-XSC2 432-120D M01Z40E12-03

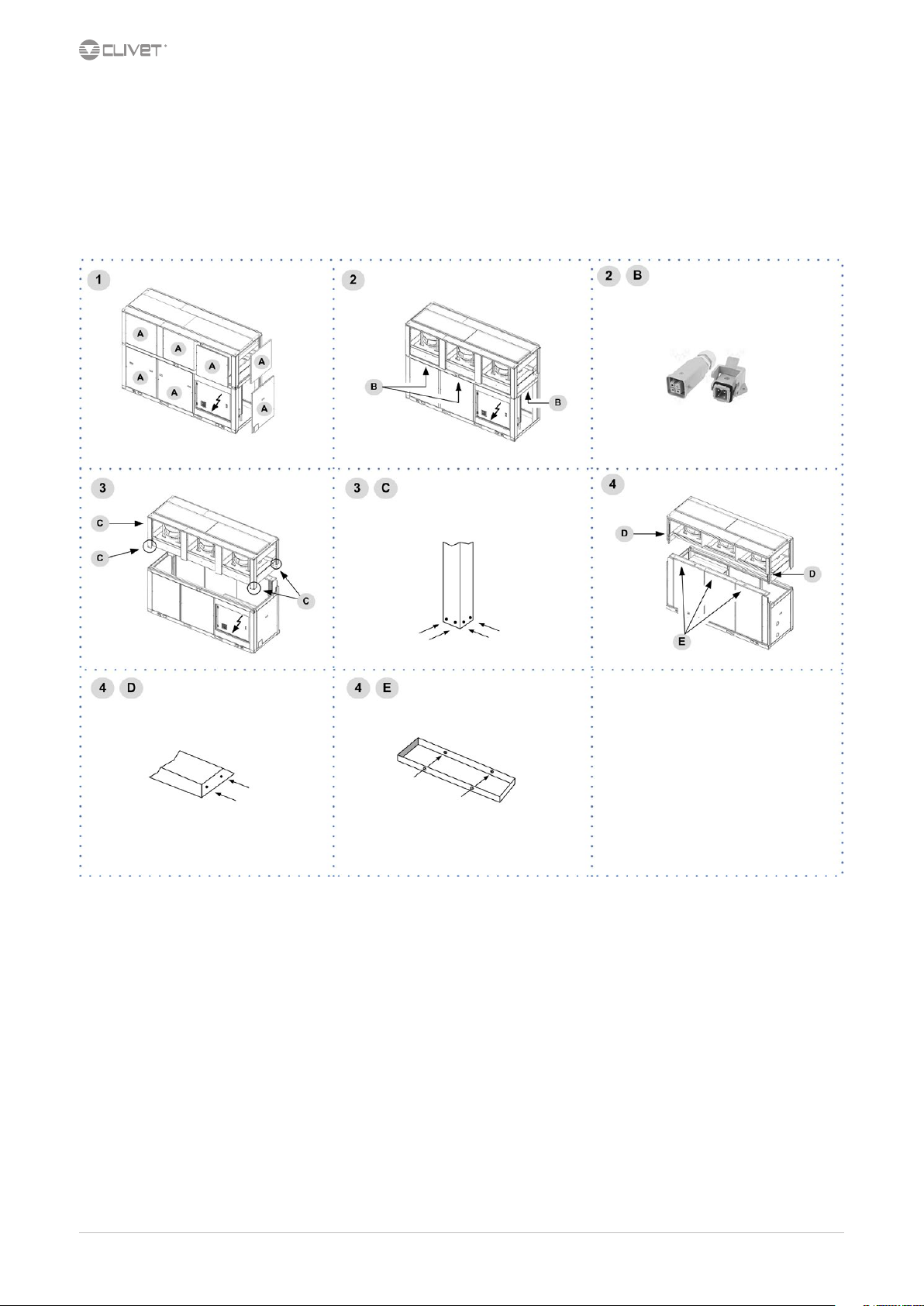

2.4 Removable fan section for shipping
Option
The fan section is removable for an easier transport.
1. Remove panels
2. Disconnect fan cables
3. Remove screws
4. Remove screws

M01Z40E12-03 WSA-XSC2 432-120D 9
3 Positioning
During positioning consider these elements:
• Technical spaces requested by the unit
• Electrical connections
• Water connections
• Spaces for air exhaust and intake
3.1 Functional spaces
Functional spaces are designed to:
• guarantee good unit operation
• carry out maintenance operations
• protect authorized operators and exposed people
Respect all functional spaces indicated in the DIMENSIONS section.
Double all functional spaces if two or more unit are aligned.
3.2 Positioning
Units are designed to be installed:
• INTERNAL
• in xed positions
Limit vibration transmission:
• use antivibration devices on unit bearing points
• install exible joints on the hydraulic connections
Choose the installation place according to the following criteria:
• safe accessible position
• avoid ood-prone places
• verify unit weight and bearing point capacity
• verify that all bearing points are aligned and leveled
• install the unit raised from the ground
A correct circulation of the air is mandatory to guarantee the good unit operating.
Avoid therefore:
• obstacles to the airow
• diculty of exchange
• leaves or other foreign bodies that can obstruct the air coil
• winds that hinder or favour the airow
• heat or pollution sources close to the unit (chimneys, extractors etc..)
• stratication (cold air that stagnates at the bottom)
• recirculation (expelled air that is sucked in again)
• incorrect positioning, close to very high walls, attics or in angles that could give rise to stratication or recirculation phenomenons
Ignoring the previous indications could:
• reduce energy eciency
• alarm lockout due to HIGH PRESSURE (in summer) or LOW PRESSURE (in winter)
3.3 Saftey valve gas side
The installer is responsible for evaluating the opportunity of installing drain tubes, in conformity with the local regulations in force (EN 378).
3.4 Air channelling
When designing and manufacturing the ducting, consider LOAD LOSSES, AIR FLOW AND SPEED that must be consistent with the unit features.
Limit the load losses by optimising the path, the type and number of bends and junctions.
Consider that excessive external static pressure will lead to a reduction in ow rate, with consequent alarm lockout.
Ensure ducts are thermally insulated.
The weight of the ducting must not burden the connection anges.
Place anti-vibration joints between channels and unit.
Connection to the anges and between the various sections of the channels must guarantee air seal, avoiding dispersions penalising the
overall eciency of the system.

10 WSA-XSC2 432-120D M01Z40E12-03
Vertical outlet standard (1)
Rear outlet option (2)
Provide:
• water discharge (3-A)
• grilles to restrict access to small animals (3-B)
• deectors (3-C) to avoid the by-pass between the two air ows
• safety grille (4-D)
Avoid therefore:
• angle curves and narrowings (5)
• direct air ow on people (6-7), windows, doors, plants, obstacles in general
• obstacles that prevents the air inow to the coil (8-9)
• installations next to silent rooms

M01Z40E12-03 WSA-XSC2 432-120D 11
4 Water connections
4.1 Water quality
The water quality must be checked by qualied personnel.
Water with inadequate characteristics can cause:
• pressure drop increase
• reduces energy eciency
• increased corrosion potential
Acceptable water quality values:
Provide a water treatment system if values fall outside the limits.
4.2 Risk of freezing
If the unit or the relative water connections are subject to temperatures close to 0°C:
• mix water with glycol, or
• safeguard the pipes with heating cables placed under the insulation, or
• empty the system in cases of long non-use
4.3 Anti-freeze solution
The use of an anti-freeze solution results in an increase in pressure drop.
Make sure that the glycol type utilized is inhibited (not corrosive) and compatible with the water circuit components.
Do not use dierent glicol mixture (i.e. ethylene with propylene).
4.4 Water ow-rate
The project water-ow must be:
• inside the exchanger operating limits (see the TECHNICAL INFORMATION section)
• guarantee, also with variable system conditions (for example in systems where some circuits are bypassed in particular situations).
4.5 Operation sequence
1. Carefully wash the system with clean water: ll and drain the system several times.
2. Apply additives to prevent corrosion, fouling, formation of mud and algae.
3. Fill the plant
4. Execute leakage test.
5. Isolate the pipes to avoid heat dispersions and formation of condensate.
6. Leave various point of service free (wells, vent-holes etc).
Neglecting the washing will lead to several lter cleaning interventions and at worst cases can cause damages to the exchangers and the
other parts.

12 WSA-XSC2 432-120D M01Z40E12-03
4.6 Racommended connection
The installer must dene:
• component type
• position in system
1 antivibration joints 9 pressure gauge
2 piping support 10 thermometer
3 exchanger chemical cleaning bypass 11 shut-o valve
4 shut-o valve 12 lter
5vent 13 lling valve
6 expansion vessel 14 shut-o valve
7 safety valve 15 Internal storage tank
8 Flow Switch 16 Cleaning system bypass
4.7 Water lter
It must be installed immediately in the water input of the unit, in a position that is easily accessible for cleaning.
The lter never should be removed, this operation invalidates the guaranty.
4.8 Hydraulic connections
A - standard
B - standard quick connections ush to the unit
C - connections ush the unit (option)
An option which simplies the hydraulic connections which would otherwise be carried out within the unit (with the responsibility of the
client).
Includes internal piping to the external unit panel, two fast ttings ush to the unit, two outlet connections for the system connections which
are to be soldered by the client.

M01Z40E12-03 WSA-XSC2 432-120D 13
5 Electrical connections
The characteristics of the electrical lines must be determined by qualied electrica personnel able to design electrical installations; moreover,
the lines must be in conformity with regulations in force.
The protection devices of the unit power line must be able to stop all short circuit current, the value must be determined in accordance with
system features.
The power cables and the protection cable section must be dened in accordance with the characteristics of the protections adopted.
All electrical operations should be performed by trained personnel having the necessary qualications required by the regulations in force
and being informed about the risks relevant to these activities.
Operate in compliance with safety regulations in force.
5.1 Electrical data
The serial number label reports the unit specic electrical data, included any electrical accessories.
The electrical data indicated in the technical bulletin and in the manual refer to the standard unit, accessories excluded.
The matriculation plate shows the indications foreseen by the standards, in particular:
• Voltage
• F.L.A.: full load ampere, absorbed current at maximum admitted conditions
• F.L.I.: full load input, full load power input at max. admissible condition
• Electrical wiringdiagram Nr.
5.2 Connections
1. Refer to the unit electrical diagram (the number of the diagram is shown on the serial number label).
2. Verify that the electrical supply has characteristics conforming to the data shown on the serial number label.
3. Before starting work, ensure the unit is isolated, unable to be turned on and a safety sign used.
4. Ensure correct earth connection.
5. Ensure cables are suitably protected.
6. Before powering up the unit, make sure that all the protections that were removed during the electrical connection work have been
restored.
5.3 Signals / data lines
Do not exceed the maximum power allowed, which varies, according to the type of signal.
Lay the cables far from power cables or cables having a dierent tension and that are able to emit electromagnetic disturbances.
Do not lay the cable near devices which can generate electromagnetic interferences.
Do not lay the cables parallel to other cables, cable crossings are possible, only if laid at 90°.
Connect the screen to the ground, only if there aren’t disturbances.
Guarantee the continuity of the screen during the entire extension of the cable.
Respect impendency, capacity and attenuation indications.
5.4 Power input
Fix the cables: if vacated may be subject to tearing.
The cable must not touch the compressor and the refrigerant piping (they reach high temparatures).
QS1: main isolator switch
XC: Customer connections

14 WSA-XSC2 432-120D M01Z40E12-03
5.5 Electrical panel
APBK BACnet IP KM83-84 User side pump contactor
AP485 Modbus RTU KMR Heater contactor
APLON LON-WORKS QM1-QM2 Compressor thermal magnetic circuit breaker
APC Main control module QM9 Auxiliary circuit thermal magnetic circuit breaker
AP1 Compressor control module QM83-84 Pump motor overload cutout
AP1.1 Electronic thermostatic management QMR Fan motor overload cutout
AP6 Phase monitor QMV1 Fan motor overload cutout
APM1-APM2 Compressor safety module QS1 Main isolator switch
APT Power player STRQ Safety thermostat temperature control cabinet
FUT1-2-3 Wattmeter fuse T1 Auxiliary circuit transformer
FU4-5 Wattmeter fuse T2 24V dc stabilized feeder
FU8-9 230V aux. circuit fuse
KT1-KT2 Soft start timer

M01Z40E12-03 WSA-XSC2 432-120D 15
5.6 Connections performer by customer
Size 432 452 552 602 702 80D 90D 100D 110D 120D
Min. cable section Cu (mm²) 1x95 1x95 1x95 1x95 1x95 1x95 1x95 1x95 1x95 1x150
Max. cable section Cu (mm²) 1x150 1x150 1x150 1x150 1x150 1x185 1x185 1x185 1x185 1x240
Max. bar Cu width (mm) 32 32 32 32 32 32 32 32 32 32
Tightening torque (Nm) 20 20 20 20 20 20 20 20 20 20
SQ1 Flow Switch
SA1 remote on/o
SA5 summer/winter
APV 0..10V analogical output
SA1.1 second setpoint
QMP ricirculation pump
HLC1...4 compressor status signal
HLR alarm signal lamp electrical heater electrical panel
selector
HLHE signal lamp HEAT status
KMP evaporator pump contactor
ALM cumulative fault signal
AP18 Demand limit
AP19 water reset

16 WSA-XSC2 432-120D M01Z40E12-03

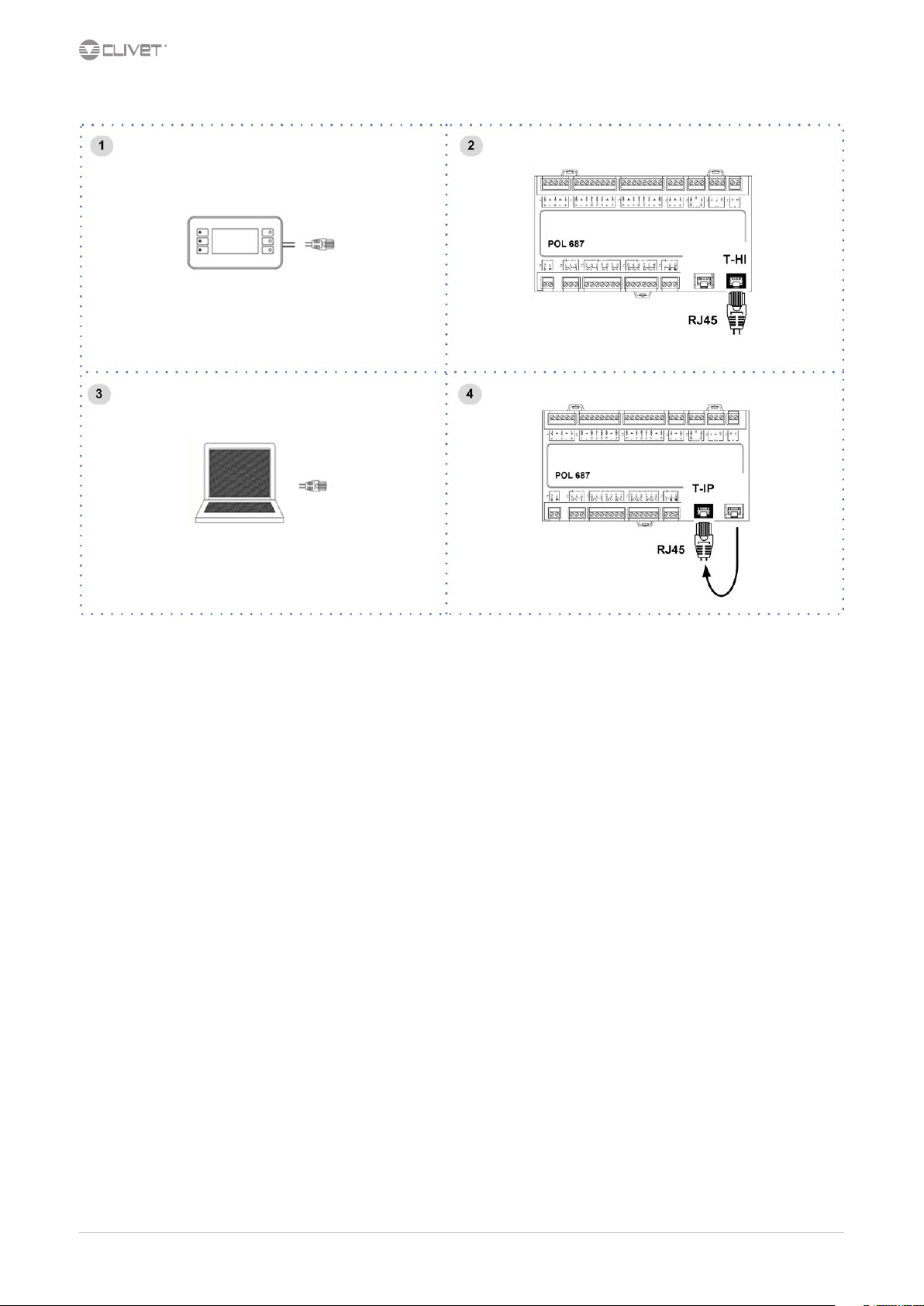

5.7 Computer connection
1. Service keypad
2. RJ45: standard connection
3. P.C.-not supplied
4. P.C. connection, shift RJ45 from T-HI to T-IP
Congure P.C.
1. connect P.C. and main module with LAN cable
2. check in the taskbar that the connection is active
3. open Control Panel and select Network and sharing center
4. select Modify board setting
5. select Local area connection (LAN)
6. select Internet protocol version 4 (TPC) IPV4 and enter Property
7. set the IP address 192.168.1.100
8. set Subnet mask as 255.255.255.0
9. conrm (OK)
10. enter Start (Windows button)
11. write the command cmd and enter/do it
12. write and run the command Ping 192.168.1.42
13. the message, connection is OK, will appear when successful
14. enter the browser (Crhome, Firefox ecc)
15. write and run the command http:/192.168.1.42
16. Userid = ADMIN
17. Password = SBTAdmin!

M01Z40E12-03 WSA-XSC2 432-120D 17
5.8 Room keypad
Accessory
1 Distance up to 350 mt
2 Distance up to 700 mt
A User interface
B = B1 KNX bus, max 350 mt
twisted pair with shield, ø 0,8 mm
EIB/KNX cable marking recommende
C pwer supply unit N125/11 5WG1 125-1AB11
C1 AC 120...230V, 50...60Hz
D KNX bus, max 350 mt

18 WSA-XSC2 432-120D M01Z40E12-03
5.9 Modbus - RS485
Accessory
LED BSP communication with AP1 module LED BUS communication with Modbus
green communication ok green communication ok
yellow software ok but communication with AP1 down yellow startup / channel not communicating
red ashing: software error red communication down
xed: hardware error
Path
Main menu →Unit Parameters →Modbus
Parameters Short description Description
P0445: T1 bus termination Termination resistor activation on T1 POL902 [0] port = Passive [1] = Active
P0446: T2 bus termination Termination resistor activation on T2 POL902 [0] port = Passive [1] = Active
A. Unit
B. Metal conduit
C. Metal septums
D. Metal-lined sheath (sleeve)
Modbus / LonWorks / BACnet Cable requirements
Couple of conductors twisted and shielded
Section of conductor 0,22mm2…0,35mm2
Nominal capacity between conductors < 50 pF/m
Nominal impedance 120 Ω
Recommended cable BELDEN 3106A
• Every RS485 serial line must be set up using the ‘In/Out’bus system.
• Other types of networks are not allowed, such as Star or Ring networks.
• The dierence in potential between the earth of the two RS485 devices that the cable shielding needs to be connected to must be lower
than 7 V
• There must be suitable arresters to protect the serial lines from the eects of atmospheric discharges
• A 120 ohm resistance must be located on the end of the serial line. Alternatively, when the last serial board is equipped with an internal
terminator, it must be enabled using the specic jumper, dip switch or link.
• The cable must have insulation features and non-ame propagation in accordance with applicable regulations.
• The RS485 serial line must be kept as far away as possible from sources of electromagnetic interference.

M01Z40E12-03 WSA-XSC2 432-120D 19
5.10 LonWorks
Accessory
LED BSP communication with AP1 module LED BUS communication with LonWorks
green communication ok green ready for communication
yellow software ok but communication with AP1 down yellow startup
red ashing: software error red ashing: communicating not possible
xed: hardware error communication down
5.11 BACnet
Accessory
LED BSP communication with AP1 module LED BUS communication with LonWorks
green communication ok green ready for communication
yellow software ok but communication with AP1 down yellow startup
red ashing: software error red ashing: communicating not possible
xed: hardware error communication down

20 WSA-XSC2 432-120D M01Z40E12-03
5.12 Ecoshare
• Max 7 units
• Maximum length of the bus line: 1000 m.
• Maximum distance between 2 units: 700 m.
• Type of cable: shielded twisted pair cable Ø 0,8 mm. use an EIB/KNX cable
• Possible connections: Tree, star, in/out bus, mixed
• It is not possible to use a ring connection
• No end-of-line resistor or terminator required
• There must be suitable arresters to protect the serial lines from the eects of atmospheric discharges
• The data line must be kept separate from the power conductors or powered at dierent voltage values and away from possible sources
of electrical interference
