AIR COOLED WATER CHILLER FOR OUTDOOR INSTALLATION
Библиотека СОК 

M02J40M6-04
WDAT
-
3
2.160-3.660
- CONTENTS -
3
- GENERAL INFORMATION - ............................................................................................................................................4
GENERAL WARNINGS ...................................................................................................................................................4
INTENDED USE ..............................................................................................................................................................4
STANDARD UNIT SPECIFICATIONS .............................................................................................................................5
- REGULATIONS AND CERTIFICATIONS - ......................................................................................................................8
UNI EN ISO 9001 CERTIFICATION ................................................................................................................................8
CE MARK.........................................................................................................................................................................8
EUROVENT CERTIFICATION.........................................................................................................................................8
- RESIDUAL RISKS -..........................................................................................................................................................9
REFRIGERANT SAFETY CHARTS...............................................................................................................................10
GENERAL TECHNICAL SPECIFICATIONS..................................................................................................................12
- ELECTRICAL DATA -.....................................................................................................................................................12
- RECEPTION - .................................................................................................................................................................20
INSPECTION UPON RECEPTION................................................................................................................................20
STORAGE .....................................................................................................................................................................20

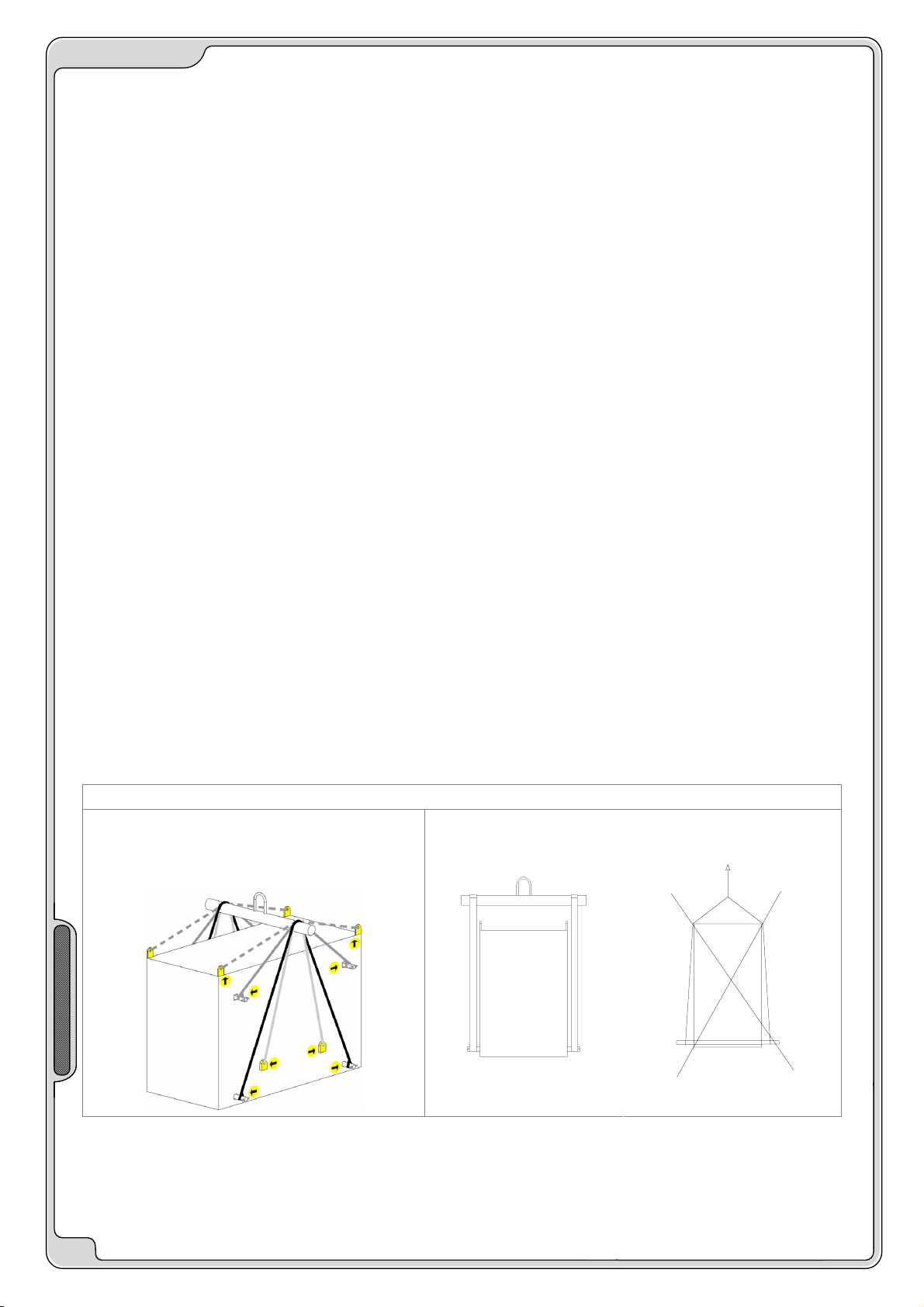

HANDLING ....................................................................................................................................................................20
REMOVING THE PACKING ..........................................................................................................................................21
- POSITIONING -...............................................................................................................................................................22
POSITIONING ...............................................................................................................................................................22
DIMENSIONS / WEIGHT DISTRIBUTION.....................................................................................................................25
- WATER CONNECTIONS -..............................................................................................................................................35
- ELECTRICAL CONNECTIONS -....................................................................................................................................37
GENERAL WARNINGS .................................................................................................................................................37
LINE OF UNIT POWER SUPPLY ..................................................................................................................................37
SIGNALS / DATA LINES................................................................................................................................................37
STANDARD UNIT ELECTRICAL DATA ........................................................................................................................37
- START-UP -....................................................................................................................................................................43
- CONTROL - ....................................................................................................................................................................45
- ROUTINE MAINTENANCE -...........................................................................................................................................54
- TROUBLESHOOTING -..................................................................................................................................................58
- DECOMMISSIONING OF THE UNIT -............................................................................................................................59
DISCONNECTING THE UNIT .......................................................................................................................................59
DISMANTLING AND DISPOSAL ...................................................................................................................................59

M02J40M6-04
WDAT
-
3
2.160-3.660
- GENERAL INFORMATION -
4
- GENERAL INFORMATION -
GENERAL WARNINGS
MANUAL PURPOSE
This manual has been designed to enable the unit to be installed, started up and maintained correctly.
MANUAL INSTRUCTIONS
It is essential to observe these instructions.
The manufacturer declines all liability for any damage that may be caused whether directly or indirectly to persons or
things if these instructions are not heeded.
MANUAL STORE
This manual and the unit’s wiring diagram should be carefully stored so that they are readily available to the operator
when required.
EXPERT PERSONAL
The unit must be installed, tested and maintained by expert personal who meet the relevant legal requirements (Italian
law No. 46 of 5/3/1990).
LOCAL SAFET REGULATION INSTALLATION
The installation must be performed observing the local safety regulations.
POWER SUPPLY
Make sure the power supply conforms to the data on the unit’s rating plate, located inside the door of the main electrical
panel.
PACKAGING
The packaging material (plastic bags, polystyrene foam, nails, etc.) is potentially dangerous and should therefore be kept
away from children and recycled in compliance with the local regulations in force.
MAINTENANCE
Before performing any service operations, cut off the power. Perform the operations in conformity with the local
regulations in force.
PERIODICAL INSPECTIONS
Perform periodical inspections to locate possible loosened or broken parts. If the repairs are not performed, there will be
a higher risk for things and peoples to become damaged and injured.
FAULT – POOR OPERATION
Switch off the unit in the event of faults or poor operation.
REPAIR
Only have repairs carried out by a service centre authorized by the manufacturer, and insist on the use of original spare
parts only.
Failure to comply with the above may compromise the safety of the unit.
MODIFICATIONS
The manufacturer will not accept any responsibility, and the warranty will lapse, in the event of electric and/or mechanical
modifications. Any modification which is not formally authorized, and which does not respect the instructions given in this
manual, will cause the warranty to lapse.
INTENDED USE
The unit must only be used for the specific purpose it was designed, as described in the paragraph GENERAL
TECHNICAL SPECIFICATIONS Any use other than that specified does not imply any commitment or constraint by the
manufacturer in any way whatsoever.
ADDITIONAL SAFETY PRECAUTIONS
This unit has been especially designed and manufactured so to prevent any risk to persons and health hazard.
For this reason, design solutions fit to eliminate (where possible) any cause of risk and sensibly reduce the probability of
danger have been adopted.
Please refer to the "Residual Risks" section of this manual and strictly observe the behavior prescriptions listed there in
order to prevent any possible risk that hasn’t been possible to avoid in the design stage.
DATA UPDATING
The manufacturer may be able to modify the data without prior notice as a consequence of constant improvements.
INTENDED USE
The unit is designed to cool water or a water and glycol mix for air-conditioning, within the limits defined in the technical
bulletin and this manual.

M02J40M6-04
WDAT
-
3
2.160-3.660
- GENERAL INFORMATION -
5
STANDARD UNIT SPECIFICATIONS
COMPRESSOR
Compact semi hermetic helicoidal twin screw compressors: the main screw (male, with five lobes) is driven directly by
the electric motor, while the secondary screw (female with six vanes) is driven by the primary one.
The intrinsic volumetric ratio is precisely planed to be applied in the field of air-conditioning with ecological refrigerant R-
134a. The screws are made from steel alloy and the axial bearings are in tandem configuration for greater sturdiness.
The seal is guaranteed by extremely accurate tolerances in the machining of all moving parts and by the specific
circulation of oil between the screws. Continuous modulation of cooling capacity (Stepless) with oilcontrol dynamic.
The free flow lubrication system resulting from pressure differences, is equipped with a highly efficient separator, level
indicator and oil filter (replaceable). An oil heater prevents excessive dilution of the oil by the refrigerant, and is
automatically activated at all stages where the compressor is switched off. The asynchronous three-phase two pole
motor is suction gas cooled, reduced load start of the star delta type or Part Winding (according the compressor’s size)
Fully protected electronic module, with safety sensor for monitoring discharge temperature, sensors for monitoring
maximum temperature of the windings, device to monitor the motor rotation direction and device to monitor absence of
phase. Incorporated silencer non return valve and shut-off valve on the compressor discharge.
Filter on the suction line, at the inlet to the compressor.
Automatic internal saftey valve between HP & LP.
STRUCTURE
The bearing structure is made from hot-galvanized and painted plate and the external panelling from pre-painted
aluminium, ensuring maximum weatherability. The uniform unit weight distribution is guaranteed by the base structure,
realized with galvanized and painted plate section bars, featuring holes and/or stirrups to simplify the unit lifting and
earthing.
INTERNAL EXCHANGER
Direct expansion exchanger with independent circuit on the refrigerant side for each compressor. The tube bundle is
removable and allows easy maintenance. The exchanger is made from a carbon steel shell. The high-efficiency tubes,
anchored to the tube plate by mechanical expansion, are made from copper, fluted to increase heat exchange and
studied to be used with the modern ecological refrigerants. In addition, complete with safety differential pressure switch
on the water side, antifreeze heater to protect against the risk of ice, and closed-cell heat insulation that prevents the
formation of condensate and heat exchange with the outside.
EXTERNAL EXCHANGER
Finned exchanger, made from copper pipes arranged in staggered rows and mechanically expanded for better
adherence to the collar of the fins. The exchangers are planned, designed and produced directly by CLIVET. The fins are
made from aluminium with a special corrugated surface, set a suitable distance apart to ensure maximum heat exchange
efficiency. The coils are complete with integral subcooling circuit which assures the correct refrigerant feeding of the
expansion valve. Available in different options as in optional list.
FAN
Helical fans with sickle-shaped blades with "Winglets" at the end, coupled directly to a three phase electric external rotor
motor with thermal protection incorporated in version IP 54. Housed in aerodynamically shaped nozzles to increase
efficiency and minimize noise levels. They are fitted with protective safety guard grilles.
REFRIGERANT CIRCUIT
The units are made with independent refrigerant circuits, each with:
- refrigerant circuit with economizer (in the extimated sizes)
- electronic expansion valve (see details further on)
- low pressure switch
- high pressure switch
- low pressure safety valve (safety valve with shut-off valve sealed with lead, open for possible inspection)
- high pressure safety valve (safety valve with shut-off valve sealed with lead, open for possible inspection)
- high and low pressure gauges
- replaceable anti-acid solid cartridge dehydrator filter
- sight glass with moisture indicator
- compressor discharge shut-off valve
- liquid line shut-off valve

M02J40M6-04
WDAT
-
3
2.160-3.660
- GENERAL INFORMATION -
6
ELECTRICAL PANEL
the Power Section includes:
- isolating transformer for auxiliary circuit power supply
- fan overload circuit breakers
- compressor control contactor
- fan control contactors the control section includes:
- proportional + integral water temperature control
- antifreeze protection
- compressor overload protection and timer
- self-diagnosis system with immediate display of the error code
- prealarm function for water anti-ice and high refrigerant gas pressure
- compressor operating hour display
- phase monitor
- remote ON/OFF control
- automatic compressor start rotation control
- relay for remote cumulative fault signal
- display of the set values, the error codes and the parameter index
- input for demand limit (absorbed power limit according to an external signal 0÷10V or 4÷20mA)
- ON/OFF and alarm reset buttons
- UP and DOWN buttons to increase and decrease the values
- interface terminal with graphic display
- Electronic for Elfo Control system (optional)
ACCESSORIES
- copper / copper condenser coils
- copper / aluminium condenser coils with acrylic lining
- condenser coil and compressor compartment protection grill.
- Anti-hail protection grilles
- compressor suction shut-off valve
- Hydropack (pump group onboard: see details further on), in options with 2 and 4 poles type motors (EN version: only 4
poles type)
- Anti-ice electric heaters utility side for hydronic group
- power factor correction capacitors (cosfi > 0.9)
- compressor overload circuit breakers
- main door lock isolator switch (compulsory per have certification CE)
- Master-Slave function
- Free contacts for compressor state
- Free contacts for compressor state and enabling
- set point compensation according to the outside enthalpy
- set point compensation with 4-20 mA signal
- set point compensation with outside temperature probe
- double set point with units in "Brine" version
- data logger (device for the acquisition of status and regulation values, as well as for recording the operation conditions
in the surrounding of alarm events)
- remote microprocessor control unit
- variable fan speed control for operation at low ambient temperatures
- spring antivibration mounts
- ECOBreeze (see details further on)
- CAN/MODBUS serial converter kit
- CAN/LON WORKS serial converter kit
TEST
All the units are factory-tested in specific steps, before shipping them. After the approval, the moisture contents present
in all circuits are analyzed, in order to ensure the respect of the limits set by the manufacturers of the different
components.

M02J40M6-04
WDAT
-
3
2.160-3.660
- GENERAL INFORMATION -
7
UNIT CONFIGURATIONS
( 1 ) ( 2 ) ( 3 ) ( 4 ) ( 5 ) ( 6 )
WDAT-3 S B FC 2.300 LN H CE
S ( St andard) - (St andar d) - (St andar d) ST (St andar d) H ( St andard) CE (St andar d)
RBFCD SC C
DLN
EN
(1) VERSION
Standard (S)
Total Recovery ( R)
made using tube bundle exchangers to recover 100% of
the condensing heat for
production of hot water. The version in question is supplied
as standard with a variable-speed
low temperature device.
The compatibility of this Version with Hydropack has to be
checked with Our Commercial
Departement.
Partial Recovery (D)
it is achieved using tube bundle exchangers, suitable for
recovering the heat from the
desuperheating zone, up to a maximum of 20% of the total
heat of the unit.
The compatibility of this Version with Hydropack has to be
checked with Our Commercial
Departement.
(2) LOW TEMPERATURE
Low water temperature (B)
this version allows unit operation in the range of water and
glycol mix temperatures
between +4°C and -8°C.
Two versions are available:
- Unit only for low temperatures.
- Unit with double operation set-point.
The availability of reduction capacity steps by means of
compressor capacity control
depends on the application temperature range. Please call
our commercial dept. for details.
(3) ENERGY SAVINGS
Direct free-cooling (FCD)
Version that allows to recovery free-cooling from ambient
when tha ambient air
temperature is lower than the system outlet water
temperature.
(4) ACOUSTIC CONFIGURATION
Standard (ST)
compressors soundproofing (SC)
this configuration is obtained by inserting the compressors
in a soundproof enclosure.
Low noise (LN)
this configuration is obtained by inserting the compressors
in a soundproofed enclosure
and reducing the speed of the fans, with a larger
condensing section.
Extremely low noise (EN)
with reference to configuration LN, the speed of the fans is
reduced further with a larger
condensing section, and the Low outside temperature kit is
supplied as standard with
variable speed fans. The compressors are enclosed in a
soundproofed enclosure and fitted
on rubber antivibration mounts, with flexible suction and
discharge pipes.
(5) ENERGY EFFICIENCY
High efficiency (H)
(6) HEAT EXCHANGERS APPROVALS
C = CLIVET (Internal testing)
CE = PED (European testing)

M02J40M6-04
WDAT
-
3
2.160-3.660
- REGULATIONS AND CERTIFICATIONS -
8
- REGULATIONS AND CERTIFICATIONS -
UNI EN ISO 9001 CERTIFICATION
CERTIFIED QUALITY SYSTEM
UNI EN ISO 9001:2000
Clivet S.p.A., in order to guarantee customer satisfaction, has chosen the ISO
9001 Quality System as the reference for all its business activities. This is
demonstrated by the company’s commitment to ongoing improvements in the
quality and reliability of its products; its sales, design, purchasing, production
and after-sales service activities are the means used to reach such purpose.
CE MARK
Clivet products bear the CE mark, in compliance with the requirements of the
following EC directives, including the latest amendments, and with the
corresponding national approximated legislation:
- 98/37/CE
- 89/336/CEE as modified by the directives 92/31/CEE and 93/68/CEE
- 73/23/CEE as modified by the directive 93/68/CEE
- 97/23/CE
EUROVENT CERTIFICATION
Clivet is partecipating in the EUROVENT Certification Programme "Liquid
Chilling Packages". Products are listed in the EUROVENT Directory of Certified
Products and in the site www.eurovent-certification.com. Eurovent Chillers
Certification Programme covers air cooled packaged chillers up to 600 kW and
water cooled packaged chillers up to 1500 kW.

M02J40M6-04
WDAT
-
3
2.160-3.660
- RESIDUAL RISKS -
9
- RESIDUAL RISKS -
GENERAL
This section lists some of the more common situations which, being beyond the control of the manufacturer, could be a
source of risk to persons or property.
DEFINITION OF DANGER AREA
The figure below highlights the area in which only authorised personnel may operate.
- External danger zone, identified by a precise area around the unit and its vertical projection on the ground in the case of
hanging unit.
- Internal danger zone, identified by the area that can be entered only after having intentionally removed the protecting
panels or parts of these.
HANDLING
- If handling operations are undertaken without adopting all the necessary safety procedures and exercising due care,
the unit can fall or topple, causing damage — possibly extremely serious — to persons and/or property, and to the unit
itself. Ensure the unit is handled and manoeuvred as directed on the packing and in the present manual, and in
accordance with local regulations. In the event of refrigerant gas escaping, refer to the “Safety datasheet” for the
particular refrigerant.
INSTALLATION
- Incorrect installation of the unit can result in water leaks, accumulation of condensate, escape of refrigerant, electric
shocks, fire, as well as irregular operation or damage to the unit itself. Make certain that the installation is carried out only
by a qualified technician, also that the directions contained in this manual are followed and local statutory regulations
observed.
- In the event of the unit being installed in a site where there is even the slightest risk of inflammable gas escapes and
consequently the possibility of such gases accumulating in area around the unit, the risk of explosion and fire cannot be
discounted. Take every care and precaution when selecting the installation site.
- Installation on a structure not able to bear the weight and/or afford a secure anchorage of the equipment may cause the
unit to fall and/or topple, resulting in damage to persons or property, or to the unit itself. Make certain that every care and
precaution is taken when positioning and securing the unit.
- If the unit is easily accessible to children, unauthorized persons or animals, this is a situation that can give rise
accidents and injuries, perhaps serious. Install the unit in a place where access is allowed only to authorized persons, or
install barriers or guards preventing unauthorized entry.
GENERAL RISKS
- A smell of burning, smoke or other indications of serious irregularity could signal the onset of situations liable to cause
damage to persons or property or to the unit itself. Isolate the unit from the electrical power supply (red-and-yellow
switch), and contact an authorized service centre so that the source of the problem can be identified and remedied.
- Accidental contact with heat exchange coils, compressors, pressure pipelines or other components can result in
wounding or burns, or both. Always wear suitable clothing, including protective gloves, when working in the danger area.
- Maintenance or repairs carried out by unskilled operatives can result in harm or damage to persons and property, or to
the unit itself. Always contact an authorized service centre.
- Failure to close the panels of the unit, or to check that all the fixing screws of the panels are properly tightened, can
result in harm or damage to persons or property, or to the unit itself. Verify periodically that all panels are closed and
made properly secure.
- In the event of fire, the temperature of the refrigerant can rise to the point that pressure will exceed safety levels and
perhaps cause fluid to be projected. It may also happen that parts of the circuit isolated by closed valves will explode. Do
not stand near safety valves, and never leave the valves of the refrigerant circuit closed.

M02J40M6-04
WDAT
-
3
2.160-3.660
- RESIDUAL RISKS -
10
ELECTRICAL SYSTEM
- If the power line connecting the unit to the a.c. supply is incomplete, or if the connection is made with cables of incorrect
cross section and/or with insufficiently rated protective devices, this can result in electric shock, toxicity hazard, damage
to the unit or fire. All work on the electrical system should be carried out referring to the wiring diagram and to the
directions given in this manual, and the system itself must be dedicated.
- Failure to secure the cover enclosing electrical components can lead to the infiltration of dust and water, ultimately
causing electric shocks, damage to the unit, or fire. Always fasten the cover securely to the unit.
- If live metal parts of the unit are not connected properly to the earth system, they can cause electric shock or even
death by electrocution. Make absolutely certain that the connection to the earth system is made in accordance with
correct practice.
- Contact with live parts rendered accessible internally of the unit when the guards are removed can result in electric
shock, burns or death by electrocution. Before exposing these parts, make certain the isolating switch on the power line
to the unit is set to the OFF position and padlocked, and post a warning sign.
- Contact with parts that could become live when the unit is started up can result in electric shock, burns or death by
electrocution. When there is no need for circuits to be powered up, set the isolating switch on the power line to the OFF
position, padlock it and post a warning sign.
MOVING PARTS
- Contact with the fan rotors can cause injury. Before removing the protective grilles or the fans themselves, make certain
the isolating switch on the power line to the unit is set to the OFF position and padlocked, and post a warning sign.
- Contact with the fan rotors can cause injury. Before removing the protective grilles or the fans themselves, make certain
the isolating switch on the power line to the unit is set to the OFF position and padlocked, and post a warning sign.
REFRIGERANTS
- In the event of safety valves coming into operation and releasing refrigerant gas, persons in the vicinity can be injured
or suffer toxic effects. Always wear suitable clothing and protective goggles when working in potential hazard areas. In
the event of refrigerant gas escaping, refer to the “Safety datasheet” for the particular refrigerant.
After any maintenance operation, they must be resealed in an open position; the non-observance of these instructions
could bring the risk of an explosion of the cooling circuit with possible injury to things and people.
- If an open flame or heat source is brought into contact with the refrigerant, or the pressurized gas circuit should
overheat (e.g. during welding operations), this can cause explosion or fire. Do not position any heat source within the
hazard area. Maintenance or repair operations involving welding must be carried out with the system emptied of
refrigerant.
WATER SYSTEM
- Defects affecting pipelines, connections or valves and other control componentry can result in water being leaked or
sprayed from the system, occasioning damage to property or causing short circuits in the unit. Make certain all hydraulic
connections are securely made, following the directions given in the present manual
REFRIGERANT SAFETY CHARTS
01 Identifying elements
for the substance
Product name: forane 134a
N°SDS 00941
Supplier: ELF ATOCHEM ITALIA
Via Degli Artigianelli 10, 20159 Milano tel. [phone]
02 Information
concerning
composition of
components
Chemical name of the compound 1.1.1.2 - tetrafloroethane
General name: halogenated hydrocarbon
CAS: 811-97-2
EINECS: 212-377-0
03 Identification of risk Effects on health: practically non-toxic
Greatest physical and chemical dangers:
Thermal decomposition in toxic and corrosive products
04 First-aid measures Inhalation: Carry the victim into the open air. Resort to oxygen or artificial respiration if necessary.
Contact with skin: Frostbite must be treated in the same way as burns.
Contact with the eyes: Immediate rinsing in abundant water.
Instructions for the physician: Do not administer catecolammine (due to the sensitisation provoked by the product)
05 Fire prevention
measures
Specific dangers: Thermal decomposition into toxic and corrosive products. Hydrofluoric acid. Hydrochloric acid in gaseous
form. Phosgene Carbon monoxides (CO).
Specific means of intervention: Cool containers/cisterns with jets of water. Prevent any sparks or flames.
Do NOT smoke.
Special protection systems for fire-fighting squads: Carry breathing apparatus and wear protective clothing.
01 Identifying elements
for the substance
Product name: forane 134a
N°SDS 00941
Supplier: ELF ATOCHEM ITALIA
Via Degli Artigianelli 10, 20159 Milano tel. [phone]
06 Measures to take in
case of accidental
spillage
Individual precautions: Avoid contact with the skin, eyes and inhalation of vapours.
In an enclosed space: ventilate or use breathing apparatus (risk of suffocation). NO SMOKING ALLOWED.
Remove all risk of sparks or flames.

M02J40M6-04
WDAT
-
3
2.160-3.660
- RESIDUAL RISKS -
11
07 Manipulation and
storage
Manipulation:
Technical measures/precautions.
Form of storage and manipulation applicable to the products: PRESSURIZED GAS.
Ensure adequate ventilation and evacuation for the level of equipment.
Advice for use: Prevent sparks and contact with hot surfaces. DO NOT SMOKE..
Storage:
Technical measures/Storage procedures: Store at room temperature in the original container. Keep away from flames, hot
surfaces and sparks. Store in a cool, well-ventilated place. Protect full containers from sources of heat to avoid excessive
pressures.
Packing:
Recommended: Ordinary steel, Stainless steel.
Avoid: Alloy containing more than 2% magnesium.
Plastics.
08 Control of individual
exposure/protection
Precautionary measures to be taken: Ensure a sufficient exchange of air and/or suction in workplaces.
Control parameters.
Exposure limits: recommended by ELF ATOCHEM: VME = 1000ppm=4420mg/m3
Individual protective equipment:
Respiratory protection: In case of insufficient ventilation, carry suitable breathing apparatus.
Protection for the hands: Gloves
Protection for the eyes: Protective eyewear.
Specific hygiene measures: avoid contact with the skin, eyes and inhalation of the vapours. DO NOT SMOKE.
09 Physical and
chemical properties
Physical state (20°C): liquid gas
Colour: colourless
Smell: Slightly similar to ether; pH: not applicable.
Boiling point/interval: -26,4°C
Melting point/interval: -101°C
Flash point: No flare up at test conditions
Self-ignition temperature: 743°C (1bar) 215°C (3bar)
Vapour pressure: (25°C):0.665MPa (6.65bar) a (50°C):1.32MPa (13.2bar) a (70°C): 2.12MPa (21.2bar)
Vapour density: (25°C): 4.26kg/m3
Density: (25°C): 1206kg/m3a (50°C): 1102kg/m3a (70°C): 996kg/m3
Solubility:
water: (25°C): 0,9g/l
Distribution coefficient: log Pow = 1.06 (n-octanole/water)
Other data:
Henry constant: 1.53Pa m3/mol
Not dissociated in water
Solubility of water in the product at 25°C: 0,097% in weight.
Critical temperature: Tc=101°C
Critical pressure. Pc=4.07MPa (40.7bar)
10 Stability and
reactivity
Conditions to avoid: Avoid contact with flames and red-hot metal surfaces.
Dangerous decomposition products: Thermal decomposition into toxic and corrosive products: hydrofluoric acid,
hydrochloric acid in gaseous form, phosgene, carbon monoxide (CO)
Other information: Stable product at ambient temperature.
In presence of air the product can mix up into a flammable blend at particular temperature and pressure conditions.
11 Toxicological
information
Acute toxicity:
Inhalation: Practically non-toxic in experiments conducted on animals.
CL50/inhalation/4 hrs/on rats>500000ppm
As with other volatile aliphatic halogenated compounds, with the accumulation of vapours and/or the inhalation of large
quantities, the product can cause: loss of consciousness and heart problems aggravated by stress and lack of oxygen; risk of
death.
Local effects:
Contact with skin: Frostbite possible from splashes of liquefied gas.
Practically non-irritating for skin in experiments conducted on animals (rabbits).
Contact with the eyes: practically non-irritating for eyes in experiments conducted on animals (rabbits).
Sensibilisation:
Contact with skin: Experim,ental for the animal:
No skin sensitizer (guinea pig).
Chronic toxicity: Studies on animal protracted inhalation do not highlight any chronic toxic effect (rat/ years(s)/ Inhalation:
50000ppm)
Specifical effects: Genotoxicity according experimental available data NOT Genotoxic
Cancerogenesis: experiments on animals do not highlight carcinogen effect clearly demonstrated (rat /Inhalation – for oral
administration)
Toxicity for reproduction: Foetal growth no toxic effect for foetal development (rat/rabbit/inhalation).
Fertility, according the available data on animal: no toxic effects on fertility (rats/inhalation)
This document refers to the product as is and which conforms to the specifications supplied by ELF ATOCHEM.
If combinations or mixtures are made, check that there are no new dangers resulting from this action. The information provided in this
report has been provided in good faith and is based on our latest knowledge of the product in question as of the date of publication of
the same. The attention of users is drawn to the potential risks of employing the product for any use other than that for which it is
intended. This report must be used and reproduced solely for purposes of prevention and safety. The list of legislative, regulatory or
administrative texts must not be considered exhaustive. The product user is under obligation to refer to all the official texts concerning
the use, conservation and manipulation of the product for which he is sole responsible. The product user must also provide all those
who might come into contact with the product with the information necessary for their safety at work and the protection of their health
and that of the environment, giving them a copy of this safety information report.

M02J40M6-04
WDAT
-
3
2.160-3.660
- ELECTRICAL DATA -
12
GENERAL TECHNICAL SPECIFICATIONS
- ELECTRICAL DATA -
Acoustic configuration: standard (ST) / compressors insulation (SC) / energy efficiency: high efficiency (H)
SIZES 2.160 2.180 2.200 2.220 2.250 2.280 2.300 2.320 2.340 2.360 2.390 2.420 2.450 2.480
COOLING
Cooling capacity 1 kW 365 406 474 527 584 675 736 801 869 915 954 1015 1085 1116
Compressor power input kW 111 125 145 163 183 202 221 246 256 272 282 307 340 357
Total power input 2 kW 125 139 163 181 200 223 242 267 278 293 305 332 365 382
EER Nr 2.92 2.92 2.92 2.91 2.92 3.03 3.04 3 3.13 3.12 3.13 3.06 2.97 2.92
ESEER Nr 4.03 4.02 4.03 4.01 4.03 4.18 4.19 4.13 4.32 4.31 4.32 4.22 4.11 4.02
COMPRESSOR
Type of compressors 3 DSW
No. of Compressors Nr 2
Std Capacity control steps Nr stepless/6
Refrigerant circuits Nr 2
INTERNAL EXCHANGER
Type of internal exchanger 4 S&T
No. of internal exchangers Nr 1
Water flow-rate l/s 17.4 19.4 22.7 25.2 27.9 32.2 35.2 38.3 41.5 43.7 45.6 48.5 51.8 53.3
Pressure drop kPa 43 31 41 35 50 27 41 38 56 61 66 74 43 45
EXTERNAL EXCHANGER
Front surface m219 19 24 24 29.4 29.4 29.4 29.4 35 35 35 35 35 35
EXTERNAL SECTION FANS
Type of fans 5 AX
Number of fans Nr 8 8 10 10 10 12 12 12 12 12 13 14 14 14
Standard air flow l/s 44914 44914 52083 56179 59670 68099 68099 68099 79186 79186 84900 87508 87508 87508
CONNECTIONS
Water fittings 5" 6" / 8 6" / 8" 6" / 8" 6" / 8" 8"
POWER SUPPLY
Standard power supply V 400/3/50
STANDARD UNIT WEIGHTS
Shipping weight ST kg 4240 4256 5073 5550 5850 6145 6810 7313 7980 8400 8560 8620 8810 8830
Operating weight ST kg 4402 4418 5257 5772 6072 6397 7105 7696 8442 8862 8983 9043 9216 9236
Shipping weight SC kg 4655 4671 5573 6050 6265 6560 7225 7728 8390 8620 8780 9040 9030 9250
Operating weight SC kg 4817 4833 5757 6272 6487 6812 7520 8111 8852 9082 9203 9463 9436 9656
(1) data referred to the following conditions :
internal exchanger water = 12/7°C
outside air temperature 35°C
(2) According to EUROVENT the Total Power Input does not consider the
pump share, required to overcome the pressure drop for the solution
circulation inside the exchangers.
(3) DSW = twin-screw compressor
(4) S&T = tube bundle
(5) AX = axial-flow fan
OPERATING LIMITS
SIZES 2.160 2.180 2.200 2.220 2.250 2.280 2.300 2.320 2.340 2.360 2.390 2.420 2.450 2.480
EXTERNAL EXCHANGER
Max air intake temperature 1 C 47.5 46.5 47 45 45.5 45 44.5 44.5 44 46 45 44.5 43.5 43.5
Max air intake temperature 2 °C 52 51 52 50 50 50 49 49 49 51 50 49 48 48
Min. air intake temperature 3 °C -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10
Min. air intake temperature 4 °C -8 -9 -7 -9 -9 -9 -9 -9 -9 -9 -9 -9 -9 -9
Min. air intake temperature 5 °C 1 1 7 3 5 3 3 1 2 2 -1 -2 -2 -5
Min. air intake temperature 6 °C 12 13 17 14 15 13 14 13 14 14 12 12 11 9
INTERNAL EXCHANGER
Max water inlet temperature 7 °C 21
Min. water outlet temperature 8 °C 5
Min. water outlet temperature 9 °C -8
Note: the Standard unit shall never be exposed, at temperatures below -
10°C while supplied. On request it’s possible to take countermeasures for
the operation also in more critical environmental conditions. For special
conditions contact our Sales Office.
Warning: the still air condition is meant as absence of air flow to the unit.
Any wind condition can let air pass through the condenser coil thus
worsening the operating limits of the unit (see limits with air speed at 0,5 m/s
& 1 m/s). In order to avoid such situation, windbreak barriers are necessary.
The minimum ambient temperature is given for units equipped with low
ambient control or with ECObreeze fans. For standard unit without these
options, this value is of about 18°C with still air and unit operating at full
load.
(1) unit at full load
internal exchanger water = 12/7°C
(2) capacity-controlled unit (automatic capacity control)
(3) unit at full load
external exchanger air in quiet
(4) capacity-controlled unit (automatic capacity control)
external exchanger air in quiet
(5) capacity-controlled unit (automatic capacity control)
air to external exchanger = 0.5m/sec
(6) capacity-controlled unit (automatic capacity control)
external exchanger air = 1m/sec
(7) external exchanger air intake 35°C
(8) Standard Version
external exchanger air intake 35°C
(9) Low temperature version
external exchanger air intake 35°C
Fluid with ethylene glycol of 40%

M02J40M6-04
WDAT
-
3
2.160-3.660
- ELECTRICAL DATA -
13
Acoustic configuration: standard (ST) / compressors insulation (SC) / energy efficiency: high efficiency (H)
SIZES 3.480 3.500 3.540 3.630 3.660
COOLING
Cooling capacity 1 kW 1196 1268 1367 1456 1525
Compressor power input kW 375.3 392.9 414.8 431.1 468.7
Total power input 2 kW 406.9 427.9 449.8 469.5 507.1
EER Nr 2.94 2.96 3.04 3.1 3.01
ESEER Nr 4.09 4.12 4.22 4.31 4.18
COMPRESSOR
Type of compressors 3 DSW
No. of Compressors Nr 3
Std Capacity control steps Nr stepless/9
Refrigerant circuits Nr 3
INTERNAL EXCHANGER
Type of internal exchanger 4 S&T
No. of internal exchangers Nr 1
Water flow-rate l/s 57.1 60.6 65.3 69.6 72.8
Pressure drop kPa 55 69 79 89 97
EXTERNAL SECTION FANS
Type of fans 5 AX
Number of fans Nr 18 20 20 22 22
CONNECTIONS
Water fittings 8"
POWER SUPPLY
Standard power supply V 400/3/50
STANDARD UNIT WEIGHTS
Shipping weight ST kg 11136 12242 13235 13987 14087
Operating weight ST kg 10730 11767 12752 13422 13522
Shipping weight SC kg 11806 12907 13905 14657 14757
Operating weight SC kg 11400 12432 13422 14092 14192
(1) data referred to the following conditions :
internal exchanger water = 12/7°C
outside air temperature 35°C
(2) According to EUROVENT the Total Power Input does not consider the
pump share, required to overcome the pressure drop for the solution
circulation inside the exchangers.
(3) DSW = twin-screw compressor
(4) S&T = tube bundle
(5) AX = axial-flow fan
OPERATING LIMITS
SIZES 3.480 3.500 3.540 3.630 3.660
EXTERNAL EXCHANGER
Max air intake temperature 1 °C 43 43 43 44 43
Max air intake temperature 2 °C 49 49 49 50 49
Min. air intake temperature 3 °C -10 -10 -10 -10 -10
Min. air intake temperature 4 °C -9 -9 -9 -8 -9
Min. air intake temperature 5 °C 1 1 1 2 1
Min. air intake temperature 6 °C 13 13 13 14 13
INTERNAL EXCHANGER
Max water inlet temperature 7 °C 21
Min. water outlet temperature 8 °C 5
Min. water outlet temperature 9 °C -8
Note: the Standard unit shall never be exposed, at temperatures below -
10°C while supplied. On request it’s possible to take countermeasures for
the operation also in more critical environmental conditions. For special
conditions contact our Sales Office
Warning: the still air condition is meant as absence of air flow to the unit.
Any wind condition can let air pass through the condenser coil thus
worsening the operating limits of the unit (see limits with air speed at 0,5 m/s
& 1 m/s). In order to avoid such situation, windbreak barriers are necessary.
The minimum ambient temperature is given for units equipped with low
ambient control or with ECObreeze fans. For standard unit without these
options, this value is of about 18°C with still air and unit operating at full
load.
(1) unit at full load
(2) capacity-controlled unit (automatic capacity control)
(3) unit at full load
external exchanger air in quiet
(4) capacity-controlled unit (automatic capacity control)
external exchanger air in quiet
(5) capacity-controlled unit (automatic capacity control)
air to external exchanger = 0.5m/sec
(6) capacity-controlled unit (automatic capacity control)
external exchanger air = 1m/sec
(7) external exchanger air intake 35°C
(8) Standard Version
external exchanger air intake 35°C
(9) Low temperature version
external exchanger air intake 35°C
Fluid with ethylene glycol of 40%

M02J40M6-04
WDAT
-
3
2.160-3.660
- ELECTRICAL DATA -
14
Acoustic configuration: low noise (LN) / energy efficiency: high efficiency (H)
SIZES 2.160 2.180 2.200 2.220 2.250 2.280 2.300 2.320 2.340 2.360 2.390 2.420 2.450 2.480
COOLING
Cooling capacity 1 kW 363 399 469 526 576 670 738 802 857 896 939 1018 1102 1137
Compressor power input kW 114 127 149 168 184 207 225 247 261 275 281 311 336 349
Total power input 2 kW 124 137 161 181 197 222 240 262 277 293 304 336 361 374
EER Nr 2.92 2.91 2.92 2.91 2.92 3.01 3.07 3.06 3.09 3.06 3.09 3.03 3.05 3.04
ESEER Nr 4.18 4.18 4.18 4.18 4.17 4.31 4.38 4.37 4.42 4.38 4.43 4.33 4.36 4.36
COMPRESSOR
Type of compressors 3 DSW
No. of Compressors Nr 2
Std Capacity control steps Nr stepless/6
Refrigerant circuits Nr 2
INTERNAL EXCHANGER
Type of internal exchanger 4 S&T
No. of internal exchangers Nr 1
Water flow-rate l/s 17.3 19.1 22.4 25.1 27.5 32 35.3 38.3 40.9 42.8 44.9 48.6 52.7 54.3
Pressure drop kPa 43 30 40 35 49 27 41 38 54 59 64 75 44 47
EXTERNAL EXCHANGER
Front surface m219 19 24 24 29.4 29.4 35 35 35 35 43 48 48 48
EXTERNAL SECTION FANS
Type of fans 5 AX
Number of fans Nr 8 8 9 10 10 12 12 12 13 14 18 20 20 20
Standard air flow l/s 33264 33264 38688 41604 44377 49938 59950 59950 62648 65347 74868 83208 83208 83208
CONNECTIONS
Water fittings 5" 6" / 8" 6" / 8" 6" / 8" 6" / 8" 8"
POWER SUPPLY
Standard power supply V 400/3/50
STANDARD UNIT WEIGHTS
Shipping weight kg 4835 4851 5683 6270 6525 6820 7820 8413 8700 8800 10254 10654 11064 11304
Operating weight kg 4997 5013 5867 6492 6747 7072 8115 8796 9162 9262 10677 11077 11470 11710
(1) data referred to the following conditions :
internal exchanger water = 12/7°C
outside air temperature 35°C
(2) According to EUROVENT the Total Power Input does not consider the
pump share, required to overcome the pressure drop for the solution
circulation inside the exchangers.
(3) DSW = twin-screw compressor
(4) S&T = tube bundle
(5) AX = axial-flow fan
OPERATING LIMITS
SIZES 2.160 2.180 2.200 2.220 2.250 2.280 2.300 2.320 2.340 2.360 2.390 2.420 2.450 2.480
EXTERNAL EXCHANGER
Max air intake temperature 1 °C 46.5 45.5 42 44 44 44 43.5 44 43 43 42.5 42.5 42.5 44.5
Max air intake temperature 2 °C 51 50 47 49 49 49 48 49 48 48 47 47 47 49
Min. air intake temperature 3 °C -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10
Min. air intake temperature 4 °C -8 -9 -7 -9 -9 -9 -9 -9 -9 -9 -9 -9 -9 -9
Min. air intake temperature 5 °C 1 1 7 3 5 3 5 5 2 2 3 3 4 4
Min. air intake temperature 6 °C 12 13 17 14 15 13 15 15 14 14 14 14 14 14
INTERNAL EXCHANGER
Max water inlet temperature 7 °C 21
Min. water outlet temperature 8 °C 5
Min. water outlet temperature 9 °C -8
Note: the Standard unit shall never be exposed, at temperatures below -
10°C while supplied. On request it’s possible to take countermeasures for
the operation also in more critical environmental conditions. For special
conditions contact our Sales Office.
Warning: the still air condition is meant as absence of air flow to the unit.
Any wind condition can let air pass through the condenser coil thus
worsening the operating limits of the unit (see limits with air speed at 0,5 m/s
& 1 m/s). In order to avoid such situation, windbreak barriers are necessary.
The minimum ambient temperature is given for units equipped with low
ambient control or with ECObreeze fans. For standard unit without these
options, this value is of about 18°C with still air and unit operating at full
load.
(1) unit at full load
internal exchanger water = 12/7°C
(2) capacity-controlled unit (automatic capacity control)
(3) unit at full load
external exchanger air in quiet
(4) capacity-controlled unit (automatic capacity control)
external exchanger air in quiet
(5) capacity-controlled unit (automatic capacity control)
air to external exchanger = 0.5m/sec
(6) capacity-controlled unit (automatic capacity control)
external exchanger air = 1m/sec
(7) external exchanger air intake 35°C
(8) Standard Version
external exchanger air intake 35°C
(9) Low temperature version
external exchanger air intake 35°C
Fluid with ethylene glycol of 40%

M02J40M6-04
WDAT
-
3
2.160-3.660
- ELECTRICAL DATA -
15
Acoustic configuration: low noise (LN) / energy efficiency: high efficiency (H)
SIZES 3.480 3.500 3.540 3.630
COOLING
Cooling capacity 1 kW 1207 1271 1344 1450
Compressor power input kW 378.9 395.2 420.6 454.1
Total power input 2 kW 403.9 420.2 448 481.5
EER Nr 2.99 3.02 3 3.01
ESEER Nr 4.27 4.32 4.29 4.31
COMPRESSOR
Type of compressors 3 DSW
No. of Compressors Nr 3
Std Capacity control steps Nr stepless/9
Refrigerant circuits Nr 3
INTERNAL EXCHANGER
Type of internal exchanger 4 S&T
No. of internal exchangers Nr 1
Water flow-rate l/s 57.7 60.7 64.2 69.3
Pressure drop kPa 56 68 76 88
EXTERNAL SECTION FANS
Type of fans 5 AX
Number of fans Nr 20 20 22 22
CONNECTIONS
Water fittings 8"
POWER SUPPLY
Standard power supply V 400/3/50
STANDARD UNIT WEIGHTS
Shipping weight kg 13072 13337 13442 14092
Operating weight kg 13478 13812 13925 14657
(1) data referred to the following conditions :
internal exchanger water = 12/7°C
outside air temperature 35°C
(2) According to EUROVENT the Total Power Input does not consider the
pump share, required to overcome the pressure drop for the solution
circulation inside the exchangers.
(3) DSW = twin-screw compressor
(4) S&T = tube bundle
(5) AX = axial-flow fan
OPERATING LIMITS
SIZES 3.480 3.500 3.540 3.630
EXTERNAL EXCHANGER
Max air intake temperature 1 °C 41 42 42 41
Max air intake temperature 2 °C 47 48 48 47
Min. air intake temperature 3 °C -10 -10 -10 -10
Min. air intake temperature 4 °C -9 -9 -9 -9
Min. air intake temperature 5 °C 1 1 1 1
Min. air intake temperature 6 °C 13 13 13 13
INTERNAL EXCHANGER
Max water inlet temperature 7 °C 21
Min. water outlet temperature 8 °C 5
Min. water outlet temperature 9 °C -8
Note: the Standard unit shall never be exposed, at temperatures below -
10°C while supplied. On request it’s possible to take countermeasures for
the operation also in more critical environmental conditions. For special
conditions contact our Sales Office
Warning: the still air condition is meant as absence of air flow to the unit.
Any wind condition can let air pass through the condenser coil thus
worsening the operating limits of the unit (see limits with air speed at 0,5 m/s
& 1 m/s). In order to avoid such situation, windbreak barriers are necessary.
The minimum ambient temperature is given for units equipped with low
ambient control or with ECObreeze fans. For standard unit without these
options, this value is of about 18°C with still air and unit operating at full
load.
(1) unit at full load
(2) capacity-controlled unit (automatic capacity control)
(3) unit at full load
external exchanger air in quiet
(4) capacity-controlled unit (automatic capacity control)
external exchanger air in quiet
(5) capacity-controlled unit (automatic capacity control)
air to external exchanger = 0.5m/sec
(6) capacity-controlled unit (automatic capacity control)
external exchanger air = 1m/sec
(7) external exchanger air intake 35°C
(8) Standard Version
external exchanger air intake 35°C
(9) Low temperature version
external exchanger air intake 35°C
Fluid with ethylene glycol of 40%

M02J40M6-04
WDAT
-
3
2.160-3.660
- ELECTRICAL DATA -
16
Acoustic configuration: extremely low noise (EN) / energy efficiency: high efficiency (H)
SIZES 2.160 2.180 2.200 2.220 2.250 2.280 2.300 2.320 2.340 2.360 2.390 2.420 2.450 2.480
COOLING
Cooling capacity 1 kW 353 387 447.5 503.9 567.2 655.2 709.3 770.8 814.7 851.5 918.3 1007.7 1075.5 1105.4
Compressor power input kW 123.1 135.5 156 180.6 195.3 223.1 250.6 274.8 292.3 308.1 305.7 327.3 367.4 382.1
Total power input 2 kW 133.4 145.8 168.7 193.3 208 238.2 265.7 289.9 308.6 325.6 330.7 352.3 392.4 407.1
EER Nr 2.65 2.65 2.65 2.61 2.73 2.75 2.67 2.66 2.64 2.62 2.78 2.86 2.74 2.72
ESEER Nr 3.98 3.98 3.98 3.91 4.1 4.12 4 3.99 3.96 3.93 4.16 4.29 4.12 4.07
COMPRESSOR
Type of compressors 3 DSW
No. of Compressors Nr 2
Std Capacity control steps Nr stepless/6
Refrigerant circuits Nr 2
INTERNAL EXCHANGER
Type of internal exchanger 4 S&T
No. of internal exchangers Nr 1
Water flow-rate l/s 16.9 18.5 21.4 24.1 27.1 31.3 33.9 36.8 38.9 40.7 43.9 48.1 51.4 52.8
Pressure drop kPa 40 28 37 33 47 26 38 35 50 54 62 73 42 45
EXTERNAL EXCHANGER
Front surface m219 19 24 24 29.4 29.4 35 35 35 35 48 48 48 48
EXTERNAL SECTION FANS
Type of fans 5 AX
Number of fans Nr 8 8 9 10 10 12 12 12 13 14 20 20 20 20
Standard air flow l/s 26396 26396 31036 33270 35911 39919 50615 50615 53573 56531 66541 66541 66541 66541
CONNECTIONS
Water fittings 5" 6" / 8" 6" / 8" 6" / 8" 6" / 8" 8"
POWER SUPPLY
Standard power supply V 400/3/50
STANDARD UNIT WEIGHTS
Shipping weight kg 4835 4851 5683 6270 6525 6820 7820 8413 8700 8800 10814 11094 11284 11304
Operating weight kg 4997 5013 5867 6492 6747 7072 8115 8796 9162 9262 11237 11517 11690 11710
(1) data referred to the following conditions :
internal exchanger water = 12/7°C
outside air temperature 35°C
(2) According to EUROVENT the Total Power Input does not consider the
pump share, required to overcome the pressure drop for the solution
circulation inside the exchangers.
(3) DSW = twin-screw compressor
(4) S&T = tube bundle
(5) AX = axial-flow fan
OPERATING LIMITS
SIZES 2.160 2.180 2.200 2.220 2.250 2.280 2.300 2.320 2.340 2.360 2.390 2.420 2.450 2.480
EXTERNAL EXCHANGER
Max air intake temperature 1 °C 44.5 43 44 41.5 42 41 39 39.5 39 39.5 40.5 42.5 41.5 41.5
Max air intake temperature 2 °C 49 48 49 46 47 46 44 44 44 44 45 47 46 46
Min. air intake temperature 3 °C -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10 -10
Min. air intake temperature 4 °C -8 -9 -7 -9 -9 -9 -9 -9 -9 -9 -10 -9 -9 -9
Min. air intake temperature 5 °C 1 1 7 3 5 3 5 5 2 2 6 3 4 4
Min. air intake temperature 6 °C 12 13 17 14 15 13 15 15 14 14 16 14 14 14
INTERNAL EXCHANGER
Max water inlet temperature 7 °C 21
Min. water outlet temperature 8 °C 5
Min. water outlet temperature 9 °C -8
Note: In any case, the unit should never be exposed to or operated,
transported and/or stored at temperatures below -10°C.
Note: the Standard unit shall never be exposed, at temperatures below -
10°C while supplied. On request it’s possible to take countermeasures for
the operation also in more critical environmental conditions. For special
conditions contact our Sales Office.
Note: the Standard unit shall never be exposed, at
temperatures below -10°C while supplied.
Warning: the still air condition is meant as absence of air flow to the unit.
Any wind condition can let air pass through the condenser coil thus
worsening the operating limits of the unit (see limits with air speed at 0,5 m/s
& 1 m/s). In order to avoid such situation, windbreak barriers are necessary.
The minimum ambient temperature is given for units equipped with low
ambient control or with ECObreeze fans. For standard unit without these
options, this value is of about 18°C with still air and unit operating at full
load.
(1) unit at full load
internal exchanger water = 12/7°C
(2) capacity-controlled unit (automatic capacity control)
(3) unit at full load
external exchanger air in quiet
(4) capacity-controlled unit (automatic capacity control)
external exchanger air in quiet
(5) capacity-controlled unit (automatic capacity control)
air to external exchanger = 0.5m/sec
(6) capacity-controlled unit (automatic capacity control)
external exchanger air = 1m/sec
(7) external exchanger air intake 35°C
(8) Standard Version
external exchanger air intake 35°C
(9) Low temperature version
external exchanger air intake 35°C
Fluid with ethylene glycol of 40%

M02J40M6-04
WDAT
-
3
2.160-3.660
- ELECTRICAL DATA -
17
Acoustic configuration: extremely low noise (EN) / energy efficiency: high efficiency (H)
SIZES 3.480 3.500 3.540
COOLING
Cooling capacity 1 kW 1158 1208 1291
Compressor power input kW 407.3 427 459.5
Total power input 2 kW 432.3 452 486.9
EER Nr 2.68 2.67 2.65
ESEER Nr 4.05 4.03 4
COMPRESSOR
Type of compressors 3 DSW
No. of Compressors Nr 3
Std Capacity control steps Nr stepless/9
Refrigerant circuits Nr 3
INTERNAL EXCHANGER
Type of internal exchanger 4 S&T
No. of internal exchangers Nr 1
Water flow-rate l/s 55.3 57.7 61.7
Pressure drop kPa 51 63 71
EXTERNAL SECTION FANS
Type of fans 5 AX
Number of fans Nr 20 20 22
CONNECTIONS
Water fittings 8"
POWER SUPPLY
Standard power supply V 400/3/50
STANDARD UNIT WEIGHTS
Shipping weight kg 13092 13337 13442
Operating weight kg 13498 13812 13925
(1) data referred to the following conditions :
internal exchanger water = 12/7°C
outside air temperature 35°C
(2) According to EUROVENT the Total Power Input does not consider the
pump share, required to overcome the pressure drop for the solution
circulation inside the exchangers.
(3) DSW = twin-screw compressor
(4) S&T = tube bundle
(5) AX = axial-flow fan
OPERATING LIMITS
SIZES 3.480 3.500 3.540
EXTERNAL EXCHANGER
Max air intake temperature 1 °C 39 38 38
Max air intake temperature 2 °C 45 44 44
Min. air intake temperature 3 °C -10 -10 -10
Min. air intake temperature 4 °C -9 -9 -9
Min. air intake temperature 5 °C 1 1 1
Min. air intake temperature 6 °C 13 13 13
INTERNAL EXCHANGER
Max water inlet temperature 7 °C 21
Min. water outlet temperature 8 °C 5
Min. water outlet temperature 9 °C -8
Note: the Standard unit shall never be exposed, at temperatures below -
10°C while supplied. On request it’s possible to take countermeasures for
the operation also in more critical environmental conditions. For special
conditions contact our Sales Office.
Warning: the still air condition is meant as absence of air flow to the unit.
Any wind condition can let air pass through the condenser coil thus
worsening the operating limits of the unit (see limits with air speed at 0,5 m/s
& 1 m/s). In order to avoid such situation, windbreak barriers are necessary.
The minimum ambient temperature is given for units equipped with low
ambient control or with ECObreeze fans. For standard unit without these
options, this value is of about 18°C with still air and unit operating at full
load.
(1) unit at full load
(2) capacity-controlled unit (automatic capacity control)
(3) unit at full load
external exchanger air intake 35°C
(4) capacity-controlled unit (automatic capacity control)
external exchanger air in quiet
(5) capacity-controlled unit (automatic capacity control)
air to external exchanger = 0.5m/sec
(6) capacity-controlled unit (automatic capacity control)
external exchanger air = 1m/sec
(7) external exchanger air intake 35°C
(8) Standard Version
external exchanger air intake 35°C
(9) Low temperature version
external exchanger air intake 35°C
Fluid with ethylene glycol of 40%

M02J40M6-04
WDAT
-
3
2.160-3.660
- ELECTRICAL DATA -
18

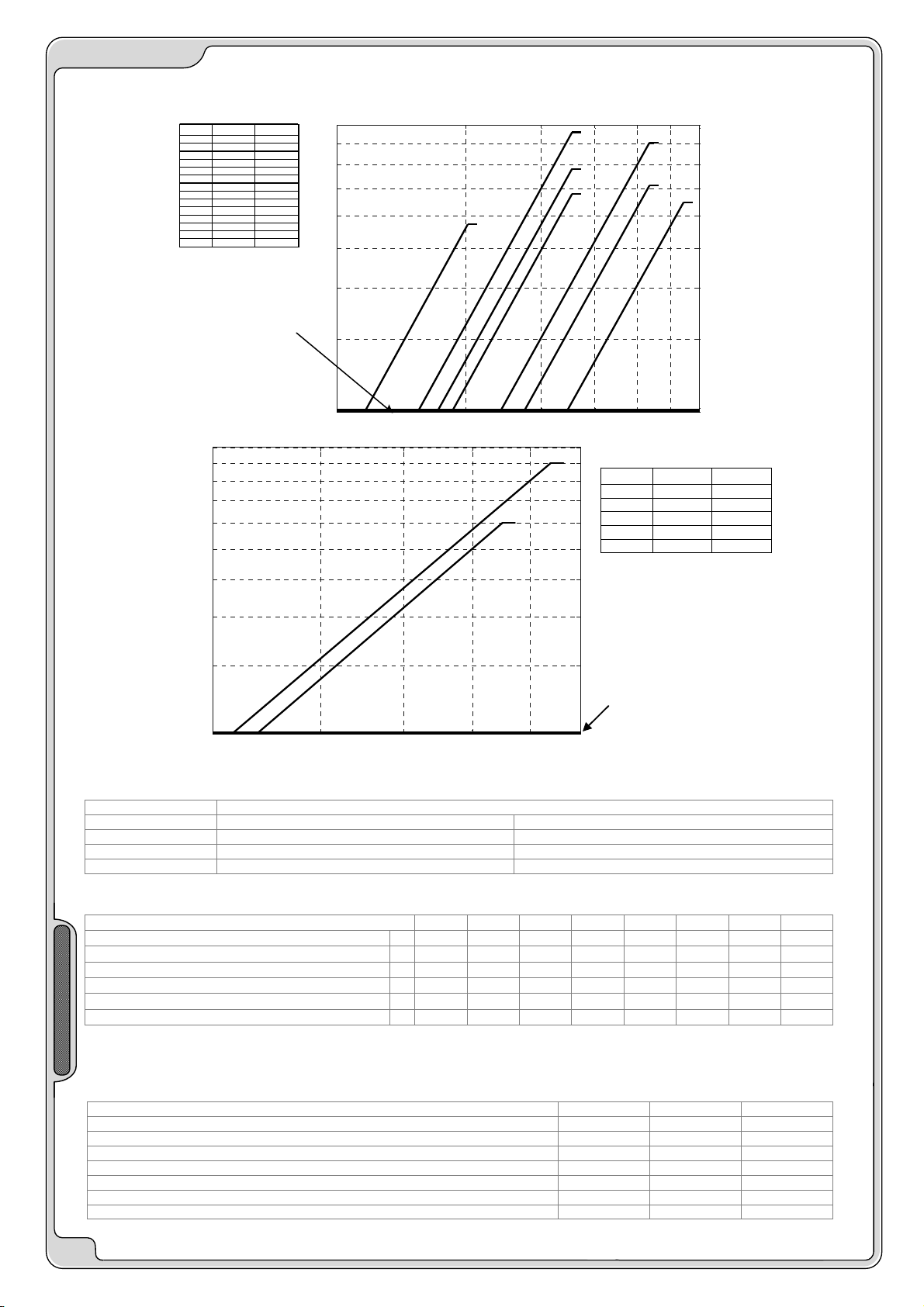

INTERNAL EXCHANGER PRESSURE DROP
10 20 30 40 50 60 70
20
30
40
50
60
70
80
90
100
Q [l/s]
∆
∆ ∆
∆
P [kPa]
2.160
2.180-2.200
2.220
2.250
2.280-2.320
2.300-2.340-2.360-2.390-2.420
2.450-2.480
Q
MIN
[l/s] Q
MA
X
[l/s]
2.160 11.6 20.2
2.180 15.5 35.4
2.200 15.5 35.4
2.220 18.6 35.4
2.250 17.2 35.4
2.280 27.3 53.6
2.300 24.1 53.6
2.320 27.3 53.6
2.340 24.1 53.6
2.360 24.1 53.6
2.390 24.1 53.6
2.420 24.1 53.6
2.450 34.4 64.4
2.480 34.4 64.4
30 40 50 60 70 80
20
30
40
50
60
70
80
90
100
110
3.480
3.500-3.540-3.630-3.630
QMIN [l/s] QMAX [l/s]
3.480 33.7 65.0
3.500 31.6 74.0
3.540 31.6 74.0
3.630 31.6 74.0
3.660 31.6 74.0
FOULING CORRECTION FACTOR
INTERNAL EXCHANGER
m² °C/W Cooling capacity correction factors Cooling capacity correction factors
0.44 x 10^(-4) 1.00 1.00
0.88 x 10^(-4) 0.97 0.99
1.76 x 10^(-4) 0.94 0.98
CORRECTION FACTOR FOR ANTIFREEZE SOLUTIONS
% ethylene glycol by weight 5% 10% 15% 20% 25% 30% 35% 40%
Freezing temperature °C -2,0 -3,9 -6,5 -8,9 -11,8 -15,6 -19,0 -23,4
Safety temperature °C 3,0 1,0 -1,0 -4,0 -6,0 -10,0 -14,0 -19,0
Cooling Capacity Factor Nr 0,995 0,990 0,985 0,981 0,977 0,974 0,971 0,968
Compressor input Factor Nr 0,997 0,993 0,990 0,988 0,986 0,984 0,982 0,981
Internal exchanger Glycol solution flow Factor Nr 1,003 1,010 1,020 1,033 1,050 1,072 1,095 1,124
Pressure drop Factor Nr 1,029 1,060 1,090 1,118 1,149 1,182 1,211 1,243
The correction factors shown refer to water and glycol ethylene mixes used to prevent the formation of frost on the exchangers in the
water circuit during inactivity in winter.
OVERLOAD AND CONTROL DEVICE CALIBRATION
OPEN CLOSED VALUE
High pressure switch kPa 1730 1170 --
Low pressure switch kPa 70 170 --
Antifreeze protection °C 3 5,5 --
High pressure safety valve kPa -- -- 2700
Low pressure safety valve kPa -- -- 1650
Max no. of compressor starts per hour Nr -- -- 6
High compressor discharge temperature safety thermostat °C -- -- 120
EVAPORATOR PRESSURE DROP LIMIT. CAUTION:
DO NOT USE UNDER THIS LIMIT.
EXCHANGER PRESSURE DROP LIMIT. CAUTION: DO NOT
USE UNDER THIS LIMIT

M02J40M6-04
WDAT
-
3
2.160-3.660
- ELECTRICAL DATA -
19
EXCHANGER OPERATING LIMITS
INTERNAL EXCHANGER
Maximum operating pressure on refrigerant side Maximum operating pressure on refrigerant side
kPa kPa
CLIVET (C) 1650 1600
PED (CE) 1650 1600
SOUND LEVELS
Acoustic configuration ST Acoustic configuration SC
Sound Power Level (dB)
Octave band (Hz)
Sound
pressure
level
Sound
power
level
Size
63 125 250 500 1000 2000 4000 8000 dB(A) dB(A)
2.160 101 98 94 93 96 93 87 78 80 100
2.180 101 98 94 94 97 94 88 77 81 101
2.200 102 99 95 95 98 95 89 78 81 101
2.220 102 99 95 95 98 95 89 78 81 101
2.250 102 99 95 94 98 96 90 78 81 102
2.280 102 100 96 95 98 96 90 78 81 102
2.300 102 100 96 95 98 95 92 80 81 102
2.320 101 99 95 95 98 94 93 81 81 102
2.340 103 101 97 97 100 96 94 82 82 103
2.360 105 102 98 98 101 97 95 83 83 104
2.390 105 102 98 98 101 97 95 83 83 105
2.420 106 103 99 99 102 98 96 84 84 105
2.450 106 103 99 99 102 98 96 84 84 106
2.480 107 104 100 100 103 99 97 85 85 106
3.480 104 102 98 98 101 97 96 84 83 105
3.500 106 103 99 99 102 98 97 85 84 106
3.540 108 105 101 101 104 100 98 86 85 107
3.630 109 106 102 102 105 101 99 87 86 108
3.660 110 107 103 103 106 102 100 88 87 109
Acoustic configuration LN Acoustic configuration EN
Sound Power Level (dB)
Octave band (Hz)
Sound
pressure
level
Sound
power
level
Grand.
63 125 250 500 1000 2000 4000 8000 dB(A) dB(A)
2.160 98 86 86 89 91 86 82 73 74 93
2.180 98 85 85 90 91 88 83 70 74 94
2.200 98 85 85 90 91 88 83 70 74 95
2.220 98 85 85 90 91 88 83 70 74 95
2.250 99 86 86 90 92 90 85 72 75 95
2.280 99 86 87 91 92 90 85 72 75 96
2.300 98 85 86 91 92 88 86 73 75 96
2.320 98 85 86 92 93 87 88 75 75 96
2.340 99 86 87 92 94 88 88 75 76 97
2.360 99 86 87 92 94 88 88 75 76 97
2.390 100 87 88 93 95 89 89 76 77 98
2.420 100 87 88 93 95 89 89 76 77 98
2.450 101 88 89 94 96 90 90 77 78 99
2.480 101 88 89 94 96 90 90 77 78 99
3.480 102 89 90 96 97 91 92 79 78 101
3.500 103 90 91 96 98 92 92 79 78 101
3.540 103 90 91 96 98 92 92 79 79 101
3.630 104 91 92 97 99 93 93 80 80 102
Measures according to ISO 3744 regulations, with respect to the EUROVENT 8/1 certification.
The sound pressure level refers to a distance of 1m from the external surface of the units operating in an open field.
data referred to the following conditions : internal exchanger water = 12/7°C
Sound Power Level (dB)
Octave band (Hz)
Sound
pressure
level
Sound
power
level
Size
63 125 250 500 1000 2000 4000 8000 dB(A) dB(A)
2.160 98 95 91 90 93 90 84 75 77 97
2.180 98 95 91 91 94 91 85 74 78 98
2.200 99 96 92 92 95 92 86 75 78 98
2.220 99 96 92 92 95 92 86 75 78 98
2.250 99 96 92 91 95 93 87 75 78 99
2.280 99 97 93 92 95 93 87 75 78 99
2.300 99 97 93 92 95 92 89 77 78 99
2.320 98 96 92 92 95 91 90 78 78 99
2.340 100 98 94 94 97 93 91 79 79 100
2.360 102 99 95 95 98 94 92 80 80 101
2.390 102 99 95 95 98 94 92 80 80 102
2.420 103 100 96 96 99 95 93 81 81 102
2.450 103 100 96 96 99 95 93 81 81 103
2.480 104 101 97 97 100 96 94 82 82 103
3.480 101 99 95 95 98 94 93 81 80 102
3.500 103 100 96 96 99 95 94 82 81 103
3.540 105 102 98 98 101 97 95 83 82 104
3.630 106 103 99 99 102 98 96 84 83 105
3.660 107 104 100 100 103 99 97 85 84 106
Sound Power Level (dB)
Octave band (Hz)
Sound
pressure
level
Sound
power
level
Grand.
63 125 250 500 1000 2000 4000 8000 dB(A) dB(A)
2.160 86 76 77 81 84 78 78 68 67 87
2.180 84 74 75 84 84 80 77 64 68 88
2.200 85 75 76 85 85 81 78 65 68 88
2.220 85 75 76 85 85 81 78 65 68 88
2.250 85 75 76 82 85 82 80 66 68 89
2.280 86 77 77 84 86 83 81 67 69 90
2.300 86 77 77 86 87 82 83 69 70 91
2.320 85 76 77 87 88 80 84 71 70 91
2.340 86 76 77 87 88 80 84 71 70 91
2.360 87 77 78 87 88 80 84 71 70 91
2.390 88 78 79 88 89 81 85 72 70 92
2.420 89 79 80 89 90 82 86 73 71 93
2.450 89 79 80 89 90 82 86 73 71 93
2.480 90 80 81 90 91 83 87 74 72 94
3.480 88 79 80 90 91 83 87 74 72 94
3.500 88 79 80 90 91 83 87 74 72 94
3.540 90 80 81 90 91 83 87 74 72 94

M02J40M6-04
WDAT
-
3
2.160-3.660
- RECEPTION -
20
- RECEPTION -
INSPECTION UPON RECEPTION
Check on arrival that the unit has not suffered damage during transit and that it is complete in every part as specified in
the order. In the event of visible damage/deficiencies being discovered, make a note immediately on the delivery
document with the comment: "CONDITIONAL ACCEPTANCE — CLEAR EVIDENCE OF DEFICIENCIES/DAMAGE
DURING TRANSIT", then inform both the supplier and the carrier of the details by fax and by registered mail with advice
of receipt not later than 8 days after taking consignment. Notifications sent after 8 days have elapsed will be ignored.
STORAGE
Shelter from: direct sunlight, rain, sand and wind
Temperature: maximum 60°C minimum -10°C
Maximum humidity: 90%
The respect of the instructions on the exterior side of the packaging assures the physical and functional integrity of the
unit for the final user’s advantage.
It is recommended to:
•Handle carefully
•Keep in a dry place
•Avoid putting other objects on top of the unit (respect the limits of levels of superimposition shown in the
package)
•Avoid placing the unit with thermoretractable protection under the sun since the pressure of the circuits can
assume values which activate the safety valves.
HANDLING
The operation of handling the unit must be carried out respecting the instructions of the safety norms in force (Legislative
Decree 626/94 and following modifications)
Before starting the handling operations:
•Verify that the lifting capacity of the means used is adequate to the unit weight
•Consider that the barycentre could be moved with respect to the center of the unit
•Before starting to lift, verify that the unit is at a stable balance
The following examples are indications; the choice of the means and of the handling modes will depend on factors, such
as:
The unit weight
•Type and overall dimensions of the unit
•Place and route for the handling (dirt yard, asphalted square, etc. )
•Condition of the place of destination (roof, square, etc.)
•Distances, drops and gradients.
labels / yellow brackets show the lifting points
use a spacer bar to avoid damaging the unit2 lifting points
use 2-boom tie rods
(2 cables/chains/straps for each unit side)
according to the unit type, holes and/or lifting
brackets are positioned in different points
