Clover HDC238 User manual

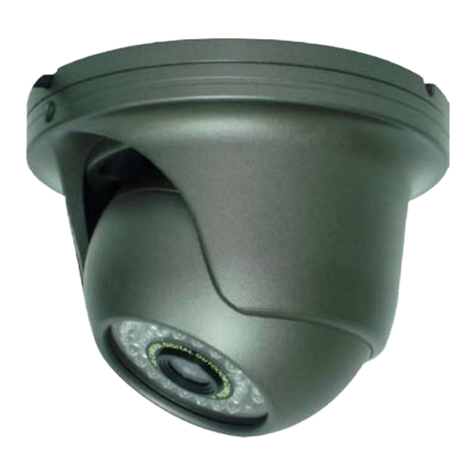

DAY/NIGHT COLOR DOME CAMERA
Model # HDC238
8.5”
11”
Package Includes
1 - Day & Night Color Dome Camera
1 - Hardware Accessories Kit
1 - Instruction Manual for OSD Control
1 - Instruction Manual
1 - Warranty Registration Card
3D-DNR
Security CameraSecurity Camera
Business Home
Image sensor
Total pixels
Effective Pixels
Scanning system
O.S.D
Backlight
Resolution
S/N (Y signal)
Min.illumination
White Balance
Sense-up
3 DNR
D-WDR
D&N selection
Digital zoom
Voltage
Current consumption
Lens
Operating temperature/Humidity
Storage temperature/Humidity
Dimensions
Weight
1/3” SONY Super HAD CCD
811(H) x 508(V)
768(H) x 494(V)
2:1 Interlace
Available
Off / HSBLC / BLC selectable
550TV Lines(color),600TV Lines(B/W)
52dB (AGC Off, Weight On)
0.00001Lux(sense-up x258)
ATW / AWB / Manual / AWC→SET
Off / Auto / (Selectable limit x2 ~ x258)
Off / On (1~50 level adjustable)
Indoor / Outdoor / Off
Color / BW / Auto
On(x32) / Off
DC12V
130 mA @DC12V
4.0mm fixed board lens
-10°C ~ +50°C. RH 95% Max.
-20°C ~ +60°C. RH 95% Max.
110 (Ф) x 75(H)mm
0.7 Lbs
Specifications
OSD Control Board OSD
1. LENS
2. EXPOSURE
3. WHITE BAL
4. DAY NIGHT
5. 3DNR
6. SPECIAL
7. ADJUST
8. RESET
9. EXIT
SETUP
DC
ATB
COLOR
OFF
Features
• 1/3” Sony Super HAD CCD
• High Resolution 550 TV Lines (Color), 600 TV Lines (B/W)
• Day/Night Camera
• On Screen Display (OSD)
• 3D DNR (Digital Noise Reduction) with 3D filter
• D-WDR (Digital Wide Dynamic Range)
• 3-Axis Gimbals Bracket
• DC 12V Power Source
DIMENSIONS CONNECTION
• 550TV Lines
• 3.6mm Fixed
Board Lens
