Brickcom FB-100Ap Series Instructions for use

0
Hardware User’s Manual
Megapixel Day & Night
Fixed Box Network Camera
Quality Service Group
Fixed Box Series

1
Review History:
1. Separate User Manual into HW and SW.
2. Merge FB-100Ap/FB-100Ae/FB-130Np Series into this User Manual.
3. Merge FocusEasy™ version
4. Merge (W)FB-300Np V5 feature version
5. Merge FB-500/300/200 & FB-H
6. Merge WDRPro Series
Product name:
Network Camera (Fixed Box series)
Release Date:
2015/09
Manual Revision:
V6.0
Web site:
www.brickcom.com
Email:
[e-mail]
[e-mail]
©2015 Brickcom Corporation. All Rights Reserved

2
Table of Contents
Before You Use This Product .................................................................... 3
Regulatory Information ............................................................................ 4
Chapter 1- Package Contents .................................................................... 5
Chapter 2- Fixed Box Network Camera Overview ........................................... 6
Chapter 3- Device Appearance Description................................................... 7
Chapter 4 - LED Indicators.......................................................................12
Chapter 5- Installation.............................................................................13
5.1 Hardware Installation...............................................................................................13
5.2 Camera Connection ................................................................................................15
5.3 System Requirements.............................................................................................17

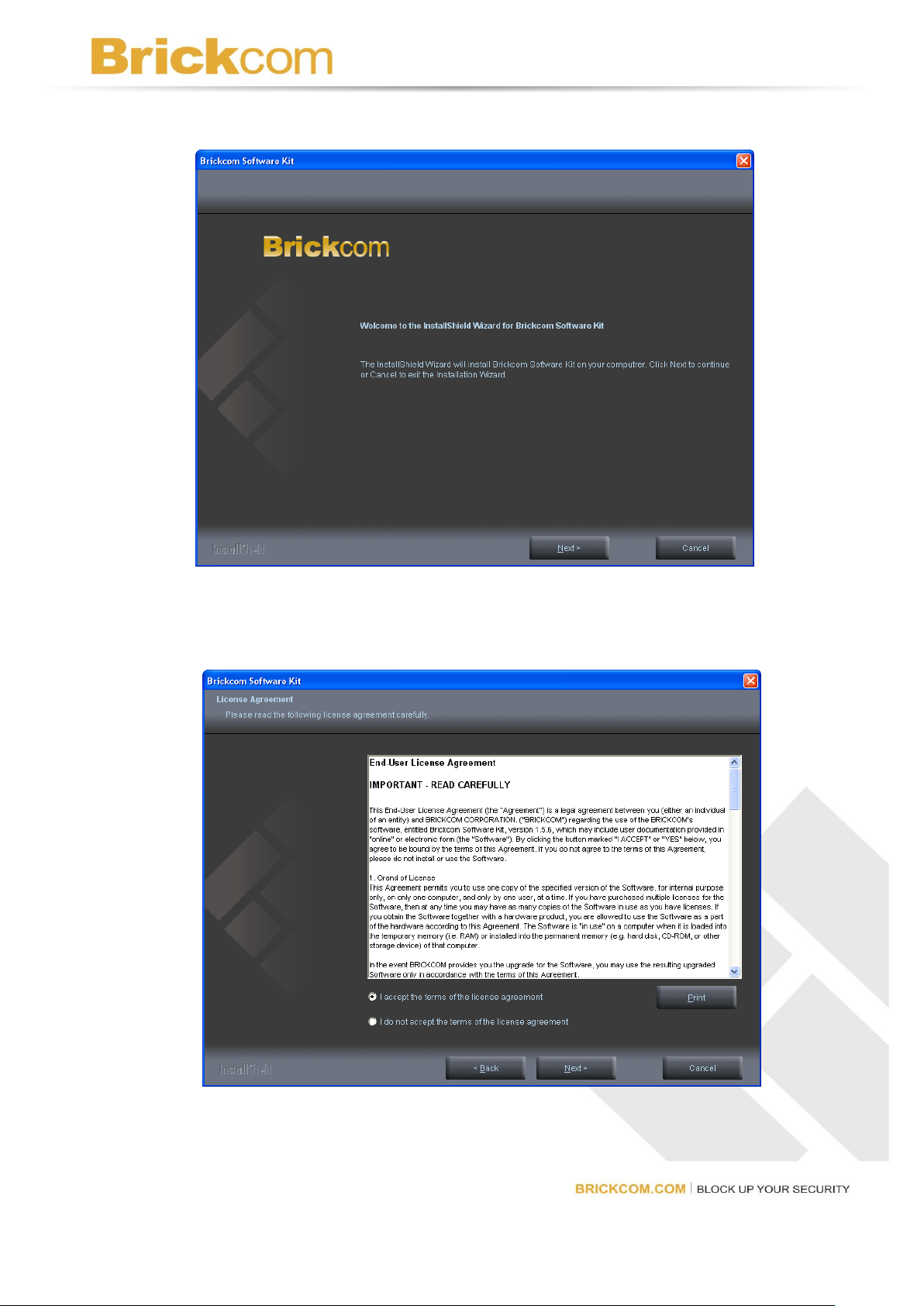

5.4 Software Installation................................................................................................18
5.4.1EasyConfig ........................................................................... 26

3
Before You Use This Product
In many countries, there are laws prohibiting or restricting the use of surveillance
devices. This Network Camera is a high-performance, web-ready camera which can be
part of a flexible surveillance system. It is user’s responsibility to ensure that the
operation of this camera is legal before installing this unit for its intended use.
Upon opening the product’s package, verify that all the accessories listed on the
“Package Contents” are included. Before installing the Network Camera, read the
warnings in the “Easy Installation Guide” to avoid misuse. When installing the Network
Camera, carefully read and follow the instructions in the “Installation” chapters to avoid
damages due to faulty assembly or installation.

4
Regulatory Information
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE :
FCC Radiation Exposure Statement :
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
The availability of some specific channels and/or operational frequency bands are country
dependent and are firmware programmed at the factory to match the intended destination.
The firmware setting is not accessible by the end user.

5
Chapter 1- Package Contents
Please check to make sure that the product package contains all the accessories listed
below.
a. Network Camera
b. CS mount Lens (Optional)
c. Product CD
d. Camera Stand
e. Warranty Card
f. Allen Key
g. Power Adapter (Optional)
h. Detachable Antenna (Optional)
i. A/V Cable

6
Chapter 2- Fixed Box Network Camera
Overview
The Brickcom Fixed Box series offers a reliable and efficient solution for 24-hour video
surveillance. The Fixed Box series offers highly efficient H.264 video compression,
which reduces bandwidth and storage requirements without compromising image quality.
M-JPEG and MPEG-4 are also supported for flexibility.
With the megapixel progressive sensor and removable IR-cut Filter, this series delivers
extremely clear and detailed images that CCTV cameras cannot offer. The internal
SD/SDHC/SDXC memory card slot allows for local storage, which prevents data loss if
the data connection is lost. Users can view live feed anywhere by internet browser or 3G
mobile phone. Also, the Fixed Box series can transmit the video to portable devices
through other technology, such as WiMax, NAS, Digital Frame and power line.
The Fixed Box series receives power through the same cable as for data transmission.
This makes installation easy because there is no external power supply needed.
For easy setup, the Fixed Box series offers a step-by-step installation package. “Easy
Config” makes the configuration simple even for users without an IT background.
With IEEE 802.11 a/b/g/n wireless compliance, network installation is not restricted by
location or landforms. The Wireless Fixed Box series can be installed in any location with
wireless coverage. It can easily be used to cover remote districts and historic spots.
In addition to the motion detection function, the Fixed Box advanced Series can also
support Intelligent Video Analysis which can be used for applications such as object
tracking, people counting, and forbidden region alarm.

7
Chapter 3- Device Appearance Description

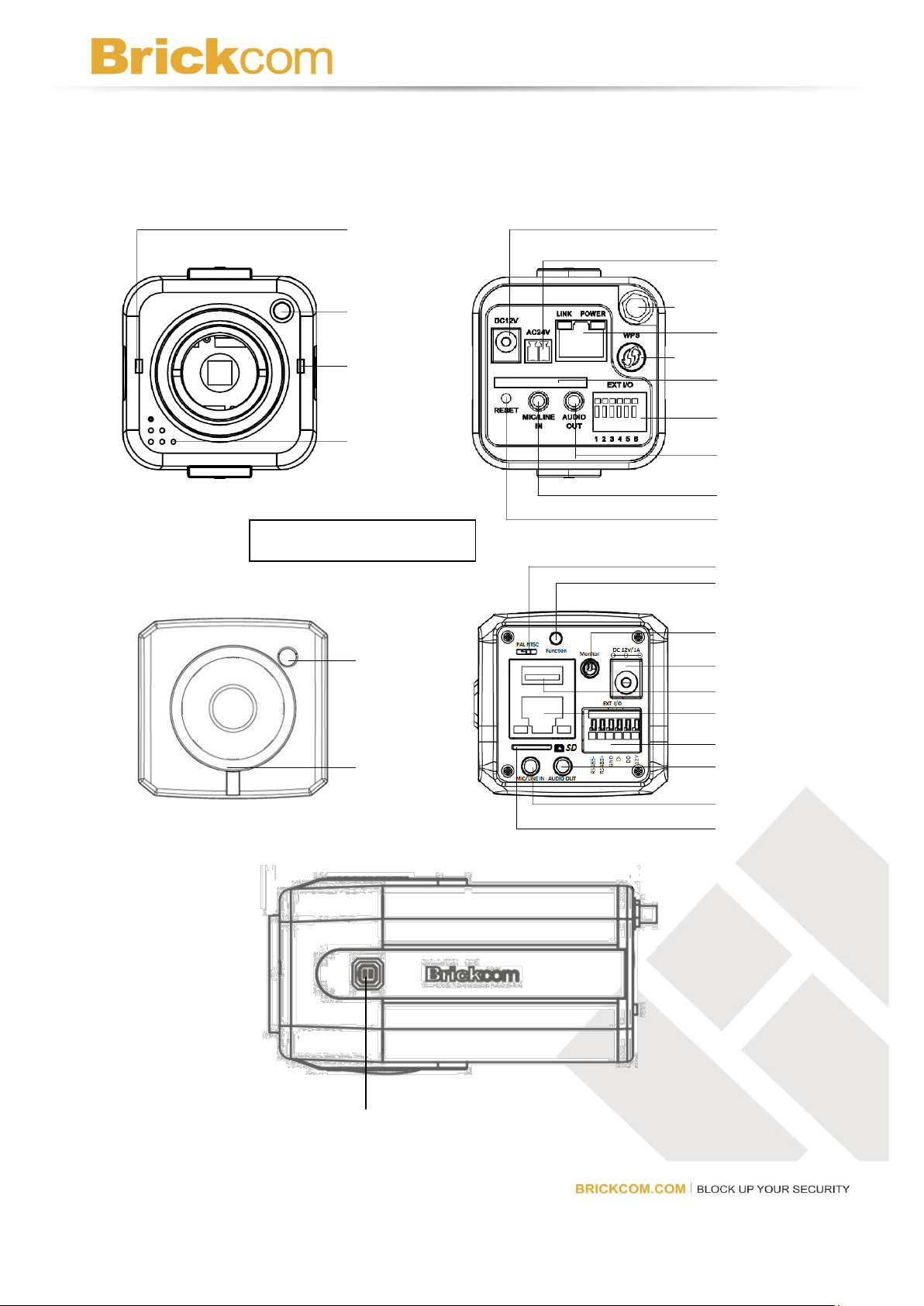

Photo Indication & Dimension Diagram
FB Series
PAL/NTSC
Function (FocusEasy/ Reset)
Monitor (TV out)
Power Connector (DC12V in)
USB Port for 3D Dongle
Ethernet RJ45 Socket
Audio Out
Microphone/Line In
DIDO Terminal I/O Connector
Micro SD/SDHC/SDXC slot
Auto Iris Connector
Power Connector
(AC24V In)**
Ethernet RJ45 10/100 Socket
(Link/Power LED embedded)
Power Connector
(DC12V In)
Audio Out
Detachable Antenna
(WIFI series)
Extension I/O Terminal
Block
WPS Button
(WIFI Series)
SD/SDHC Card Slot
Reset Button
Microphone/Line In
Light Sensor
CS Ring
Screw Holding
**- WDRPro & STD Series not included
Status LED
Light Sensor
WPS LED (WIFI
series)
Build-in Microphone

8
NOTE
1. The WPS buttons must first be enabled through the web GUI in order to work. See WPS
page for details on how to enable the WPS Button.
2. (*) These are optional features. Please refer to the Product List for the full list of optional
features available for the product.
Photo Indication & Dimension Diagram
FB-H Series
Light Sensor
WPS LED
(WIFI series)
Status LED
Build-in
Microphone
DIDO Terminal I/O Connector
Power Connector (DC12V In)
Power Connector (AC24V In)**
Antenna Connector
Ethernet RJ45 10/100 Socket
(Link/Power LED embedded)
WPS Button (WIFI series)
Microphone/Line In
TV Out
Audio Out
Auto Iris Connector
Micro SD/SDHC/SDXC Card Slot
FocusEasy/Reset Button
USB Port
Power Connector (DC12V In)
Ethernet RJ45
(Link/Power LED embedded)
USB Port
Micro SD/SDHC/SDXC slot
TV Out
Auto Iris Connector
Microphone/Line In
Audio Out
DIDO Terminal I/O Connector
Function (FocusEasy/ Reset)
**- (W)FB-300Np V5 Series Only

9
CS Mount Lens -Optional
<Vari-focal Lens with Manual Iris> --- CS Mount
<Optional Lens>
<Vari-focal Lens with Auto Iris> (DC Drive) --- CS Mount
Extension I/O Terminal Block
The Network Camera provides an extension I/O terminal block which is used to connect
the camera with external input/output devices. The pin definitions are listed as below.
*V5&V6 (WDRPro & Star & StarPlus) Series Supported
DI/DO Diagram
Pin
Function
1
Power +5V /12V*
2
Digital Output
3
Digital Input
4
Ground
5
RS-485 -
6
RS-485 +
Zoom Controller (*)
Focus Controller
Zoom Controller
Focus Controller
Iris Controller (*)

10
*V5&V6 (WDRPro & Star & StarPlus) Series Supported
Hardware Reset
The Reset Button can be used to reboot the camera, restore it to factory default settings,
or switch on FocusEasy. If the camera experiences a problem, rebooting the camera
may correct the problem. If the problem remains, please restore the camera to factory
default settings and reinstall the software.
To Start/Cancel FocusEasy
To Start FocusEasy, please press and hold the reset button for 2-3 seconds. The camera
will play the melody indicating FocusEasy is already started. Then follow the beeps to
adjust the focus. To cancel FocusEasy, please press and hold the reset button again for
2-3 seconds. The camera will play another melody indicating FocusEasy is already shut
down.
NOTE -FocusEasy is supported only on the V5 professional manual-focal
/ +12V*
/ +12V*
/ +12V*

11
cameras, and is NOT supported on any moto-focal cameras.
To Reset
Press and hold the Reset Button for more than 10 seconds using a paper clip or thin
object. Wait for the camera to reset to default.
NOTE - By resetting the camera, all settings will be restored to the factory
default settings.
SD Card Capacity (*)
The network camera is compatible with SD/SDHC/SDXC (Maximum 128GB) cards.
(*) These are optional features. Please refer to the Product List for the full list of
optional features that are available for this product

12
Chapter 4 - LED Indicators
Function
Front LED Behavior
Description
Remark
WPS
WPS in
process
Right
(Blue)
Steady
WPS
Successfully
Connected
FocusEasy™
(V5 Series only)
Steady
Lens
focusing
in process
Right
(red)
Status
Hardware
failure
Left
(Green)
Steady
Normal
Operation
Unlit
Power Off
While F/W
upgrading
Function
Rear LED Behavior
Description
Remark
Link
Flashes
Blinking while
connecting to
the network
Left
(Amber)
Unlit
No
connection
Power
Steady
Normal
Operation
Right
(Green)
Unlit
Power off

13
Chapter 5- Installation
5.1 Hardware Installation

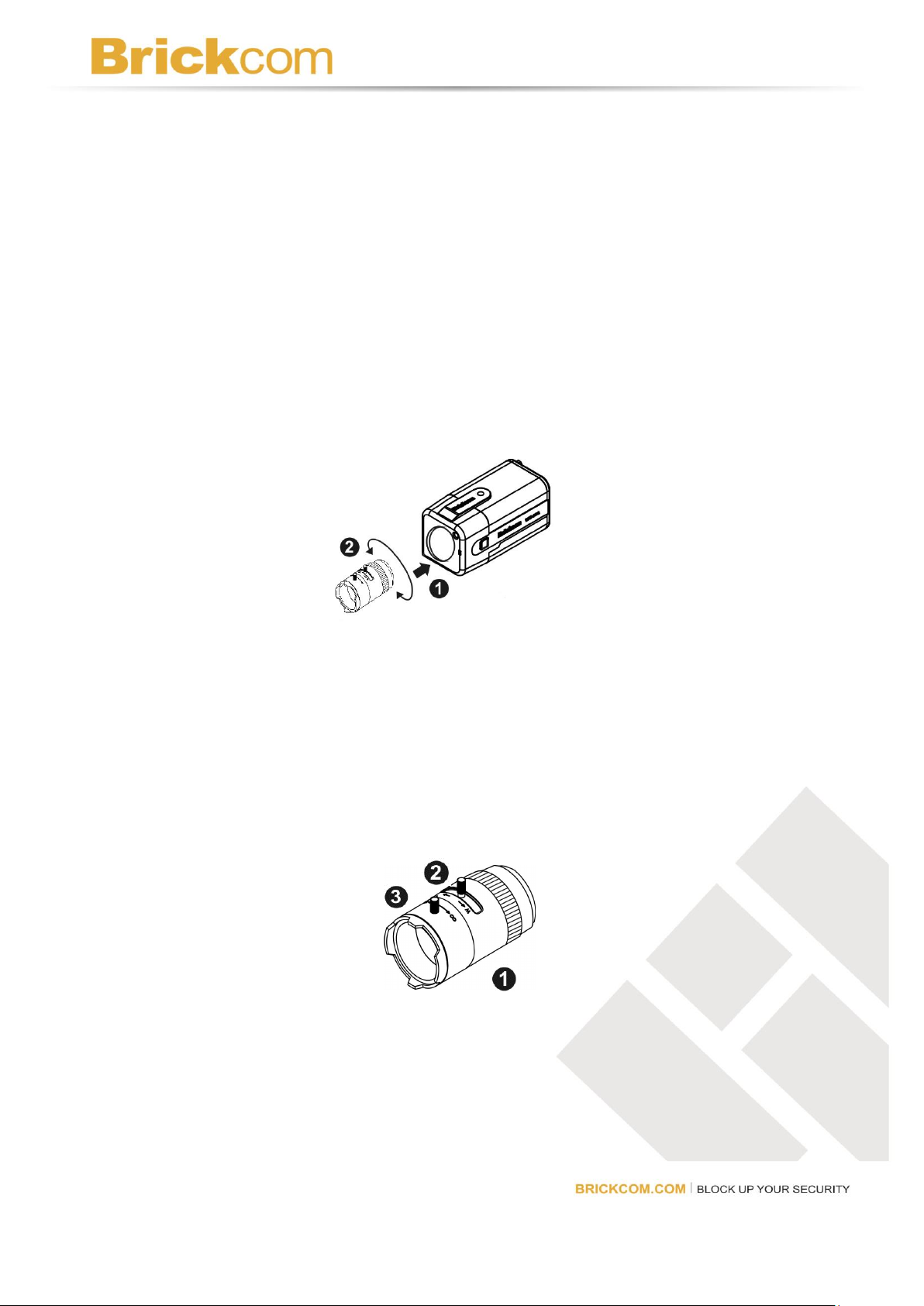

Mounting the CS-Mount Lens to the Camera
<Vari-focal Lens with Manual Iris> --- Optional Lens
1. Connect the CS-mount lens to the IP camera by turning it clockwise.
2. If necessary, adjust the iris controller, focus controller, and zoom controller to get
the best image condition.
To adjust the lens:
1. Adapt the iris to current environment by adjusting iris controller (The more the iris is
opened, the brighter the scene will be).
2. Adjust zoom controller to decide the customize focal length
3. Adjust the focus controller to adapt the image to the focal length.
Focus Adjustment with FocusEasy™ (FocusEasy™ version only)
1. Cover the lens for 3 seconds to black out the image until the buzzer beeps.
2. Adjust the focus and listen to the beeps:
The farther the image is from the focus, the slower the beeps are. When the

14
image gets closer to the focus, the beeps go faster, just like the car reverse radar.
3. Once the image is focused, the buzzer will make a long beep for 3 seconds for
notification.
<Vari-focal Lens with Auto Iris> --- Optional Lens
1. Connect the CS-mount lens to the camera by turning it clockwise onto the camera
mount until it stops.
2. If necessary, adjust focus controller, and zoom controller to get the best resolution.
3. Connect the lens cable plug (DC Iris control cable) to the camera side connector.
To adjust the lens:
4. Adjust zoom controller to decide the focal length.
5. Adjust the focus controller to adapt the image to the focal length.
*For further information of vari-focal lens with auto iris, please refer to the supplied lens’
instruction manual.
【FB-H Series】
【FB Series】

15
5.2 Camera Connection
Note: If there is no DHCP server on the network, the camera will operate with the IP
address 192.168.1.245. Please make sure your computer's network interface is
configured to the same subnet as the camera.
Connection to Non-PoE (Power over Ethernet) Switch or Router
1) Power the camera by plugging the power adaptor to the outlet and the DC jack to the
camera.
2) Connect the camera to the switch or router with the RJ-45 Ethernet cable.
* Upon power-on, the rear LEDs will be lit. Please refer to the LED indicators instruction
(chapter 3) on user manual for the definition of the LED colors.

16
Connection to PoE Switch or Router or Injector
A. PoE Switch or Router:
1) Connect the camera to the PoE switch or router with the RJ-45 Ethernet cable.
B. PoE injector:
1) Connect the camera to the OUT port ("DATA+Power" port, etc.) of the PoE injector
with the RJ-45 Ethernet cable.
2) Connect the IN port ("DATA" port, etc.) of the PoE injector to the switch or router
with the RJ-45 Ethernet cable.
3) Connect the PoE injector to the power outlet

17
5.3 System Requirements
Operating System:
Microsoft Windows 8.1/8/7/Vista/XP/2000
Computer:
IBM PC/AT Compatible
CPU:
Pentium 3GHz or faster
Memory:
1024 MB or more
Monitor:
1024 x 768 pixels or more, 24-bit True color or better
Network Interface:
10/100Mbps Network interface card must be installed
Web Browser:
Microsoft Internet Explorer 6.0 SP2 or higher
Adobe Reader:
Adobe Reader 8.0 or higher
Audio:
The audio function will not work if a sound card is not installed in the PC. Audio
may be interrupted depending on network traffic.

18
5.4 Software Installation
In this manual, "User" refers to whoever has access to the Network Camera, and
"Administrator" refers to the person who can configure the camera and grant user to
access the camera.
After checking the hardware connection, run the Installation Wizard program included on
the product’s CD-ROM to automatically search the intranet for the camera. There may
be many cameras on the local network. Differentiate the cameras using the serial
number which is printed on the labels on the carton and the bottom of the camera.
A. Insert the Installation CD into the CD-ROM driver. Run Auto-Run Tool directly
from the CD-ROM to start the installation. When installing the Brickcom software kit
for the first time, select a desired language for the interface. The available languages
are listed in the scroll box. Click <Install> and follow the steps to install the
EasyConfig wizard on the desired computer.

19
B. In the Install Shield Wizard dialog box, click <Next> to continue.
C. Read the End-User License Agreement and check the option “I accept the
terms of the license agreement”. Click <Next> to continue.
Select either “Complete” setup or “Custom” to install the system.
