Club cannon Handheld mkii User manual

User Manual V1.0

HANDHELD MKII

TABLE OF CONTENTS

HANDHELD MKII INTRO.....................................................................1

OVERVIEW .........................................................................................1

FEATURES ..........................................................................................1

INCLUDED ITEMS ................................................................................2

INCLUDED WARRANTY ......................................................................2

SAFETY GUIDE ....................................................................................3

SAFETY RADIUS................................................................................4

HARDWARE SPECIFICATIONS ..........................................................5

CO2 REQUIREMENTS .........................................................................6

CO2 SETUP ..........................................................................................7

DEVICE TROUBLESHOOTING ...........................................................8

TERMS & CONDITIONS ......................................................................9

Necessary precautions should be taken when using FX products to

ensure the safety of the operator, crew, and audience.

Do not operate this product, or any special eects product without proper

knowledge and training. Never operate Special Eects Equipment under

the inﬂuence of drugs or alcohol.

NOTICE

OVERVIEW

FEATURES

Congratulations on your purchase of the Handheld MKII. This manual will provide an overview of the

Handheld MKII’s functions, capabilities, and instructions for proper operation. It is important to review this

manual thoroughly prior to use to ensure safe operation.

If you have questions outside the scope of this manual, feel free to contact us directly.

The Club Cannon Handheld MKII is a handheld CO2 Cannon that produces 20-30FT plumes of ice cold

fog, using liquid CO2. It is great for DJ’s, Touring acts, performers, nightclubs, DJ booths, sporting events,

ﬁeld entrances, theatre productions, weddings, special events and more.

The Club Cannon is built right here in the USA, using the highest quality components. The barrel is

machined from aerospace grade aluminum, equipped with a built in silencer, reducing the output noise

dramatically. During the tests we conducted, our silencer makes the output up to 30dB quieter than

similar products on the market.

This product includes a high pressure CO2 hose, which is equipped with a swivel ﬁtting to ensure no

tangling of the hose. The length of hose can be upgraded to suit your needs. The quick connect ﬁtting

allows you to detach the hose when not in use, which is extremely convenient. Our hoses are built

speciﬁcally to handle the high pressure and low temperature of liquid CO2.

The standard 8 foot hose is perfect for DJ booths, or any situation where the operator does not need to

travel very far away from the tank. The 15 foot hose is great for operators who need to be mobile, moving

across a stage, dance ﬂoor, etc.

HANDHELD MKII INTRO

• Up to 30’ Output • Ventilated Barrel • Integrated Muer • Quick Connect Input

• Various Hoses • Stability Handle • Travel Case (optional) • Made in USA

The following items are included with the purchase of each Handheld MKII. If you need replacement

items, contact Club Cannon, 888-804-8175 / [email protected].

HANDHELD MKII CO2 HOSE ACCESSORIES

CO2 Cannon CGA-320 x Quick Connect CO2 Washers & Tool

INCLUDED ITEMS

The Handheld MKII includes a 1 year parts & labor warranty against manufacturer defects. Warranty does

not cover damage caused by accident, misuse, abuse, alteration, improper handling or unauthorized

repair.

To make a warranty claim, contact Club Cannon directly.

INCLUDED WARRANTY

NOTICE

This product should only be used by trained and qualiﬁed persons.

Necessary precautions should be taken when using FX products to ensure the safety

of the operator, crew, and audience.

Do not operate this product, or any special eects product without proper knowledge

and training. Never operate Special Eects Equipment under the inﬂuence of drugs

or alcohol.

Club Cannon, LLC accepts no liability or responsibility for misuse or abuse of this

product.

WARNING

DANGER

WARNING

CAUTION

NOTICE

SAFETY GUIDE

Carbon dioxide is known as an asphyxiant gas. Carbon dioxide poisoning has been linked

to various health issues, including central nervous system damage, permanent deterioration

of respiratory functions, suocation or even death. If you have any health concerns that may

be related to the Product’s use of carbon dioxide, consult your doctor before using any of the

Products.

• CO₂ Levels can be measured using a CO₂ Monitor.

• 5,000 PPM is the workplace exposure limit in most jurisdictions.

• Check with your local agency to verify any need for permits in your area.

GENERAL SAFETY PRECAUTIONS

To ensure safe operation, user must follow instructions closely. Necessary protocols should be followed when

handling and operating Special Eects Equipment and their respective consumables.

• Never place objects of any kind inside barrels.

• Never aim or ﬁre the products at any person or living thing.

• This product is meant to be used only in well-ventilated areas.

• Products should always be aimed overhead the audience, preventing direct contact with living things.

When using the products, always follow the safety radius displayed in this manual.

Once the product is attached to the CO₂ tanks and the tanks are turned on, the product, hoses and ﬁttings will

be under high pressure. Do not disconnect any ﬁttings or hoses until the tank has been turned o, and the

remaining gas has been cleared through the product, depleting all pressure in the system. If a leak is detected,

cease use of the product immediately. Never stand directly over or in front of the unit while under pressure. If you

are under 18, you should not be using this product. Never operate special eects equipment under the inﬂuence

of drugs or alcohol.

PREVENTING SERIOUS INJURY OR DEATH

• CO2 Special Eects are to only to be used in well ventilated areas. Failure to do so may result in oxygen

displacement.

• Maintain a safe distance between Special Eects Products and audience, crew & event sta. Refer to the safety

radius outlined in this manual.

• Never aim Special Eects Products directly at any person or living thing.

• Always fasten tanks to avoid tipping, rocking, or being tampered with.

• When feasible, keep tanks out of direct sunlight.

• Check with ocials in local jurisdiction for any permit requirements before operating Special Eects.

This icon signiﬁes that severe

bodily harm or death will

occur if instuctions are not

followed.

This icon signiﬁes that severe

bodily harm or death may

occur if instuctions are not

followed.

This icon signiﬁes that mild

to moderate injury may

occur if instuctions are not

followed.

This icon signiﬁes product

malfunction or damage may

occur if instructions are not

followed.

WARNING

15FT 15FT

15FT

SAFETY GUIDE

Under no circumstance should any person or object be placed inside the

displayed safety radius while system in under pressure.

Special care must be taken when preformers are near units. Always inform

performers, sta and event personel that may inadvertantly enter the safety

radius of this product.

SAFETY RADIUS

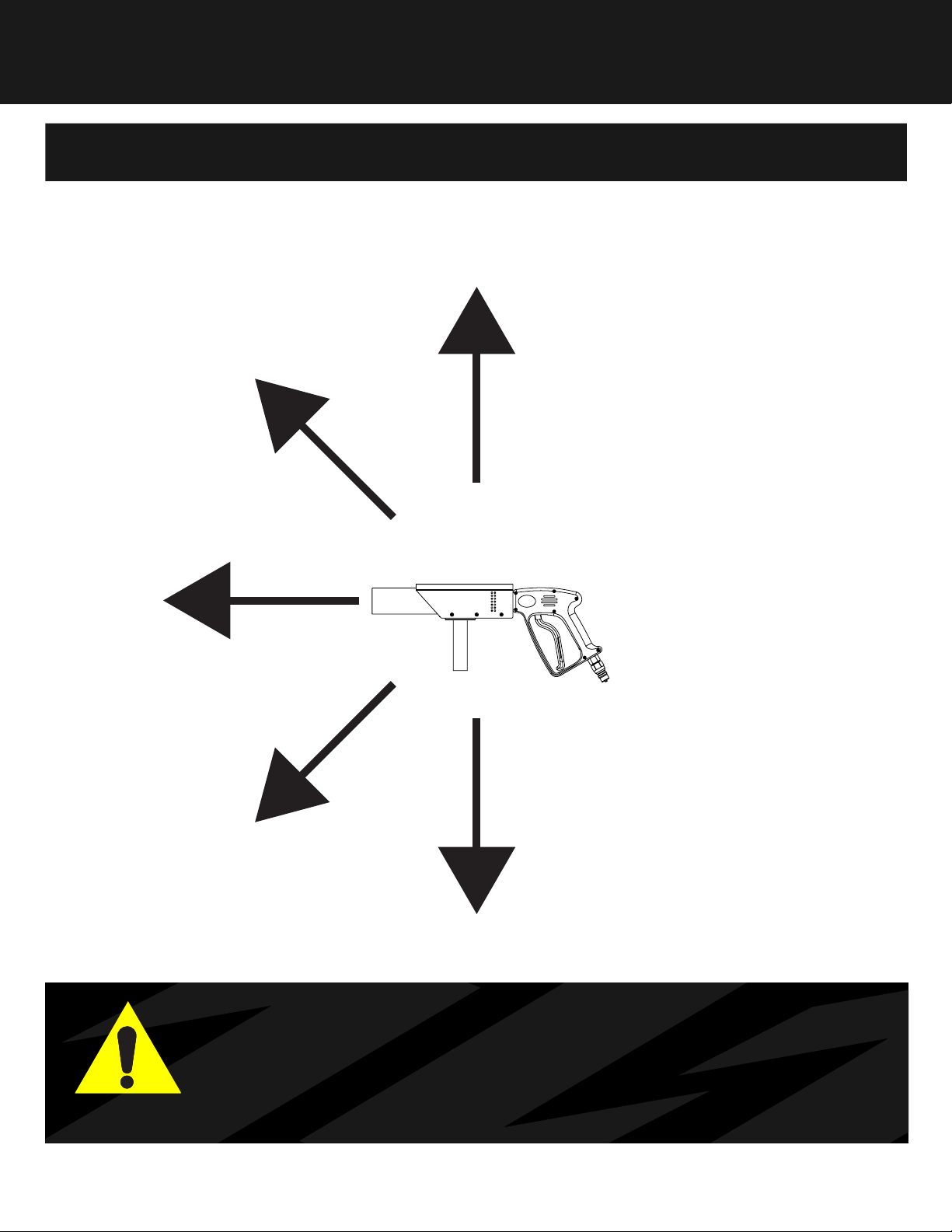

The Handheld MKII can produce a plume of fog up to 30FT/9M. Images below outline the necessary safety

radius, which must be observed at all times.

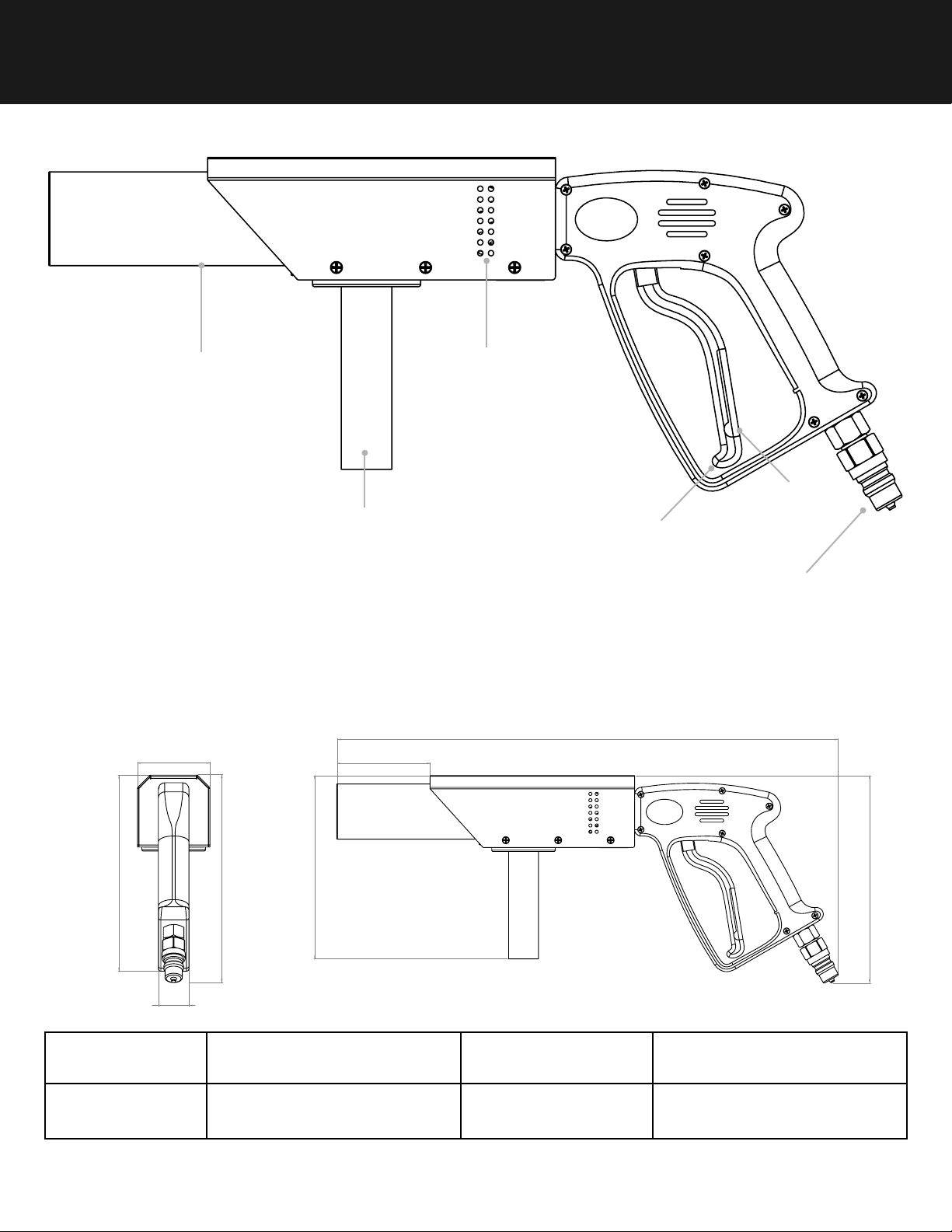

VENT HOLES

CO2 QUICK CONNECT INLET

TRIGGER

SAFETY

STABILITY HANDLE

BARREL

19.84

7.26

8.21

3.70

2.87

7.77

8.21

1.22

HARDWARE SPECIFICATIONS

WEIGHT: 3.5 LBs

1.58 KGs

OPERATION: MANUAL

DIMENSIONS: 20” x 8.25” x 2.875” CO₂

CONSUMPTION:

~ 0.83LB / Sec

~ 0.36KG / Sec

NOTICE

CO₂ REQUIREMENTS

SIPHON CO₂ TANK REQUIRED.

Liquid CO₂ is the key to creating large plumes of fog. Gaseous

CO₂, which comes from a non-siphon CO₂ tank, will not create the

desired fog eect.

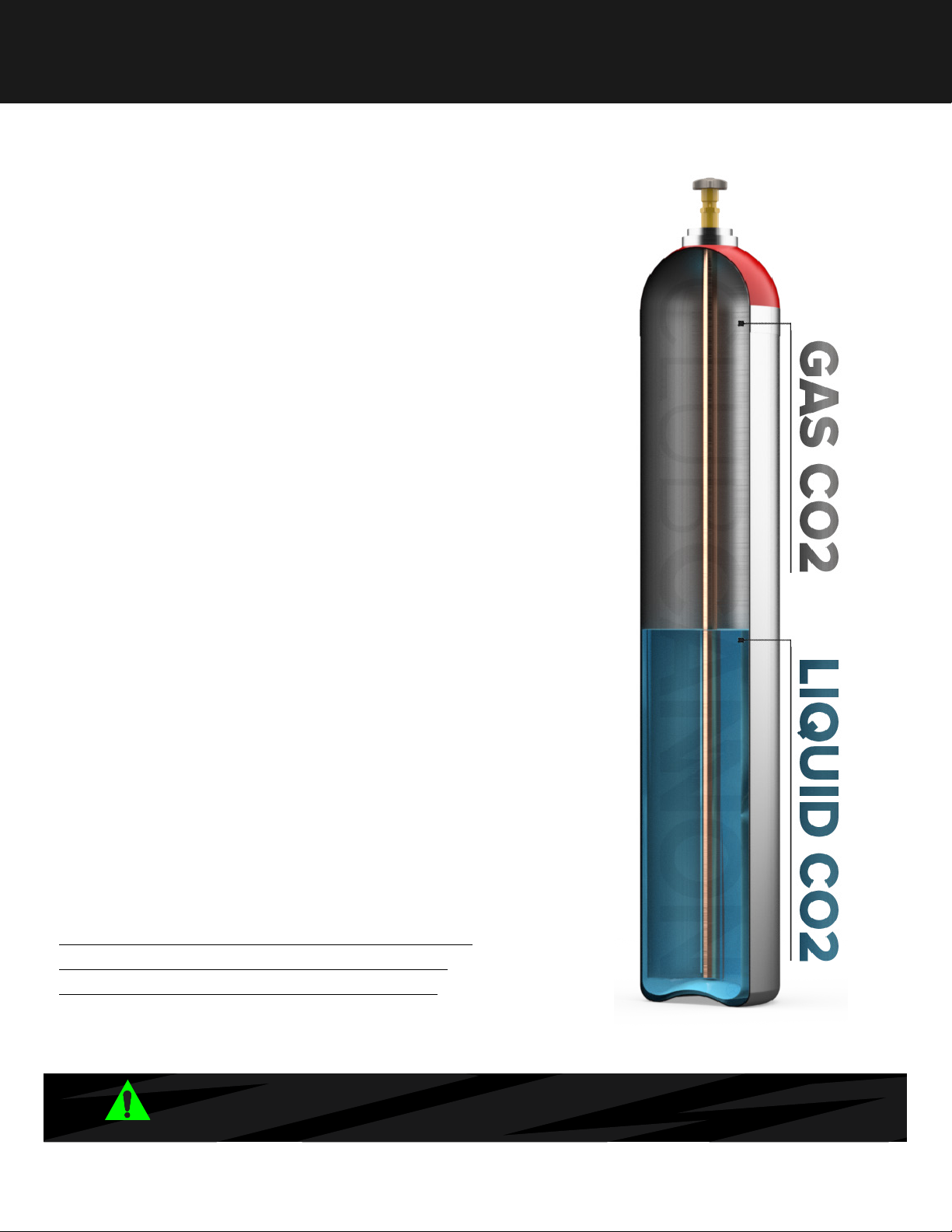

The siphon tube feeds the Club Cannon product liquid from the
