CMA Dishmachines CMA-GL-X User manual

FEATURES:
Upper and lower rotating
wash arms guarantee
excellent results.
“Built in” Hot Water Assurance
System provides hot water
every cycle.
Uses standard 19-3/4"X
19-3/4" racks. Large
11-1/4" glass clearance.
“Works-in-a-drawer”. All
electrical components are
attached to a sliding drawer
for easy access and service.
■30 racks per hour.
■Economical to operate. Uses only 1.7
gallons of water per cycle.
■All stainless steel construction assures long
life and years of trouble free operation.
■Unique spray arm system features upper
and lower stainless steel wash arms with
reinforced end caps.
■Built-in chemical pumps and deliming
system assures proper chemical usage.
■Convenient to service “Works-in-a-drawer”.
All electrical components are attached to a
sliding drawer for easy access and service.
■Instant start for simple operation.
■Built-in Hot Water Assurance System
guarantees hot water every cycle.
■Pumped drain allows for flexible installations.
No floor drain is required.
■Wash tank sustainer heater. Keeps water at
proper temperature between loads.
Chemical Sanitizing
Undercounter
Glasswasher
GL-X
CMA Dishmachines 12700 Knott Avenue Garden Grove, CA 92841• 800-854-6417 • 714-898-8781 • Fax: 714-895-2141 • www.cmadishmachines.com
CMA reserves the right to modify specifications or discontinue models without prior notification.
Printed in the U.S.A. ©2007 CMA, Inc.
®
Right View
Rear View
Front View
243/4"
137/8"
345/8"
39"
Adj
401/8"
1" DRAIN
1/2" WATER INLET
ELECTRICAL
HOOK UP
11/2"
Minimum
Clearance
24"
377/8"
Summary Specifications: Model GL-X
The GL-X glasswasher is designed to produce sparkling clean glassware utilizing our unique Hot Water Assurance System.
The GL-X is easy to use, fast and efficient, while conserving water, energy and chemicals. Built-in booster heater provides
continuous 130°F hot water every cycle. The GL-X is constructed entirely of stainless steel and is equipped with an integrated
chemical delivery system. The GL-X incorporates a pump purging system that improves results by
eliminating soil and chemical carryover during rinse cycle.
Available Options
■Stainless Steel Pedestal
OPERATING CAPACITY
RACKS PER HOUR 30 -
OPERATING CYCLE
WASH TIME-SEC 57 57
RINSE TIME-SEC 48 48
DWELL/TIME-SEC 15 15
TOTAL CYCLE TIME 120 120
WASH TANK CAPACITY 1.7 GAL. (6.45 L)
WASH PUMP CAPACITY 35 GPM (132 LPM)
MINIMUM TEMPERATURE REQUIRED
WASH TEMP. 120°F (50°C)
WATER CONSUMPTION
PER RACK 1.7 GAL. (6.45 L)
PER HOUR 40.8 GPH (154.4 LPH)
WATER INLET 1/2" (1.27 cm)
DRAIN 1" (2.54cm)
WASH PUMP MOTOR HP 11
DIMENSIONS
DEPTH 24-3/4" (63cm)
WIDTH 24" (61cm)
HEIGHT 39"-40-1/8" (99-102cm)
MAXIMUM CLEARANCE
HEIGHT FOR GLASSWARE 11-1/4" (28.57cm)
STANDARD DISHRACK 11
DIMENSIONS 19-3/4"X19-3/4” (50X50cm)
ELECTRICAL RATING VOLTS AMPS
115 16
SHIPPING WEIGHT
APPROXIMATE 244# (110.6kg)
MODEL GL-X USA METRIC USA METRIC
Specifications:
CMA Dishmachines 12700 Knott Avenue Garden Grove, CA 92841• 800-854-6417 • 714-898-8781 • Fax: 714-895-2141 • www.cmadishmachines.com
CMA reserves the right to modify specifications or discontinue models without prior notification.
Printed in the U.S.A. © 2007 CMA, Inc.
Chemical Sanitizing
Undercounter
Glasswasher
GL-X
®
WARNING: Plumbing connections need to be made by a qualified service company who will comply with all available Federal, State, and Local Health,
Plumbing and Safety codes.

Other manuals for CMA-GL-X

2

This manual suits for next models

1

Other CMA Dishmachines Dishwasher manuals

CMA Dishmachines CMA-180UC Guide

CMA Dishmachines

CMA Dishmachines CMA-180UC Guide

CMA Dishmachines CMA-CB User manual

CMA Dishmachines

CMA Dishmachines CMA-CB User manual

CMA Dishmachines L-1X User manual

CMA Dishmachines

CMA Dishmachines L-1X User manual

CMA Dishmachines 180UC User manual

CMA Dishmachines

CMA Dishmachines 180UC User manual

CMA Dishmachines CMA-180VL User manual

CMA Dishmachines

CMA Dishmachines CMA-180VL User manual

CMA Dishmachines CMA-66H User manual

CMA Dishmachines

CMA Dishmachines CMA-66H User manual

CMA Dishmachines EST-AH User manual

CMA Dishmachines

CMA Dishmachines EST-AH User manual

CMA Dishmachines EAH User manual

CMA Dishmachines

CMA Dishmachines EAH User manual

CMA Dishmachines CMA180UCW/CD User manual

CMA Dishmachines

CMA Dishmachines CMA180UCW/CD User manual

CMA Dishmachines CMA-GL-X User manual

CMA Dishmachines

CMA Dishmachines CMA-GL-X User manual

CMA Dishmachines CMA-GL-C Manual

CMA Dishmachines

CMA Dishmachines CMA-GL-C Manual

CMA Dishmachines EST User manual

CMA Dishmachines

CMA Dishmachines EST User manual

CMA Dishmachines UC50E User manual

CMA Dishmachines

CMA Dishmachines UC50E User manual

CMA Dishmachines CMA-181VL User manual

CMA Dishmachines

CMA Dishmachines CMA-181VL User manual

CMA Dishmachines CMA-L-1X User manual

CMA Dishmachines

CMA Dishmachines CMA-L-1X User manual

CMA Dishmachines CMA-AH User manual

CMA Dishmachines

CMA Dishmachines CMA-AH User manual

CMA Dishmachines GW-100 Manual

CMA Dishmachines

CMA Dishmachines GW-100 Manual

CMA Dishmachines EVA-AH-T User manual

CMA Dishmachines

CMA Dishmachines EVA-AH-T User manual

CMA Dishmachines CMA-130VL User manual

CMA Dishmachines

CMA Dishmachines CMA-130VL User manual

CMA Dishmachines UC50E User manual

CMA Dishmachines

CMA Dishmachines UC50E User manual

CMA Dishmachines S-AH User manual

CMA Dishmachines

CMA Dishmachines S-AH User manual

CMA Dishmachines CMA-180 TALL User manual

CMA Dishmachines

CMA Dishmachines CMA-180 TALL User manual

CMA Dishmachines 181-VL Manual

CMA Dishmachines

CMA Dishmachines 181-VL Manual

CMA Dishmachines UC65e Manual

CMA Dishmachines

CMA Dishmachines UC65e Manual

Popular Dishwasher manuals by other brands

Whirlpool ADG 6556 IXM Service manual

Whirlpool

Whirlpool ADG 6556 IXM Service manual

Bosch SPX68B55UC user manual

Bosch

Bosch SPX68B55UC user manual

Teka LP8 818 BLANCO VR01 user manual

Teka

Teka LP8 818 BLANCO VR01 user manual

Tricity Bendix TDF 200 Instruction book

Tricity Bendix

Tricity Bendix TDF 200 Instruction book

AEG Favorit CE Instruction book

AEG

AEG Favorit CE Instruction book

Smeg PL5222X manual

Smeg

Smeg PL5222X manual

Zanussi Electrolux DE 6754 Instruction book

Zanussi Electrolux

Zanussi Electrolux DE 6754 Instruction book

GE GSD820 Use and care guide

GE

GE GSD820 Use and care guide

Smeg DI613PNH instruction manual

Smeg

Smeg DI613PNH instruction manual

Bosch SMV65E00GB operating instructions

Bosch

Bosch SMV65E00GB operating instructions

Lamona LAM8676 installation instructions

Lamona

Lamona LAM8676 installation instructions

Smeg DWD44BL.1 Instructions for installation and use

Smeg

Smeg DWD44BL.1 Instructions for installation and use

Fisher & Paykel DishDrawer DD605I Integrated panel preparation guide

Fisher & Paykel

Fisher & Paykel DishDrawer DD605I Integrated panel preparation guide

Bosch SBV8ZCX02E user manual

Bosch

Bosch SBV8ZCX02E user manual

Bosch SHE53T56UC operating instructions

Bosch

Bosch SHE53T56UC operating instructions

Zanussi ZDI 6053 SX Instruction book

Zanussi

Zanussi ZDI 6053 SX Instruction book

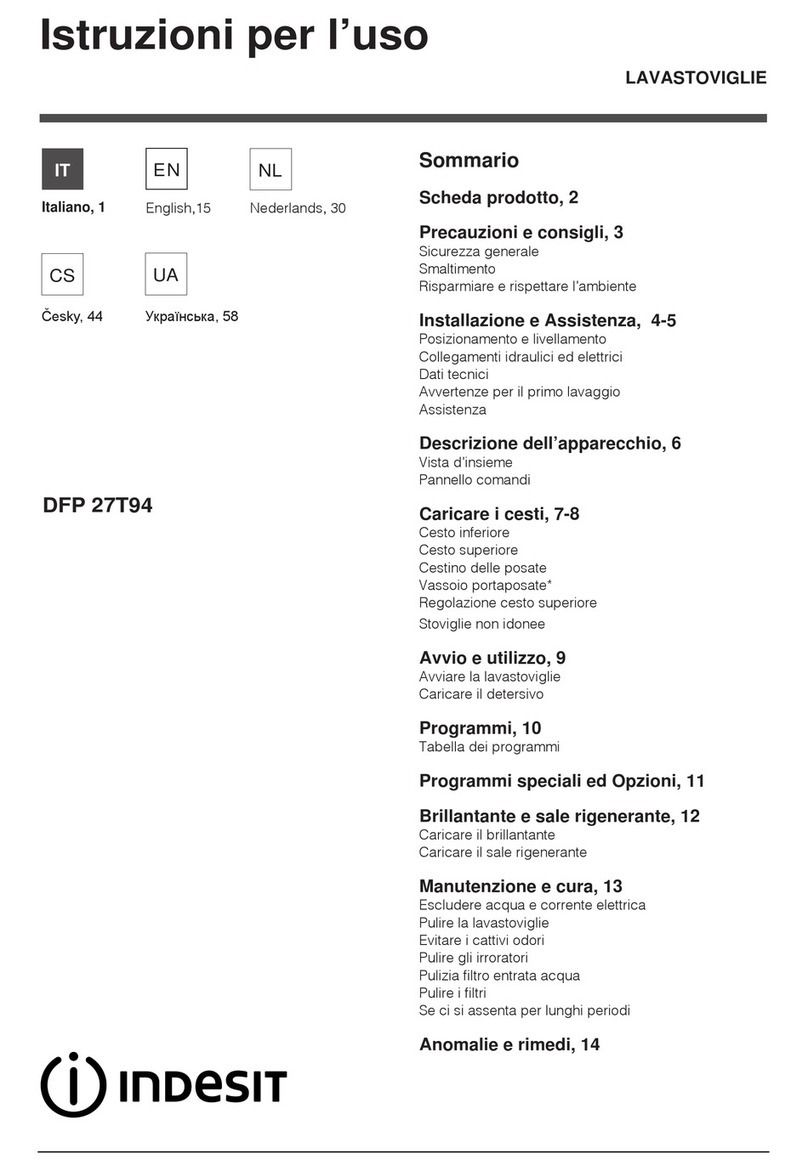

Indesit DFP 27T94 operating instructions
