CMA Dishmachines L-1X User manual

MODEL L-1X & L-1X16
PARTS MANUAL
Rev 1.18B
800-854-6417
FAX [phone]
CMA DISHMACHINES
12700 KNOTT AVENUE
GARDEN GROVE, CALIFORNIA 92841

TABLE OF CONTENTS
MODEL CMA-L-1X &L-1X16
1. PARTS MANUAL ..........................................................................................3
1.1. INITIAL PARTS KIT (P/N 4001.00)................................................................................................... 3
1.2. EXPLODED VIEW DRAWINGS........................................................................................................... 4
1.2.1. Cabinet Assembly ................................................................................................................... 4
1.2.2. Cabinet Assembly (Effective 06/2007).................................................................................... 5
1.2.3. L-1X Door Assembly (Old Style) ............................................................................................ 6
1.2.4. L-1X/L-1X16 Door Assembly.................................................................................................. 7
1.2.5. Spray System Assembly........................................................................................................... 8
1.2.6. S/S Pump Assembly (Effective August 2009).......................................................................... 9
1.2.7. Pump Assembly......................................................................................................................10
1.2.8. Plumbing System Assembly (Effective August 2012).............................................................11
1.2.9. Plumbing System Assembly....................................................................................................12
1.2.10. Drain System Assembly..........................................................................................................13
1.2.11. Control Box ...........................................................................................................................14
1.2.12. Control Box (Effective 06/2007)............................................................................................15
1.2.13. Peristalic Pump Assembly .....................................................................................................16
1.2.14. Drain Valve ...........................................................................................................................17
1.2.15. Drain Valve (Effective January 2011)...................................................................................18
1.2.16. Optional Sani Alarm..............................................................................................................19

Parts Manual
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18BPage 3
1. Parts Manual
1.1. Initial Parts Kit (P/N 4001.00)
P/N DESCRIPTION Qty
00200.75 SS Pump w/115v Motor Assy. 1
00206.30 Pump Seal Kit New (11/07) 1
00208.40 Slip Joint Nut O Ring Gasket Buna 1
00304.03 Spray Arm L-1C, L-1X, L-1X16 1
00308.50 Spray Arm End Plug SS 1
00404.82 Motor Contactor Relay 1
00411.00 Micro Switch 1
00415.00 Peristaltic Pump Assembly, 120V/60Hz 1
00421.40 Start/Fill Rocker Switch Amber 1
00425.51 Chemical Tubing Blue 50 ft.
00425.53 Chemical Tubing Red 50 ft.
00425.54 Chemical Tubing White 50 ft.
00501.00 Timer Motor, 2-Minute 1
00556.10 Reed Switch - ISI 1
00715.00 1/2 Ball Check Valve 1
02257.00 Squeeze Tube 8" Norprene 1
02257.22 Squeeze Tube 22" Norprene For L-1X 1
03415.00 Chemical Tube Bulkhead 1
03415.60 Chemical Bulkhead (Teflon) Assy. 1
03481.00 Drain Rocker Switch (GL-X/L-1X) 1
03604.30 Dema Valve Repair Kit 1/2" 1
04110.00 SS L-1C, L-1X, L-1X16, GLX Drain Screen 1
04113.00 Drain Valve 115V New Style 1
41015.60 Water Solenoid’s Coil Only 110V 1
04303.00 L1-X Spray Arm Bearing 1
04305.10 Red Silicone Gasket, 1/16 Thick 1
04517.15 Door Stop (Parallel) 1
15524.00 Power Rocker Switch Red 125V 1
NOTE: CMA recommends that the initial parts kit be kept on hand as a back up supply of critical parts
in the event your machine should require emergency service. All the parts included in this kit
are unique to the L-1X and L-1X16 dishmachine.

Parts Manual
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18BPage 4
1.2. Exploded View Drawings

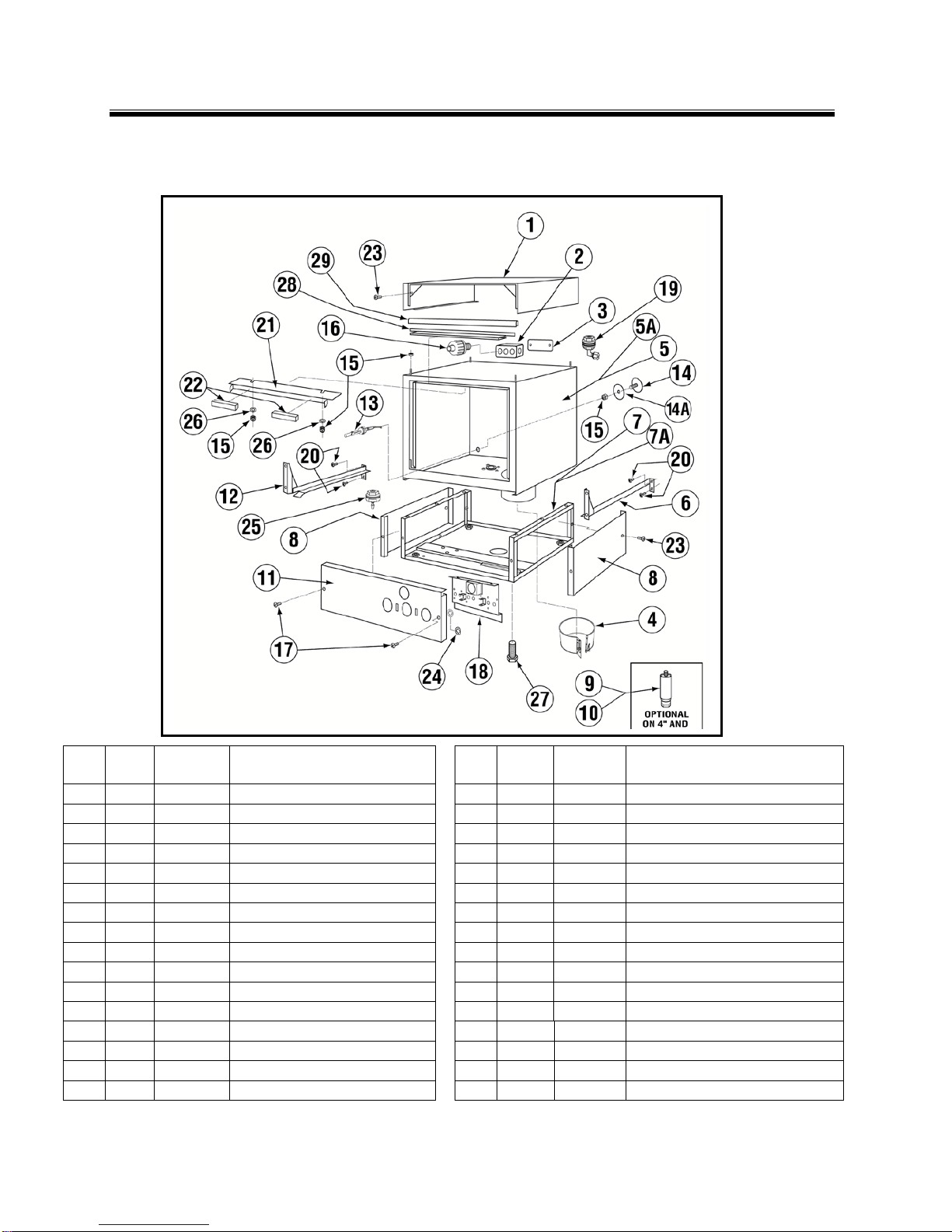

1.2.1. Cabinet Assembly
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 1 04903.73 L-1X Top Cover 14A 1 00752.60 Hole Stopper Gasket
2 1 03420.00 Undercounter Bell Box 15 9 00912.00 Nylon Lock Nut 1/4”-20
3 1 03423.00 Undercounter Bell Box Cover 16 1 00401.10 St-1/2 Straight Connector
4 1 04109.11 ^Band Sump Heater 115V 17 2 00941.00 10-32 x 5/8” Pan head Screw
5 1 04901.60 Stainless Steel Body 18 1 04914.78 Peri Pump Mount w/ Prime Switch
5A 1 04901.73 Stainless Steel Body L-1X16 19 2 03415.00 Chemical Tube Bulkhead
6 1 04911.60 Tray Track (RH) 20 4 00914.00 1/4-20 x 3/4" Hex Head Bolt
7 1 04902.82 Stand “Open Style” L-1X, L-1X16 21 1 14558.00 Body Magnet Holder
7A 1 04902.20 Bottom Panel (comes w/L1X16) 22 2 00557.80 Door Magnet
8 2 04902.84 Panels for Open Style Stand 23 10 00940.50 10-32 x 3/8” Truss Head Screw
9 4 01146.50 4” Leg (Optional) 24 2 03816.00 Nylon Retaining Washer
10 4 01146.00 6” Leg (Optional) 25 1 03415.60 Chemical Tube Bulkhead Barbed
11 1 04915.78 Peri Pump Panel w/ Prime Switch 26 2 00924.00 Washer SS 1/4"
12 1 04912.60 Tray Track (LH) 27 4 01310.60 Leg Adjusters
13 1 13463.10 Liquid Level Switch) 28 1 14506.45 Gasket Bracket
14 1 01513.60 Hole Stopper 29 1 14506.50 Door Gasket
Thermometer 03202.00 not shown

Parts Manual
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18BPage 5
1.2.2. Cabinet Assembly (Effective 06/2007)
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 1 04903.73 L-1X Top Cover 15 9 00912.00 Nylon Lock Nut 1/4”-20
2 1 03420.00 Undercounter Bell Box 16 1 00401.10 St-1/2 Straight Connector
3 1 03423.00 Undercounter Bell Box Cover 17 2 00941.00 10-32 x 5/8” Pan head Screw
4 1 04109.11 ^Band Sump Heater 115V 18 1 04914.78 Peri Pump Mount w/ Prime Switch
5 1 04901.60 Stainless Steel Body 19 2 03415.00 Chemical Tube Bulkhead
5A 1 04901.73 Stainless Steel Body L-1X16 20 4 00914.00 1/4-20 x 3/4" Hex Head Bolt
6 1 04911.60 Tray Track (RH) 21 1 14558.00 Body Magnet Holder
7 1 04902.82 Stand “Open Style” L-1X,L1X16 22 2 00557.80 Door Magnet
7A 1 04902.20 Bottom Panel (comes w/L1X16) 23 10 00940.50 10-32 x 3/8” Truss Head Screw
8 2 04902.84 Panels for Open Style Stand 24 2 03816.00 Nylon Retaining Washer
9 4 01146.50 4” Leg (Optional) 25 1 03415.60 Chemical Tube Bulkhead Barbed
10 4 01146.00 6” Leg (Optional) 26 2 00924.00 Washer SS 1/4"
11 1 04915.78 Peri Pump Panel w/ Prime Switch 27 4 01310.60 Leg Adjusters
12 1 04912.60 Tray Track (LH) 28 1 14506.45 Gasket Bracket
13 1 13463.10 Liquid Level Switch (Optional) 29 1 14506.50 Door Gasket
14 1 01513.60 Hole Stopper 30 3 03475.00 Prime Switches
14A 1 00752.60 Hole Stopper Gasket 31 3 03476.00 Prime Switch Boots

Parts Manual
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18BPage 6
1.2.3. L-1X Door Assembly (Old Style)
ITEM
NO. NO. REQ’D P/N DESCRIPTION
1 1 04906.90 Inner & Outer Panel Assy.
2 2 00605.30 Door Rod Spacer
3 1 00557.60 Reed Switch Magnet
4 2 13805.00 5/6” 18 Lock Nut
5 2 00926.00 5/15” SS Washer
6 2 04517.15 Door Stop (Silicone) Parallel
7 2 04918.10 Door Support Rod Angled
8 1 04916.00 Door Clevis
9 3 13825.00 #8 32 x 1” Pan Head Screw
10 2 00927.00 #8-32 Lock Nut
11 4 00914.10 Bolt 1/4"-20 x 5/8”
12 1 00558.61 Reed Switch Magnet Bracket ITEM
NO. NO. REQ’D P/N DESCRIPTION
13* 1 04509.20 Door Complete
14 2 04517.62 Door Support Rod Block 1 1 04509.10 L1-C Door Complete
15 8 00924.00 Washer 1/4" SS 2 1 04510.00 L-1C Door Catch Plate
16 4 00912.00 Lock Nut Nylon 1/4"-20 3 1 04511.00 L-1C Catch Hemi-Ball SS
*Excludes Item #2, 11, 14, 15 & 16 4 1 04512.00 L-1C Catch Ball Spring

Parts Manual
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18BPage 7
1.2.4. L-1X/L-1X16 Door Assembly
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 1 04907.90 L-1X Door (New 7-2002) 10 1 14558.61 Door Magnet Holder
1A 1 14506.00 Door for L-1X16 11 2 00965.00 06-32 Lock Nut
2 2 04517.60 Door Support Rod Block 12 2 00605.20 Door Rod Spacer
3 1 14570.00 Door Hinge (RH) 13 2 04517.15 Door Stop (Parallel)
4 1 14570.50 Door Hinge (LR) 14 10 00912.00 1/4"-20 Nylon Lock Nut
5 2 04919.00 Door Rod Screw Pin for Door 15 14 00924.00 1/4" SS Washer
6 1 04918.60 Door Support Rod Right 16 4 00914.10 1/4"-20 x 5/8” Hex Head Bolt
7 1 04919.50 Door Support Rod Left 17 2 14518.00 Splash Guard
8 3 00557.80 Door Magnet 18 4 00924.00 1/4 SS Washer
9 2 00970.60 6 32 x 1/2" Flathead Screw

Parts Manual
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18BPage 8

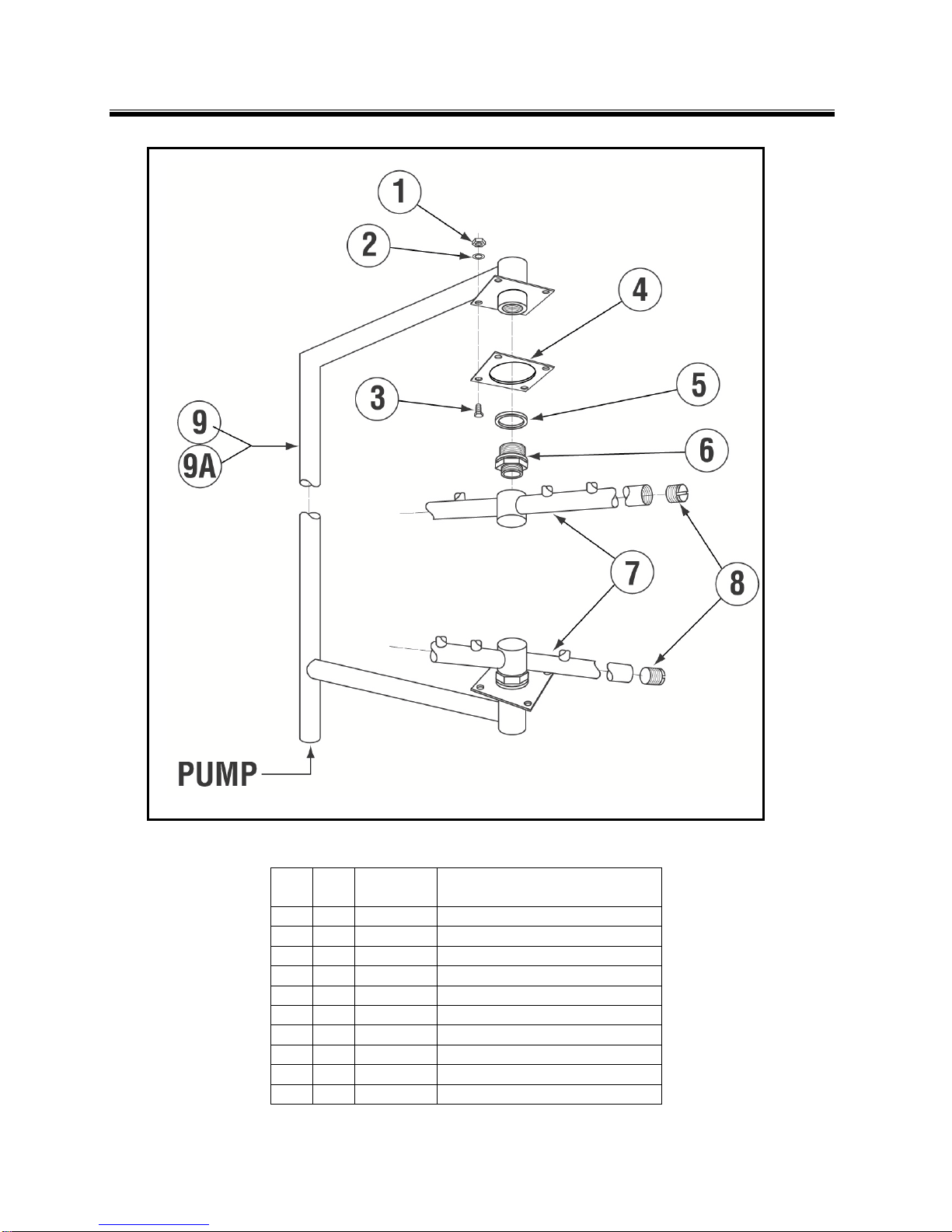

1.2.5. Spray System Assembly
ITEM
NO. NO. REQ’D
P/N DESCRIPTION
1 8 00912.00 1/4"-20 Nylon Lock Nut
2 16 00924.00 1/4" SS Washer
3 8 00929.00 1/4"-20 x 3/4" Truss Head Bolt
4 2 04306.00 Square Manifold Gasket
5 2 04305.10 Silicon Gasket
6 2 04303.00 L-1X Spray Arm Bearing
7 2 00304.03 Spray Arm
8 4 00308.50 Spray Arm End Plug
9 1 04301.00 L-1X Spray Manifold
9A 1 04301.60 L1-X16 Spray Manifold

Parts Manual
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18BPage 9
1.2.6. S/S Pump Assembly (Effective August 2009)
ITEM
NO. NO. REQ’D
P/N DESCRIPTION ITEM
NO. NO. REQ’D P/N DESCRIPTION
1 3 00908.00 5/16”-18 x 5/8” SS Hexhead Bolt 12 1 00214.50 1/2" Comp x 3/8” MIP Adapter
2 3 00926.00 5/16” SS Washer 13 1 00208.40 Slip Joint Nut O Ring Buna
3 1 00200.78 SS Pump Motor Holder "L" 14 1 00207.00 Slip Joint Nut 1 1/2 x 1 1/4
4 1 00201.65 SS Wash Pump Motor 115v 15 1 00238.00 3/8” Male Plug
5 1 00201.96 Slinger Washer Cone Shape 16 1 00200.75 Includes Items 4,5,6,7,8,9,and 11
6 1 03224.60 SS Pump Backplate 17 1 03222.74 Flat Washer 8 mm
7 1 03226.70 Volute O-Ring For SS Pump 18 1 03222.72 Shaft Nut Lock Washer 8mm
8 1 00206.70 SS Pump Seal Kit 19 1 13809.70 SS Pump Seal Shaft Nut 8mm
9 1 03222.60 SS Pump Impeller 20 6 00914.70 Socket Head Screw 10 mm
10 1 50302.10 1" MPT x 1" Barb Brass 21 1 00208.21 Slip Joint Nut Friction Ring Plastic
11 1 04206.75 SS Pump Cover

Parts Manual
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18BPage 10

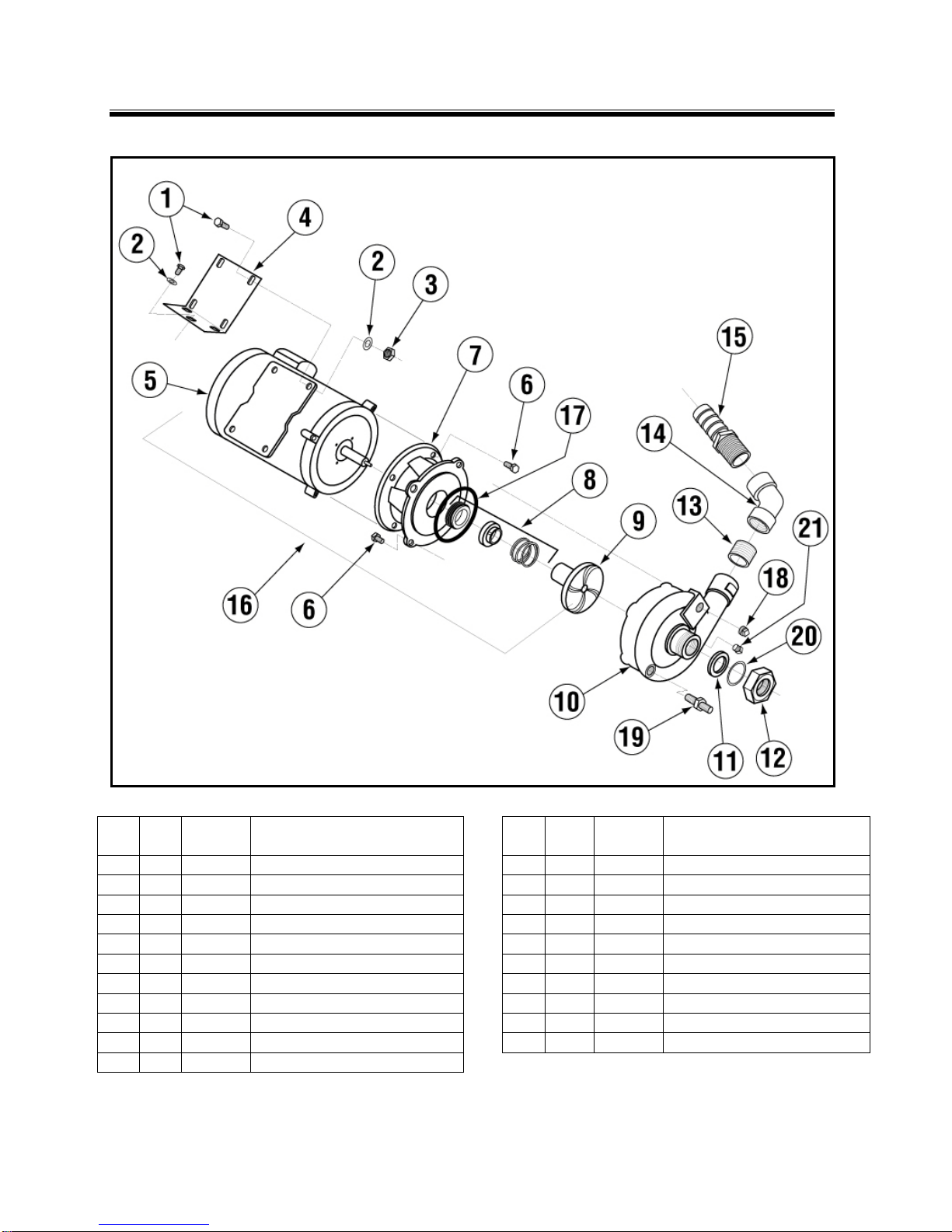

1.2.7. Pump Assembly
ITEM
NO. NO. REQ’D
P/N DESCRIPTION ITEM
NO. NO. REQ’D P/N DESCRIPTION
1 7 00908.00 5/16”-18 x 5/8” SS Hexhead Bolt 12 1 04204.00 Compression Nut 2.5”
2 7 00926.00 5/16” SS Washer 13 1 14004.00 1” close Nipple SS
3 4 13805.00 5/16”-18 Nylon Lock Nut 14 1 04601.00 45 Degree Elbow FIP x FIP
4 1 04909.00 Motor Mount 15 1 50302.06 1” MIP x 1” Barb PVC
5 1 00201.00 Water Pump Motor 1 HP 16 1 00200.10 Includes Items 5, 6, 7, 8 and 9
6 8 00921.00 3/8”-16 x 3/4" Hex Bolt 17 1 03226.00 Pump “O” Ring Gasket
7 1 03224.00 Pump Base (Mount) 18 1 00238.00 3/8” Male Plug
8 1 00206.30 Pump Seal Kit New (11/07) 19 1 00214.50 1/2" Comp x 3/8” MIP Adapter
9 1 03222.05 Impeller (universal) open 20 1 00208.21 Slip Joint Nut Friction Ring Plastic
10 1 04206.30 Pump cover for L-1X/L-1X16 21 1 03232.00 1/8” Male Plug
11 1 00208.40 Slip Joint Nut O Ring Gasket Buna

Parts Manual
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18BPage 11
1.2.8. Plumbing System Assembly (Effective August 2012)
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 1 03623.00 1/2" Vac. Brkr Repair Kit – WATTS 16 1 00915.00 1/4"-20 Hex Nut
2 1 03624.00 1/2" Vacuum Breaker – WATTS 17 1 00924.00 1/4" SS Washer
3 2 00721.00 1/2" Jamb Nut 18 1 00725.50 1/2" Plumbing Strap
4 1 03614.00 1/2" Brass (Close) Nipple 19 1 00747.10 Nipple Brass 1/2" x 5”
5 1 00748.00 1/2" Sprinkler Head Assembly 20 1 03602.50 1/2" Y Strainer – Optional
6 1 04605.00 L-1X “U” Tube 21 1 41062.00 1/2 Strainer Ball Valve
6A 1 04605.60 L-1X 16“U” Tube 22 1 00739.50 Vacuum Breaker Cap SS
7 1 00715.00 Ball Check Valve 23 1 03624.25 Vacuum Breaker Bonnet Brass
8 1 00798.00 SS Braided Hose 24 1 00743.11 ^1/2 Tee FxFxF SS
9 1 00214.50 1/2" Comp x 3/8” MIP FTG 25 1 00742.00 Nipple Brass 1/2" x 1-1/2” (Optional)
10 4 00738.10 Water Solenoid Coil J/E 26 1 00744.00 Nipple Brass 1/2" x 2” (Optional)
11 1 00707.00 1/2" Water Solenoid Repair Kit J/E 27 1 03603.20 1/2" Water Solenoid Bonnet
12 1 03603.10 1/2" Water Solenoid Valve J/E 28 1 00786.00 Water Solenoid Valve Plunger
13 1 00745.00 1/2" 90 Degree Street Elbow 29 1 41062.10 ^ 1/2 Ball Valve Strainer Only
14 6 00760.00 5/8” Comp. X 1/2" MIP Adapter 30 2 00970.40 6-32 x 1/4" Phillips Pan Head Screw
15 1 04606.00 L-1X “L” Tube 31 1 00706.10 Plunger Spring Only
15A 1 04606.60 L-1X16 “L” Tube

Parts Manual
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18BPage 12

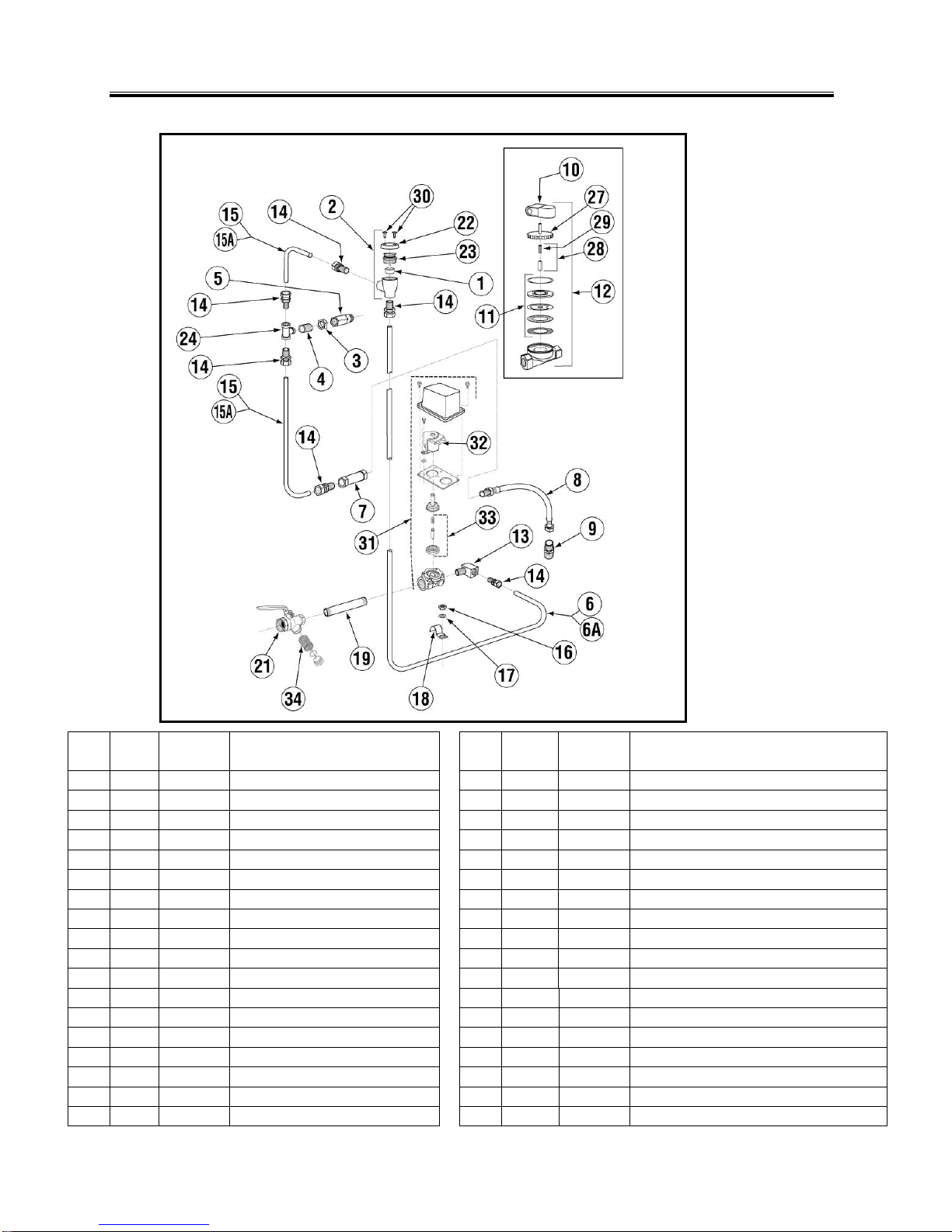

1.2.9. Plumbing System Assembly
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 1 03623.00 1/2" Vac. Brkr Repair Kit – WATTS 17 1 00924.00 1/4" SS Washer
2 1 03624.00 1/2" Vacuum Breaker – WATTS 18 1 00725.50 1/2" Plumbing Strap
3 2 00721.00 1/2" Jamb Nut 19 1 00747.10 Nipple Brass 1/2" x 5”
4 1 03614.00 1/2" Brass (Close) Nipple 20 1 03602.50 1/2" Y Strainer – Optional
5 1 00748.00 1/2" Sprinkler Head Assembly 21 1 41062.00 1/2 Strainer Ball Valve
6 1 04605.00 L-1X “U” Tube 22 1 00739.50 Vacuum Breaker Cap SS
6A 1 04605.60 L-1X 16“U” Tube 23 1 03624.25 Vacuum Breaker Bonnet Brass
7 1 00715.00 Ball Check Valve 24 1 00743.11 ^1/2 Tee FxFxF SS
8 1 00798.00 SS Braided Hose 25 1 00742.00 Nipple Brass 1/2" x 1-1/2” (Optional)
9 1 00214.50 1/2" Comp x 3/8” MIP FTG 26 1 00744.00 Nipple Brass 1/2" x 2” (Optional)
10 4 00738.10 Water Solenoid Coil J/E 27 1 03603.20 1/2" Water Solenoid Bonnet
11 1 00707.00 1/2" Water Solenoid Repair Kit J/E 28 1 00786.00 Water Solenoid Valve Plunger
12 1 03603.10 1/2" Water Solenoid Valve J/E 29 1 00706.10 Plunger Spring Only
13 1 00745.00 1/2" 90 Degree Street Elbow 30 2 00970.40 6-32 x 1/4" Phillips Pan Head Screw
14 6 00760.00 5/8” Comp. X 1/2" MIP Adapter 31 1 03604.00 SS Water Solenoid Valve 1/2"
15 1 04606.00 L-1X “L” Tube 32 1 41015.60 1/4 Water Solenoid Coil Only 110V
15A 1 04606.60 L-1X16 “L” Tube 33 1 03604.30 Dema Valve Repair Kit 1/2"
16 1 00915.00 1/4"-20 Hex Nut 34 1 41062.10 ^ 1/2 Ball Valve Strainer Only

Parts Manual
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18BPage 13
1.2.10. Drain System Assembly
ITEM
NO. NO. REQ’D
P/N DESCRIPTION
1 2 04105.00 Pump Hose 6.5”
2 8 03101.00 1” Hose Clamp #16
3 1 04103.00 Drain Valve 115V
04113.00 Drain Valve 115V New Style
4 1 03108.51 1” Goose Neck Drain Hose
5 1 03109.00 Drain Hose 90DEG 1"
6 1 04110.00 L-1X Drain Screen SS
7 1 50302.06 1” MIP x 1” Barb PVC

Parts Manual
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18BPage 14
1.2.11. Control Box
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 1 04904.60 Top Drawer 10 1 00476.00 Running Light 120V, Green
2 1 00408.80 Timer 2 Minute 8 Cam 11 1 03470.01 Toggle Switch, mom., (.25 flat term.)
2A 8 00411.00 Micro switch 12 1 00406.00 Control box Light Red
2B 1 00501.00 Timer Motor 13 1 00556.10 Reed Switch - ISI
3 1 03408.50 Counter (Panel Mount – Small) 14 1 or 2* 00631.00 Ice Cube Relay
4 1 04415.00 Wire Harness (L-1X) 15 2 00917.00 8-32 PM Nut
5 1 00404.82 Contactor Relay 16 4 00911.00 8-32 x 1/2" Pan Head Screw
6 1 00433.10 Master Switch 17 4 00470.10 Rubber Boot
7 1 00475.30 Toggle Switch DPDT 16A, 2 pos 18
18A 1 1 06231.00 L-1X Drawer Label
8 2 03470.00 Toggle Switch (Momentary) 06231.02 L-1X16 Drawer Label
9 1 03406.64 Drain Toggle Switch DPST 19 2 00940.50 10-32 x 3/8” Truss Head Screw
*Second relay present only with heater option.

Parts Manual
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18BPage 15
1.2.12. Control Box (Effective 06/2007)
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 1 04904.60 L-1X Top Drawer (New 5-02) 15 14 00907.00 6-32 X 1/2 SS Panhead Screw
04904.78 L1X16 Top Drawer Slanted New 16 1 03202.66 Thermocouple
2 8 00411.00 Micro switch 17 1 06232.04 L-1X Drawer Label
3 1 00408.80 Timer 2 Minute 8 Cam 18 1 06232.05 L-1X16 Drawer Label
3A 1 00501.00 Timer Motor 19 1 03203.55 Thermometer Bracket
4 18 00965.00 6-32 Nylon Insert Lock Nut 20 1 03203.51 Single Temp. Display Unit
5 1 (2*) 00631.00 Ice Cube Relay 21 1 00556.10 Reed Switch - ISI
6 4 00470.10 Rubber Boot 22 1 15524.00 Power Rocker Switch (421.41 Cover)
7 1 15520.00 Power Block 12 Position 23 1 03481.00 Drain Rocker Switch (3481.01 Cover)
8 2 13826.10 4-40 X 3/4" Pan Head screw 24 1 00421.40 Start/Fill Rocker Switch (421.41 Cover)
9 1 00404.82 Contactor Relay 25 2 03705.82 Sponge Strip
10 1 00474.00 Delimer Switch Bracket 26 2 00907.10 6-32 X 1/2 Black Oxide Screw-Philp
11 1 00475.30 Delimer Switch DPST 20 Amp. 27 1 03408.50 Counter (Panel Mount – Small)
12 1 03202.60 Thermometer Transformer 28 2 00916.00 6-32 PM Nut
13 1 00438.00 Snap bushing, Universal 29 4 00421.51 6-32 X 1/4 SS Panhead Screw
14 2 13826.50 4-40 Hex Nuts 30 1 03485.00 Switch Guard

Parts Manual
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18BPage 16
1.2.13. Peristalic Pump Assembly
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 3 00416.00 Peristaltic Pump Motor 10 6 00448.00 Barrel Connector (Male)
2 3 00417.10 Peristaltic Pump Block (Black) 11 AR 00425.51 Chemical Tubing (Blue)
3 6 00919.00 10-32 x 1 1/2" Pan Head Screw 12 AR 00425.53 Chemical Tubing (Red)
4 3 00918.00 10-32 x 1 1/2" Fillister HD Screw 13 AR 00425.54 Chemical Tubing (White)
5 6 00932.00 Wire Tie – Large 14 2 03415.00 Chemical Tube Bulkhead
6 7 00418.00 Peristaltic Pump Block Cover 15 2 00443.00 Tube Stiffener
7 12 00911.00 8-32 x 1/2" Pan Head Screw 16* 1 00415.00 Complete Peristaltic Pump
8 2 02257.00 Squeeze Tube 8" Norprene 17 1 03415.60 Bulk Head For Sanitizer
9 3 00419.00 Peristaltic Rotor Assembly 18 1 02257.22 Squeeze Tube 22" Norprene For L-1X
*Item 16 includes items 1-4, 6-10.

Parts Manual
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18BPage 17
1.2.14. Drain Valve
ITEM
NO. NO. REQ’D
P/N DESCRIPTION
1 1 04103.21 Drain Motor 115V, 60Hz
2 1 04103.14 Drain Valve Spring
3 1 04103.20 Drain Valve Drive Pin
4 1 04103.19 Drain Valve Washer (Thin)
5 1 04103.17 Drain Seal Washer (Black)
5A 1 04103.23 Drain Seal Washer (White)
6 1 04103.12 Drain Valve Housing
7 4 00941.00 #10-32 x 5/8” Pan Head Screw
8 3 04103.24 Drain Valve Housing Spacer
9 1 04103.16 Hinge/Seal
10 1 04103.15 Drain Housing Gasket
11 1 04103.13 Drain Valve Housing Cover
12 4 04103.18 #8 x 5/8” Self-Threading Screw

Parts Manual
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18BPage 18

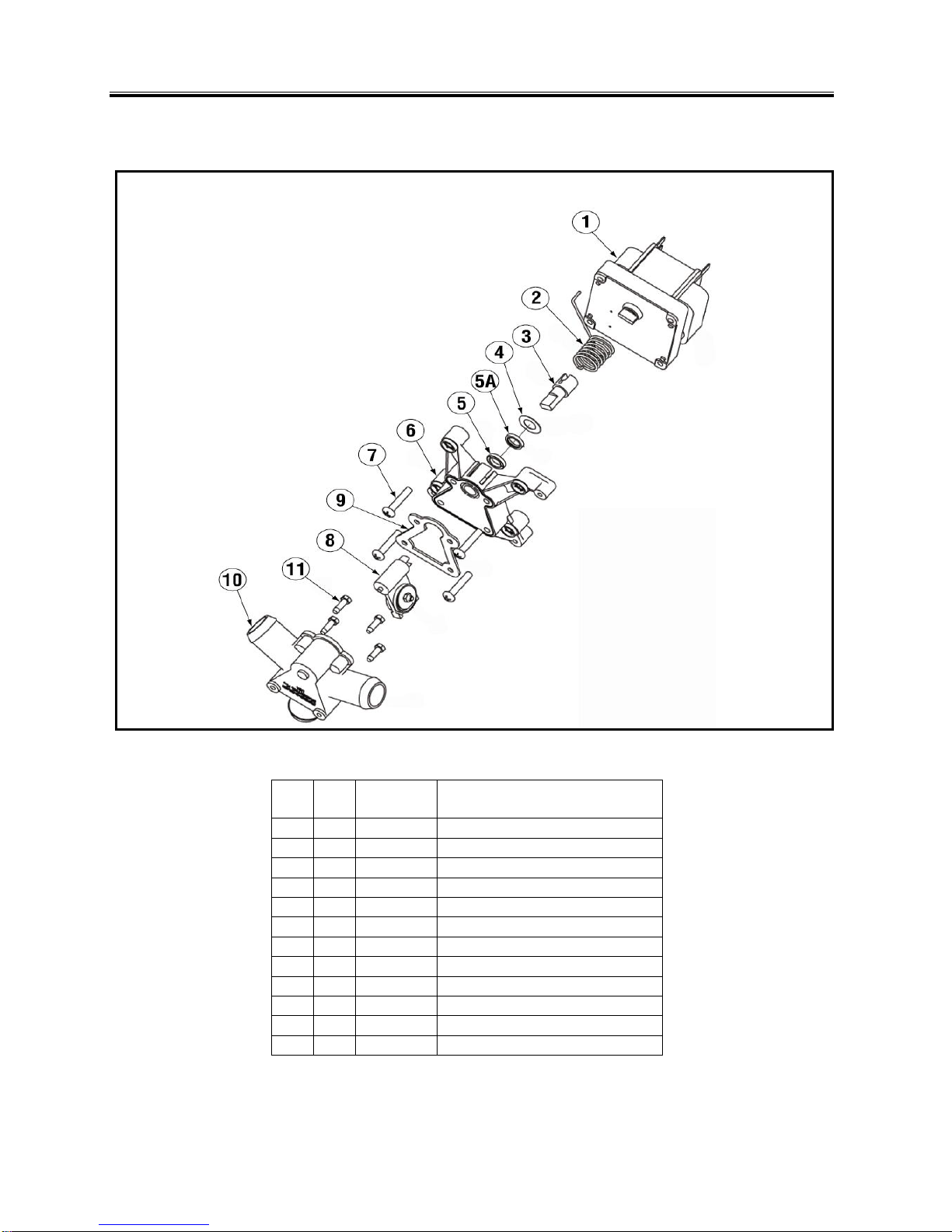

1.2.15. Drain Valve (Effective January 2011)
ITEM
NO. NO. REQ’D
P/N DESCRIPTION
1 1 00104.50 Drain Motor 120V
2 1 04103.14 Drain Valve Spring
3 1 04103.20 Drain Valve Drive Pin
4 1 04103.19 Drain Valve Washer (Thin)
5 1 04103.17 Drain Valve Seal Washer (V-Packer)
5A 1 04103.23 Drain Seal Bearing (White Washer)
6 1 04103.13 Drain Valve Housing Cover
7 4 04113.18 Valve Cover Screw
8 3 04103.16 Drain Valve Hinge/Seal
9 1 04103.15 Drain Valve Housing Gasket
10 1 04113.12 Drain Valve Housing
11 1 04103.18 #8 X 5/8 Self Threading Screw

Parts Manual
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.18BPage 19

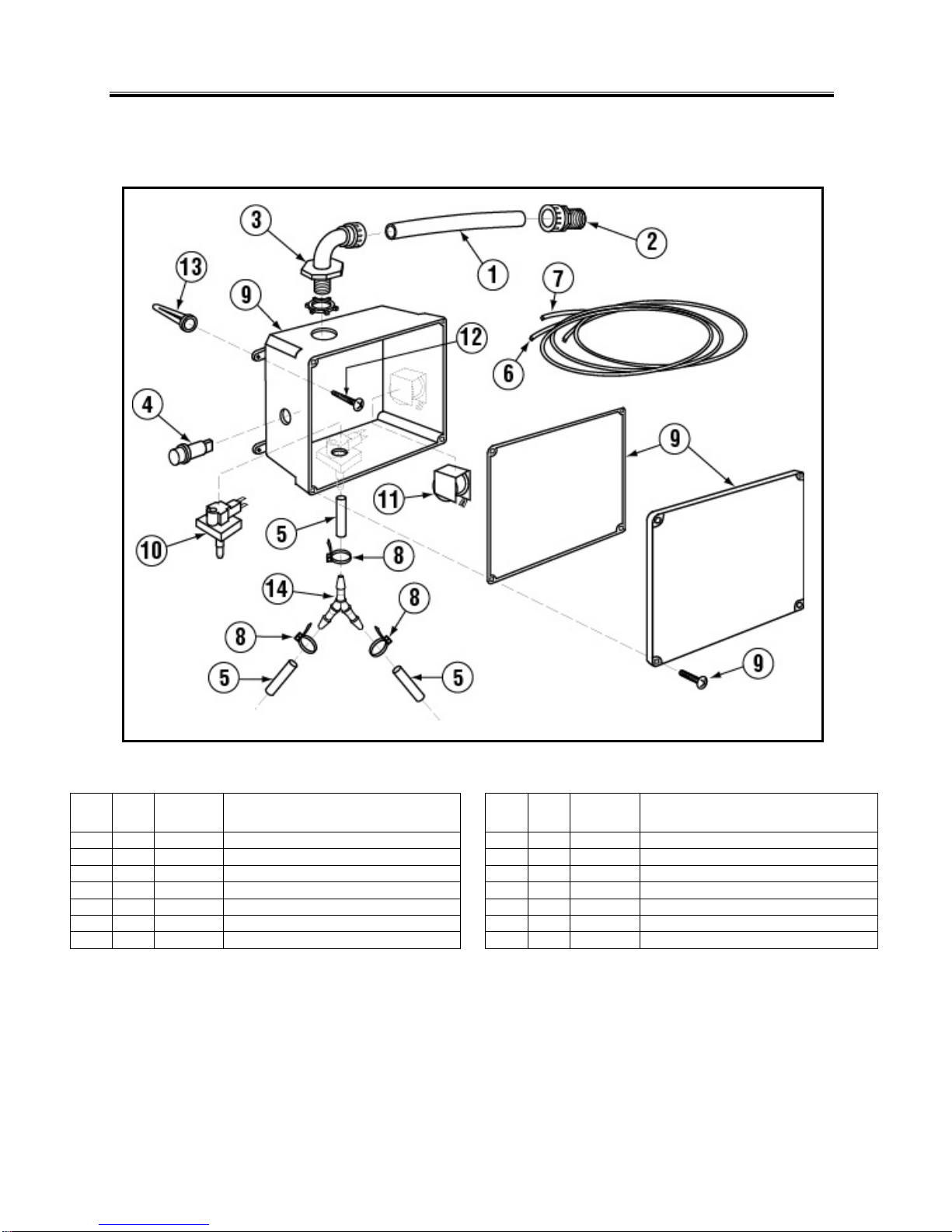

1.2.16. Optional Sani Alarm
Part Number 12508.00
Exploded View
ITEM
NO. NO. REQ’D
P/N DESCRIPTION ITEM
NO. NO. REQ’D
P/N DESCRIPTION
1
3
00400.00
Conduit, 3/8” Sealtite
8
5
00931.00
Wire Tie, Small
2
1
00401.00
S.T. 3/8” Straight Connector
9
1
12510.00
Sanitizer Alarm Box Assembly
3 1 00402.00 S.T. 90 Degree 3/8” Connector 10 1 12511.00 Sanitizer Low Level Vacuum Switch
4
1
00406.00
Control Box Light, .5” Diameter, Red
11
1
12512.00
Sanitizer Alarm Buzzer, 120 Volts
5
1
00435.00
Squeeze Tube, 8”
12
4
40126.10
#10 x 3/4" Sheet metal Screw
6 1 00521.00 Wire, 18 Gauge, Orange, 6 ft. 13 4 40127.00 Wall Anchors
7
1
00531.00
Wire, 18 Gauge, White, 6 ft.
14
1
00426.00
Y Hose Connector, 3/16”
