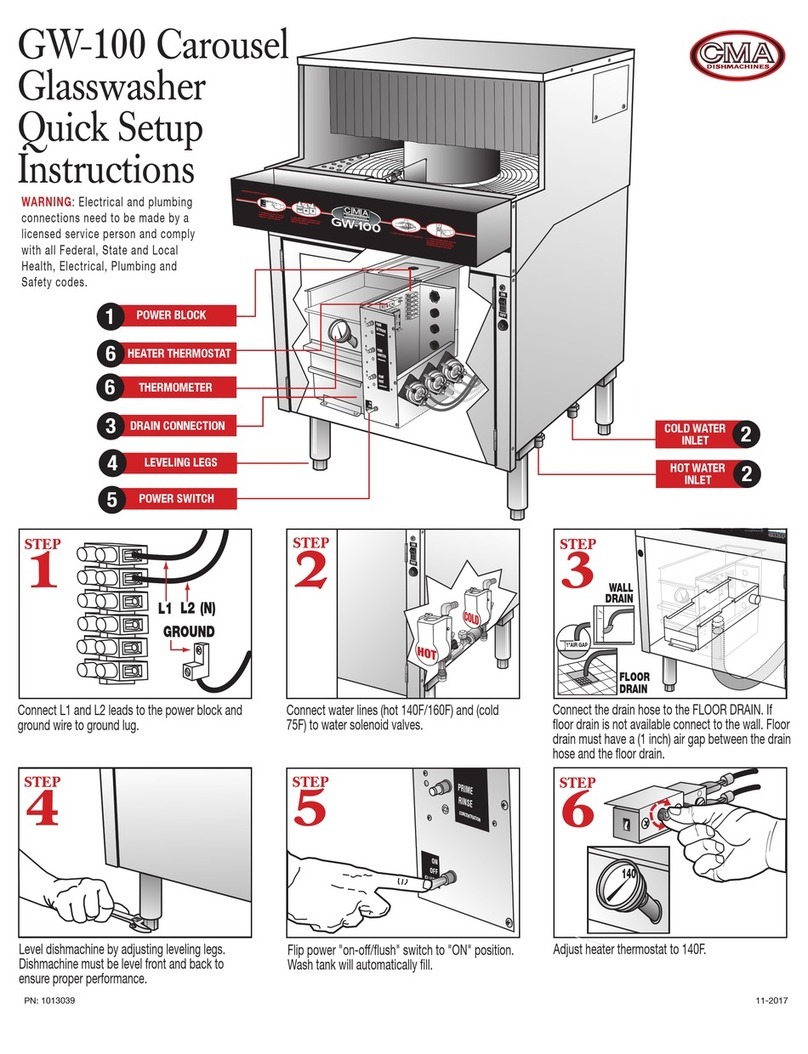

CMA Dishmachines GW-100 User manual

CMA Dishmachines

CMA Dishmachines GW-100 User manual

CMA Dishmachines EST66 L.T. User manual

CMA Dishmachines

CMA Dishmachines EST66 L.T. User manual

CMA Dishmachines UC65e Manual

CMA Dishmachines

CMA Dishmachines UC65e Manual

CMA Dishmachines H-1X Manual

CMA Dishmachines

CMA Dishmachines H-1X Manual

CMA Dishmachines CMA-L-1X User manual

CMA Dishmachines

CMA Dishmachines CMA-L-1X User manual

CMA Dishmachines EVA-AH-T User manual

CMA Dishmachines

CMA Dishmachines EVA-AH-T User manual

CMA Dishmachines CMA180VL-FL Manual

CMA Dishmachines

CMA Dishmachines CMA180VL-FL Manual

CMA Dishmachines EST-44 Manual

CMA Dishmachines

CMA Dishmachines EST-44 Manual

CMA Dishmachines GW-100 User manual

CMA Dishmachines

CMA Dishmachines GW-100 User manual

CMA Dishmachines CMA-GL-C User manual

CMA Dishmachines

CMA Dishmachines CMA-GL-C User manual

CMA Dishmachines EAH User manual

CMA Dishmachines

CMA Dishmachines EAH User manual

CMA Dishmachines CMA-L-1X User manual

CMA Dishmachines

CMA Dishmachines CMA-L-1X User manual

CMA Dishmachines CMA-44L User manual

CMA Dishmachines

CMA Dishmachines CMA-44L User manual

CMA Dishmachines GL-X User manual

CMA Dishmachines

CMA Dishmachines GL-X User manual

CMA Dishmachines L-1C User manual

CMA Dishmachines

CMA Dishmachines L-1C User manual

CMA Dishmachines 180UC Manual

CMA Dishmachines

CMA Dishmachines 180UC Manual

CMA Dishmachines First Chemical EST- 44 Manual

CMA Dishmachines

CMA Dishmachines First Chemical EST- 44 Manual

CMA Dishmachines CMA-66H User manual

CMA Dishmachines

CMA Dishmachines CMA-66H User manual

CMA Dishmachines CMA-L-1X-16 User manual

CMA Dishmachines

CMA Dishmachines CMA-L-1X-16 User manual

CMA Dishmachines UC65e M2 Manual

CMA Dishmachines

CMA Dishmachines UC65e M2 Manual

CMA Dishmachines 180UC User manual

CMA Dishmachines

CMA Dishmachines 180UC User manual

CMA Dishmachines 180UC Manual

CMA Dishmachines

CMA Dishmachines 180UC Manual

CMA Dishmachines CMA-180 TALL Manual

CMA Dishmachines

CMA Dishmachines CMA-180 TALL Manual

CMA Dishmachines CMA-180 TALL Manual

CMA Dishmachines

CMA Dishmachines CMA-180 TALL Manual

Popular Dishwasher manuals by other brands

Electrolux ESI5211LOX user manual

Electrolux

Electrolux ESI5211LOX user manual

KitchenAid KUDB230B Use and care guide

KitchenAid

KitchenAid KUDB230B Use and care guide

Brandt BDJ424DB instruction manual

Brandt

Brandt BDJ424DB instruction manual

Asko DSD767UXXL.AU user manual

Asko

Asko DSD767UXXL.AU user manual

Beko DFN26210W instruction manual

Beko

Beko DFN26210W instruction manual

NEFF S153ITX00E INFORMATION FOR USE

NEFF

NEFF S153ITX00E INFORMATION FOR USE

Midea SV 4.45 wi manual

Midea

Midea SV 4.45 wi manual

LG LDF7932 Specifications

LG

LG LDF7932 Specifications

Gorenje GV63214 instruction manual

Gorenje

Gorenje GV63214 instruction manual

Hotpoint HDA1100ZWH Installation information

Hotpoint

Hotpoint HDA1100ZWH Installation information

Blomberg LDFN2240W instruction manual

Blomberg

Blomberg LDFN2240W instruction manual

AEG FFB83836PM user manual

AEG

AEG FFB83836PM user manual

Cylinda DM3220RFD user manual

Cylinda

Cylinda DM3220RFD user manual

Atag DW8214MB manual

Atag

Atag DW8214MB manual

GE GLD8000 Series owner's manual

GE

GE GLD8000 Series owner's manual

Siemens SN23HI02KE INFORMATION FOR USE

Siemens

Siemens SN23HI02KE INFORMATION FOR USE

Omega ODW717X instruction manual

Omega

Omega ODW717X instruction manual

BORETTI BVW-683 operating instructions

BORETTI

BORETTI BVW-683 operating instructions

https://manuals.online logo
https://manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2026 Manuals.Online. All Rights Reserved.

Page 1
1" DRAIN
HOSE
2
Model L-1Xe
Quick
Setup
Instructions
1
STEP
Connect dishmachine to hot water source minimum
120°F required, 140°F temperature recommended.
Insert tube stiffener with chemical tubing into
each corresponding chemical dispenser.
Connect the drain hose to wall or floor drain.
The floor drain must have a 1-inch air gap
between drain hose and floor drain.
WALL DRAIN FLOOR DRAIN
1"AIR GAP
2
STEP
11/2" WATER
INLET
LEVELING LEGS
4
Level dishmachine by adjusting leveling legs.
Dishmachine must be level, front and back,
to ensure proper performance.
4
STEP
3CHEMICAL
TUBING
BLUE
RED WHITE
3
STEP
BLUE RED WHITE
WARNING : Electrical and plumbing connections
need to be made by a licensed service person and
comply with all Federal, State and Local Health,
Electrical, Plumbing and Safety codes.
R
POWER
RINSE START
DETERGENT SANITIZER
PRIMERS
CYCLE DRAIN/ FILL
TUBE
STIFFENER
3
22” FROM
FLOOR MAX
Model L-1Xe
Quick Setup
Instructions
NOTE: WATER AND CHEMICALS TO THIS
DISHWASHER MUST BE PROGRAMMED
BY A QUALIFIED CHEMICAL SPECIALIST.
R
POWER
RINSE START
DETERGENT SANITIZER
PRIMERS
CYCLE DRAIN / FILL
5
STEP
Push power switch to “ON” power.
POWER
RINSE START
DETERGENT SANITIZER
PRIMERS
CYCLE DRAIN / FILL
FILL
R
6
STEP
Press and Hold down "SANI", "DETERGENT"and "RINSE" switches
to prime chemicals. This step must be repeated each time chemical
containers are changed.
POWER
RINSE START
DETERGENT SANITIZER
PRIMERS
CYCLE DRAIN / FILL
R
8
STEP
Close the door, then press start switch.
FILL
R
Hold down "FILL" Switch for approximately 10 - 15 seconds to
allow water to flow into the dishwasher. The 4th cam of timer
assembly has to be adjusted to maintain the same water level
during the cycle.
THERMOMETER
6
POWER
5
7
START
6
RINSE
6
PERISTALTIC
PUMP
TO
OPERATE
MACHINE
SET DELIMER
SWITCH TO
NORMAL
HOT
NEUTRAL
GROUND
DO NOT USE POWER
CORD OR GFI OUTLET.
The S p irit o f Excelle n c e
an Ali Group Company
an Ali Group Company
DRAIN
DETERGENT
SANITIZER
CYCLE LIGHT
FILL / START
TIMER
FILL
FILL
FILL
Page 2
WARNING : Electrical and plumbing
connections need to be made by a
licensed service person and comply with
all Federal, State and Local Health,
Electrical, Plumbing and Safety codes.
THERMOMETER
STEP
