MODEL L-1X & L-1X16
PARTS MANUAL
Rev 1.16
800-854-6417
CMA DISHMACHINES
12700 KNOTT AVENUE
GARDEN GROVE, CALIFORNIA 92841
FAX 714
-
8
95
-
2
141

TABLE OF CONTENTS
MODEL CMA-L-1X & L-1X16
1. PARTS MANUAL ..........................................................................................3
1.1. INITIAL PARTS KIT (P/N 4001.00)................................................................................................... 3
1.2. OPTIONAL SANI ALARM.................................................................................................................. 4
1.3. EXPLODED VIEW DRAWINGS........................................................................................................... 5
1.3.1. Cabinet Assembly ................................................................................................................... 5
1.3.2. Cabinet Assembly (Effective 06/2007).................................................................................... 6
1.3.3. L-1X Door Assembly (Old Style) ............................................................................................ 7
1.3.4. L-1X/L-1X16 Door Assembly.................................................................................................. 8
1.3.5. Spray System Assembly...........................................................................................................9
1.3.6. Pump Assembly....................................................................................................................... 9
1.3.7. Plumbing System Assembly..................................................................................................... 9
1.3.8. Drain System Assembly...........................................................................................................9
1.3.9. Control Box ............................................................................................................................ 9
1.3.10. Control Box (Effective 06/2007)............................................................................................. 9
1.3.11. Peristaltic Pump Assembly..................................................................................................... 9
1.3.12. Drain Valve ............................................................................................................................ 9

Parts Manual
1. Parts Manual
1.1. Initial Parts Kit (P/N 4001.00)
P/N DESCRIPTION Qty
00200.10 Pump Assy, 110/220V 60 Hz, Open 1
00206.00 Pump Seal Kit 1
00208.00 Slip Joint Nut Gasket 1
00304.03 Spray Arm B L1-C & L-1X 1
00308.50 Spray Arm End Plug SS 1
00404.82 Motor Contactor Relay 1
00411.00 Micro Switch 1
00415.00 Peristaltic Pump Assembly, 120V/60Hz 1
03470.01 Toggle Switch, momentary, (.25 flat terminal) 1
00425.51 Chemical Tubing Blue 50 ft.
00425.53 Chemical Tubing Red 50 ft.
00425.54 Chemical Tubing White 50 ft.
00433.10 Master Switch (20 Amp) 1
00435.00 Squeeze Tube, 8”, Silicone 1
00435.62 Squeeze Tube, 24”, L-1X 1
00458.00 Squeeze Tube, Black (Detergent) 1
00501.00 Timer Motor, 2-Minute 1
00557.55 Kynar Reed Switch, 110/220V, 36” 1
00707.00 1/2 Water Solenoid Repair Kit, JE 1
00715.00 1/2 Ball Check Valve 1
00738.10 Solenoid Coil, JE, 120V, (¾” & ½”) 1
03202.00 Thermometer, Capillary 1
03406.64 Drain Toggle Switch 1
03415.00 Chemical Tube Bulkhead 1
03415.60 Chemical Bulkhead (Teflon) Assy 1
04103.00 L-1X / L1-C Drain Valve, 120V 1
04110.00 SS L1-C/L-1X Drain Screen 1
04303.00 L1-X Spray Arm Bearing 1
04305.10 Red Silicone Gasket, 1/16 Thick 1
04517.15 Door Stop (Parallel) 1
NOTE: CMA recommends that the initial parts kit be kept on hand as a back up supply of critical parts
in the event your machine should require emergency service. All the parts included in this kit
are unique to the L-1X and L-1X16 dishmachine.
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.16 Page 3

Parts Manual
1.2. Optional Sani Alarm
Part Number 12508.00
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.16 Page 4
Exploded View
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 3 00400.00 Conduit, 3/8” Sealtite 8 5 00931.00 Wire Tie, Small
2 1 00401.00 S.T. 3/8” Straight Connector 9 1 12510.00 Sanitizer Alarm Box Assembly
3 1 00402.00 S.T. 90 Degree 3/8” Connector 10 1 12511.00 Sanitizer Low Level Vacuum Switch
4 1 00406.00 Control Box Light, .5” Diameter, Red 11 1 12512.00 Sanitizer Alarm Buzzer, 120 Volts
5 1 00435.00 Squeeze Tube, 8” 12 4 40126.10 #10 x 3/4" Sheet metal Screw
6 1 00521.00 Wire, 18 Gauge, Orange, 6 ft. 13 4 40127.00 Wall Anchors
7 1 00531.00 Wire, 18 Gauge, White, 6 ft. 14 1 00426.00 Y Hose Connector, 3/16”

Parts Manual
1.3. Exploded View Drawings

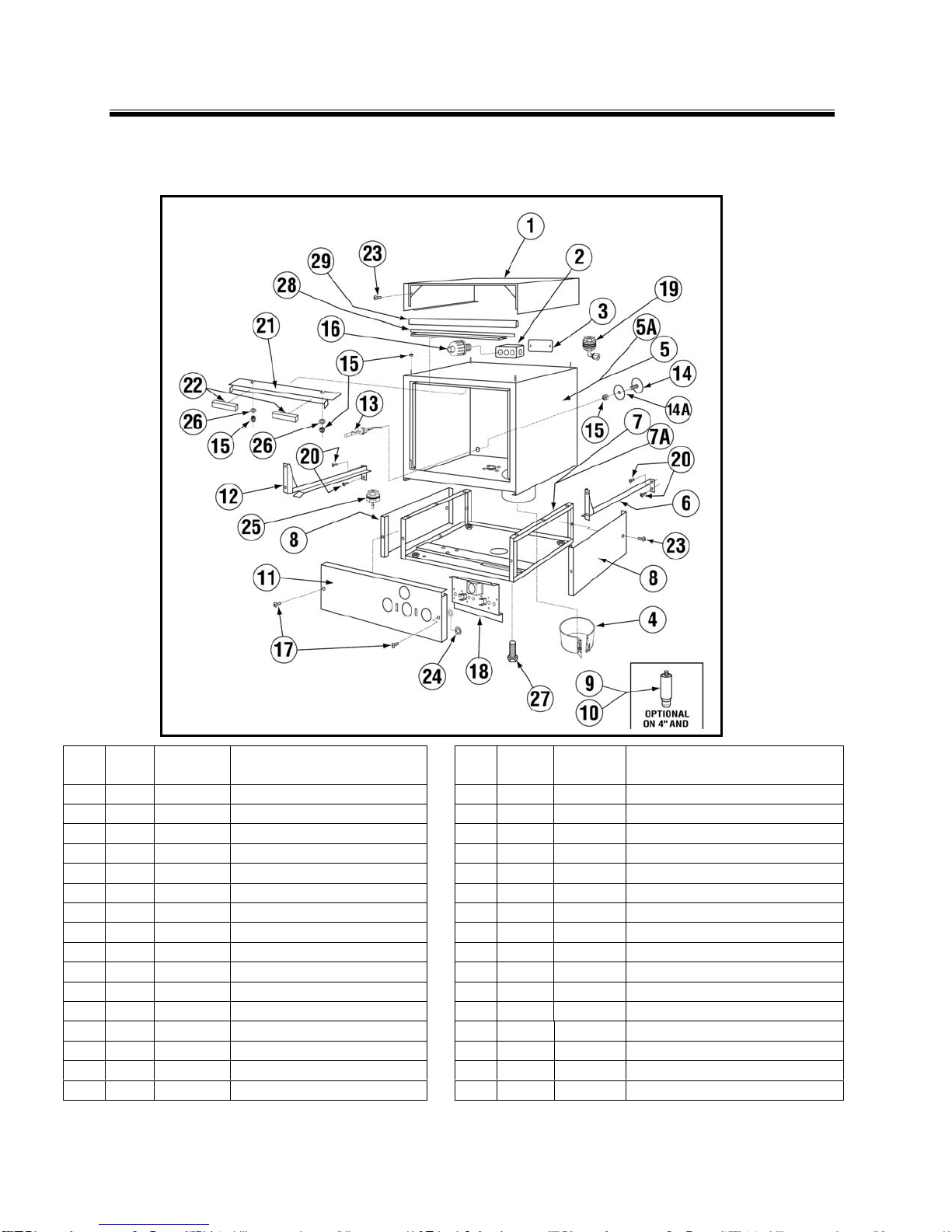

1.3.1. Cabinet Assembly
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.16 Page 5
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 1 04903.60 EZ top 14A 1 00752.60 Hole Stopper Gasket
2 1 03420.00 Undercounter Bell Box 15 9 00912.00 Nylon Lock Nut 1/4”-20
3 1 03423.00 Undercounter Bell Box Cover 16 1 00401.50 3/8” Black Nylon Straight Connector
4 1 04109.10 Sump Heater (Optional) 17 2 00941.00 10-32 x 5/8” Pan head Screw
5 1 04901.60 Stainless Steel Body 18 1 04914.86 L-1C and L-1X Peri Pump Mount
5A 1 04901.73 Stainless Steel Body L-1X16 19 2 03415.00 Chemical Tube Bulkhead
6 1 04911.60 Tray Track (RH) 20 4 00914.00 1/4-20 x 3/4" Hex Head Bolt
7 1 04902.82 Stand “Open Style” L-1X 21 1 14558.00 Body Magnet Holder
7A 1 04902.73 Stand “Open Style” L-1X16 22 1 00557.80 Door Magnet
8 2 04902.84 Panels for Open Style Stand 23 10 00940.50 10-32 x 3/8” Truss Head Screw
9 4 01146.50 4” Leg (Optional) 24 2 03816.00 Nylon Retaining Washer
10 4 01146.00 6” Leg (Optional) 25 1 03415.60 Chemical Tube Bulkhead Barbed
11 1 04915.86 Front Peri Pump Panel 26 2 00924.00 Washer SS 1/4"
12 1 04912.60 Tray Track (LH) 27 4 01310.60 Leg Adjusters
13 2 13463.00 Liquid Level Switch (Optional) 28 1 14506.45 Gasket Bracket
14 1 01513.60 Hole Stopper 29 1 14506.50 Door Gasket

Parts Manual
1.3.2. Cabinet Assembly (Effective 06/2007)
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 1 04903.60 EZ top 14A 1 00752.60 Hole Stopper Gasket
2 1 03420.00 Undercounter Bell Box 15 9 00912.00 Nylon Lock Nut 1/4”-20
3 1 03423.00 Undercounter Bell Box Cover 16 1 00401.50 3/8” Black Nylon Straight Connector
4 1 04109.10 Sump Heater (Optional) 17 2 00941.00 10-32 x 5/8” Pan head Screw
5 1 04901.60 Stainless Steel Body 18 1 04914.78 L-1C and L-1X Peri Pump Mount
5A 1 04901.73 Stainless Steel Body L-1X16 19 2 03415.00 Chemical Tube Bulkhead
6 1 04911.60 Tray Track (RH) 20 4 00914.00 1/4-20 x 3/4" Hex Head Bolt
7 1 04902.82 Stand “Open Style” L-1X 21 1 14558.00 Body Magnet Holder
7A 1 04902.73 Stand “Open Style” L-1X16 22 1 00557.80 Door Magnet
8 2 04902.84 Panels for Open Style Stand 23 10 00940.50 10-32 x 3/8” Truss Head Screw
9 4 01146.50 4” Leg (Optional) 24 2 03816.00 Nylon Retaining Washer
10 4 01146.00 6” Leg (Optional) 25 1 03415.60 Chemical Tube Bulkhead Barbed
11 1 04915.78 Front Peri Pump Panel 26 2 00924.00 Washer SS 1/4"
12 1 04912.60 Tray Track (LH) 27 4 01310.60 Leg Adjusters
13 2 13463.00 Liquid Level Switch (Optional) 28 1 14506.45 Gasket Bracket
14 1 01513.60 Hole Stopper 29 1 14506.50 Door Gasket
30 3 03475.00 Prime switches
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.16 Page 6

Parts Manual

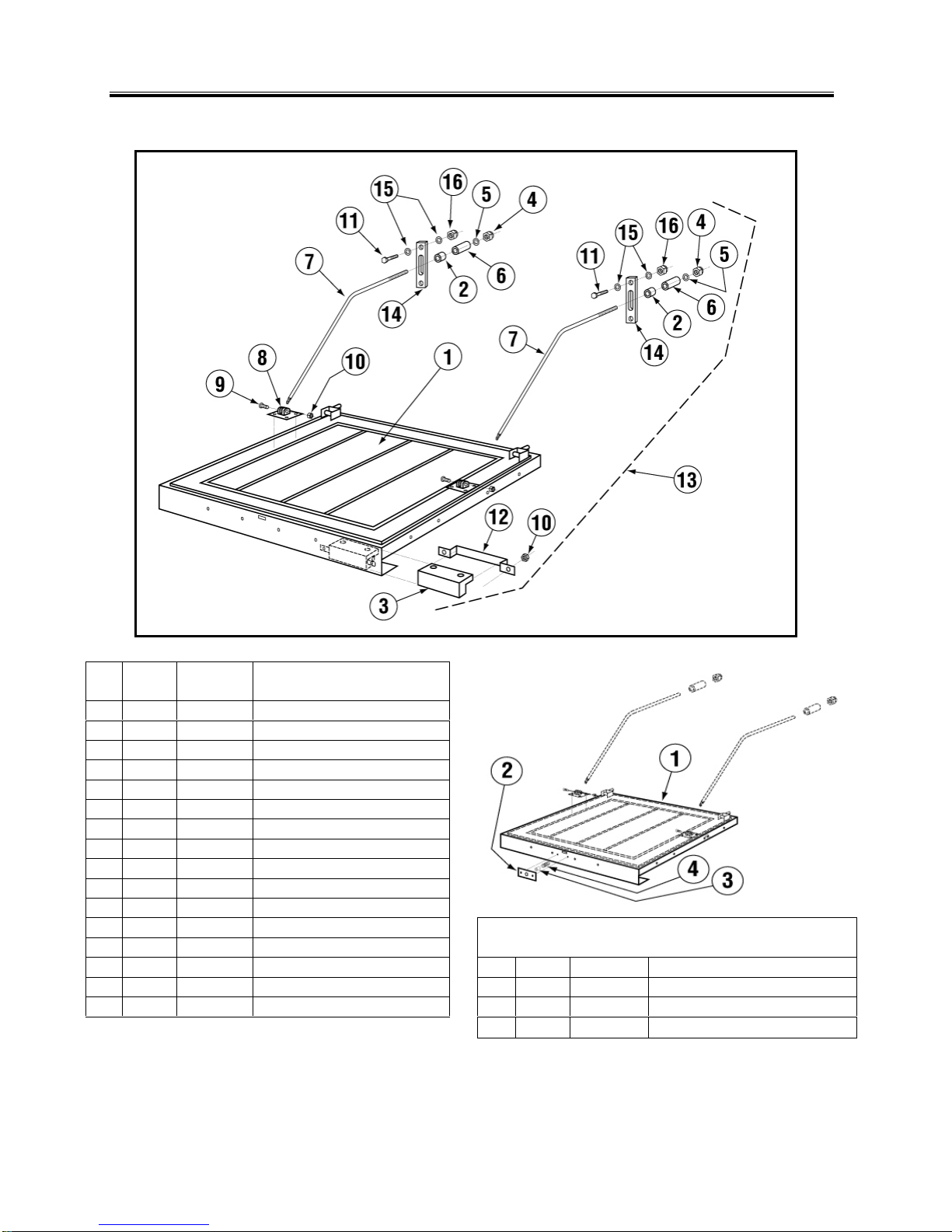

1.3.3. L-1X Door Assembly (Old Style)
ITEM
NO. NO. REQ’D P/N DESCRIPTION
1 1 04906.90 Inner & Outer Panel Assy.
2 2 00605.30 Door Rod Spacer
3 1 00557.60 Reed Switch Magnet
4 2 13805.00 5/6” 18 Lock Nut
5 2 00926.00 5/15” SS Washer
6 2 04517.15 Door Stop (Silicone) Parallel
7 2 04918.10 Door Support Rod Angled
8 1 04916.00 Door Clevis
9 3 13825.00 #8 32 x 1” Pan Head Screw
10 2 00927.00 #8-32 Lock Nut
11 4 00914.10 Bolt 1/4"-20 x 5/8”
12 1 00558.61 Reed Switch Magnet Bracket ITEM
NO. NO. REQ’D P/N DESCRIPTION
13* 1 04509.20 Door Complete
14 2 04517.62 Door Support Rod Block 1 1 04906.90 Inner & Outer Panel Assembly
15 8 00924.00 Washer 1/4" SS 2 1 04510.00 L-1C Door Catch Plate
16 4 00912.00 Lock Nut Nylon 1/4"-20 3 1 04511.00 L-1C Catch Hemi-Ball SS
4 1 04512.00 L-1C Catch Ball Spring
*Excludes Item #2, 11, 14, 15 & 16
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.16 Page 7

Parts Manual

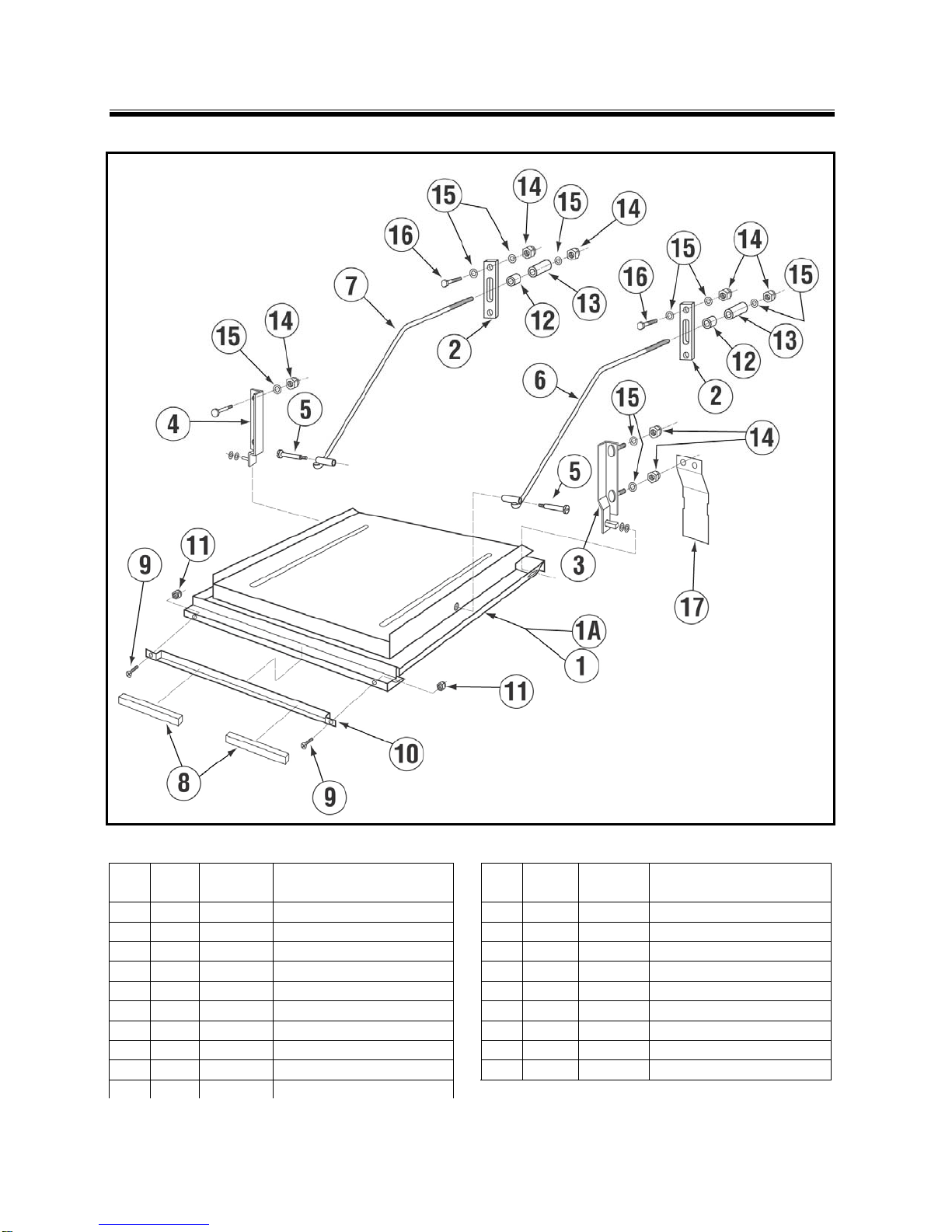

1.3.4. L-1X/L-1X16 Door Assembly
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.16 Page 8
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 1 04907.90 Door (New 7-2002) 10 1 14558.61 Door Magnet Holder
1A 1 14506.00 Door for L-1X16
2 2 04517.60 Door Support Rod Block 11 2 00965.00 06-32 Lock Nut
3 1 14570.00 Door Hinge (RH) 12 2 00605.20 Door Rod Spacer
4 1 14570.50 Door Hinge (LR) 13 2 04517.15 Door Stop (Parallel)
5 2 04919.00 Door Rod Screw Pin for Door 14 10 00912.00 1/4"-20 Nylon Lock Nut
6 1 04918.60 Door Support Rod Right 15 14 00924.00 1/4" SS Washer
7 1 04919.50 Door Support Rod Left 16 4 00914.10 1/4"-20 x 5/8” Hex Head Bolt
8 2 00557.80 Door Magnet 17 2 14518.00 Splash Guard
9 2 00970.60 6 32 x 1/2" Flathead Screw

Parts Manual

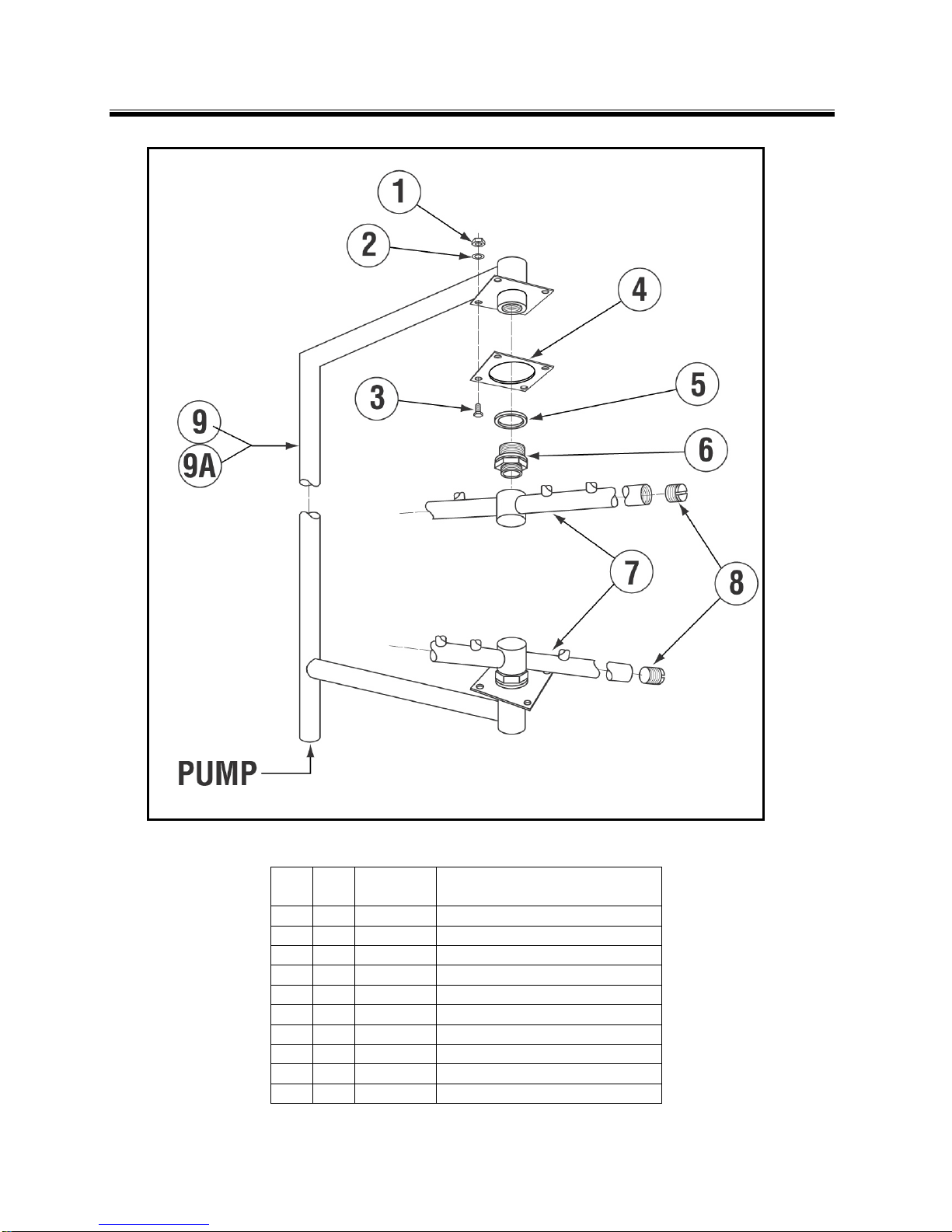

1.3.5. Spray System Assembly
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.16 Page 9
ITEM
NO. NO. REQ’D P/N DESCRIPTION
1 8 00912.00 1/4"-20 Nylon Lock Nut
2 16 00924.00 1/4" SS Washer
3 8 00929.00 1/4"-20 x 3/4" Truss Head Bolt
4 2 04306.00 Square Manifold Gasket
5 2 04305.10 Silicon Gasket
6 2 04303.00 L-1X Spray Arm Bearing
7 2 00304.03 Spray Arm
8 4 00308.50 Spray Arm End Plug
9 1 04301.00 L-1X Spray Manifold
9A 1 04301.60 L1-X16 Spray Manifold

Parts Manual

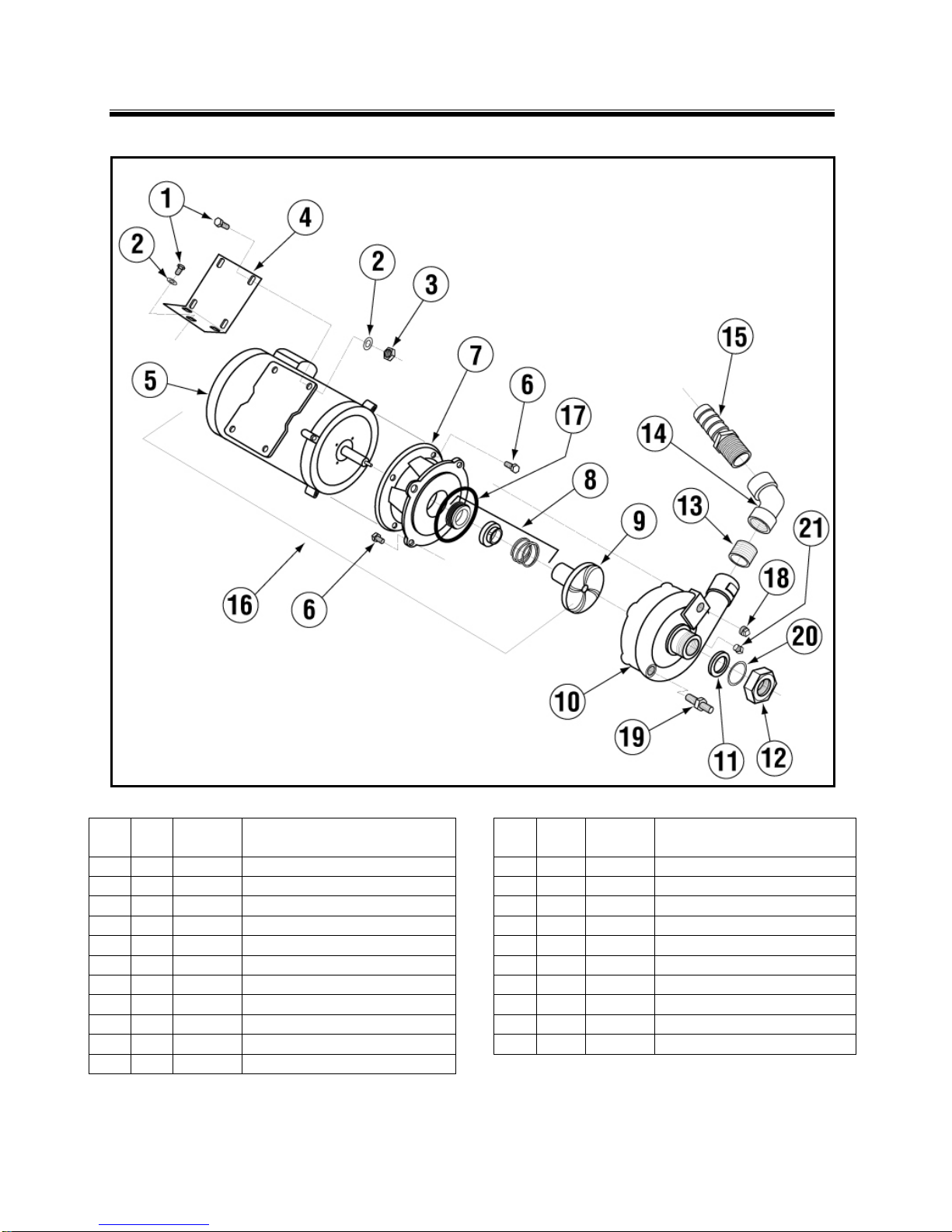

1.3.6. Pump Assembly
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.16 Page 10
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 7 00908.00 5/16”-18 x 5/8” SS Hexhead Bolt 12 1 04204.00 Compression Nut 2.5”
2 7 00926.00 5/16” SS Washer 13 1 14004.00 1” close Nipple SS
3 4 13805.00 5/16”-18 Nylon Lock Nut 14 1 04601.00 45 Degree Elbow FIP x FIP
4 1 04909.00 Motor Mount 15 1 50302.06 1” MIP x 1” Barb PVC
5 1 00201.00 Water Pump Motor 1 HP 16 1 00200.10 Includes Items 5, 6, 7, 8 and 9
6 8 00921.00 3/8”-16 x 3/4" Hex Bolt 17 1 03226.00 Pump “O” Ring Gasket
7 1 03224.00 Pump Base (Mount) 18 1 00238.00 3/8” Male Plug
8 1 00206.00 Pump Seal Kit 19 1 00214.50 1/2" Comp x 3/8” MIP Adapter
9 1 03222.05 Impeller (universal) open 20 1 00208.20 Slip Joint Nut Friction Ring
10 1 04206.30 Pump cover for L-1X/L-1X16 21 1 03232.00 1/8” Male Plug
11 1 00208.00 Slip Joint Nut Gasket

Parts Manual
1.3.7. Plumbing System Assembly
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.16 Page 11
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 1 03623.00 1/2" Vac. Brkr Repair Kit – WATTS 15A 1 04606.60 L-1X16 “L” Tube
2 1 03624.00 1/2" Vacuum Breaker – WATTS 16 1 00915.00 1/4"-20 Hex Nut
3 2 00721.00 1/2" Jamb Nut 17 1 00924.00 1/4" SS Washer
4 1 03614.00 1/2" Brass (Close) Nipple 18 1 00725.50 1/2" Plumbing Strap
5 1 00748.50 1/2" Shrub Head 19 1 00747.10 Nipple Brass 1/2" x 5”
6 1 04605.00 L-1X “U” Tube 20 1 03602.50 1/2" Y Strainer – Optional
6A 1 04605.60 L-1X 16“U” Tube 21 1 41061.00 1/2" Ball Valve
7 1 00715.00 Ball Check Valve 22 1 00739.50 Vacuum Breaker Cap SS
8 1 00798.00 SS Braided Hose 23 1 03624.25 Vacuum Breaker Bonnet Brass
9 1 00214.50 1/2" Comp x 3/8” MIP FTG 24 1 00743.10 1/2" Tee FxFxF
10 4 00738.10 Water Solenoid Coil J/E 25 1 00742.00 Nipple Brass 1/2" x 1-1/2” (Optional)
11 1 00707.00 1/2" Water Solenoid Repair Kit J/E 26 1 00744.00 Nipple Brass 1/2" x 2” (Optional)
12 1 03603.10 1/2" Water Solenoid Valve J/E 27 1 03603.20 1/2" Water Solenoid Bonnet
13 1 00745.00 1/2" 90 Degree Street Elbow 28 1 00786.00 Water Solenoid Valve Plunger
14 6 00760.00 5/8” Comp. X 1/2" MIP Adapter 29 1 00706.10 Plunger Spring Only
15 1 04606.00 L-1X “L” Tube 30 2 00970.40 6-32 x 1/4" Phillips Pan Head Screw

Parts Manual
1.3.8. Drain System Assembly
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.16 Page 12
ITEM
NO. NO. REQ’D P/N DESCRIPTION
1 2 04105.00 Pump Hose 6.5”
2 8 03101.00 1” Hose Clamp #16
3 1 04103.00 L-1X Drain Valve (Depend-O-Drain)
4 1 03108.51 1” Goose Neck Drain Hose
5 1 03109.00 Drain Hose 90DEG 1"
6 1 04110.00 L-1X Drain Screen SS
7 1 50302.06 1” MIP x 1” Barb PVC

Parts Manual
1.3.9. Control Box
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 1 04904.60 Top Drawer 10 1 00476.00 Running Light 120V, Green
2 1 00408.80 Timer 2 Minute 8 Cam 11 1 03470.01 Toggle Switch, mom., (.25 flat term.)
2A 8 00411.00 Micro switch 12 1 00406.00 Control box Light Red
2B 1 00501.00 Timer Motor 13 1 00557.55 Magnetic Reed Switch (NEW)
3 1 03408.50 Counter (Panel Mount – Small) 14 1 or 2* 00631.00 Ice Cube Relay
4 1 04415.00 Wire Harness (L-1X) 15 2 00917.00 8-32 PM Nut
5 1 00404.82 Contactor Relay 16 4 00911.00 8-32 x 1/2" Pan Head Screw
6 1 00433.10 Master Switch 17 4 00470.10 Rubber Boot
7 1 00475.30 Toggle Switch DPDT 16A, 2 pos 06231.00 L-1X Drawer Label
18 1
18A 1 06231.02 L-1X16 Drawer Label
8 2 03470.00 Toggle Switch (Momentary)
9 1 03406.64 Drain Toggle Switch DPST 19 2 00940.50 10-32 x 3/8” Truss Head Screw
*Second relay present only with heater option.
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.16 Page 13

Parts Manual
1.3.10. Control Box (Effective 06/2007)
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.16 Page 14
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 1 04904.60 Top Drawer 15 14 00907.00 6-32 X 1/2 SS Panhead Screw
2 8 00411.00 Micro switch 16 1 03203.66 Thermister
3 1 00408.80 Timer 2 Minute 8 Cam 17 1 06231.04 L-1X Drawer Label
3A 1 00501.00 Timer Motor 18 1 06231.05 L-1X16 Drawer Label
4 18 00965.00 6-32 Nylon Insert Lock Nut 19 1 03203.55 Thermometer Bracket
5 1 (2*) 00631.00 Ice Cube Relay 20 1 03203.50 Single Temp. Display Unit
6 4 00470.10 Rubber Boot 21 1 00557.55 Magnetic Reed Switch (NEW)
7 1 15520.00 Power Block 12 Position 22 1 15524.00 Power Rocker Switch
8 2 13826.10 4-40 X 3/4" Pan Head screw 23 1 03481.00 Drain Rocker Switch
9 1 00404.82 Contactor Relay 24 1 00421.40 Start/Fill Rocker Switch
10 1 00474.00 Delimer Switch Bracket 25 2 03705.82 Sponge Strip
11 1 00475.30 Delimer Switch DPST 20 Amp. 26 2 00907.10 6-32 X 1/2 Black Oxide Screw-Philp
12 1 03202.60 Thermometer Transformer 27 1 03408.50 Counter (Panel Mount – Small)
13 1 00438.00 Snap bushing, Universal 28 2 00916.00 6-32 PM Nut
14 2 13826.50 4-40 Hex Nuts 29 4 00421.51 6-32 X 1/4 SS Panhead Screw

Parts Manual
1.3.11. Peristaltic Pump Assembly
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.16 Page 15
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 3 00416.00 Peristaltic Pump Motor H 3 00935.00 1/4"-20 x 1/4" Allen Screw
2 3 00417.00 Peristaltic Pump Block 10 6 00448.00 Barrel Connector (Male)
3 6 00919.00 10-32 x 1 1/2" Pan Head Screw 11 AR 00425.51 Chemical Tubing (Blue)
4 3 00918.00 10-32 x 1 1/2" Fillister HD Screw 12 AR 00425.53 Chemical Tubing (Red)
5 5 00932.00 Twist Tye 13 AR 00425.54 Chemical Tubing (White)
6 3 00418.00 Peristaltic Pump Block Cover 14 2 03415.00 Chemical Tube Bulkhead
7 12 00911.00 8-32 x 1/2" Pan Head Screw 15 3 00443.00 Tube Stiffener
8 2 00435.00 Squeeze Tube (Clear) 16* 1 00415.00 Complete Peristaltic Pump
8A 1 00458.00 Squeeze Tube – Black Detergent 17 1 03415.60 Bulk Head For Sanitizer
9 3 00419.00 Peristaltic Rotor Assembly 18 1 00435.64 30” Squeeze Tube
E 6 00423.00 Rotor Bearing 18A 1 00458.62 24” Black Squeeze Tube
F 6 00422.00 Rotor Bearing Pin 19 2 03425.00 Sight Glass
G 3 00424.00 Rotor Bearing Carriage
*Item 16 includes items 1-4, 6-10.

Parts Manual
1.3.12. Drain Valve
MODEL L-1X & L-1X16 PARTS MANUAL Rev. 1.16 Page 16
ITEM
NO. NO. REQ’D P/N DESCRIPTION
1 1 04103.21 L-1X Drain Motor 115V, 60Hz
2 1 04103.14 L-1X Drain Valve Spring
3 1 04103.20 L-1X Drain Valve Drive Pin
4 1 04103.19 L-1X Drain Valve Washer (Thin)
5 1 04103.17 L-1X Drain Seal Washer (Black)
5A 1 04103.23 Drain Seal Washer (White)
6 1 04103.12 L-1X Drain Valve Housing
7 4 00941.00 #10-32 x 5/8” Pan Head Screw
8 3 04103.24 Drain Valve Housing Spacer
9 1 04103.16 L-1X Hinge/Seal
10 1 04103.15 L-1X Drain Housing Gasket
11 1 04103.13 L-1X Drain Valve Housing Cover
12 4 04103.18 L-1X #8 x 5/8” Self-Threading Screw
