CMA Dishmachines CMA-66H User manual

www.cmadishmachines.com

Table of Contents
CMA-66
1. PARTS MANUAL...................................................................................................... 4
1.1. Initial Parts Kit (P/N 13996.81)...................................................................................................... 4
1.2. Initial Parts Kit (P/N 13996.80)...................................................................................................... 5
1.3. Exploded View Drawings............................................................................................................... 6
1.3.1. Cabinet Assembly ................................................................................................................... 6
1.3.2. Cabinet Assembly (Old).......................................................................................................... 7
1.3.3. Cabinet Assembly (Effective 08/2001).................................................................................... 8
1.3.4. Control Box Assembly ............................................................................................................ 9
1.3.5. Control Box Assembly (Old Models) .................................................................................... 10
1.3.6. Curtain and Optional Vent System ....................................................................................... 11
1.3.7. Temperature Control System................................................................................................ 12
1.3.8. Pump Assembly..................................................................................................................... 13
1.3.9. Drain System Assembly......................................................................................................... 14
1.3.10. Plumbing System Assembly (Auto-Fill) ................................................................................ 15
1.3.11. Plumbing System Assembly (Final Rinse)............................................................................. 16
1.3.12. Plumbing System Assembly (Old Models) ............................................................................ 17
1.3.9. Wash System Assembly......................................................................................................... 18
1.3.10. Wash System assembly (Old Models) ................................................................................... 19
1.3.11. Rocker Arm Assembly........................................................................................................... 20
1.3.12. Rocker Arm Assembly (Old Models)..................................................................................... 21
1.3.13. Trip Switch Assembly............................................................................................................ 22
1.3.14. Paddle Switch Assembly....................................................................................................... 23
2. TABLE LIMIT SWITCH INSTRUCTIONS (P/N 13469.20)............................. 24
3. DRAIN WATER TEMPERING KIT P/N13470.00 INSTRUCTIONS ........... 26
www.cmadishmachines.com

Parts Manual
1. Parts Manual
1.1. Initial Parts Kit (P/N 13996.81)
P/N DESCRIPTION Qty
00201.85 Pump Motor, 1HP, 3Ph, 60 Hz, 220V 1
00206.00 Pump Seal Kit 1
00208.40 Slip Joint Nut "O" Ring Buna N70 1
00421.83 M-2 Power Rocker Switch, Red 1
00557.30 Kynar Reed Switch Gray, 110/220V, 12’ 1
00557.56 Kynar Reed Switch Black, 110/220V, 12’ 1
00631.05 Ice Cube Relay 220V 12Amp 1
00706.00 3/4 Water Solenoid Repair Kit JE 1
00707.00 ½” Water Solenoid Repair Kit JE 1
00735.00 ¾” Vac Breaker Rep Kit Watts 1
00738.15 ¾” & ½” Solenoid Coil JE 220V 1
03202.00 Thermometer (Capillary) 1
03226.00 Pump O-Ring Gasket 1
03623.00 ½ Vac Breaker Repair Kit Watts 1
13003.50 Contactor, 30-Amp 1
13003.70 Toggle Switch SPDT 20AMP 1
13012.26 M-2P Motor Contactor, 220V 1
13403.26 Fuse, 3-Amp/250V Slow Blow 2
13417.80 Immersion Heater, 3Ph/1Ph, 208-230V, 10kW 1
13418.20 Delay On Break Timer 230V 6-240Sec 1
13418.25 Auto Fill Timer 230v 1
13463.10 Liquid Level Switch, SS – M-2 1
13501.85 Motor 1/3Hp 200-230/460 60hz 3ph 1
13507.65 Cma Bearing Assy (New Dec 2007) 1
13508.70 Heavy Duty Clutch Spring 1
MODEL CMA-66 PARTS MANUAL rev. 2.09

Parts Manual
MODEL CMA-66 PARTS MANUAL rev. 2.09 Page5
1.2. Initial Parts Kit (P/N 13996.80)
P/N DESCRIPTION Qty
00201.85 Pump Motor, 1HP, 3Ph, 60 Hz, 220V 1
00206.00 Pump Seal Kit 1
00208.00 Slip Joint Nut Gasket 1
00411.00 Micro Switch 1
00421.83 CMA-44 Power Rocker Switch, Red 1
00421.87 CMA-44Heater Rocker Switch, White 1
00557.30 Kynar Reed Switch Gray, 110/220V, 12’ 1
00557.56 Kynar Reed Switch Black, 110/220V, 12’ 1
00707.00 ½” Water Solenoid Repair Kit JE 1
00738.15 ¾” & ½” Solenoid Coil JE 220V 1
03202.00 Thermometer (Capillary) 1
03226.00 Pump O-Ring Gasket 1
03623.00 ½ Vac Breaker Repair Kit Watts 1
13003.50 Contactor, 30-Amp 1
13003.70 Toggle Switch SPDT 20AMP 1
13012.26 CMA-44P Motor Contactor, 220V 1
13403.26 Fuse, 3-Amp/250V Slow Blow 2
13417.80 Immersion Heater, 3Ph/1Ph, 208-230V, 10kW 1
13418.85 60-Second Timer Relay 1
13463.10 Liquid Level Switch, SS – CMA-44 1
13501.85 Motor 1/3Hp 200-230/460 60hz 3ph 1
13507.50 Cam Bearing, SS 1
13508.60 Swivel Hook Spring Assembly 1

Parts Manual
MODEL CMA-66 PARTS MANUAL rev. 2.09 Page6
1.3. Exploded View Drawings
1.3.1. Cabinet Assembly
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
13903.09 CMA 44 Stand 17 1 13927.16 R-L Heater Cover
1 1
18 3 13910.82 Strainer Basket, Wash/Rinse
1 13902.05 L-R CMA-44P Pan 19 1 13913.00 Drip Chute2 13902.15 R-L CMA-44P Pan 20 1 13542.00 Drip Chute Gasket
1 13900.06 L-R CMA-44P Wrapper 21 4 03705.00 Foam Tape3 13900.16 R-L CMA-44P Wrapper 22 2 13910.06 Drain Valve Handle Support
4 1 01506.30 Door 23 1 13701.00 Door Latch
5 2 13901.00 Wrapper Shield 24 1 01577.10 Scrap Trap Body Molded
6 2 01554.30 Door Guide 25 1 17579.00 Scrap Trap Holder
7 2 00636.10 Door Guide Plastic 26 1 01577.20 Scrap Trap Drawer Molded
8 1 13915.00 Door Latch Bracket 27 1 13912.06 Splash Shield
8A 1 13915.96 Door Latch Bracket W/Nut 28 1 00557.60 Reed Switch Magnet
9 1 00535.30 Door Handle 29 1 00557.30 Kynar Reed Switch Only 110/220
10 27 00905.00 1/4-20 x 1/2” Trusshead Bolt 30 2 13912.81 Splash Shield Clip
11 60 00924.00 1/4” Washer, SS 31 1 13704.08 L-R Curtain Splash Shield
12 52 00912.00 1/4-20 Nylon Lock Nut 13704.06 R-L Curtain Splash Shield
13 2 13906.00 Tray Track Rail 32 1 13522.00 Conveyor bar guide
14 8 00914.10 1/4-20 x 5/8” Hex Head Bolt 33 2 00962.00 ¼’-20x1” Hexhead Bolt
15 1 13511.26 Overflow Chute Gasket 34 1 01577.36 Scrap Trap Cover SS (Hi Temp)
16 1 13511.06 L-R Overflow Chute 35 1 00960.00 8-32x1-1/2” Panhead Screw
17 1 13927.06 L-R Heater Cover 36 1 00927.00 8-32 Nylon Lock Nut

Parts Manual
MODEL CMA-66 PARTS MANUAL rev. 2.09 Page7
1.3.2. Cabinet Assembly (Old)
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
13903.05 L-R CMA-44P Frame Stand 17 1 13927.16 R-L Heater Cover
1 1
13903.15 L-R CMA-44P Frame Stand 18 3 13910.82 Strainer Basket, Wash/Rinse
1 13902.05 L-R CMA-44P Pan 19 1 13913.00 Drip Chute2 13902.15 R-L CMA-44P Pan 20 1 13542.00 Drip Chute Gasket
1 13900.06 L-R CMA-44P Wrapper 21 4 03705.00 Foam Tape3 13900.16 R-L CMA-44P Wrapper 22 2 13910.06 Drain Valve Handle Support
4 1 01506.30 Door 23 1 13701.00 Door Latch
5 2 13901.00 Wrapper Shield 24 1 01577.10 Scrap Trap Body Molded
6 2 01554.30 Door Guide 25 1 17579.00 Scrap Trap Holder
7 2 00636.10 Door Guide Plastic 26 1 01577.20 Scrap Trap Drawer Molded
8 1 13915.00 Door Latch Bracket 27 1 13912.06 Splash Shield
8A 1 13915.96 Door Latch Bracket W/Nut 28 1 00557.60 Reed Switch Magnet
9 1 00535.30 Door Handle 29 1 00557.30 Kynar Reed Switch Only 110/220
10 27 00905.00 1/4-20 x 1/2” Trusshead Bolt 30 2 13912.81 Splash Shield Clip
11 60 00924.00 1/4” Washer, SS 31 1 13704.08 L-R Curtain Splash Shield
12 52 00912.00 1/4-20 Nylon Lock Nut 13704.06 R-L Curtain Splash Shield
13 2 13906.00 Tray Track Rail 32 1 13522.00 Conveyor bar guide
14 8 00914.10 1/4-20 x 5/8” Hex Head Bolt 33 2 00962.00 ¼’-20x1” Hexhead Bolt
15 1 13511.26 Overflow Chute Gasket 34 1 01577.36 Scrap Trap Cover SS (Hi Temp)
16 1 13511.06 L-R Overflow Chute 35 1 00960.00 8-32x1-1/2” Panhead Screw
17 1 13927.06 L-R Heater Cover 36 1 00927.00 8-32 Nylon Lock Nut

Parts Manual
MODEL CMA-66 PARTS MANUAL rev. 2.09 Page8

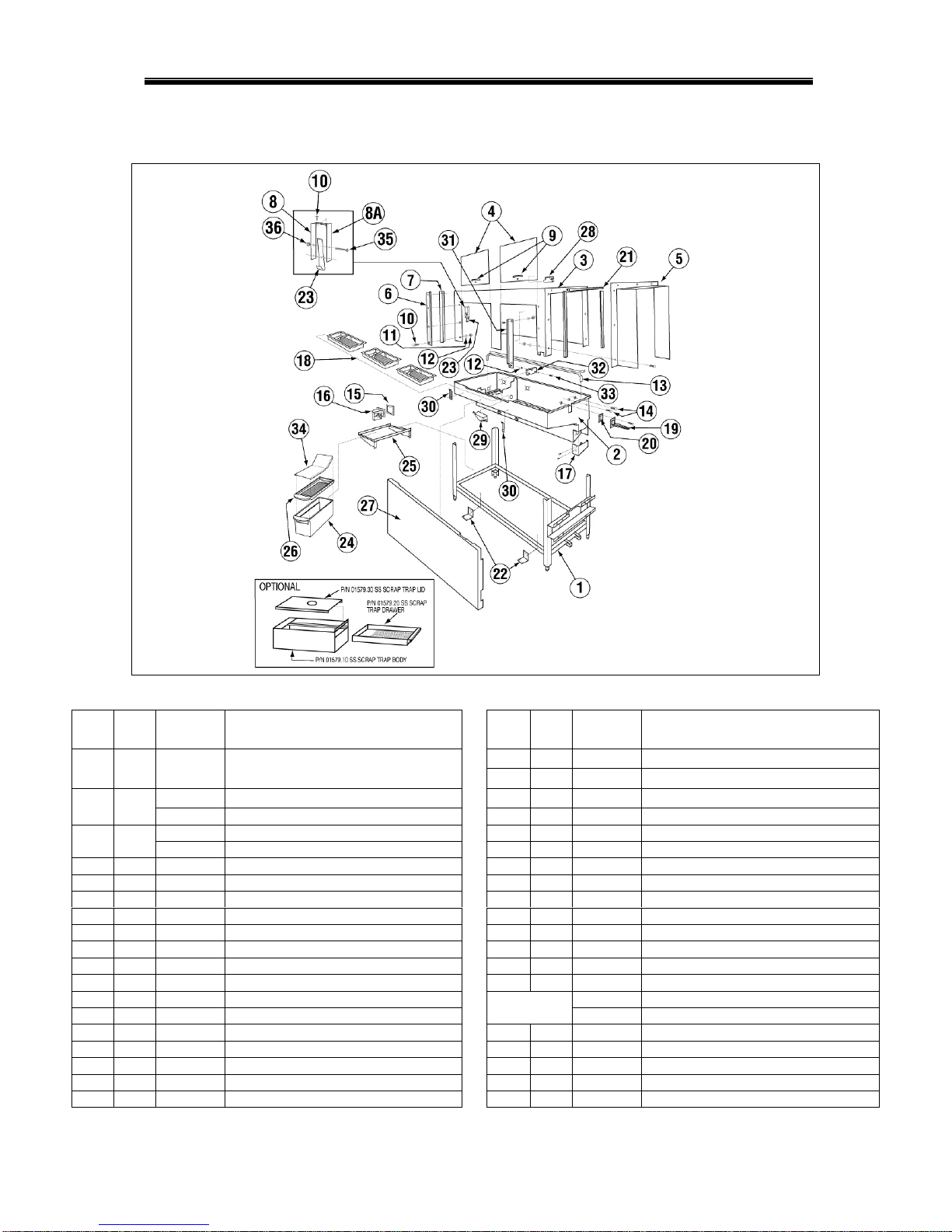

1.3.3. Cabinet Assembly (Effective 08/2001)
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 1 13903.36 Frame Stand 13927.06 L-R Heater Cover
1 13902.36 L-R Pan 18 1 13927.16 R-L Heater Cover2 13902.46 R-L Pan 19 3 13910.82 Strainer Basket, Wash/Rinse
1 13900.36 L-R Wrapper 20 1 13913.00 Drip Chute3 13900.46 R-L Wrapper 21 1 13542.00 Drip Chute Gasket
4 2 01506.30 Door 22 4 03705.00 Foam Tape
5 2 13901.00 Wrapper Shield 23 2 13910.06 Drain Valve Handle Support
6 4 01554.30 Door Guide 24 1 13504.26 Gearbox Cover Mount (Optional)
7 4 00636.10 Door Guide Plastic 25 1 13504.06 Gearbox Cover (Optional)
8 4 13915.00 Door Latch Bracket 26 2 13701.00 Door Latch
9 2 00535.30 Door Handle 27 1 01579.10 Scrap Trap Body
10 26 00905.00 1/4-20 x 1/2” Trusshead Bolt 28 1 17579.00 Scrap Trap Holder
11 60 00924.00 1/4” Washer, SS 29 1 01579.20 Scrap Trap Drawer
12 52 00912.00 1/4-20 Nylon Lock Nut 30 1 13912.36 Splash Shield
13 2 13906.36 Tray Track Rail 31 2 00557.60 Reed Switch Magnet
14 8 00914.10 1/4-20 x 5/8” Hex Head Bolt 32 2 00557.26 Reed Switch
15 1 13511.26 Overflow Chute Gasket 33 2 13912.81 Splash Shield Clip
1 13511.06 L-R Overflow Chute 34 1 13704.08 L-R Curtain Splash Shield16 13511.16 R-L Overflow Chute
13704.18 R-L Curtain Splash Shield
17 1 13408.82 Trip Switch Cover

Parts Manual
MODEL CMA-66 PARTS MANUAL rev. 2.09 Page9
1.3.4. Control Box Assembly
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 1 13904.06 Control Box w/Lid 11 2 17503.18 Control Box Sponge, Short
2 1 13012.26 Motor Contactor, 220V 12 1 00474.00 Toggle Switch Braket
3 4 13003.50 Contactor, 30-Amp 13 1 00454.06 6-Pole Terminal Block
4 2 03202.00 Thermometer 14 2 13418.20 Delay On Break Timer 230V 6-240Sec
5 2 03202.08 Thermometer Bracket 15 1 13418.25 Auto Fill Timer
6 1 00631.05 Ice Cube Relay 220 V 16 1 00421.83 Power Rocker Switch, Red
7 2 13003.70 Toggle Switch SPDT 20AMP 17 1 00449.50 Lock, Keyless
8 2 00470.10 Toggle Switch Rubber Boot 18 2 13403.26 Fuse, 3-Amp/250V Slow Blow
9 1 13003.62 Din Rail Mounting Bracket 19 1 13003.60 Starter DIN Rail
10 2 17503.17 Control Box Sponge, Long 20 1 13013.30 1/3 HP Overload Relay 1.2amp-1.8Amp

Parts Manual
MODEL CMA-66 PARTS MANUAL rev. 2.09 Page10

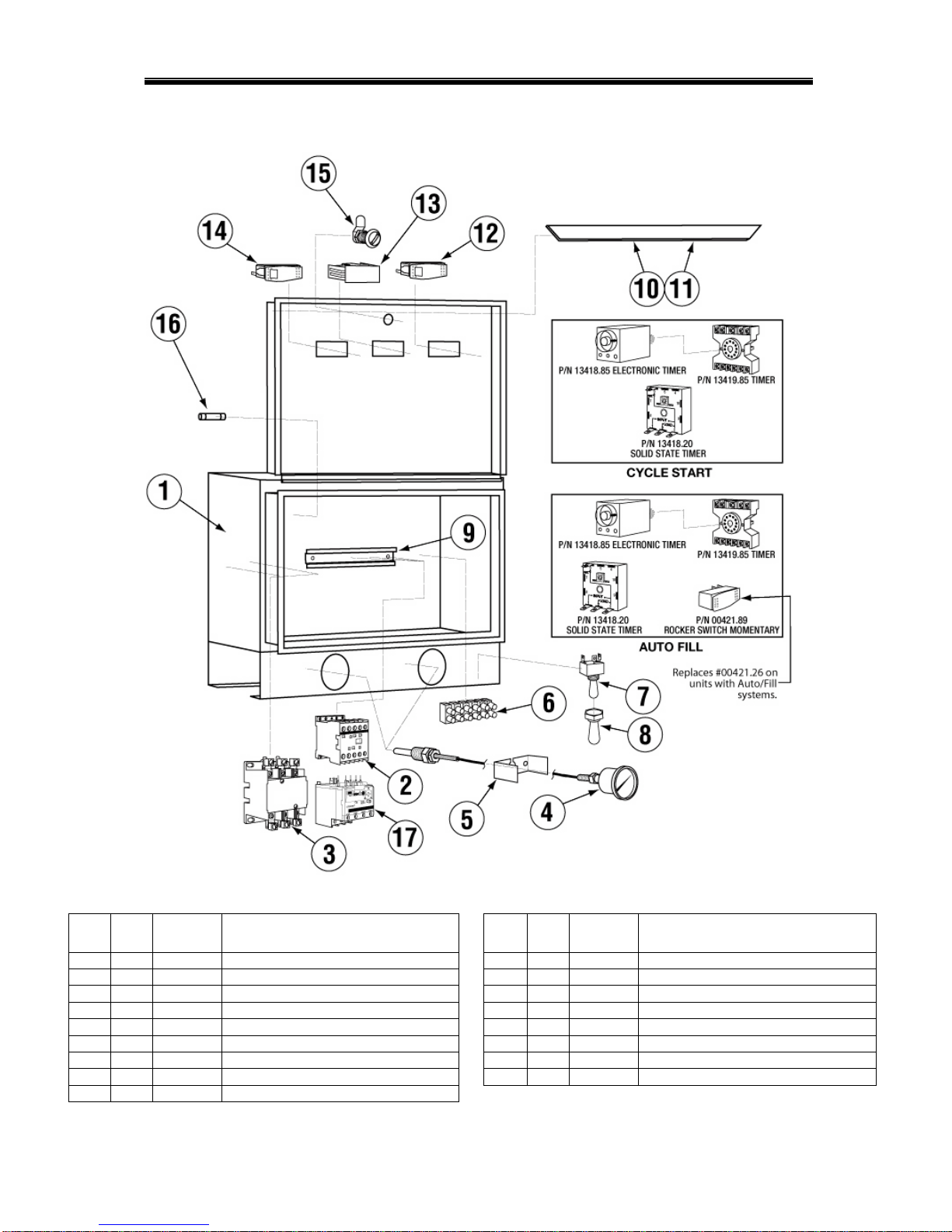

1.3.5. Control Box Assembly (Old Models)
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 1 13904.06 Control Box w/Lid 10 2 17503.17 Control Box Sponge, Long
2 3 13012.26 Motor Contactor, 220V 11 2 17503.18 Control Box Sponge, Short
3 2 13003.50 Contactor, 30-Amp 12 1 00421.87 Rocker Switch, White
4 2 03202.00 Thermometer 13 1 00421.26 Rocker Switch Hole Plug
5 2 03202.08 Thermometer Bracket 14 1 00421.83 Power Rocker Switch, Red
6 1 00454.06 6-Pole Terminal Block 15 1 00449.50 Lock, Keyless
7 1 13003.70 Timer Relay Override Switch 16 2 13403.26 Fuse, 3-Amp/250V Slow Blow
8 1 00470.10 Toggle Switch Rubber Boot 17 1 13013.30 1/3 HP Overload Relay 1.2amp-1.8Amp
9 1 13003.60 Starter DIN Rail

Parts Manual
MODEL CMA-66 PARTS MANUAL rev. 2.09 Page11
1.3.6. Curtain and Optional Vent System
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 2 13702.25 Curtain, 20-5/8” x 15” 8 2 13704.16 Dual Curtain Holder (Right to Left)
2 1 13702.15 Curtain, 20-5/8” x 11” 13704.36 Dual Curtain Holder (Left to Right)
3 4 13702.30 Curtain, 24-5/8” x 15” 9 2 13704.46 Dual Curtain Rod Stop
4 2 13704.26 Double Curtain Splash Guard Bracket 10 4 00907.00 6-32 x 1/2" Pan Head Screw
5 3 13705.00 Curtain Rod, Short 11 4 00965.00 6-32 Nylon Lock Nut
6 4 13705.10 Curtain Rod, Long 12 2 13901.30 Outer Wrap Shield Curtain Support
7 1 13901.84 Hood Adapter Set 13 2 13901.35 Inner Wrap Shield Curtain Support
14 2 13901.10 Wrapper Shield

Parts Manual
MODEL CMA-66 PARTS MANUAL rev. 2.09 Page12
1.3.7. Temperature Control System
ITEM
NO. NO. REQ’D P/N DESCRIPTION
ITEM
NO. NO. REQ’D P/N DESCRIPTION
1 1 13417.80 Immersion Heater, 3Ph, 240V, 10kW* 6 1 13416.10 Thermostat Bracket
2 1 13463.10 Liquid Level Switch, SS 7 1 13417.45 Heater Gasket
3 1 13417.89 Thermostat 12KW Heater 8 4 00901.00 5/16 – 18 x 1” Hexhead Bolt
4 1 03202.00 Thermometer 9 4 13805.00 5/16 – 18 Nylon Nut
5 1 13463.50 Liquid Level Switch Shield 10 8 00926.00 5/16” SS washer
* Includes P/N 13417.89 Thermostat w/c can be ordered separately

Parts Manual
MODEL CMA-66 PARTS MANUAL rev. 2.09 Page13
1.3.8. Pump Assembly
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 2 00201.85 Pump Motor, 1HP, 3Ph, 60 Hz, 220V 12 4 00924.00 1/4” SS Washer
2 2 03224.00 Pump Base Mount 13 4 00912.00 1/4-20 Nylon Lock Nut
3 2 00206.00 Pump Seal Kit 14 16 00921.00 3/8-16 x 3/4” SS Hex Head Bolt
4 2 03226.00 Pump O-Ring Gasket 15 2 13829.00 7/16-20 Thin Nylon Lock Nut
5 2 03222.85 CMA-66 Water Pump Impeller 16 4 00238.00 3/8” Male Plug
6 2 04206.00 Pump Cover 17 2 00213.00 1” Ford Adapter, MIP x PJ Tube
7 2 00208.00 Slip Joint Nut Gasket 18 2 00225.00 1” Compression Gasket
8 2 04204.00 Compression Nut, 2.5” 19 1 00704.85 1”, 90° Elbow*
9 2 13916.00 Motor Support Bracket 20 2 00200.85 Motor Assembly, 1HP, 3Ph, 220V, 60 Hz**
10 4 00906.00 1/4-20 x 1/2” Hex Bolt 21 2 00208.20 Slip Joint Nut Friction Ring
11 4 00922.00 1/4” Lock Star Washer *For CMA-66 R-L only.
**Includes Items 1, 2, 3, 4, 5 and 14.

Parts Manual
MODEL CMA-66 PARTS MANUAL rev. 2.09 Page14
1.3.9. Drain System Assembly
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 1 13001.85 Drain Manifold 6 2 00912.00 1/4-20 Lock Nut
2 2 20500.06 Waste Drain Valve 7 4 00924.00 1/4“ Washer, SS
3 2 01317.17 1-1/2” x 2” No Hub 8 1 13024.00 Dynamite Plug, 2”
4 2 03001.82 Drain Pipe Support Bracket 9 2 00906.0 1/4-20 x 1/2” Hex Head Bolt
5 2 50109.00 Hose Clamp

Parts Manual
MODEL CMA-66 PARTS MANUAL rev. 2.09 Page15

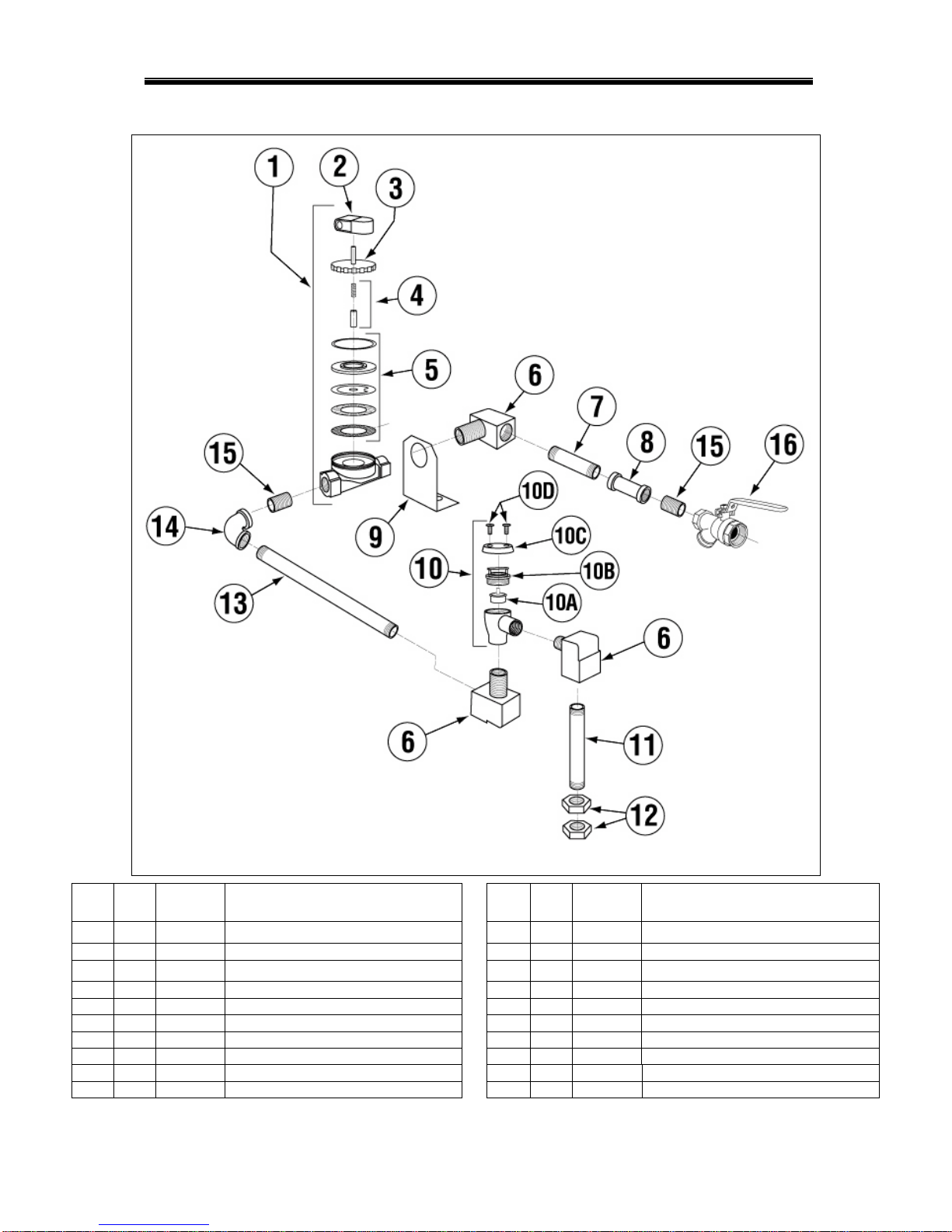

1.3.10. Plumbing System Assembly (Auto-Fill)
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 1
00705.05 3/4” Water Solenoid Valve 220V, JE* 10A 1 00735.00 3/4” Vacuum Breaker Repair Kit
2 1 00738.15
Water Solenoid Valve Coil, 220V, ½” & ¾” 10B 1 00735.60 3/4” Vacuum Breaker Bonnet
3 1
00705.20 3/4” Water Solenoid Valve Bonnet 10C 1 00739.50 Vacuum Breaker Cap
4 1 00786.00 Water Solenoid Plunger with Spring 10D 2 00421.51 6-32 x 1/4” SS Panhead Screw
5 1 00706.00 3/4” Water Solenoid Valve Repair Kit 11 1 13612.00 3/4” x 5” Brass Nipple
6 3 00704.00 3/4” 90° Street Elbow 12 2 13606.00 3/4” Jamb Nut, Brass
7 1 00781.00 3/4” x 3-1/2” Nipple, Brass 13 1 13634.06 3/4” x 8” Nipple, Brass
8 1 00749.00 Coupling 3/4” Brass 14 1 13633.00 3/4” 90° Elbow, F x F, Brass
9 1 01525.06 Plumbing Support Bracket 15 1 00781.00 3/4” x 3-1/2” Nipple, Brass
10 1 00710.50 3/4” Vacuum Breaker*** 16 1 13029.00 3/4" Strainer Ball Valves

Parts Manual
MODEL CMA-66 PARTS MANUAL rev. 2.09 Page16
1.3.11. Plumbing System Assembly (Final Rinse)
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 1 03603.15 1/2” Water Solenoid Valve 220V, JE* 11 2 00743.10 1/2” Tee, F x F x F
2 1 00738.15
Water Solenoid Valve Coil, 220V, ¾” 12 4 03614.00 1/2” Close Nipple, Brass
3 1 03603.20 1/2” Water Solenoid Valve Bonnet 13 1 13602.20 1/2” Pressure Regulator
4 1 00786.00 Water Solenoid Plunger with Spring 14 1 01525.06 Plumbing Support Bracket
5 1 00707.00 1/2” Water Solenoid Valve Repair Kit 15 2 00745.00 1/2 90 Deg Street Elbow
6 1 13605.00 Pressure Gauge 16 1 00747.10 Nipple Brass 1/2 X 5"
7 1 03624.00 1/2” Vacuum Breaker, Watts** 17 1 41030.10 1/2" 90 Deg Ell F X F Brass
7A 1 03624.25 1/2” Vacuum Breaker Bonnet 18 1 13669.20 CMA 44 Mixing Chamber ('07)
7B 1 03623.00 1/2” Vacuum Breaker Repair Kit 19 1 00780.00 Nipple Brass 1/2 X 2 1/2
8 2 04204.00 Compression Nut, 2.5” 20 1 13610.30 1/2” Union, SS
9 2 00421.51 6-32 x 1/4” SS Panhead Screw 21 2 03232.00 1/8 Male Plug
10 1 00739.50 Vacuum Breaker Cap 22 1 41062.00 1/2" Strainer Ball Valves

Parts Manual
MODEL CMA-66 PARTS MANUAL rev. 2.09 Page17

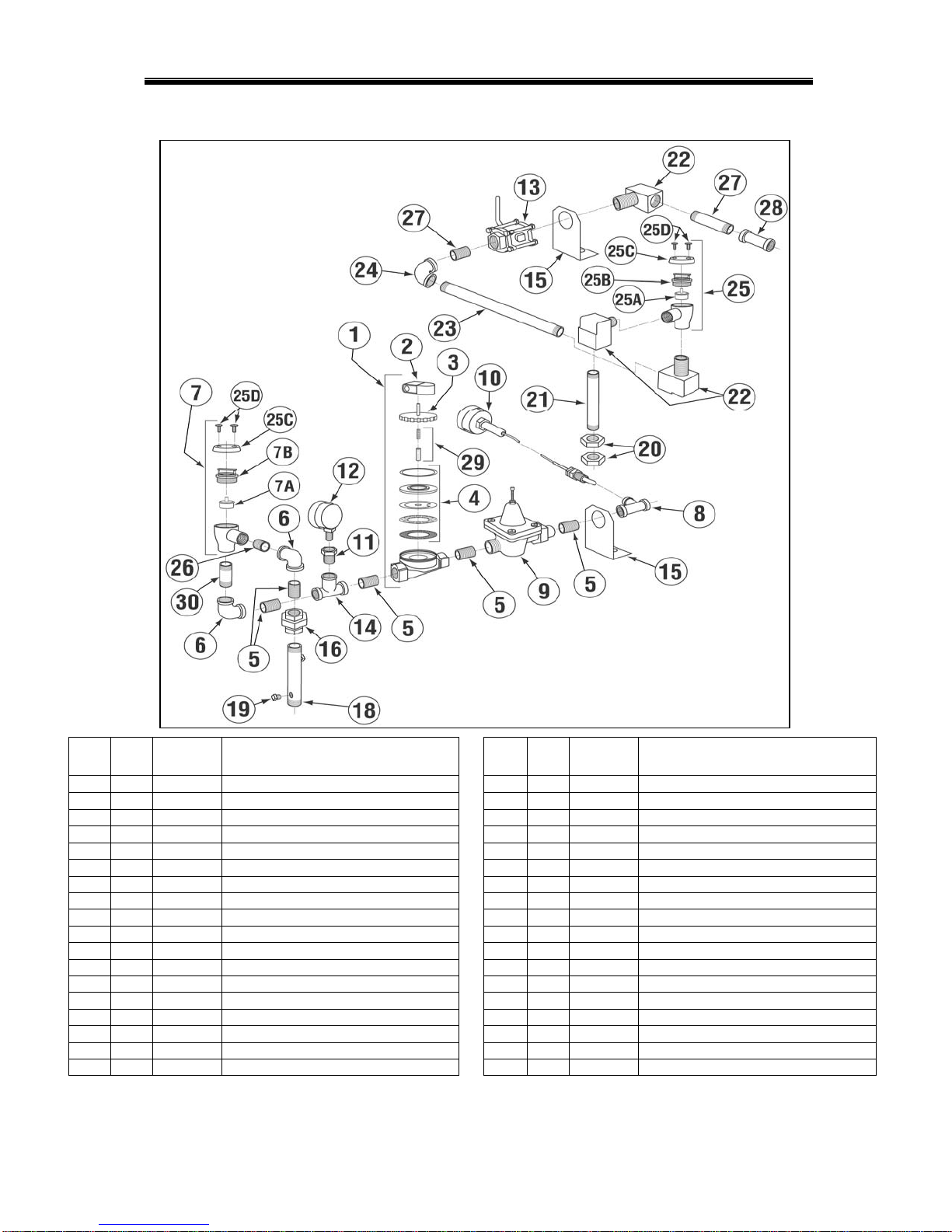

1.3.12. Plumbing System Assembly (Old Models)
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 1 03603.15 1/2” Water Solenoid Valve 220V, JE* 17 1 00747.30 1/2” x 3” SS Nipple
2 1 00738.15
Water Solenoid Valve Coil, 220V, ½” & ¾” 18 1 13669.60 Mixing Chamber, 1/2” SS
3 1 03603.20 1/2” Water Solenoid Valve Bonnet 19 2 03232.00 1/8” Male Plug
4 1 00707.00 1/2” Water Solenoid Valve Repair Kit 20 2 13606.00 3/4” Jamb Nut, Brass
5 4 03614.00 1/2” Close Nipple, Brass 21 1 13612.00 3/4” x 5” Brass Nipple
6 2 41030.10 1/2” 90° Elbow, F x F, Brass 22 3 00704.00 3/4” 90° Street Elbow
7 1 03624.00 1/2” Vacuum Breaker, Watts** 23 1 13634.06 3/4” x 8” Nipple, Brass
7A 1 03623.00 1/2” Vacuum Breaker Repair Kit 24 1 13633.00 3/4” 90° Elbow, F x F, Brass
7B 1 03624.25 1/2” Vacuum Breaker Bonnet 25 1 00710.50 3/4” Vacuum Breaker***
8 1 00716.00 1/2” x 1/2” x 3/4” F x F x F Tee, Brass 25A 1 00735.00 3/4” Vacuum Breaker Repair Kit
9 1 13602.45 1/2” Pressure Regulator 25B 1 00735.60 3/4” Vacuum Breaker Bonnet
10 1 03202.00 Thermometer (Capillary) 25C 2 00739.50 Vacuum Breaker Cap
11 1 13604.00 1/2” x 1/4” Bushing 25D 4 00421.51 6-32 x 1/4” SS Panhead Screw
12 1 13605.00 Pressure Gauge 26 2 00742.00 1/2” x 2” Nipple, Brass
13 1 13028.00 3/4” Ball Valve, 3-piece 27 1 00781.00 3/4” x 3-1/2” Nipple, Brass
14 1 00743.10 1/2” Tee, F x F x F 28 1 00749.00 Coupling 3/4” Brass
15 2 01525.06 Plumbing Support Bracket 29 1 00786.00 Water Solenoid Plunger with Spring
16 1 13610.30 1/2” Union, SS 30 1 00780.00 Nipple, Brass, 1/2” x 2-1/2”
*Includes Items 2, 3 and 4. ***Includes Items 25A, 25B, 25C and 25D.
**Includes Items 7A, 7B, 25C and 25D.

Parts Manual
MODEL CMA-66 PARTS MANUAL rev. 2.09 Page18
1.3.9. Wash System Assembly
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 6 13305.06 Spray Arm End Cap 11 1 13630.00 1/2”F x F x F Tee, SS
2 2 13327.06 Socket Bracket, Double 12 1 13307.00 Final Rinse Tube, 23-1/2”
3 2 13327.26 Socket Bracket, Single 13 1 13628.00 1/2" 90° Elbow, F x F, SS
4 6 13303.16 Spay Arm 14 1 13301.26 Wash Manifold
5 6 04306.10 Square Manifold Gasket 15 1 13301.06 Pre-wash Manifold
6 2 13310.00 1/2” Cap, Brass 16 2 00213.00 1” Ford Adapter, MIP x PJ Tube**
7 2 13304.82 Final Rinse Spay Arm* 16A 2 00225.00 1” Compression Gasket
7A 8 13304.55 Final Rinse Spray Jets, SS 17 32 13305.40 Shoulder Bolt
8 2 13618.00 1/2” Coupling 18 64 00924.00 1/4" SS Washer
9 4 00721.20 1/2" Jamb Nut, Brass 19 32 00912.00 1/4-20 Nylon Lock Nut
10 3 13629.00 1/2" Close Nipple, SS 20 1 13304.53 Long Support Bracket
*Includes Item 7A

Parts Manual

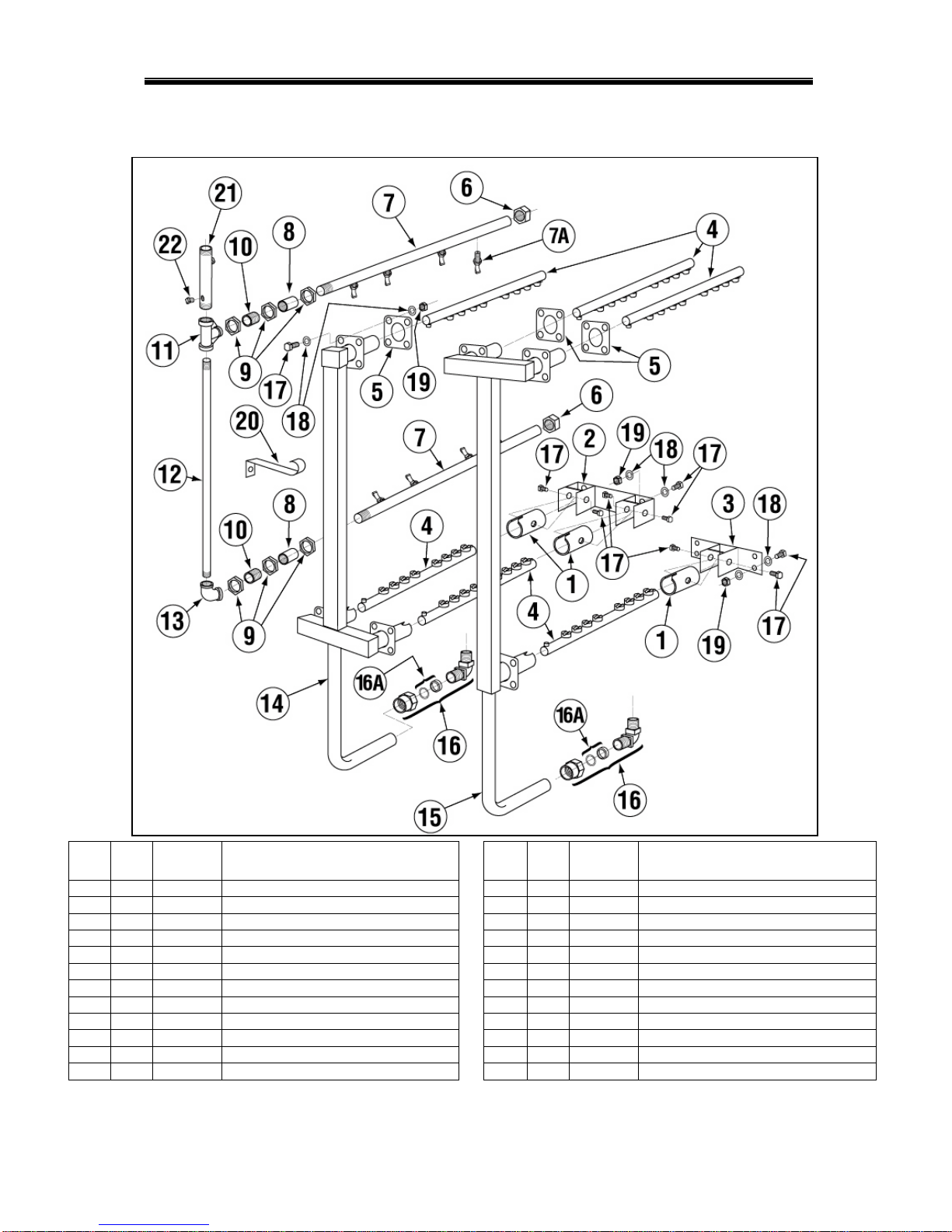

1.3.10. Wash System assembly (Old Models)
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 6 13305.06 Spray Arm End Cap 12 1 13307.00 Final Rinse Tube, 23-1/2”
2 2 13327.06 Socket Bracket, Double 13 1 13628.00 1/2" 90° Elbow, F x F, SS
3 2 13327.26 Socket Bracket, Single 14 1 13301.26 Wash Manifold
4 6 13303.16 Spay Arm 15 1 13301.06 Pre-wash Manifold
5 6 04306.10 Square Manifold Gasket 16 2 00213.00 1” Ford Adapter, MIP x PJ Tube**
6 2 13310.00 1/2” Cap, Brass 16A 2 00225.00 1” Compression Gasket
7 2 13304.82 Final Rinse Spay Arm* 17 32 13305.40 Shoulder Bolt
7A 8 13304.55 Final Rinse Spray Jets, SS 18 64 00924.00 1/4" SS Washer
8 2 13618.00 1/2” Coupling 19 32 00912.00 1/4-20 Nylon Lock Nut
9 4 00721.20 1/2" Jamb Nut, Brass 20 1 13304.53 Long Support Bracket
10 3 13629.00 1/2" Close Nipple, SS 21 1 13669.60 Mixing Chamber, 1/2" SS
11 1 13630.00 1/2”F x F x F Tee, SS 22 2 03232.00 1/8 Maze Plug
*Includes Item 7A
MODEL CMA-66 PARTS MANUAL rev. 2.09

Parts Manual

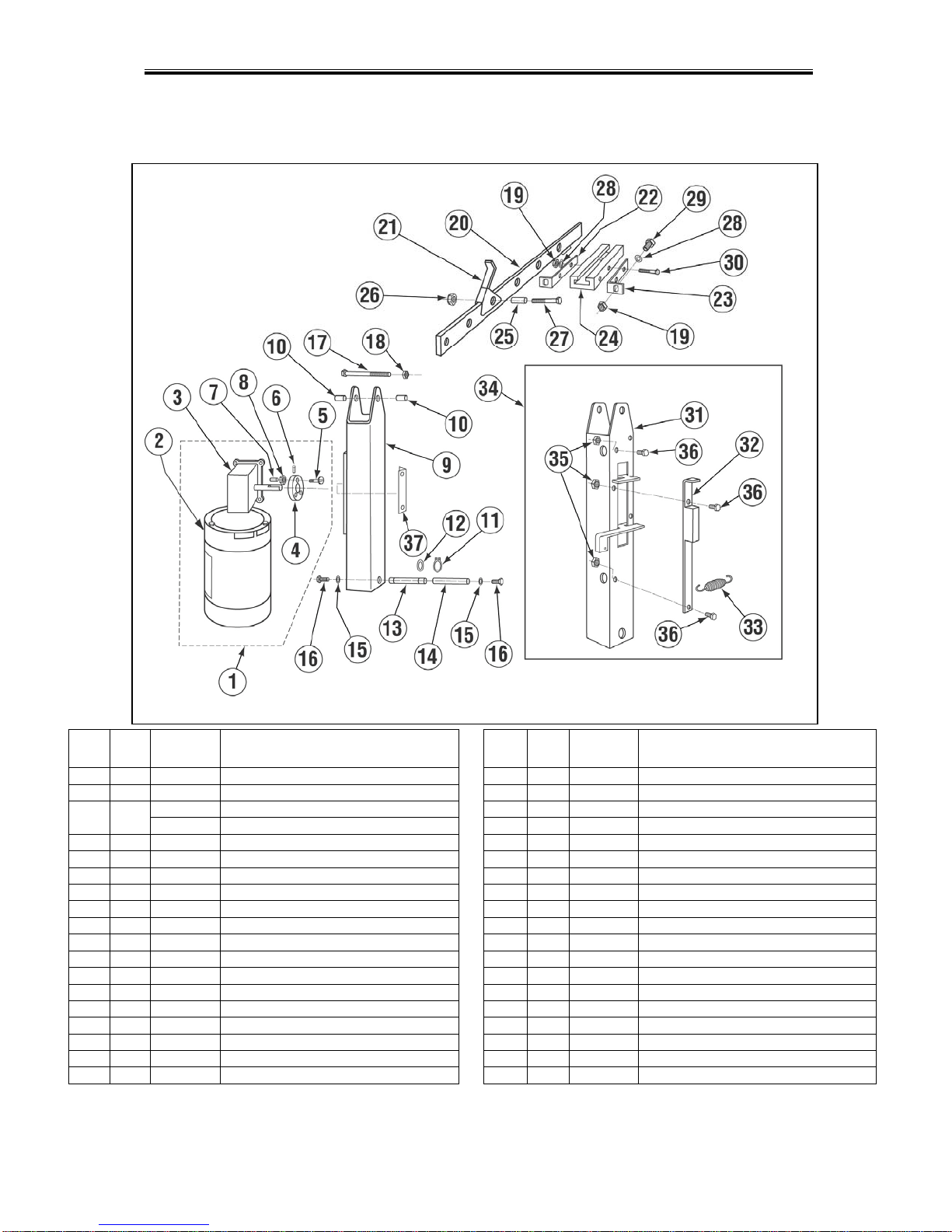

1.3.11. Rocker Arm Assembly
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 1 13570.20 Conveyor Drive Assy, 220V, 60Hz, 3Ph* 20 1 13808.00 1/2-13 x 3-1/2”
2 1 13501.85 Motor, 1/3HP, 220V, 60Hz, 3Ph 21 1 13809.00 1/2-13 Nylon Lock Nut
13504.35 Gear Reducer, Right 22 1 00912.00 1/4-20 Nylon Lock Nut 3 1
13504.30 Gear Reducer, Left 23 1 13514.85 Conveyor Bar
4 1 13505.12 CMA 44 Drive Cam 24 5 13515.00 Conveyor Dog, SS
5 1 13505.20 Keyway (Cam) 25 1 13514.82 Left Conveyor Bar Bracket
6 1 13507.20 Cam Bearing Only 26 1 13514.84 Right Conveyor Bar Bracket
7 1 13805.00 5/16-18 Nylon Insert Lock Nut 27 1 13521.50 Conveyor Bar Slide Bearing
8 1 13507.11 Cam Bearing Shaft Spacer 28 10 13520.00 Conveyor Dog Bearing
9 1 13507.12 Cam Bearing Shaft 29 5 13806.00 3/8” Nylon Lock Nut
10 2 00935.22 1/4-28 x 1/2" Brass Tip Set Screw 30 5 13818.00 3/8-16 x 1-3/4” Hex Head Bolt
11 1 13816.00 5/16-18 X 1/2 Socket Set Screw 31 2 00924.00 1/4" SS Washer
12 1 13508.12 CMA 44 Rocker Arm 32 2 00914.10 1/4-20 x 5/8” Hex Head Bolt
13 2 13513.10 Rocker Arm Spacer 33 1 00903.00 1/4-20 x 1-3/4” Hex Head Bolt
14 2 13509.52 7/8” ID External Lock Ring 34 1 13505.06 Cam Guide
15 2 13509.53 1” ID Brass Washer 35 4 00912.00 1/4-20 Nylon Lock Nut**
16 1 13509.12 CMA 44 Rocker Shaft Bearing 36 1 13508.70 Heavy Duty Clutch Spring
17 1 13510.10 Bearing Shaft 37 1 13508.26 Rack Saver Clutch Bar
18 2 00922.00 1/4" Lock Star Washer 38 4 00914.00 1/4-20 x 3/4" Hex Head Bolt**
19 2 00914.00 1/4-20 x 3/4" Hex Head Bolt
MODEL CMA-66 PARTS MANUAL rev. 2.09 Page20

Parts Manual

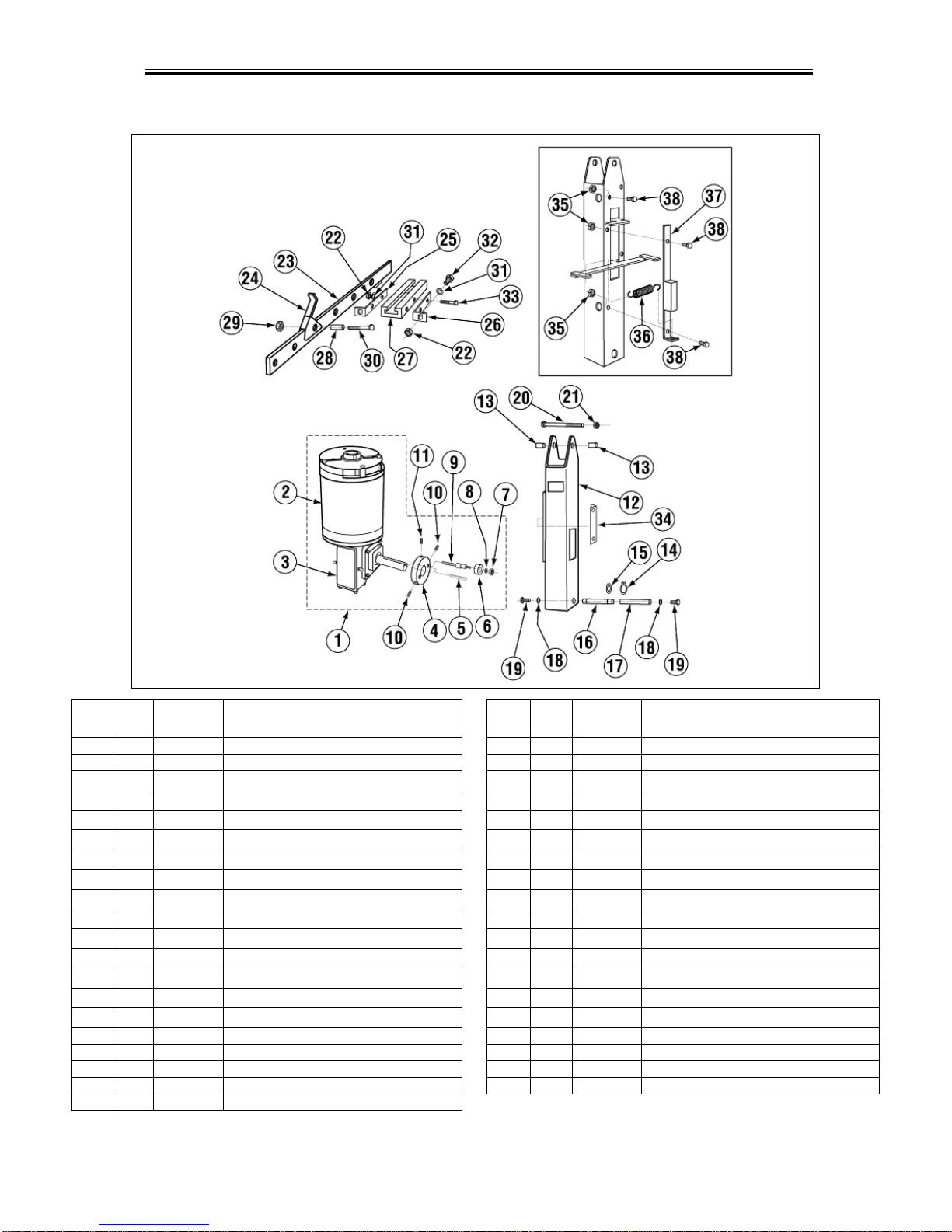

1.3.12. Rocker Arm Assembly (Old Models)
ITEM
NO. NO. REQ’D P/N DESCRIPTION ITEM NO. NO. REQ’D P/N DESCRIPTION
1 1 13570.20 Conveyor Drive Assy, 220V, 60Hz, 3Ph* 19 1 00912.00 1/4-20 Nylon Lock Nut
2 1 13501.85 Motor, 1/3HP, 220V, 60Hz, 3Ph 20 1 13514.85 Conveyor Bar
13504.00 Gear Reducer, Right 21 5 13515.00 Conveyor Dog, SS3 1
13504.12 Gear Reducer, Left 22 1 13514.82 Left Conveyor Bar Bracket
4 1 13505.10 Rocker Arm Cam 23 1 13514.84 Right Conveyor Bar Bracket
5 1 13507.50 Cam Bearing, SS 24 1 13521.50 Conveyor Bar Slide Bearing
6 1 13816.00 5/16-18 x 1/2" Socket Set Screw 25 10 13520.00 Conveyor Dog Bearing
7 1 13505.20 Keyway Cam 26 5 13806.00 3/8” Nylon Lock Nut
8 1 13829.10 7/16-20 Hex Lock Jam Nut 27 5 13818.00 3/8-16 x 1-3/4” Hex Head Bolt
9 1 13508.06 Rocker Arm 28 2 00924.00 1/4" SS Washer
10 2 13513.10 Rocker Arm Spacer 29 2 00914.10 1/4-20 x 5/8” Hex Head Bolt
11 2 13509.52 7/8” ID External Lock Ring 30 1 00903.00 1/4-20 x 1-3/4” Hex Head Bolt
12 2 13509.53 1” ID Brass Washer 31 1 13508.10 Rack Saver Rocker Arm
13 1 13509.51 Rocker Arm Shaft Bearing 32 1 13508.26 Rack Saver Clutch Bar
14 1 13510.10 Bearing Shaft 33 1 13508.60 Swivel Hook Spring Assembly
15 2 00922.00 1/4" Lock Star Washer 34 1 13508.40 Complete Rack Saver Rocker Arm Assy
16 2 00914.00 1/4-20 x 3/4" Hex Head Bolt 35 4 00912.00 1/4-20 Nylon Lock Nut**
17 1 13808.00 1/2-13 x 3-1/2” 36 4 00914.00 1/4-20 x 3/4" Hex Head Bolt**
18 1 13809.00 1/2-13 Nylon Lock Nut 37 1 13505.06 Cam Guide
*Includes Items 2 through 8. **Number required is for Complete Rack
Saver Rocker Arm Assembly only.
MODEL CMA-66 PARTS MANUAL rev. 2.09 Page21
