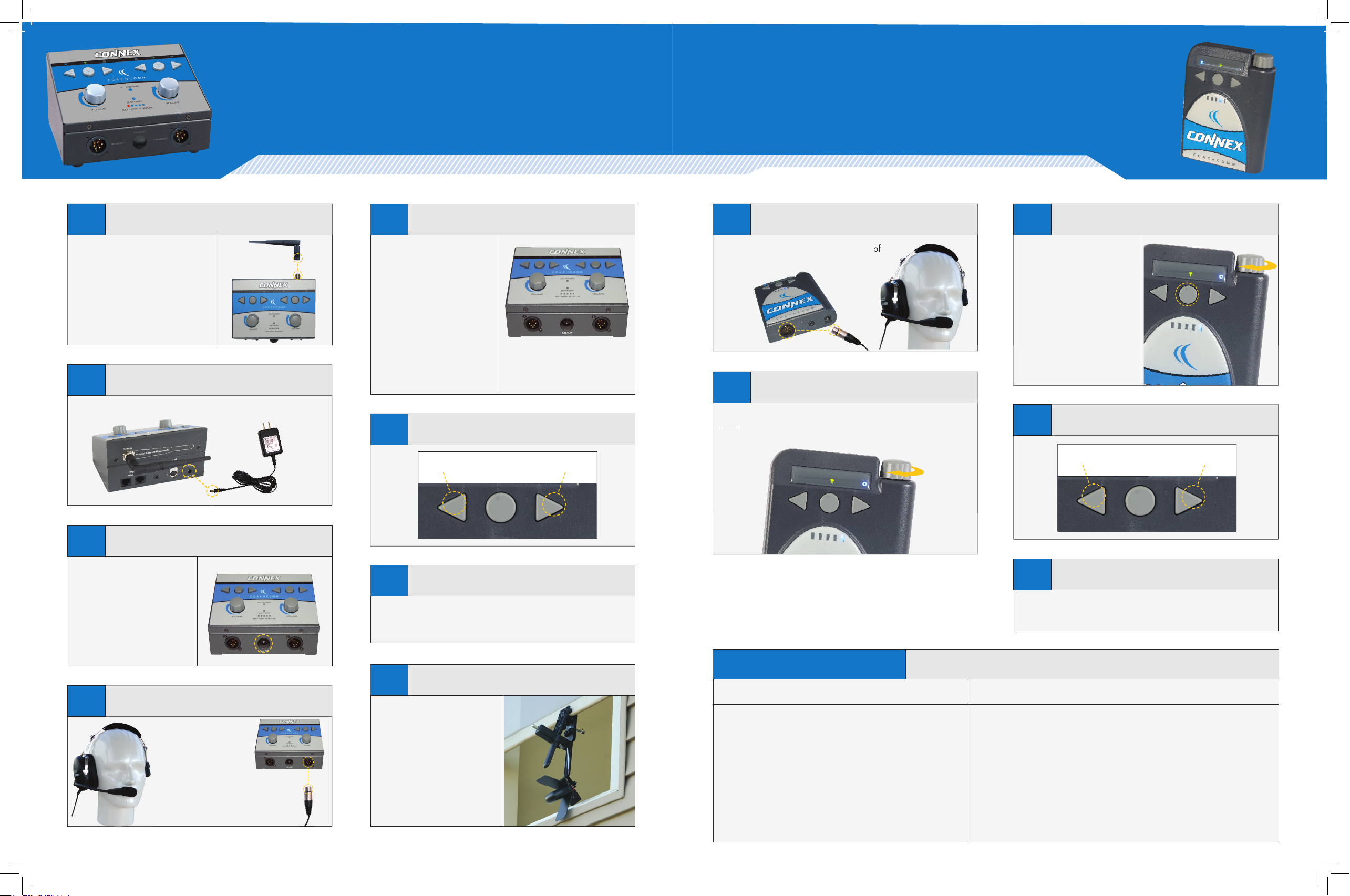

CoachComm Connex User manual

The Proven Choice For Winning Programs
Quick Start Guide
Connect and Position Headset
Connect Beltpack to Command Center
SETTING UP THE
Adjust the Volume Level
Repeat
Customer Service Department
Power ON the Beltpack
Set the Channel
2
14
6
Contact Information
3
5
Place the microphone directly in front of
mouth, almost touching the lips.
Cat5 Cable
A) Press the Talk Button
and the Talk LED light turns
green.
B) Turn the Volume up all
the way and then back
down a quarter of a turn.
Your own voice may
sound low to you, but
others will hear you loud
and clear.
Repeat this procedure for the other wired
beltpacks that will be in use.
Refer to the Connex User Manual for Important FCC
Information
1.800.749.2761
8 AM – 5 PM CST M–F
[e-mail]
CXQSG-REV7 ©Copyright 2013 CoachComm, LLC. All Rights Reserved.
CX_QSG_D0000101_2013_RevA
Powered by
Wired Beltpack
Place the microphone directly in front of
Defense Offense
Turn the volume knob clockwise to turn on
Note: Wired Beltpack must be plugged into Command
Center to receive power.
CXQSG_REV7_2013.indd 1 9/25/13 2:03 PM

Connect the Antenna Connect and Position Headset
SETTING UP THE
Adjust the Volume Level Adjust the Volume Level
Power ON the Command Center
Repeat Repeat
Connect and Position the Headset
Optional Directional Antenna
Connect to a Power Source Power ON the Beltpack
Set the Channel Set the Channel
1 15 3
3
75
Specifications
48
22
64
For best results, position the
antenna horizontally as
shown and be sure the antenna
has line of sight to the wireless
beltpacks on the field.
(If outlet is available)
Important! Press and
hold power button for
3 seconds.
Place the
microphone
directly in front
of mouth, almost
touching the lips.
A) Press the Talk Button
and the Talk LED light
turns green.
B) Turn the Volume up all
the way and then back
down a quarter of a turn.
Your own voice may
sound low to you, but
others will hear you loud
and clear.
Note: All Talk Buttons should be turned
off whenever the headset for that Talk
Button is not on someone’s head. This
will avoid noise or echo in the system.
Repeat Steps 4 through 6 for the other
Command Center position if it will be used.
Place the microphone directly in front of
mouth, almost touching the lips.
Turn the volume knob clockwise to turn on
A) Press the Talk Button
and the Talk LED light
turns green.
B) Turn the Volume up all
the way and then back
down a quarter of a turn.
Your own voice may
sound low to you, but
others will hear you loud
and clear.
Repeat this procedure for the other wireless
beltpacks that will be in use.
Beltpack
6” x 4” x 3.25”
2 lbs 12 ounces (including batteries)
5VDC from supplied wall power supply
or internal battery
385 mA at 5VDC (worst case)
2 Lithium Ion 2000 mA batteries for at
least 15-16 hours of continuous run time
5.28” x 3.8” x 1.15”
10 ounces (including battery)
internal battery for normal operation 5VDC from
supplied wall power supply for battery charging
208 mA operating from internal battery (worst case)
1 Lithium Ion 2000 mA battery for at least 16 hours of
continuous run time
Dimensions:
Weight:
Power Requirements:
Current Draw:
Battery Capacity
and Run Time:
Dimensions:
Weight:
Power Requirements:
Current Draw:
Battery Capacity
and Run Time:
Command Center
SETTING UP THE
Attach the directional
antenna to a secure
structure or stand, and aim
the directional antenna
toward the center of
the sideline where your
coaches will be located.
Command Center Wireless Beltpack
Defense Offense Defense Offense
Place the microphone directly in front of
Note: One of the five battery LEDs should come on and flash to
indicate that the Beltpack is logged onto the Command Center.
