COBHAM SAILOR 600 Viasat Ka User manual

Cobham Public

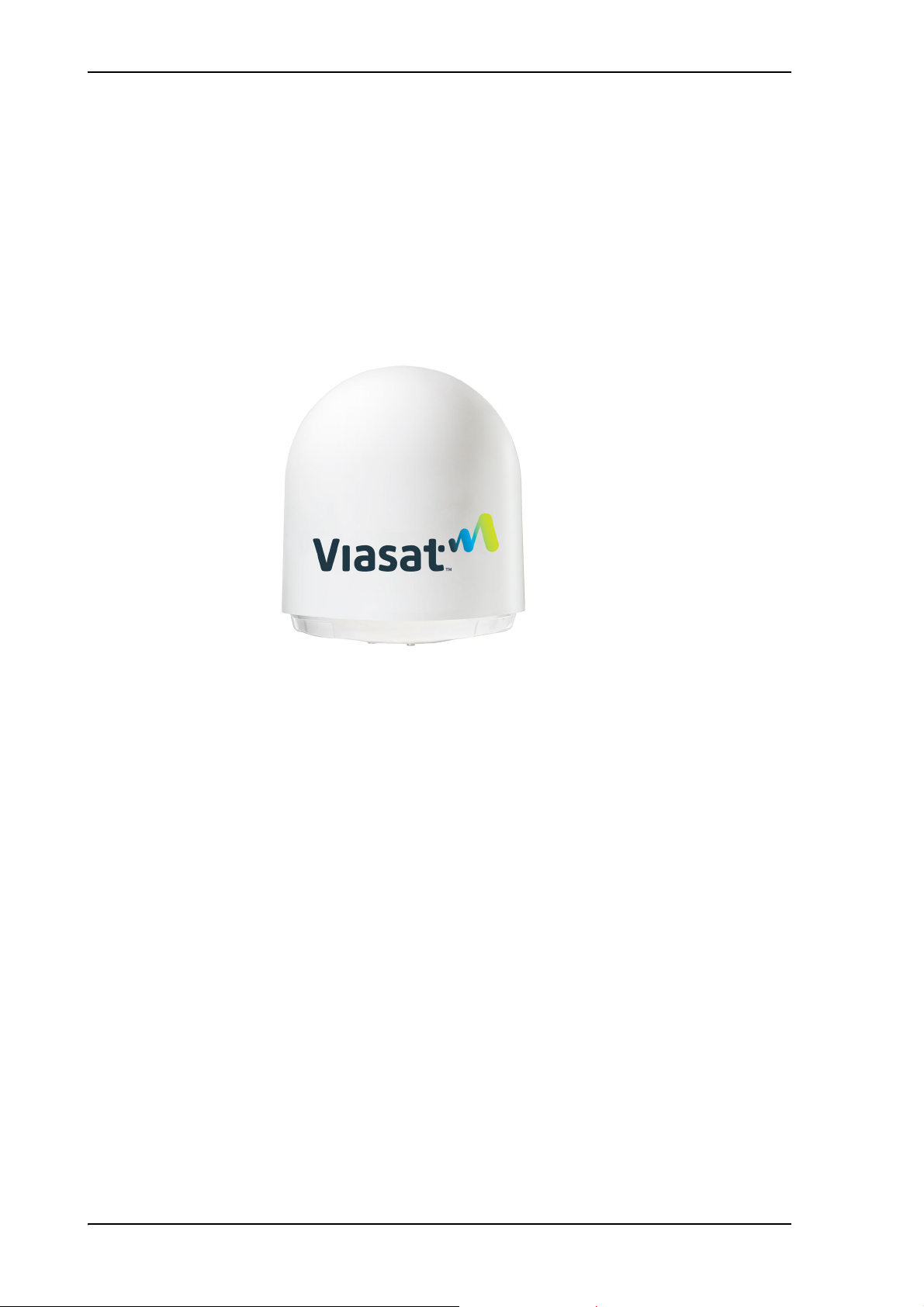

SAILOR 600 Viasat Ka
Installation and operation manual

SAILOR 600 Viasat Ka
Quick guide
Configuration tasks (minimum)
This quick guide aims at experienced service personnel who have installed the SAILOR 600 Viasat Ka system
and connected power. It lists the minimum configuration tasks you have to make before the system can be
used on-air on a satellite.
1. Switch on the pTRIA Interface Unit.
2. Switch on the Antenna Control Unit.
3. Connect a PC to the LAN2 connector at the rear of the pTRIA Interface Unit.
4. Open Mozilla Internet browser to access the web interface of the SAILOR 600 Viasat Ka using the IP
address: https://192.168.100.1.
5. On the navigation bar, click Antenna to access the web interface of the antenna and proceed with tasks in
the table below.
6. The system goes automatically into tracking mode. It is preconfigured from the factory with a modem
profile and a satellite profile.
7. Verify that the SAILOR 600 Viasat Ka acquires the satellite. Check that the ACU display shows
ACQUISITION.
8. Verify that the system is operational. Check that the status in the ACU display shows TRACKING.
98-166784-A
Configuration
task What to do and where to find more information
Heading input Configure the heading input to External under SETTINGS > Navigation. For more
information see Select the desired heading input, see the following table. on page 6-8.
Connect the ship’s heading (NMEA0183, RS-422/RS-232) to the NMEA 0183 multi-
connector. For more information see NET-H (NMEA 0183 connector, for future use) on
page 4-2.
Azimuth
calibration
Make an azimuth calibration under SERVICE > Calibration to ensure that the antenna
can point and receive a signal from the satellite. For more information see Calibration on
page 6-10.

SAILOR 600 Viasat Ka
Installation and operation manual
Document number: 98-166784-A
Release date: 8 November 2019

ii 98-166784-A
Disclaimer
Any responsibility or liability for loss or damage in connection with the use of this product and the
accompanying documentation is disclaimed by Thrane & Thrane A/S. The information in this manual is
provided for information purposes only, is subject to change without notice and may contain errors or
inaccuracies. Manuals issued by Thrane & Thrane A/S are periodically revised and updated. Anyone
relying on this information should acquire the most current version e.g. from www.cobham.com/satcom,
Cobham SYNC Partner Portal, or from the distributor.Thrane & Thrane A/S is not responsible for the
content or accuracy of any translations or reproductions, in whole or in part, of this manual from any
other source. In the event of any discrepancies, the English version shall be the governing text.
Thrane & Thrane A/S is trading as Cobham SATCOM.
Manufacturer address
Thrane & Thrane A/S, Lundtoftegaardsvej 93 D, DK-2800, Kgs. Lyngby, Denmark
Copyright
© 2019 Thrane & Thrane A/S. All rights reserved.
Trademark acknowledgements
• Some product and company names mentioned in this manual may be trademarks or trade names of
their respective owners.
GPL notification
The software included in this product contains copyrighted software that is licensed under the GPL/LGPL.
The verbatim licenses can be found online at:
http://www.gnu.org/licenses/old-licenses/gpl-2.0.html
http://www.gnu.org/licenses/old-licenses/lgpl-2.1.html
You may obtain the complete corresponding source code from us for a period of three years after our last
shipment of this product, which will be no earlier than 2021, by sending a money order or check for DKK
50 to:
SW Technology/GPL Compliance,
Cobham SATCOM (Thrane & Thrane A/S),
Lundtoftegaardsvej 93D
2800 Lyngby
DENMARK
Write "source for product SAILOR 600 Viasat Ka" in the memo line of your payment. This offer is valid to
anyone in receipt of this information.
http://www.cobham.com/communications-and-connectivity/satcom/free-and-open-source-software-
foss/

98-166784-A iii
Safety summary
The following general safety precautions must be observed during all phases of operation,
service and repair of this equipment. Failure to comply with these precautions or with specific
warnings elsewhere in this manual violates safety standards of design, manufacture and
intended use of the equipment. Thrane & Thrane A/S assumes no liability for the customer's
failure to comply with these requirements.
Microwave radiation hazards
During operation the Above Deck Unit (antenna) in this
system radiates Microwave Power.This radiation may be
hazardous to humans close to the Above Deck Unit. Make
sure to turn off the power to the ADU before removing the
radome and working on the antenna.
Distance to other equipment
Do not move the Above Deck Unit closer to radars than the
minimum safe distance specified in section Interference from radar, GPS, L-band and other
transmitters on page 3-12 – it may cause damage to the Above Deck Unit.
Compass Safe Distance:
SAILOR 600 Viasat Ka and Antenna (ADU): min. 140 cm (IEC 60945).
SAILOR 7016C Antenna Control Unit (ACU): min. 30 cm (IEC 60945).SAILOR 7024A pTRIA
Interface Unit (PIU): min. 40 cm (IEC 60945).
Service
User access to the interior of the ACU or the PIU is not allowed. Only a technician authorized by
Cobham SATCOM may perform service - failure to comply with this rule will void the warranty.
Access to the interior of the Above Deck Unit is allowed. Replacement of certain modules and
general service may only be performed by a technician authorized by Cobham SATCOM.
Grounding, cables and connections
To minimize shock hazard and to protect against lightning, you must connect the equipment
chassis and cabinet to an electrical ground. Ground the ACU and the PIU to the ship. For further
details see Appendix B, Ground and RF protection.
Do not extend the cables beyond the lengths specified for the equipment. The cable between
the PIU and Above Deck Unit can be extended if it complies with the specified data concerning
cable losses etc.
Antenna cables for the SAILOR 600 Viasat Ka system are shielded and should not be affected
by magnetic fields. However, try to avoid running cables parallel to high power and AC/RF
wiring as this might cause malfunction of the equipment.
Power supply
SAILOR 7016C Antenna Control Unit: voltage range 100-240 VAC.
The ACU provides power for the Above Deck Unit and the pTRIA Interface Unit.
Do not operate in an explosive atmosphere
Do not operate the equipment in the presence of flammable gases or fumes. Operation of any
electrical equipment in such an environment constitutes a definite safety hazard.

iv 98-166784-A
Keep away from live circuits
Operating personnel must not remove equipment covers. Component replacement and internal
adjustment must be made by qualified maintenance personnel. Do not replace components
with the power cable connected. Under certain conditions, dangerous voltages may exist even
with the power cable removed. To avoid injuries, always disconnect power and discharge
circuits before touching them.
Failure to comply with the rules above will void the warranty!
After installation make this manual available to the user for further reference.

98-166784-A v
Record of Revisions
Rev. Description Release Date Initials
A Original document November 2019 UFO

vi 98-166784-A

98-166784-A xiii
Table of contents
Chapter 1 About this manual
1.1 Intended readers ..............................................................................................................1-1
1.2 Manual overview ...............................................................................................................1-1
1.3 Software version ...............................................................................................................1-1
1.4 Typography ...........................................................................................................................1-2
1.5 Precautions ............................................................................................................................1-2
Chapter 2 Introduction

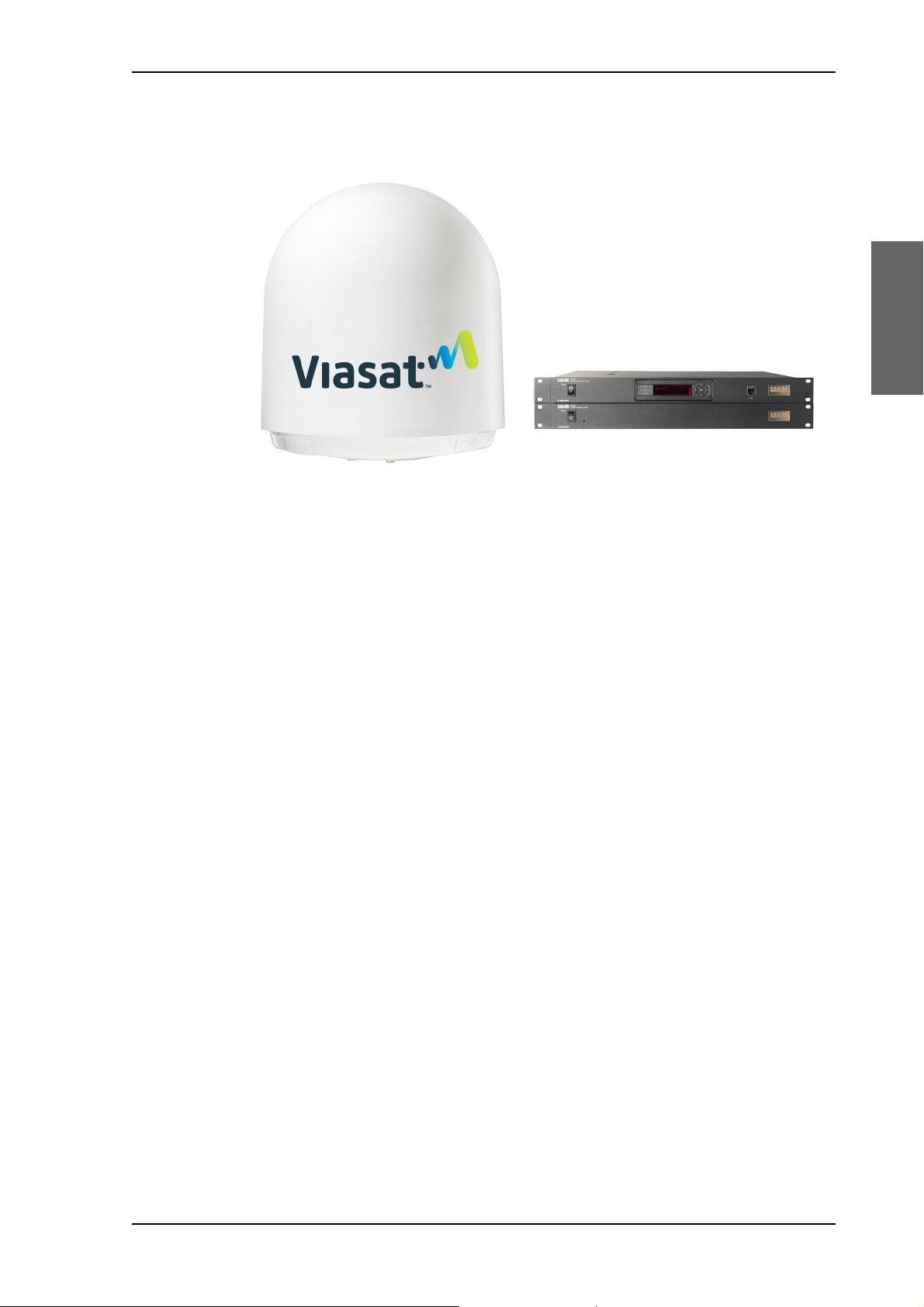

2.1 SAILOR 600 Viasat Ka system ................................................................................2-1
2.2 Part numbers and options .........................................................................................2-8
Chapter 3 Installation
3.1 What’s in the box .............................................................................................................3-1
3.2 Site preparation .................................................................................................................3-3
3.3 Installation of the ADU ............................................................................................3-16
3.4 Installation of the ACU ............................................................................................3-22
3.5 Installation of the PIU ............................................................................................3-23
3.6 To connect the ADU, ACU and PIU ................................................................3-24
Chapter 4 Interfaces
4.1 Interfaces of the ACU ..................................................................................................4-1
4.2 Interfaces of the PIU ....................................................................................................4-5
Chapter 5 Power and start up
5.1 Power-up procedure .......................................................................................................5-1
Chapter 6 Configuration
6.1 Introduction to the built-in web interface ..................................................6-1
6.2 Heading input and position system ...................................................................6-8
6.3 Calibration ..........................................................................................................................6-10
6.4 Configuration with the web interface ...........................................................6-12
6.5 Satellite/modem profiles and blocking zones .........................................6-16
6.6 Keypad and menus of the ACU ..........................................................................6-23
Chapter 7 Installation check
7.1 Installation check list: Antenna ............................................................................7-2

Table of contents
xiv 98-166784-A
7.2 Installation check list: ACU and PIU, connectors and wiring .......7-3
7.3 Installation check list: Functional test in harbor ....................................7-4
Chapter 8 Service
8.1 To get support ....................................................................................................................8-2
8.2 Software update ................................................................................................................8-8
8.3 Status signalling with LEDs and status messages ................................8-11
8.4 Removal and replacement of the ACU .........................................................8-12
8.5 Removal and replacement of ADU modules ............................................8-13
8.6 Troubleshooting basics .............................................................................................8-15
8.7 To return units for repair ........................................................................................8-15
Appendix A Technical specifications
A.1 SAILOR 600 Viasat Ka system components ................................................A-1
A.2 Outline drawings ...............................................................................................................A-4
Appendix B Ground and RF protection
B.1 Why is a ground connection required? ............................................................B-1
B.2 Recommendations ...........................................................................................................B-2
B.3 Alternative ground for steel hulls ........................................................................B-4
B.4 Alternative ground for aluminum hulls ...........................................................B-6
B.5 Alternative ground for fibre glass hulls ...........................................................B-7
B.6 Separate ground cable ..................................................................................................B-8
B.7 RF interference ................................................................................................................B-10
B.8 Jumper cable for grounding ...................................................................................B-11
Appendix C System messages
C.1 Event messages – overview ......................................................................................C-1
C.2 List of ADU events ...........................................................................................................C-2
C.3 List of ACU events ...........................................................................................................C-7
Appendix D Command line interface
D.1 Introduction ........................................................................................................................ D-1
D.2 Supported commands .................................................................................................. D-2
Appendix E Approvals
E.1 CE (RED) ................................................................................................................................... E-1
Glossary ..............................................................................................................................................................Glossary-1
Index ....................................................................................................................................................................Index-1

98-166784-A 1-1
Chapter 1
1111
About this manual
About this manual 1
1.1 Intended readers
This is an installation and service manual for the SAILOR 600 Viasat Ka system, intended for
installers of the system and service personnel. Personnel installing or servicing the system
must be properly trained and authorized by Cobham SATCOM. It is important that you
observe all safety requirements listed in the beginning of this manual, and install the system
according to the guidelines in this manual.
1.1.1 Supporting documents
Additional publications and information including most updated user guides, white papers,
application notes, release notes, software updates, training schedules, and other technical
information may be found on the ViaSat website, located at:maritime.viasat.com.
1.2 Manual overview
This manual has the following chapters:
•Introduction
•Installation
•Interfaces
•Power and start up
•Configuration
•Installation check
•Service
This manual has the following appendices:
•Technical specifications
•Ground and RF protection
•System messages
•Command line interface
•Approvals
1.3 Software version
This manual is intended for SAILOR 600 Viasat Ka with software version 1.63 (ADU and
ACU). The PIU software version is shown in the PIU web interface.

Typography
1-2 Chapter 1: About this manual 98-166784-A
Manuals issued by Cobham SATCOM are periodically revised and updated. Anyone relying on this
information should acquire the most current version e.g. from www.cobham.com/satcom, Cobham
SYNC Partner Portal.
1.4 Typography
In this manual, typography is used as indicated below:
Bold is used for the following purposes:
• To emphasize words.
Example: “Do not touch the antenna”.
• To indicate what the user should select in the user interface.
Example: “Select SETTINGS > LAN”.
Italic is used to emphasize the paragraph title in cross-references.
Example: “For further information, see To connect cables on page...”.
1.5 Precautions
Text marked with “Warning”, “Caution”, “Note” or “Important” show the following type of
data:
•Warning: A Warning is an operation or maintenance procedure that, if not obeyed, can
cause injury or death.
•Caution: A Caution is an operation or maintenance procedure that, if not obeyed, can
cause damage to the equipment.
•Note: A Note gives information to help the reader.
•Important: A text marked Important gives information that is important to the user,
e.g. to make the system work properly. This text does not concern damage on
equipment or personal safety.
All personnel who operate equipment or do maintenance as specified in this manual must
know and follow the safety precautions. The warnings and cautions that follow apply to all
parts of this manual.
WARNING! Before using any material, refer to the manufacturers’ material
safety data sheets for safety information. Some materials can be dangerous.
CAUTION! Do not use materials that are not equivalent to materials
specified by Thrane & Thrane A/S. Materials that are not equivalent can cause
damage to the equipment.
CAUTION! The system contains items that are electrostatic discharge
sensitive. Use approved industry precautions to keep the risk of damage to a
minimum when you touch, remove or insert parts or assemblies.

98-166784-A 2-1
Chapter 2
2222
Introduction
Introduction 2
This chapter has the following sections:
•SAILOR 600 Viasat Ka system
•Part numbers and options
2.1 SAILOR 600 Viasat Ka system
2.1.1 Overview
The SAILOR 600 Viasat Ka is a unique stabilized maritime VSAT antenna system operating
in the following Ka-band: Uplink: 27.5 – 30 GHz, Downlink: 17.7 – 20.2 GHz. The system
provides a high-throughput, full-duplex IP data connections both on Viasat’s quasi-global
Ka-band satellite networks. The following figure shows the current and anticipated
coverage maps of the Ka service as of this manual’s publication date. For the latest
information refer to maritime.viasat.com.

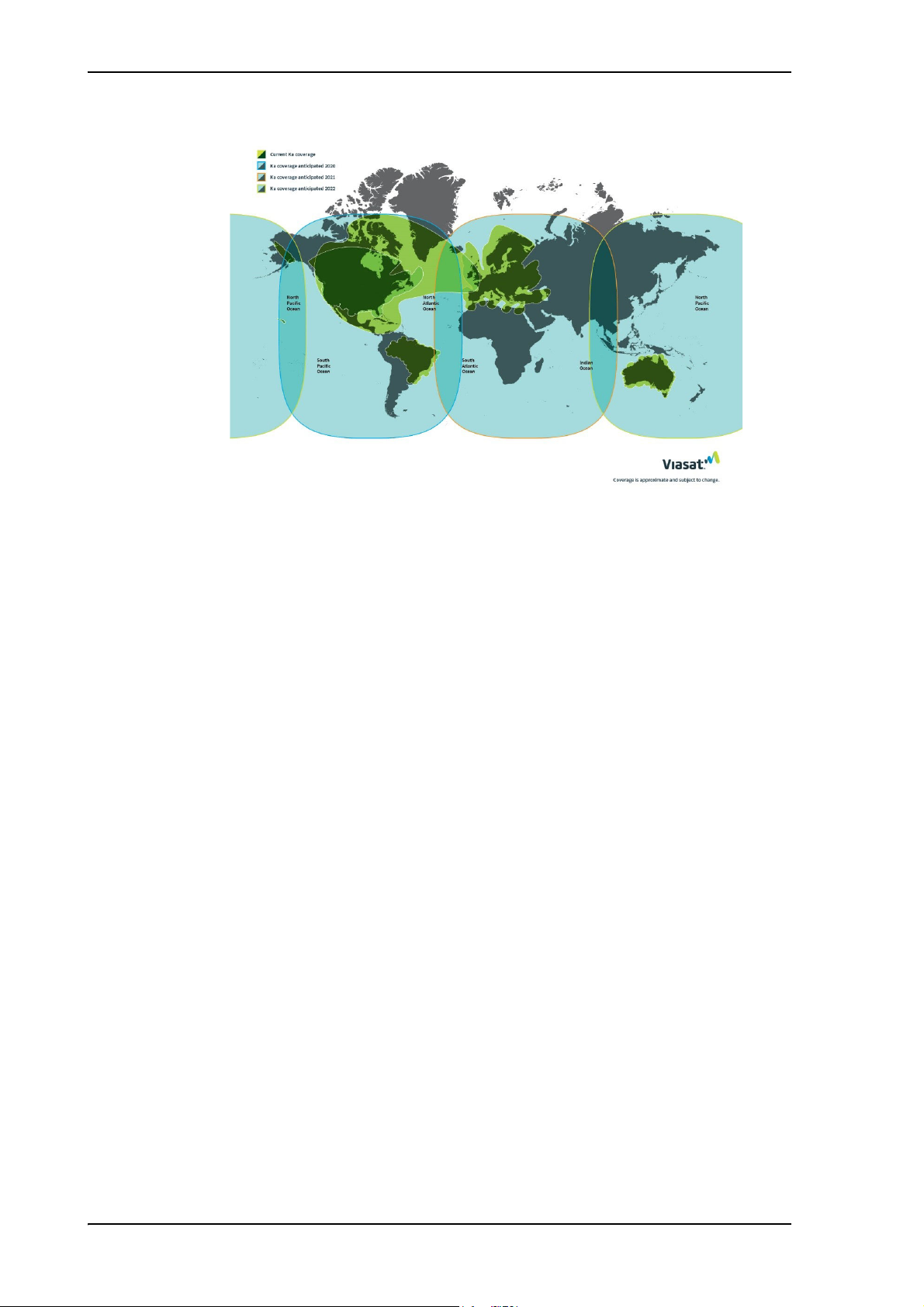

Figure 2-1: Coverage map, current

SAILOR 600 Viasat Ka system
2-2 Chapter 2: Introduction 98-166784-A
The SAILOR 600 Viasat Ka system consists of the following units:
• SAILOR 7006D Above Deck Unit (ADU)
• SAILOR 7016C Antenna Control Unit (ACU)
• SAILOR 7024A pTRIA Interface Unit (PIU)
The system requires a single 50 Ohm coaxial cable to provide the Above Deck Unit (ADU)
with both DC power, data and control information. The radome does not have to be
removed neither before nor after the installation. To protect the ADU the built-in motors
act as brakes during transport and when the ADU is not powered. You can access the
SAILOR 600 Viasat Ka remotely and make in-depth performance analysis using the built-in
web interface. The following figure shows the SAILOR 600 Viasat Ka system.
Figure 2-2: Coverage map, anticipated

SAILOR 600 Viasat Ka system
98-166784-A Chapter 2: Introduction 2-3
2222
Introduction
SAILOR 600 Viasat Ka features
Single 50 Ohm coax cable connecting the ADU and PIU.
Gyro-free operation.
Secure connection, HTTPS (ACU and PIU) and SSH (ACU only)
Remote or local simultaneous software update of the ADU and ACU using a PC and
Internet browser.
Full remote control and troubleshooting with built-in test equipment (BITE).
ACU with LAN, NMEA 0183, RS-232 and RS-422.
No scheduled maintenance.
Figure 2-3: ADU, PIU and ACU
Above Deck
Unit (ADU)
Antenna Control Unit (ACU)
pTRIA Interface Unit (PIU)

SAILOR 600 Viasat Ka system
2-4 Chapter 2: Introduction 98-166784-A
2.1.2 Above Deck Unit (ADU)
The SAILOR 600 Viasat Ka ADU is a 65 cm stabilized tracking antenna, consisting of a
suspended antenna with a standard global RF configuration. It is stabilized by heavy duty
vibration dampers in 3-axis and can be used in environments with elevations of -28° to +
120°. The ADU weighs 38 kg and is powered by the ACU. The ADU is protected by a
radome. All communication between the ADU and the ACU passes through the a single
standard 50 Ohm cable (with N connector) through the rotary joint. No cable work is
required inside the radome.
Figure 2-4: Above Deck Unit (ADU)

SAILOR 600 Viasat Ka system
98-166784-A Chapter 2: Introduction 2-5
2222
Introduction

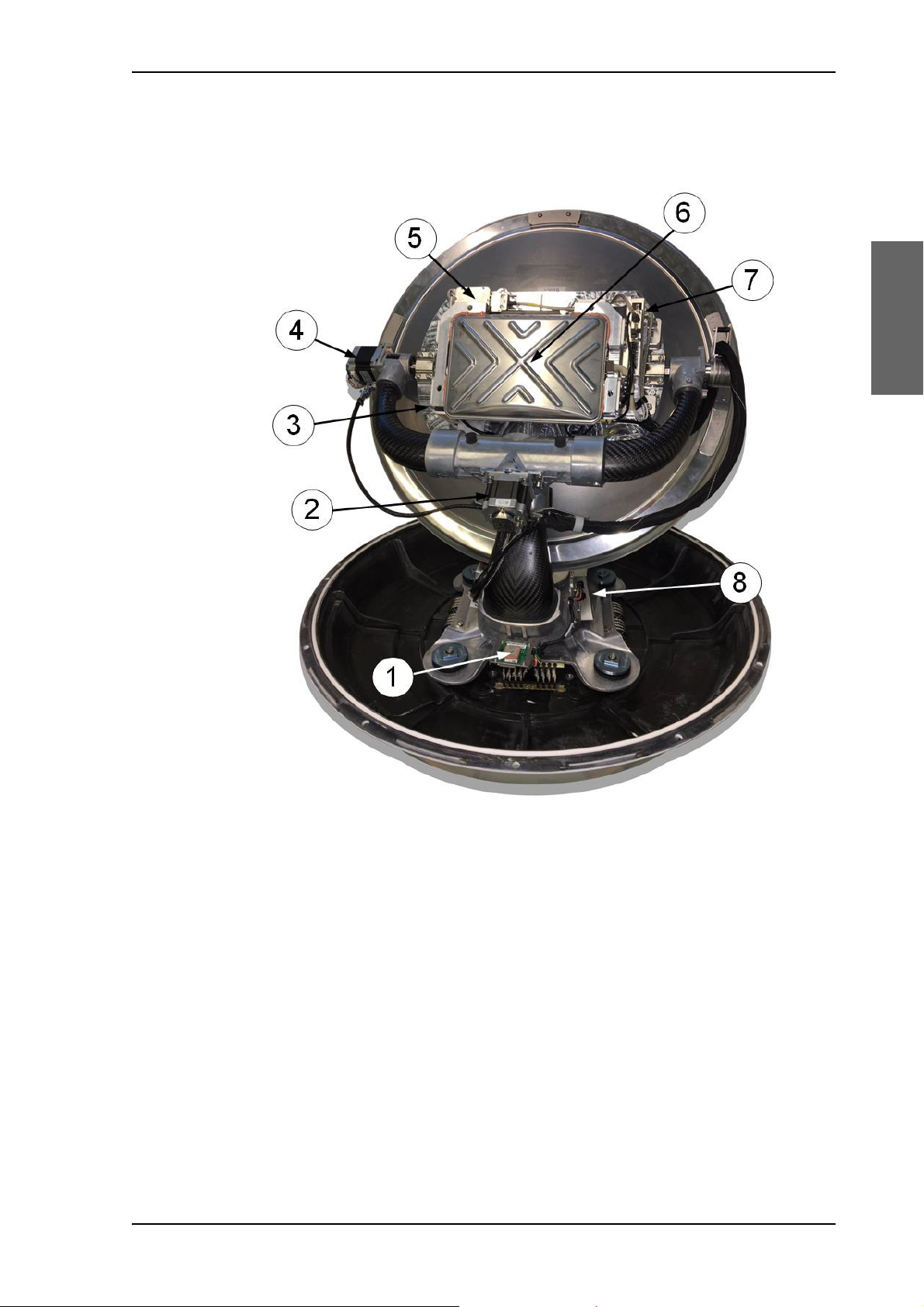

Modules in the SAILOR 600 Viasat Ka ADU
1. GNSS module.
2. Cross elevation motor and encoder.
3. Fan.
4. Elevation motor and encoder.
5. Inertial Sensor Module (ISM).
6. Integrated transceiver (pTRIA).
7. Polarisation Motor Module (PMM).
8. Pedestal Control Module (PCM).
Figure 2-5: Above Deck Unit modules 1/2

SAILOR 600 Viasat Ka system
2-6 Chapter 2: Introduction 98-166784-A
9. pTRIA Interface Module (PIM).
10. Rotary joint.
11. Zero Reference Module (ZRM)
12. Feed horn.
13. Field Vector Driver Module (FDM).
A lifting harness (included in the delivery) help getting the ADU safely into place. Satellite
profile parameters are automatically loaded on to the ADU via the ACU. The system
configuration is saved in two modules, there is no loss of data at repair.transmission All
modules either have a service and power LED status indicator or support diagnostics via the
web interface. Each module is encapsulated in a metal box with self-contained mounting
bolts. If necessary, belts and modules can be exchanged on site. Software update of all
components is done via a single bundle load.
Figure 2-6: Above Deck Unit modules 2/2

SAILOR 600 Viasat Ka system
98-166784-A Chapter 2: Introduction 2-7
2222
Introduction
2.1.3 Antenna Control Unit (ACU)
The ACU is the central control unit in the system. It manages all communication between
the ADU and the PIU. The ACU has a display, status LEDs and a keypad. It provides a DHCP
client. During configuration you can configure heading offset and save satellite setups. The
user PC (user WAN) for Internet access etc. is connected to the PIU LAN2. The ACU
provides DC power to the ADU through the PIU via a single coaxial cable. The ACU and PIU
each come in a 1RU 19” rack form factor.
You can do remote diagnostics and service with the ACU. Its built-in test equipment
constantly checks the device for proper functioning. It performs POST (Power On Self Test)
and you can request a PAST (Person Activated Self Test). Continuous Monitoring (CM) is
also available. BITE error codes can be read out in the web interface and in the display of
the ACU. You can access the ACU web interface by navigating to the Antenna page in the
main web interface.
ACU interfaces
The ACU (SAILOR 7016C) has one LAN connector at the front (disabled) and the following
interfaces at the rear panel:
• N-connector for PIU cable (50 Ohm)
• 2 x F connectors (Tx In, Rx Out) (not used)
• Multi connector for NMEA interfaces (for input from GPS compass or Gyro compass)
• RS-422 interface (not used)
• RS-232 interface (not used)
• LAN 1 port for communication with the PIU
• LAN 2, 3 and 4 (not used)
• Ground wing nut
• AC power connector
• On/Off power switch for the ACU (at the front)

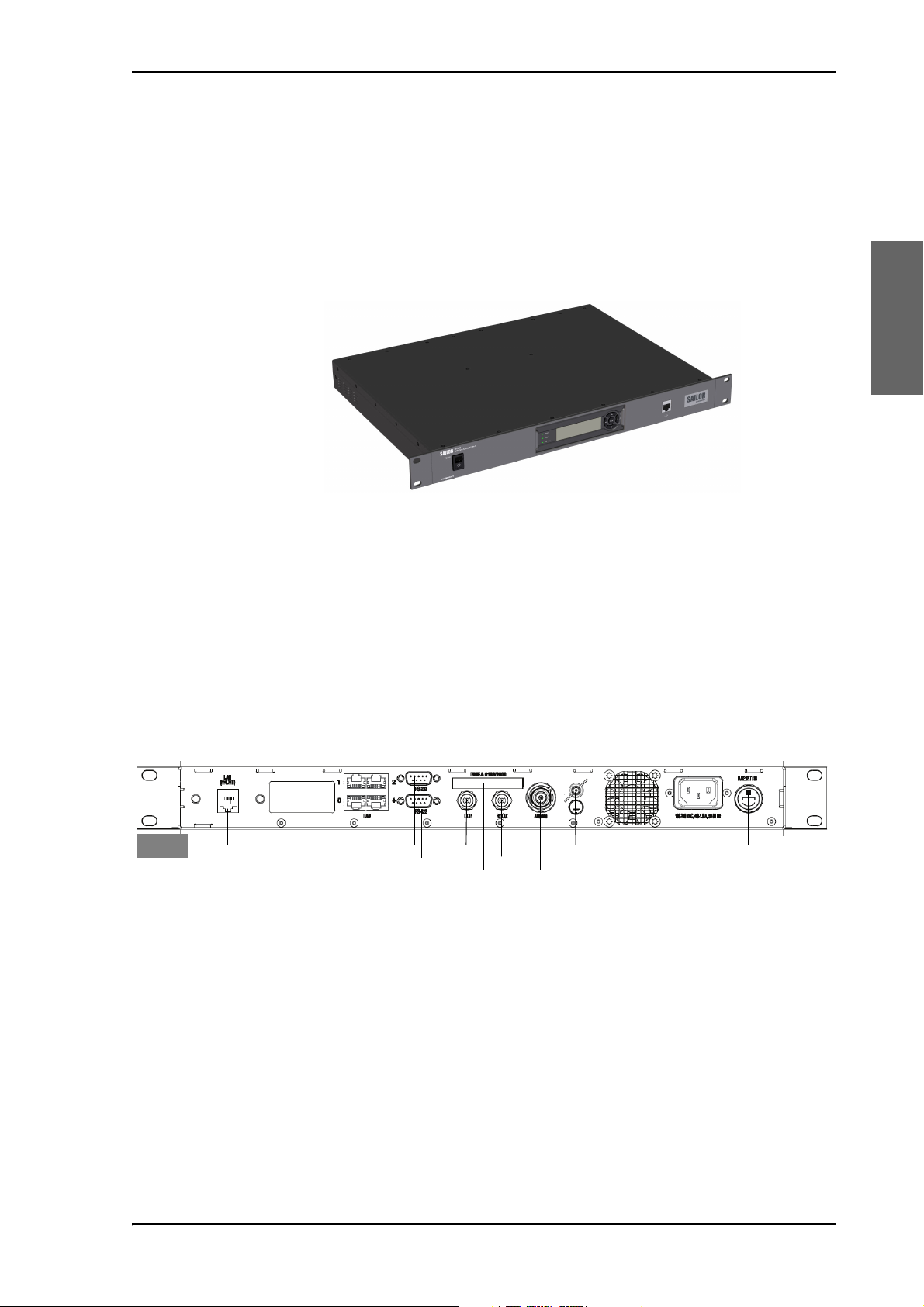

Figure 2-7: Antenna Control Unit
Figure 2-8: ACU (connector panel)
Tx In
(not used)
Rx Out
(not used)
Ground
LAN 1: Connect to PIU
LAN 2, 3 + 4: Disabled
RS-422
(not used) NMEA
GPS/heading input
AC Power
RS-232
(not used)
Antenna and
power to PIU
ACU Fuse 7AT/SB
Type label
Not used

Part numbers and options
2-8 Chapter 2: Introduction 98-166784-A
2.1.4 pTRIA Interface Unit (PIU)
The PIU contains a data processing card and a multiplexer that combines DC power,
antenna communication and modem communication onto a single coaxial cable for
interface between the ADU and below deck equipment. The PIU has the following
interfaces and connectors:
•GNDwingnut
• 2 x LAN ports, one for connecting to the ACU and one for user interface
• 2 x N-connectors, one for ACU and one for ADU (antenna)
2.1.5 Satellite type approvals
For a list of satellite type approvals see Appendix E, Approvals.
2.1.6 Service activation
Before you can start using the SAILOR 600 Viasat Ka, you need to activate the system for
the Viasat Ka service. Contact your service provider for activation or visit the Viasat
Maritime website (www.maritime.viasat.com).
2.2 Part numbers and options
The following model and part numbers are available for the SAILOR 600 Viasat Ka system:
The following options are available for the SAILOR 600 Viasat Ka system:

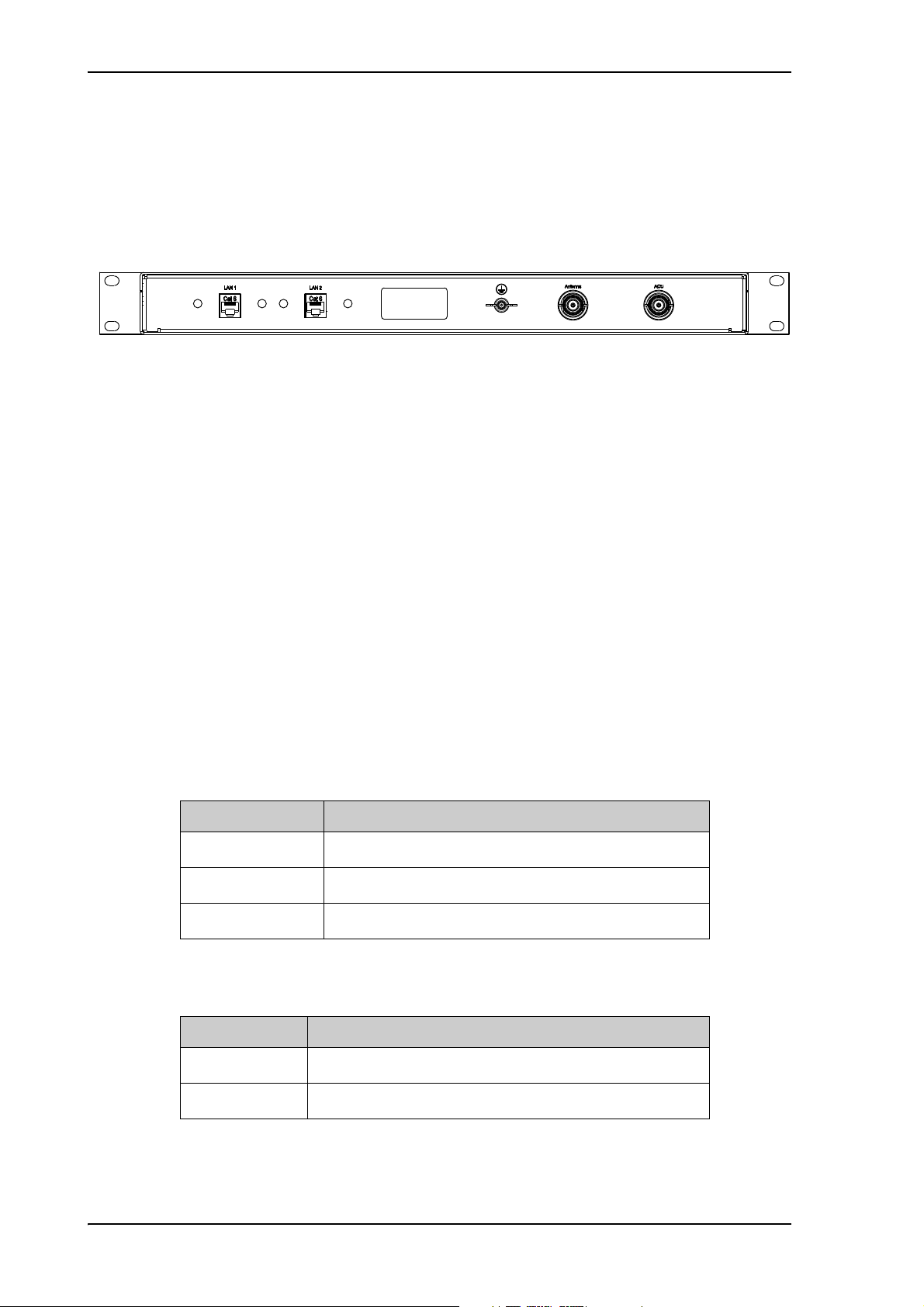

Figure 2-9: Connector panel of the PIU
Part number Description
407006D-00500 SAILOR 600 Viasat Ka Antenna
407016C-00512 SAILOR ACU (Viasat pTRIA)
407024A-00500 pTRIA Interface Unit (PIU)
Table 2-1: Part numbers for the SAILOR 600 Viasat Ka system
Part number Description
407090A-950 Antenna cable 50 m N-Conn (not mounted), male/male
407090A-925 Pigtail Cable 1.25 m, N-Conn, female/male
Table 2-2: Part numbers for options of the SAILOR 600 Viasat Ka system
