About the manual
Naming conventions
This manual covers four different types of system. For information that
applies to all four types, the following naming conventions are used:
Intended readers
This manual is a user manual for the SAILOR 6120/30/40/50 systems. The
manual is intended for anyone who is using or intends to use any of these four
systems. No specific skills are required to operate the mini-C system. However,
it is important that you observe all safety requirements listed in the beginning
of this manual, and operate the system according to the guidelines in this
manual.
Manual overview
Note that this manual does not cover installation of the system. For
information on installation and initial configuration, refer to SAILOR
6120/30/40/50, Installation manual [1].
The Message Terminal described in this manual is the SAILOR 6018
Message Terminal. For information specific to the SAILOR 6006 Message
Terminal, refer to the manuals [5], [6] and [7].
Part numbers for related manuals are listed in the next section.
Common name Used for
mini-C system SAILOR 6120 SSA System
SAILOR 6130 LRIT System
SAILOR 6140 Maritime System
SAILOR 6150 Non-SOLAS System
SAILOR 3027 SAILOR 3027 SSA Terminal
SAILOR 3027 LRIT Terminal
SAILOR 3027 Maritime Terminal
SAILOR 3027 Non-SOLAS Terminal

vi
This manual has the following chapters:
•Introduction contains an overview of the mini-C system and a brief
description of each unit in the system.
•Get started explains how start up the system. It also contains a short
guide to the most important functions.
•To use easyMail explains how to set up and use the system with the
easyMail application from a connected computer.
•To use Distress and SSA buttons explains how to use connected
Distress buttons and SSA buttons.
•Service contains information on software update and a short
troubleshooting guide and explains how to check the status of the system.
Related documents
Ref Title and description Document no.
[1] SAILOR 6120/30/40/50, Installation manual
(with SAILOR 6018 Message Terminal)
98-154541
[2] SAILOR 6110 mini-C GMDSS, User manual
(with SAILOR 6018 Message Terminal)
98-154172
[3] SAILOR 6018 Message Terminal,
Installation manual
98-150478
[4] SAILOR 6194 Terminal Control Unit,
Installation and user manual
98-131593
[5] SAILOR 6120/30/40/50, User manual
(with SAILOR 6006 Message Terminal)
98-131590
[6] SAILOR 6120/30/40/50, Installation manual
(with SAILOR 6006 Message Terminal)
98-131589
[7] SAILOR 6006/6007 Message Terminal,
Installation manual
98-130088
[8] Software Interface Reference Manual for the
TT-3027C/D/M/LT/SSA mini-C transceivera
a. Only available for certified partners.
98-147405

vii
Typography
In this manual, typography is used as indicated below:
Bold is used for the following purposes:
•Toemphasizewords.
Example: “Do not touch the antenna”.
• To indicate what the user should select in the user interface.
Example: “Select SETTINGS > LAN”.
Italic is used to emphasize the paragraph title in cross-references.
Example: “For further information, see Connecting Cables on page...”.

viii

ix
Contents
Chapter 1 Introduction
Welcome ................................................................................................... 1
System overview ...................................................................................2
System units ............................................................................................ 4
User interfaces ....................................................................................... 5
The Inmarsat C services .................................................................... 9
Chapter 2 Get started
Registration .......................................................................................... 13
User interfaces .................................................................................... 14
Start up the system .......................................................................... 18
Chapter 3 To use easyMail
Overview of easyMail ...................................................................... 22
Distress functions (only SAILOR 6150) ................................... 25
Work with messages ........................................................................ 30
Position reporting .............................................................................. 42
Receive EGCs ....................................................................................... 44
Network status and settings ......................................................... 46
View system details .......................................................................... 48
View or change position information ...................................... 49
View status and Info log ................................................................ 50
Set up the default ISP and default LESes ............................... 51
Set up reception of EGCs ............................................................... 52

Contents
x
Set up ENIDs ........................................................................................ 53
Set up the Land Earth Stations (LES) ........................................ 54
Set up Inmarsat Service Providers (ISP) ................................. 56
Enter the mobile number ............................................................... 58
Set the local time ............................................................................... 59
Set up password protection ......................................................... 60
Set the language ................................................................................ 60
Set up PC communication with the SAILOR 3027 ............ 61
Set up easyMail .................................................................................. 63
Chapter 4 To use Distress and SSA buttons
To send a Distress Alert (SAILOR 6150 only) ....................... 65
To send a Ship Security Alert (SAILOR 6120 only) ........... 69
Chapter 5 Service
Get support ........................................................................................... 71
Troubleshooting guide .................................................................... 72
Status signalling in easyMail ........................................................ 74
Status signalling in SAILOR 6018 ............................................... 75
Service and repair .............................................................................. 77
App. A Conformity
App. B GNU License texts
Glossary ..................................................................................................................... 95
Index ..................................................................................................................... 99

1
Chapter 1
1111
Introduction
Introduction 1
Welcome
Congratulations on the purchase of your mini-C system!
With the mini-C system you can send and receive data via satellite through
the Inmarsat C network. Four variants of the mini-C system are described in
this manual:
• SAILOR 6120 SSA System
• SAILOR 6130 LRIT System
• SAILOR 6140 Maritime System
• SAILOR 6150 Non-SOLAS System
Each of these systems uses its own variant
of the SAILOR 3027 mini-C terminal.
This chapter has the following sections:
•System overview
•System units
•User interfaces
•The Inmarsat C services

Chapter 1: Introduction
2Systemoverview
System overview

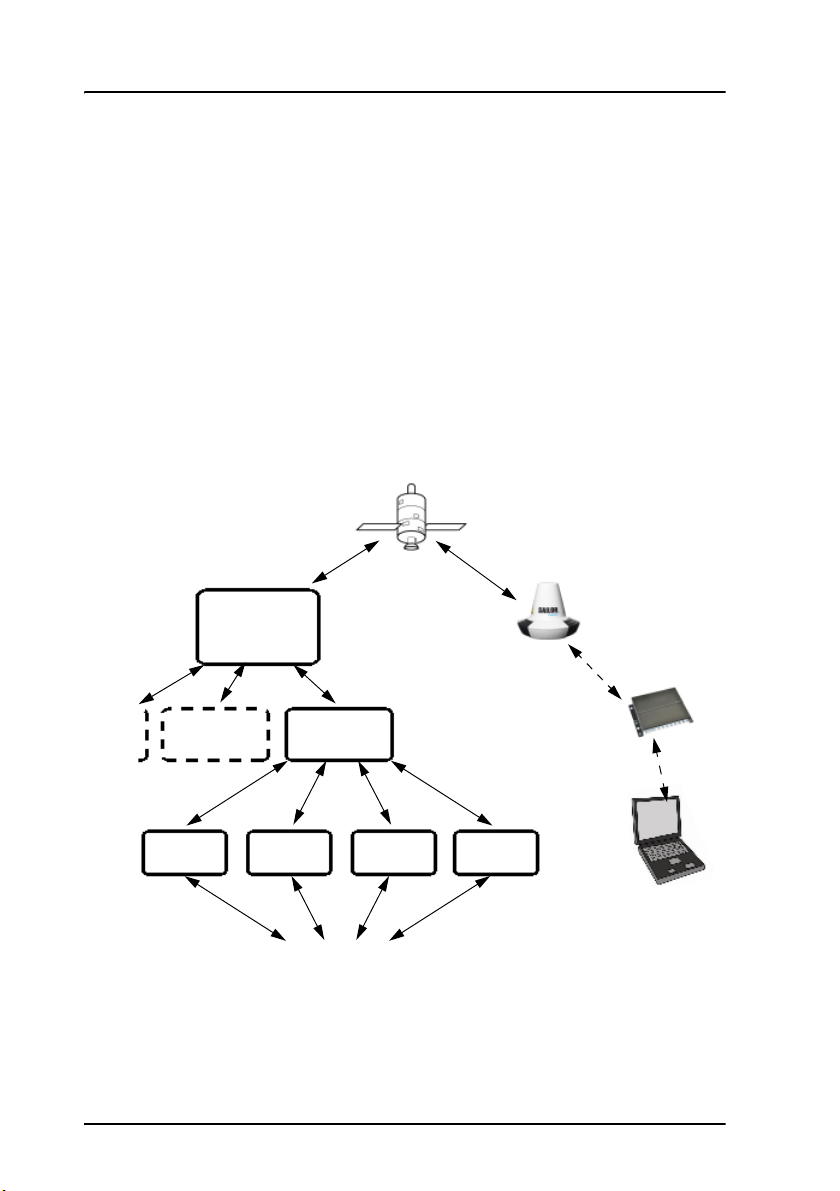

The SAILOR 6120/30/40/50 mini-C system
The Inmarsat C satellite network is the link between the mini-C system and
the destination office. It uses four geostationary satellites to cover the
world. For each satellite there is an NCS, Network Coordination Station,
handling registration of the mobile unit (in this case the SAILOR 3027) in
the Inmarsat C system.
Each NCS is associated with a number of LESes, Land Earth Stations, which
handle the transmission between the mobile units and the destination
office.
The SAILOR 3027 can work as a standalone system automatically
transmitting data on the Inmarsat C network, or you can connect alarm
buttons and/or a computer through the SAILOR 6194 Terminal Control
Unit.
NCS
Network Coordination
Station
LES LES
Land Earth Station Land Earth Station
Internet Telex
Network PSDN Network PSTN Network
Destination office
Satellite
SAILOR 3027
Computer
SAILOR 6194

Chapter 1: Introduction
System overview 3
1111
Introduction
The SAILOR 3027 can be connected to a SAILOR 6018 Message Terminal,
where you can read and write messages and send Distress alerts (SAILOR
6150 only). This communication is transmitted via the SAILOR 3027
to/from the Inmarsat C satellite network.
Scripting
The SAILOR 6194 Terminal Control Unit supports simple scripting, using
Lua language. Scripting can be used e.g. for automatically reacting on
events registered in the multipurpose input/output pins of the SAILOR
6194. With the Script option you can run custom-designed scripts
dedicated to specific applications with the SAILOR 3027.
Typically a script monitors and controls the SAILOR 3027 by using
commands via the command shell interface. The scripts are run from an SD
memory card installed in the SD card slot of the SAILOR 6194. For further
information on scripting, see the manual for the SAILOR 6194 Terminal
Control Unit.

Chapter 1: Introduction
4Systemunits
System units
The basic mini-C system consists of a power supply and the following units:
• SAILOR 3027 mini-C terminal.
Contains both transceiver, GPS receiver and
omnidirectional antenna for the Inmarsat C
system. Connects to other equipment, primarily
the SAILOR 6194, through a CAN interface
carrying both power and bi-directional
communication.
• SAILOR 6194 Terminal Control Unit (only included
with SAILOR 6120 and SAILOR 6150).
Enables you to connect the SAILOR 3027 with
other equipment, such as Distress buttons, SSA
(Ship Security Alert) buttons or a computer. The
SAILOR 6194 comes with the SAILOR 6120 and
SAILOR 6150 systems only, but is available for the
other systems as well.
For a more detailed description of the units, refer to the installation manual
for the SAILOR 6120/30/40/50 mini-C system and the manuals for the
respective units. See Related documents on page vi.

Chapter 1: Introduction
User interfaces 5
1111
Introduction
User interfaces
The basic mini-C system does not have a dedicated user interface. To have
a user interface you must use one of the following options:
• a SAILOR 6194 Terminal Control Unit and a computer with the
easyMail application installed. For details, refer to SAILOR
6120/30/40/50, Installation manual [1].
• a SAILOR 6018 Message Terminal connected to the system through the
CAN interface. The SAILOR 6018 has a built-in user interface.
For overall system status, diagnostics and live logging you may use the
ThraneLINK Management System (TMA). For details on the TMA, see
the SAILOR 6120/30/40/50, Installation manual [1].

Chapter 1: Introduction
6 User interfaces

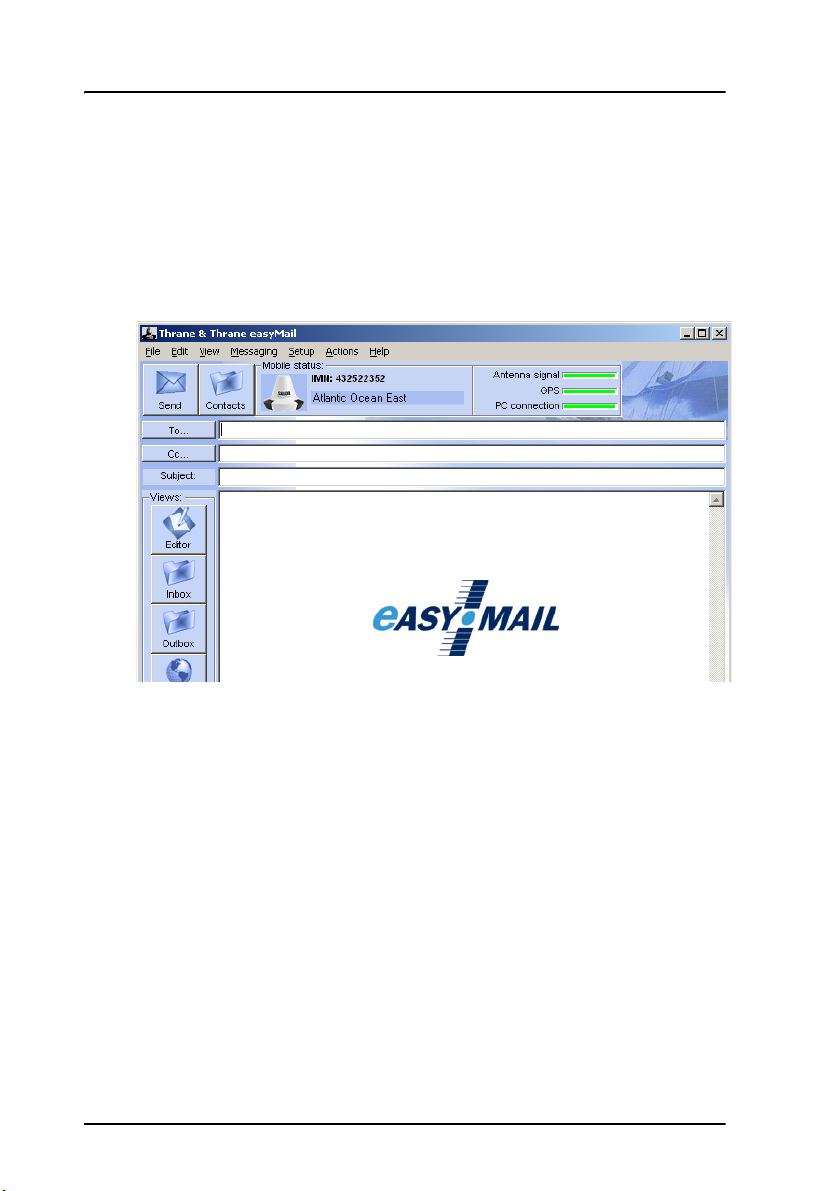

easyMail
easyMail is a user interface for the mini-C system. With easyMail you can
send and receive messages, view status and configure the system. To use
easyMail you must have a SAILOR 6194 Terminal Control Unit and a
computer with the easyMail application installed. For information on how
to get started with easyMail, see easyMail application on page 14.
For details on how to use easyMail, see To use easyMail on page 21.

Chapter 1: Introduction
User interfaces 7
1111
Introduction
SAILOR 6018 user interface (for SAILOR 6150)
For the SAILOR 6150 Non-SOLAS system you can use the SAILOR 6018
Message Terminal. With the SAILOR 6018 Message Terminal you can send
and receive messages, send Distress alerts, view system status and
configure the system.
The SAILOR 6018 has a touch-screen for operating the system. You can
also use the SAILOR 6001 keyboard.
The SAILOR 6018 also has a Distress button, a Mute button, a Power button
and a Dim knob. For details on the buttons, see Buttons in the front panel
on page 23.
For details on how to use the SAILOR 6018, see SAILOR 6110 mini-C
GMDSS, User manual [2]. To get started with the mini-C system, see Get
started on page 13.

Chapter 1: Introduction
8 User interfaces
Menu overview, SAILOR 6018
The below drawing shows the menu system in the SAILOR 6018.
The items in the menu overview are described in SAILOR 6110 mini-C
GMDSS, User manual [2].
1HZ
,QER[
2XWER[
6HQWLWHPV
6HWWLQJV
,QER[
5HFHSWLRQ
6HWWLQJV
6WDWXV
6HWWLQJV
0HVVDJH
(*&
'LVWUHVV
1HWZRUN
&RQWDFWV
6\VWHP
6WDWXV
3RVLWLRQ
6HWWLQJV
$XWRSULQW
$GGLWLRQDO1$9$5($V0(7$5($V
&RDVWDO:DUQLQJ$UHDVDQG6HUYLFHV
(*&VHUYLFHV
)OHHW1(7(1,'V
$XWRSULQW
'LVWUHVV$OHUW1DWXUH
'LVWUHVV$OHUW/DQG(DUWK6WDWLRQV
'LVWUHVV$OHUWSRVLWLRQFRXUVHDQGVSHHG
1HWZRUN,'
'1,'VDQGGDWDUHSRUWLQJ
1HWZRUN&RRUGLQDWLRQ6WDWLRQV
0DQXDOSRVLWLRQ
$ERXW
3RZHU
6HWWLQJV
$GYDQFHG
6HWWLQJV
7HVW'LVWUHVVEXWWRQV
&OHDUGLVWUHVVLQGLFDWLRQV
/RJLQ
/RJRXW
6FDQ
/LQNWHVW
&OHDU
2SWLRQV
6HQG
$GGQHZ
(GLW
'HOHWH
5HJLRQDOVHWWLQJV
6FUHHQVHWWLQJV
'LDJQRVWLFUHSRUW
0LQL&WHUPLQDOPRGH
1HZPHVVDJH
1HZ'LVWUHVVPHVVDJH
/RDG
6DYH
3ULQW
&RQWDFWV
%DFNXS
,PSRUWFRQWDFWV
([SRUWFRQWDFWV
'DWHWLPH
&\ULOOLF
1HZPHVVDJH
1HZ'LVWUHVVPHVVDJH
&RQWLQXH
7HOH[ELW
$6&,,ELW
'DWDILOHELW
&<5
&<5:,1
&<5'26
Menu items in grey colour are
only available if Cyrillic characters
are enabled under System > Settings >
Regional settings > Cyrillic.
Note:
*
*
