COBHAM SAILOR 6222 VHF DSC User manual

Thrane & Thrane A/S trading as Cobham SATCOM
Registered No: 65 72 46 18 Registered Address: Lundtoftegaardsvej 93 D, 2800 Kgs., Lyngby, Denmark
www.cobham.com
Sales Introduction
SAILOR 6222 VHF DSC CLASS A
The most important thing we build is trust

Sales Introduction –SAILOR 6222 VHF DSC Class A
Cobham SATCOM, 18 July 2013
Niels Peter Agdal
www.cobham.com
2
1Introduction .............................................................................................................3
2Market.....................................................................................................................3
2.1 Requirement: ......................................................................................................4
3The product: SAILOR 6222 VHF DSC Class A.....................................................................4
3.1 Accessories ........................................................................................................5
3.1.1 SAILOR 6201 Handset, SAILOR 6202 Hand Microphone & SAILOR 6203 Handset WP.......5
3.1.2 SAILOR 6204 Control Speaker Microphone .............................................................6
3.1.3 SAILOR 6208 Control Unit Connection Box ............................................................7
3.1.4 SAILOR 6207 Accessory Connection Box ...............................................................7
3.1.5 Connection cables ............................................................................................8
3.1.6 SAILOR 6270 Loudspeaker..................................................................................9
3.1.7 SAILOR 6103 GMDSS Alarm Panel ........................................................................9
3.1.8 Moxa Switch ...................................................................................................9
4Features and Unique Selling Points (USP) .......................................................................10
4.1 ThraneLINK ......................................................................................................10
4.2 USP list: ...........................................................................................................11
4.3 Feature list: ......................................................................................................11
4.4 SAILOR Replay ..................................................................................................12
4.5 Display ............................................................................................................12
4.6 Menus.............................................................................................................13
4.7 Keypad and buttons ...........................................................................................13
4.8 Handset...........................................................................................................13
4.9 Loudspeaker .....................................................................................................14
4.10 Waterproof –IPx8 and IPx6 rated .........................................................................14
4.11 Channel Tables..................................................................................................14
4.12 Private channels ................................................................................................14
4.13 Powerful transceiver ...........................................................................................15
4.14 Printer.............................................................................................................15
4.15 NMEA Interface ................................................................................................15
5Installation .............................................................................................................15
5.1 Programming ....................................................................................................16
5.2 Connectors ......................................................................................................16
5.2.1 GPS input .....................................................................................................17
6Service...................................................................................................................17
7Approvals ...............................................................................................................17
8Technical Specification..............................................................................................18

Sales Introduction –SAILOR 6222 VHF DSC Class A
Cobham SATCOM, 18 July 2013
Niels Peter Agdal
www.cobham.com
3
1Introduction
The SAILOR 6222 VHF DSC Class A sets new standards for the GMDSS VHF market. The
SAILOR 6222 VHF DSC Class A builds on the long tradition of SAILOR being the market
leader in the for professional VHF radios. This reputation is earned through decades of
providing robust and reliable, easy to use VHFs, and being at the forefront of offering new
techniques and features that benefit users.
Since the launch of DSC in the nineties, SAILOR has been the leading brand, especially in
VHFs with DSC Class A. The SAILOR 6222 VHF is the natural conclusion of the knowledge
gathered from being the technology and market leader, with products such as the extremely
popular SAILOR RT144, SAILOR RT2048, SAILOR RT4822 and SAILOR RT5022.
As a VHF DSC Class A device, the SAILOR 6222 VHF is a vital part of the new SAILOR 6000
GMDSS product offering. It offers a wide range of new and unique features, which will
position it as the most competitive product in the market. It is designed for the harsh
environment at sea, and as a world first VHF DSC Class A, the SAILOR 6222 VHF is
waterproof to IPx6 and IPx8, which makes it possible to install it in open boats without any
modifications whatsoever.
2Market
The SAILOR 6222 VHF is developed and designed to meet the tough requirements of
professional mariners operating in a wide variety of vessels, from open workboats and high
seas fishing vessels, through to all kinds of merchant ships.
The SAILOR 6222 VHF complies with the requirements for VHF DSC Class A, which is part of
the mandatory requirements for SOLAS vessels, and many national GMDSS requirements.
The SAILOR 6222 VHF is much more than a VHF covering the mandatory requirements. It
provides the operator with a powerful, reliable and unique communication product. It is an
easy to use, highly ruggedized VHF, which will become the daily means of communication
between the vessel and other vessels, and coastal VHFs.

Sales Introduction –SAILOR 6222 VHF DSC Class A
Cobham SATCOM, 18 July 2013
Niels Peter Agdal
www.cobham.com
4
2.1 Requirement:
Vessels that have to comply with the IMO SOLAS requirements should have two VHF´s with
DSC Class A installed, regardless of the sea area the vessel operates in. (NB: In Sea area A1
only one is required).
The enclosed table shows a simplified overview of the GMDSS requirements to SOLAS
vessels that the SAILOR product portfolio covers.
Product/Sea Area
Sea Area
A1
Sea Area
A2
Sea Area
A3
TLX/Inm-C
Sea Area
A3 Inm-
C/Inm-C
Sea Area
A4
Portable VHF*
3
3
3
3
3
VHF DSC Class A
1
2
2
2
2
MF/HF
1
1
1
2
MF/HF NBDP Radio
telex
1
2
Inm-C
1
2
1
Epirb
1
1
1
1
1
SART
2
2
2
2
2
Please note: This is an overview. Local regulations may require different setups
3The product: SAILOR 6222 VHF DSC Class A
The SAILOR 6222 VHF offers simplex/semi-duplex communication. One version including all
variants is available. This simplifies logistics. Because almost all VHFs used today are
simplex/semi-duplex, no duplex version has been developed.
The SAILOR 6222 VHF package includes everything needed for a standard installation,
whether it is a desk top installation or a flush mount installation in the bridge console.
Part Number
-SAILOR 6090 Power Converter 24 to 12 V DC
-Operators Manual
-GPS Connector and 5m Cable
406222A
Product Description
SAILOR 6222 VHF DSC Class A
Including:
-Transceiver Unit, DSC Class A
-SAILOR 6201 Handset with radle
-U-bracket
-Flush Mounting Kit
-Power Cable

Sales Introduction –SAILOR 6222 VHF DSC Class A
Cobham SATCOM, 18 July 2013
Niels Peter Agdal
www.cobham.com
5
3.1 Accessories
A variety of accessories are available for the SAILOR 6222 VHF:
Part number
Version
406201A
SAILOR 6201 Handset
406202A
SAILOR 6202 Hand Microphone
406203A
SAILOR 6203 Handset WP
406205A
SAILOR 6204 Control Speaker Microphone
406207A
SAILOR 6207 Accessory Connection Box. Incl. Connection Cable
406209-941
406208A
SAILOR 6208 Control Unit Connection Box Including 406209-94
406209-940
Connection Cable for Bulkhead mount, 5m with 12-pin male connector
406209-941
Connection Cable 5m, 10-pin female connector
406204-940
5m Extension cable with plugs in both ends. One plug is for bulk
mount. 12-pin cable for CAN
406270A
SAILOR 6270 Loudspeaker
406103A
SAILOR GMDSS Alarm Panel
406197A
SAILOR 6197 EDS-205 Moxa Switch
3.1.1 SAILOR 6201 Handset, SAILOR 6202 Hand Microphone &
SAILOR 6203 Handset WP
One SAILOR 6201 Handset with cradle is supplied with the SAILOR 6222 VHF as standard.
However a total of 3 SAILOR 6201 Handsets can be connected to the SAILOR 6222 VHF.

Sales Introduction –SAILOR 6222 VHF DSC Class A
Cobham SATCOM, 18 July 2013
Niels Peter Agdal
www.cobham.com
6
The SAILOR 6202 Hand Microphone can replace the SAILOR 6201 Handset in the installation.
The new SAILOR 6203 Handset WP is the waterproof version of the SAILOR 6201 Handset.
The SAILOR 6203 is waterproof to IPx6 and ideal for installations where the handset may be
exposed to water.
3.1.2 SAILOR 6204 Control Speaker Microphone
The SAILOR 6204 Control Speaker Microphone gives the operator full control of all the main
features and functions in the SAILOR 6222 VHF.
The SAILOR 6204 Control Speaker Microphone is designed for bridge wing installations and
gives the operator full control of the VHF when operating the vessel from this location. The
unique design fits perfectly into the hand and allows the operator to communicate easily and
control the key functions in the VHF:
Volume control
Hi/Lo (25/1W)
SAILOR Replay
Mute Alert button
Channel selection
Display dimming
Graphical display in both night and day view for optimal reading
The design of the SAILOR 6204 Control Speaker Microphone minimizes the requirements for
space in the installation on the bridge wing, which often can be quite crowded.

Sales Introduction –SAILOR 6222 VHF DSC Class A
Cobham SATCOM, 18 July 2013
Niels Peter Agdal
www.cobham.com
7
Up to 4 SAILOR 6204 Control Speaker Microphones can be connected to the SAILOR 6222
VHF. The SAILOR 6204 Control Speaker Microphone is waterproof to IPx6 and IPx8, which
makes it ideal for installation in exposed positions.

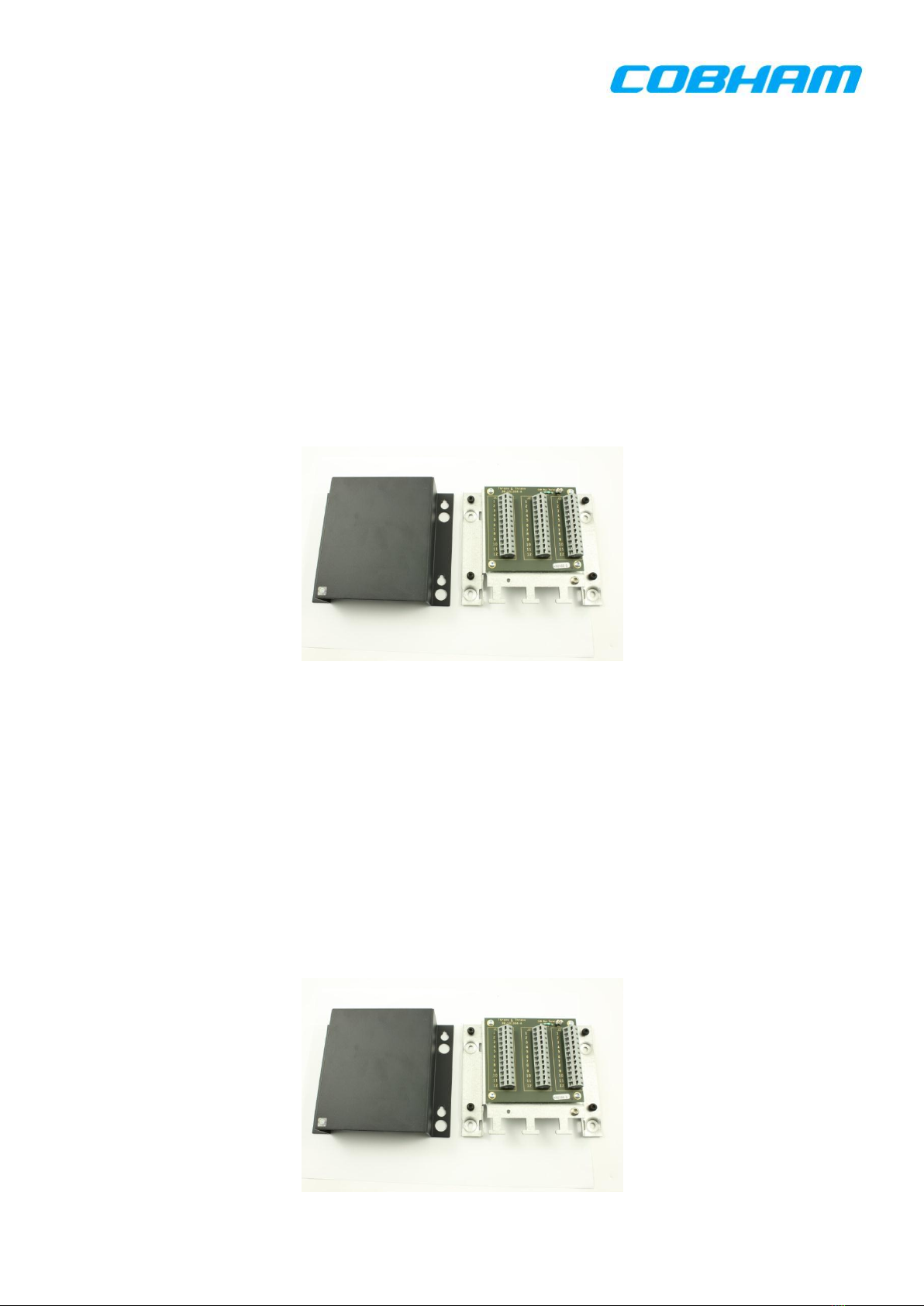

3.1.3 SAILOR 6208 Control Unit Connection Box
The SAILOR 6208 Control Unit Connection Box is used for easy installation of multiple
SAILOR 6204 Control Speaker Microphones. The SAILOR 6204 Control Speaker Microphone
can be connected directly to the SAILOR 6222 VHF, however it is much easier to install via
the SAILOR 6208 Control Unit Connection Box for multiple installations.
The SAILOR 6208 Control Unit Connection Box is also used for connections through the AUX
port to VDR, Alarm Panels, GPS and the External Speaker. See System Configuration
Example drawing on the next page.
The SAILOR 6208 Control Unit Connection Box is delivered including the 406209-941
Connection cable (5m) for easy connection to the SAILOR 6222 VHF. The SAILOR 6208
Control Unit Connection Box is also used in installations of multiple Control Units for the
SAILOR 6300 MF/HF.
3.1.4 SAILOR 6207 Accessory Connection Box
The SAILOR 6207 Accessory Connection Box is used for easy connection of external
equipment and accessories such as:
Extra handset
Hand Mircophones
Position Input (NMEA)

Sales Introduction –SAILOR 6222 VHF DSC Class A
Cobham SATCOM, 18 July 2013
Niels Peter Agdal
www.cobham.com
8
The SAILOR 6207 Accessory Connection Box can also be used for easy installation of multiple
SAILOR Handsets. When two additional handsets are connected It offers the possibility to
prioritize between them through this box.
It is also used to provide a NMEA 0183 connection to the SAILOR 6222 for AIS and GPS.
The SAILOR 6207 Accessory Connection Box is supplied with the cable 406209-941
Connection cable (5m) for easy connection of the box to the SAILOR 6222 VHF.
In the installation below the SAILOR 6207 Accessory Connection Box is connected to the ACC
port.
Configuration Example –See the Installation Manual for different installation scenarios
3.1.5 Connection cables
Two connection cables are available for easy installation –See the Installation manual for
specific installation drawings:
-406209-940: 5m Connection cable for bulkhead mount: Used in installations where
the SAILOR 6201 Handset is not going to be connected directly to the SAILOR 6222
VHF but located in a different position.
-406209-941: 5m Connection cable: Is used in installations when connecting external
equipment to the SAILOR 6222 VHF. It is included in the SAILOR 620x Accessory
Connection Box and SAILOR 6208 Control Unit Connection Box.

Sales Introduction –SAILOR 6222 VHF DSC Class A
Cobham SATCOM, 18 July 2013
Niels Peter Agdal
www.cobham.com
9
3.1.6 SAILOR 6270 Loudspeaker
The SAILOR 6222 VHF has a very powerful built in 6W loudspeaker. However in some
installations an external loudspeaker is required in another location. The SAILOR 6222 VHF
can be connected to an 8 ohm external loudspeaker such as the SAILOR 6270 Loudspeaker,
which provides 6W output power.
3.1.7 SAILOR 6103 GMDSS Alarm Panel
The SAILOR 6103 GMDSS Alarm Panel provides means of activating the GMDSS Distress
Alarms in the products it is connected to. The SAILOR 6103 GMDSS Alarm Panel can be
connected to:
-2 SAILOR 6110 Inmarsat C GMDSS
-2 SAILOR 6222 VHF DSC Class A
-2 SAILOR 6300 MF/HF
The new SAILOR 6103 GMDSS Alarm Panel is connected to the SAILOR 6222 VHF via the
LAN port in (ThraneLINK). As the SAILOR 6103 GMDSS Alarm Panel is also connected to the
SAILOR 6110 Mini-C GMDSS and the SAILOR 6300 MF/HF, the Moxa Switch must be used.
The SAILOR 6103 GMDSS Alarm Panel only requires connection to the ThraneLINK and
power cables, which is very simple installation and cabling compared to traditional alarm
panels, where there has to be one cable per product connected to the alarm panel.
3.1.8 Moxa Switch
The SAILOR Moxa Switch is used in installations with connection to the SAILOR 6103 GMDSS
Alarm Panels and in installations utilizing the advantages of ThraneLINK.
Depending on the installation, One or more SAILOR 6197 EDS-205 Moxa Switches have to be
used:
Part number
Product Description
406197A
SAILOR 6197 EDS-205 Moxa Switch - 5 port
The SAILOR 6197 EDS-205 Moxa Switch has an EN60945 approval allowing it for marine
installations.

Sales Introduction –SAILOR 6222 VHF DSC Class A
Cobham SATCOM, 18 July 2013
Niels Peter Agdal
www.cobham.com
10
4Features and Unique Selling Points (USP)
The SAILOR 6222 VHF is powerful GMDSS Class A VHF that offers users trustworthy and
reliable GMDSS communication. All SAILOR VHFs are highly regarded by professionals
because of their long lifespan, reliability and durability regardless of the harsh environment
that they are used in.
Another trademark for all SAILOR VHFs is user-friendly operation and the new SAILOR 6222
VHF reflects this. The professional seaman has always preferred the easy operation of
SAILOR VHFs and with the SAILOR 6222 VHF, they won’t be dissapointed. It offers a wide
range of unique features and functions to support the user, making it far and away the best
VHF DSC Class A on the market:
4.1 ThraneLINK
ThraneLINK is a sophisticated, uniform communication protocol that connects all the SAILOR
products in a network; offering important new opportunities to all vessels.
ThraneLINK is a network protocol suite based upon standard internet technologies. All the
products offering ThraneLINK can be connected in a network. Within the network, they can
exchange data, such as GPS position etc. In addition, ThraneLINK offers automatic device
discovery, which means the system automatically discovers new products on the network,
making installation much easier.
ThraneLINK provides “One point of contact” for service, and makes trouble shooting and
diagnostics easier and faster than ever before. The service technician can access all the
products from one location, instead of connecting to all the products individually and using
different cables and software. With ThraneLINK the service technician simply connects his
service PC to the network; for example, to the SAILOR 6197 EDS-205 Moxa Switch. Using
the ThraneLINK Management Application (TMA) the technician will be able to retrieve status
on all the SAILOR products, Alarm logs, diagnostic reports etc. as well as upload software to
all the products!
Furthermore, ThraneLINK will in the future offer remote diagnostics with the opportunity of
performing diagnostic from shore. This will allow the maintenance partner to plan and
prepare service before boarding the vessel, and ensure the technician is prepared and has
the right tools and parts with him –cutting cost and time. This feature will be available
through the SAILOR FleetBroadband products in a later release.
All this adds up to the fact that installation and maintenance of the SAILOR equipment is
easier than ever seen before. A result of this might be that our partners will be able to offer
optimized maintenance and lower cost of ownership to the ship owners since less time is
needed for trouble shooting and general service.
But ThraneLINK is much more than this. In the future new services and products will be
available. As ThraneLINK is based on open standards, products from other makers can be
integrated into the network, and the benefits will be available for these products as well.
ThraneLINK is a uniform protocol suite that provides a future proof solution to all vessels.

Sales Introduction –SAILOR 6222 VHF DSC Class A
Cobham SATCOM, 18 July 2013
Niels Peter Agdal
www.cobham.com
11
4.2 USP list:
Famous SAILOR Replay feature –Now 240 sec.
ThraneLINK
Waterproof IPx6/IPx8 –a first for VHF DSC Class A products
Unique Man-Machine-Interface
oGraphical display
Invert to optimize reading capabilities both day and night
Red backlight to protect night vision
oMenus
Intuitive and easy to operate menus
Available in multiple languages
oHandset design
Ruggedized and durable design
Based on the legacy SAILOR handset
Feels great in the hand
Ear piece:
Covers ear
Reduces noise
Powerful loudspeaker
Microphone:
Design reduces external noise
oLarge tactile buttons for easy operation
Built in high quality 6W loudspeaker
All Channel tables in one unit
Flexible installation for multiple users/locations
oUp to 4 SAILOR 6204 Control Speaker Microphones can be connected
oUp to 3 SAILOR 6201 Handsets can be connected
Alert Mute button
Straightforward Service interface: LAN port connected to PC with standard
browser
Complies with new DSC spec: ITU 493-13
4.3 Feature list:
Programming of up to 100 private channels (P/F/L)
Hi/Lo (25/1W)
25kHz/12.5kHz channel spacing
Dual- / Tri-watch and Scanning
Connection for external 6W speaker
LO Power forced control (for environments containing gas etc)
NMEA0183 (support 61162-1 in) GPS in
DSC Address book
VDR interface
Printer interface through a print server

Sales Introduction –SAILOR 6222 VHF DSC Class A
Cobham SATCOM, 18 July 2013
Niels Peter Agdal
www.cobham.com
12
Training programming available:
o1W + DSC on channel 69
Full remote control via LAN incl VoIP (Available in later SW release)
4.4 SAILOR Replay
The SAILOR Replay that was first introduced in the SAILOR RT5022 VHF will also be
available in the SAILOR 6222 VHF. The SAILOR Replay functionality is a unique tool that
allows the user to listen to a message again. The incoming call is stored in the radio and the
operator can simply press the button should they need to listen to the call again. This clearly
enhances safety and ensures that calls to the vessel are never missed.
The Replay function in the SAILOR 6222 VHF records the latest 240 seconds of incoming
communications. It improves on previous incarnations of the Replay functionality as it is
supported by an improved menu structure that allows the user to scroll easier between the
recorded messages.
4.5 Display
It is important to the user to quickly and easily understand the text in the display in order
operate the VHF safely and efficiently. The 3.2” QVA graphical display (320x240 pixels)
ensures the information on the display can be read regardless of the light conditions on the
bridge –day or night. The text in the display can be displayed as white on black background,
and as black on white background, to provide the optimal reading condition in daylight. For
protection of night vision, the text can be displayed as red on black background. The
backlight in the display is red for the same reason. Dimming control of the display is also
available.
The graphical display has a contrast of > 1:300 and is so clear and detailed that it could
even display pictures! It provides all text and numbers in large and easy-to-read fonts. This
type of display is also very easy to read even from very wide angles, which enables the user
to read the displays even when occupied in another operation.
In addition to the standard operation, this very good display provides for even more
advanced usage in the future.

Sales Introduction –SAILOR 6222 VHF DSC Class A
Cobham SATCOM, 18 July 2013
Niels Peter Agdal
www.cobham.com
13
4.6 Menus
The intuitive menu structure design is highly influenced by modern IT and Mobile phones.
The same menu system is used for the SAILOR 6300 MF/HFs, making it easier for the user
to operate the complete SAILOR 6000 package.
The menus are standard in English.
4.7 Keypad and buttons
The keypad and large buttons offers easy and intuitive operation. The large tactile buttons
and rotary knobs provide are identical to the buttons on the SAILOR 6301 Control Unit
making the operation across the SAILOR 6000 package easier.
4.8 Handset
One SAILOR 6201 Handset with cradle is supplied with the SAILOR 6222 VHF as standard.
However a total of 3 SAILOR 6201 Handsets (406201A) can be connected to the SAILOR
6222 VHF.
The SAILOR 6202 Hand Microphone (406202A) can replace the SAILOR 6201 Handset in the
installation. Only one SAILOR 6202 Hand Microphone can be connected to a Control Unit as
the Hand Microphone does not include a hook off switch.
The SAILOR 6201 Handset is the same design as the very popular HS5001 used on the
SAILOR RT5022 VHF and SAILOR System 5000 MF/HF, but updated to interface to the
SAILOR 6000 VHFs and MF/HFs. It is specially designed for the harsh environment at sea.
The edges are rounded off to make it comfortable to hold, and the PTT switch is placed
centrally in the handset in order to make it feel natural to activate when the operator wants
to communicate.
The curvature of the handset is designed to suit the typical head contour, making it
comfortable and natural to operate. The earpiece is designed to fit the ear comfortably, in
order to reduce the level of outside noise noticeable to the operator. Moreover, the handset
is also designed to reduce the impact of outside noise in the microphone –especially the
noise of the wind, which often creates an unpleasant sound during transmission.
The SAILOR 6201 Handset provides an integrated spiral cord connecting to the CU through a
waterproof circular plug. The cradle supplied with the handset is rugged and ensures that
the handset can be installed in any angle; a solid grip is necessary to lift the handset from
the cradle. A built-in magnet switch activates the hook-off.

Sales Introduction –SAILOR 6222 VHF DSC Class A
Cobham SATCOM, 18 July 2013
Niels Peter Agdal
www.cobham.com
14
The new SAILOR 6203 Handset Waterproof is the waterproof version of the SAILOR 6201
Handset. The SAILOR 6203 Handset is waterproof to IPx6 and ideal for installations where
the handset can be exposed to water.
4.9 Loudspeaker
The very powerful 6W loudspeaker built into the control unit ensures excellent sound quality,
even in the noisy environment of the bridge. The integration of the loudspeaker makes
system installation easier and requires less space on the bridge because no external speaker
is required (although one is available as an option).
4.10 Waterproof –IPx8 and IPx6 rated
The SAILOR 6222 is IPx8 and IPx6 rated, this is truly outstanding compared to the
competition and makes the VHF very versatile, as it’s possible to install the radio in
environments where IP rating is a MUST. The IPx8 means that the units can sustain
submersion up to 1½ meters of water for ½ hour. The IPx6 test is even tougher: The
equipment is sprayed from all practical directions with a stream of water from a 12.5mm
muzzle, applying a 100l/min water level from a distance of 3 meters. Test duration is
approximately 30 minutes. After the test a performance check on the equipment is carried
out. A test for damage and unwanted water ingress is performed. Due to the water pressure
the IPx6 test is much tougher to comply with than IPx8, and Ensures that the SAILOR 6222
VHF is even more suited to the harsh environment it will be used in.
Please note that the SAILOR 6201 Handset is not waterproof. The special waterproof version
of the handset is SAILOR 6203 Handset Waterproof.
4.11 Channel Tables
The SAILOR 6222 VHF is programmed from the factory with all the standard relevant
channel tables:
-International
-US incl WX
-Canadian
-BI (European Inland Waterways)
-Including ATIS and ATIS Killer
The operator can simply choose what channel table he needs to use in the area the vessel
operates in from the menu. This feature makes it easier for the operator to make sure that
the VHF operates on the channels as specified locally. It also simplifies logistics in our
distribution channels as only one version is needed on stock to fulfil the requirements of
vessels operating in different regions.
4.12 Private channels
Up to 100 private channels can be programmed in the VHF. The maximum of 100 channels
can be grouped into P, L and F channels. The extra channels are programmed using a PC
connected to the LAN port, and using the standard browser on the PC. A password is
required to enter the programming. The password is included in the Service manual and
training.

Sales Introduction –SAILOR 6222 VHF DSC Class A
Cobham SATCOM, 18 July 2013
Niels Peter Agdal
www.cobham.com
15
4.13 Powerful transceiver
SAILOR VHF radios have always been known for the powerful transceivers. The SAILOR
6222 VHF transmitter is designed to maintain the most powerful output almost regardless of
stress or conditions. Innovative cooling ensures the transmitter is able to maintain the high
output power even during long and heavy usage. The receiver sensitivity is truly outstanding
and makes sure reception is optimal.
The transceiver design ensures that the vessel always has a powerful and reliable VHF in
during critical situations and in all conditions at sea.
4.14 Printer
Direct printing from the SAILOR 6222 VHF to the SAILOR H1252B Printer will be available
through a print server.
4.15 NMEA Interface
The SAILOR 6222 VHF has a standard NMEA 0183 interface which is used for GPS input (IEC
61162-1 In support) from e.g. the vessel’s standard GPS or the SAILOR 6110 Mini-C GMDSS.
5Installation
All necessary equipment for installation of the SAILOR 6222 VHF is available in the package.
A U-Bracket for desk top installation and a flush mounting kit is included.
The SAILOR 6222 VHF uses 12 V DC. The SAILOR 6090 Power Converter which converts 24V
to 12V is supplied as standard fit and is included in the package.

Sales Introduction –SAILOR 6222 VHF DSC Class A
Cobham SATCOM, 18 July 2013
Niels Peter Agdal
www.cobham.com
16
System configuration example –See the Installation manual for different installation
scenarios.
Please note: A comprehensive overview of different installation scenarios is available in the
Installation manual
5.1 Programming
When powering up the radio for the first time, the operator is asked to enter the MMSI
number. This can be done from the front of the VHF or via LAN. The number can be
changed (e.g. in case of a flag change) by connecting the SAILOR 6222 VHF via LAN to a PC
and browser (requires password). Additional private channels can also easily be programmed
from a PC using the LAN Cable that is connected to the LAN port of the VHF.
5.2 Connectors
Two antennas one for transmission and receiving and one for DSC
PWR Fuse: 12VDC power via the new power connector with integrated fuse
and a Power on signal to the external power supply
LAN: Ethernet/LAN for service tool, connectivity to other SAILOR 6000
products, printer and remote control.
ACC: For interface to external equipment such as
oSAILOR 6201/03 Hand-set + Sailor 6202 Hand microphone
oGPS in via NMEA 0183
CTRL:
oThis is the CAN bus connector port that drives the Control Speaker
Microphones.
AUX:
oFor VDR, GPS in via NMEA 0183, AUX OC (can be set to
independently), DSC Call, DSC Alarm, External Speaker, Low Power
Forced Control in eg. Oil/Gas installations

Sales Introduction –SAILOR 6222 VHF DSC Class A
Cobham SATCOM, 18 July 2013
Niels Peter Agdal
www.cobham.com
17
5.2.1 GPS input
Instead of connecting the SAILOR 6222 VHF DSC to an external GPS, the GPS input can be
taken from the SAILOR 6110 Mini-C GMDSS Via the already connected ThraneLINK,
Therefore, no additional cabling is needed.
6Service
The SAILOR 6222 VHF will be handled through normal service setup. Because the SAILOR
6222 VHF is waterproof, there are limitations on what can be repaired in the field as the
units cannot be opened without breaching the waterproof sealing.
The high quality design, manufacturing and testing ensures that the SAILOR 6222 VHF is
very reliable, however, if a unit should fail during the first months of use, the unit shall be
replaced and returned to Thrane & Thrane for inspection.
7Approvals
The SAILOR 6222 VHF has received the following:
Product
Approvals
SAILOR 6222 VHF DSC Class
A
MED (Wheelmark, FFC, Canadian, Chinese (CCS),
Russian, Brazilian and Korean
Please contact your dedicated Cobham SATCOM sales staff for further discussion regarding
specific needs that you may have.

Sales Introduction –SAILOR 6222 VHF DSC Class A
Cobham SATCOM, 18 July 2013
Niels Peter Agdal
www.cobham.com
18
8Technical Specification
*
*extended frequency range in private channels

Sales Introduction –SAILOR 6222 VHF DSC Class A
Cobham SATCOM, 18 July 2013
Niels Peter Agdal
www.cobham.com
19

Sales Introduction –SAILOR 6222 VHF DSC Class A
Cobham SATCOM, 18 July 2013
Niels Peter Agdal
www.cobham.com
20
