Code Alarm PROFESSIONAL SERIES User manual

1
2020 Voxx Electronics Corporation. All rights reserved.
PROFESSIONAL
SERIES
Security and Keyless Entry
Installation Guide
ca1155
**This guide is a reference for module rmware version 5.0 or higher**

2ca1155 rev B
Before You Begin.........................................................................................3
Wire Connection Guide............................................................................... 4
12 Pin Main Harness ................................................................................. 5
10 Pin Input / Output Harness ................................................................... 8
Door Locks .............................................................................................. 11
Additional Ports.........................................................................................12
LED Port ..................................................................................................12
Programming Port ...................................................................................12
Shock Sensor Port ..................................................................................12
DBI Port ...................................................................................................12
Set Up & Programming ............................................................................. 13
Transmitter Programming ........................................................................13
Manual Feature Programming ................................................................. 13
Programming Feature Banks .................................................................. 14
PC Based Feature Programming / Firmware Updates - (Optional) ......... 15
Adjusting the Shock Sensor .................................................................... 16
Testing the Shock Sensor ........................................................................16
Dome Light Delay / Theater Dimming ..................................................... 16
Chirp Delete - User Accessible ................................................................ 17
User Selectable LED ...............................................................................17
Feature Descriptions................................................................................. 17
Transmitter Button Functions .................................................................. 22
Security Trigger Zones.............................................................................. 22
System Layout...........................................................................................23
Table of Contents

3
2020 Voxx Electronics Corporation. All rights reserved.
PROFESSIONAL INSTALLATION
STRONGLY RECOMMENDED
Installation Precautions:
Roll down window to avoid locking keys in vehicle
during installation
Avoid mounting components or routing wires near
hot surfaces
Avoid mounting components or routing wires near
moving parts
Tape or loom wires under hood for protection and
appearance
Technical Support [phone]
or go to
www.voxxuniversity.com
Use a Digital Multi Meter for testing and verifying
circuits. DO NOT USE A TEST LIGHT, OR
“COMPUTER SAFE PROBE” as these can set o󰀨 air
bags or damage vehicle computers.
Use grommets when routing wires through metal
surfaces
BEFORE YOU BEGIN

4ca1155 rev B
10 Pin Input / Output Harness
12 Pin Main Harness
1BROWNSIREN OUTPUT ( + )
2REDBATTERY 12V ( + )
3BLACKGROUND
4BROWN/BLACKUNLOCK SWITCH ( 87A )
5VIOLET/BLACK UNLOCK POLARITY ( 87 )
6WHITE/BLACKLOCK SWITCH ( 87A )
7GREEN/BLACK LOCK MOTOR ( 30 )
8WHITE PARKING LIGHT OUTPUT
9WHITE/REDPARKING LIGHT INPUT
10 WHITE PARKING LIGHT OUTPUT
11 VIOLET LOCK POLARITY ( 87 )
12 BLUE/BLACK UNLOCK MOTOR ( 30 )
12 PIN MAIN - POWER / LOCKS
1PURPLE DOOR TRIGGER INPUT ( + )
2GREEN/BLACK FACTORY DISARM OUTPUT ( - )
3OPEN
4GREEN DOOR TRIGGER INPUT ( - )
5ORANGE GROUND WHEN ARMED OUTPUT ( - )
6BROWN/BLACKHORN OUTPUT ( - )
7VIOLET/BLACK AUX 1 ( - )
8GRAY HOOD PIN INPUT ( - )
9YELLOWIGNITION INPUT ( + )
10 RED/WHITETRUNK RELEASE OUTPUT ( - )
10 PIN INPUT / OUTPUT

5
2020 Voxx Electronics Corporation. All rights reserved.
12 Pin Main Harness
1 BROWN SIREN OUTPUT ( + )
Locate a suitable mounting location in the engine compartment for the siren, away
from moving parts.
With the bell of the siren aiming downwards, secure the siren in place using self
tapping screws, being careful not do drill into any hoses, wiring or components.
Connect the BLACK siren wire to a chassis ground using a ring terminal and self
tapping screw (not supplied).
Route the BROWN siren output wire from the control module through the rewall and
connect to the RED wire on the siren.
NOTE: Be sure to loom the siren wires, and seal the grommet.
3 BLACK GROUND
Connect the BLACK wire to a solid chassis ground point using a ring terminal and
self tapping screw (not supplied). Scrape away paint from the grounding point to
ensure a good connection. The recommended grounding point is a metal surface in
the driver’s side kick panel area.
NOTE: Do not ground the BLACK wire with any other vehicle components.
2 RED BATTERY 12V ( + )
Locate 1 of the vehicle’s constant 12 Volt battery wires at the ignition switch.
 Verication:This wire will register ( + ) voltage in all positions of the ignition
switch.
Connect the RED wire to the constant 12 Volt battery wire.
NOTE: Remove all fuses until all connections are made.

6ca1155 rev B
8 WHITE PARKING LIGHT OUTPUT
9 WHITE/RED PARKING LIGHT INPUT
10 WHITE PARKING LIGHT OUTPUT
Locate the parking light output wire at the vehicle’s light switch.
  Verication: This wire registers positive voltage when the parking lights
are turned on.
Positive switching Parking Lights:
Connect the WHITE/RED wire to a 15 Amp max fused battery source.
Connect the WHITE wire to the parking light output wire.
Negative switching Parking Lights:
Connect the WHITE/RED wire to a good chassis ground.
Connect the WHITE wire to the parking light output wire.
4 BROWN/BLACK UNLOCK SWITCH ( 87A )
Refer to the Door Lock Section on page 11 of this guide.
5 VIOLET/BLACK UNLOCK POLARITY ( 87 )
Refer to the Door Lock Section on page 11 of this guide.
6 WHITE/BLACK LOCK SWITCH ( 87A )
Refer to the Door Lock Section on page 11 of this guide.
7 GREEN/BLACK LOCK MOTOR ( 30 )
Refer to the Door Lock Section on page 11 of this guide.

7
2020 Voxx Electronics Corporation. All rights reserved.
12 BLUE/BLACK UNLOCK MOTOR ( 30 )
Refer to the Door Lock Section on page 11 of this guide.
11 VIOLET LOCK POLARITY ( 87 )
Refer to the Door Lock Section on page 11 of this guide.

8ca1155 rev B
10 Pin Input / Output Harness
1 PURPLE DOOR TRIGGER INPUT ( + )
Locate the vehicle’s dome light or door pin switch wire.
 Verication:This wire will register positive voltage (POS) when the door is
opened and the interior light is on. This wire will
register ground or “0” Volts when the door is closed and the interior light is
o󰀨.
Connect the PURPLE wire to the vehicle’s positive door input wire(s).
NOTE: Certain vehicles may require multiple connections. Refer to vehicle
application guide
4 GREEN DOOR TRIGGER INPUT ( - )
Locate the vehicle’s dome light or door pin switch wire.
 Verication:This wire will register ground (NEG) when the door is opened
and the interior light is on. This wire will register positive voltage when the
door is closed and the interior light is o󰀨.
Connect the GREEN wire to the vehicle’s negative door input wire(s).
NOTE: Certain vehicles may require multiple connections. Refer to vehicle
application guide
2 GREEN/BLACK FACTORY DISARM ( - )
This wire will supply a ( - ) 300mA pulse both upon disarming the system and when
the trunk release feature is activated. Locate the factory perimeter alarm disarm wire
from the key cylinder inside the drivers door.
  Verication: This wire registers ground if the key is turned to the unlock
position in the driver’s door cylinder.
Connect the GREEN/BLACK wire to the factory alarm disarm wire.
3 OPEN

9
2020 Voxx Electronics Corporation. All rights reserved.
5 ORANGE GROUND WHEN ARMED OUTPUT ( - )
This wire will have a continuous ( - ) 300mA output when the system is Armed. This
wire is typically used for controlling window modules or additional sensors.
9 YELLOW IGNITION INPUT ( + )
Locate the vehicle’s ignition wire at the ignition switch.
  Verication:This wire registers voltage when the key is turned to the ON (or
RUN) position. The voltage does not drop out when the key is turned to the
START (or CRANK) position.
Connect the YELLOW wire to the vehicle’s Ignition wire.
8 GRAY HOOD PIN INPUT ( - )
Install a Hood Pin Switch and connect to the GRAY wire.
 Verication:This wire when connected will register ground when the
vehicle’s hood is opened.
Connect the GRAY wire to the hood pin.
NOTE: Be sure to loom the wire, and seal the grommet.
6 BROWN/BLACK HORN OUTPUT ( - )
Locate the vehicle’s horn wire.
 Verication:This wire will register at positive voltage and register
ground when the horn switch is pressed.
Connect the BROWN/BLACK wire to the vehicle’s horn wire. This is a low current
output, 300mA.
7 VIOLET/BLACK AUX 1 OUTPUT ( - )
This wire provides a ( - ) 300mA output capable of driving relays. For Control of
optional accessories (i.e. Power Window/Sunroof, etc.).
To activate refer to the transmitter button conguration chart. Please refer to the
selectable options for timing.

10 ca1155 rev B
10 RED/WHITE TRUNK RELEASE OUTPUT ( - )
Locate the vehicle’s trunk release wire at the trunk release switch.
 Verication:This wire will register either positive voltage or ground when
the trunk release is activated.
This is a low current output, 300mA.

11
2020 Voxx Electronics Corporation. All rights reserved.
Door Locks
1 BROWN/BLACK UNLOCK SWITCH ( 87A )
2 BLUE/BLACK UNLOCK MOTOR ( 30 )
3 VIOLET/BLACK UNLOCK POLARITY ( 87 )
4 WHITE/BLACK LOCK SWITCH ( 87A )
5 GREEN/BLACK LOCK MOTOR ( 30 )
6 VIOLET LOCK POLARITY ( 87 )
The door lock / unlock outputs are designed to control several di󰀨erent types of
systems which may require additional parts.
3 Wire Ground Switched Door Locks:
Connect the GREEN/BLACK wire to the wire that provides a ground signal from the
factory door lock switch to the factory door lock control relay.
Connect the BLUE/BLACK wire to the wire that provides a ground signal from the
factory door unlock switch to the factory door lock control relay.
Connect the VIOLET and the VIOLET/BLACK wires to a solid chassis ground point.
The WHITE/BLACK and BROWN/BLACK wires are not required for this type of door
lock/unlock system.
3 Wire Positive Switched Door Locks:
Connect the GREEN/BLACK wire to the wire that provides a +12 volt signal from the
factory door lock switch to the factory door lock control relay.
Connect the BLUE/BLACK wire to the wire that provides a +12 volt signal from the
factory door unlock switch to the factory door lock control relay.
Connect the VIOLET and the VIOLET/BLACK wires to a +12 volt battery source. The
WHITE/BLACK and BROWN/BLACK wires are not required for this type of door lock/
unlock system.

12 ca1155 rev B
DBI Port - 4 Pin Data Bus Interface
The DBI port is used for external Flashlogic data immobilizer & door lock Interface
modules to communicate with the vehicle’s databus. When using the DBI port to
control Flashlogic modules please refer to the D2D (Data to Data) function list
available per vehicle rmware on the tech service web site.
LED Port
The LED included in the kit will serve as a visual indicator of the alarm’s status. It
should be installed in the dash, located where it can be easily seen from outside the
vehicle, yet not be distracting to the driver. Once a location has been selected, check
behind the panel for wire routing access, and to conrm the drill will not damage any
existing components as it passes through the panel. Drill a 1/4” hole, and
pass the red and blue wires from the LED through the hole, from the front of the
panel. Firmly press the body of LED into the hole until fully seated.
Additional Ports
Programming / Valet Button Port
Select a mounting location that is within reach of the ignition switch, as this switch in
combination with the ignition switch, will be used to program the certain features of
the system. It is suggested that the switch be mounted to the lower dash panel in the
driver’s area within reach of the driver.
Shock Sensor Port
Select a solid mounting surface for the shock sensor inside the passenger
compartment (behind the dash), and mount the sensor using cable ties, making sure
to allow access to the sensitivity adjustment for use later in the installation.

13
2020 Voxx Electronics Corporation. All rights reserved.
Manual Feature Programming - Feature Bank 2 & 3
1. Turn the ignition ON.
2. Press and hold the valet/override button.
3. Within 10 seconds the system will chirp (3) three times.
4. Use the valet/override button to advance through each option bank. For
feature programming advance to Feature Bank 2 or 3, which is (4) four or
(5) ve chirps.
5. Use the transmitter button to scroll through the selections in each
feature bank, the system will chirp to match the feature number.
6. Press the transmitter button to change the desired feature. The LED will
ash indicating the changed feature.
Set Up & Programming

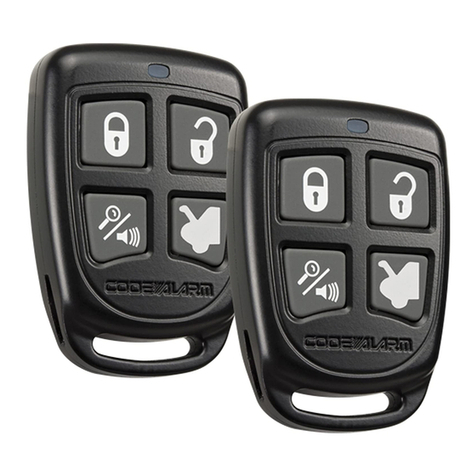

Transmitter Programming - Feature Bank 1
1. Turn the ignition ON.
2. Press and hold the valet/override button.
3. Within 10 seconds the system will chirp (3) three times.
4. Press 1 button of each transmitter you wish to program.
5. The system will respond with 1 chirp for each accepted transmitter.
6. Pressing the override button at anytime during programming will advance to
the next bank.
NOTE: The system will exit transmitter programming after 15 seconds of inactivity.
NOTE: This system has 1 button programming which programs all channels of the
system.
NOTE: The system will hold up to 4 transmitters in memory, programming a 5th
transmitter will erase the oldest transmitter in memory.
Defaulting All Features: Pressing the button anytime while in any of the feature
banks will default all features and return you to feature bank 2 - 4 chirps.
NOTE: The system will remain in feature programming mode as long as the ignition
is on, there is no time limit. To exit programming turn the IGNITION OFF.

14 ca1155 rev B
Refer to transmitter programming.
Feature Bank 1 - 3 Chirps
Transm itter Programming
Fe
ature Bank 2 - 4 Chirps
Se
curity Control 1 LED Flash 2 LED Flash 3 LED Flash 4 LED Flash 5 LED Flash 6 LED Flash
1Silent Choice ON OFF
2Door Locks Active Passive
3System ArmingActive Passive
4System Notifications Siren & Horn Siren Only Horn Only
5Alarm Duration 30 Seconds60 Seconds
6SecurityON OFFON w/ OEM
Remote Start
7Anti-Hijack Mode OFFON
8
Gr
ound While Armed
Or
ange ( - ) Output
Ground While
Armed
Ground While
Disarmed
9DBI Port ProtocolDBIADS
10 Arm / Disarm Chirps
Standard:
2 - Arm
1 - Disa rm
Inve rted:
1 - Arm
2 - Disarm
11 LED IndicatorON OFF
12 Auto Re-lock OFFLock Only Arm & Lock
13 Extended Parking LightsOFF After Unlock After LockAfter Lock &
Unlock
14
Pa
rking Light Relay / Trunk ( - )
Ou
tput Standard Inverted
15 Digital Tilt SensorN/A
16
Do
melight Delay:
Pr
eset Time or Programmable
OFF /
Program
Custom Time
15 Seconds 30 Seconds 45 Seconds60 Seconds 120 Seconds
Programming Update Notice: Firmware version 5.0 or later.

15
2020 Voxx Electronics Corporation. All rights reserved.
Feature Bank 3 - 5 Chirps
Output Control 1 LED Flash 2 LED Flash 3 LED Flash 4 LED Flash 5 LED Flash 6 LED Flash
1Lock / Unlock Timing 1 Sec. 3.5 Sec. 1 Sec. Lock,
2x Unlock
30 Sec. Lock,
2x Unlock
2x Lock,
1 Sec. Unlock 0.5 Sec.
2Factory Disarm
Lt Green / Black
Factory
Disa rm 2nd Unlock Factory Disarm
2x 500mS
Factory Disarm
350mS
Factory Disarm
500mS
Factory Disarm
w/ Unlock
Timing
3Ignition Locks OFFLock / Unlock Lock Only Unlock Only
4Trunk Output Timing1 Sec. 10 Sec.20 Sec. Latched until
IGN ON
Latched ON
until Button
Press
5Horn Output Timing16mS 10mS 30mS 40mS 50mS
6Real PanicON OFF
7AUX 1
Violet / Black Output
Push and
Hold LatchedLatched until
IGN ON
Dome Light
Output
PC Based Feature Programming / Firmware Updates (optional)
When using the NEW Code Alarm Utility App along with a VEPROG Programming
tool you may program selectable features or update the rmware of this module.
To Use a PC and VEPROG tool for Feature Programming or Firmware Updates:
1. Download and install the Code Alarm Utility App. from the Voxx Tech / Software
Downloads section of voxxuniversity.com (login required)
2. Launch the Code Alarm Utility App.
3. Connect the VEPROG to your PC via the USB port.
4. Connect the VEPROG to the Code Alarm Module.
5. Select the features you wish to change or update rmware if needed.

16 ca1155 rev B
Dome Light Delay / Theater Dimming
When the Dome Light Delay is set to “Program Custom Time” in feature
programming (this is the default setting) the system can be programed to delay
arming after the lock button is pressed for vehicles with a dome light delay or theater
dimming feature. Once programed the system will ‘learn’ the timing of the dome light
delay (60 second max) and add 2 seconds before arming.
1. Close all doors with ignition o󰀨.
2. Using the transmitter press LOCK, UNLOCK, LOCK ,UNLOCK, LOCK ,
UNLOCK, LOCK. The LED will light solid to indicate the system has
entered DOME DELAY LEARN MODE.
3. Immediately OPEN then CLOSE the door WITHOUT disarming the
system. The system will then monitor the door trigger wire. Once the
dome light turns o󰀨, the system will then add 2 seconds and then exit
the learning mode.
4. The LED will begin to ash indicating the system has exited the
learning mode and is now armed.
Note: To program a custom delay time Feature Bank 2, Feature 16, “Dome Light
Delay: Preset Time or Programmable, must be set to “OFF/Program Custom Time”.
Defaulting the Dome Light Delay: Turn the ignition ON then OFF 3 times then
press and hold the valet button for 5 seconds, the system will chirp 1 time indicating
the learned delay time has been cleared.
Adjusting the Shock Sensor
1. Increase sensitivity by turning the adjustment dial clockwise.
2. Decrease sensitivity by turning the adjustment dial counter clockwise.
Testing the Shock Sensor
Arm the system and wait 6 seconds for the zone to stabilize, then rmly strike the
vehicles bumper.

17
2020 Voxx Electronics Corporation. All rights reserved.
Feature Bank 2 - Security
1 - Silent Choice: Controls the normal arm/disarm chirps of the security system.
ON - Silent arming/disarming upon rst press of lock/unlock, pressing lock/
unlock a second time will activate the arm/disarm chirps respectively. The
system will only sound the arm/disarm chirps upon a second press of the
lock/unlock buttons.
OFF - normal arm/disarm chirps upon the rst press of lock/unlock.
2 - Door Locks: Determines manual or automatic locking of the vehicle’s doors.
Active - Requires use of the transmitter to lock the vehicle’s doors.
Passive - Automatically locks the vehicle’s doors 1 minute after the last door
is closed.
Note: For Passive Locks, feature #3, System Arming, must also be
set to passive.
3 - System Arming: Determines manual or automatic locking of the vehicle’s doors.
Active - Requires use of the transmitter to arm the security system.
Passive - Automatically arms the security system 1 minute after the last
door is closed
Feature Descriptions
Chirp Delete - User Accessible
System ARM/DISARM chirps can be toggled ON or OFF without entering the
programming feature banks.
1. Turn the ignition ON then OFF.
2. Press and release the valet/programming button 3 times. The system
will respond with 1 chirp for ON or 2 chirps for OFF.
User Selectable LED
This feature will control whether the LED is ON or OFF when the system is Armed/
Locked. This will be selectable in feature programming OR on-the-y without entering
the programming feature banks.
1. Turn the ignition ON, OFF, ON, OFF.
2. Press and release the valet/programming button 3 times. The system
will respond with 1 chirp for ON or 2 chirps for OFF.

18 ca1155 rev B
4 - System Notications: This feature selects which output(s) will sound the
system’s arm/disarm chirps. This feature does not e󰀨ect the triggered state of the
security system and during a triggered cycle, both the siren and horn outputs will
activate respectively.
Siren & Horn – Siren and horn both sound when arming/disarming the system.
Siren Only – Only the siren will sound when arming/disarming the system.
Horn Only - Only the horn will sound when arming/disarming the system.
5 - Alarm Duration: Determines the length of time the system will sound the siren/
horn during a full trigger event.
30 Seconds – When triggered, the system will sound the siren/horn for 30
seconds then stop. The unit will remain armed and may be triggered again.
60 Seconds – When triggered, the system will sound the siren/horn for 60
seconds then stop. The unit will remain armed and may be triggered again.
6 - Security: Controls security functionality - ON / OFF.
ON - Full security functionality.
OFF - The security system does not trigger. Panic and all other convenience
features operate as normal.
ON w/OEM Remote Start Compatibility - This will prevent a vehicle’s factory
remote start from triggering the security system when activated. The system
will use the ignition input to shunt shock and door inputs until 5 seconds after
they clear. If the alarm is triggered prior to ignition on, then ignition will not
shunt/cancel the alarm’s triggered state. Also, note that the ignition input will no
longer serve as a trigger if this option is selected on.
7 - Anti-Hijack Mode: Controls Car Jack mode - ON / OFF.
OFF - Standard security system operation.
ON - Enables Car Jack mode functionality as described in the owners
manual
8 - Ground While Armed / Orange Output: Controls the output of the orange wire.
This wire will either supply a ( - ) output when armed OR disarmed.
9 - DBI Port Protocol: Determines the protocol type in which the DBI port uses to
interface with external modules.
DBI Protocol
ADS Protocol

19
2020 Voxx Electronics Corporation. All rights reserved.
10 - Arm/Disarm Chirps: Determines the number of chirps and parking light ashes
when the system is armed/disarmed.
Standard - 2 chirps/light ashes with arm, 1 chirp/light ash with disarm.
Inverted - 1 chirp/light ash with arm, 2 chirps/light ashes with disarm.
11 - LED Indicator: Control of the LED when the system is armed / locked.
ON - LED will ash when system is armed / locked
OFF – LED will not ash when system is armed / locked. Only applies to
normal operation (armed/locked) and does not a󰀨ect programming, valet
mode, diagnostics, passive lock countdown or PTN
12 - Auto Re-Lock: When Auto Re-lock is selected, the system will re-lock the
vehicle after 3 minutes if the system was disarmed and a door was NOT opened
within that set amount of time. A door opening within this time cancels Auto Re-Lock.
Note: This feature is separate from Passive/Active Arming
OFF – Standard operation.
Lock Only – The unit will re-lock the vehicle after 3 minutes if the system was
disarmed and a door was NOT opened within that time.
Arm & Lock (security units only) - The system will arm and also re-lock the
vehicle after 3 minutes if the system was disarmed and a door was NOT
opened within that time.
13 - Extended Parking Lights: When selected, this feature will keep the parking
lights on for an additional 30 seconds after the standard ashes when pressing lock
or unlock.
OFF – Normal parking light function.
After Unlock – Parking lights will stay on for 30 seconds after normal unlock
ashes.
After Lock - Parking lights will stay on for 30 seconds after normal lock ashes.
After Lock & Unlock - Parking lights will stay on for 30 seconds after normal
lock and unlock ashes.
14 - Parking Light Relay / Trunk ( - ) Output: This feature gives the installer the
ability to swap the functions of the Parking Light Relay & Trunk Output.
Standard – No change to outputs.
Inverted – When inverted, the Trunk Red / White ( - ) Output will function as the
Parking Light Output and the Parking Light White & White/ Red will function as
the Trunk Output.
15 - Not available on this model.

20 ca1155 rev B
Feature Bank 3 - Output Control
1 - Lock / Unlock Timing: Controls the timing of the BLUE and GREEN lock output
wires.
1 Sec. - Single 1 second lock pulse, single 1 second unlock pulse.
3.5 Sec. - Single 3.5 second lock pulse, single 3.5 second unlock pulse.
1 Sec. Lock, 2x Unlock - Single 1 second lock pulse, double 1 second unlock
pulse.
30 Sec. Lock, 2x Unlock - Single 30 second lock pulse, double 1 second
unlock pulse.
2x Lock, 1 Sec. Unlock - Double 1 second lock pulse, single 1 second unlock
pulse.
0.5 Sec. Pulse - Single 0.5 second lock pulse, single 0.5 second unlock pulse.
2 - Factory Disarm, Lt Green/Black Output: Controls the timing of the LT. GREEN/
BLACK factory disarm output.
Factory Disarm - Single 1 second pulse with unlock and remote start activation.
2nd Unlock - Same output timing as unlock with 2nd press of unlock only.
Factory Disarm 2x 500mS - Double 500mS second pulse with unlock and
remote start activation.
Factory Disarm 350mS - Single 350mS second pulse with unlock and remote
start activation.
Factory Disarm 500mS - Single 500mS second pulse with unlock and remote
start activation.
Factory Disarm w/ Unlock Timing – Uses the timing option set for Unlock in
Bank 3, Feature 1.
16 - Dome Light Delay, Preset Time or Programmable: The system can be
programmed to delay arming after the lock button is pressed based on preset delay
times or a customizable delay time.
OFF/Program Custom Time - There will be NO delay unless a custom
delay time has been learned. If a time has been learned, the system will add 2
seconds to the end of the programmed time before arming.
15 Seconds - The system will wait 15 seconds before arming.
30 Seconds - The system will wait 30 seconds before arming.
45 Seconds - The system will wait 45 seconds before arming.
60 Seconds - The system will wait 60 seconds before arming.
120 Seconds - The system will wait 120 seconds before arming.
