Code Reader 1200 Installation and operation manual

Product Reference Guide

2
The specifications and availability of
Code products and services are subject to
change at any time without prior notice.

33
Table of Contents
Code Reader 1200 .......................................................................................................................................................................................... 4
Code Reader 2.0 ............................................................................................................................................................................................. 5
Code Reader 2500 .......................................................................................................................................................................................... 6
Code Reader 3.0 ............................................................................................................................................................................................. 7
Code Reader 3500 .......................................................................................................................................................................................... 8
Accessories..................................................................................................................................................................................................... 9
Soware ....................................................................................................................................................................................................... 13
Service Plans................................................................................................................................................................................................. 14
Reader Comparison Chart ............................................................................................................................................................................ 15

4
Code Reader 1200
Code Reader 1200 (CR1200) is simple, fast and aordable, providing the power of digital imaging technology
at an entry level price.
Features and Benets:
Durable overmolded housing and secured cable ensure drop-shock surviveability•
Ruggedized design with permanent lanyard hook•
Exceponally ‘smooth feel’ trigger - three million acvaons•
Three modes of user feedback ensures ‘good read’: vibraon motor provides tacle feedback in •
noisy or silent environments; visual feedback with mul-color LED; and audible tones
Reads and decodes all symbologies including: 1D, 2D, Data Matrix, PDF417 and 30+ others•
Firmware is eld upgradable•
JavaScript Applicaon Development Suite allows program development to prepare captured data •
for integraon with enterprise soware
Two cabling opons: USB or RS232•
Standard Warranty: 3 years•
Applicaons: Retail, ID Scanning, Forms Processing, Government, Work in Process, Manufacturing

5
Code Reader 2.0
The Code Reader 2.0 (CR2) is a lightweight bar code reader with a unique ergonomic design that can be
customized to further enhance use-case funconality.
Features and Benets:
Dual eld opcs, both short range and long range in the same reader•
Lightweight, ergonomic, fully-mobile modular design (hand held, handle, presentaon stand)•
User feedback with vibraon and/or audible tones•
Equally ecient in batch, cabled or wireless modes•
Reads all linear, stacked and 2D matrix symbologies•
Data output via Bluetooth, USB , RS232 or Keyboard opons•
Powerful data management capability via JavaScript•
Firmware is eld upgradable•
Accessories available to futher ruggedize reader for high-volume use scenarios•
Standard Warranty: 3 years•
Applicaons: Long Range Scanning Applicaons, Manufacturing, Warehouse

6
With new high-performance bar code reading technology the Code Reader 2500 (CR2500) is the most
advanced mobile bar code reader on the market today.
Features and Benets:
Dual eld opcs, both high density and wide eld in the same reader•
Reecon and glare reducing illuminaon•
Lightweight, ergonomic, fully-mobile modular design (hand held, handle, presentaon stand)•
Rapid baery replacement, mulple baery formats and charging opons•
User feedback with vibraon and/or audible tones•
Unequaled performance on rounded, curved, and shiny surfaces•
Reads all linear, stacked and 2D matrix symbologies•
Withstands mulple drops to concrete from 6’•
High speed digital image capture•
Powerful data management capability via JavaScript•
Firmware is eld upgradable•
Mulcolor LEDs with opmal focus and FOV indicator•
Standard Warranty: 3 Years•
Applicaons: Healthcare, Manufacturing, Warehouse, Scanning highly reecve bar codes
Code Reader 2500Code Reader 2500

7

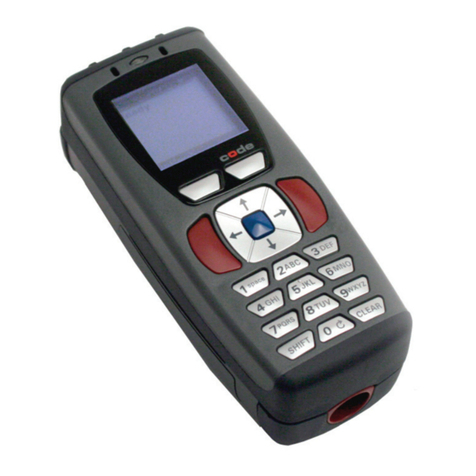

The Code Reader 3.0 (CR3) established a new benchmark for Portable Data Terminals and Hand Held
Computers by combining the industry’s best imaging technology with a graphic display and rugged keyboard
to create the smallest and lightest full-featured bar code reading terminal on the market.
Features and Benets:
Dual eld opcs, both short range and long range in the same reader•
Lightweight, ergonomic, fully-mobile modular design (hand held, handle, presentaon stand)•
Rapid baery replacement, mulple baery formats and charging opons•
User feedback with vibraon and/or audible tones•
Reads all linear, stacked and 2D matrix symbologies•
High speed digital image capture•
Powerful data management capability via JavaScript•
Customize design menus, input screens, and data collecon essenals with ease•
Firmware is eld upgradeable•
Standard Warranty: 2 years•
Applicaons: Long Range Scanning Applicaons, Inventory Control, Shipping/Receiving, Tracking
Code Reader 3.0

8
With new high-performance bar code reading technology the Code Reader 3500 (CR3500) is the most
advanced mobile bar code reader on the market today.
Features and Benets:
Dual eld opcs, both high density and wide eld in the same reader•
Reecon and glare reducing illuminaon•
Lightweight, ergonomic, fully-mobile modular design (hand held, handle, presentaon stand)•
Rapid baery replacement, mulple baery formats and charging opons•
User feedback with vibraon and/or audible tones•
Unequaled performance on rounded, curved, and shiny surfaces•
Over 10 MB of batch data and JavaScript memory•
Reads all linear, stacked and 2D matrix symbologies•
Withstands mulple drops to concrete from 6’•
Powerful data management capability via JavaScript•
Firmware is eld upgradeable•
Mulcolor LEDs with opmal focus and FOV indicator•
Standard Warranty: 2 Years•
Applicaons: Age Vericaon, Government/Military, Inventory Control, Shipping/Receiving, Tracking,
Scanning highly reecve bar codes, Event Tracking, Event Admissions
Code Reader 3500

9
CodeXML Bluetooth Modems:
Transmit and receive Bluetooth signals up to 100 meters • (300)
128-bit Bluetooth Authencaon and Encrypon• (CodeXML M3)
32-bit Encryon • (CodeXML M2)
User-dened pass-phrase generator and downloadable ulity•
Bluetooth to Keyboard, USB or RS232 output • (CodeXML M2 Bluetooth Modem has PS/2 cable opon)
Seamless integraon with Code bar code readers•
Compable with Windows NT, XP & 2000, Linux Applicaons, Programmable Logic Controller, Unix •
Applicaons, legacy terminals
Simple installaon: Simply plug-in the modem and start transming wireless data•
CodeXML M3 Bluetooth Modem is compable with three Code bar code readers simulatenously •
(CodeXML M2 Bluetooth Modem connects one Code reader at a me)
Baery Handles:
Extended trigger life: three million acvaons•
Threaded screw opon to secure reader to handle•
Reader has ‘quick release’ connecon to handle•
Durable over-molded housing improves drop-shock surviveability•
Enhanced protecon to reader window and illuminaon LEDs•
Charge baery handles with UMC or Baery Handle Charger•
Accessories

10
Single Bay Baery Charger:
Charges all palm format Code bar code readers•
Chargers readers without having to remove protecve elastomer boot•
Charging indictator LEDs•
Charge me approximately 2-3 hours•
Dimensions: 4.4”L x 3.0”W x 4.2”H•
Universal Mountable Charger:
Slim design with small footprint for mobile carts and small countertops•
Drain holes minimize potenal damage from accidental liquid spills•
LED charging status indicator•
Hands-free reading funconality while in charging mode (Requires custom JavaScript)•
User-friendly, angled-downward design avoids glare in user’s eyes•
Oponal weighted base•
Charge me approximately 2-3 hours•
Dimensions: UMC: 4.0”H x 2.0”W x 3.5”L Base: 0.1”H x 3.9”W x 5.8”L•
Accessories

11
Baery Handle Charger:
Desk or wall mount opon•
Includes a CodeXML Bluetooth Modem housing compartment•
BH1 charging me approximately 3 hours•
BH2 charging me approximately 6 hours•
Compable with CR2 and CR3 handled bar code readers•
Dimensions: 9.1”L x 3.4”W x 2.0”H•
Two-Bay Baery Charger:
Charge two baeries simultaenously•
Modular design allows for charging either a baery or bar code reader•
Charge indicator LEDs•
Compable with CR2 and CR2500 bar code readers•
Charge me approximately 4 hours•
Dimensions: 4.4”L x 3.0”W x 4.2”H•
Accessories

12
Handles:
Reader and cable are secured to the handle using threaded screws•
Reader ‘snaps’ to handle using baery compartment•
Elastomer over-molding improves drop resilience•
Reader window and LEDs are protected•
Extended trigger life of three million acvaons•
Accomodates oponal lanyard hook aachment to reader•
Dimensions: 5.5”H x 5.0”L x 2.0”W•
Protecve Covers:
Protecve elastomer boot:
Shock-absorbing elastomer•
Available for CR2 and CR2500 bar code readers•
Protecve nylon cover:
Basket weave nylon material •
Durable plasc window •
Available for handled CR3500 bar code reader•
Accessories

13
CodeXML Router:
The CodeXML Router-BE soware was designed to work with Code Readers connected via Bluetooth radio
or cable (USB or RS232). CodeXML Router soware has two (2) primary funcons:
1) Easy Applicaon Interfacing - CodeXML Router-BE allows you to easily connect a Code Reader to serial or
keystroke applicaons. If your applicaon requires keystroke data, CodeXML Router will map data from
a physical or virtual serial port to the keyboard port. If you are sending data from a Code Reader to a
Bluetooth adapter connected to a host computer. You may route the data to any Windows or Pocket PC
applicaon that accepts keystroke data (e.g., Word, Excel or Notepad). CodeXML Router-BE supports all
Windows keyboard mapping opons, ASCII characters, and funcon keys.
2) Reliable Bidireconal Data Transfer - If your applicaon requires data packet conrmaon, CodeXML
Router-BE will monitor each radio communicaon to ensure that data is not lost inadvertently, even if a
Code Reader is taken out of range or loses radio communicaon.
Software

14
Features and Benets of CodeOne Service Plans:
Reduce support costs•
Comprehensive coverage•
End-to-end support services•
Rapid RMA turnaround me•
Diagnosc product evaluaon•
and most of all....savings, me and peace of mind•
CodeOne Service Plans:
CodeOne Standard Service Plan• at no addional cost to you, oers a standard warranty period
CodeOne Plus Service Plan• enhances the security that comes with CodeOne’s standard warranty.
The Plus Service Plan oers a 7-day turnaround, extends the warranty period by a year, and oers
a variety of discounts on Code products and services
CodeOne Premier Service Plan• oers a 1-day turnaround, extends the warranty period by two
years, oers replacement readers for lost or damaged readers at deep discounted rates, and oers
a greater savings on Code poducts and services
Service Plans

15
Code Reader Comparison Chart
CR1200 CR2 CR2500 CR3 CR3500
Features
Reads 1D bar codes •••••
Reads 2D bar codes •••••
An-glare illuminaon technology • •
Modular design ••••
Vibraon, audible and LED ‘good read’ feedback •••••
Dual eld opcs – wide eld & high-density eld • •
Dual eld opcs – near eld & far eld • •
Medical grade plasc •••••
Walk-away prevenon ••••
Laser targeng • •
LED targeng •••
Wireless via Bluetooth® ••••
Wired via RS232 or USB connecon •••••
Extended service plan opon •••••

16
Code Corporaon
14940 S. Pony Express Rd.
Bludale, UT 84065
Ph: 801.495.2200
Fax: [phone]
www.codecorp.com
C004583_01 Product Reference Guide
