Coffee Queen Princess User manual

Service manual
A TASTE OF THE FUTURE
Rev.070903
S / GB
Princess
COFFEE QUEEN
Your retail dealer
...............................................................................
...............................................................................

1. Table (list) of contents.
1. Table of contents sid. 2
2. Generally 3
3. Overview of components front 4
3. Overview of components mixing system 5
4. SERVICE; Installation and start
Locate the brewer 6
Connectings: Electricity/Water 6
Starting up machine 6
Fylla behållare med ingredienser 7
5. DRIFT
Making coffee in a cup, chocolate,, 8
Making coffee in a jug
6. CLEANING
Weekly cleaning
Dismantle mixing system 9
Washing parts 9
Reassemble mixing system 10
7. CLEANING programs:
Automatic cleaning of mixing bowl (only): 11
Automatic cleaning of mixing bowl 1 or 2 12
Automatic cleaning of In/Outlet valves: 13
8. Cup counter o Easy access 14
9. Safety functions 15
10. Failure messages 15
11. Storage / Transport. 15
12. DIMENSION SKETCH 16
13. Circuit diagram. 17
14. Spare part list 18-20
15. Exploded view 21-27
2.

2. Generally. Princess
We congratulate to your choice of a Coffee Queen coffee machine.
Please read through this manual before you take the machine into operation
for the first time.
The manual contents important instructions for a safe and proper usage of the machine.
Always keep this manual within reach for the user!
Coffee Queen / Princess
- making coffee cup by cup
- Jug facility with key switch
- 8 choices of drinks,
- 2 - 4 ingredients canisters,
- electronically temperature controlled
- adjustable coffee strenght
- clock functions
- manufactured in stainless steel
FACTS:
Height 495 mm
Width 310mm
Depth 490mm
Tankage 2.0 litre
Electricity 230V/2200W
Water connection ½”outside thread
Capacity:
Cups of coffee 4 canisters 130 cups/filling
Cups of coffee 3 canisters 275 cups/filling
Ingredient canisters Coffee, Espresso, Chocolate, Topping (milk).
3.

4.
3. Overview of components , front Princess
Outlet/ drinks
Drip tray
Drip tray insert
Cupholder
Strenght of drinks
++ or - -
8 choices of
drinks
Key switch
(cup and jug choice)
Display
Door lock

Te
Coffee
Topping

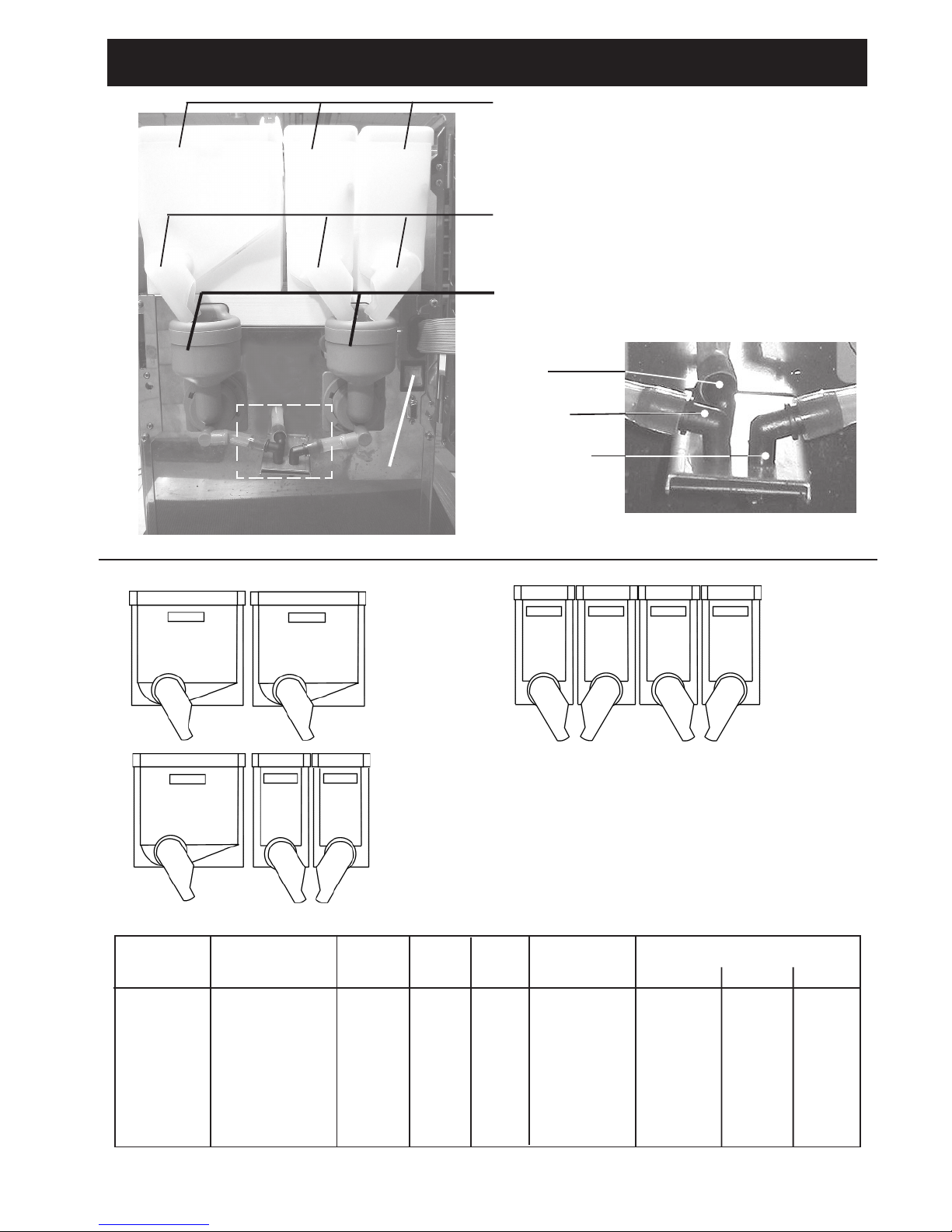

3. Overview of components , mixer system Princess
5.
Detail; Ingredients; Width; Height; Depth; Volum e/ L; Amount / unit i n Princess
II III IV
Canister; coffee 134 156 230 2,5 2 1 -
Canister; coffee 67 156 225 1,15 - - 1
Canister; espresso 67 156 225 1,15 - - 1
Canister; choco 67 156 225 1,15 - 1 1
Canister; topping 67 156 225 1,15 - 1 1
OUTLET / drinks
Ingredients
canister
Chute
Mixing bowl
ON/OFF-
switch
Princess II Princess IV
Instant Coffee Instant Coffee
Topping Espresso
Chocolate
Topping
Princess III
Instant Coffee
Chocolate
Topping

6.
4. Service. Installation and start Princess
1. Locate the brewer on a flat Connect the electrical plug to a separate
level and waterproof surface. grounded wall socket
NOTE! Make sure there is a space behind the machine
for free flow of air. ( minimum 10cm ).
2. Connect attached water tube to cold water with an R 1/2”.
Make sure that the water hose not are kinked anywhere when machine is
pushed into place.
Please flush the water tube before connecting to machine, this to avoid any
particles to destroy the inlet valve.
3. Open the water inlet.
4. Turn on the ON-OFF switch inside the door.
Water is been filled into the tank automatically with
2,0 litres of water. The heating will not start before
the water level reaches the level sensor.
Set temperature is approx. 85ºC.
5. Close door.
Grounded wall socket
230V 10A
ON / OFF
Switch

7.
4. Service. Installation and start Princess
6. Fill canisters with ingredients. 6.3.
Take out (this to avoid unnecessery spillage in
the machine) ingredient canisters and fill them
with ingredients.
6.1. Turn up the chute. se picture 6.2.
6.2. Lift up the ingredient canister and
pull out. 6.1.
6.3. Lift of the lid and fill the canister with
ingredients.
7. When placing the ingredient canisters;
Make sure that the outlet pipes on the ingredient canisters are touching the steam traps (A).
8. When the water is heated up to right temperature
the text ”please wait” will disappear and ”please wait”
the machine is ready to use.
(A).
(A).

4
Making coffe in a jug. Making coffe in a cup. Chocolate etc.
1a. Place a jug in the centre of the cup holder..
2a. Turn on the key with jug symbole clockwise. 1. Place a cup in the centre of the cup holder..
3a. 4 cups of brewing is standard settings, 2. The strenght has a standard setting,
Change amount of cups by pushing + or - button.
Optional up to 12 cups or down to if you wish to increase or decrease it, do as follows
1 cup brewing. if not continue to point 3.
4a. Push the button ”Coffee”.. Stronger drink;
Increase by pushing + or ++ for 5% or 10%
5a.Wait until the light and text alternative
”Please wait” has been Weaker drink;
turned off before you take out the jug. Decrease by pushing - or -- for 5% or 10%
(the indication lamp will go up or down
depending of choice).
3. Choose drink by pushing on the button to the right
of each menu
The display will show; ”Please wait”, and the light on
the cup will light up.
4.Wait until the light on cup and the text ”Please wait”
has been turned off before you take your cup.
5. Enjoy your drink.
8.
5. DRIFT; Making coffee in a cup Princess
++
+
-
- -
2.
3.
3.
2a.

9.
6. CLEANING: Weekly cleaning Princess
(D)

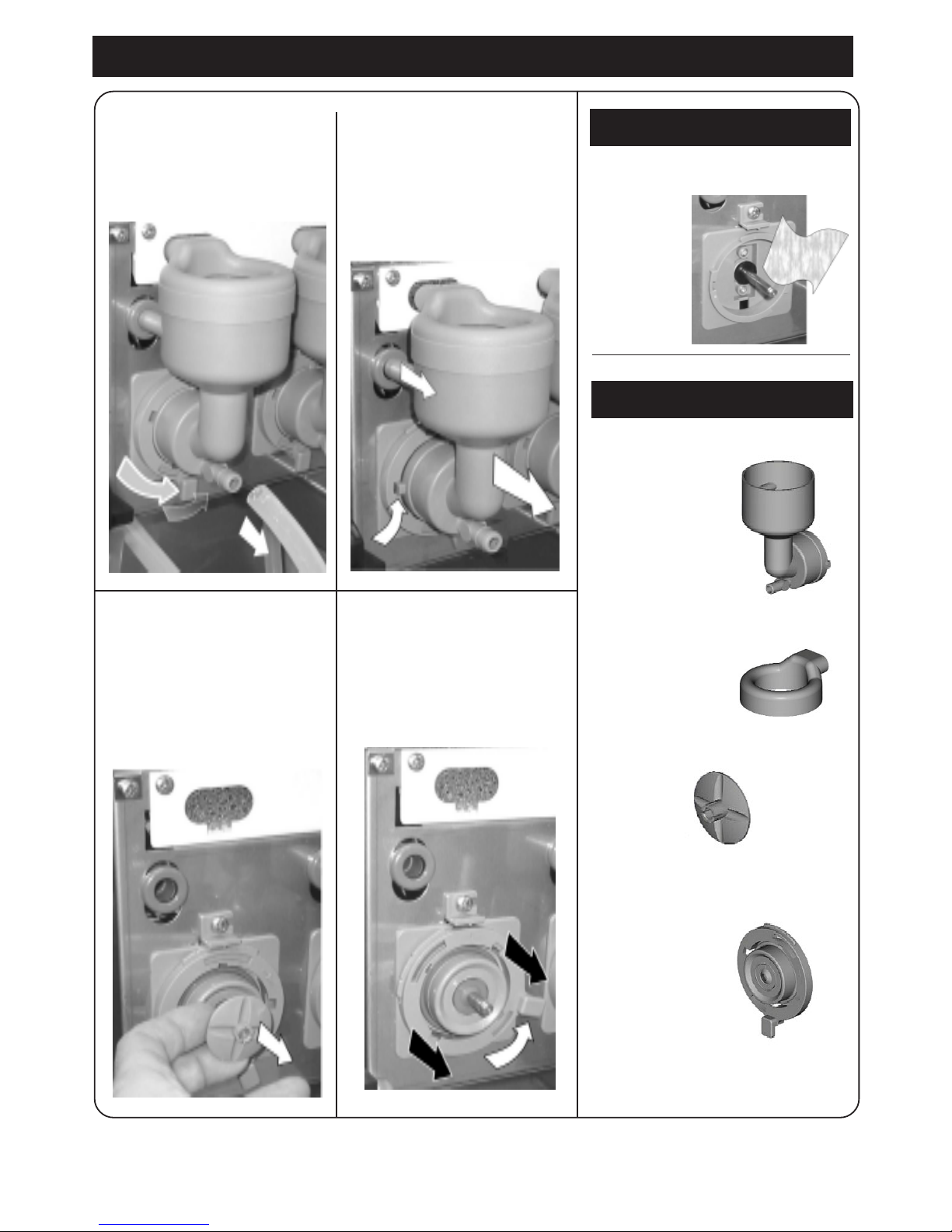

Dismantle : Mixer system
1.
Loosen outlet hose (A) and
turn lock knob (B)
anti-clockwise.
3.
Loosen whipper (D) pull
whipper straight out from the
machine.
(E)
(A)
(B) (C)
Cleaning
Wash these parts:
.6.
A. Mixer bowl
B. Steam trap
C. Whipper
D. Assembly plate
Make sure this parts are dry
before use
2.
Loosen mixer bowl.
Pull apart (C).
4.
Turn lock knob anti-
clockwise.(E) until it stops
5. Clean with a wet rag and
drought drily.

10.
6. CLEANING: Weekly cleaning Princess

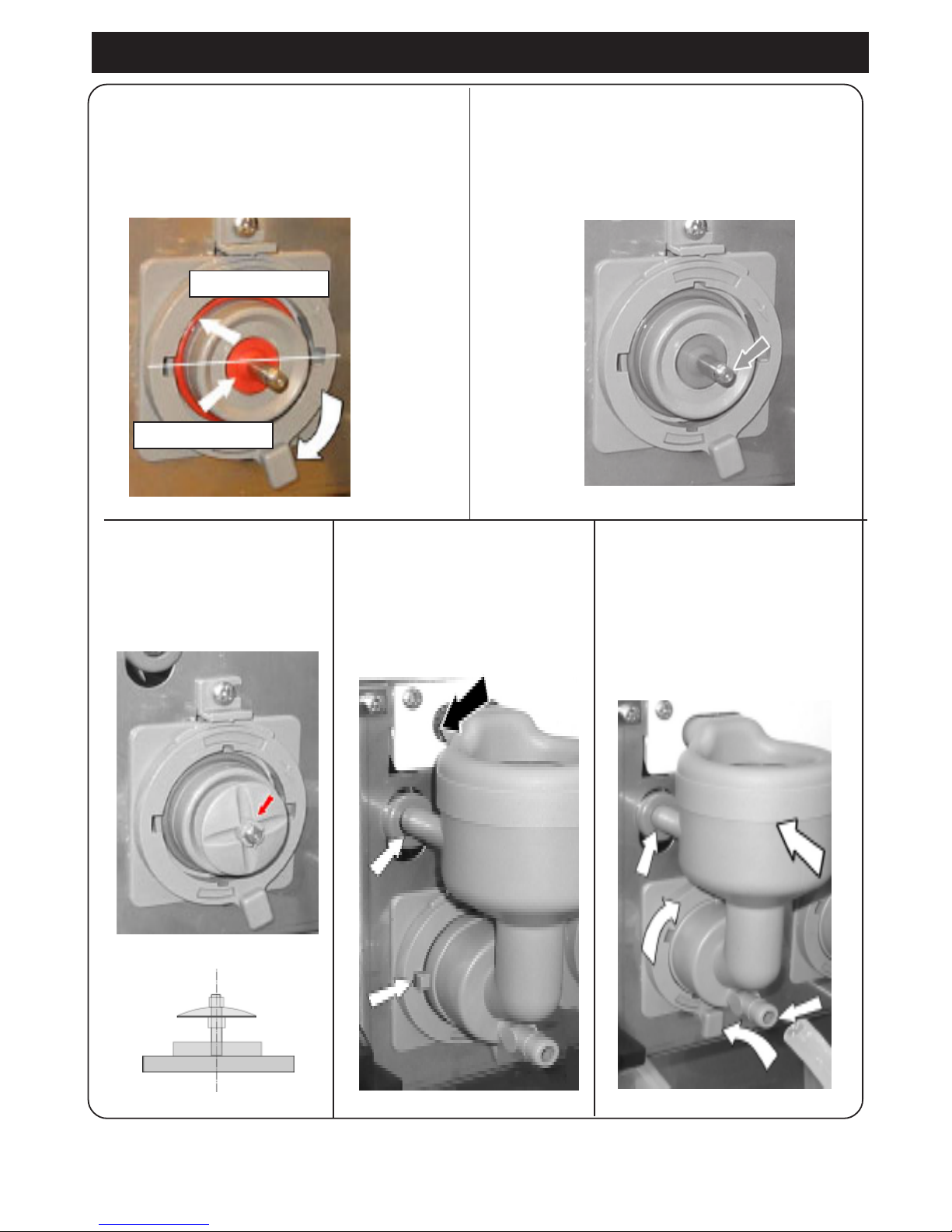

REASSEMBLE: Mixer system
7.
Reassemble the assembly plate by turning
lock knob (F) clockwise. INSPECT gaskets.
pil (G).
9.
Assemble whipper , pull until
you hear a clicking noise. (H).
10.
Assemble mixer bowl and steam
trap (J) see picture.
11.
Easily push the mixer bowl
towards, according to (K) and lock
with lock knob (L).Connect outlet
hose (M).
(NOTE! make sure that all water
hose are connected at right place
(H)
(J)
(J)
(J)
(K)
(M)
(L)
(G)
F F
F
8.
Make sure that the motor whippers plane side
will be in accordance with the whippers plane
side. see next (G) and picture (H).
INSPECT
INSPECT

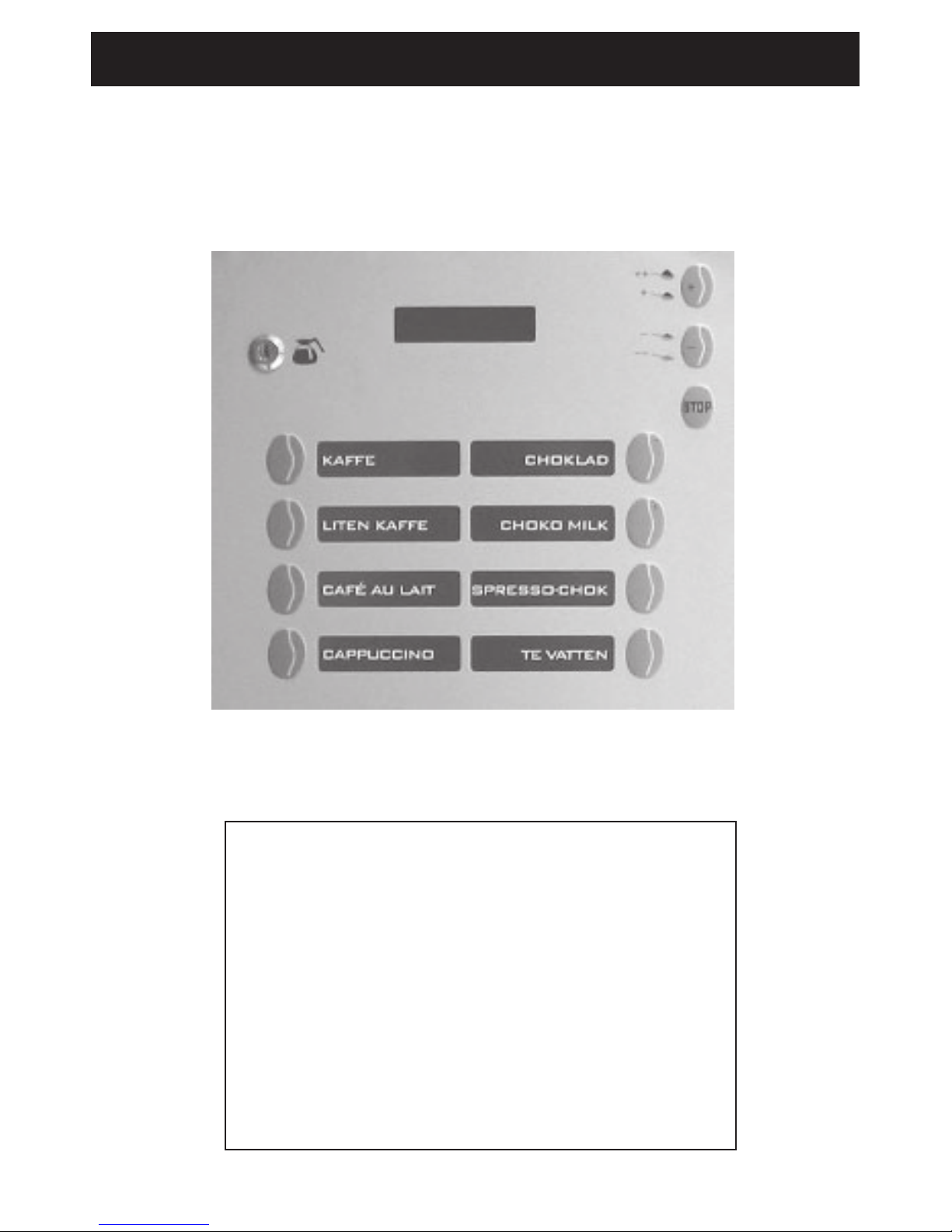

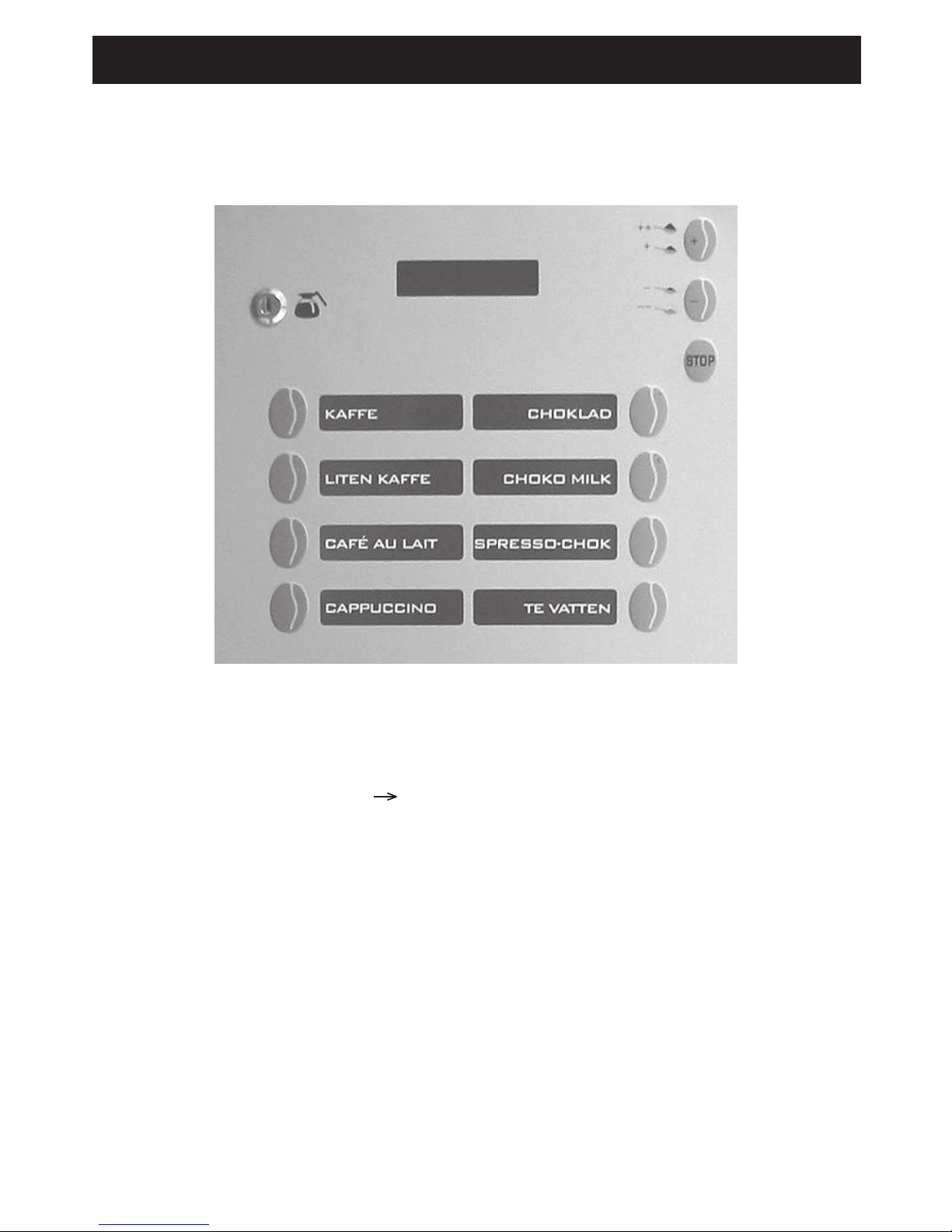

drink 5 1 drink
6 2
7 3
8 4
The mixer bowls can easily be cleaned with the key switch in ”cup” (normal)
position.
Weekly automatic cleaning of mixing bowls.
11.
7. CLEANING: Cleaning program: daily Princess
1. Place a jug in the drip tray.
2. Turn the key slowly ninety degrees and back again.
Push button for drink 1 in 6 seconds.
3. After 6 seconds the mixer bowl starts to be cleaned as long as the button is pushed
or max.10 seconds.
The display shows: ”Cleaning : Mixer 1”.(in 5 sek.)
”Cleaning : Mixer 2”.(in 5 sek.)
Automatic cleaning of mixing bowls.

drink 5 1 drink
6 2
7 3
8 4
The mixer bowls can easily be cleaned with the key switch in ”cup” (normal)
position.
12.
7. CLEANING: Cleaning program Princess
Automatic cleaning of mixing bowl 1 or 2
1. Place a jug in the drip tray.
2. Turn the key slowly ninety degrees and back again.
Push button for drink ...(se. tabel below) in 6 seconds.
3. Cleaning of mixing bowl 1
Turn the key slowly ninety degrees and back again.
Push button for drink 2.
After 6 seconds the mixer bowl starts to be cleaned
as long as the button is pushed or max.10 seconds.
The display shows: ”Cleaning Mixer 1”,
4. Cleaning of mixing bowl 2
Turn the key slowly ninety degrees and back again.
Push button for drink 3.
After 6 seconds the mixer bowl starts to be cleaned
as long as the button is pushed or max.10 seconds.
The display shows: ”Cleaning Mixer 2”.

13.
7. CLEANING: Cleaning program Princess
Automatic cleaning of In/Outlet valves:
The In/Outlet valves can easily be cleaned with the key switch in ”cup” (normal) position.
1. Place a jug in the drip tray.
2. Turn the key slowly ninety degrees and back again.
Push button for drink 1 and 2 at the same time in 6
seconds. Keep buttons down.
3. All In/Outlet valves will now start to open and close
with 2 pulses/second in 10 seconds or so long you
pushed the buttons
4. The display shows: ”Cleaning valves”.
drink 5 1 drink
6 2
7 3
8 4
By cleaning is meant that valves ”knocks” away
eventual scale and other particles which has been
attached in the cylinders and that they are flushed
away with the water.

14.

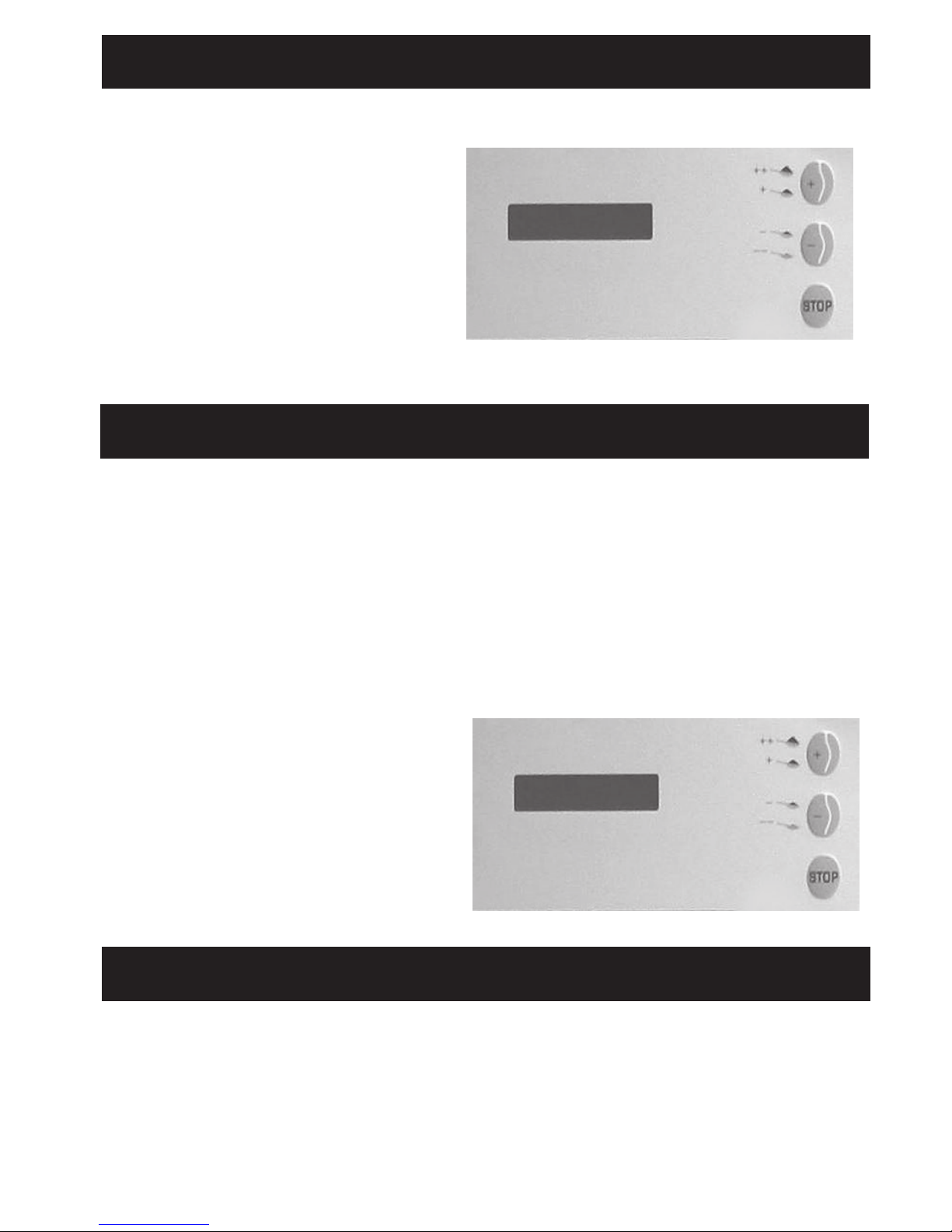

8. Cup counter -Easy Access Princess
Easy Access:
Water and ingredient amount can be adjusted
with±15% with the key switch in ”cup” (normal)
position.
1.Push ”+” and ”-” button at the same time.
2.After 4 secondsa signal will go faster.
3.The display shows: ”Easy access” ”Styrka 1 100%”
4Go to right button(choise which you want to change
by pushing”+” or ”-” button.
5.Push button for drink 2
6.The display shows: for example. Volyme 4 and”
Blinking 100%”
7.Change by pushing ”+” or ”-” button.
8.Push button for drink 3 for entering the change.
Press ”stop” to quit.
1.Push ”-” button in 6 seconds.
2.After 4 seconds a signal will go faster.
The display shows: ”Total xxx cups”
3.Push button for drink 2
The display shows: ”Choise 1 free xxx cups”
4.Push button for drink 2
The display shows ”Choise 1 coin xxx cups”
5.Push button for drink 2
The display shows ”Choise 1 xxx cups in can”
6.Push ”+” button to reach to ”choise 2” etc.
7.Push button for drink 3 to reset the counter.
8.Push ”Stop” button to go back to user mode.
Cup counter::
The machine has an in built cup counter which
is available to see and reset with the key
switch in ”cup” (normal) position.
DRINK 5
6
7
8
2
3
4
1 DRINK

1. The display shows; ” Blocked” ”Water level low”
Please check incoming water connection Turn off the machine with the main switch
wait for 10 sec. and turn on again.
2.The display shows normal: but no drink is coming.
Possible cause of failure:
Mechanical stop in the ingredients canisters or whipper.
Measure:
Try to find the cause of failure.
Clean the mixer system and try again.
15.
9. Safety functions.. Princess
1.Indication of door
Door not closed
The display shows; ”Door open”
2.When machine is not in use:
The inlet valves are blocked.
10. Failure messages. Princess
”Door open”
”Blocked”
++
+
-
- -
++
+
-
- -
Transport and no use in long time.
1. Turn off the switch, pull out the plug and close incoming water tube.
2. Empty the water tanks.
3. Keep machine free from frost.
Long machine storage at temperatures as below 0ºC (zero degrees celsius) can cause
damage of the machine. Total emptying of water is recommended.
11. Storage / Transport.
Failure messages which can mostly be corrected without any help from
service company
The machine is equipped with following
safety functions

12. DIMENSION SKETCH. Princess
16.

13. Circuit diagram.
17.

18.
Description: Art. no. Pos. no. 23 4
Valid for page 21.
Level sensor with gasket 120548 1 1 1 1
Gasket for sensor 150118-02 2 1 1 1
Heating element 2200W 230V 1601361 3 1 1 1
Gasket, water tank,lid 1206591 4 1 1 1
Motor gear 145 rpm, without axle 1604612 5 2 3 4
Motoraxle for 1604612, 16mm 1604614 6 2 3 4
High limit controll, BULBA 220220 7 1 1 1
NTC thermistor 1604133 8 1 1 1
Valve outlet, 24 V DC 120627-03 9 3 3 3
Inlet (rubber), for valve (transparent) 160537-03 10 3 3 3
Plug, water tank (transp.) 120407 11 1 1 1
Rubber grommet , for NTC thermistor (red) 1605361 12 1 1 1
Water tank complete , 1/3 phase 1203520 13 1 1 1
Silicone hose inlet/watertank 8x12 L=460 150501 14 1 1 1
Silicone hose watertank/avtap. 8x12 L=530 150501 14 1 1 1
Silicone hose coffee 8x12 L=255 150501 14 1 1 1
Silicone hose choco/topping 8x12 L=255 150501 14 1 1 1
Silicone hose tea. 8x12 L=320 150501 14 1 1 1
Silicone hose 8x12 L=390 150501 14 1 1 1
Silicone hose mix. bowl/outlet 8x12 L= 45 150501 14 2 2 2
Note! Silicone hose (150501) sales by metre.
Valid for page 22 and 23.
Steam trap 120500 15 2 2 2
Mixing bowl 1204852 16 2 2 2
Whipper 1204842 17 1 1 2
Motor whipper 24V F 1604591 18 1 1 2
Plate, motor whipper(grey) 1604592 19 2 2 2
Assembly plate (grey) 1204781 20 1 1 2
Assembly plate, tight (grey) 1204831 21 1 1 -
Hose connection, angular, (mixer bowl- outlet) 1204853 22 2 2 2
Angle of outlet (svart) 120145 23 3 3 3
O-ring red for assembly plate mod. F 120638 24 2 2 2
Slinger disc 120480 25 1 1 2
Grommet (for whipper pin) (red) 120655-02 26 1 1 2
Bulk head adaptor mixer bowl 120498 27 2 2 2
Switch 2 pol (illumin.) 160801-04 28 1 1 1
Foam for dust trap 120136 29 1 1 1
Dust trap 1105358 30 1 1 1
14. Spare part list. PRINCESS
Amount/unit

19.
14. Spare part list. PRINCESS
Amount/unit
Description; Art. no. Pos. no. 2can. 3can. 4can.
Valid for page 24.
(Canister, Princess II)
Ingredient canister compl. B137 x H156 1204879 31 2 - -
Lid 1204955 32 2 - -
Chute left (FB) 120489 33 2 - -
Feed control, in plastic 1204712 37 2 - -
Agitator + screw compl. 1204733 38 2 - -
Cage (motor shaft) 180145 39 2 - -
Valid for page 24.
(Canister, Princess III)
Ingredient canister compl. B137 x H156 plastic 1204879 31 - 1 -
Lid 1204955 32 - 1 -
Chute left (FB) 120489 33 - 2 -
Feed control, in plastic 1204712 37 - 1 -
Agitator + screw compl. 1204733 38 - 1 -
Ingredient canister compl. B67 x H156 plastic 1204889 34 - 2 -
Lid 1204953 35 - 2 -
Chute, right (FB) 120493 36 - 1 -
Feed control, in plastic 1204712 37 - 2 -
Agitator cpl. 1204742 41 2
Cage (motor shaft) 180145 39 - 3 -
Reducer 1204939 40 - 2 -
Valid for page 25.
(Canister, Princess IV)
Ingredient canister compl. B67 x H156 plast 1204889 34 - - 4
Lid 1204953 35 - - 4
Chute, right (FB) 120493 36 - - 2
Chute, left (FB) 120489 33 - - 2
Feed control, in plastic 1204712 37 - - 4
Agitator cpl. 1204742 41 4
Cage (motor shaft) 180145 39 - - 4
Reducer 1204939 40 - - 4
Valid for page 26.
Fan 24VDC 1604171 42 1 1 1
Grid cover for fan 1604172 43 1 1 1
Valve inlet 2,5 l/min. 24VDC 1206371 44 1 1 1
Solid state 1604201 45 1 1 1
Electronic card-CON 1200 1604002 46 1 1 1
Fuse 4 A slow 5x20 1604381 47 1 1 1
Main supply cable 3x1mm2 PA 84 160522 48 1 1 1

20.
14. Spare part list. PRINCESS
Amount/unit
Description; Art. no. Pos. no. 2can. 3can. 4can.
Valid for page 26.
Fuse holder 1604351 49 1 1 1
Fuse 2 A slow 5x20 1604382 50 1 1 1
Connection block PA 80 160351 51 1 1 1
Gable (connection block) PA 80 160352 52 1 1 1
Transformer 5003111 53 1 1 1
Micro switch 160841 54 1 1 1
Valid for page 27.
Display-card 1604007 55 1 1 1
Flat conductor cable 1606727 56 1 1 1
Drip tray 1105354 57 1 1 1
Drip tray insert 252416 58 1 1 1
Membran switch 1603837 59 1 1 1
Key-switch 1202551 60 1 1 1
Lock with clamp(door) Instant 120250 61 1 1 1
Key, (door) Instant 120251 62 1 1 1
Service key (tool) 180290-03 63 1 1 1
Foot 120316 64 4 4 4
