COFFING®
OPERATING
&
MAINTENANCE
INSTRUCTIONS
WITH PARTS LIST
Publication Part No. ESC-680-1
ESC -
Electric
Chain
Hoists
For Capacities:
500 and 1000 Lbs. Capacity
HOISTS
IMPORTANT
-CAUTION
To
safeguard against the possibility of personal injury or property damage, follow the recommendations and instructions of
this manual. This manual contains important information for the correct installation, operation, and maintenance of this
equipment.
All
persons involved
in
the installation, operation, and maintenance of this equipment should be thoroughly
familiar with the contents of this manual. Keep this manual for reference and further use.
A
WARNING
To
prevent personal injury, do not use the equipment shown
in
this manual to lift, support, or otherwise transport people,
or to suspend unattended loads over people.

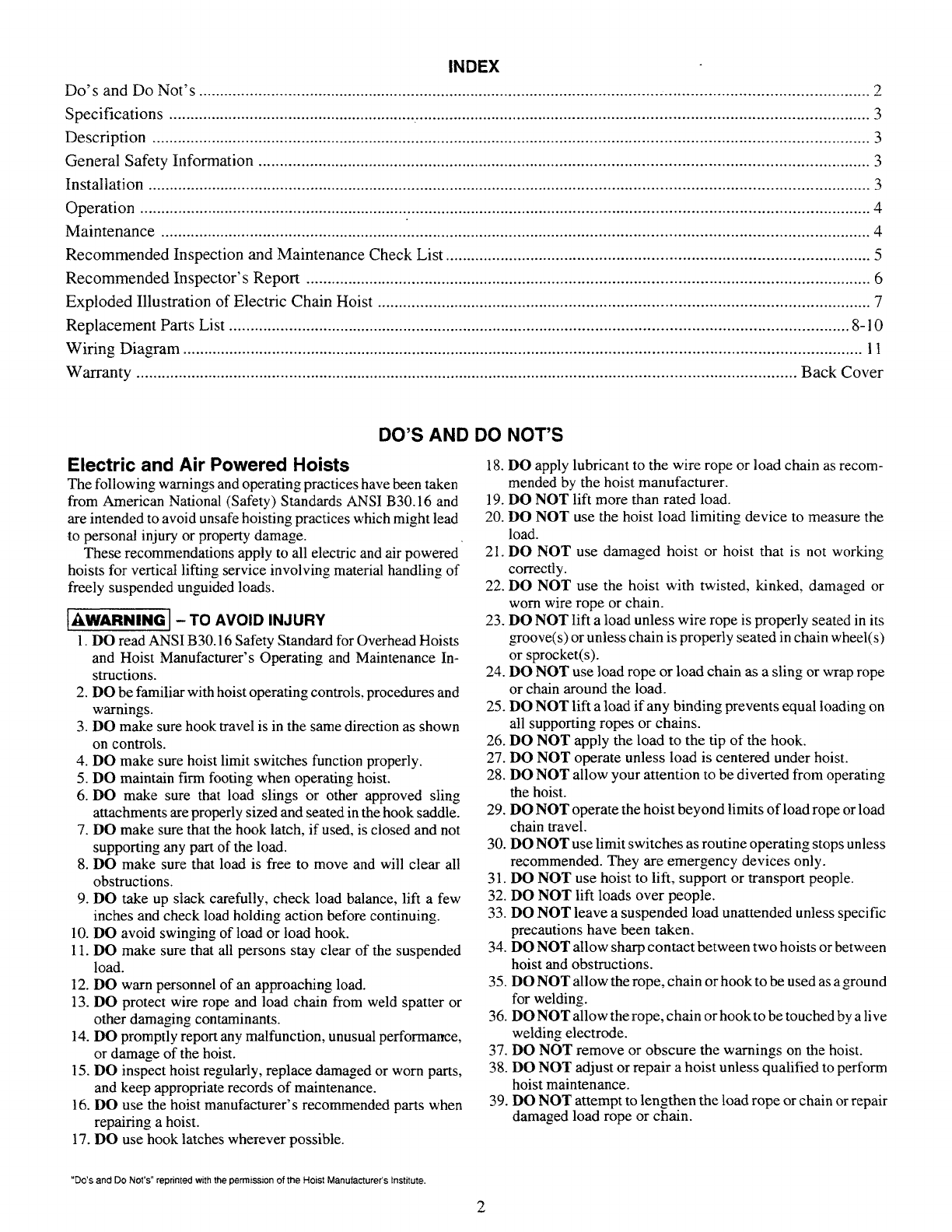

INDEX
Do's
and
Do
Not's
............................................................................................................................................................ 2
Specifications ..........................................................,........................................................................................................ 3
Description
....................................................................................................................................................................... 3
General
Safety Infonnation .............................................................................................................................................. 3
Installation ........................................................................................................................................................................ 3
Operation
.......................................................................................................................................................................... 4
Maintenance
..................................................................................................................................................................... 4
Recommended
Inspection
and
Maintenance
Check
List.................................................................................................. 5
Recommended
Inspector's
Report
................................................................................................................................... 6
Exploded
Illustration
of
Electric
Chain
Hoist .................................................................................................................. 7
Replacement
Parts List ................................................................................................................................................
8-10
Wiring
Diagram
..............................................................................................................................................................
11
Warranty
............................................................
'"
...........................................................................................
Back
Cover
~O'S
AND
DO
NOT'S
Electric and Air Powered Hoists
ThefoHowing warnings and operatingpractices have been taken
from American National (Safety) Standards ANSI B30.16 and
are intended to avoid unsafe hoisting practices which might lead
to personal injury or property damage.
These recommendations apply to all electric and air powered
hoists for vertical lifting service involving material handling
of
freely suspended unguided loads.
I
AWARNING
1-
TO AVOID INJURY
I. DO read ANSI B30.16 Safety Standard for Overhead Hoists
and Hoist Manufacturer's Operating and Maintenance In-
structions.
2.
DObe familiar with hoist operatingcontrols.procedures and
warnings.
3.
DO make sure hook travel is in the same direction as shown
on controls.
4.
DO
make sure hoist limit switches function properly.
5.
DO
maintain firm footing when operating hoist.
6. DO make sure that load slings or other approved sling
attachments are properly sized and seated
in
the hook saddle.
7.
DO
make sure that the hook latch,
if
used, is closed and not
supporting any part
of
the load.
8.
DO
make sure that load is free to move and will clear all
obstructions.
9.
DO
take up slack carefully, check load balance, lift a few
inches and check load holding action before continuing.
10.
DO avoid swinging
of
load or load hook.
11.
DO
make sure that all persons stay clear
of
the suspended
load.
12.
DO
warn personnel
of
an approaching load.
13.
DO
protect wire rope and load chain from weld spatter or
other damaging contaminants.
14.
DO
promptly report any malfunction, unusual performance,
or damage
of
the hoist.
15.
DO
inspect hoist regularly, replace damaged or worn parts,
and keep appropriate records
of
maintenance.
16.
DO
use the hoist manufacturer's recommended parts when
repairing a hoist.
17.
DO
use hook latches wherever possible.
"Do's and
Do
Not's" reprinted with the permission of the Hoist Manufacturer's Institute.
2
18.
DO apply lubricant to the wire rope
or
load chain as recom-
mended
by
the hoist manufacturer.
19.
DO NOT lift more than rated load.
20. DO NOT use the hoist load limiting device to measure the
load.
21. DO NOT use damaged hoist or hoist that is not working
correctly.
22. DO NOT use the hoist with twisted, kinked, damaged or
worn wire rope or chain.
23. DONOT lift a load unless wire rope is properly seated
in
its
groove(s) orunless chain isproperly seatedin chain wheel(s)
or sprocket(s).
24. DONOT use load rope
or
load chain as a sling or wrap rope
or chain around the load.
25. DONOTliftaload
if
any binding prevents equal loading on
all supporting ropes or chains.
26. DO NOT apply the load to the tip
of
the hook.
27.
DO
NOT operate unless load is centered under hoist.
28. DONOT allow your attention
to
be diverted from operating
the hoist.
29. DONOToperate the hoistbeyondlimits
of
loadrope orload
chain travel.
30. DONOTuselimitswitches as routine operating stops unless
recommended. They are emergency devices only.
31. DO NOT use hoist to lift, support
or
transport people.
32.
DO
NOT lift loads over people.
33. DONOTleave a suspended load unattended unless specific
precautions have been taken.
34. DONOTallow sharp contactbetween twohoists orbetween
hoist and obstructions.
35. DONOTallow the rope, chain
or
hookto be used as aground
for welding.
36. DONOTallowthe rope, chain
or
hookto betouched by aIive
welding electrode.
37. DO NOT remove or obscure the warnings
on
the hoist.
38.
DO
NOT adjust
or
repair a hoist unless qualified to perform
hoist maintenance.
39. DONOT attemptto lengthen the load rope orchain or repair
damaged load rope or chain.
SPECIFICATIONS
Rated Standard lifting
Model Load Lift Speed
Number (Ibs.) (ft.) (FPM) Voltaqe
0512-10 500
10
12 115V
0512-10 500
10
12 230V
(230)
0512-20 500 20 12 115V
0512-20
(230) 500 20 12 230V
1006-10 1000 10 6 115V
1006-10 1000
10
6 230V
(230)
Push button drop IS approximately 4 feet less than
hft.
A transformer is supplied for 230 volt applications.
Horse-
power
.3
.3
.3
.3
.3
.3
Head- Overall Net
Amp.
limit
room Dimensions Weight
Draw Switches (in.) (in.)
(lbi)
Upper
4.0 & 15 41
/4
H X 51
/4
W X 93
/4
L 16
Lower
Upper
4.0 & 15 41
/4
H X 51
/4
W X 93
/4
L 26
Lower
Upper
4.0 & 15 41/4 H X 51
/4
W X 93
/4
L 18
Lower
Upper
4.0 & 15 41/4 H X 51
/4
W X 93
/4
L 28
Lower
Upper
4.0 & 15 41
/4
H X 51
/4
W X 93
/4
L 20
Lower
Upper
4.0 & 15 41
/4
H x 51
/4
W x 93
/4
L 30
Lower
4 mm link chain (welded and heat treated) minimum breaking strength 3,400 Ibs.
OPERATING INSTRUCTIONS
Description
This electric chain hoist features self-locking, hardened steel
gears that also function
as
a brake. The hoist is equipped with
electronic overload protection, adjustable upper and lower limit
switches, permanently lubricated and hardened steel gear train,
and three-wire pendant control.
General Safety Information
This hoist is designed for safe operation within the limits
of
its
rated capacity. There are safety features built into the hoist to
protect the operator and others from injury due to failure
ofthe
hoist itself. However, listed below are safety precautions which
must be followed
in
order to protect personnel and property.
1.
Align hoistfor straightlinepull. Avoidsidepullsandpulling
horizontal!
y.
2.
Limitswitches are emergencydevices only. Donot uselimit
switches to stop the hoist
in
normal operation. Repeated
actuation
of
these limit switches under load could damage
the hoist.
3.
Donot operatehoistwith twisted, kinked,
or
damagedchain.
4.
Do not operate a damaged or malfunctioning hoist until
adjustments or repairs have been made.
5. Do not use hoist
to
lift people or carry loads over people.
6. Do not lift more than rated capacity
of
the hoist.
7.
Do not leave a load suspended in the air unattended.
8.
Avoid jogging controls or quick reversals
of
load.
9.
Alwaysremoveloadanddisconnecthoistfrompowersupply
before making repairs.
10.
Read ANSI Safety Standard B30.16
IAWARNINGIDO NOTUSEHOISTFOR
MOVEMENT
OF PERSONNEL OR LOADS OVER
PERSONNEL.
DO
NOT
OPERATE
HOIST
.IN AN
EXPLOSIVE
ATMOSPHERE OR CORROSIVE ENVIRONMENT.
II.
Do not replacechain supplied with hoistwith any othertype.
12.
Do not attempt to operate hoist on any other power supply
other than 115 volt, 50/60 Hz, single phase.
3
INSTALLATION
Mounting
The hoist must be hung by the upper hook only, and should not
be mounted by any other means. The mounting support must
be
capable
of
handling loads in excess
of
hoist rating. Suggested
locations are on a support beam or trolley.
Electrical Connection
This hoistis to be connected to a lIS-voltA.C., single phase. 50/
60
Hz current only. The outlet must be grounded.
Limit Switches
Thehoist is equipped with an upper and lowerlimit switch. The
upper switch is intended as an emergency shut-off to limit the
upward travel
of
the load hook and should not be used during
normal operation
of
the hoist. The lower limit switch is also
intended as an "emergency only" stop and should not be used
during normal operation
of
the hoist. Repeated use
of
the upper
and lower limit switch under load can cause shock loads that
could damage the hoist.
If
one
ofthe
limit switches has been activated. do not attempt to
continue hoist movement in the same direction. Hoist must
be
reversed. Continuedattempts to operate the hoistin the direction
ofthe
activated limit will break limit switch arm. A broken arm
on limit switch is not covered by warranty.
Chain Bucket
A chain bucket is standard equipment and may be used when
slackchain hanging from hoist is notdesired. Note how the hook
is fastened to the bucketbeforeremoving itfor installation
on
the
hoist. To install, feed the hook through the third link down
of
the
fixed chain end. Attach hookto the bucketby inserting hookends
through the
TOP
of
the tabs at the bucket rim.
OPERATION
This hoist is operated by the pendant station at the
end
of
the
control cord.
To
raise a load, press the button marked "...." (up).
To
lower
a
load.pressthe button marked "
...
" (down).
The
load will
stop
and
hold from either direction
by
releasing the button.
A load, whetherbeingraisedorlowered, will stopin approximately
I/S inch when the push button is released.
At
this point, the
motor
andface gearsarelockedand the load will remain in position until
the control switch is again activated.
Duty Cycle
This
is
an
intermittent
duty
hoisL Exceeding this duty
cycle
will causeoverheating
of
the gearboxandthe motor.
Overheated
gears thin out the lubricant causing excessive wear on the gears.
An overheated motor breaks down insulation on the
winding
causing premature motor failure. A temperature sensing device
built into the hoist will indicate
if
the duty cycle
has
been
exceeded.
EXCEEDING
THE
DUTY
CYCLE
VOIDS
THE
WARRANTY.
Therefore, it is very importanttoallow sufficient
time for the
motor
and gear box to cool
down
after
each
usage.
The
following chartgives recommended rest periods for varying
amounts
of
usage.
Do
not operate the hoist over 2
minutes
at
full load.
Vertical Travel Cool Down
Motor Distance (Feet)
Period
(Minutes)
"On"Time
500 lb. 1,000 lb. Full Rated Half Rated
(Minutes) Hoist Hoist Load
Load
'/4 3
1'12
1 '/2
'12
6 3 3 1'/2
1 12 6 7
3'/2
2* 24 12 15
7'/2
*00
Not Exceed 2 Minutes "on" Time
Trouble Shooting
If
hoist operates in one direction only,
check
for
ajammed
limit
switcharm. Thiscan bedone by removing thelimitswitchcover.
If
hoist starts to lift a heavy load
and
then stops,
check
the
overload light while pressing the "...." button.
If
the
light
comes
on, then lower and reduce the load and repeat the procedure.
MAINTENANCE
On
a daily basis, the following should
be
checked:
1.
Controls-
Check
all controls and operating
mechanisms
for
proper function.
2. Safety Devices -Check upper
and
lower
limit
switches
for
proper function.
3. Hooks -
Check
for cracks
or
deformation.
4. Chain -Inspect for wear, distortion,
and
proper
attachment
ateachend.
Check
fordirt
and
foreign
matter
onchain thatcan
be carried
back
into hoist.
On
a periodic basis (suggested intervals
of
one
to
three months,
depending on service), the following should
be
checked:
4
I.
Bolts, screws, and connections
for
any loosening.
2. Pocket wheel for wear.
3.
Wear
of
chain. including chain stretch. Chain stretch can be
checked
by
measuring
11
links (inside to inside)
of
a section
of
chain that normally runs
over
the pocket wheel.
This hoist is equipped with a 4
MM
welded link chain with
a .472 nom. pitch; therefore,
11
links
of
a new chain should
measure 5.197 +.016
-.008
inches.
If
any
11
links
of
chain
measure
more
than 5.275 inches.
then stretch
and
wear is excessive
and
the chain must be
replaced.
4. Hooks -
Check
for
cracks
with
dye
penetrants, magnetic
particles.
or
other
suitable methods at least once a year.
5.
Check
electrical
components
for corrosion
or
other signs
of
deterioration.
6.
Check
hook
retaining pins for
wear
and
secureness.
Testing
After
repair,
check
to see that the welds on each chain link face
away from the pocket wheel. After repair
or
modification
of
a
hoist. itmust
be
testedfor
proper
operation. Begintest with a light
load and increase to rated capacity. Test should also include
operation
of
upper and lower limit switch.
Lubrication
If
lubrication
of
the
gearbox is required because
of
unusual
conditions, then use only
grease
Part No. 911502000. This is the
only grease
approved
for use in the hoist.
The
chain should
be
lubricated with
SAE
20-30
grade motor oil.
Hook
Throat Opening
Use
the table
below
to
check
hook
throat opening (with latch).
@f~::~~
Maximum Allowable
Hook
Throat Opening
Hoist
Load
Top
Hook
(in.) Bottom Hook (in.)
Rating (ton) Normal I Reject Normal I Reject
1/4
&
'12
0.8 I 1.0 0.8 I 1.0
INSPECTION &MAINTENANCE CHECK LIST
ELECTRIC POWERED OVERHEAD CHAIN HOIST
Type
of
Hoist
___________
_ Capacity (Tons)
____________
_
Location
______________
__
Original Installation Date
___________
_
Manufacturer
___________
_ Manufacturer's Serial No.
___________
_
Frequency
of
Inspection
Item Frequent Periodic
Possible
Deficiencies
OK
Daily Monthly 1-12 Mo.
Operating Controls • • • Any deficiency causing improper operation
Limit Switches • • • Any deficiency causing improper operation
• Pitting
or
deterioration
Hooks • • • Excessive throat opening, bent
or
twisted more
than 10degrees, damaged hook latch, wear,
chemical damage, wom hook bearing
• Cracks (use dye penetrant, magneticparticle
or
other suitable detection method)
Chain • • • Inadequate lubrication, excessive wear
or
stretch, cracked, damaged
or
twisted links,
corrosion orforeign substance
Hook & Suspension Connections • Cracks, bending, stripped threads, loose
mounting screws
Pins, Bearing, Bushings, Shafts, • Excessive wear, corrosion, cracks, distortion
Couplings, Chain Guides
Nuts, Bolts, Rivets • Looseness, stripped and damaged threads,
corrosion
Sheaves • Distortion, cracks, and excessive wear
• Build up
of
foreign substances
Housings, Load Block • Distortion, cracks, and excessive wear
• Intemal build up
of
foreign substances
Wiring & Terminals • Fraying, defective insulation
Contact Block, Magnetic Hoist • Loose connections, bumed
or
pitted contacts
Control Switch, Other Electronic
Apparatus
Supporting Structure • Damage orwear which restricts ability to
& Trolley (if used) support imposed loads
Nameplates, Decals, • Missing, damaged
or
illegible
Waming Labels
Transmission Lubricant • Low level, contamination, improper grease
NOTE: Refer to Maintenance and Inspection Sections
of
the HoistMaintenance Manual
for
further details.
FREQUENCY OF INSPECTION
Frequent
-Indicates items requiring inspections daily to monthly. Daily inspections may
be
performed
by
the
operator
if
properly designated.
Action
Required
Periodic
-Indicates items requiring inspection monthly to yearly. Inspections to be performed by
or
underthe direction
of
a
properly deSignated person. The exact period
of
inspection will depend on frequency and type
of
usage. Determi-
nation
of
this period will be based on the user's experience. It is recommended that the userbegin with a monthly
inspection and extend the periods to quarterly, semi-annually, or annually based on his monthly experience.
RECOMMENDED INSPECTION AND MAINTENANCE CHECK LIST
5
INSPECTOR'S REPORT
ITEM REMARKS -LIST DEFICIENCIES
AND
RECOMMEND ACTION
Inspector's Date
Signature Inspected Approved
By
Date
RECOMMENDED INSPECTOR'S REPORT
6
1000 POUND
RATED LOAD
1wr'-35
46
_
.....
;:.;;..ct.,U\---
---,
48 LINK WELDS
FACE AWAY
FROM
SPROCKET
•
40
r--
·
I
I
• 48
ELECTRIC CHAIN HOIST
500 POUND
RATED LOAD
7
14
REPLACEMENT PARTS LIST
Key
Quantity
No.
Part
No.
Description
Required
1 914500400 Housing & Sprocket Cover 1
2 912307401 Power Cord 1
5 912501300 Sprocket Shaft & Gear Ass'y. 1
6 912501200 Primary Gear & Pinion Ass'y. 1
7 911500200 Adjusting Plug 1
8 911500902 Chain Guide 1
9 911501000 Chain Stripper 1
10 911501200 Spacer (500 Lb. Hoist) 1
11
912304115 Needle Bearing 1
12 912307904 Ball Bearing 1
13 912307905 Ball Bearing 1
14 912307906 Ball Bearing 1
15 912307903 Ball Bearing 1
16 912302912 Retaining Ring 1
17 912302910 Retaining Ring 2
18 912303502 Woodruff Key 2
19 911501100 Spacer (Gear Cover) 1
20 911500800 Shaft Adj. Ball 1
21
912316403 Set Screw 1/4 -20 X 1/4 1
22 912316402 Set Screw
112
-13 -
3/
8 1
23 912303002 Screw 10-32 x 1/2 5
24 H2708 Screw 10-32 x 1
3/
4 2
25 912500901 Checkseal 1
26 89L1 Guide Plate 1
27 36L1 Limit Switch Housing Cover 1
28 911501603 Limit Switch Arm 2
30 117L1 Limit Switch Drive Screw 1
32 913204600
Motor
1
34
912501804 Chain (4 MM
xii
Ft.) 1
35 912501805 Chain (4 MM x
21
Ft.) 1
36 3C302C01S
Top
Hook
(with Safety Latch) 1
37A 912502000 Chain Bucket 1
37B 912502100 Chain Bag 1
38A 911501700 Hanger, Chain Bucket 1
38B 911502400 Hanger, Chain Bag 1
39 *912502200 Clevis & Hook Ass'y. 500 Lb. Hoist 1
39A 3M002C02S
Hook
& Latch Ass'y. (Part of Key #39) 1
39B 912501700 Clevis Half (Part of Key #39) 2
39C 911232500
Bumper
(Part of Key #39) 1
390
932312014 Flat
Washer
(Part of Key #39) 1
39E 912306604 Dowel Pin (Part of Key #39) 1
40 *913500500 Pulley Block Ass'y. 1000 Lb. Hoist 1
40A 3M002C02S
Hook
& Latch Ass'y. (Part of Key #40) 1
40B 911500100 Sprocket (Part of Key #40) 1
40C 911501800 Pin Pulley Block (Part
of
Key
#40) 1
400
913500300 Block Half (Part of Key #40) 2
41
534L1
Pendant
Station 1
42 911502000
Synco
TFE
Grease (Not Shown) 3 cu/in
43 912305802 Cable
Tie
(Not Shown) 1
44
912305505 Screw, Hex Socket Hd. Cap 1
45 911503100 Clevis 1
46 912305504 Screw, Hex Socket Hd. Cap 1
47 912307303
Hex
Nut
Prevailing Torque (Not Shown) 1
48 123J002
Hook
Latch Kit . 2
49 912316408
Screw
5116 -24 X
3/
8 1
50A H6041 Pushbutton Cord For
10Ft.
of Lift 6.5 ft.
50B H6041 Pushbutton Cord For 20 Ft. of Lift 16.5 ft.
..
*See Assembly Breakdown for IndiVidual Parts
list.
8
REPLACEMENT PARTS LIST
Part Number Description
901244400 Label (Destruction of This Seal)
3M002C01S Bottom Hook &Latch Assembly
124K2 Hook Collar
911234700 Label (500 Lbs. Capacity)
911236800 Label (1000 Lbs. Capacity)
911501500 Strain Relief Bracket
911501900 Temperature Monitoring Dot -170°F
911502500 Corrugated Insert
911502900 Tag (Designed For Intermittent Use)
911503000 Stainless Steel Hoop Canvas Chain Bag
H5159 Roll
Pin
912302711 Thrust Washer
912302909 Retaining Ring
912303001 Screw
912303101 Carton
912303212 Grounding Screw
912303302 Thrust Bearing
H3561P Hex Nut
912304603 Electrical Wire (TFFN Black 18 GA)
912305503 Socket Head Cap Screw
912305706 Lock Washer
912306601 Dowel
Pin
912307506 Strain Relief Bushing
912307611 Terminal Ring #8
912325401 Rubber Grommet
912500100 Motor Pinion
912500200 Gear
#1
Small Helical
912500300 Secondary Pinion'Gear
912500400 Secondary Gear
912500500 Sprocket Shaft
849L1 Potting Capsule Container
*534lG1
Pendant &Cable Assembly
(10Ft.
Lift)
*534LG1-2 Pendant &Cable Assembly (20 Ft. Lift)
687K3 Tag (Waming: When Operating Hoist)
912502700 Transformer (230V in/115V out)
839lG1
Control Module with Potting Capsule
914500200 Housing
914500300 Sprocket Cover
130039 Motor Brushes (2 per motor)
951lG1
Power Cord
..
*See Assembly Breakdown for IndiVidual Parts
LISt.
9
ASSEMBLY BREAKDOWN LIST
Assembly
Consists
Part
Number
Description Of
Description
Qty.
3M002C02S Bottom Block Hook Assembly 3M002C01S Bottom Hook &Latch Assembly 1
124K2 Hook Collar 1
H5159 Roll Pin 1
912302711 Thrust Washer 1
912303302 Thrust Bearing 1
912501200 Gear
#1
&Secondary Pinion Assembly 912500200 Gear
#1
1
912500300 Secondary Pinion Gear 1
912501300 Sprocket Shaft &Secondary Gear Ass'y. 912302909 Retaining Ring 1
912303502 Woodruff Key 2
912500400 Secondary Gear 1
912500500 Sprocket Shaft 1
912500901 Checkseal 1
912502200 500
Lb.
Swivel Clevis &Hook Ass'y. 912303001 Screw 2
912306604 Dowel Pin 1
3M002C02S Bottom Block Hook Ass'y. 1
912312014 Plated Flat Washer 1
912501700 Swivel Clevis Half 2
911232500 Bumper 1
534LG1 Pendant &Cable Ass'y. (10Ft. Lift) 534L1 Pendant Station 1
687K3 Tag (Warning) 1
H6041
Electrical Cable 6.5 ft.
H5814 Terminal 3
H5813 Terminal 3
534LG1-2 I Pendant &Cable Ass'y. (20
Ft.
Lift)
534L1
Pendant Station 1
687K3 Tag (Warning) 1
H6041
Electrical Cable 16.5 ft.
H5814 Terminal 3
H5813 Terminal 3
913500500 Pulley Block Ass'y. (1000 Lbs. Capacity) 911500100 Sprocket Wheel 1
911501800 Pulley Block Pin 1
H3561P Hex Nut 2
912305503 Socket Head Cap Screw 2
912305706 Lock Washer 2
3M002C02S Bottom Block Hook Ass'y. 1
913500300 Block Half (1000 Lbs. Capacity) 2
10
t
1
-I
----11
UP
(BLUE)
PENDANT STATION
WIRING DIAGRAM -SINGLE SPEED HOIST
COM
(YELLOW)
D
(8
N
ROWN)
11
Ll
L2
GR
1
TO 115V
POWER SUPPLY
D
COFFING®
HOISTS
WARRANTY
Every hoist
is
thoroughly inspected and tested prior to
shipment from the factory. Should any problem
develop, return the complete hoist prepaid to your
nearest Coffing Hoists Authorized Warranty Repair Station.
If
inspection reveals that the problem is caused by defective
workmanship or material, repairs will be made without
charge and the hoist will
be
returned, transportation prepaid.
This warranty does not apply where: (1) deterioration
is
caused
by
normal wear, abuse, improper or inadequate
power supply, eccentric or side loading, overloading,
chemical or abrasive actions, improper maintenance, or
excessive heat; (2) problems resulted from repairs,
modifications, or alterations made by persons other than
factory or Coffing Authorized Warranty Repair Stations
personnel; (3) the hoist has been abused or damaged as
a result of an accident; (4) repair parts or accessories
other than those supplied by Coffing Hoists are used
on
the hoist. Equipment and accessories not of the seller's
manufacture are warranted by the manufacturer.
Except
as
stated
herein,
Coffing
Hoists
makes
no
other
warranties,
express
or
implied,
including
warranties
or
merchantability
and
fitness
for
a
particular
purpose.
AWARNING
Overloading
and
Improper
Use
Can Result In Injury
To
Avoid Injury:
• Do not exceed working load limit, load rating, or capacity.
• Do not use to lift people or loads over people.
• Use only alloy chain and attachments for overhead lifting.
• Read and follow all instructions.
Coffing Hoists • Country Club Road •
P.O.
Box 779 • Wadesboro, NC 28170 USA
Customer Service: Tel. (800) 477-5003 (704)
694-2156·
FAX (800) 374-6853 (704) 694-6829
ESC-680-1
2C 2/00
Printed in
USA
'" 2000 Coffing Hoists
Table of contents
Other Coffing Hoists Chain Hoist manuals
Coffing Hoists
Coffing Hoists EMW Series User manual
Coffing Hoists
Coffing Hoists Concert Series User manual
Coffing Hoists
Coffing Hoists EC Series User manual
Coffing Hoists
Coffing Hoists EC3 Series User manual
Coffing Hoists
Coffing Hoists LSB-B Series User manual
Coffing Hoists
Coffing Hoists Concert Series User manual
Coffing Hoists
Coffing Hoists ELC Series User manual
Popular Chain Hoist manuals by other brands
Columbus McKinnon
Columbus McKinnon CHESTER HOIST EL-680 Operating and maintenance manual
Vynckier
Vynckier MW TOOLS TH200-R manual
Strongway
Strongway 72642 owner's manual
RED ROOSTER
RED ROOSTER TCR-1000-CH user manual
CM
CM 653-A Operating, Maintenance & Parts Manual
Chicago Electric
Chicago Electric 40765 Set up and operating instructions
Scheppach
Scheppach Powerfix Profi Operating and safety instructions
HADEF
HADEF 29/06ES Installation, operating and maintenance instructions
Tractel
Tractel Tralift Owner's operation and maintenance manual
Urrea
Urrea 46300 User manual and warranty
Mackworth
Mackworth TX440-122515 Commissioning manual
Ingersoll-Rand
Ingersoll-Rand QUANTUM QMT Series Parts, operation and maintenance manual
CM
CM Lodestar Series Installation operating & maintenance manual
Westfalia
Westfalia 10 85 89 instruction manual
Nitchi
Nitchi EC4 Series Operating and maintenance
REMA
REMA LK-13 Series owner's manual
R&M
R&M STAGEMAKER SM5 Installation, operation and maintenance instructions
AMH
AMH X5 Operation & maintenance manual
