KITO Harrington RYU030A25HDD User manual

© Harrington Hoists, Inc.
All Rights Reserved

ELECTRIC
WIRE ROPE
HOIST and TROLLEY
RY SERIES
3 Ton and 5 Ton Capacity
Hoist Code and Serial Number

This equipment should not be installed, operated or
maintained by any person who has not read and
understood all the contents of this manual. Failure to read
and comply with the contents of this manual can result in
serious bodily injury or death, and/or property damage.
EFFECTIVE: May 8, 2019

2
Table of Contents
Section Page Number
1.0 Important Information and Warnings…………………………………………….……………………. 4
1.1 Terms and Summary
1.2 Warning Tags and Labels
2.0 Technical Information …………………………….…………………………………………………… 10
2.1 Specifications
2.2 Dimensions
2.3 Part Names
3.0 Pre-operational Procedures……………………………………………………………………….….. 16
3.1 General Information
3.2 Handling
3.3 Mounting Location
3.4 Assembly, Adjustments and Mounting
3.5 Block Operated Limit Switch (BLS) Adjustment
3.6 Electrical Connections
3.7 Pendant Installation
3.8 Hoist Variable Frequency Drive (VFD) Setup
3.9 Light-Load High Speed Function
3.10 Hoist Load Limiter (LL) Adjustment
3.11 Trolley Variable Frequency Drive (VFD) Setup
3.12 Hoist Upper and Lower Limit Switch (ULLS) Setup
3.13 Pre-operational Checks and Trial Operation
4.0 Operation……………………………………………………………………………………………….. 44
4.1 Introduction
4.2 Shall’s and Shall Not’s for Operation
4.3 Hoist and Trolley Controls

3
Section Page Number
5.0 Inspection……………………………………………………………………………………………….. 48
5.1 General
5.2 Inspection Classification
5.3 Frequent Inspection
5.4 Periodic Inspection
5.5 Occasionally Used Hoists and Trolleys
5.6 Inspection Records
5.7 Inspection Methods and Criteria
6.0 Maintenance & Handling………………………………………………………………………….…… 61
6.1 Count/Hour Meter
6.2 Lubrication
6.3 Lubrication – Hoist Gearbox
6.4 Hoist Motor Brake
6.5 Trolley Brake Adjustment
6.6 Wire Rope, Reeving and Adjustment
6.7 Storage
6.8 Outdoor Installation
6.9 Operational Environment
7.0 Troubleshooting …………………………………..…………………………………………………… 80
7.1 General Troubleshooting
7.2 VFD Troubleshooting
7.3 VFD Error Rest and Restart
7.4 VFD Monitoring, Error Trace and Error History
8.0 Warranty…..……………………………………………………………………………………………101
9.0 Parts List..…………………………………...…………………………………………………………102

4
1.0 Important Information and Warnings
1.1 Terms and Summary
This manual provides important information for personnel involved with the installation, operation and maintenance
of this product. Although you may be familiar with this or similar equipment, it is strongly recommended that you read
this manual before installing, operating or maintaining the product.
Danger, Warning, Caution and Notice - Throughout this manual there are steps and procedures that can present
hazardous situations. The following signal words are used to identify the degree or level of hazard seriousness.

Danger indicates an imminently hazardous situation which, if not avoided, will result in death or
serious injury, and property damage.

Warning indicates an imminently hazardous situation which, if not avoided, could result in death or
serious injury, and property damage.

Caution indicates a potentially hazardous situation which, if not avoided, may result minor or
moderate injury or property damage.

Notice is used to notify people of installation, operation, or maintenance information which is
important but not directly hazard-related.

INTENDED USE OF HOIST/TROLLEY HOIST and Owner’s Manual
“The RY hoists and trolley hoists are intended only for vertical lifting service of freely suspended, unguided loads. In
addition to lifting service of freely suspended, unguided loads, RY trolley hoists are to be used to traverse these loads
on a single girder beam.
The RY hoist and trolley hoists are not intended to lift greater than rated loads, lift, support or transport people nor lift
loads over people.
The RY hoist and trolley hoists are intended to be operated by persons who have read and understood the operation
section of the RY owner’s manual, all warnings and are familiar with the RY hoist/trolley hoist controls.”

5

These general instructions deal with the normal installation, operation, and maintenance situations encountered with
the equipment described herein. The instructions should not be interpreted to anticipate every possible contingency
or to anticipate the final system, crane, or configuration that uses this equipment. For systems using the equipment
covered by this manual, the supplier and owner of the system are responsible for the system’s compliance with all
applicable industry standards, and with all applicable federal, state and local regulations/codes.
This manual includes instructions and parts information for the RY trolley hoist. Therefore, all instructions and parts
information may not apply to any one type or size of specific trolley hoist. Disregard those portions of the instructions
that do not apply.
Record your trolley hoist’s Product Code and Serial Number on the front cover of this manual for identification and
future reference to avoid referring to the wrong manual for information or instructions on installation, operation,
inspection, maintenance, or parts.
Use only Harrington authorized replacement parts in the service and maintenance of this trolley.

6

Equipment described herein is not designed for and MUST NOT be used for lifting, supporting, or transporting people,
or for lifting or supporting loads over people.
Equipment described herein should not be used in conjunction with other equipment unless necessary and/or
required safety devices applicable to the system, crane, or application are installed by the system designer, system
manufacturer, crane manufacturer, installer, or user.
Modifications to upgrade, rerate, or otherwise alter this equipment shall be authorized only by the original equipment
manufacturer.
Equipment described herein may be used in the design and manufacture of cranes or monorails. Additional
equipment or devices may be required for the crane and monorail to comply with applicable crane design and safety
standards. The crane designer, crane manufacturer, or user is responsible to furnish these additional items for
compliance. Refer to ANSI/ASME B30.17, “Safety Standard for Top-Running Single Girder Cranes”; ANSI/ASME
B30.2 “Safety Standard for Top-Running Double-Girder Cranes”; and ANSI/ASME B30.11 “Safety Standard for
Underhung Cranes and Monorails”.
Hoists, trolleys and cranes, used to handle hot molten material may require additional equipment or devices. Refer to
ANSI Z241.2, “Safety Requirements for Melting and Pouring of Metals in the Metalcasting Industry”.
Electrical equipment described herein is designed and built in compliance with Harrington's interpretation of
ANSI/NFPA 70, “National Electrical Code”. The system designer, system manufacturer, crane designer, crane
manufacturer, installer, or user is responsible to assure that the installation and associated wiring of these electrical
components is in compliance with ANSI/NFPA 70, and all applicable Federal, State and Local Codes.
Failure to read and comply with any one of the limitations noted herein can result in serious bodily injury or death,
and/or property damage.

7

HAZARDOUS VOLTAGES ARE PRESENT IN THE CONTROL BOX, OTHER ELECTRICAL COMPONENTS,
AND CONNECTIONS BETWEEN THESE COMPONENTS.
Before performing ANY mechanical or electrical maintenance on the equipment, de-energize (disconnect) the main
switch supplying power to the equipment; and lock and tag the main switch in the de-energized position. Refer to
ANSI Z244.1, “Personnel Protection – Lockout/Tagout of Energy Sources”.
Hoist incorporates a VFD as well as a Capacitor. Therefore, DO NOT perform ANY mechanical or
electrical maintenance within 5 minutes of powering down to allow time for the capacitor inside the
VFD to discharge. DO NOT perform any voltage or insulation resistance tests with a meg ohmmeter
when the VFD is connected to the electrical circuit.
Only trained and competent personnel should inspect and repair this equipment.

The VFD is designed in Harrington Hoists exclusive specifications. Do NOT use other than Harrington Hoist,
Inc. – authorized VFD.
• Do NOT modify the VFD.
• Do NOT change the wiring.
• Do NOT perform a withstand voltage test or measurement of insulating resistance with the VFD connected.
• Do NOT shut down the power supply during operation.
• Do NOT connect the power supply to the output side of the VFD.
Before performing parameter change or maintenance of the VFD, read this owner’s manual and observe the
information contained herein.
Parameter change and maintenance must be performed by a competent person with experience and expertise
of handling the rope hoist and VFD.
The product is energized during a parameter change or maintenance of the VFD. Do NOT remove the cover of
the VFD. Do NOT touch the circuit board or electrical components around the VFD.
Each hoist heats up during operation. Do NOT maintain and inspect the electrical components for 30 minutes
after a stop of operation.
When handling the VFD, provide protection for Electrostatic Discharge (ESD).
Do NOT perform maintenance and inspection of peripheral parts (excluding the VFD) within 5 minutes after de-
energizing.
Failure to comply with the instructions may lead to an electric shock, burns, malfunction, breakdown or VFD
damage, and even may cause serious or even fatal injury.

8

It is the responsibility of the owner/user to install, inspect, test, maintain, and operate a trolley hoist in accordance with
ANSI/ASME B30.16, “Safety Standard for Overhead Hoists”, OSHA Regulations and ANSI/NFPA 70, "National
Electric Code". If the trolley hoist is installed as part of a total lifting system, such as an overhead crane or monorail, it
is also the responsibility of the owner/user to comply with the applicable ANSI/ASME B30 volume that addresses that
type of equipment.
It is the responsibility of the owner/user to have all personnel that will install, inspect, test, maintain, and operate a
trolley hoist read the contents of this manual and applicable portions of ANSI/ASME B30.16, “Safety Standard for
Overhead Hoists”, OSHA Regulations and ANSI/NFPA 70, “National Electric Code”. If the trolley is installed as part of
a total lifting system, such as an overhead crane, the applicable ANSI/ASME B30 volume that addresses that type of
equipment must also be read by all personnel.
If the trolley hoist owner/user requires additional information, or if any information in the manual is not clear, contact
Harrington or the distributor of the trolley. Do NOT install, inspect, test, maintain, or operate this trolley hoist unless
this information is fully understood.
A regular schedule of inspection of the trolley hoist in accordance with the requirements of ANSI/ASME B30.16 should
be established and records maintained.

9
1.2 Warning Tag and Labels

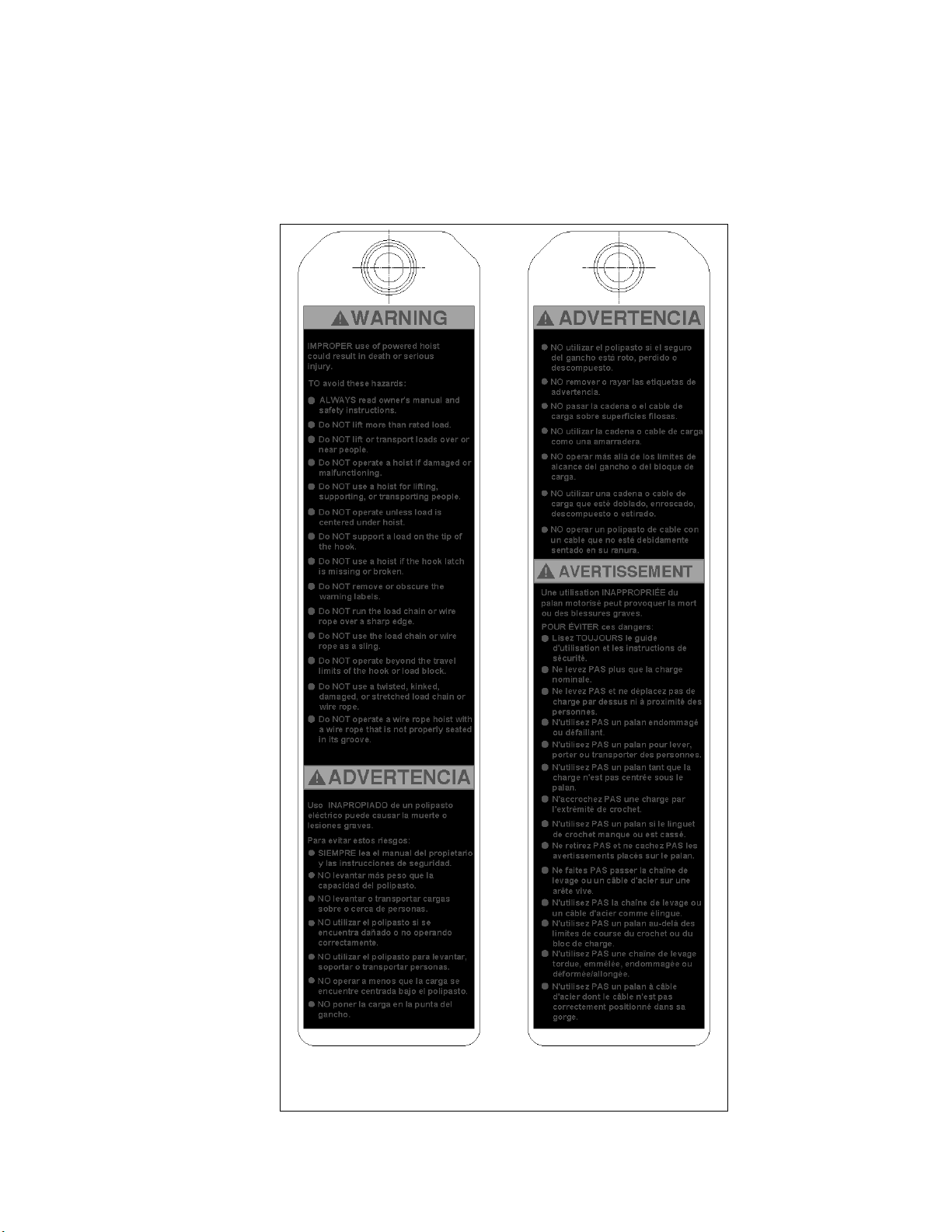

The warning tag illustrated below in Figure 1-1 is supplied with each RY hoist and trolley hoist shipped from the
factory. If the tag is not attached to the pendant cord for your hoist/trolley, order a tag from your dealer and install
it. Read and obey all warnings attached to this Hoist. Tag is not shown actual size.
front back
Figure 1-1 Warning Tag Attached to Hoist

10
2.0 Technical Information
NOTE: Throughout this section the symbol ““ is used as a place holder for the trolley hoist voltage. The
available trolley hoist voltages are listed in Section 2.1.1 that follows.
2.1 Specifications
2.1.1 Product Code:
2.1.2 Operating Conditions and Environment
Temperature Range: -4°to +104°F (-20°to +40°C)
Humidity: 90% RH or less (no condensation)
Electrical Enclosure Rating: IP55
Motors and Pendant: IP65
Speed: Dual – Variable Frequency Drive (VFD)
Supply Voltage: 208V- 230V or 415-460V-3ph-50/60Hz
Control Voltage: 110V-1ph-60Hz (Optional: 24V-1ph-60Hz)
Noise Rating: less than 85 dba at full speed (A scale: measured 1 meter away
from electric wire rope hoist)
Table 2-1 Hoist and Trolley Duty Ratings
Trolley Hoist Capacity Rating
3T & 5T
Service Group
ASME
H4
ISO
M5
FEM
2m
Intermittent Use
Hoist
Ratio of Intermittence
60 (40/20)
Start Ups per Hour
240
Cycles per Hour
40
Trolley
Ratio of Intermittence
30 (20/10)
Start Ups per Hour
180
Cycles per Hour
30
Dual Speed
Motors
Start Ups per
Hour
Main Speed
1/3 (33.3% of total number of
start-ups per hour)
Low Speed
2/3 (66.7% of total number of
start-ups per hour)
Daily Run Time Main Speed 2/3 (66.7% of the average
daily running time)
Low Speed
1/3 (33.3% of the average
daily running time)
Temporary Use
Running Time at Main Speed (min.)
30
Running Time at Low Speed (min.)
3.5
Maximum number of starts-ups per hour
10
Motor Insulation Class – Hoist and Trolley.
F type
Lifting Brake Capacity
150% capacity or more

11
Table 2-2 Ultra-Low Headroom Trolley Hoists Hoist Specifications
Capacity
(Ton) Product Code Lift
(ft.)
Reeving
(Parts/
reeving)
Rope
Dia.
(mm)
Lifting Motor
3 Phase -50/60Hz
Lifting Speed
1
(ft/min)
Output
(Hp)
Rated Current
2
(amps)
Initial
High/Low
Speed
No
Load
High
Speed
@208-230V/
60Hz @415- 460V/ 60Hz
3 RYU030A25HDD25
4/1 9 26/4.3 39 6.7 24.7 12.1
RYU030A33HDD33
5 RYU050B25HDD25 10.7 36.5 18.3
RYU050B33HDD33
1) Low and high speeds are adjustable
2) Current values based on 250 kVA power supply
Table 2-3 Ultra-Low Headroom Trolley Hoists Trolley Specifications
Capacity
(Ton) Product Code
Flange Range
B
(in)
Traversing Motor
3 Phase – 50/60Hz
Net Weight
(lbs)
Traversing
Speed2
(ft/min) Output
(Hp)
Rated Current2
(amps)
Initial
High/Low
Speed
@208-230V/
60Hz @415-460V/ 60Hz
3 RYU030A25HDD4.92-13.78
66/11 0.54 2.1 1.4
960
13.79-19.68 971
RYU030A33HDD4.92-13.78 1048
13.79-19.68 1059
5 RYU050B25HDD4.92-13.78 993
13.79-19.68 1004
RYU050B33HDD4.92-13.78 1092
13.79-19.68 1103
2) Current values based on 250 kVA power supply

12
2.2 Dimensions

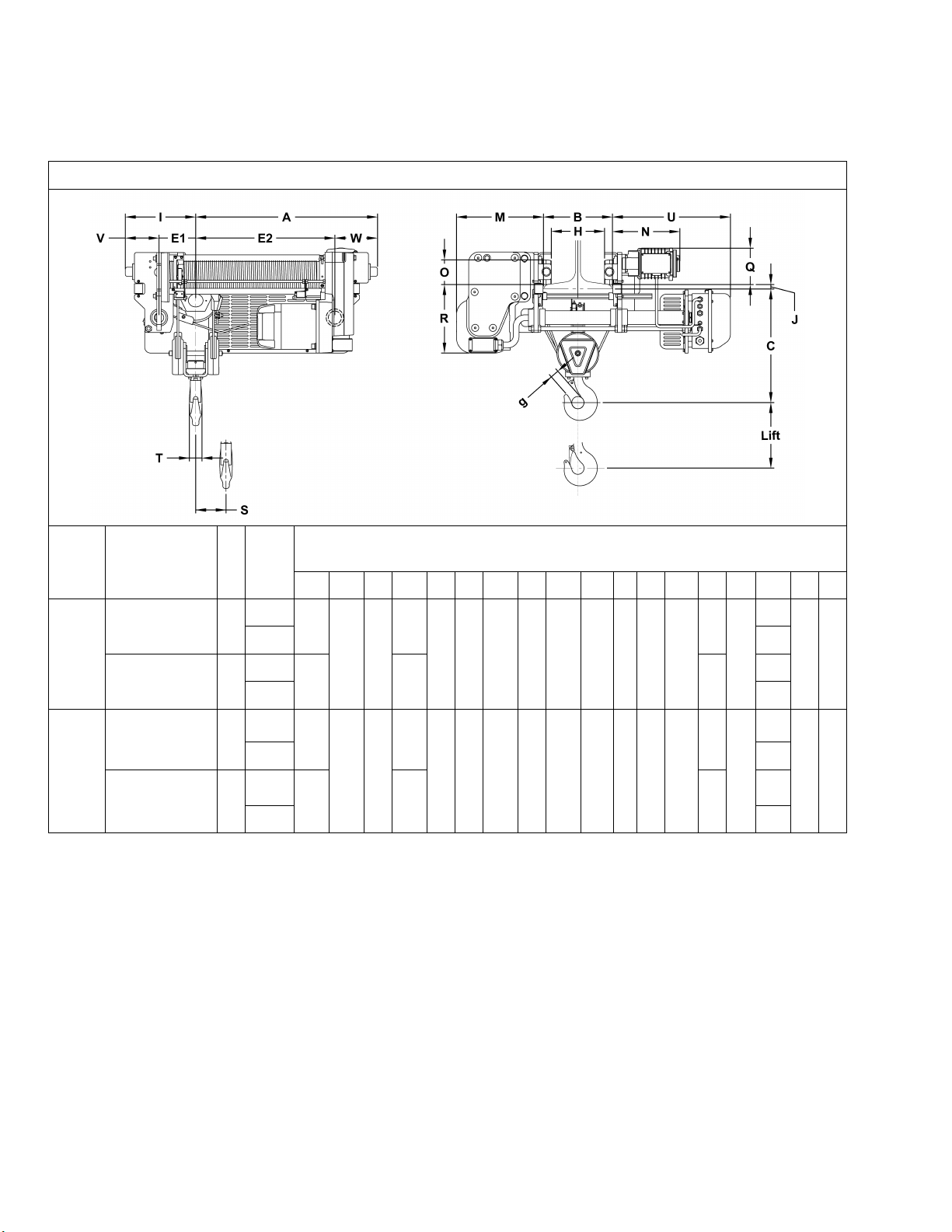

Table 2-4 Ultra-Low Headroom Trolley Hoist Dimensions
Capacity
(Tons) Product Code Lift (ft)
Flange
Range
B
(in)
Dimensions (in)
A C E1 E2 g H I J M N O Q R S T U V W
3
RYU030A25HDD25
4.92-
13.78
36.3
22.8 7.3
27.8
1.7 B-
3.1 14.1 1.2
or
less
17.4 13.5 4.9 7.3 13.7
6.3
2.1
32.4-
23.6
6.7 8.5
13.79-
19.68
29.5-
23.6
RYU030A33HDD33
4.92-
13.78
44.7 36.1 8.4
32.4-
23.6
13.79-
19.68
29.5-
23.6
5
RYU050B25HDD25
4.92-
13.78 36.3
23.2 7.3
27.8
1.8 B-
3.1 14.1 1.2
or
less
17.4 13.5 4.9 7.3 13.7
6.3
2.5
32.4-
23.6
6.7 8.5
13.79-
19.68
29.5-
23.6
RYU050B33HDD33
4.92-
13.78 44.7 36.1 8.4
32.4-
23.6
13.79-
19.68
29.5-
23.6

13

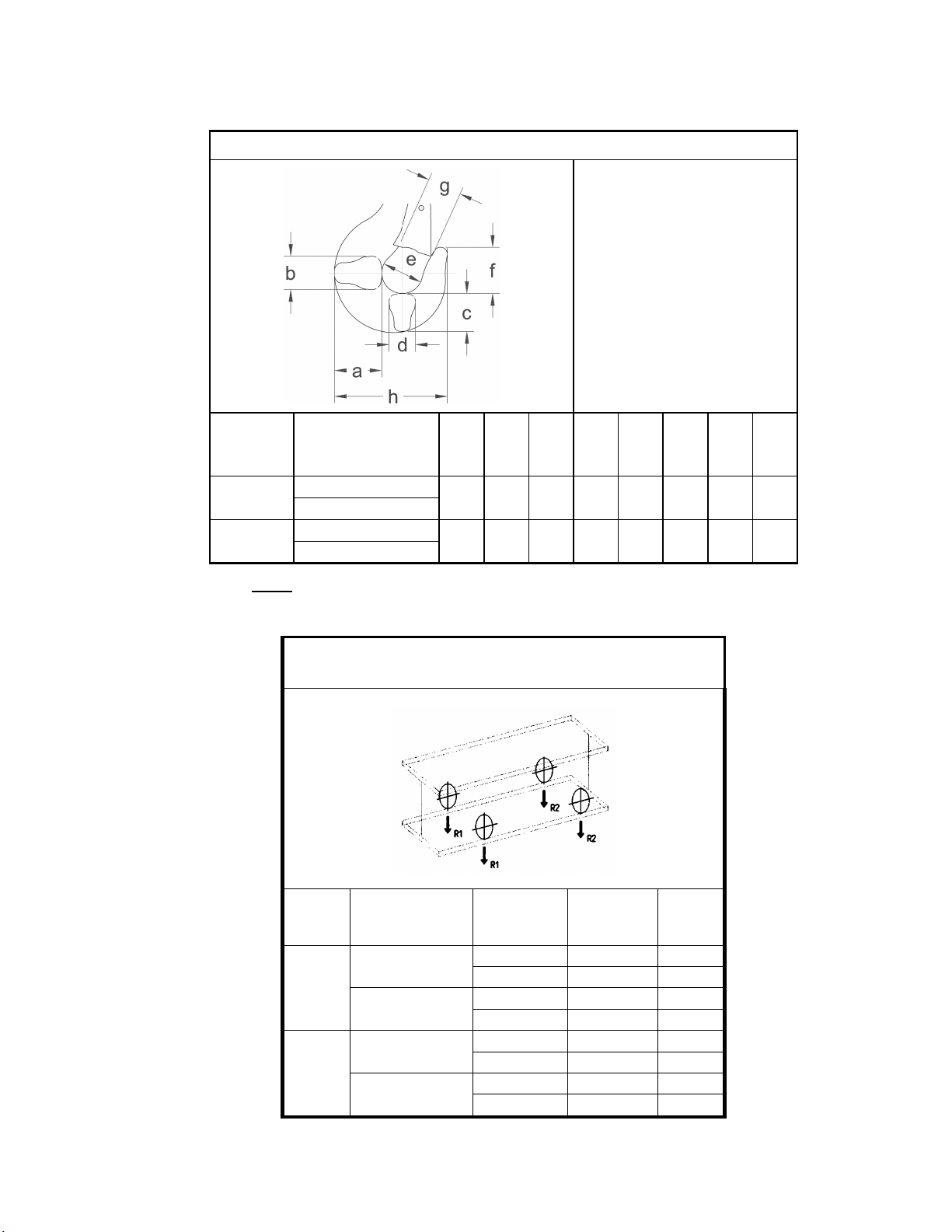

Table 2-7 Hook Dimension*
Units = inch
Capacity
(Tons) Product Code a (in)
b
(in)
c
(in)
d
(in)
e
(in)
f
(in)
g
(in)
h
(in)
3 RYU030A25HDD2.6 2.1 2.3 1.8 2.5 2.8 1.7 6.7
RYU030A33HDD
5 RYU050B25HDD3.2 2.5 2.6 2.1 2.8 3.2 1.8 7.6
RYU050B33HDD
Notes: *Refer to Section 5, Table 5-6 for inspection dimensions and limits.
Table 2-8 Reaction Forces at Rated Load
Ultra-Low Headroom Monorail Trolley
Capacity
(Tons) Product Code Flange Range
B
(in)
R1
(lbs)
R2
(lbs)
3 RYU030A25HDD4.92-13.78 2994 789
13.79-19.68 2999 790
RYU030A33HDD4.92-13.78 3182 645
13.79-19.68 3187 646
5
RYU050B25HDD4.92-13.78 4751 1252
13.79-19.68 4755 1253
RYU050B33HDD4.92-13.78 5032 1020
13.79-19.68 5037 1021

14

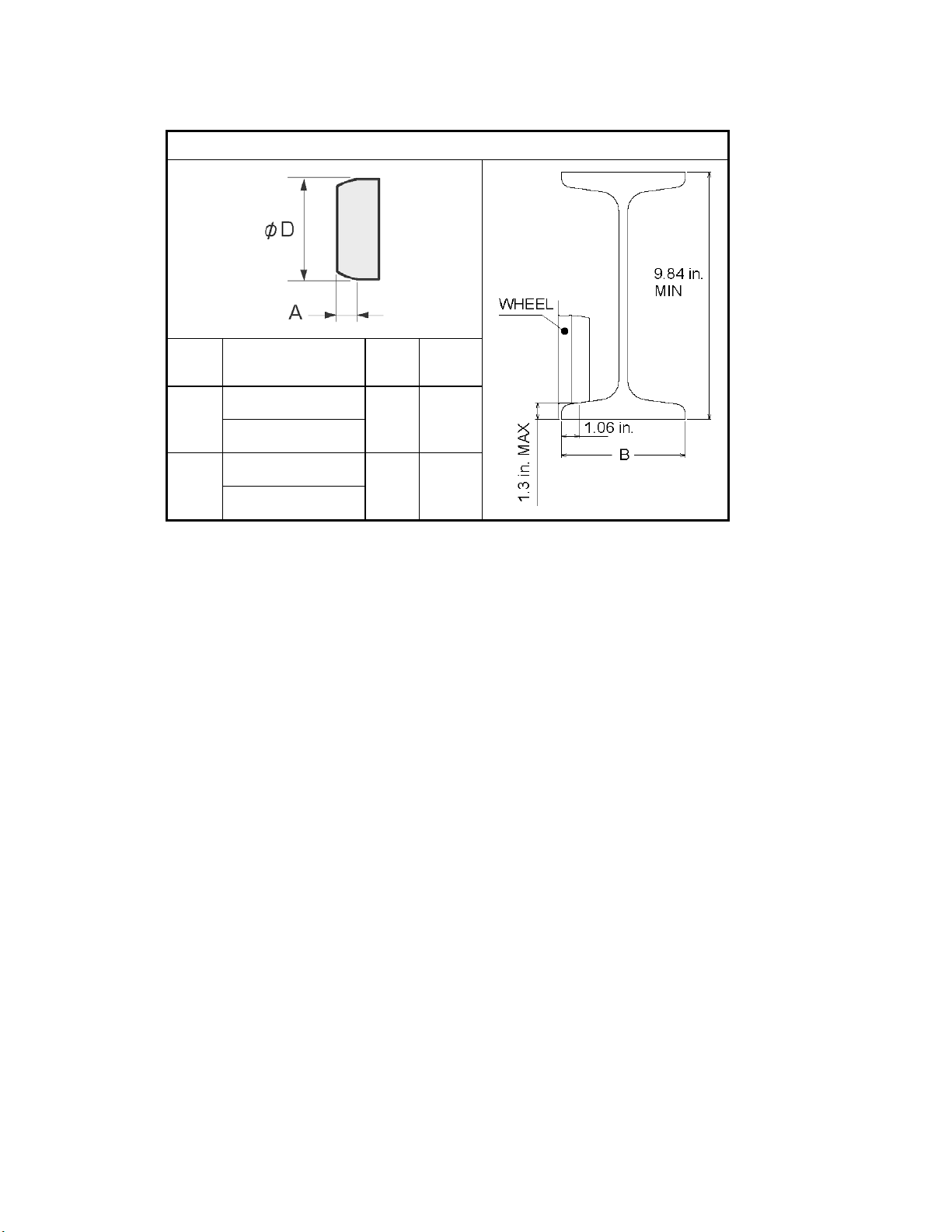

Table 2-9 Trolley Wheel Dimensions
Capacity
(Tons) Product Code A
(in)
φD
(in)
3 RYU030A25HDD0.79 3.86
RYU030A33HDD
5 RYU050B25HDD0.79 3.86
RYU050B33HDD

15
2.3 Part Names
Figure 2-1 RY Part Names

16
3.0 Pre-operational Procedures
3.1 General Information
3.1.1 When the RY trolley hoist is incorporated into lifting systems utilizing other equipment, follow and
complete all pre-operational procedures and instructions provided with the equipment. Special
wiring considerations must also be taken to complete the integration of the RY trolley hoist into
the system.
3.1.2 The RY hoist is delivered pre-assembled on a plastic-covered pallet/skid as shown in Figure 3-1.
During shipment and storage prior to installation, the trolley hoist should be kept between –4°and
+104°F (-20°and +40°C) and the relative humidity must not exceed 90%. The standard packaging is
not watertight and rainproof.
Figure 3-1 Packaged as delivered
3.1.3 The RY trolley hoist is shipped with the wire rope installed and reeved from the wire rope drum through
the return sheaves and hook block to the dead end, reference Section 6.6.
3.1.4 The RY trolley hoist is shipped pre-lubricated with the correct amount of lubricant in the gear box(s).
Follow the lubrication requirements in Section 6.2after the trolley hoist is placed into service.
3.2 Handling
3.2.1 Transportation –When moving the trolley hoist prior to installation, do NOT remove the trolley hoist
from the pallet. Always move trolley hoist utilizing a fork lift, pallet jack or hoist/crane system. Do NOT
stack or place anything on top of the trolley hoist or crate. Avoid swinging and unbalanced conditions.
3.2.2 Lift points – When a pallet is not practical, use of the RY lifting points or the trolley frame is acceptable.
The RY trolley hoist is equipped with threaded lifting lugs in the horizontal tubes (see Figure 3-2 and
Figure 3-3). While lifting do NOT support the trolley hoist any other way.
Figure 3-2 Lift Points for Trolley Hoist, 4 places. (M12mm Lifting Lugs Included)

17
Figure 3-3 Sling Lifting Method
3.3 Mounting Location
3.3.1

Prior to mounting the RY trolley hoist ensure that the wire rope has not loosened
on the wire rope drum. Due to vibration or other impacts during transportation of the product, the
wire rope wound on the Rope Drum may be loosened. Check for “slack” in the wire rope on the
drum. Remove all “slack” from the wire rope on the drum.
1) Pull the load side of the Wire Rope wound on the Rope Drum to remove slack and confirm
that the Wire Rope is settled in the groove of the Rope Drum.
2) If slack still remains, move the loosened part of the Wire Rope toward the Rope Guide side
so as to gradually remove the slack. When the slack reaches the Rope Guide, pull the Wire
Rope to completely remove the slack.
3) If slack cannot be removed by the steps above, detach the Rope Guide and remove the slack
and entanglement of the Wire Rope.
3.3.2 For the procedure of installation and removal of the Rope Guide, see Section 6.6.6 “Wire Rope
Installation/Rope Guide Installation”.
3.3.3

Prior to mounting the RY trolley hoist ensure that both the trolley beam lower
flange rating meets or exceeds the trolley hoist reaction forces listed in Table 2-8 and the beam
supporting structure is adequate to support the trolley hoist and its load.If necessary consult a
professional that is qualified to evaluate the adequacy of the suspension location and its supporting
structure.
3.3.4 Ensure that there is adequate vertical and horizontal clearance along the entire range of the trolley
hoist’s motion as shown in Figure 3-4.
Figure 3-4 Trolley Hoist Clearances

18
3.3.5

See Section 6.8for outdoor installation considerations.
3.4 Assembly, Adjustments and Mounting

When installing the trolley hoist on a beam, ALWAYS raise the hoist into position with the
trolley assembled together and securely attached to a pallet/skid. Raise the trolley hoist with a forklift, lifting
platform, or other similar means. NEVER use slings to raise and install the trolley hoist onto the beam.Using a
forklift or another suitable means, position the pallet/skid so that the horizontal axis of the beam is parallel to the
horizontal axis of the trolley hoist as shown in Figure 3-6.
Figure 3-6 Trolley Secured to Pallet/skid for Installation
Note: Unless specified when ordered, the RY trolley hoist is factory set to accommodate a 4.92 to 13.78 inch
beam flange. A wider flange range for beams with flange widths 13.79 to 19.68 inches is available.
The RY is equipped with the maximum counterweight necessary for the standard and optional flange range,
4.92 to 19.68 inch, for each hoist capacity.
3.4.1 RY Trolley Hoist Installation
1) Make sure the mounting location complies with Section 3.3.
2) Install any additional devices, if any (power supply cords or pendants, for instance – see Section 3.7)
onto the trolley hoist. If the trolley hoist is not secured to a pallet, place and secure it to one making
sure that the trolley hoist is completely stable as shown in Figure 3-6.
3)

Only move/adjust the Trolley Frame “adjustment side” (side with trolley motor) of
the trolley. The “adjustment side” is easily identifiable as the trolley motor is bolted to it. Never loosen
the Adjusting Bolt Nuts on the “fixed side” or attempt to move the “fixed side” of theTrolley Frame. See
Figure 3-7 for Trolley Frame identification. Loosen the Socket Bolt attached to the lower side of the
boss on the Trolley Frame “adjustment side” (trolley motor) side as shown in Figure 3-7 and Figure 3-
8.
4) Before attempting to install the trolley hoist, verify beam width, “B” and the “A” dimension as shown in
Figure 3-10. Adjust flange width if necessary.

19
5) To adjust the flange width of the trolley, loosen the Socket Bolt located on the underside of the
“adjustment side” of the Trolley Frame on each as shown in Figure 3-7 and Figure 3-8.
To widen the flange width: Loosen the adjusting nut on the outer side of the trolley frame (adjustment
side) and tighten the nut on the inner side of the trolley frame (adjustment side) shown in Figures 3-8.
This must be performed uniformly on both Adjusting Bolt locations on each end of the hoist as shown in
Figures 3-7. Confirm dimension “A” as referenced in Figure 3-10.
To narrow the flange width: Loosen the adjusting nut on the inner side of the trolley frame (adjustment
side) and tighten the nut on the outer side of the trolley frame (adjustment side) shown in Figures 3-8.
This must be performed uniformly on both Adjusting Bolt locations on each end of the hoist as shown in
Figures 3-7. Confirm dimension “A” as referenced in Figure 3-10.
Figure 3-7 Adjusting distance between frames to accommodate beam
6) If the end of the runway beam is accessible, slide the trolley hoist onto the end of the runway
beam. Check the Trolley Wheel to Guide Roller clearance, “t”. “t” = 5/64 inch as shown in Figure
3-10. Adjust the Trolley Frame as necessary to meet the Trolley Wheel to Guide Roller
clearance, “t”. (See Section 3.4.1 Step 5 for proper adjustment procedure).
Figure 3-8 Loosen the Adjusting Bolt Nuts and Socket Bolts

20
7) If the end of the runway beam is not accessible, the trolley flange width will need to be opened up
to allow the Trolley Hoist to fit around the beam. (See Section 3.4.1 Step 5 for proper
procedure to widen flange width.)
8) Once the hoist is in position with the beam flange wheel running surface, the trolley flange can be made
narrowed to accommodate the respective beam flange width. Confirm dimension “t” = 5/64 inch as
shown in Figure 3-10. (See Section 3.4.1 Step 5 for proper procedure to widen flange width.
Figures 3-8, 3-9 and 3-10)
9) After adjusting the Trolley Frames for the correct beam flange width, tighten the Socket Bolt that was
loosened in step 3) and tighten the Adjusting Bolt Nut.
a. Socket Bolt Tightening Torque: 80 lbf-inch.
b. Adjusting Bolt Nut Tightening Torque: 111 lbf-ft

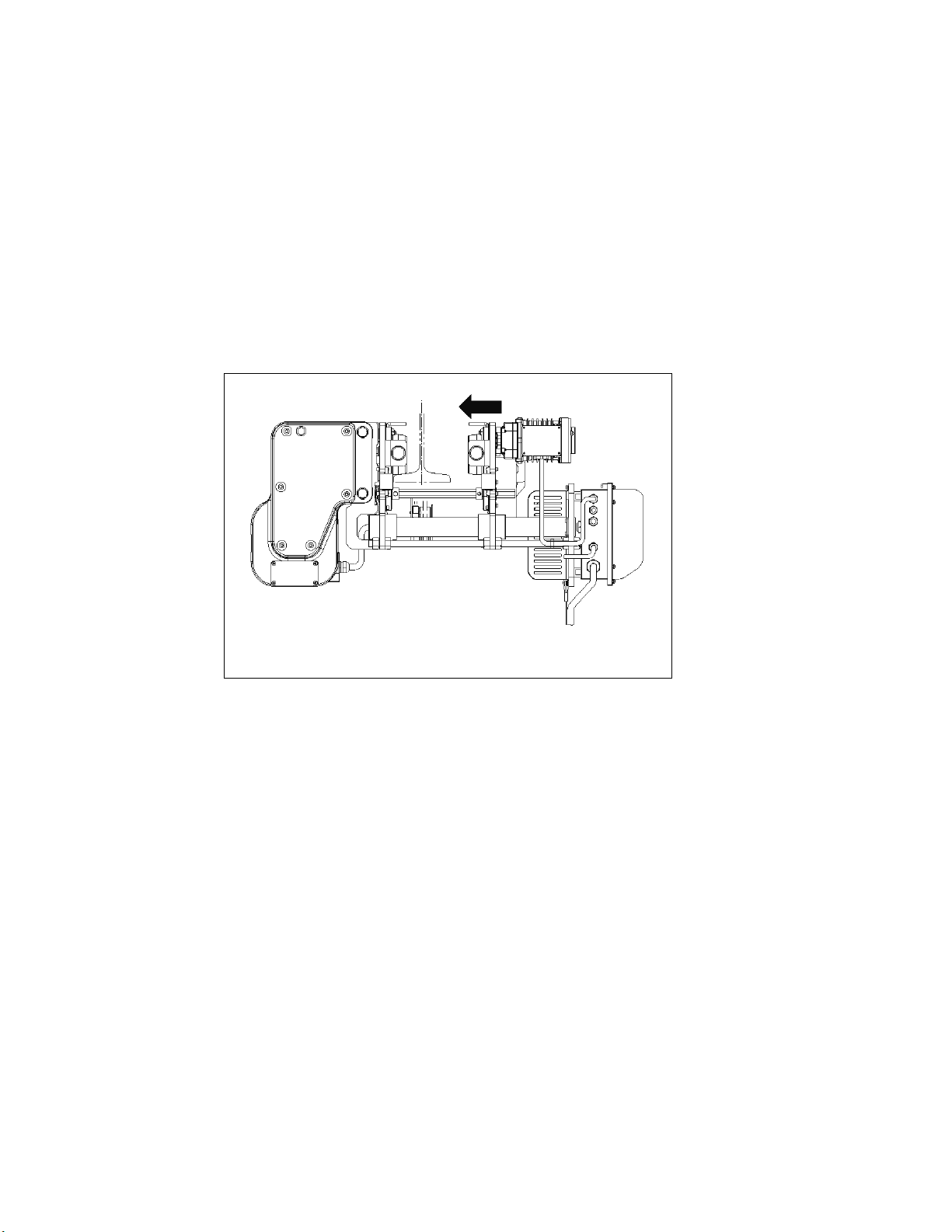

Figure 3-9 Trolley Sliding onto Beam
