Cognex DataMan 60 Series User manual

DataMan®Fixed Mount Readers
Reference Manual
04/19/2017
Version: 5.7.0.36

Legal Notices
The software described in this document is furnished under license, and may be used or copied only in accordance with
the terms of such license and with the inclusion of the copyright notice shown on this page. Neither the software, this
document, nor any copies thereof may be provided to, or otherwise made available to, anyone other than the licensee.
Title to, and ownership of, this software remains with Cognex Corporation or its licensor. Cognex Corporation assumes
no responsibility for the use or reliability of its software on equipment that is not supplied by Cognex Corporation.
Cognex Corporation makes no warranties, either express or implied, regarding the described software, its
merchantability, non-infringement or its fitness for any particular purpose.
The information in this document is subject to change without notice and should not be construed as a commitment by
Cognex Corporation. Cognex Corporation is not responsible for any errors that may be present in either this document or
the associated software.
Companies, names, and data used in examples herein are fictitious unless otherwise noted. No part of this document
may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, nor
transferred to any other media or language without the written permission of Cognex Corporation.
Copyright © 2017. Cognex Corporation. All Rights Reserved.
Portions of the hardware and software provided by Cognex may be covered by one or more U.S. and foreign patents, as
well as pending U.S. and foreign patents listed on the Cognex web site at: http://www.cognex.com/patents.
The following are registered trademarks of Cognex Corporation:
Cognex, 2DMAX, Advantage, AlignPlus, Assemblyplus, CheckitwithChecker, Checker, CognexVisionforIndustry,
CognexVSOC, CVL, DataMan, DisplayInspect, DVT, EasyBuilder, Hotbars, IDMax, In-Sight, LaserKiller, MVS-8000,
OmniView, PatFind, PatFlex, PatInspect, PatMax, PatQuick, SensorView, SmartView, SmartAdvisor, SmartLearn,
UltraLight, VisionSolutions, VisionPro, VisionView
The following are trademarks of Cognex Corporation:
The Cognex logo, 1DMax, 3D-Locate, 3DMax, BGAII, CheckPoint, CognexVSoC, CVC-1000, FFD, iLearn, In-Sight
(design insignia with cross-hairs), In-Sight2000, InspectEdge, Inspection Designer, MVS, NotchMax, OCRMax,
PatMaxRedLine, ProofRead, SmartSync, ProfilePlus, SmartDisplay, SmartSystem, SMD4, VisiFlex, Xpand
Other product and company trademarks identified herein are the trademarks of their respective owners.
2
Legal Notices

Table of Contents
Legal Notices 2
Table of Contents 3
About This Manual 6
Symbols 6
Safety Information 7
Warnings And Notices 7
Mechanical Information 8
DataMan 50 Reader Dimensions 8
DataMan 60 Reader Dimensions 9
DataMan 70 Series Reader Dimensions 10
DataMan 150 Reader Dimensions 11
DataMan 260 Reader Dimensions 12
DataMan 300 Series Reader Dimensions 13
DataMan 360 Series Reader Dimensions 15
DataMan 503 Reader Dimensions 16
Service Procedures 17
DataMan 50 Service Procedures 17
DataMan 60 Service Procedures 18
DataMan 70 Service Procedures 19
DataMan 150 and 260 Series Service Procedures 21
DataMan 300 and 360 Series Service Procedures 25
DataMan 503 Service Procedures 34
Mounting Requirements 35
Grounding 36
Thermal and Environmental Requirements 37
DataMan 50, 150, 260, 300, 360 and 503 IP Rating 37
DataMan 60 and 70 IP Rating 37
Electrical Information 38
DataMan 50 and 60 Discrete I/O Connector 38
DataMan 50 and 60 USB & Flying Leads I/O Cable 38
DataMan 50 and 60 RS-232 & Flying Leads I/O Cable 39
DataMan 50 and 60 Digital Input Lines 39
DataMan 50 and 60 External Wiring Examples: Digital Input Lines 40
DataMan 50 and 60 Digital Output Lines 41
DataMan 50 and 60 External Wiring Examples: Digital Output Lines 43
DataMan 70 and 150 Discrete I/O Connector 44
DataMan 70 and 150 RS-232 Cable 44
DataMan 150 Flying Leads Cable 45
DataMan 260 Discrete I/O Connector 46
DataMan 260 Ethernet Cable 47
DataMan 260 Acquisition Triggering 48
DataMan 260 High-Speed Output Lines 49
DataMan 260 High-Speed Output Wiring 49
DataMan 300 and 360 Series Readers Discrete I/O Connector 51
DataMan 300 and 360 Series Readers External Light Control 52
3
Table of Contents

DataMan 300 and 360 Series Readers Power Requirements 52
DataMan 300 and 360 Series Readers Acquisition Triggering 52
DataMan 300 and 360 Series Readers High Speed Output Lines 52
DataMan 300 and 360 Series Readers High Speed Output Wiring 54
DataMan 503 Discrete I/O Connector 55
DataMan 503 RS-232 Serial Connector 55
DataMan 503 External Light Control 56
DataMan 503 High-Speed Output Wiring 56
DataMan 503 Power Requirements 57
Connecting the Encoder to a DataMan 58
Optics and Lighting 59
DataMan 50 and 60 Reading Distances and Field of View 59
DataMan 70, 150 and 260 Reading Distances and Field of View 61
DataMan 300 and 360 Series Readers Reading Distances and Field of View 66
Scan Map for DataMan 300 and 360 Series Readers Using a 10.3 mm Lens 66
Scan Map for DataMan 300 and 360 Series Readers Using a 16 mm Lens 67
Scan Map for DataMan 300 and 360 Series Readers Using a 19 mm Lens 68
Scan Map for DataMan 300 and 360 Series Readers Using a 25 mm Lens 69
DataMan 503 Readers Reading Distance and Field of View 70
Scan Map for DataMan 503 Series Readers Using a 16 mm Lens Module 70
Scan Map for DataMan 503 Series Readers Using a 25 mm Lens Module 71
Scan Map for DataMan 503 Series Readers Using a 35 mm Lens Module 71
CS-Mount Lens Characteristics 72
DataMan 503 CS-Mount Lens Characteristics 72
Internal Lighting 73
DataMan 50 and 60 Internal Lighting 73
DataMan 70, 150 and 260 Internal Lighting 73
DataMan 300 and 360 Series Readers Internal Lighting 73
External Lighting 76
DataMan 50 and 60 External Lighting 76
DataMan 50 and 60 Illumination Strobe Output 76
DataMan 50 and 60 External Load Strobe Output 78
DataMan 300 and 360 Series Readers External Lighting 78
DataMan 50, 60, 300 and 360 External Lighting Duration 80
DataMan 503 External Lighting Duration 81
Operations Guide 82
Trigger Modes 82
Self-Trigger 82
Manual 82
Burst 82
Continuous 82
Single 82
Presentation 82
Package Detection Support 83
Test Mode 83
Code Training 84
Automatic Code Training for DPM Symbols 84
Image Buffering and Image Recording 84
Retrieving Buffered Images 85
4
Table of Contents

DataMan Master/Slave Configuration 85
Master 85
Slaves 86
Data Formatting 86
Limitations 86
Synchronized Acquisition 86
Using C/CS-Mount Lenses 88
Aperture Setting 88
Selecting Optimum Focus 88
Optimizing Performance 88
Read Interval and Timeout Configuration 88
Optimizing Burst Trigger Parameters 88
Reducing DataMan Processing Requirements 89
Avoiding Reflections and Glare 89
Application Guide 90
Understanding Your Application Envelope 90
Tote Scanning 91
Side Scanning 92
Side Scanning (Large Field) 92
Print Verification (Carton Coding and Print & Apply) 93
Manual Presentation Scanning 94
Precautions 95
5
Table of Contents

About This Manual
The DataMan Fixed Mount Readers Reference provides detailed information on the configuration and operation of
DataMan fixed-mount readers. It includes the following sections:
lSafety Information
lMechanical Information
lElectrical Information
lOptics and Lighting
lOperation
lApplication Guide
Symbols
The following symbols indicate safety precautions and supplemental information.
WARNING:This symbol indicates the presence of a hazard that could result in death, serious personal injury or
electrical shock.
CAUTION:This symbol indicates the presence of a hazard that could result in property damage.
Note: Notes provide supplemental information about a subject.
Tip: Tips provide helpful suggestions and shortcuts that may not otherwise be apparent.
6
About This Manual

Safety Information
The DataMan 300, 360, and 503 series readers have laser light.
If you need more information on the collection, reuse, and recycling systems, please contact your local or regional waste
administration.
You may also contact your supplier for more information on the environmental performance of this product.
Warnings And Notices
CAUTION:IP protection is ensured only when all connectors are attached to cables or shielded by a sealing cap.
Note: For product support, contact http://support.cognex.com.
CAUTION:Use of controls or adjustments or performance of procedures other than those specified herein may
result in hazardous radiation exposure.
lDo not attempt to service or repair this product - return it to Cognex for service.
lDo not permit anyone other than Cognex Corporation to service, repair, or adjust this product.
lDo not attempt to open or modify this device except as described in this document.
lDo not direct or reflect laser light toward people or reflective objects.
lDo not operate this device if it is damaged or if the covers or seals are missing or damaged.
This Laser Product is designated as Class 2 during all procedures of operation.
Wavelength 650 nm
Laser power for classification < 1mW
Beam Diameter < 3mm at aperture
Divergence < 1.5 mrad
7
Safety Information

Mechanical Information
This section provides information on various mechanical features of the DataMan 50, DataMan 60, DataMan 70,
DataMan 150, DataMan 260, DataMan 300, DataMan 360 and DataMan 503 series readers, such as dimensions, lens
replacement, mounting information, as well as thermal and environmental requirements.

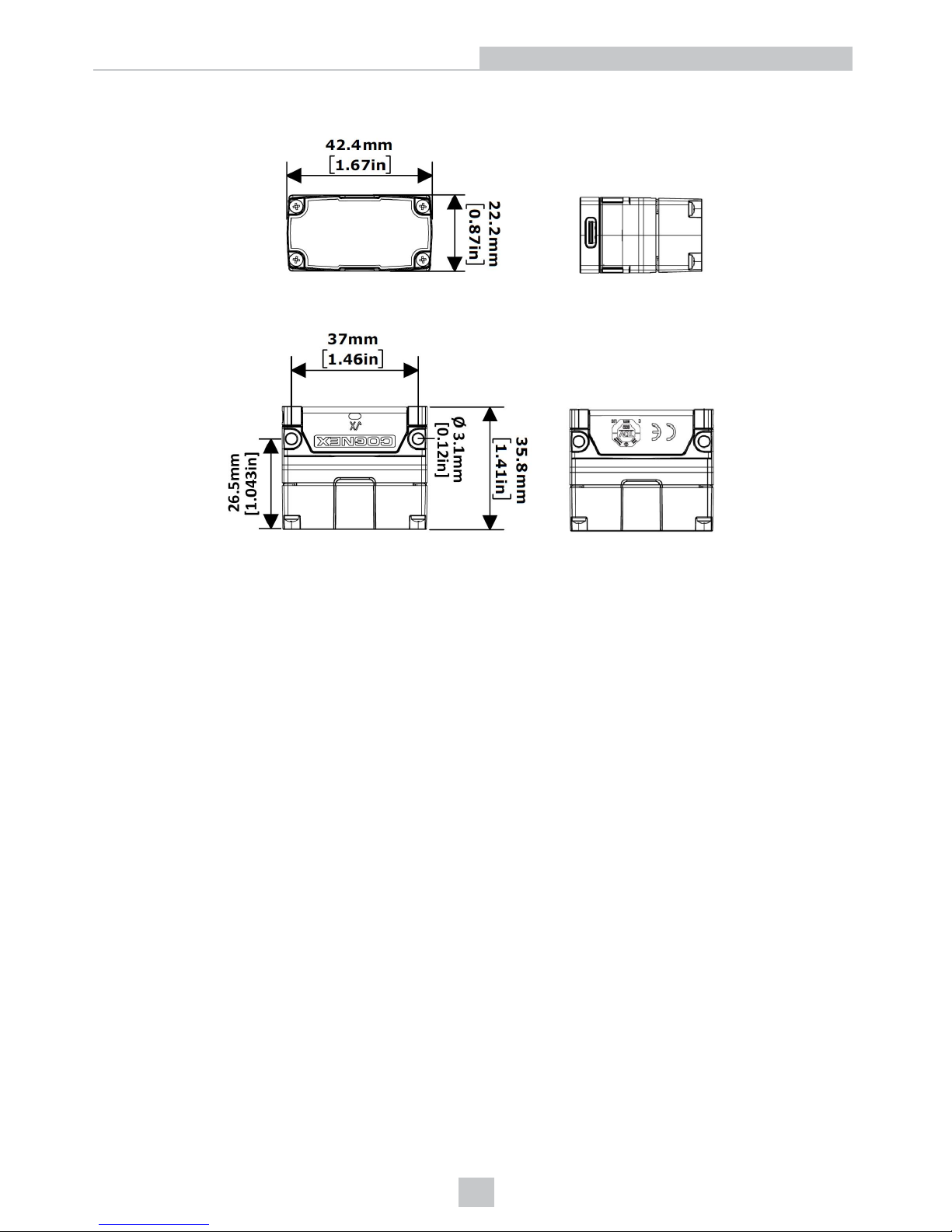

DataMan 50 Reader Dimensions
8
Mechanical Information

DataMan 60 Reader Dimensions
9
Mechanical Information

DataMan 70 Series Reader Dimensions
10
Mechanical Information

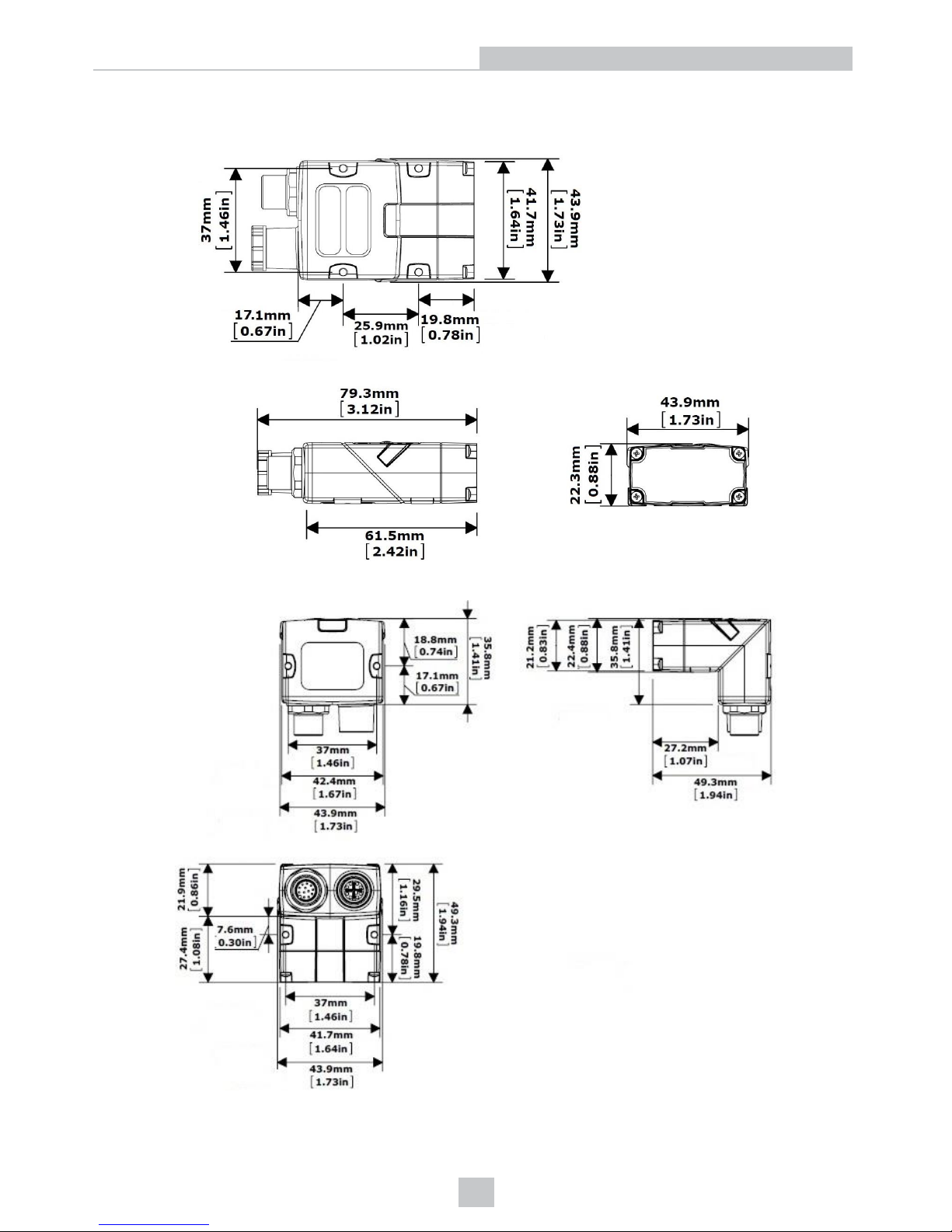

DataMan 150 Reader Dimensions
DataMan 150 dimensions in the straight configuration:
DataMan 150 dimensions in the angled configuration:
11
Mechanical Information

DataMan 260 Reader Dimensions
DataMan 260 dimensions in the straight configuration:
DataMan 260 dimensions in the angled configuration:
12
Mechanical Information

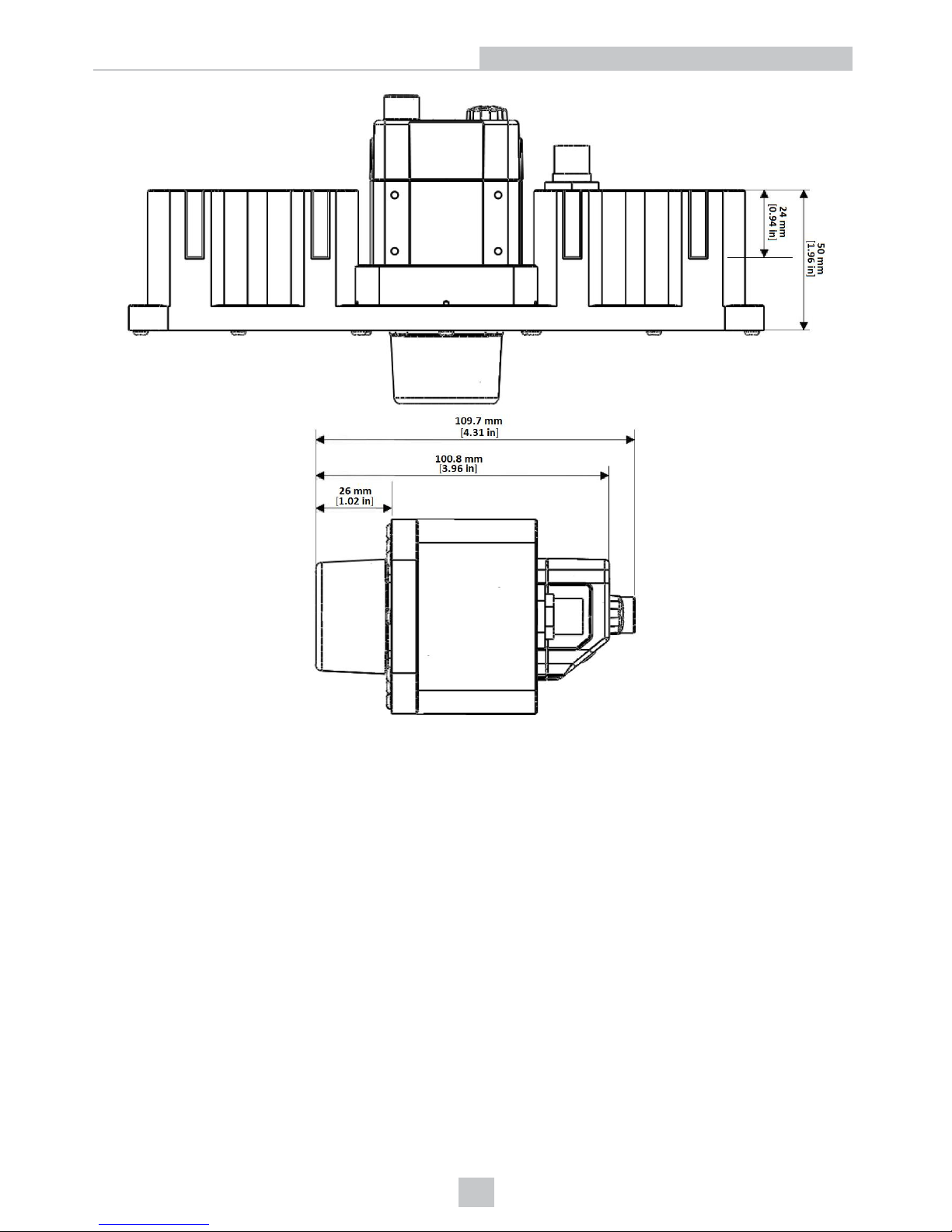

DataMan 300 Series Reader Dimensions
1 M3-5 (4x) mounting holes of the device
2 M3-6 (4x) mounting holes for external illumination
3 Illumination lights
4 Operating buttons
5 S-Mount (M12) Lens version
6 C-Mount Lens version
13
Mechanical Information

14
Mechanical Information

DataMan 360 Series Reader Dimensions
DataMan 360 dimensions without lens and with C-mount and S-mount lens options:
1 M3-5 (4x) mounting holes of the device
2 M3-6 (4x) mounting holes for external illumination
3 Illumination lights
4 Operating buttons
A C-Mount Lens version
B S-Mount (M12)Lens version
15
Mechanical Information

DataMan 503 Reader Dimensions
16
Mechanical Information

Service Procedures
DataMan 50 Service Procedures
DataMan 50 can operate in one of three distance ranges. Perform the following steps to set the focus position:
1. Remove the screws, the lens cover and the rubber part.
2. Set the focus position using a coin. Do not use a coin thicker than 2 mm. If no coin is available, use the edge of
the back cover.
3. Make sure that the sealing and the sealing surface are clean before mounting.
4. Line up the holes with the icons and attach the rubber part to the front window.
5. Attach both to the housing and add the four screws.
6. Tighten the screws in the order shown in the image below. The maximum torque for the cover screws is 8 N-cm
(0.7 pound-inch).
17
Mechanical Information

DataMan 60 Service Procedures
DataMan 60 can operate in one of three distance ranges. Perform the following steps to set the focus position:
1. Remove the lens cover.
2. Set the focus position to 45, 70, or 110: turn the lens cap clockwise (45->70->110) to focus to a larger distance;
turn the lens cap counter-clockwise (110->70->45) to focus to a shorter distance.
3. Reattach the front cover.
18
Mechanical Information

DataMan 70 Service Procedures
DataMan 70 can operate in one of three distance ranges. Follow the steps below to set the focus position.
1. Remove the screws and the front cover.
2. Using a flathead screwdriver, set the focus position from the front. Always turn clockwise to focus to a larger
distance and counterclockwise to focus to a shorter distance.
Note: If an optical filter has been mounted, first disconnect the DataMan 70 reader from power and remove
the illumination module with the filter before adjusting the focus.
19
Mechanical Information

3. Remount the front cover. Observing the tightening sequence below, tighten all four screws to 9 Ncm using a
torque wrench.
20
Mechanical Information
