COGNEX®
DataMan®60
Quick Reference Guide

ii DataMan 60 Quick Reference Guide DataMan 60 Quick Reference Guide iii
Section Title •Page 2
1Getting Started About DataMan 60 • For More Information • DataMan 60
Systems • Reader Layout • DataMan 60 Accessories Page 4
1
DataMan Software Page 15
3Installing DataMan Software and Connecting the Reader
• Start the Setup Tool • Troubleshooting an Ethernet
Connection • Use the Setup Tool Menu Bar • Triggering •
Training the Reader • Read Setups
1Connections, Optics, and Lighting Page 28 4I/O Cable • Digital Input and Output Wiring Diagrams •
Illumination Strobe Output • Multi-Port Connections
1Compliance Information, Warnings
and Notices Page 38
5DataMan 60 Specications • Warnings and Notices •
Compliance Statements
Setting Up Your DataMan Setting the Focus Position • Field of View and Reading
Distances • Dimensions • DataMan 60 Imager
Specications
2Page 9

4 DataMan 60 Quick Reference Guide DataMan 60 Quick Reference Guide 5
About DataMan 60 For More Information...
DataMan 60 is a compact xed-
mount ID reader that among
others offers the following
advanced features:
• Smallest high-performance
xed mount reader
• Highest read rates for 1-D and
2-D codes
• Reliability and image feedback
DataMan 60 readers support RS-
232, USB, and Ethernet interface
connections plus discrete I/O.
The DataMan 60 reader is
packaged in an IP40-rated housing.
This document provides basic information about how to congure and
use the DataMan 60 reader. Additional information is available through
the Windows Start menu or the Setup Tool Help menu after you install
the DataMan software on your PC:
DataMan Fixed Mount Readers Reference is a complete
online hardware reference for the DataMan reader.
Cognex->DataMan Software v x.x->Documentation->English->DM60->Fixed Mount
Reference Manual
DataMan Communications & Programming Guide shows
how to integrate your DataMan reader with your automation
software and factory network.
Cognex->DataMan Software v x.x->Documentation->Communications &
Programming
DataMan Reader Conguration Codes provides printable
2-D codes that you can use to congure the DataMan reader.
Cognex->DataMan Software v x.x->Documentation->English->Reader Conguration
Codes
DataMan Questions and Answers provides context-sensitive
information. You can view this help inside the Setup Tool or as
a stand-alone help le.
Cognex->DataMan Software v x.x->Documentation->English->DM60->Questions and
Answers
Release Notes list detailed system requirements and
additional information about this DataMan software release.
Cognex->DataMan Software v x.x->Documentation->DataMan v x.y.z Release Notes

The following image shows the characteristics of the DataMan 60 reader.
6 DataMan 60 Quick Reference Guide DataMan 60 Quick Reference Guide 7
DataMan 60 Systems and Reader Layout
Aimer LED
Ethernet
RJ-45
connector
Directly
connected cable
terminating in a
DB15 connector
providing: power,
I/O, USB, and RS-
232 connectivity
Internal
illumination
CMOS sensor
and M12 lens
mount
External
illumination
connector
mounting
points
Omni-directional
1-D Code Reading
IDQuick™ —
High-Speed 2-D
Reading
IDMax+™ with
HOTBARS™
DataMan 60L
(DMR-60L-00) √
DataMan 60S
(DMR-60S-00) √ √ √

8 DataMan 60 Quick Reference Guide DataMan 60 Quick Reference Guide 9

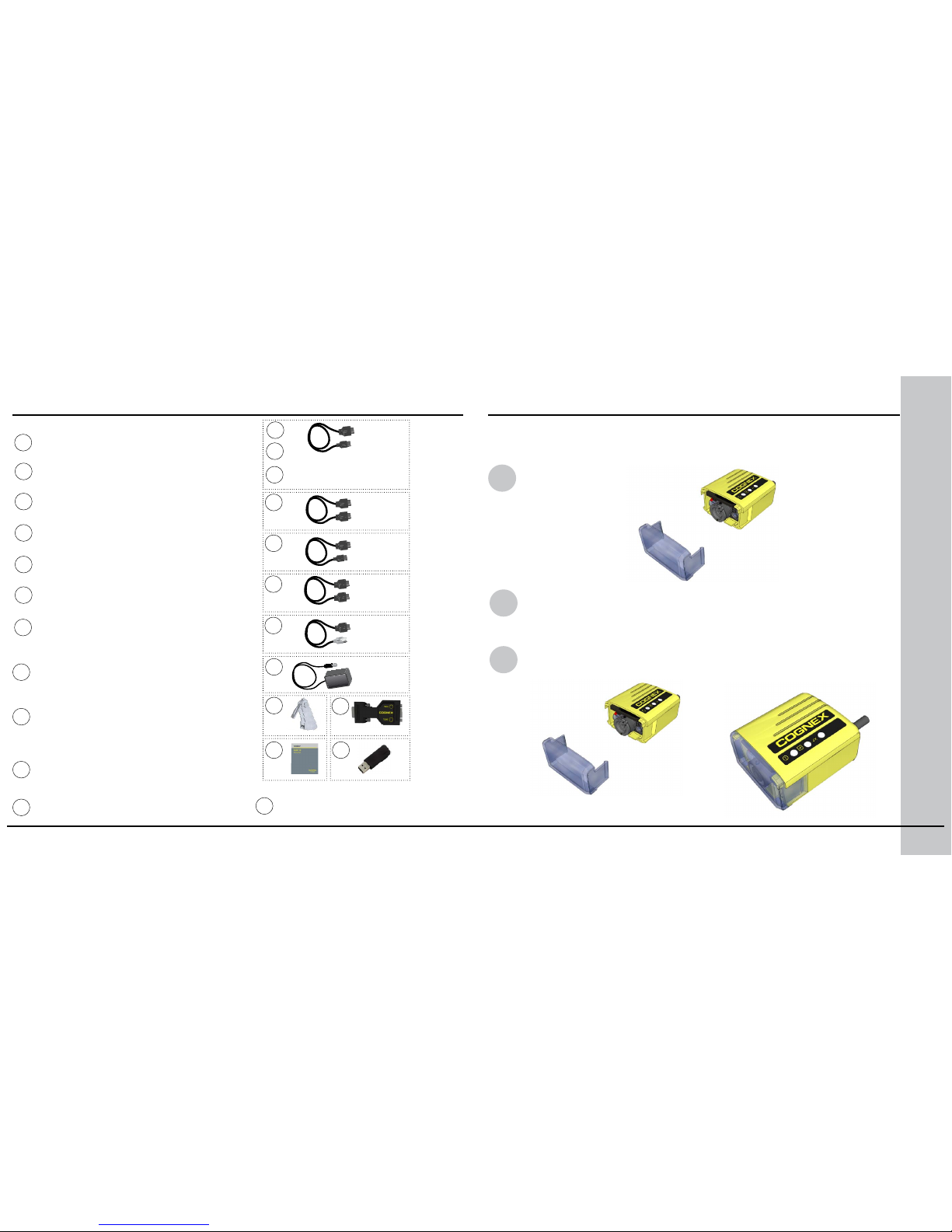

DataMan 60 Accessories
8
MOUNTING BRACKET
POWER SUPPLY
8
Power Supply, 6V
(DM100-PWR-000)
USB Cable, 1.5 m
(DM100-USB-000)
1
2
1
2
CABLES
RS-232 Cable, 1.5 m
(DM100-RS232-000)
3
3
USB Cable, 3 m
(DM100-USB-030)
4
Extension Cable, 5 m
(DM100-RS232-000)
4
5
USB Patch Cable
(DM100-PATCH-000)
5
Pivot Mounting Bracket
(DM100-PIVOTM-00)
9
CONTROL BOX
Ethernet Cable: use any standard
CAT5/5e, SF/FTP or S/FTP cable
6
6
10 Control Box (DM-CTRLBOX-00)
910
DataMan 60 can operate in one of three distance ranges. To set the
focus position:
Remove lens cover.
Setting the Focus Position
1
2Set focus position to 45, 70, or 110. Turn the ring clockwise
(45->70->110) for larger focus settings; turn the ring counter-
clockwise (110->70->45) for smaller settings.
3Reattach the front cover.
5-meter extension cable
(DM100-EXTCBL-000)
7
DOCUMENTATION AND INSTALLER
11 DataMan 60 Quick Reference Guide
(this document) (590-7166)
7
11 12
12 DataMan 5.1 Thumb Drive
(DMA-SETUPTOOL-5-1-0)

10 DataMan 60 Quick Reference Guide DataMan 60 Quick Reference Guide 11
Field of View
This chart shows the horizontal eld of view for the DataMan 50 at a range of
working distances.
The horizontal and vertical eld of view is shown for working distances of
45mm, 70mm and 110mm.
(40 mm)
mm 20
20
20
40
40
40
60
60
60 80 100 120
34 x 22 50 x 32 77 x 49
140 160 180
Reading Distances
This chart shows the supported range of reading distances for four code
sizes (6, 8, 10, and 12 mil) at each of the three focus positions (45 mm,
70 mm, and 110 mm).
6 mil
8 mil
10 mil
12 mil
20mm 40 60 80 100 120 140 160 180
45
65
105
40
70
110
65

Observe the following DataMan 60 reader dimensions when installing your
reader.
31.75mm
1.25in
40.96mm
1.61in
53.63mm
2.11in
23.61mm
0.93in
31.75
1.25
40.96
1.61
53.63
2.11
23.61mm
0.93in
12 DataMan 60 Quick Reference Guide DataMan 60 Quick Reference Guide 13
Dimensions

CONNECT YOUR READER
1. Connect the cable on the back of the device to either an USB
adapter cable with power tap or to an RS-232 adapter cable with
power tab.
2. Connect a 6V power supply.
3. Connect the reader to an Ethernet network.
14 DataMan 60 Quick Reference Guide DataMan 60 Quick Reference Guide 15
DataMan 60 Imager Specications
Specication DataMan 60 Imager
Image Sensor 1/3 inch CMOS
Image Sensor Properties 4.51 mm x 2.88 mm (H x V), 6.0
µm square pixels
Image Resolution (pixels) 752 x 480
Electronic Shutter Speed 33 µs to 25 ms exposure
Image Acquisition up to 60 fps at full resolution
Lens Type 3 focal position M12 lens
Installing DataMan Software and
Connecting the Reader
INSTALL DATAMAN SOFTWARE AND CONNECT
1. Check the DataMan Release Notes for a full list of system
requirements.
2. Insert CD-ROM and follow the on-screen prompts until you
successfully completed the DataMan Software installation process.
3. Connect the DataMan 60 reader to your PC.
4. Launch the Setup Tool and click Refresh.
Detected readers will appear under the COM ports or Network
devices.
5. Select a reader from the list and click Connect.

IN1
button
16 DataMan 60 Quick Reference Guide DataMan 60 Quick Reference Guide 17
Start the Setup Tool
Trigger
button
Connect the reader to the Setup Tool to congure it with
the type of symbologies it will decode as well as other
parameters, such as the type of trigger it will use and the
format of the results it will generate.
Alternatively, congure your reader by scanning the
appropriate reader conguration code from the Reader
Conguration Codes document, available through the
Windows Start menu.
Quick Setup
All main controls and visual feedback in a single view, for
easiest setup and conguration
Connect to Reader
Establish a connection to the reader
Results Display
View results
Light and Imager Settings
Choose a trigger type and other acquisition parameters
System Settings
Congure visual and audio feedback, trigger and output
actions
Table View
See all the selectable values in the Setup Tool in one table
Latest image
Read history
Context based help
Connection status
Region of interest
Train
status
Code
information

18 DataMan 60 Quick Reference Guide DataMan 60 Quick Reference Guide 19
Troubleshooting an Ethernet Connection
Based on your network conguration, the Setup Tool may not be able to
communicate with the reader and it will not appear in the list of Network
devices.
First check your Ethernet connection with the reader and click Refresh in the
Setup Tool. Next, scan the Enable DHCP code in the Reader Conguration
Codes document available from the Start menu. This might allow the reader to
acquire a suitable IP address from a DHCP server on your subnet.
If the reader still does not appear, you can use either the Add Device or Force
Network Settings options in the Setup Tool.
If you know the IP address of the reader, use the Add Device option. If you
do not know the IP address, use the Force Network Settings options. Either
method should allow the DataMan 60 reader to appear in the list of Network
devices so that you can connect to it through the Setup Tool and your
Ethernet connection.
You can also use the RS-232 connection to congure the reader with
parameters that allow it to communicate over your Ethernet network.
Use the Setup Tool Menu Bar
The In1 button on the toolbar creates a virtual rising edge signal on
Input 1. Use the In1 button to activate various actions such as training
a code, optimizing brightness or setting a match string without a
physical input 1 channel.
Each reader can store its current set of runtime parameters to a
conguration (.cfg) le, which contains information such as the enabled
symbologies and how any output data should be formatted.
The same conguration le can be loaded onto multiple readers, as the
le does not contain identication information such as the IP address or
device name of the reader used to create it.
A reader can also generate a Cognex device conguration (.cdc) le,
which stores the set of runtime parameters plus any identication
data, such as the name of the device, its IP address, subnet mask, and
so on. Cognex recommends generating a device conguration le for
each reader to allow you to restore a reader to its operating state with
minimal effort.
Use the File menu of the Setup Tool to manage .cfg and .cdc les,
export parameters, or to load, save, or train uploaded images.
