OPERATING MANUAL
Cole-Parmer®Stir-Pak®
Mixer Head Model Numbers
50007-10, 50007-20, 50007-30, 50007-40,
&
Mixer Controller Model Numbers 50007-00
Cole-Parmer®ServoDyne™
Mixer Head Model Numbers
50008-10, 50008-20, 50008-30, 50008-40
&
Mixer Controller Model Number 50008-00
Cole-Parmer
625 East Bunker Court
Vernon Hills, Illinois U.S.A. 60061-1844
Toll Free: 800-323-4340
Phone: [phone]
Fax: [phone]
www.coleparmer.com
E-mail: [email protected]
-- 1 --
Version 11Nov08 Rev1

SAFETY PRECAUTIONS
•High voltages exist and are accessible in the controller.
Contact Cole-Parmer for servicing.
•Do not operate mixers where explosive vapors or flammable
materials exist. Death or serious injury could result. Check
NEC and local codes before installing.
-- 2 --
•Never clean the controller or mixer head while power is
applied to the system.
•Use only those mixer shafts that are properly sized for the
mixer head being used. Refer to mixer head specifications for
the proper shaft diameter or range to be used. Sizes other than
those specified can cause injury to personnel or damage to
equipment.
•Disconnect the AC power input line cord before connecting the
mixer head cable.
•Exercise extreme care when adjusting mixer height and/or
position to avoid personal injury. Never make these
adjustments while the mixer shaft is rotating.
•Never insert or remove the mixer shaft/impeller while the mixer
shaft is rotating.
•Be sure speed control is fully counterclockwise before the
POWER switch is placed in the FWD or REV positions. (50007-
00 Controller)
•Check that all cords are clear of any moving parts and not
subject to splashes or spills.
•Use care when setting the operating speed of the mixer.
Operation at high speeds in small mixing vessels could result
in hazardous splashing on the operator and equipment.
•When running at full speed and load at higher ambient
temperatures, the mixer head may get very hot to the touch.
•Use of mixing shafts and impellers larger than those
recommended could result in poor product performance and
shortened service life.
•Mixer shafts must be inserted into high-speed through-shaft
mixers at least 3 inches (8 mm) and the collet hand-tightened
firmly to ensure adequate shaft retention. Keep mixer shafts as
short as possible to reduce resonant vibrations caused by the
shaft flexing at higher speeds.
•The mixer head is to be used only for mixing. It is not intended
for any other purpose.

INTRODUCTION
The Stir-Pak 50007-series heavy-duty modular mixing system covered in this manual consists of four different
mixer heads and a analog controller 115VAC operation.
The ServoDyne 50008-series digital modular mixing system consists of four different mixer heads and a
precision digital controller for 115VAC operation.
The following chart cross-references the model number, operating speed range and torque rating of the mixer
heads and the compatible controller.
MIXER HEAD CONTROLLER OPERATING
VOLTAGE SPEED RANGE, rpm MAXIMUM TORQUE,
oz-in (kg-cm)
50007-10 50007-00 115 VAC, 50/60 Hz 2 to 180 340 (24.5)
50007-20 50007-00 115 VAC, 50/60 Hz 9 to 900 70 (5)
50007-30 50007-00 115 VAC, 50/60 Hz 23 to 2300 45 (3.2)
50007-40 50007-00 115 VAC, 50/60 Hz 60 to 6000 17 (1.2)
50008-10 50008-00 115 VAC, 50/60 Hz 3 to 180 340 (24.5)
50008-20 50008-00 115 VAC, 50/60 Hz 20 to 900 70 (5)
50008-30 50008-00 115 VAC, 50/60 Hz 60 to 2300 45 (3.2)
50008-40 50008-00 115 VAC 50/60 Hz 150 to 6000 17 (1.2)
50007-00, STIR-PAK CONTROLLER
The variable-speed controller, Figure 1a and 1b, is used to set the speed of the mixer heads and provides
a 100:1 adjustment range.
-- 3 --
FORWARD-OFF-
REVERSE SWITCH
POWER ON
INDICATOR
SPEED
CONTROL
Figure 1a: Display and Controls
The controller ensures accurate, dependable motor speed (mixing) control, with “soft-start” and smooth, gradual
adjustment to the speed setting. Constant speed with a 100:1 adjustment range is maintained electronically via
automatic compensation for changes in load torque demands at both high and low speeds. Built-in motor current
compensation minimizes speed drift with changes in load. Motor current limiting protects the system in case of a
locked rotor condition. Output circuit protection protects against inadvertent output shorting. Mixer rotation is
reversible.
Figure 1b: Controller Rear Panel
MOTOR
CONNECTOR
LINE
CORD

50008-00 SERVODYNE CONTROLLER/DISPLAY FUNCTIONS
-- 4 --
Four-digit LED display
shows selected mixing
time, mixing time
remaining, rpm, and
torque values.
Displays last
countdown setting.
Starts counting
down when you
press the START
key.
Displays the last
mixer shaft speed.
Displays current torque
value (in-oz for 115VAC
model; cm-kg for 230VAC
model) and high and low
torque limits. Mixer
automatically stops when
preset limits are reached.
Zeroes the torque
when impeller is
running in free air or
in a reference fluid.
Starts mixer.
Stops when countdown
reaches zero.
Press at any time
to sto
p
mixer.
Decreases value
of
p
arameter.
Increases value of
parameter.
LEDs indicate the
function being displayed
(time, rpm, or torque). A
flashing time or torque
light and audible alarm
indicate that a limit
condition has been
reached.
Figure 2a: Controller Functions
IEC 320
power entry
module
POWER SWITCH
All settings are
retained in memory.
FUSE
T3.15A (115VAC)
T1.6A (230VAC)
MIXER HEAD PLUG
RECEPTACLE
Multi-pin plug enables
microprocessor to identify
connected mixer head
and properly control
speed and torque.
IN-RS-232C
IN-Connect cable
from host computer.
OUT-RS-232C
OUT-Connect cable
to next mixer.
Figure 2b: Controller Rear Panel

INSTALLATION AND SETUP PROCEDURES
The mixer heads are equipped with an adjustable-tilt mounting assembly. The mounting assembly is designed
to be attached to an optional mixer support stand or tank clamp. Components supplied as part of the mixer
package include the following:
•Mixer head with 6-ft cable
•Precision controller with 6-ft line cord
•3-jawed chuck on high-torque mixers
•⅜-inch collet on high-speed mixers
•Adjustable-tilt mounting assembly with support rod
Installation of Adjustable-Tilt Mounting
•Never insert or remove the mixer shaft/impeller while the mixer
shaft is rotating.
Perform the following steps:
1. Attach mixer head to adjustable-tilt mounting assembly as follows:
a. For Stir-Pak models 50007-10, -20, and ServoDyne models 50008-10, -20, attach mounting assembly
with four screws and lock washers. (See Figure 3a)
Figure 3a: 50007-10, -20 and 50008-10, -20 mixer head mounting
b. For Sir-Pak models 50007-30, -40, and ServoDyne models 50008-30, -40, attach mounting assembly
with two screws and lock washers. (See Figure 3b)
Figure 3b: 50007-30, -40 and 50008-30, -40 mixer head mounting
Note: The mixer is now ready to be attached to a support stand or to a tank clamp (not supplied).
Recommended stands, tank clamps, and a double (rod) clamp are available through Cole-
Parmer. Part numbers are listed in the ACCESSORIES section.
-- 5 --

Installation Using a Support Stand
1. Set up support stand in accordance with the manufacturer’s instructions.
2. Attach a double (rod) clamp to the vertical rod on the support stand and tighten clamp screw. (See
Figure 4)
3. Slide rod of adjustable-tilt mounting assembly into clamp and secure with clamp screw.
4. Select an impeller and shaft for the required operation and install as follows:
a. Place impeller on shaft and tighten set screw.
b. For high-torque mixers head, slide the shaft of the stirring device into the three-
jawed chuck and tighten chuck.
c. For high-speed mixer head, slide the shaft through the collet at least 3 inches and hand-tighten
collet.
5. Place support stand legs around vessel. Tilt angle is adjustable from 0 to 30 degrees.
•Exercise extreme care when adjusting mixer head height and/or
position to avoid personal injury. Never make these
adjustments while the mixer shaft is rotating.
•Mixer shafts must be inserted into high-speed through-shaft
mixers at least 3 inches and the collet hand-tightened firmly to
ensure adequate shaft retention. Keep mixer shafts as short as
possible to reduce resonant vibrations caused by shaft flexing
at higher speeds.
6. Position the height of the mixer head by moving the clamp up or down on the support stand or, on high-
speed models, by loosening the collet and positioning the shaft.
-- 6 --

Figure 4: Typical mixer setup using a support stand and pivot mount (ServoDyne system shown)
Note: The controller can be placed on any flat surface within 6 feet of the mixer head or can be
mounted on a support platform (not supplied) or a pivot mount (not supplied). Refer to the
ACCESSORIES section for part numbers.
To attach the support platform proceed with step 7. To attach the pivot mount proceed with step
8. If controller is placed elsewhere proceed with step 9.
7. To install the support platform proceed as follows:
a. Attach a double (rod) clamp to the vertical support rod and position so that platform will be clear
of mixer head.
b. Slide the mounting rod of the support platform into the double (rod) clamp and tighten clamp.
c. Place controller on platform and proceed to step 9.
8. To install the pivot mount proceed as follows:
a. Remove the two cap nuts from the mounting studs on bottom of controller (see Figure 4).
b. Position pivot mount bracket over two studs, reinstall two cap nuts and tighten.
c. Attach a double (rod) clamp to the vertical support rod on the stand and position so that pivot
mount bracket will be clear of mixer head.
d. Slide the mounting rod of the pivot mount bracket into the double (rod) clamp and tighten clamp.
e. Adjust position of controller by first loosening knob on pivot mount bracket, adjust position and
then retighten knob.
•Check that all cords are clear of any moving parts and not
subject to splashes or spills.
9. Connect the 6-foot cable between the mixer head and the controller rear panel.
10. Check that the controller is not powered.
a. For Stir-Pak controller, ensure that the FWD-OFF-REV switch is in the OFF position.
b. For the ServoDyne controller, check that the rear panel ON-OFF switch is in the OFF position.
11. Connect the 6-ft line cord from the controller to the appropriate 3-wire, grounded power source.
•Be sure the SPEED control is fully counterclockwise before
the POWER switch is placed in the FWD or REV positions
(Stir-Pak models only).
12. Place the red safety switch on the top of the mixer head in the On ‘1’ position.
The mixer is now ready to operate.
-- 7 --

Installation Using a Tank Clamp
The tank clamp is attached to the side of a tank and supports both the mixer head and the controller (see Figure
5).
1. Position the tank clamp over the edge of the tank with large knob to the outside of tank.
2. Allow clamp to rest on edge of tank for added stability and tighten knob.
3. Position mixer head over material to be mixed and insert mixer mounting shaft into upper hole in tank
clamp, tighten locking knob securely.
4. Select an impeller and shaft for the required operation and install as follows:
a. Place impeller on shaft and tighten set screw.
b. For high-torque mixer head, slide the 5/16 inch to 3/8 inch shaft of the stirring device into the
keyless chuck and tighten.
c. For high-speed mixer head, slide the 0.375 inch mixer shaft through the collet and tighten collet.
Be sure only 0.375 (+/-0.0005) inch shafts are used. Contact Cole-Parmer or your dealer for
obtaining the proper shaft size. Refer to the ACCESSORIES section for the part numbers.
-- 8 --
•Exercise extreme care when adjusting mixer head height
and/or position to avoid personal injury. Never make these
adjustments while the mixer shaft is rotating.
•Mixer shafts must be inserted into high speed through-
shaft mixers at least 3 inches and the collet hand-tightened
firmly to ensure adequate shaft retention. Keep mixer
shafts as short as possible to reduce resonant vibrations
caused by the shaft flexing at higher speeds.
•Do not operate mixers where explosive vapors or
flammable materials exist. Death or serious injury could
result. Check NEC and local codes before installing.
Figure 5: Typical mixer setup using a tank clamp (ServoDyne controller shown)

-- 9 --
5. Position the height of the mixer head on high-sp ed models by loosening the collet and positioning the
The controller can be placed on any flat surface within 6 feet of the mixer head and can be
6. To insta port platform proceed as follows:
rm into the lower hole on the tank clamp and tighten
b. troller on platform and proceed to step 8.
7. To
unting studs on bottom of controller.
n.
clamp and
d. ning knob on pivot mount bracket, adjusting position
8. Connec the mixer head and the controller rear panel.
er source, either a 90-130VAC
11. mixer head in the On ‘1’ position.
The mixer is now ready to operate.
e
shaft.
Note:
mounted on a support platform (not supplied) or a pivot mount (not supplied). Refer to
ACCESSORIES for part numbers. To attach the support platform, proceed with step 6. To
attach the pivot mount, proceed with step 7. If controller is placed elsewhere, proceed with
step 8.
ll the sup
a. Slide the mounting rod of the support platfo
clamp.
Place con
install the pivot mount proceed as follows:
a. Remove the two cap nuts from the mo
b. Position pivot mount bracket over two studs, reinstall two cap nuts and tighte
c. Slide the mounting rod of the pivot mount bracket into the lower hole on the tank
tighten clamp.
Adjust position of controller by first loose
and then retighten knob.
t the 6-foot cable between
9. Check that the rear panel ON-OFF switch is in the OFF position.
10. Connect the 6-ft line cord from the controller to the appropriate pow
50/60Hz 3-wire, grounded power source.
Place the red safety switch on the top of the
not subject to splashes or spills.
•Be sure the SPEED control is fully counterclockwise
before the POWER switch is placed in the FWD or REV
positions (Stir-Pak models only).
•Check that all cords are clear of any moving parts and
any kind of fluid.
•Avoid wearing loose clothing that may be caught by a
rotating mixer shaft.
•Use care when setting the operating speed of the
mixer. Operation at high speeds in small mixing
vessels could result in hazardous splashing on the
operator and equipment.
•Be sure the SPEED control is fully counterclockwise
before the POWER switch is placed in the FWD or REV
positions (Stir-Pak models only).
•Always wear appropriate eye protection when mixing

-- 10 --
50007-00 STIR-PAK CONTROLLER OPERATION
FWD-OFF-REV Switch
In the FWD position, the shaft will rotate in a
counterclockwise direction when viewed from
the impeller.
The center or OFF position removes power from
both the controller and mixer head.
In the REV position, the shaft will rotate in a
clockwise direction when viewed from the
impeller.
POWER Indicator
The green LED indicator illuminates whenever
the FWD-OFF-REV switch is in either the FWD
or REV position.
SPEED Control
The SPEED control precisely sets the output speed of the shaft. The controller has a range of 100:1
depending on the model; shaft speed can be as low as 2RPM or as high as 6000RPM.
Slowly adjust the SPEED Control from the 0 position to a setting that provides the desired mixing speed.
Always return the speed control to the 0 position when mixing is complete.
Note: With new mixing heads, allow approximately 20 minutes run-in time to allow warm-up drift to
become minimal.
50008-00 SERVODYNE CONTROLLER OPERATION
Power On
Internal memory permits storage of all previously set parameters including speed, torque, time
and calibration constant. Turning the rear-panel mounted ON/OFF switch to the “ON” position
energizes the display without running the motor. The display will come up in the last mode
operated. Depressing the start button
FORWARD-OFF-REVERSE
SWITCH POWER ON
INDICATOR
LIGHT
SPEED
CONTROL
•To stop the mixer head in an emergency, place the FWD-
OFF-REV switch in the OFF position or remove the power
plug.
•Be sure the SPEED control is fully counterclockwise before
the POWER switch is placed in the FWD or REV positions.
•Use care when setting the operating speed of the mixer.
Operation at high speeds in small mixing vessels could
result in hazardous splashing on the operator and
equipment.
•When running at full speed and load at higher ambient
temperatures, the mixer head may get very hot to the touch.
•Never insert or remove the mixer shaft/impeller while the
mixer shaft is rotating.
causes the mixer motor shaft to rotate at the previously
programmed speed. Depressing the stop button stops the motor. Changing Display Modes
(TIME , RPM, TORQUE) is accomplished by pressing the desired mode button once.
Additional operation of the mode button advances operation to the set mode.

Set Run Time
-- 11 --
utton
The use of the TIME b in conjunction with the buttons permits entry of a desired
mixing time. Pressing the button once when already in the time display mod s the lee cause ft
(minutes) digit to flash, pressing the button
flash. During this period the time can be set w
once again causes the right two (s ds) digits to
ith the
econ
buttons. Pressing the button a
ntdown provided the motor is running; otherwise the display shows the set
ll flash when preset time reached.
minutes 59 seconds. A “0” programmed time results in
Set Mo
n when in the RPM mode causes the display to flash and read the set
se the
third time starts the cou
time. An audible alarm will sound and the LED wi
Maximum programmable time is 99
continuous motor operation.
tor Speed
Depressing the RPM butto
motor speed. U buttons to set the desired speed.
Set Mo
of both HI and LO torque limits. Depressing
n in the TORQUE mode causes the first digit of the display to read either
(for High or Low limit) and the last three digits to flash and read the set limit.
tor Torque Limit
The TORQUE limit feature provides for the setting
the TORQUE button whe
on “H” or “L”
Pressing the buttons changes the set torque limit.
Pressing the Torque button once again while the digits are flashing causes the H or L to flash
while the set limit digits stop flashing. It is now that the High or Low limit can be selected by
pressing either the buttons. Pressing any button other than buttons returns the
display to actual torque. If the motor is running while the torque limit is being modified, the
previously programmed limit will be in effect until the torque limit mode is exited; then the new limit
is then running with an actual torque reading of 30 oz-in. When the TORQUE ZERO
button is pressed, the maximum torque that can be set would be 35 (65-30). Since the
t mode is entered, which will prevent a setting over 35.
will take over.
Regardless of the set torque limit, there is always a maximum torque limit check to guard
against motor overheating. If this limit is exceeded, the motor stops, the alarm sounds and the
in-oz LED flashes. Pressing any key causes the display to return to what was previously
displayed before the alarm. The error must be corrected or the over-limit warning will sound
again when the motor is restarted.
Set Torque Zero
The TORQUE ZERO button is used to zero the torque display so that the actual torque necessary
to mix something can be read directly on the display. To use this feature, the TORQUE ZERO
button is pressed while the mixer head shaft is running in free air; the display will zero. The mixer
shaft is then placed into the solution being mixed, the reading on the display will now indicate the
torque necessary to mix the solution. This number can now be used to determine the proper shut
off or torque limit when mixing several batches of the same consistency.
When the TORQUE ZERO button is operated, the maximum torque limit that can be set is
adjusted so that the absolute torque does not exceed the continuous torque of the mixer head
being used.
Example: The operator has set a high torque limit of 50 oz-in for a motor rated for 65. The motor
set limit of 50 is above this, it will automatically be changed to 35. The operator will see
this when the se
•Never insert or remove the mixer
•When running at full speed and load at higher ambient
temperatures, the mixer head may get very hot to the t
shaft/impeller while the
mixer shaft is rotating.
ouch.

-- 12 --
ns – Mixer Head
Direct
Specificatio
ion of Rotation:
50007 Stir-Pak Series Bi-directional controlled with the FWD-OFF-REV switch
50008 ServoDyne Series CCW (Viewe Impeller end)
d from
Speed Range:
50007-10 2 to 180 rpm 50008-10 3 to 180 rpm
50007-20 9 to 900 rpm 50008-20 20 to 900 rpm
50007-30 23 to 2300 rpm 50008-30 60 to 2300 rpm
50007-40 60 to 6000 rpm 50008-40 150 to 6000 rpm
Torqu
CONTINUOUS INTERMITTENT
e Output, max:
50007-10 and 50008-10 340 in-oz 510 in-oz
50007-20 and 50008-20 70 in-oz 105 in-oz
50007-30 and 50008-30 45 in-oz 65 in-oz
50007-40 and 50008-40 17 in-oz 25 in-oz
Mixer Shaft Interface:
50007-10, -20
50008-10, -20 3-jawed type chuck with key accepts 5/16 in. to 3/8 in. dia shaft
50007-30, -40
50008-30, -40 Collet accepts 0.375 (± 0.0005) inch diameter shaft
Input Voltage, max:
50007-10, -20, -30, -40, 50008-10, -20, -30, -40 90 Volts DC
Input
007-30, -40, 50008-30, -40 2.3 Amps DC
Current, max:
50
50007-10, -20, 50008-10, -20 1.5 Amps DC
Install
Const
ation Category:
Installation Category I per IEC 664 (Signal level–parts of equipment)
ruction:
Dimensions (L x dia) 11.5 in. x 3.6 in. (292 x 92 mm)
Weight 8 lb (3.5 kg)
Enclosure rating IP 24 per IEC 34-5
Environment:
Operating temperature 0 to 40°C (32 to 104°F)
Storage temperature Storage: −45 to 65°C (−49 to 149°F)
Humidity (noncondensing) 10% to 90%
Altitude Less than 2000 m
Degree of pollution Pollution Degree 2 per IEC 664 (Indoor Usage–lab, office)
Chemical Resistance:
Exposed material is painted aluminum, plastic, and vinyl
115VAC CAN/CSA C22.2, No.61010-1 2nd Edition
CAN/CSA-C22.2 No. 61010-2-051-04
ANSI/UL 61010-1 2nd Edition
UL61010A-051 1st Edition
Compliance:

-- 13 --
aximu
age r, Watts
Specifications – Controller
Output:
Model M m Maximum Maximum
Volt , V Current, Amps Powe
50007-00 90 2.3 207
50008-00 90 2.3 207
Speed regula
Load Dr
tion:
Model Line ift
5000 F.S. ±2% F.S 10% 7-00 ±1% . ± F.S.
50008-00 ±0.25% F.S. ±0.25% F.S. ±0.25% F.S.
Display n-s
Four-digit, seve egment LED
Maximum settable countdown timer 9 conds
9 minutes, 59 se
Time accuracy ±1 second
Input:
del Voltage Maximum
Current, Amps Maximum Power
Mo
50007-00 90 to 130VAC RMS, 50/60 Hz 3 Amps 360 VA
50008-00 90 to 130VAC RMS, 50/60 Hz 2.3 Amps 280 VA
Installation C
Installa pe t, etc.)
RS-232
50007-00 50008-00
ategory:
tion Category II r IEC 664 (Local level – appliances, portable equipmen
Computer Control:
-C (Full Duplex)
Construction:
Dimensions (L x W x H) 7 x 5 x 3½ inches
(178 x 127 x 89 mm)
3½ inches
(197 x 165 x 89 mm)
7¾ x 6½ x
Weight 1.4 lb (0.62 kg) 3 lb (1.4 kg)
Enclosure rating IP 22 per IEC 529 IP 22 per IEC 529
Environment:
Operating temperatu °F) re 0 to 40°C (32 to 104
Storage temperature °C (-49° to 149°F) -45 to 65
Humidity (nonconde 90% nsing) 10% to
Altitude < 2000 m
Degree of pollution 2 per IEC 664, (indoor usage – lab, office)
Chemical Res
Expose ,
Compliance:
C CAN/CSA C22.2, No.61010-1 2 Edition
CAN/CSA-C22.2 No. 61 10-2-051-04
n
istance:
d material is painted aluminum plastic, and vinyl
115VA
0
nd
ANSI/UL 61010-1 2nd Editio
UL61010A-051 1st Edition

-- 14 --
LESHOOTING
intenance is limited to replacement of motor brushes on the mixer head, replacing the fuse on
roller, and cle g the unit. If a t is detect bleshooting nnot be
corrected by the su reme ole-P r dealer

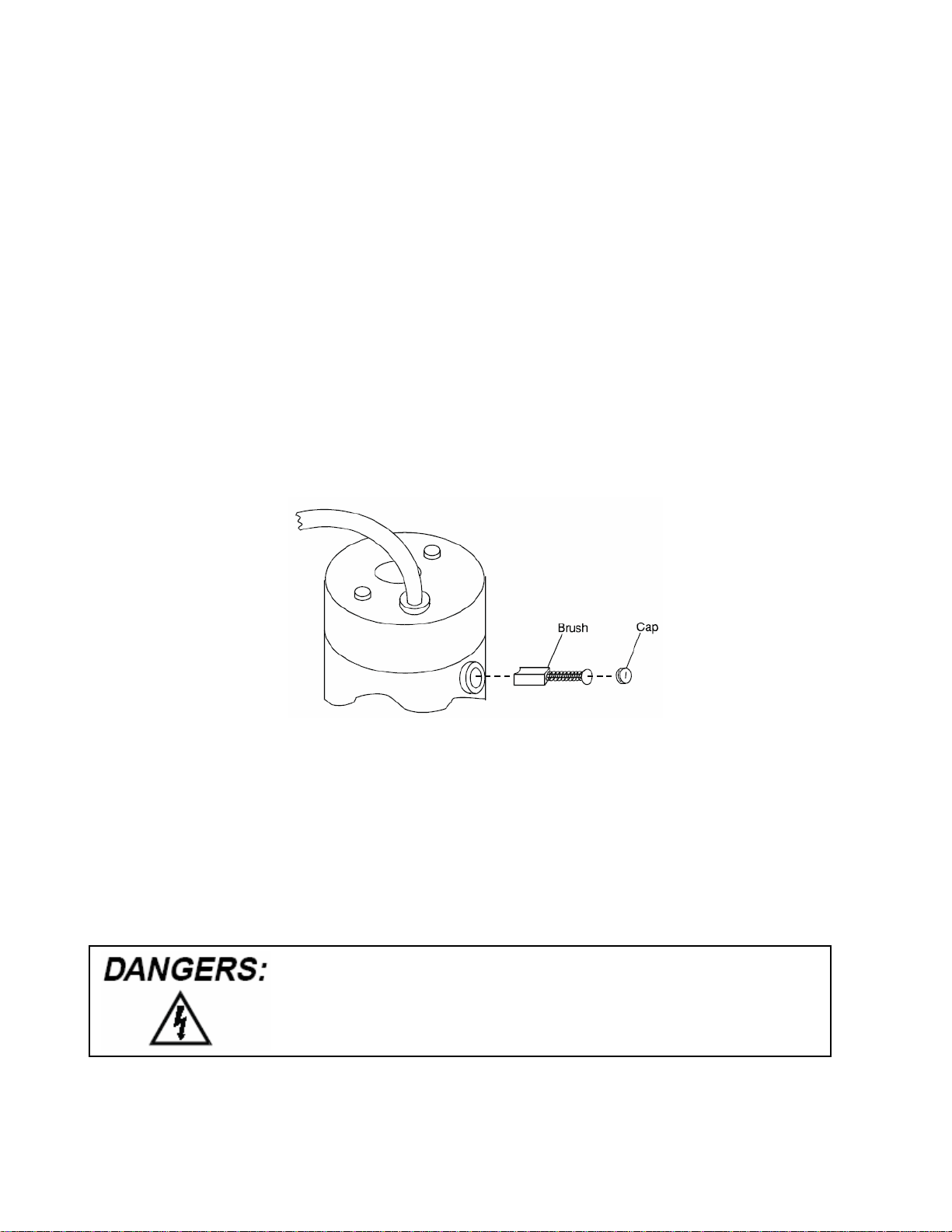

Motor Brush Check/ ment
Note: Brushes hecked every 6 months or operating hou f erratic operation
Erratic operation may occur immediately after brush replacement. Allow motor to
an hour to allow brushes to seat.
1. Turn the controller
a. For the St oller D itch in tion
b. For the Se ntro a F sw position.
2. Disconnect the AC line cord from the AC recept le.
3. Disconnect the mixer head cable from the receptacle on th
4. Carefully unscr b ear.
Note: Replac either brush is less than 0 mm) long. The
replacement brushes (set of 2) part number is listed under REPLACEMENT PARTS.
rushes into brush holder on each side of motor as shown in Figure 6 and screw in brush holder
caps.
6. Reconnect mixer head to rear-panel con troller.
7. Reconnect cont a
MAINTENANCE AND TROUB
Ma
the cont anin
ggested
faul
dy, contact C
ed when trou
armer or you
and ca
for service.
Replace
should be c 1000 rs or i
occurs.
run up to
off
ir-Pak contr
rvoDyne co
s, place the FW
ller, place the
-OFF-REV sw
r panel ON-OF
the OFF posi
itch in the OFF
re
ac
e rear of the controller.
ew each brush holder cap. Withdraw the rush and examine it for w
e both brushes if .300 inch (8
5. Insert b
nector on con
roller to prim ry power source.
Figure 6: Moto
troller Fuse Replacement
1. Place the powe n.
2. Disconnect the the
3. Remove and ch ecti
4. Reconnect the AC power i to the AC
ontroller System
Kmild detergents. Never immerse nor use
e
r brush orientation
ServoDyne Con
r switch in the OFF positio
AC power input line cord from
eck the fuse and replace if def
AC receptacle
ve.
.
nput line cord receptacle.
Cleaning the Mixer/C
eep the mixer housing and controller enclosure clean with
xcessive fluid.
Never clean the Controller or Mix hile power is
app er Head w lied to the system.
•

Replacement Parts
-- 15 --
ler.
) Part Number
No user-serviceable parts are inside of this instrument. Refer servicing to Cole-Parmer or your dea
The following parts are user-replaceable:
Description For model(s
Speed Control Knob 50007-00 04552-91
Fuse, T3.15A 50008-00 77500-25
r Brushes (2) All 07520-04 Moto
3-Jaw 008-10, -20 04552-96 ed Chuck Assembly 50007-10, -20, 50
Collet Nut 50007-30, -40, 50008-30, -40 04552-98
Pi tvo Assembly Knob (1) All 04552-99
Cordset–USA (115VAC) 50001-68
Contact Cole-Parmer or your dealer if you have service needs.
Troubleshooting – Stir-Pak
Symptom Cause Remedy
Mixer shaft does not
ro e
s
regardless of SPEED
control setting.
POWER indicator does
not glow.
•Disconnected
•Defective fuse
1. Check that the unit is plugged into a live line.
VAC unit: Return for service (fuse is
not user replaceable)
tat when controller is or defective 2. For 115
witched to FWD or REV line cord
Mixer shaft does not
rotate when controller is
switched to FWD or REV
regardless of SPEED
control setting.
POWER indicator glows.
•Defective
mixer head or
controller
1. Check mixer cable connections at rear of the
controller - make sure connector is fully
inserted into the receptacle
2. Check motor brushes (see motor brush
check/replacement for details)
3. Replace mixer head or controller with known
working unit, if available, to determine source
of the problem
r service
t the red safety switch on the mixer
head in the On ‘1’ position.
4. Return fo
5. Check tha
Tro b
s. The display alternately shows
marizes the faults and suggested
until the fault is corrected.
u leshooting – ServoDyne
The controller microprocessor detects and indicates system fault
g table sum
the error number and a “FAIL” message. The followin
corrective action. The system cannot be operated
Error
Code Fault Corrective Action
Err1 No mixer head connection Plug mixer head into controller.
Err2 Invalid mixer head Bad motor cable - return mixer head for repair.
Err3 Safety Switch in Off ‘0’
position, No encoder pulses
Check that the red safety switch on the mixer head in the
On ‘1’ position. Return mixer head and controller for repair.
Err4 Motor speed is excessive Return mixer head and controller for repair.
Err5 No torque information display Return controller for repair.
Err6 Bad PROM check Return controller for repair.
Err7 Motor overload Check mixer for obstructions. Turn off unit to clear error.
Err8 Zero cross failure Return controller for repair.
Err9 Bad EEPROM data Return controller for repair.

-- 16 --
w torque limit mode is being used. To protect the mixer head
rrected.
NCole-Par r for repair, try to determ
ad way is to substitute a known go vailable, and
ACCE
T sed ounting the mixer head and controller, are available from Cole-
P other ccessories such as shafts and impellers ailable.
Contact your dealer for the full line of available accessories.
Part Number
“HI” Limit Message
A flashing “HI” limit message will be displayed and the mixer head will stop if the maximum rated torque
of the mixer head is exceeded when the lo
motor from o g, it cannot be re
verheatin started until the fault is co
r deale
ote: Before contacting
ller or mixer he
mer or you ine whether the fault is in
the contro . The best od unit, if a
recheck.
SSORIES
he accessories listed below, u for m
armer or your dealer. Many a are also av
Part Name
Tank Clamp 04552-65
Controller Support Platform 04552-75
Pivot Mount Controller Support 04552-70
Support Stand 04552-80
Double (Rod) Clamp 08041-22
Software 07550-74
ServoDyne RS-2 07550-6432-C Interface Cable
Satellite Cable 07550-66
Shaft, 12 inches (305 mm) 04552-25
Shaft, 18 inches (457 mm) 04552-35
Shaft, 24 inches (610 mm) 04552-00
Shaft, 30 inches (762 mm) 04552-05
W
turer warrants this product to be free fro
r adjustment is necessary h
if it is not due to misuse or abuse on your part as deter ufacturer. Repair costs
outside the warranty period, or those resulting from , may be invoiced to
you.
The warranty period for this product is noted on th
g from improper
ing are your responsibility.
TECHNICAL ASSISTANCE
I a out the use dealer.
SSMPK027 Rev 2.01
ARRANTY
The manufac m ed
wit in the warranty period, the problem will be
mined by the man
significant deviations from publish
specifications. If repair o
corrected at no charge
product misuse or abuse
e Warranty Card.
PRODUCT RETURN
To limit charges and delays, contact Cole-Parmer or manufacturer for authorization and shipping
instructions before returning the product, either within or outside of the warranty period. When
returning the product, please state the reason for the return. For your protection, pack the product
carefully and insure it against possible damage or loss. Any damages resultin
packag
f you h ve any questions ab of this product, contact Cole-Parmer or your local
