Colebrook Bosson Saunders AVALL Shelf Kit User manual

AVALL Shelf
Ladder rails x2
Shelf brackets
AVS/002/SLF
AVALL Shelf Kit
AVS/002/SLF
REFER ALSO TO MAIN
INSTALLATION INSTRUCTIONS
FOR AVALL STAND

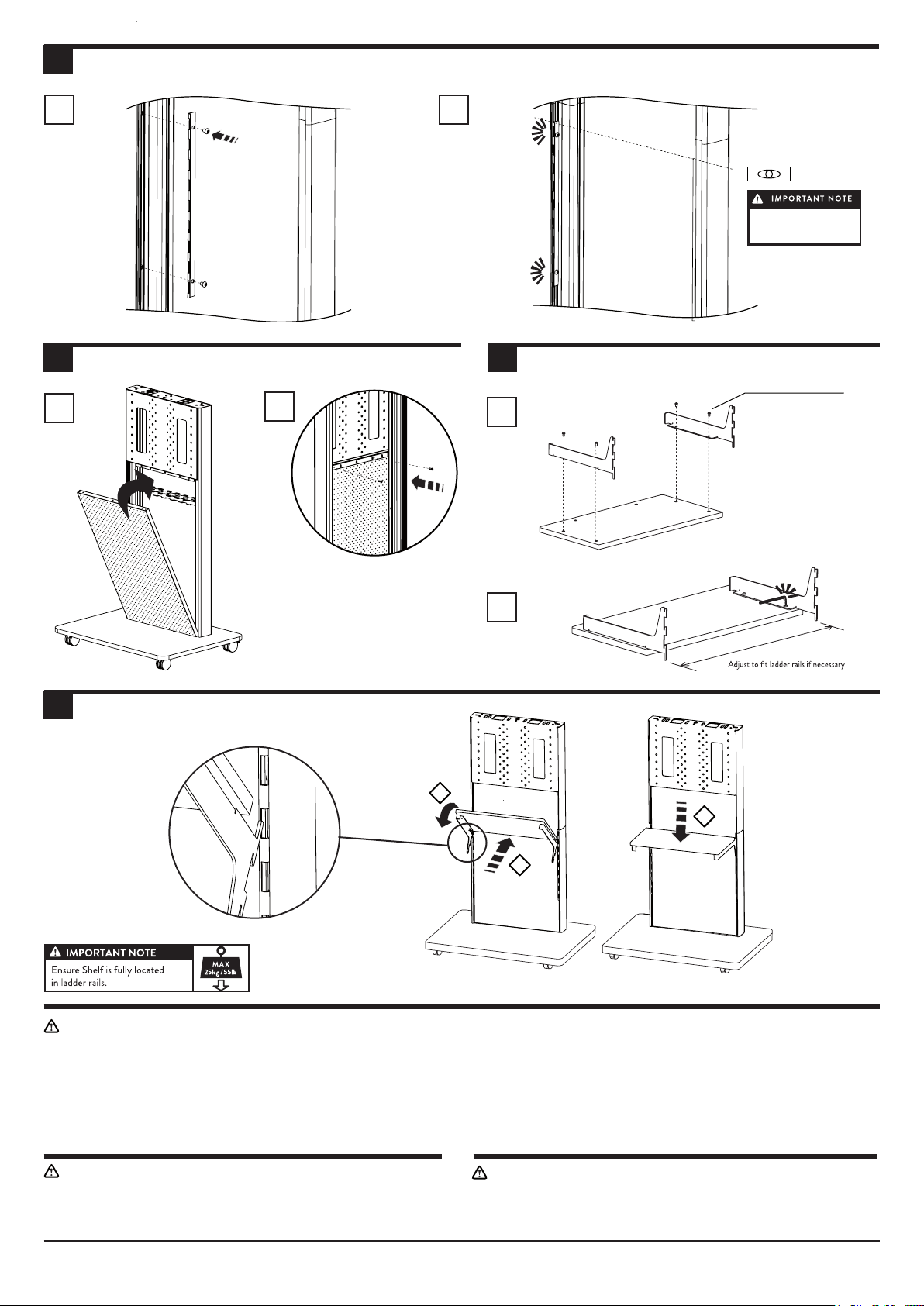

REMOVE AVALL FRONT PANEL
1
M8 x 12mm screw x4
M8 hex nut x4
M6 x 16mm screw x4
PARTS INCLUDED:
TEMPORARILY SEPARATE AVALL COLUMNS
AND INSERT MOUNTING NUTS IN CHANNEL
2
RECONNECT AND FIX AVALL COLUMNS
3
Remove fixing screws
1A 1B Lift o front panel
M8 hex nut x2
Loosen column
clamp screws
Retighten column
clamp screws
2 x nuts in each
side of column

4A 4B
FIX LADDER RAILS TO NUTS IN COLUMN
4
REFIT AVALL FRONT PANEL
5ASSEMBLE SHELF 6
INSTALL SHELF
7
6A
6B
MAINTENANCE AND INSPECTION
• Ensure all screws and xings are fully tightened and occasionally re-tighten if necessary.
• Clean with a dampcloth. DO NOT use solvents.
AVS-002-SLF-INST-C-JULY 2015
WARNING
ELECTRICAL SAFETY
• Do not install equipment heavier than 25kg/55lb.
• Use with products heavier than the maximum weights indicated may result in instability
causing possible injury.
• Correct installation is essential to safe and reliable operation of the AVALL product
and falls outside the scope of responsibility of Colebrook Bosson Saunders.
Please follow assembly instructions carefully.
• Do not use this product for any purpose other than that for which it was designed.
• Ensure that oor or wall surface is strong enough to support the weight of the
fully-loaded AVALL and that the oor surface is at and level.
• Do not install AVALL outdoors or in environments where it will be directly
exposed to moisture or highwinds.
• Follow the manufacturer’s guidance for mounting of monitors, displays and
other equipment.
• Please take care to avoid trapping ngers when installing or adjusting the product.
• Safe installation of electrical equipment is the responsibility of the installer.
• Colebrook Bosson Saunders recommends that only double-insulated electrical
equipment and cables are installed in AVALL unit.
1
3
5A 5B
2
Install fixing screws
Ensure ladder
rails are level
1 x ladder rail
on each side
of column
M6 x 16mm screw
