Coleman HL180 Quick start guide

036-21326-001-C-0202
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
TECHNICAL GUIDE
COMMERCIAL
SPLIT-SYSTEM COOLING UNITS
FOUR PIPE SYSTEM
MODELS HL 15 & HL 20
MODELS LL 15 & LL 20
GENERAL SPECIFICATIONS
OUTDOOR UNIT:
• Two independent refrigerant circuits
• Inherently protected fan motors
• Two independent scroll compressors
• V-Coil Design
• Exterior service port connections
• Refrigerant-22 holding charge
• Five-minute compressor anti-short cycle timer
• Two independent control circuits
• Compressor operation to 40°F
• Field-installed Low Ambient VFD Control to 0ºF
• Five-year limited warranty on compressor
• One-year limited warranty on all other parts
• Simplicity Controls
• Factory installed disconnect and Technicoat coils
INDOOR UNIT:
• Factory-mounted expansion valve and filter-drier in both refrig-
erant circuit
• Adjustable TXV’s
• Two-inch throwaway filters
• Single point power connection
• One-year limited warranty on all parts
• Field installed drive packages

036-21326-001-C-0202
2Unitary Products Group
TABLE OF CONTENTS
GENERALSPECIFICATIONS...................... 1
OUTDOORUNIT: ................................1
INDOORUNIT: ..................................1
DESCRIPTION...................................3
APPLICATION FLEXIBILITY OUTDOOR . . . . . . . . . . . . . .3
APPLICATION FLEXIBILITY INDOOR . . . . . . . . . . . . . . . .3
OUTDOORUNIT .................................4
ACCESSORIES (factory & Field Installed) . . . . . . . . . . . . .4
INDOORUNIT ...................................5
ACCESSORIES Indoor unit
(FieldInstalled)...................................5
LIST OF FIGURES
# pg. #
1 TYPICAL INDOOR UNIT
APPLICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2 OUTDOOR PRODUCT NOMENCLATURE . . . . . . . . .4
3 INDOOR PRODUCT NOMENCLATURE . . . . . . . . . . .5
4 VERTICAL ARRANGEMENTS - LL180 AND LL240 . .6
5 HORIZONTAL ARRANGEMENTS - LL180 AND
LL240...................................... 6
6 CENTEROFGRAVITY ........................9
7 HLCORNERWEIGHT .........................9
8 PIPING AND ELECTRICAL CONNECTION
LOCATIONS ...............................10
9 15TONBLOWERPERFORMANCE .............18
10 20TONBLOWERPERFORMANCE .............18
11 LL HORIZONTAL APPLICATION
CORNERWEIGHTS..........................20
12 LL VERTICAL APPLICATION CORNER WEIGHTS .20
13 UNITDIMENSIONSLL180ANDLL240.......... 21
14 LL180 SUPPLY AIR PLENUM DIMENSIONS . . . . . .22
15 RETURN AIR GRILLE FOR LL180 DIMENSIONS . . .22
LIST OF TABLES
# pg. #
1 UnitApplicationData ..........................7
2 ARIRatings-CoolingandSound ................7
3 ELECTRICAL DATA COMPRESSORS . . . . . . . . . . . . 7
4 ELECTRICALDATAFANMOTORS ..............7
5 ELECTRICAL DATA, outdoor mca & max. fuse size . . 7
6 OutdoorUnitPhysicalData .....................8
7 IndoorUnitPhysicalData.......................8
8 CONNECTIONS..............................9
9 UNITCLEARANCES ..........................9
10 HLCenterofGravityDimensions.................9
11 PIPING AND ELECTRICAL CONNECTION SIZES . . 10
12 15 ton capacity table - 85º and 95ºF . . . . . . . . . . . . 11
13 15 Ton Capacity Table - 105º and 115ºF . . . . . . . . . 12
14 15TonCapacityTable-125ºF.................13
15 20 Ton Capacity Table - 85º & 95ºF . . . . . . . . . . . . . 14
16 20 Ton Capacity Table - 105º & 115ºF . . . . . . . . . . . 15
17 20TonCapacityTable-125ºF.................16
18 LL18015TonAirFlowTable ...................17
19 LL24020TonAirflowTable ....................17
20 BlowerDriveData ...........................19
21 Blowerdata ................................19
22 Indoorelectricalratings .......................19
23 INDOOR UNIT WEIGHTS AND
CORNERWEIGHTS .........................20
24 UnitDimensionsLL180andLL240 ..............21

036-21326-001-C-0202
Unitary Products Group 3
DESCRIPTION
Both the outdoor and indoor units are completely piped and
wired at the factory and are shipped ready for immediate
installation. Only the interconnecting liquid and suction lines,
control wiring, and the main power wiring are required to
complete the installation. Every outdoor unit is dehydrated,
evacuated, leak tested and pressure tested at 450 psig
before being pressurized with a holding charge of refrigerant-
22 for shipment and/or storage.
To eliminate the costly cabinet deterioration problems usually
associated with outdoor equipment, all sheet metal parts are
constructed of commercial grade (G90) galvanized steel.
After fabrication, each part is thoroughly cleaned to remove
any grease or dirt from its surfaces. The parts that will be
exposed to the weather are then coated with a desert sand
powder paint to assure a quality finish for many years. This
coating system has passed the 750-hour, salt spray test per
ASTM Standard B117.
APPLICATION FLEXIBILITY OUTDOOR
The outdoor units are lightweight and can be installed on
almost any roof.
Units can be lifted using nylon straps with hooks at the holes
provided in the base rails, or they may be lifted with a forklift
through the slotted openings in the base rails.
A quality appearance and low sound levels make these units
suitable for most ground level locations.
APPLICATION FLEXIBILITY INDOOR
The indoor units are built in a single cabinet with one conden-
sate drain pan. These units can be installed in either the verti-
cal or horizontal position for maximum flexibility.
NOTE: On vertical applications, the air velocity across the
indoor coil keeps the condensate from dripping off the finned
surface onto the filters:
NOTE: On horizontal applications the unit must be installed
with the condensate drain pan under the entire indoor coil.
NOTE: The Supply Air Plenum and the Return Air Grille
accessories can be used on either arrangement.
NOTE: TheBaseaccessorycanonlybeusedonthevertical
arrangement.
FIGURE 1 : TYPICAL INDOOR UNIT
APPLICATIONS
BLOW ER MOTOR
LO C A TIO N
RETURN AIR
DUCT FLANGE
BLO W ER
SECTIO N
AIR O UT
(Std. Arrangem ent)
BLO W ER
SECTIO N
RETURN AIR
DUCT FLANGE
AIR
IN
FILTER S
VERTICAL
POSITIO N
COIL
SECTIO N
EVAPO RATOR
COIL
ORIZONTAL
POSITIO N
FILTER S
ALTERNATE AIR
DISC ARGE ARRANGEMENTS
NOTE:
C E R T A IN B L O W E R P O S IT IO N S A R E N O T R E C O M M E N D E D .
BECAUSE T E BLOW ER M O TOR S O ULD NO T BE M OUNTED
UPSIDE DOW N.
CONDENSER ONLY CAPACITY
PSIG ºF MBH KW* MBH KW* MBH KW* MBH KW* MBH KW* MBH KW*
61.5 35 255 17.2 243 18.6 231 20.1 219 21.9 207 23.9 195 26.2
68.5 40 275 17.6 263 19.0 250 20.6 238 22.4 225 24.4 212 26.7
76 45 296 18.1 283 19.5 270 21.1 257 22.9 243 24.9 230 27.2
84 50 319 18.7 305 20.0 291 21.6 277 23.4 263 25.5 248 27.7
61.5 35 191 12.7 182 13.7 172 14.9 163 16.2 153 17.7 143 19.4
68.5 40 207 13.0 197 14.0 187 15.2 177 16.5 167 18.0 157 19.8
76 45 224 13.3 214 14.4 203 15.5 193 16.9 182 18.4 171 20.2
84 50 241 13.7 230 14.7 219 15.9 208 17.3 197 18.8 186 20.6
*Power consumption includes outdoor fans and compressors only.
Temperature of Air on Condenser Coil, ºF
65 75 85 95 105 115
240
180
Model HL Suction
P
ress. &

036-21326-001-C-0202
4Unitary Products Group
OUTDOOR UNIT
Every unit includes 2 heavy-duty scroll compressors, 2 out-
door fan motors with inherent protection, subfusing and a
copper tube/aluminum fin coil.
All controls are located in the front of the unit in the control
box and are readily accessible for maintenance, adjustment
and service. All wiring (power and control) can be made
through the front of the unit.
ACCESSORIES (FACTORY & FIELD
INSTALLED)
• Factory installed Non-Fused Disconnect for safety and
convenience.
• Factory installed Technicoat Condenser Coils for corro-
sion protection.
• Field Installed VFD (Variable Frequency Drive) for Low
Ambient operation down to 0ºF.
• Field Installed Hot Gas Bypass for low load operation.
• Field installed Pump-Out Kit for applications where liquid
slugging could be an issue.
FIGURE 2 : OUTDOOR PRODUCT NOMENCLATURE
PRODUCT NOMENCLATURE
OUTDOOR CONDENSING UNITS AND HEAT PUMPS
(UPG BRANDS)
H F - 10 C 00 A T A AA 1 A
Model
#
Model Num er
Description
Options
H Product Category H = Air Conditioner Split System E = Split System Heat Pump
F Product Identifier F = R-22 Standard Efficiency 2-Pipe
L = R-22 Standard Efficiency 4-Pipe
-10 Nominal Cooling
Capacity
MBH
-0 = -1/2 Ton
-10 = 10 Ton
-15 = 15 Ton
-20 = 20 Ton
C Heat Type C = Cooling Only
00 Nominal Heating
Capacity
00 = No Heat Installed
A Airflow Options A = Standard Motor
T Voltage T= 208/230-3-60
W= 460-3-60
X= 5 5-3-60
A Installation Options A = None
B = Disconnect
AA Special Options AA = None
AC = Technicoat
1 Generation 1 = First Generation 2 = Second Generation
A Style A = Style A B = Style B

036-21326-001-C-0202
Unitary Products Group 5
INDOOR UNIT
Every unit includes a well-insulated cabinet, copper tube/alu-
minum fin coil with interlaced circuiting arrangement, 2"
throwaway filters, adjustable TXV’s and centrifugal blowers.
Blower motors and drive kits are ordered separately.
The controls include 208/230/460 volt transformer, blower
motor contactor and relay, and a low voltage terminal block.
The units are shipped in the vertical position ready for field
installation. For horizontal installation, the blower module can
be repositioned in the field as shown on pages 3 and 6 for
maximum flexibility.
ACCESSORIES INDOOR UNIT
(FIELD INSTALLED)
• Supply Air Plenums and Return Air Grilles (expanded
metal) accessories are available for free-standing indoor
(15 Ton units only) units located in the conditioned
space. Both accessories are finished to match the exte-
rior of the basic unit, and both can be applied with either
vertical or horizontal units. The supply air plenums are
fully insulated and have double-deflection, adjustable
grilles.
• Base Sections are available to raise vertical indoor units
above the floor. Outdoor air may be introduced through
these bases by cutting an access opening for the out-
door air duct connection. These bases are finished to
match the exterior of the basic unit. They may have to be
insulated in the field for certain applications.
• Suspension Kit is available for indoor units installed hori-
zontally.
• Manual and electronic two stage thermostats are avail-
able for cooling applications.
• Both thermostats have a two-position fan switch, AUTO
and ON to provide intermittent or continuous blower
operation.
FIGURE 3 : INDOOR PRODUCT NOMENCLATURE
INDOOR SPLIT UPG PRODUCT NOMENCLATURE
L F –10 C 00 T A AA 1 A
Model
#
Model Num er
Description
Options
L Product Category L = Air Handling Unit- Cooling F = Air Handling Unit- Heat Pump
F Product Identifier
F = R-22 Standard Efficiency 2-Pipe
L = R-22 Standard Efficiency 4-Pipe
-10 Nominal Cooling
Capacity
MBH
-0 = -1/2 Ton
-10 =10 Ton
-15 = 15 Ton
-20 = 20 Ton
C Heat Type C = Cooling Only
00 Nominal Heating
Capacity
00= No Heat Installed
A Airflow Options A = None
F Voltage F = 208/230-1-60
T = 208/230-3-60
W=460-3-60
S = 208/230-460-3-60
A Factory Options A = None
AA Special Options AA = None
1 Generation 1 = First Generation 2 = Second Generation
A Product Style A = Style A B = Style B
* NOT AVAILABLE IN HEAT PUMP.

036-21326-001-C-0202
6Unitary Products Group
.
FIGURE 4 : VERTICAL ARRANGEMENTS - LL180 AND LL240
FIGURE 5 : HORIZONTAL ARRANGEMENTS - LL180 AND LL240
CERTAINBLOWERPOSITIONSARENOT
RECOMMENDED BECAUSE THE BLOWER
MOTOR SHOULD NOT BE MOUNTED UPSIDE
DOWN.
CAUTION

036-21326-001-C-0202
Unitary Products Group 7
TABLE 1: UNIT APPLICATION DATA
Application Limitations Minimum Maximum
Voltage Variation (208/230-3-60) - Volts 187 253
Voltage Variation (460-3-60) - Volts 414 506
Ambient Air on Outdoor Coil (Cooling Cycle) - °F 45 115
Ambient Air on Indoor Coil (Cooling Cycle) - °F 68 86
TABLE 2: ARI RATINGS - COOLING AND SOUND
Model Cooling Capacity1Cond. Unit
Sound2Rated Airflow Rated ESP
Outdoor
Unit Indoor Unit MBH EER IPLV dB CFM IWG
HL180 LL180 180 9.7 10.4 89.0 6000 0.35
HL240 LL240 240 9.7 10.4 90.0 8000 0.40
1. Ratings are in accordance with ARI standard 340/360.
2. Ratings are in accordance with ARI standard 370.
TABLE 3: ELECTRICAL DATA COMPRESSORS
Model
Number
Compressors
Power
Supply
System 1 System 2
RLA LRA RLA LRA
HL180 208/230-3-60 25.6 190.0 25.6 190.0
HL180 460-3-60 12.8 95.0 12.8 95.0
HL240 208/230-3-60 42.0 239.0 42.0 239.0
HL240 460-3-60 19.2 125.0 19.2 125.0
TABLE 4: ELECTRICAL DATA FAN MOTORS
Model
Number Condenser Fans
Power
Supply Qty. FLA ea.
HL180 208/230-3-60 2 3.7
HL180 460-3-60 2 1.85
HL240 208/230-3-60 2 5.8
HL240 460-3-60 2 2.9
TABLE 5: ELECTRICAL DATA, OUTDOOR MCA & MAX. FUSE SIZE
Model
Number Power Supply Min. Circuit Ampacity
Max.
Fuse
Size1
HL180 208/230-3-60 65.1 90
HL180 460-3-60 32.5 45
HL240 208/230-3-60 106.1 125
HL240 460-3-60 49.0 60
1. Maximum fuse or maximum circuit breaker (HACR type per NEC).

036-21326-001-C-0202
8Unitary Products Group
TABLE 6: OUTDOOR UNIT PHYSICAL DATA
Description Unit Model
HL180 HL240
Compressor1Rating - (Qty) Tons 2 X 7.5 = 15 Tons 2 X 10 = 20 Tons
Fans
Quantity 2 2
Diameter - inches 24 30
Blades/Pitch (°) 3/34 3/22
Nominal CFM 11,600 15,200
Fan Motors2HP 1 1.5
RPM 1140 1100
Coil
Rows Deep X Rows High 2 X 30 2 X 30
Finned Length - inches each slab 60 78
Face Area - square feet (both slabs) 25 32.5
Tube(Copper) OD - inches 3/8 3/8
Fins(Aluminum) per inch 16 16
Refrigerant - 22 (lbs -oz.) Holding Charge (sys1/sys2)31-0/1-0lbs. 1-0/1-0lbs.
Operating Charge (sys1/sys2)414.0/14.0 lbs. 17.0/17.0 lbs.
Unit Weight (lbs) Shipping 944 1380
Operating 957 1396
1. These compressors are fully hermetic.
2. The ball bearing, 56 frame, single phase condenser fan motors have internal protection and are directly connected to the condenser fans. Motor
rotation is counterclockwise when viewing the lead end, which is opposite the shaft end.
3. The amount of charge in the unit as shipped from the factory.
4. Total operating charge for the condensing unit, matching indoor unit, and 25 feet of interconnecting pipe.
TABLE 7: INDOOR UNIT PHYSICAL DATA
Description Unit Model
LL180 LL240
Coil
Rows Deep X Rows High 3 X 32 3 X 40
Finned length- Inches 83 81
Face Area - Square Feet 18.4 22.5
Tube (Copper) OD - Inches 3/8 3/8
Fins (Aluminum) per Inch 13 16
Centrifugal Blower
(Forward Curve - Qty
DiameterXWidth-Inches 15X12-2 18X18-2
Blower Motor1HP Field Installed
RPM -- --
Filters
(Throwaway)
Quantity Per Unit 4/4 10
Size-Inches 20X21X2&22X24X2 20X25X2
Total Face Area - Square Feet 25.8 34.7
Unit Weight (lbs) Shipping 720 990
Operating 830 1115
Accessory Operating
Weight (lbs)
Motor & Drive 3HP 47 --
5HP 120 120
Supply Air Plenum 185 N/A
Return Air Grille 25 N/A
Base 140 210
1. Refer to Table 20 and 22 for more information.

036-21326-001-C-0202
Unitary Products Group 9
All dimensions are in inches. They are
subject to change without notice. Certi-
fied dimensions will be provided upon
request.
B
A
C
OUTDOOR UNIT DIMENSIONS
Unit Dimensions (In.)
ABC
15 Ton 37.5 45.75 110.5
20 Ton 37.5 45.75 128.1
TABLE 8: CONNECTIONS
Connection Entry Connection Size
15 Ton 20 Ton
Suction Line 1-1/8 ID 1-3/8 ID
Liquid Line 5/8 ID 5/8 ID
Power Wiring 2-1/8 KO 2-1/8 KO
Control Wiring 7/8 KO 7/8 KO
TABLE 9: UNIT CLEARANCES
Location Dimensions
Overhead (Top)1
1. Units must be installed outdoors. Overhanging structures or
shrubs should not obstruct condenser air discharge.
120”
Front access panels 36”
Left Side 30”
Right Side 30”
Rear 24”
Bottom2
2. Adequate snow clearance must be provided if winter operation
is expected.
0”
TABLE 10: HL CENTER OF GRAVITY DIMENSIONS
FIGURE 6 : CENTER OF GRAVITY
Unit Dimensions (in.)
ABC
15 Ton 23 47 110
20 Ton 23 52 128
A
APPROXIMATE
CENTER OF GRAVITY
B
CONTROL BOX END
C
46
UNIT SIZE SHIPPING
WEIGHT OPERATING WEIGHT ABCD UNIT LENGTH UNIT WIDTH DIM X DIM Y
15 Ton Outdoor 944 959 205 275 275 205 110 46 47 23
20 ton Outdoor 1124 1141 232 339 339 232 128 46 52 23
FIGURE 7 : HL CORNER WEIGHT
LEFT
FRONT
D
LENGTH
WIDTH
dim Y
dim X
CG
AB
C

036-21326-001-C-0202
10 Unitary Products Group

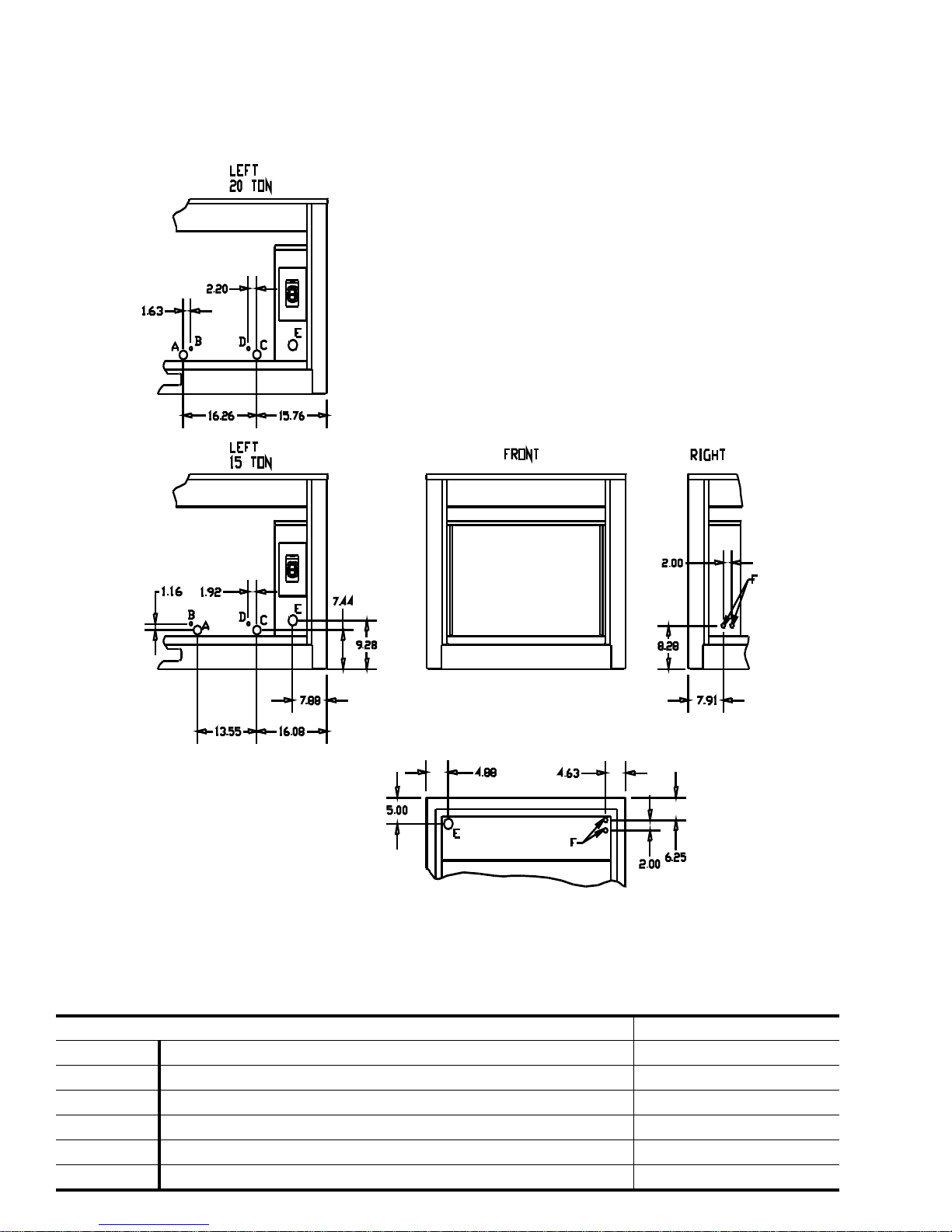

FIGURE 8 : PIPING AND ELECTRICAL CONNECTION LOCATIONS
TABLE 11: PIPING AND ELECTRICAL CONNECTION SIZES
CONNECTION ENTRY SIZE
ASUCTION LINE SYS #1 1-3/8 ID
BLIQUID LINE SYS. #1 5/8 OD
CSUCTION LINE SYS. #2 1-3/8 ID
DLIQUID LINE SYS. #2 5/8 OD
EPOWER WIRING 2” KO
FCONTROL WIRING 7/8 KO

036-21326-001-C-0202
Unitary Products Group 11
TABLE 12: 15 TON CAPACITY TABLE - 85º AND 95ºF
15 Ton Capacity Tables
HL180 Matched with LL180
AIR ON EVAPORATOR OUTDOOR AMBIENT TEMPERATURE (F): 85º
CFM W.B. GROSS INPUT GROSS SENSIBLE CAPACITY (MBh)
TEMP CAP. POWER (RETURN AIR DRY BULB TEMP.- (F))
(F) (MBh) (kW) 86 83 80 77 74 71 68
4500 72 197.8 15.23 117.3 104.5 91.6 78.8 66.0 #N/A #N/A
67 183.8 14.90 144.8 131.9 119.1 106.3 93.4 80.6 67.8
62 170.5 14.50 168.2 155.4 142.6 129.8 116.9 104.1 91.3
57 173.8 14.43 173.8 171.0 158.2 145.3 132.5 119.7 106.9
5250 72 204.1 15.34 129.7 114.5 99.4 84.2 69.0 #N/A #N/A
67 189.6 15.01 159.4 144.3 129.1 114.0 98.8 83.6 68.5
62 175.9 14.60 174.8 168.3 154.6 139.4 124.3 109.1 93.9
57 179.3 14.53 179.3 177.9 171.5 156.3 141.2 126.0 110.8
6000 72 210.3 15.44 142.1 124.6 107.1 89.6 72.1 #N/A #N/A
67 195.4 15.12 174.1 156.6 139.1 121.6 104.1 86.6 69.2
62 181.3 14.70 181.3 181.3 166.6 149.1 131.6 114.1 96.6
57 184.8 14.64 184.8 184.8 184.8 167.3 149.8 132.3 114.8
6750 72 213.6 15.54 152.3 132.4 112.5 92.6 72.6 #N/A #N/A
67 198.4 15.21 186.0 166.1 146.2 126.3 106.3 86.4 66.5
62 184.0 14.80 184.0 184.0 175.0 155.1 135.2 115.3 95.3
57 187.6 14.73 187.6 187.6 187.6 167.7 147.8 127.8 107.9
7500 72 216.8 15.64 162.6 140.3 117.9 95.6 73.2 #N/A #N/A
67 201.4 15.31 198.0 175.6 153.3 130.9 108.5 86.2 63.8
62 186.8 14.89 186.8 186.8 183.5 161.1 138.8 116.4 94.1
57 190.5 14.82 190.5 190.5 190.5 168.1 145.7 123.4 101.0
Indicates Nominal Capacity Rating Point.
INPUT POWER INCLUDES THE CONDENSER AND COMPRESSOR MOTORS BUT NOT THE INDOOR BLOWER MOTOR
15 Ton Capacity Tables
HL180 Matched with LL180
AIRONEVAPORATOR OUTDOOR AMBIENT TEMPERATURE (F): 95º
CFM W.B. GROSS INPUT GROSS SENSIBLE CAPACITY (MBh)
TEMP CAP. POWER (RETURN AIR DRY BULB TEMP.- (F)
(F) (MBh) (kW) 86 83 80 77 74 71 68
4500 72 190.9 16.89 114.1 101.3 88.5 75.7 62.8 #N/A #N/A
67 176.8 16.51 142.2 129.4 116.5 103.7 90.9 78.0 65.2
62 162.8 16.18 162.8 153.2 140.3 127.5 114.7 101.8 89.0
57 163.2 16.11 163.2 158.1 145.2 132.4 119.6 106.7 93.9
5250 72 196.2 16.99 126.2 111.0 95.8 80.7 65.5 #N/A #N/A
67 181.7 16.61 156.5 141.4 126.2 111.0 95.9 80.7 65.6
62 167.4 16.27 167.4 162.5 152.0 136.8 121.6 106.5 91.3
57 167.7 16.20 167.7 165.2 157.3 142.1 127.0 111.8 96.6
6000 72 201.5 17.09 138.2 120.7 103.2 85.7 68.2 #N/A #N/A
67 186.6 16.71 170.9 153.4 135.9 118.4 100.9 83.4 65.9
62 171.9 16.37 171.9 171.9 163.6 146.1 128.6 111.1 93.6
57 172.3 16.30 172.3 172.3 169.3 151.8 134.4 116.9 99.4
6750 72 205.1 17.17 148.4 128.5 108.6 88.6 68.7 #N/A #N/A
67 190.0 16.79 182.1 162.9 143.0 123.1 103.1 83.2 63.3
62 175.0 16.45 175.0 175.0 170.9 150.9 131.0 111.1 91.2
57 175.4 16.37 175.4 175.4 173.9 154.0 134.1 114.2 94.2
7500 72 208.8 17.25 158.7 136.3 114.0 91.6 69.2 #N/A #N/A
67 193.4 16.86 193.4 172.4 150.1 127.7 105.4 83.0 60.7
62 178.1 16.52 178.1 178.1 178.1 155.7 133.4 111.0 88.7
57 178.5 16.45 178.5 178.5 178.5 156.2 133.8 111.4 89.1
Indicates Nominal Capacity Rating Point.
INPUT POWER INCLUDES THE CONDENSER AND COMPRESSOR MOTORS BUT NOT THE INDOOR BLOWER MOTOR

036-21326-001-C-0202
12 Unitary Products Group
TABLE 13: 15 TON CAPACITY TABLE - 105º AND 115ºF
15 Ton Capacity Tables
HL180 Matched with LL180
AIRONEVAPORATOR OUTDOOR AMBIENT TEMPERATURE (F): 105º
CFM W.B. GROSS INPUT GROSS SENSIBLE CAPACITY (MBh)
TEMP CAP. POWER (RETURN AIR DRY BULB TEMP.- (F)
(F) (MBh) (kW) 86 83 80 77 74 71 68
4500 72 182.8 18.89 111.9 99.1 86.2 73.4 60.6 #N/A #N/A
67 168.9 18.42 139.2 126.3 113.5 100.7 87.8 75.0 62.2
62 156.1 18.00 156.1 150.4 137.6 124.7 111.9 99.1 86.2
57 157.8 17.99 157.8 152.5 139.7 126.8 114.0 101.2 88.3
5250 72 187.6 19.03 123.6 108.5 93.3 78.1 63.0 #N/A #N/A
67 173.4 18.56 153.1 137.9 122.8 107.6 92.4 77.3 62.1
62 160.2 18.13 160.2 157.4 148.8 133.6 118.5 103.3 88.1
57 162.0 18.13 162.0 159.3 151.1 135.9 120.7 105.6 90.4
6000 72 192.4 19.17 135.3 117.8 100.3 82.8 65.3 #N/A #N/A
67 177.8 18.70 167.0 149.5 132.0 114.6 97.1 79.6 62.1
62 164.3 18.27 164.3 164.3 160.0 142.5 125.0 107.5 90.1
57 166.1 18.26 166.1 166.1 162.5 145.0 127.5 110.0 92.5
6750 72 196.1 19.23 146.1 126.2 106.2 86.3 66.4 #N/A #N/A
67 181.2 18.76 175.9 159.8 139.8 119.9 100.0 80.1 60.1
62 167.5 18.33 167.5 167.5 165.4 145.4 125.5 105.6 85.7
57 169.3 18.32 169.3 169.3 167.5 147.6 127.7 107.7 87.8
7500 72 199.8 19.30 156.9 134.5 112.2 89.8 67.4 #N/A #N/A
67 184.7 18.82 184.7 170.0 147.6 125.3 102.9 80.5 58.2
62 170.7 18.39 170.7 170.7 170.7 148.3 126.0 103.6 81.3
57 172.5 18.38 172.5 172.5 172.5 150.2 127.8 105.5 83.1
Indicates Nominal Capacity Rating Point.
INPUT POWER INCLUDES THE CONDENSER AND COMPRESSOR MOTORS BUT NOT THE INDOOR BLOWER MOTOR
15 Ton Capacity Tables
HL180 Matched with LL180
AIR ON EVAPORATOR OUTDOOR AMBIENT TEMPERATURE (F): 115º
CFM W.B. GROSS INPUT GROSS SENSIBLE CAPACITY (MBh)
TEMP CAP. POWER (RETURN AIR DRY BULB TEMP.- (F)
(F) (MBh) (kW) 86 83 80 77 74 71 68
4500 72 174.7 20.88 109.7 96.8 84.0 71.2 58.3 #N/A #N/A
67 161.0 20.33 136.1 123.3 110.5 97.6 84.8 72.0 59.1
62 149.4 19.81 149.4 147.6 134.8 122.0 109.1 96.3 83.5
57 152.5 19.88 152.5 146.9 134.1 121.2 108.4 95.6 82.8
5250 72 179.0 21.06 121.1 105.9 90.8 75.6 60.4 #N/A #N/A
67 165.0 20.51 149.7 134.5 119.3 104.2 89.0 73.9 58.7
62 153.1 19.99 153.1 152.2 145.6 130.5 115.3 100.1 85.0
57 156.2 20.05 156.2 153.4 144.8 129.7 114.5 99.4 84.2
6000 72 183.3 21.25 132.5 115.0 97.5 80.0 62.5 #N/A #N/A
67 168.9 20.69 163.2 145.7 128.2 110.7 93.2 75.7 58.2
62 156.8 20.16 156.8 156.8 156.5 139.0 121.5 104.0 86.5
57 159.9 20.23 159.9 159.9 155.6 138.1 120.6 103.1 85.6
6750 72 187.1 21.30 143.8 123.9 103.9 84.0 64.1 #N/A #N/A
67 172.4 20.73 169.6 156.6 136.7 116.8 96.8 76.9 57.0
62 160.0 20.21 160.0 160.0 159.9 139.9 120.0 100.1 80.2
57 163.2 20.27 163.2 163.2 161.1 141.2 121.2 101.3 81.4
7500 72 190.9 21.34 155.1 132.7 110.4 88.0 65.7 #N/A #N/A
67 175.9 20.78 175.9 167.5 145.1 122.8 100.4 78.1 55.7
62 163.3 20.25 163.3 163.3 163.3 140.9 118.5 96.2 73.8
57 166.6 20.32 166.6 166.6 166.6 144.2 121.8 99.5 77.1
Indicates Nominal Capacity Rating Point.
INPUT POWER INCLUDES THE CONDENSER AND COMPRESSOR MOTORS BUT NOT THE INDOOR BLOWER MOTOR

036-21326-001-C-0202
Unitary Products Group 13
TABLE 14: 15 TON CAPACITY TABLE - 125ºF
15 Ton Capacity Tables
HL180 Matched with LL180
AIR ON EVAPORATOR OUTDOOR AMBIENT TEMPERATURE (F): 125º
CFM W.B. GROSS INPUT GROSS SENSIBLE CAPACITY (MBh)
TEMP CAP. POWER (RETURN AIR DRY BULB TEMP.- (F)
(F) (MBh) (kW) 86 83 80 77 74 71 68
4500 72 166.6 22.9 107.4 94.6 81.8 68.9 56.1 #N/A #N/A
67 153.1 22.2 133.1 120.3 107.4 94.6 81.8 68.9 56.1
62 142.7 21.6 142.7 142.7 132.0 119.2 106.4 93.5 80.7
57 147.1 21.8 147.1 141.3 128.5 115.7 102.8 90.0 77.2
5250 72 170.4 23.1 118.5 103.4 88.2 73.1 57.9 #N/A #N/A
67 156.6 22.5 146.2 131.1 115.9 100.8 85.6 70.4 55.3
62 146.0 21.8 146.0 146.0 142.5 127.3 112.1 97.0 81.8
57 150.4 22.0 150.4 147.6 138.6 123.5 108.3 93.1 78.0
6000 72 174.2 23.3 129.7 112.2 94.7 77.2 59.7 #N/A #N/A
67 160.1 22.7 159.4 141.9 124.4 106.9 89.4 71.9 54.4
62 149.2 22.1 149.2 149.2 149.2 135.4 117.9 100.4 82.9
57 153.8 22.2 153.8 153.8 148.8 131.3 113.8 96.3 78.8
6750 72 178.0 23.4 141.5 121.5 101.6 81.7 61.8 #N/A #N/A
67 163.6 22.7 163.3 153.5 133.5 113.6 93.7 73.8 53.8
62 152.5 22.1 152.5 152.5 152.5 134.4 114.5 94.6 74.7
57 157.2 22.2 157.2 157.2 154.7 134.7 114.8 94.9 75.0
7500 72 181.9 23.4 153.3 130.9 108.6 86.2 63.9 #N/A #N/A
67 167.2 22.7 167.2 165.0 142.7 120.3 98.0 75.6 53.2
62 155.8 22.1 155.8 155.8 155.8 133.5 111.1 88.8 66.4
57 160.6 22.3 160.6 160.6 160.6 138.2 115.9 93.5 71.2
Indicates Nominal Capacity Rating Point.
INPUT POWER INCLUDES THE CONDENSER AND COMPRESSOR MOTORS BUT NOT THE INDOOR BLOWER MOTOR

036-21326-001-C-0202
14 Unitary Products Group
TABLE 15: 20 TON CAPACITY TABLE - 85º AND 95ºF
20 Ton Capacity Tables
HL240 & LL240
AIRONEVAPORATOR OUTDOOR AMBIENT TEMPERATURE (F): 85º
CFM W.B. GROSS INPUT GROSS SENSIBLE CAPACITY (MBh)
TEMP CAP. POWER (RETURN AIR DRY BULB TEMP.- (F)
(F) (MBh) (kW) 86 83 80 77 74 71 68
6000 72 263.4 21.25 155.9 138.8 121.7 104.6 87.5 #N/A #N/A
67 243.5 20.69 191.0 173.9 156.8 139.7 122.6 105.5 88.4
62 227.6 20.42 221.1 204.0 186.9 169.8 152.7 135.6 118.5
57 219.5 20.19 219.5 216.7 199.6 182.5 165.4 148.3 131.2
7000 72 273.9 21.38 172.8 152.6 132.4 112.2 91.9 #N/A #N/A
67 253.2 20.82 211.0 190.8 170.6 150.3 130.1 109.9 89.7
62 236.7 20.54 233.4 223.5 203.3 183.1 162.9 142.6 122.4
57 228.2 20.31 228.2 226.8 217.1 196.9 176.7 156.4 136.2
8000 72 284.4 21.51 189.7 166.4 143.0 119.7 96.4 #N/A #N/A
67 262.9 20.94 231.0 207.6 184.3 161.0 137.6 114.3 91.0
62 245.7 20.67 245.7 243.0 219.7 196.3 173.0 149.7 126.4
57 237.0 20.43 237.0 237.0 234.6 211.3 187.9 164.6 141.3
8600 72 289.0 21.64 197.6 172.2 146.8 121.5 96.1 #N/A #N/A
67 267.2 21.06 239.9 214.6 189.2 163.8 138.4 113.0 87.7
62 249.7 20.79 249.7 248.3 225.5 200.1 174.7 149.4 124.0
57 240.8 20.55 240.8 240.8 239.6 214.2 188.9 163.5 138.1
9200 72 293.6 21.76 205.5 178.0 150.6 123.2 95.8 #N/A #N/A
67 271.4 21.19 248.9 221.5 194.1 166.6 139.2 111.8 84.4
62 253.7 20.91 253.7 253.7 231.3 203.9 176.5 149.0 121.6
57 244.6 20.67 244.6 244.6 244.6 217.2 189.8 162.4 134.9
Indicates Nominal Capacity Rating Point.
INPUT POWER INCLUDES THE CONDENSER AND COMPRESSOR MOTORS BUT NOT THE INDOOR BLOWER MOTOR
20 Ton Capacity Tables
HL240 & LL240
AIRONEVAPORATOR OUTDOOR AMBIENT TEMPERATURE (F): 95º
CFM W.B. GROSS INPUT GROSS SENSIBLE CAPACITY (MBh)
TEMP CAP. POWER (RETURN AIR DRY BULB TEMP.- (F)
(F) (MBh) (kW) 86 83 80 77 74 71 68
6000 72 253.7 23.11 151.3 134.2 117.0 99.9 82.8 #N/A #N/A
67 237.2 22.68 188.2 171.1 153.9 136.8 119.7 102.6 85.5
62 218.5 22.16 218.5 202.7 185.6 168.5 151.4 134.3 117.2
57 214.5 22.11 214.5 210.5 193.4 176.3 159.1 142.0 124.9
7000 72 262.8 23.30 167.5 147.3 127.1 106.8 86.6 #N/A #N/A
67 245.7 22.88 207.5 187.3 167.1 146.9 126.7 106.5 86.2
62 226.4 22.35 226.4 218.5 201.5 181.3 161.0 140.8 120.6
57 222.2 22.30 222.2 220.2 209.9 189.7 169.5 149.2 129.0
8000 72 271.9 23.50 183.7 160.4 137.1 113.7 90.4 #N/A #N/A
67 254.3 23.07 226.9 203.6 180.3 156.9 133.6 110.3 87.0
62 234.2 22.54 234.2 234.2 217.3 194.0 170.7 147.4 124.0
57 229.9 22.49 229.9 229.9 226.4 203.1 179.8 156.4 133.1
8600 72 269.7 23.60 189.5 164.1 138.7 113.3 88.0 #N/A #N/A
67 252.2 23.16 233.2 207.8 182.4 157.1 131.7 106.3 80.9
62 232.3 22.63 232.3 232.3 220.0 194.6 169.2 143.8 118.5
57 228.0 22.58 228.0 228.0 226.3 200.9 175.5 150.2 124.8
9200 72 267.6 23.69 195.2 167.8 140.4 112.9 85.5 #N/A #N/A
67 250.2 23.26 239.5 212.0 184.6 157.2 129.8 102.3 74.9
62 230.4 22.72 230.4 230.4 222.6 195.2 167.7 140.3 112.9
57 226.2 22.68 226.2 226.2 226.2 198.7 171.3 143.9 116.5
Indicates Nominal Capacity Rating Point.
INPUT POWER INCLUDES THE CONDENSER AND COMPRESSOR MOTORS BUT NOT THE INDOOR BLOWER MOTOR

036-21326-001-C-0202
Unitary Products Group 15
TABLE 16: 20 TON CAPACITY TABLE - 105º & 115ºF
20 Ton Capacity Tables
HL240 & LL240
AIRONEVAPORATOR OUTDOOR AMBIENT TEMPERATURE (F): 105º
CFM W.B. GROSS INPUT GROSS SENSIBLE CAPACITY (MBh)
TEMP CAP. POWER (RETURN AIR DRY BULB TEMP.- (F)
(F) (MBh) (kW) 86 83 80 77 74 71 68
6000 72 245.6 25.60 148.7 131.6 114.5 97.4 80.2 #N/A #N/A
67 228.4 25.00 184.5 167.4 150.3 133.2 116.1 99.0 81.9
62 211.9 24.47 211.9 198.0 180.9 163.7 146.6 129.5 112.4
57 210.8 24.50 210.8 204.7 187.6 170.5 153.4 136.3 119.2
7000 72 253.0 25.77 164.4 144.2 124.0 103.7 83.5 #N/A #N/A
67 235.2 25.16 203.2 183.0 162.8 142.5 122.3 102.1 81.9
62 218.3 24.63 218.3 211.3 195.9 175.7 155.4 135.2 115.0
57 217.1 24.66 217.1 214.1 203.2 183.0 162.8 142.5 122.3
8000 72 260.4 25.94 180.1 156.8 133.5 110.1 86.8 #N/A #N/A
67 242.1 25.32 221.9 198.6 175.2 151.9 128.6 105.3 81.9
62 224.7 24.79 224.7 224.7 210.9 187.6 164.2 140.9 117.6
57 223.4 24.82 223.4 223.4 218.8 195.4 172.1 148.8 125.5
8600 72 261.9 26.04 188.1 162.7 137.3 112.0 86.6 #N/A #N/A
67 243.5 25.43 230.7 205.7 180.3 154.9 129.6 104.2 78.8
62 226.0 24.89 226.0 226.0 217.0 191.6 166.2 140.9 115.5
57 224.8 24.92 224.8 224.8 222.4 197.1 171.7 146.3 120.9
9200 72 263.4 26.15 196.1 168.6 141.2 113.8 86.4 #N/A #N/A
67 244.9 25.53 239.5 212.8 185.4 158.0 130.5 103.1 75.7
62 227.3 24.99 227.3 227.3 223.1 195.7 168.2 140.8 113.4
57 226.1 25.03 226.1 226.1 226.1 198.7 171.2 143.8 116.4
Indicates Nominal Capacity Rating Point.
INPUT POWER INCLUDES THE CONDENSER AND COMPRESSOR MOTORS BUT NOT THE INDOOR BLOWER MOTOR
20 Ton Capacity Tables
HL240 & LL240
AIRONEVAPORATOR OUTDOOR AMBIENT TEMPERATURE (F): 115º
CFM W.B. GROSS INPUT GROSS SENSIBLE CAPACITY (MBh)
TEMP CAP. POWER (RETURN AIR DRY BULB TEMP.- (F)
(F) (MBh) (kW) 86 83 80 77 74 71 68
6000 72 237.4 28.09 146.1 129.0 111.9 94.8 77.7 #N/A #N/A
67 219.5 27.31 180.8 163.7 146.6 129.5 112.4 95.3 78.2
62 205.4 26.78 205.4 193.2 176.1 159.0 141.9 124.8 107.7
57 207.1 26.89 207.1 199.0 181.9 164.8 147.7 130.6 113.4
7000 72 243.1 28.23 161.3 141.1 120.9 100.7 80.4 #N/A #N/A
67 224.8 27.45 198.9 178.6 158.4 138.2 118.0 97.8 77.5
62 210.3 26.91 210.3 204.2 190.3 170.0 149.8 129.6 109.4
57 212.0 27.02 212.0 208.0 196.5 176.3 156.1 135.8 115.6
8000 72 248.8 28.37 176.5 153.2 129.9 106.5 83.2 #N/A #N/A
67 230.0 27.58 216.9 193.5 170.2 146.9 123.6 100.2 76.9
62 215.2 27.04 215.2 215.2 204.4 181.1 157.8 134.4 111.1
57 217.0 27.15 217.0 217.0 211.1 187.8 164.5 141.1 117.8
8600 72 254.0 28.49 186.7 161.3 136.0 110.6 85.2 #N/A #N/A
67 234.8 27.70 228.2 203.6 178.2 152.8 127.4 102.1 76.7
62 219.7 27.15 219.7 219.7 214.0 188.6 163.3 137.9 112.5
57 221.5 27.26 221.5 221.5 218.6 193.2 167.8 142.4 117.1
9200 72 259.2 28.61 196.9 169.5 142.0 114.6 87.2 #N/A #N/A
67 239.6 27.81 239.6 213.6 186.2 158.7 131.3 103.9 76.5
62 224.1 27.26 224.1 224.1 223.6 196.2 168.7 141.3 113.9
57 226.0 27.38 226.0 226.0 226.0 198.6 171.2 143.8 116.3
Indicates Nominal Capacity Rating Point.
INPUT POWER INCLUDES THE CONDENSER AND COMPRESSOR MOTORS BUT NOT THE INDOOR BLOWER MOTOR

036-21326-001-C-0202
16 Unitary Products Group
TABLE 17: 20 TON CAPACITY TABLE - 125ºF
20 Ton Capacity Tables
HL240 & LL240
AIRONEVAPORATOR OUTDOOR AMBIENT TEMPERATURE (F): 125º
CFM W.B. GROSS INPUT GROSS SENSIBLE CAPACITY (MBh)
TEMP CAP. POWER (RETURN AIR DRY BULB TEMP.- (F)
(F) (MBh) (kW) 86 83 80 77 74 71 68
6000 72 229.3 30.6 143.5 126.4 109.3 92.2 75.1 #N/A #N/A
67 210.7 29.6 177.2 160.1 143.0 125.9 108.8 91.6 74.5
62 198.8 29.1 198.8 188.5 171.3 154.2 137.1 120.0 102.9
57 203.4 29.3 203.4 193.2 176.1 159.0 141.9 124.8 107.7
7000 72 233.3 30.7 158.2 138.0 117.8 97.6 77.3 #N/A #N/A
67 214.3 29.7 194.5 174.3 154.1 133.9 113.6 93.4 73.2
62 202.2 29.2 202.2 197.1 184.7 164.4 144.2 124.0 103.8
57 207.0 29.4 207.0 201.9 189.8 169.6 149.4 129.2 108.9
8000 72 237.2 30.8 172.9 149.6 126.3 102.9 79.6 #N/A #N/A
67 217.9 29.8 211.8 188.5 165.2 141.8 118.5 95.2 71.9
62 205.7 29.3 205.7 205.7 198.0 174.6 151.3 128.0 104.6
57 210.5 29.5 210.5 210.5 203.5 180.1 156.8 133.5 110.2
8600 72 246.1 30.9 185.3 160.0 134.6 109.2 83.8 #N/A #N/A
67 226.1 30.0 225.7 201.4 176.1 150.7 125.3 99.9 74.6
62 213.3 29.4 213.3 213.3 211.0 185.6 160.3 134.9 109.5
57 218.2 29.6 218.2 218.2 214.7 189.3 164.0 138.6 113.2
9200 72 255.0 31.1 197.7 170.3 142.9 115.5 88.0 #N/A #N/A
67 234.3 30.1 234.3 214.4 186.9 159.5 132.1 104.7 77.2
62 221.0 29.5 221.0 221.0 221.0 196.7 169.2 141.8 114.4
57 226.0 29.7 226.0 226.0 226.0 198.5 171.1 143.7 116.3
Indicates Nominal Capacity Rating Point.
INPUT POWER INCLUDES THE CONDENSER AND COMPRESSOR MOTORS BUT NOT THE INDOOR BLOWER MOTOR

036-21326-001-C-0202
Unitary Products Group 17
Note: Airflow tables based on 2” filters, dry evaporator coil
Note: Airflow tables based on 2” filters, dry evaporator coil
TABLE 18: LL180 15 TON AIRFLOW TABLE
0.4 0.6 0.8 1 1.2 1.4
CFM RPM BHP kW RPM BHP kW RPM BHP kW RPM BHP kW RPM BHP kW RPM BHP kW
4400 660 1.5 1.43 725 1.8 1.69 756 2.0 1.86 886 2.4 2.29 928 2.6 2.4
4600 663 1.6 1.46 733 1.9 1.77 775 2.1 1.99 891 2.6 2.4 937 2.8 2.59
4800 667 1.6 1.5 741 2.0 1.85 794 2.3 2.12 897 2.7 2.52 946 3.0 2.78
5000 671 1.7 1.55 749 2.1 1.94 811 2.4 2.26 903 2.8 2.64 955 3.2 2.98
5200 676 1.7 1.61 758 2.2 2.03 828 2.6 2.39 910 3.0 2.77 963 3.4 3.17
5400 682 1.8 1.68 767 2.3 2.13 844 2.7 2.54 917 3.1 2.91 972 3.6 3.36
5600 688 1.9 1.76 776 2.4 2.24 859 2.9 2.68 924 3.3 3.05 981 3.8 3.56
5800 696 2.0 1.85 785 2.5 2.36 873 3.0 2.83 931 3.4 3.2 990 4.0 3.75
6000 647 1.9 1.78 704 2.1 1.95 794 2.7 2.48 885 3.2 2.98 938 3.6 3.36 998 4.2 3.94
6200 654 2.0 1.83 712 2.2 2.06 804 2.8 2.61 897 3.4 3.14 946 3.8 3.53 1007 4.4 4.14
6400 662 2.0 1.89 722 2.3 2.18 814 2.9 2.74 909 3.5 3.29 954 4.0 3.7
6600 670 2.1 1.97 732 2.5 2.31 824 3.1 2.89 919 3.7 3.45 963 4.1 3.88
6800 679 2.2 2.06 742 2.6 2.45 834 3.2 3.03 928 3.9 3.62 971 4.4 4.07
7000 688 2.3 2.17 754 2.8 2.6 844 3.4 3.19 936 4.1 3.79 980 4.6 4.27
7200 698 2.5 2.3 766 3.0 2.77 855 3.6 3.35 944 4.2 3.96 990 4.8 4.47
7400 708 2.6 2.45 779 3.1 2.94 866 3.8 3.52 950 4.4 4.13 999 5.0 4.68
7600 719 2.8 2.61 792 3.3 3.12 877 4.0 3.7 956 4.6 4.31
7800 730 3.0 2.78 807 3.5 3.31 888 4.1 3.88 960 4.8 4.49
Denotes use of 5 hp motor with high static pulley kit.
TABLE 19: LL240 20 TON AIRFLOW TABLE
0.4 0.6 0.8 1 1.2 1.4
CFM RPM BHP kW RPM BHP kW RPM BHP kW RPM BHP kW RPM BHP kW RPM BHP kW
6000 612 2.0 1.77 681 2.5 2.24 720 2.7 2.44 763 3.1 2.71
6200 617 2.1 1.87 684 2.6 2.32 724 2.9 2.53 767 3.2 2.82
6400 623 2.2 1.97 688 2.7 2.40 727 3.0 2.63 771 3.3 2.94
6600 629 2.3 2.07 692 2.8 2.48 731 3.1 2.73 776 3.4 3.06
6800 634 2.4 2.17 695 2.9 2.57 735 3.2 2.83 781 3.6 3.19
7000 640 2.6 2.27 699 3.0 2.66 739 3.3 2.94 786 3.7 3.32
7200 646 2.7 2.38 703 3.1 2.75 744 3.4 3.05 791 3.9 3.46
7400 582 2.0 1.74 651 2.8 2.48 707 3.2 2.85 748 3.6 3.16 797 4.1 3.61
7600 590 2.1 1.87 657 2.9 2.59 711 3.3 2.95 753 3.7 3.28 803 4.2 3.76
7800 597 2.3 2.00 662 3.0 2.69 715 3.4 3.05 757 3.8 3.40 809 4.4 3.92
8000 603 2.4 2.13 667 3.2 2.80 719 3.6 3.16 762 4.0 3.52 816 4.6 4.08
8200 610 2.5 2.26 673 3.3 2.91 723 3.7 3.26 767 4.1 3.65
8400 617 2.7 2.40 678 3.4 3.02 727 3.8 3.38 772 4.3 3.79
8600 624 2.8 2.53 683 3.5 3.13 731 3.9 3.49 777 4.4 3.92
8800 630 3.0 2.66 689 3.6 3.24 735 4.1 3.61 783 4.6 4.06
9000 637 3.1 2.79 694 3.8 3.35 740 4.2 3.73 788 4.7 4.21
9200 577 2.0 1.80 643 3.3 2.92 699 3.9 3.46 744 4.3 3.85 794 4.9 4.36
9400 584 2.3 2.08 649 3.4 3.06 704 4.0 3.57 748 4.5 3.98 800 5.1 4.51
9600 591 2.6 2.34 655 3.6 3.19 709 4.1 3.68 753 4.6 4.11 806 5.3 4.67
9800 598 2.9 2.59 661 3.7 3.32 714 4.3 3.80 757 4.8 4.25 812 5.4 4.83
10000 605 3.2 2.81 667 3.9 3.46 719 4.4 3.91
Denotes use of high static pulley option.

036-21326-001-C-0202
18 Unitary Products Group

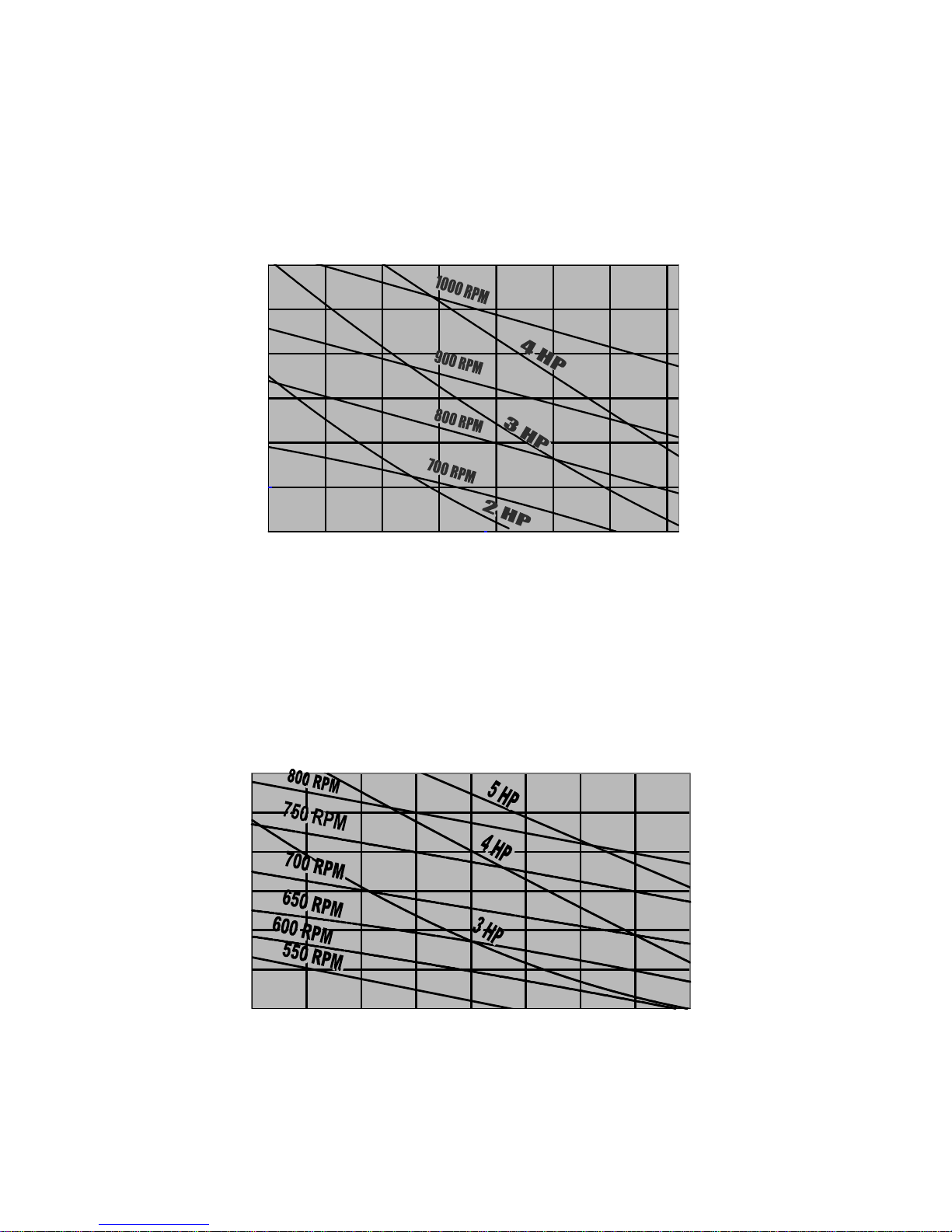

FIGURE 9 : 15 TON BLOWER PERFORMANCE
15 TON BLOWER PERFORMANCE
0.4
0.6
0.8
1
1.2
1.4
1.6
4200 4700 5200 5700 6200 6700 7200 7700
CFM
ESP
FIGURE 10 : 20 TON BLOWER PERFORMANCE
20 TON BLOWER PERFORMANCE
0.4
0.6
0.8
1
1.2
1.4
1.6
6000 6500 7000 7500 8000 8500 9000 9500 10000
CFM
ESP

036-21326-001-C-0202
Unitary Products Group 19
TABLE 20: BLOWER DRIVE DATA
Unit Model Drive Data
Model Number Blower RPM Range Adj. Motor Pulley Fixed Blower pulley Belts
Datum Dia. (In.) Bore (In.) Datum Dia. (In.) Bore (In.) Qty. Designation
LL180 1LD0436 640-810 4.0-5.0 7/8 11 1-3/16 1 A57
1LD0437 800-1000 5.3-6.3 1-1/8 11 1-3/16 2 A55
LL240 1LD0438 580-720 4.0-5.0 1-1/8 12 1-3/16 2 A63
1LD0439 700-830 4.0-5.0 1-1/8 13 1-3/16 2 A68
TABLE 21: BLOWER DATA
Unit
Model
Blower Motor Data1Drive Data
HP Model Num-
ber Frame size Voltage (3PH-60Hz.) Model Number Blower RPM Range
LL180
3 2LR04603033 56 208/230/46011LD0436 640-810
5 2LR04605023 184 208 1LD0437 800-1000
2LR04605032 184 230/460 1LD0437 800-1000
LL240
52LR04605023 184 208 1LD0438 580-720
1LD0439 700-830
2LR04605032 184 208/230/460 1LD0438 580-720
1LD0439 700-830
1. Three-phase motors will always be wired for 460 volt power supply. Refer to the wiring diagram inside the motor terminal box.
TABLE 22: INDOOR ELECTRICAL RATINGS
Model
Number Blower Motor HP Power Supply FLA Minimum Circuit
Ampacity Max. Fuse Size1
LL180
3208-3-60 10.6 13.3 20
230-3-60 9.6 12.0 20
5208-3-60 17.5 21.9 35
230-3-60 16.7 20.9 35
3 460-3-60 4.8 6.0 15
5 460-3-60 7.6 9.5 15
LL240 5
208-3-60 17.5 21.9 35
230-3-60 16.7 20.9 35
460-3-60 7.6 9.5 15
1. Maximum fuse or maximum circuit breaker (HACR type per NEC).

036-21326-001-C-0202
20 Unitary Products Group
NOTE: All dimensions in inches.
TABLE 23: INDOOR UNIT WEIGHTS AND CORNER WEIGHTS
Unit Size Position Shipping
Weight Operating A B C D Unit
Length Unit Width
15 Ton Indoor Horizontal 720 830 178 216 239 197 89.5 59
15 Ton Indoor Vertical 720 830 198 224 217 191 89.5 29.5
20 Ton Indoor Horizontal 990 1115 212 195 340 368 100 74
20 Ton Indoor Vertical 990 1115 281 254 276 305 100 36.5

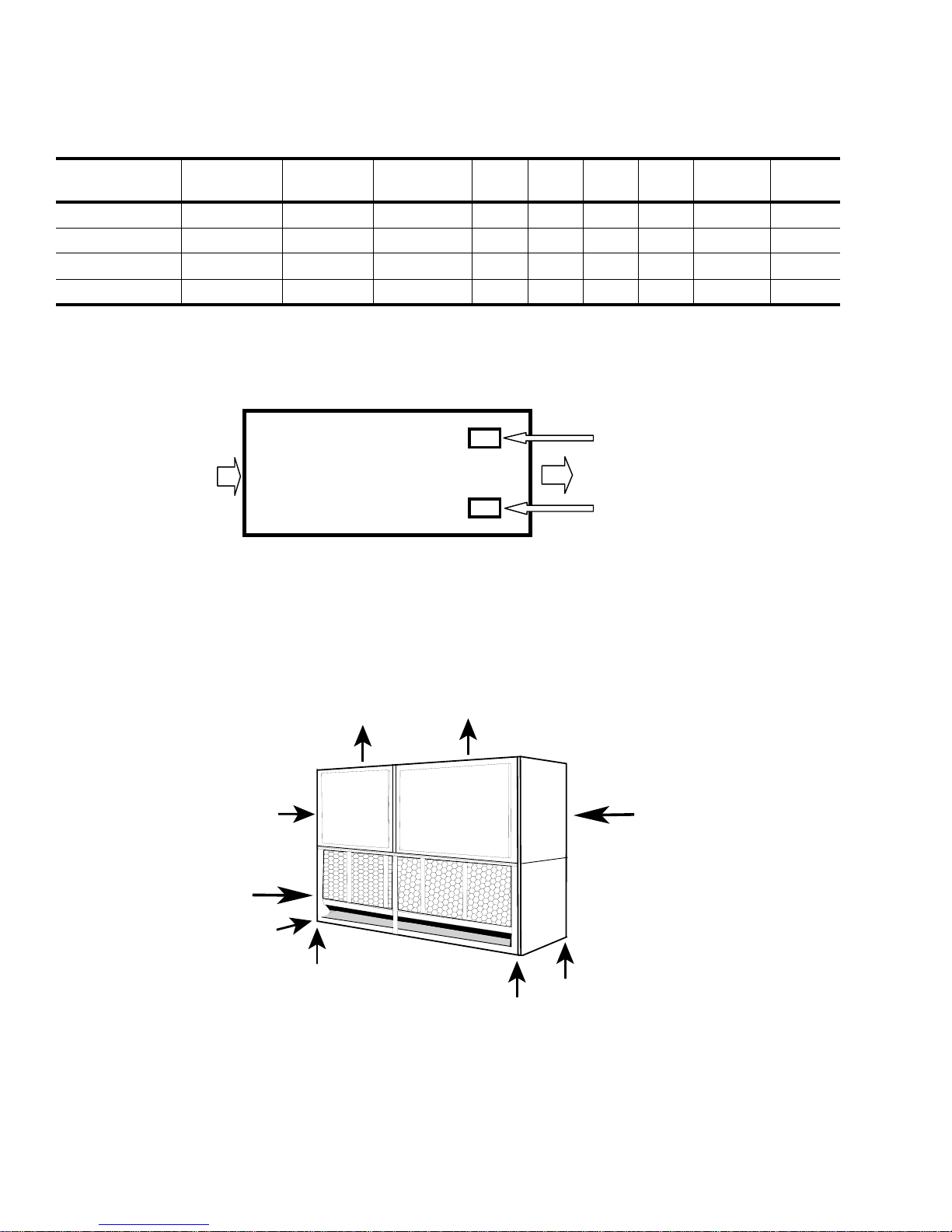

FIGURE 11 : LL HORIZONTAL APPLICATION
CORNER WEIGHTS
DC
20 Ton Motor Location
Return Air
A
B
Horizontal Application Corner Weights
15 Ton Motor Location
Suppl Air
FIGURE 12 : LL VERTICAL APPLICATION CORNER WEIGHTS
Supply Air
15 Ton
Motor ocation
20 Ton Motor
ocation
Return Air
A
B
C
D
(Rear Corner)
