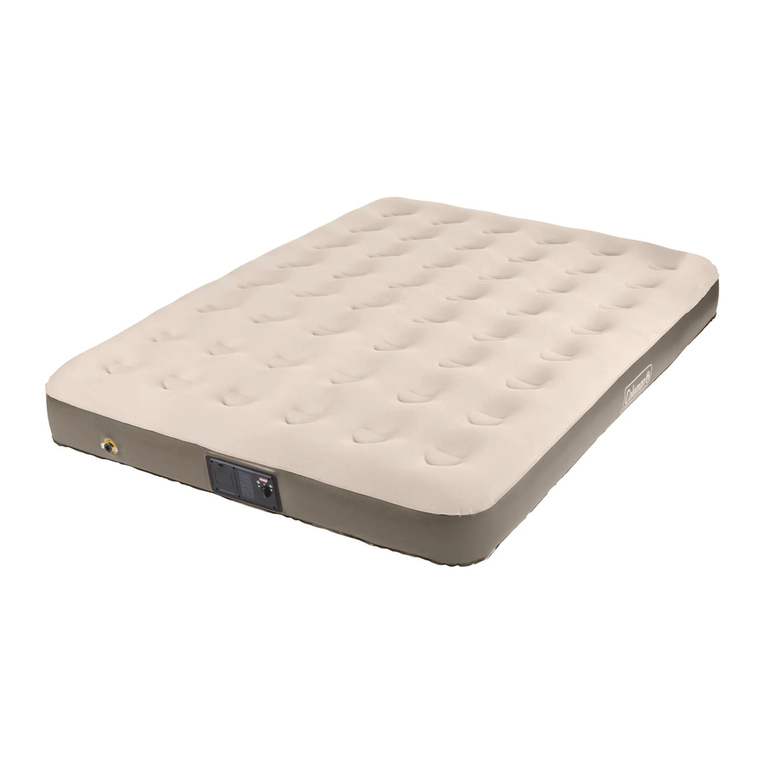

Coleman Quickbed User manual

4010013816 (ECN20017679-01)
How to Use and Enjoy Your Coleman®
Quickbed®Airbed with Built-In
CPXTM Pump
Please call or write to us at our nearest location with any comments or questions.
5IF$PMFNBO$PNQBOZ*ODr/PSUI)ZESBVMJDr8JDIJUB,464"
JOUIF6OJUFE4UBUFTrXXXDPMFNBODPN
4VOCFBN$PSQPSBUJPO$BOBEB-JNJUFEr%#"+BSEFO$POTVNFS4PMVUJPOT
#)FSFGPSE4USFFUr#SBNQUPO0/-:0.
JO$BOBEBrXXXDPMFNBODPN
© 2011 The Coleman Company, Inc. All right reserved.
Coleman®, Quickbed®, , and are registered trademarks and Double Lock™ and CPXTM are
trademarks of The Coleman Company, Inc.
Inflation Instructions
3. Connect pump to power source.
Turn control dial to INFLATE and
begin ination. When bed is fully
inated, turn dial to OFF position.
1. Make sure the Control Dial
is in OFF position.
2. Unroll and layout airbed in position.
Close secondary valve as shown in
“Double Lock™ Valve Operation”.
Valve should appear depressed into itself.
NOTE:
To adjust firmness briefly turn
control dial:
DEFLATE decreases firmness.
INFLATE increases firmness.
Deflation Instructions
2. Connect pump to power
source. Turn Control dial
to DEFLATE position.
1. Make sure the Double Lock™ Valve
is closed.
To Deflate Using the Built-in Pump: To Deflate Without Use of Pump:
1. To deate, open external stopper and pull
to extend out allowing air to escape. When
fully deated close stopper.
Not for use by children 3 and younger or people with limited mobility. They
may suffocate in a face down position or become trapped and suffocate in the gap
between the airbed and adjacent furniture or wall. If the airbed is under inflated or
deflates during use, this risk of suffocation may increase.
Do not let young children sleep on this airbed until they are mature enough
to sleep in an adult bed. Young children can suffocate on adult beds (including
airbeds), particularly when sleeping with another person. Ask your pediatrician for
specific recommendations for your child.
Adult supervision required for inflation and deflation.
This airbed can melt or burn. Keep away from open
flames,heaters, and other hot objects. Do not smoke on or near
the airbed.
This airbed is not for use in water. It is not a life saving device,
personal flotation device, or water toy.
This airbed is not a toy. Do not stand, walk, jump or play on the
airbed. This can result in serious injury or damage to the airbed.
WARNING: Read airbed instruction manual and follow all safety instructions to avoid serious injury or death.
Note: The product may look different from
yours. It is for illustration purpose only.

To Install Or Replace Batteries
Your new pump operates on 4 “D” cell batteries. For longest life,
use alkaline batteries.
1. With pump off, press two release tabs to remove 4D battery
pack. (Fig. 1)
2. Press snap feature to open the 4D battery pack top cover.
(Fig. 2)
3. Install 4 batteries in the correct orientation as shown on the
battery housing. Always be careful that all 4 batteries are
installed correctly. (Fig. 3)
4. Close top cover and install 4D battery pack properly into the
pump. (Fig. 4)
Fig. 1
Fig. 4
Fig. 3
Fig. 2
Note: For optimum performance, alkaline
batteries are recommended.
Alternative Power Sources For This Product
r 2000002672
6V NiMH Rechargeable Battery Pack
r 2000003287
6V Sealed Lead Acid Rechargeable Battery Pack
Note: To order an alternative power source for this product,
please go to www.coleman.com or call Coleman Customer
Service.
Parts List
1. 5010000712
4D (6V) Battery Pack
1
Double Lock™ Valve Operation
CAUTION: Air temperature and weather do affect the air
pressure in inatable products. In cold weather your airbed will
lose some pressure due to the fact that the air will contract.
If this occurs, you may want to add a little air to improve your
airbed’s performance. However, in hot weather, the air will
expand. You must let some air out to prevent the airbed from
failing due to overpressure. You should avoid exposing your
airbed to extreme temperatures (hot or cold).
To Open Valve
Open - Step 1:
Internal Seal Closed
Pull open cap.
Open - Step 2:
Fully Opened Valve
Firmly pull cap to unseat valve from
inner yellow post.
Internal
Yellow
Post
Pull to Open
To Close Valve
Push to Close
Internal Seal Closed
Reverse Steps 1 & 2. Make sure valve
seats on inner yellow post.
Fully closed Valve
Close cap.
Important Things You Should Know
r Carefully inspect the pump for damage before first use and every
use thereafter. Do not use if found damaged.
r Keep unit out of reach of children.
r Do not expose to rain or sunlight. Household use only.
Warnings
r Follow the instructions carefully on articles to be inflated, never
exceed recommended pressure. Bursting items can cause
serious injury.
r Do not open case, electrical hazards may result. There are no
user serviceable parts.
r Do not use under wet conditions. Keep away from water.
r Do not use or place near heaters, open flame or other
hot objects.
r Never look into or point any opening toward your eyes while
pump is operating.
r Do not attempt to put any objects into the inflation or deflation
port at any time.
r Never leave pump unattended while in use.
r Never allow sand, paper, debris or small articles to be sucked
into pump while operating.
t DO NOT BLOCK THE AIR VENTS DURING OPERATION, THIS
COULD DAMAGE THE MOTOR.
