Coleman 3113 User manual

IMPORTANT
Read this manual carefully before assembling, using or servicing these lanterns. Keep
this manual for future reference. If you have questions about assembly, operation,
servicing or repair of these lanterns, please call Coleman at 1-800-835-3278
or TDD: 316-832-8707.
3113 Series
Butane/Propane Lantern
Instructions for use
© 2005 The Coleman Company, Inc.
www.coleman.com
ANSI Z21.73b - CSA 11.1b (2002)
Camp Light
®
3113-050 (12/22/05)
EMEA Ref. 073844
The Coleman Company, Inc. • 3600 N. Hydraulic • Wichita, KS 67219 U.S.A.
1-800-835-3278 • TDD: 316-832-8707
© 2005 The Coleman Company, Inc. All rights reserved. Coleman®,
and PEAK 1® are registered trademarks and is a trademark of The Coleman Company, Inc.
www.coleman.com
TM

English-1
If you smell gas:
1. Do not attempt to
light appliance.
2. Extinguish any
open flame.
3. Disconnect from
fuel supply.
FOR YOUR
SAFETY
Do not store or use
gasoline or other liquids
with flammable vapors in
the vicinity of this or any
other appliance.
FOR YOUR
SAFETY
CARBON MONOXIDE
HAZARD
• This appliance can pro-
duce carbon monoxide
which has no odor.
• Using it in an enclosed
space can kill you.
• Never use this appliance
in an enclosed space
such as a camper, tent,
car or home.
DANGER
This manual contains important information about
the assembly, operation and maintenance of this
lantern. General safety information is presented on
this page and is also located throughout these
instructions. Particular attention should be paid to
information accompanied by
the safety alert symbol “ DANGER”,
“ WARNING”, “ CAUTION”.
Keep this manual for future reference and to educate
new users of this product. This manual should be read
in conjunction with the labeling on the product.
Safety precautions are essential when any
mechanical or LPG (liquefied petroleum gas)
equipment is involved. These precautions are
necessary when using, storing, and servicing.
Using this equipment with the respect and caution
demanded will reduce the possibilities of personal
injury or property damage.
The following symbols shown below are used
extensively throughout these instructions. Always
heed these precautions, as they are essential when
using any mechanical or LPG equipment.
WARNING
WARNING indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in
minor or moderate personal injury, or
property damage.
Failure to comply with the precautions and
instructions provided with these lanterns can
result in death, serious bodily injury and
property loss or damage from hazards of fire,
explosion, burn, asphyxiation, and/or carbon
monoxide poisoning.
Only persons who can understand and follow
the instructions should use or service
these lanterns.
If you need assistance or information such
as an instruction manual or labels, contact
The Coleman Company, Inc.
DANGER
DANGER
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in
death or serious injury.

English-2

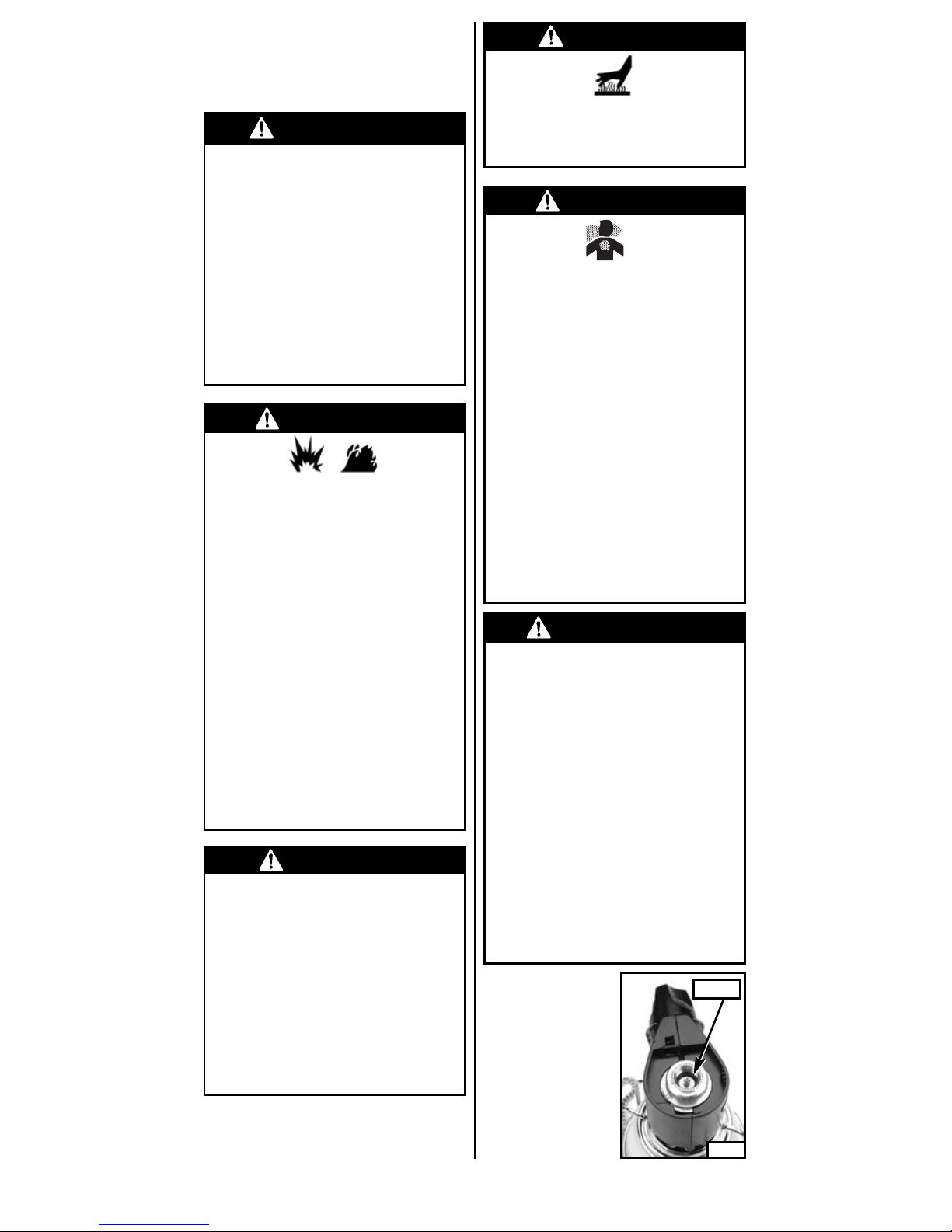

CALIFORNIA PROPOSITION 65:
WARNING: This fuel, and byproducts of
combustion of this fuel, contain chemicals known
to the state of California to cause cancer, birth
defects, or other reproductive harm.
• This product is fueled by LPG. LPG is
invisible, odorless, and flammable. An odorant
is normally added to help detect leaks and can
be described as a ”rotten egg” smell. The
odorant can fade over time so leaking gas is
not always detectable by smell alone.
• LPG is heavier than air and leaking LPG will
sink to the lowest level possible. It can ignite by
ignition sources including matches, lighters,
sparks or open flames of any kind many feet
away from the original leak. Use only LPG set
up for vapor withdrawal.
• LPG should be stored or used in compliance with
local ordinances and codes or with ANSI/NFPA
58. Turn off LPG when not in use.
WARNING
DANGER
• EXPLOSION - FIRE HAZARD
• Never store LPG (liquefied petroleum gas)
near high heat, open flames, pilot lights, direct
sunlight, other ignition sources or where
temperatures exceed 120 degrees F (49°C).
• LPG is heavier than air and can accumulate in
low places. If you smell gas, leave the
area immediately.
• Never install or remove LPG cylinder while
lantern is lighted, near flame, pilot lights, other
ignition sources or while lantern is hot to touch.
• During operation, this product can be a source
of ignition. Never use the lantern in spaces
that contain or may contain volatile or airborne
combustibles, or products such as gasoline,
solvents, paint thinner, dust particles or
unknown chemicals. Minimum clearances from
combustible materials: 24 inches from the
sides and 48 inches from the top.
• Do not obstruct the flow of combustion or
ventilation air.
• Proper lantern operation produces a bright
white light.
WARNING
Not for home or recreational vehicle use.
We cannot foresee every use which may be
made of our products.
Check with your local fire safety authority if
you have questions about use.
Other standards govern the use of fuel gases
and heat producing products for specific uses.
Your local authorities can advise you
about these.
• Never refill disposable cylinders.
• Use only Coleman® accessories or parts.
During lantern set-up, check all fittings for
leaks using soapy water. Never use a flame.
WARNING
• BURN HAZARD
• Never leave lantern unattended when hot or
in use.
• Keep out of reach of children.
DANGER
• CARBON MONOXIDE HAZARD
• This lantern is a combustion appliance. All
combustion appliances produce carbon
monoxide (CO) during the combustion
process. This product is designed to produce
extremely minute, non-hazardous amounts of
CO if used and maintained in accordance with
all warnings and instructions. Do not block air
flow into or out of the lantern.
• Carbon Monoxide (CO) poisoning produces
flu-like symptoms, watery eyes, headaches,
dizziness, fatigue and possibly death. You
can’t see it and you can’t smell it. It’s an
invisible killer. If these symptoms are present
during operation of this product get fresh
air immediately!
• For outdoor use only.
• Never use inside house, camper, tent,
vehicle or other unventilated or enclosed
areas. This lantern consumes air (oxygen).
Do not use in unventilated or enclosed
areas to avoid endangering your life.
CAUTION
• SERVICE SAFETY
• Use only LPG set up for vapor withdrawal.
• Keep all connections and fittings clean.
Always inspect gas cartridge, lantern
connections and “O” ring seal for damage, dirt
and debris before attaching cartridge (Fig. 1).
Replace if damaged or worn. Never use
lantern with damaged or worn seals.
• During set up, CHECK FOR LEAKS in one or
more ways: Apply soapy water to connections.
Look for bubbles. Listen for hiss of escaping
gas. Feel for extreme cold. Smell for rotten
egg odor. Never use a flame.
Do not use if leaking.
• Use as a lighting appliance only. Never alter in
any way or use with any device or part not
expressly approved by Coleman.
• Never use as a space heater.
• Always use in upright position. Protect cylinder
from excess heat.
Fig. 1
“O” Ring

English-3

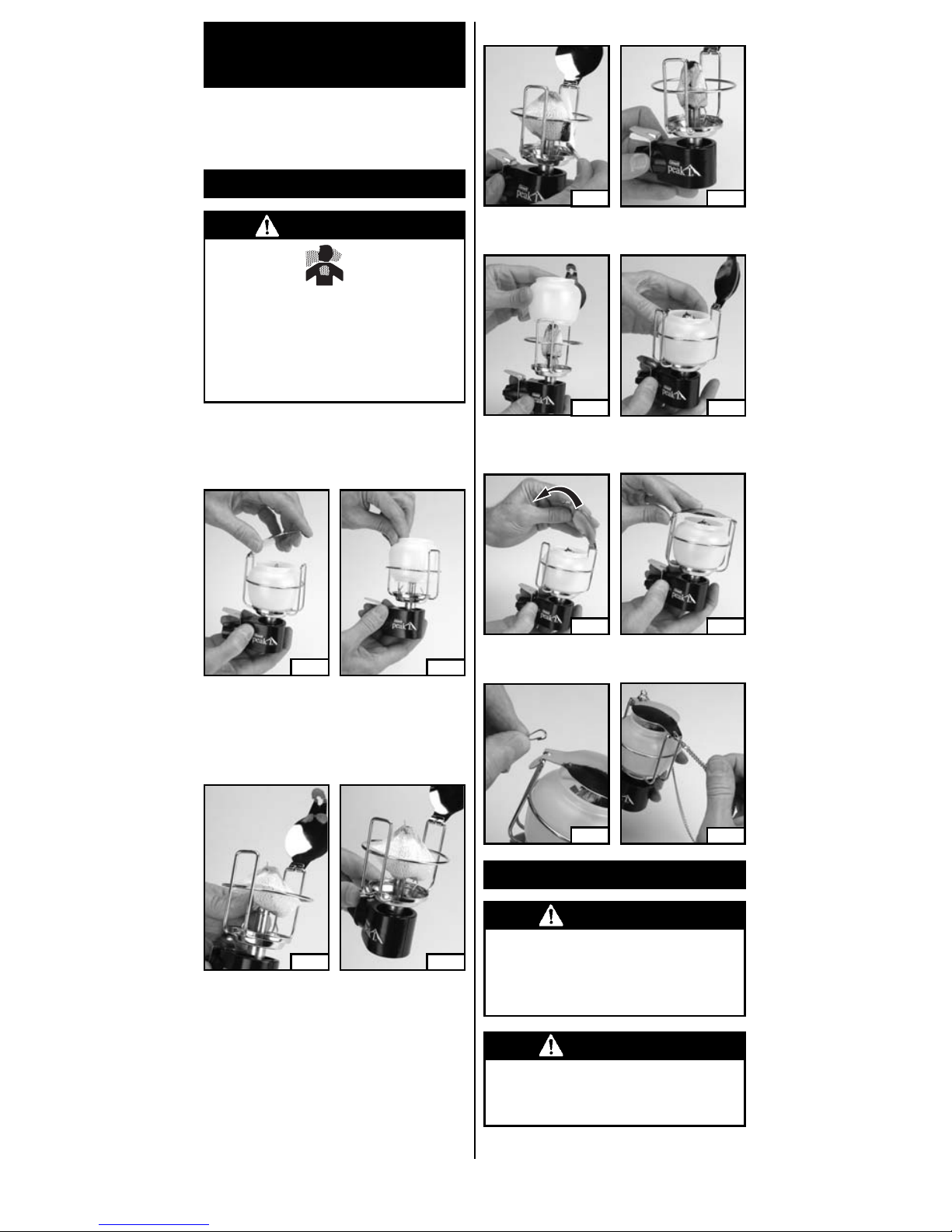

To Set Up
Technical
Characteristics
Input: 2,000 BTU/h
Category: Unregulated LPG
Fuel:
7 3/4 oz. disposable
butane/propane mix cylinders
DANGER
• CARBON MONOXIDE HAZARD
• For outdoor use only.
• Never use inside house, camper, tent, vehicle
or other unventilated or enclosed areas. This
lantern consumes air (oxygen). Do not use in
unventilated or enclosed areas to avoid
endangering your life.
■ Take lantern outdoors away from ignition
sources.
■ Lift COVER. (Fig. 2)
■ Remove GLOBE. (Fig. 3)
Fig. 2 Fig. 3
■ Install MANTLE. Make sure small hole is at top
and larger hole is at bottom. Colored part is up.
(Fig. 4)
■ Make sure MANTLE is properly positioned with
top and bottom in grooves of burner. (Fig. 5)
■ Ignite MANTLE. (Fig. 6 and 7)
Fig. 4 Fig. 5
Fig. 6 Fig. 7
■ After mantle has burned, install GLOBE and
seat GLOBE in position. (Fig. 8 and 9)
Fig. 8 Fig. 9
To Light
WARNING
If you smell gas:
1. Do not attempt to light appliance.
2. Extinguish any open flame.
3. Disconnect from fuel supply.
4. Call 1-800-835-3278.
WARNING
• Replace any mantle with a hole in it. A hole
can cause lantern to overheat and create a
hazard. Never operate lantern without
heat shield.
■ Close COVER. (Fig. 10 and 11)
Fig. 10 Fig. 11
■ Attach CHAIN as shown. (Fig. 12 and 13)
Fig. 12 Fig. 13

English-4
■ Take lantern outdoors away from ignition sources.
■ Turn fuel valve off. (Fig. 14)
■ Note: Use Coleman® 7 3/4 oz. disposable
butane/propane mix cylinder only. Do not connect
to bulk LPG systems. The LP-gas cylinder(s)
used with lanterns must be constructed and
marked in accordance with the specifications for
LP-gas cylinders of the U.S. Department of
Transportation or
Transport Canada, CAN/CSA
B339
.
Fig. 14
DANGER
• EXPLOSION - FIRE HAZARD
• LPG is heavier than air and can accumulate in
low places. If you smell gas, leave the area
immediately.
• Always attach or detach LPG source
outdoors; never while lantern is lighted, near
flame, pilot lights, other ignition sources or
while lantern is hot to touch.
• Always light & use lantern outdoors.
• This lantern must not be exposed to
flammable vapors or liquids during lighting.
• This lantern is very hot during use and can
ignite flammables too close to the mantles.
Keep flammables at least 24 inches from the
sides and 48 inches from the top of the
lantern. Keep gasoline and other flammable
liquids and vapors well away from lantern.
■ Screw LPG cylinder
into lantern. Take
care not to cross-
thread. Hand tighten
only. (Fig. 15)
■ Place lantern upright
for lighting. (Fig. 16)
Fig. 15 Fig. 16
Match Light Lantern
CAUTION
• SERVICE SAFETY
• Keep all connections and fittings clean.
Inspect LPG cylinder and lantern LPG
connections for damage before attaching.
• During set up, check all connections and
fittings for leaks using soapy water. Bubbles
indicate a leak. Never use a flame.
WARNING
• BURN HAZARD
• Never leave lantern unattended when hot or
in use.
• Keep out of reach of children.
To Turn Off
■Turn fuel valve off.
(Fig. 20)
Fig. 17
■ Brightness may be adjusted with fuel valve.
(Fig. 18)
Fig. 18
■ Hold lighted match near top of mantle and open
fuel valve fully until lantern ignites. (Fig. 17)
■ During operation, hold or hang the lantern by the
chain
. Burn in upright position only. (Fig. 19)
Fig. 19
Fig. 20

English-5
To Store
DANGER
• EXPLOSION - FIRE HAZARD
• Never store LPG near high heat, open flames,
pilot lights, direct sunlight, other ignition
sources or where temperatures exceed 120
degrees F (49°C).
• The cylinder must be disconnected when the
lantern is in storage.
For products purchased in the United States:
The Coleman Company, Inc.
3600 N. Hydraulic • Wichita, KS 67219 U.S.A.
1-800-835-3278 • TDD: 316-832-8707
www.coleman.com
1. It is unsafe and illegal in some places to store or use
LPG cylinders of greater than 1.14 kg (2.5 lbs.) water
capacity (approximately 465g [1 lb.]
LPG ) in occupied
enclosures.
2. Always have a spare set of Coleman®Mantles. Once
burned, a mantle is fragile and can be damaged if
touched or dropped.
3. Wipe clean with soft cloth and mild dish detergent. Do
not use abrasives.
4. The usual storage areas for camping and picnic
equipment are the basement, attic, or garage. To avoid
the accumulation of dust, cobwebs, etc., that is
common in these storage areas, place your lantern in
a plastic bag and seal it with a rubber band.
5. During operation, hold or hang the lantern by the
chain.
6. If your lantern burns with a yellow smokey flame,
check the burner and air tube for spider webs (Fig. 22).
7. For repair service call one of the numbers listed below
for location of your nearest Coleman Service Center. If
lantern must be mailed to Service Center, attach to
the product a tag that includes your name, address,
daytime telephone number and a description of
problem. Remove globe to prevent breakage. Do NOT
send LPG cylinder. Carefully package the product and
send either by courier or insured mail with shipping
and insurance prepaid to:
8. If not completely satisfied with the performance of this
product, please call one of the numbers listed on the
cover of this manual.
Things You Should Know
Fig. 22
Check for spiderwebs
To Clean
■ Make sure lantern is cool.
■ Move lantern away from flame (including pilot
lights) and other ignition sources.
■Remove LPG cylinder from lantern. (Fig. 21)
• MAINTENANCE DURING EACH USE
• Keep lantern area clear and free from
combustible materials, gasoline and other
flammable vapors and liquids.
• Do not obstruct the flow of combustion and
ventilation air.
• Wipe clean with soft cloth and mild dish
detergent. Do not use abrasives.
Fig. 21

English-6
Parts List
No. Part Number Description
1 R132-043C Globe
2 #51 Mantle
3 3113-4701 Carry Chain
1
2
3

Warranty
Limited Five Year Warranty
The Coleman Company, Inc. (“Coleman”) warrants that for a
period of five years from the date of original retail purchase,
this product will be free from defects in material and
workmanship. Coleman, at its option, will repair or replace this
product or any component of the product found to be defective
during the warranty period. Replacement will be made with a
new or remanufactured product or component. If the product is
no longer available, replacement may be made with a similar
product of equal or greater value. This is your exclusive
warranty.
This warranty is valid for the original retail purchaser from
the date of initial retail purchase and is not transferable. Keep
the original sales receipt. Proof of purchase is required to
obtain warranty performance. Coleman dealers, service
centers, or retail stores selling Coleman® products do not have
the right to alter, modify or in any way change the terms and
conditions of this warranty.
What This Warranty Does Not Cover
This warranty does not cover normal wear of parts, parts that
are not genuine Coleman® parts, or damage resulting from
any of the following: negligent use or misuse of the product;
use on improper voltage or current; commercial use of the
product; use contrary to the operating instructions;
disassembly, repair or alteration by anyone other than Coleman
or an authorized service center. Further, the warranty does not
cover Acts of God, such as fire, flood, hurricanes and
tornadoes. Warranty void if damage to product results from the
use of a part other than a genuine Coleman® part.
COLEMAN SHALL NOT BE LIABLE FOR DEFECTS THAT
ARE CAUSED BY THE USE OF UNAUTHORIZED PARTS OR
SERVICE. COLEMAN SHALL NOT BE LIABLE FOR ANY
INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY
THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY
OR CONDITIONS. EXCEPT TO THE EXTENT PROHIBITED
BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE IS LIMITED IN DURATION TO THE DURATION OF
THE ABOVE WARRANTY OR CONDITIONS. SOME STATES,
PROVINCES, OR JURISDICTIONS DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES OR LIMITATIONS ON HOW
LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE
LIMITATIONS OR EXCLUSION MAY NOT APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS,
AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY
FROM STATE TO STATE OR PROVINCE TO PROVINCE.
How to Obtain Warranty Service
Take the product to an authorized Coleman service center.
You can find the nearest authorized Coleman service center by
visiting www.coleman.com or calling 1-800-835-3278 or TDD
316-832-8707 in the United States. If a service center is not
conveniently located, attach to the product a tag that includes
your name, address, daytime telephone number and
description of the problem. Include a copy of the original sales
receipt. Carefully package the product and send either by
courier or insured mail with shipping and insurance
prepaid to:
For products purchased in the United States:
The Coleman Company, Inc.
3600 North Hydraulic
Wichita, KS 67219
The costs of transporting the product to Coleman or an
authorized service center for warranty service is the
responsibility of the purchaser.
Do not mail products with fuel in tanks, or with disposable
LPG cylinders. Remove glass globes from lanterns and wrap
separately.
DO NOT RETURN THIS PRODUCT TO THE PLACE OF
PURCHASE.
If you have any questions regarding this warranty please call
1-800-835-3278 or TDD 316-832-8707 in the United States.
English-7
