Coleman Moscuito Deleto User manual

Propane Tank
Not Included
EPA Est. No.: 079787-CHN-001
EPA Reg. No.: 70909-3-69269 (Octenol)
Instructions for use
U.S. and other Patents Pending
© 2004 The Coleman Company, Inc.
www.coleman.com
IMPORTANT
Read this manual carefully before assembling,
using or servicing this unit.Keep this manual for
future reference. If you have questions about
assembly, operation, servicing or repair, please
call Coleman at 1-800-835-3278 or TDD:
316-832-8707.
For Outdoor use only
2500 ACTIVE SYSTEM
®

Contents
Introduction 2
General Safety Information 2
System Description 3
Assembly 4

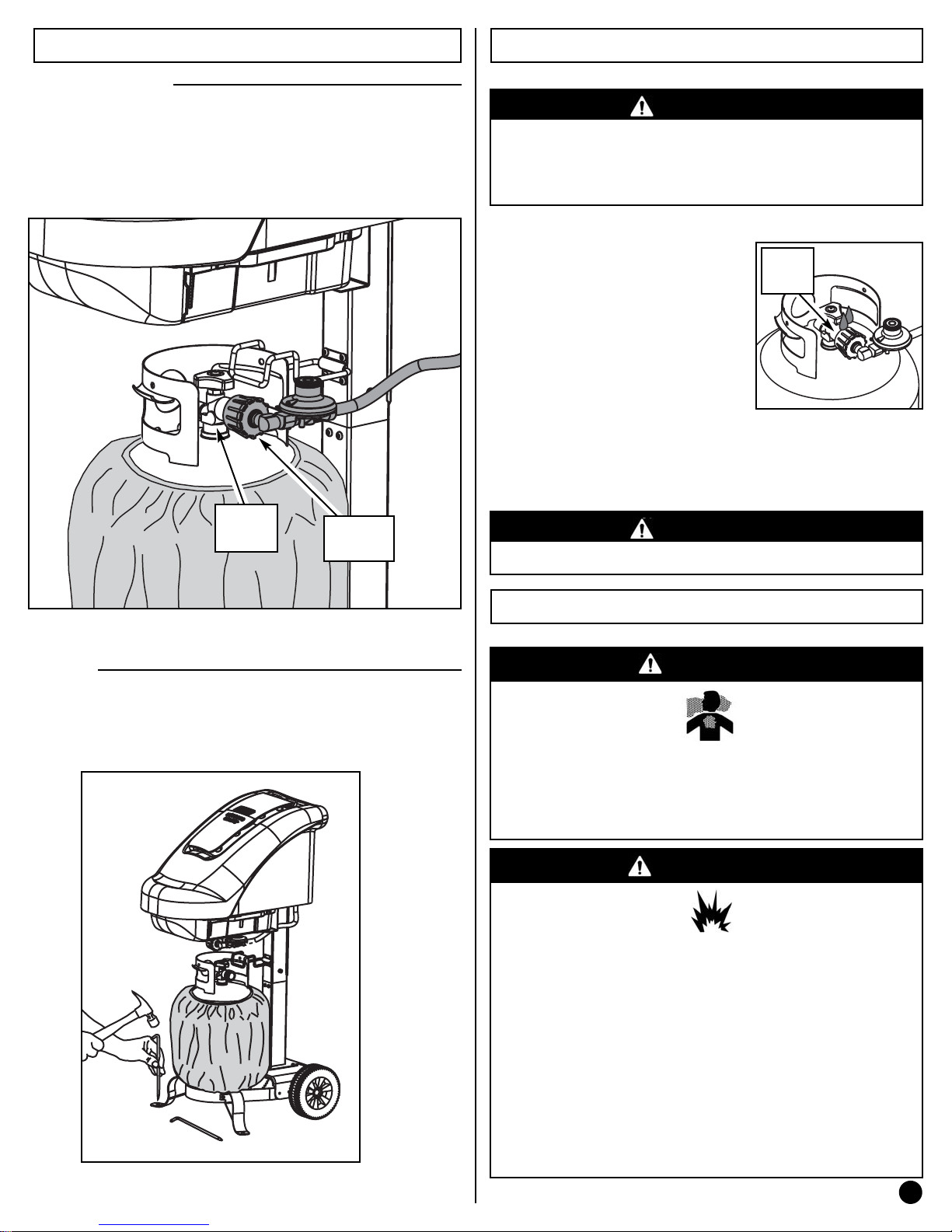

Leak Check 7
Operation 7
Start-Up Notes 8
To Turn On 8
To Turn-Off 8

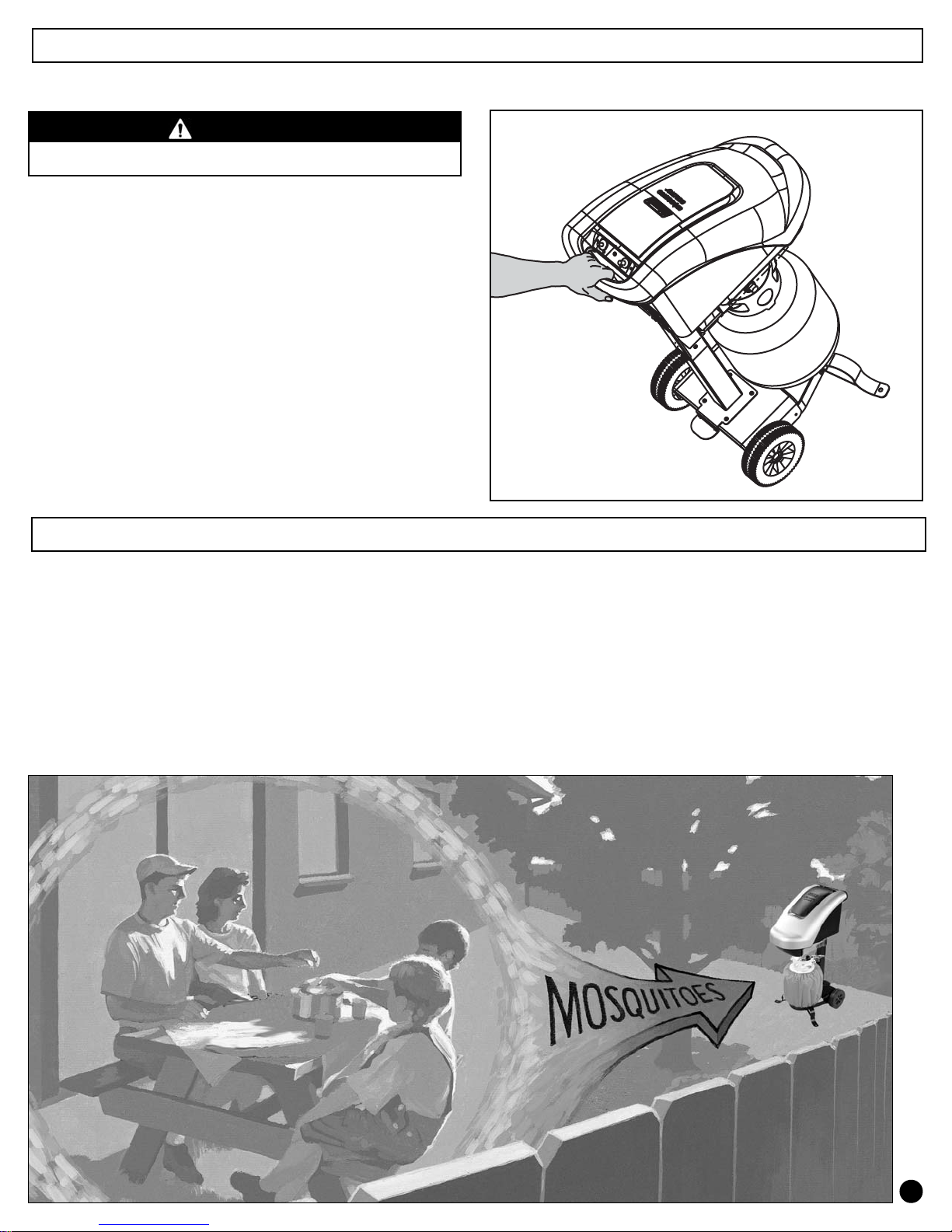

To Move Unit 9
Placement 9
Helpful Hints and ServicingYour Unit 10
Servicing Capture Net 10
Servicing Air Filter 10
Servicing Gas Tip Assembly 11
Leak Check - Gas Tip Assembly 11
Storage 12
Maintenance 12
Troubleshooting 12
Owner Repair and Service 12
Replacement Parts 13
Mosquito Deleto™ Refills 14
Warranty 16
This manual contains important information about the assembly, operation
and maintenance of this product and system. General safety information is
presented in these first few pages and is also located throughout the man-
ual. Particular attention should be paid to information accompanied by the
safety alert symbols: “ DANGER”, “ WARNING”, “ CAUTION”.
Keep this manual for future reference and to educate new users of this
product.This manual should be read in conjunction with the labeling on
the product.
Safety precautions are essential when any mechanical or propane fueled
equipment is involved.These precautions are necessary when using, storing,
and servicing. Using this equipment with the respect and caution demanded
will reduce the possibilities of personal injury or property damage.
The following symbols are used extensively throughout this manual.
Always heed these precautions, as they are essential when using any
mechanical or fueled equipment.
2
General Safety Information continued
DANGER
DANGER indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING
WARNING
WARNING indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate personal injury, or property
damage.
Failure to comply with the precautions and instructions provided with this
mosquito trap can result in death, serious bodily injury and property loss
or damage from hazards of fire, explosion, burn, asphyxiation, and/or
carbon monoxide poisoning.
Only persons who can understand and follow the instructions should use
or service this mosquito trap.
If you need assistance or information such as an instruction manual or
labels, contactThe Coleman Company, Inc.
DANGER
General Safety Information
Improper installation, adjustment, alteration,
service or maintenance can cause injury or prop-
erty damage. Read the instructions thoroughly
before installing or servicing this equipment.
WARNING
WARNING: For Outdoor Use Only
• This product is fueled by propane gas. Propane gas is invisible,
odorless, and flammable. An odorant is normally added to help
detect leaks and can be described as a “rotten egg” smell. The
odorant can fade over time so leaking gas is not always detectable
by smell alone.
• Propane gas is heavier than air and leaking propane will sink to
the lowest level possible. It can be ignited by ignition sources
including matches, lighters, sparks or open flames of any kind
many feet away from the original leak. Use only propane gas set
up for vapor withdrawal.
• Propane gas should be stored or used in compliance with local
ordinances and codes or with ANSI/NFPA 58.Turn off propane
when not in use.
• The propane tank must always be stored outdoors in a well venti-
lated space. Never store propane tank in an enclosed area (house,
garage, etc.). If unit is to be stored indoors, disconnect the propane
tank for outdoor storage.
WARNING
Combustion by-products produced when using this product contain
chemicals known to the State of California to cause cancer, birth defects,
or other reproductive harm.
• Mosquito DeletoTM System
•No zapping
•No lotions
•No sprays
•No electrical cords
•Mosquitoes have highly developed senses for detecting humans
and animals.
Mosquitoes are attracted to three things:
• carbon dioxide from breath
• body heat
• faint odors emitted by animals and humans.
•The Mosquito DeletoTM Trap lures mosquitoes to it by emitting
heat, carbon dioxide and a special mosquito attractant called
Octenol.
•The irresistible combination attracts mosquitoes to the trap where
they are captured. . .never to bother you again!
•This instruction manual will assist you in setting up your new
Mosquito DeletoTM System.
Introduction

3

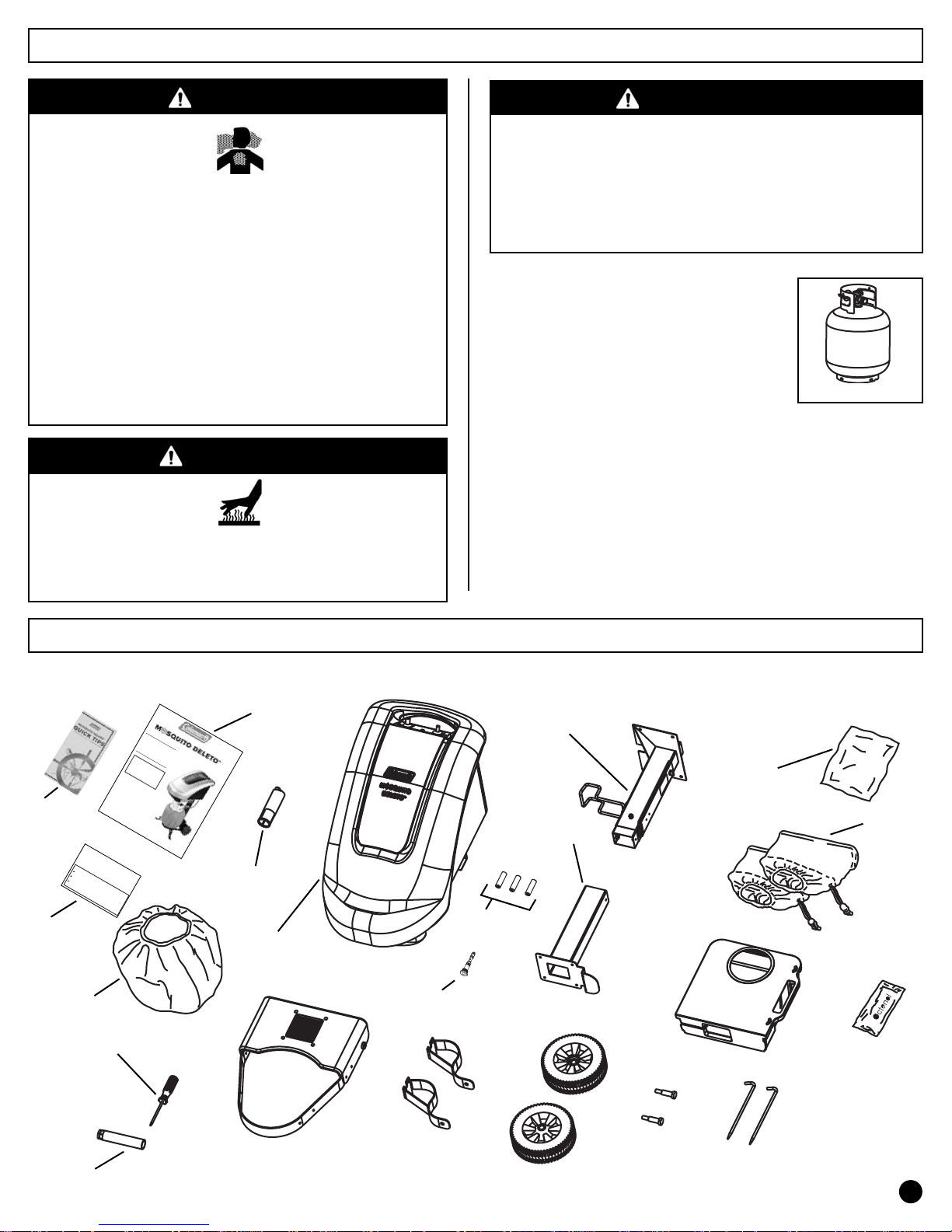

General Safety Information continued
• BURN HAZARD
• Some internal components of the unit are hot when being used. Use
care when servicing.
• When working properly, the unit is not hot on the outside.
WARNING
• SERVICE SAFETY
• Keep connections and fittings clean. Make sure propane cylinder outlet
is clean.
• Inspect hose before use. Replace if there is evidence of abrasion or wear.
• During setup, check all connections and fittings for leaks using soapy
water. Bubbles indicate a leak. Never use a flame.
• Use for mosquito control only.Never alter in any way or use with any
device or part not expressly approved by Coleman.
CAUTION
System Description
• CARBON MONOXIDE HAZARD
• This unit is a combustion appliance. All combustion appliances
produce carbon monoxide (CO) during the combustion process.
This product is designed to produce extremely minute, non-
hazardous amounts of CO if used and maintained in accordance
with all warnings and instructions.
• Carbon Monoxide (CO) poisoning produces flu-like symptoms,
watery eyes, headaches, dizziness, fatigue and possibly death.You
can’t see it and you can’t smell it. It’s an invisible killer. If these
symptoms are present during operation of this product get fresh
air immediately!
• For outdoor use only.
• Never use inside house, or other unventilated or enclosed
areas.This unit consumes air (oxygen). Do not use in unventi-
lated or enclosed areas to avoid endangering your life.
DANGER
Head
Assembly
Stakes (2)
• SERVICE SAFETY
•You must provide propane gas and propane tank.Use a
standard 20 lb. propane tank.
• Use this mosquito trap only with a propane vapor with-
drawal supply system. See Chapter 5 of the
Standard for
Storage and Handling of Liquefied Petroleum Gas,
ANSI/NFPA 58.
Your local library or fire department will
have this book.
• The hose assembly installed with the mosquito trap must
be used.
• Installation must conform with local codes, or in the absence of local codes, with
National Fuel Gas Code, ANSI Z223.1.
• A dented, rusted or damaged propane tank may be hazardous and should be
checked by your tank supplier. Never use a propane tank with a damaged valve
connection.
• The propane tank must be constructed and marked in accordance with the
specifications for LP gas cylinders of the U.S.Department ofTransportation (DOT).
Standard 20 lb.Tank
Upper Post
Assembly
Lower Post
Assembly
Capture
Box
Axles (2)
Air Filter
Wheels (2)
Legs (2)
Base
T-20 Screwdriver
Socket
Tank
Cover
Nets (2)
■ Remove all components from the package. Small components will be found in Capture Box.
■ See package label for listing of contents for the model you purchased.
Mosquito
DeletoTM
Octenol
Lure
Hardware
Bag
AA Batteries
(3)
Spare
GasTip
Assembly
PropaneTank
Not Included
EPAEst.No.:69269-KS-1
EPAReg.No.:70909-3-69269(Octenol)
EPAReg.N
o.:70909-2-69269(Linalool)
Instructions for use
Patent Nos. 5,205,064; 5,799,436;
6,055,766; D466578; D468389
U.S. and other Patents Pending
© 2004 The Coleman Company, Inc.
www.coleman.com
IMPORTANT
Readthis manual carefully beforeassembling,
usingorservicingthis unit. Keepthismanualfor
future reference. If youhavequestionsabout
assembly, operation, servicingorrepair, please
callColemanat 1-800-835-3278orTDD:
316-832-8707.
For Outdoor useonly
2500 ACTIVE SYSTEM
Manual
Quick
Tips
Sheet
e do not send other
ondence to the address below.
OD
IMPORTANT!
RegistrationCard
COMPLETETHE ATTACHEDREGISTRATION CARD AND RETURN WITHIN 10
DAYSTO RECEIVETHESE IMPORTANT BENEFITS:
CONFIRMYOUR WARRANTY:
Yourprompt product registrationconfirmsyour right to the protection available under thetermsand
conditionsof your Coleman¨warranty.
PROTECTYOUR PRODUCT:
Wewillkeep themodel number anddate of purchaseof your newColeman¨product on file to help
youreferto this info rmationinthe event of an insurance claim such asfire or theft.
PROMOTEBETTER PRODUCTS:
Wevalueyour input. Yourresponseswill help usdevelop products designedto best meet
yourneeds.
PLEASEFOLDANDSEALWITHTAPE.DONOTSTAPLE.
Registration
Card
*
*
*NOTE:
Axles are packed in hardware Bag.
Air Filter is pre-assembled at factory.

4

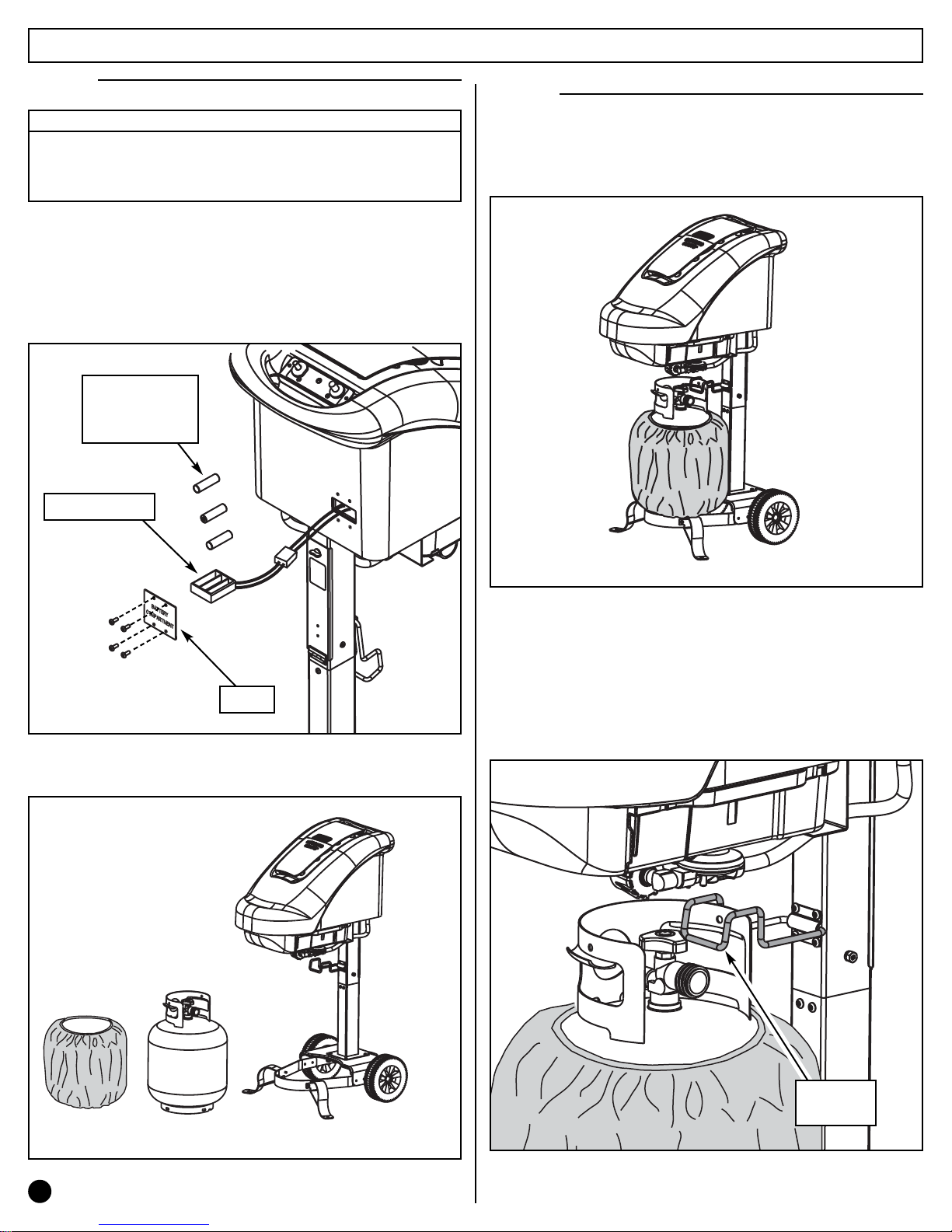

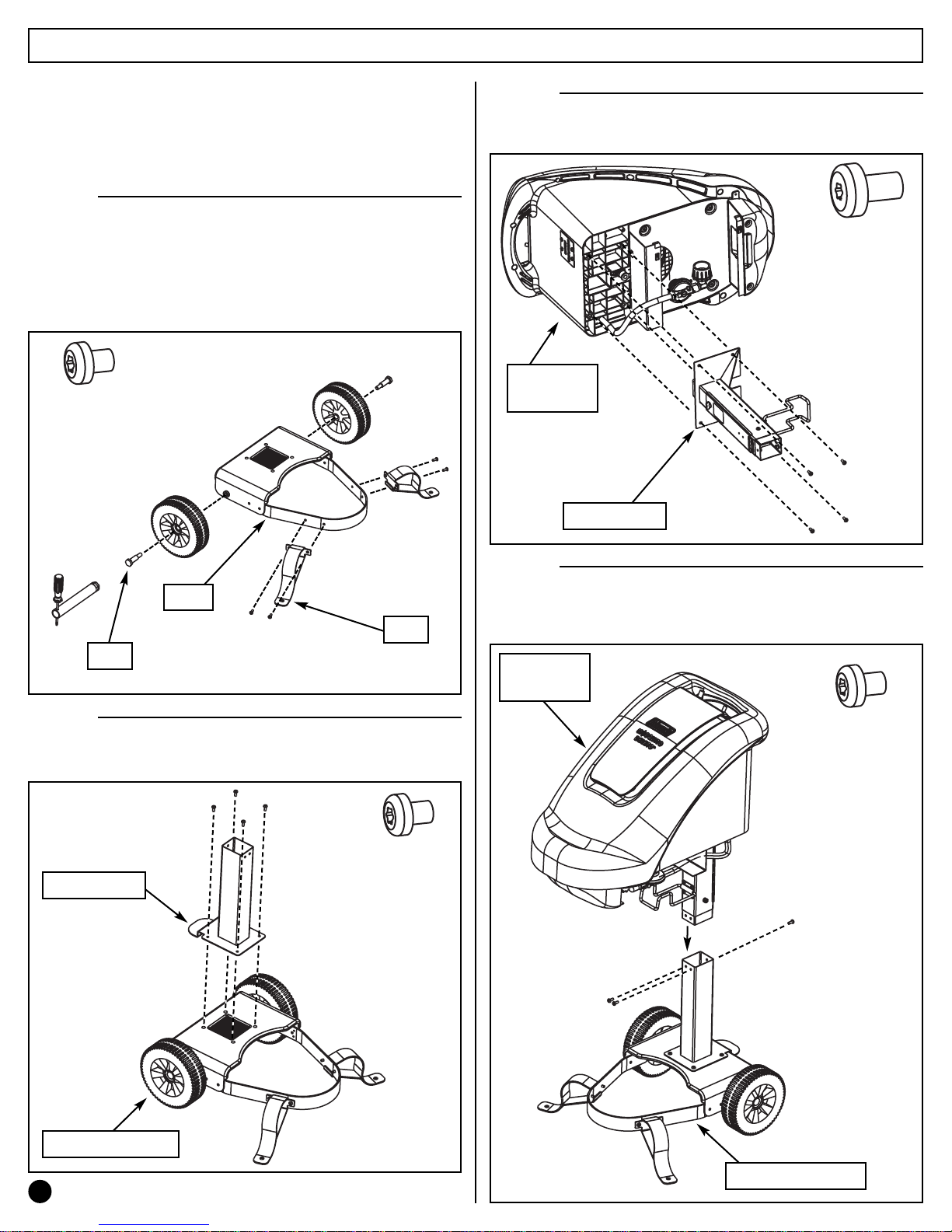

Assembly
Step 1
■ Attach two Legs to the Base. Use two small Screws for each Leg.Tighten
screws with the T-20 Screwdriver provided.
■ Attach two Wheels and two Axles to the Base. Tighten Axles with the
socket provided. The T-20 Screwdriver is used in the socket as a handle
to tighten the Axle.
TOOLS REQUIRED & OTHER ITEMS:
The following items are included in the package:
• T-20 Screwdriver
• Socket (use screwdriver as handle)
• Three (3) AA Rechargeable Batteries
Step 2
■ Attach the Lower Post to the Base Assembly using four small screws.
Step 3
■ Attach the Upper Post to the Head Assembly using four large screws.
Step 4
■ Attach the Head Assembly to the Base Assembly using three small
screws.
Head
Assembly
Base Assembly
Upper Post
Base Assembly
Lower Post (4) Req’d
Actual Size
(3) Req’d
Actual Size
(4) Req’d
Actual Size
Head
Assembly
Base
Axle Leg
(4) Req’d
Actual Size

Step 5
Assembly continued
5
Capture Box
Front Cover
Front Cover
Cord
Net
Step 6
■ Open Lure Door by turning Latch counter-clockwise.
CAUTION
Contents of octenol cartridge are harmful if swallowed.Wash hands before
eating, drinking, chewing gum, using tobacco or using bathroom facilities.
Avoid contact with inside surface of foil package.
Air Filter
■ Open Lure Door.
■ Remove Mosquito Deleto™ Octenol Lure from package.
■ Install Lure into track.
■ Close Lure Door.
■ Secure by turning latch clockwise until it stops.
3
2
1
Octenol
Lure
Step 7
■ Install Air Filter. The Filter is installed with the screen toward the top.
■ Push into place with slight pressure. The Filter will snap into place.
NOTE: On some models, the Air Filter is pre-installed by the factory.
Detail shows the Air Filter
properly installed, extending
approximately one inch
below the opening.
Lure Door
Latch
■ Install Capture Box to Unit.
The capture door opens as the Capture Box is placed into position.
■ Reinstall Front Cover into the Capture Box.
■ Install Net on Front Cover. Expand the elastic opening to slip the Net over
the retaining lip.
NOTE: The cord is to remain fully open during operation. Otherwise,
mosquitoes cannot enter the capture net.

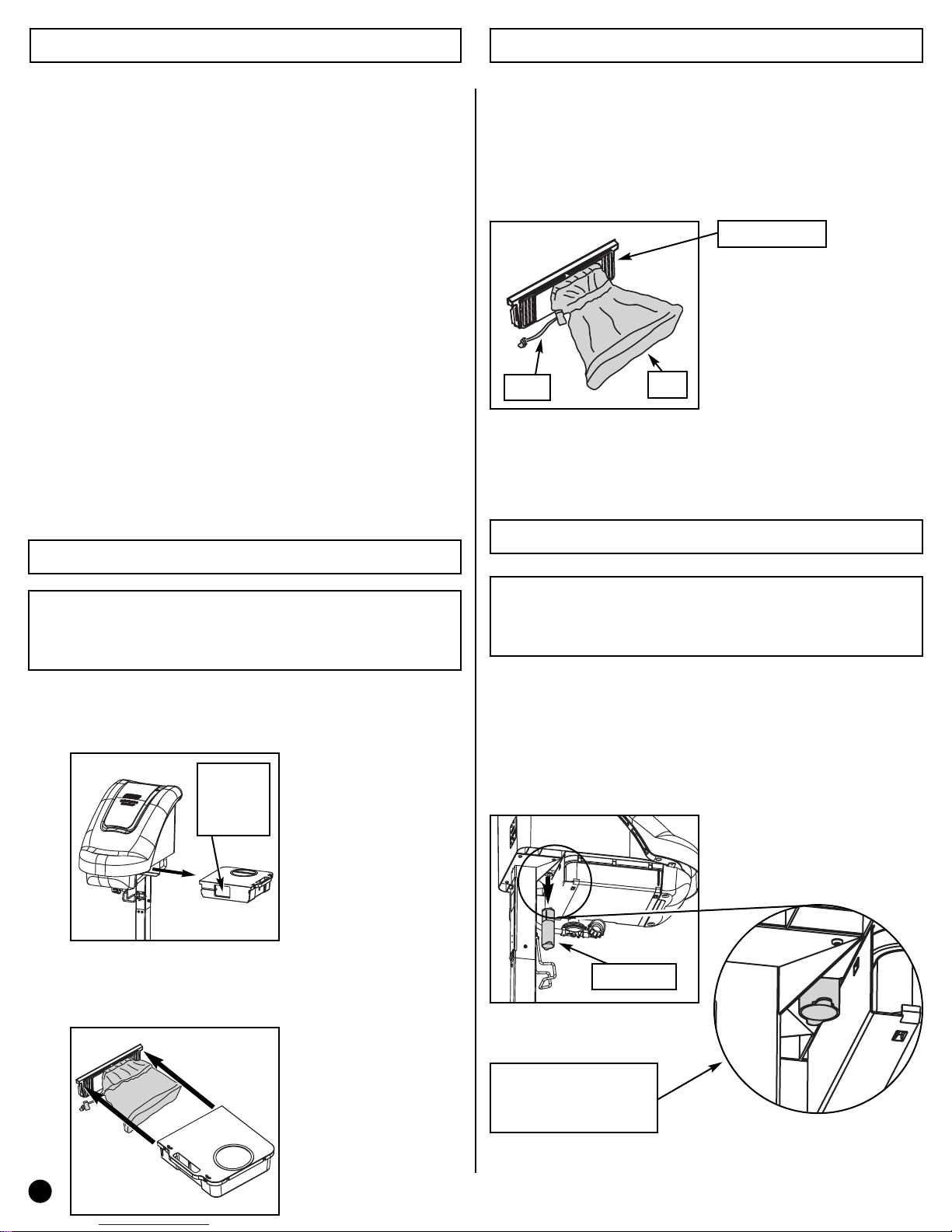

■ Remove the Front Cover from the Capture Box.
Track
