Coleman 5412A Series User manual

IMPORTANT
Read this manual carefully before assembling, using or servicing these stoves. Keep
this manual for future reference. If you have questions about assembly, operation,
servicing or repair of these stoves, please call Coleman at 1-800-835-3278 or TDD:
316-832-8707. In Canada call 1-800-387-6161.
Propane Stoves
Réchauds à propane
Estufas de gas Propano
Instructions for use
Notice d’emploi
Instrucciones de uso
© 2005 The Coleman Company, Inc.
www.coleman.com
5412A Series
®®
ANSI Z21.72b - CSA 11.2b (2002)
Camp Stove
Poêle de camping
Estufa de campamento
Standard Ignition
Allumage standard
Encendido estándar
IMPORTANT
Lisez attentivement ce manuel avant d’assembler, d’utiliser ou de réparer le réchaud
et gardez-le pour référence ultérieure. Pour toute question en ce qui concerne
l’assemblage, le fonctionnement, l’entretien ou la réparation, appelez Coleman au 1
800 835-3278 ou ATS 316-832-8707 aux États-Unis et au 1 800 387-6161 au Canada.
IMPORTANTE
Lea este manual cuidadosamente antes de ensamblar, usar o reparar esta estufa.
Guarde este manual para uso de referencia en el futuro. Si tiene alguna pregunta acerca
del ensamblaje, uso, compostura o reparaciones a la estufa, por favor llame a Coleman
al 1-800-835-3278 o TDD: 316-832-8707. En Canada llame al 1-800-387-6161.

English-1
If you smell gas:
1. Do not attempt to
light appliance.
2. Extinguish any
open flame.
3. Disconnect from
fuel supply.
FOR YOUR
SAFETY
Do not store or use
gasoline or other liquids
with flammable vapors in
the vicinity of this or any
other appliance.
FOR YOUR
SAFETY
CARBON MONOXIDE
HAZARD
• This appliance can pro-
duce carbon monoxide
which has no odor.
• Using it in an enclosed
space can kill you.
• Never use this appliance
in an enclosed space
such as a camper, tent,
car or home.
DANGER
WARNING
WARNING indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
DANGER
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in
death or serious injury.
This manual contains important information about
the assembly, operation and maintenance of this
outdoor propane appliance. General safety infor-
mation is presented on this page and is also locat-
ed throughout these instructions. Particular atten-
tion should be paid to information accompanied by
the safety alert symbol “ DANGER”,
“ WARNING”, “ CAUTION”.
Keep this manual for future reference and
to educate new users of this product. This manual
should be read in conjunction with the labeling on
the product.
Safety precautions are essential when any
mechanical or propane fueled equipment is
involved. These precautions are necessary when
using, storing, and servicing. Using this equipment
with the respect and caution demanded will reduce
the possibilities of personal injury or property damage.
The following symbols shown below are used
extensively throughout these instructions. Always
heed these precautions, as they are essential when
using any mechanical or propane fueled equipment.
CAUTION
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in
minor or moderate personal injury, or
property damage.
Failure to comply with the precautions and
instructions provided with these stoves can
result in death, serious bodily injury and proper-
ty loss or damage from hazards of fire, explo-
sion, burn, asphyxiation, and/or carbon
monoxide poisoning.
Only persons who can understand and follow
the instructions should use or service
these stoves.
If you need assistance or information such
as an instruction manual or labels, contact
The Coleman Company, Inc.
CALIFORNIA PROPOSITION 65:
WARNING: This fuel, and byproducts of com-
bustion of this fuel, contain chemicals known to the
state of California to cause cancer, birth defects,
or other reproductive harm.
DANGER

English-2
• This product is fueled by propane gas. Propane
gas is invisible, odorless, and flammable. An
odorant is normally added to help detect leaks
and can be described as a ”rotten egg” smell.
The odorant can fade over time so leaking gas
is not always detectable by smell alone.
• Propane gas is heavier than air and leaking
propane will sink to the lowest level possible. It
can ignite by ignition sources including match-
es, lighters, sparks or open flames of any kind
many feet away from the original leak. Use
only propane gas set up for vapor withdrawal.
• Propane gas should be stored or used in compli-
ance with local ordinances and codes or with
ANSI/NFPA 58. Turn off propane when not in use.
WARNING
DANGER
• EXPLOSION - FIRE HAZARD
• Never store propane near high heat, open
flames, pilot lights, direct sunlight, other igni-
tion sources or where temperatures exceed
120 degrees F (49°C).
• Propane is heavier than air and can accumu-
late in low places. If you smell gas, leave the
area immediately.
• Never install or remove propane tank while out-
door stove is lighted, near flame, pilot lights,
other ignition sources or while outdoor stove is
hot to touch.
• During lighting and operation, this product can
be a source of ignition. Never use the stove in
spaces that contain or may contain volatile or
airborne combustibles, or products such as
gasoline, solvents, paint thinner, dust particles
or unknown chemicals. Minimum clearances
from combustible materials: 12 inches from the
sides and 48 inches from the top.
• Provide adequate clearances around air open-
ings into the combustion chamber.
WARNING
Not for home or recreational vehicle use.
We cannot foresee every use which may be
made of our products.
Check with your local fire safety authority if
you have questions about use.
Other standards govern the use of fuel gases
and heat producing products for specific uses.
Your local authorities can advise you
about these.
• Never refill disposable cylinders.
• Use the preset regulator that came with the
stove. Do not attempt to adjust.
• Use only Coleman®accessories or parts.
During stove set-up, check all fittings for
leaks using soapy water. Never use a flame.
WARNING
• BURN HAZARD
• Never leave stove unattended when hot
or in use.
• Keep out of reach of children.
DANGER
• CARBON MONOXIDE HAZARD
• This stove is a combustion appliance. All com-
bustion appliances produce carbon monoxide
(CO) during the combustion process. This
product is designed to produce extremely
minute, non-hazardous amounts of CO if used
and maintained in accordance with all warn-
ings and instructions. Do not block air flow into
or out of the stove.
• Carbon Monoxide (CO) poisoning produces
flu-like symptoms, watery eyes, headaches,
dizziness, fatigue and possibly death.You
can’t see it and you can’t smell it. It’s an invisi-
ble killer. If these symptoms are present dur-
ing operation of this product get fresh
air immediately!
• For outdoor use only.
• Never use inside house, camper, tent, vehi-
cle or other unventilated or enclosed
areas. This stove consumes air (oxygen).
Do not use in unventilated or enclosed
areas to avoid endangering your life.
CAUTION
• SERVICE SAFETY
• Keep all connections and fittings clean.
Inspect propane cylinder and stove propane
connections for damage before attaching.
• During set up, check all connections and
fittings for leaks using soapy water. Never use
a flame. Bubbles indicate a leak. Check that
the connection is not cross-threaded and that
it is tight. Perform another leak check. If there
is still a leak, remove the cylinder and contact
Coleman for service or repairs.
• Use as a cooking appliance only. Never alter
in any way or use with any device or part not
expressly approved by Coleman.
• Clean stove frequently to avoid grease accu-
mulation and possible grease fires.

English-3
To Set Up
Technical
Characteristics
Input: 10,000 BTU/H per burner
Category: Pressure regulated propane
Fuel:
16.4 oz. disposable propane cylinders
Regulator: 5431
DANGER
• CARBON MONOXIDE HAZARD
• For outdoor use only.
• Never use inside house, camper, tent, vehicle
or other unventilated or enclosed areas. This
stove consumes air (oxygen). Do not use in
unventilated or enclosed areas to avoid
endangering your life.
NOTE: Use Coleman 16.4 oz. disposable propane
cylinders. The LP-gas cylinder(s) used with stoves
must be constructed and marked in accordance
with the specifications for LP-gas cylinders of the
U.S. Department of Transportation or
Transport
Canada, CAN/CSA B339 .
■ Turn FUEL VALVE “off”. (Fig. 1)
Fig. 1
CAUTION
• SERVICE SAFETY
• Keep all connections and fittings clean.
Inspect propane cylinder and stove propane
connections for damage before attaching.
• During set up, check all connections and
fittings for leaks using soapy water. Bubbles
indicate a leak. Never use a flame.
■ Remove protective cap from top of propane
cylinder. Save cap for use in storing.
■Screw propane cylinder into stove. Take care not
to cross thread. HAND TIGHTEN only. (Fig. 2)
■ Place cylinder securely in stove base. (Fig. 3)
WARNING
• Perform leak test outdoors.
• Extinguish all open flames.
• NEVER leak test when smoking.
• Do not use the outdoor stove until connection
has been leak tested and does not leak.
Leak Check
Fig. 2
Fig. 3
■ To support larger pots, fold out pot support
extensions. (Fig. 4)
Fig. 4

English-4
To Light
DANGER
• EXPLOSION - FIRE HAZARD
• Propane is heavier than air and can accumu-
late in low places. If you smell gas, leave the
area immediately.
• Always attach or detach propane source out-
doors; never while stove is lighted, near flame,
pilot lights, other ignition sources or while
stove is hot to touch.
• This stove is red hot during use and can ignite
flammables too close to the burners. Keep
flammables at least 12 inches from the sides
and 48 inches from the top of the stove. Keep
gasoline and other flammable liquids and
vapors well away from stove.
• The stove must not be exposed to flammable
vapors or liquids during lighting.
WARNING
• BURN HAZARD
• Never leave stove unattended when hot
or in use.
• Keep out of reach of children.
Match Light:
■Set on sturdy, flat surface. For outdoor use only.
■Hold lighted match at burner and open FUEL
VALVE. (Fig. 5)
■ Adjust flame to desired heat with FUEL VALVE.
(Fig. 6)
■ Flame should be blue with hint of yellow on tips.
To Turn Off
■ Turn FUEL VALVE “off”. (Fig. 7)
Fig. 5
Fig. 6
Fig. 7

English-5
To Clean
■ Make sure stove is cool.
■ Move stove away from flame (including pilot
lights) and other ignition sources.
■Remove propane cylinder from stove. (Fig. 8)
■Replace protective cap on propane cylinder.
• MAINTENANCE
• Keep stove area clear and free from
combustible materials, gasoline and other
flammable vapors and liquids.
• Do not obstruct the flow of combustion and
ventilation air.
• A good flame should be blue with minimal
yellow tip. Some yellow tips on flames are
acceptable as long as no carbon or soot
deposits appear.
• Wipe clean with soft cloth and mild dish
detergent. Do not use abrasives.
Things You Should Know
1. It is unsafe and illegal in some places to store or
use propane cylinders of greater than 1.14 kg
(2.5 lbs) water capacity (approximately 1 lb.
propane) in occupied enclosures.
2. The usual storage areas for camping and picnic
equipment are the basement, attic, or garage.
To avoid the accumulation of dust, cobwebs,
etc., that is common in these areas, place your
stove in a plastic bag and seal it with a rubber
band.
3. For repair service call one of the numbers on
the front cover for location of your nearest
Coleman Service Center. If a service center is
not conveniently located, attach to the product a
tag that includes your name, address, daytime
telephone number and description of the prob-
lem. Carefully package the product and send
either by UPS or Parcel Post insured with ship-
ping and insurance prepaid to:
For products purchased in the United States:
The Coleman Company, Inc.
3600 North Hydraulic
Wichita, KS 67219
For products purchased in Canada:
Sunbeam Corporation (Canada) Limited
5975 Falbourne Street
Mississauga, Ontario
Canada L5R 3V8
4. If not completely satisfied with the performance
of this product, please call 1-800-835-3278 in
the US or
1 800 387-6161 in Canada.
www.coleman.com
DANGER
• EXPLOSION - FIRE HAZARD
• Never store propane near high heat, open
flames, pilot lights, direct sunlight, other igni-
tion sources or where temperatures exceed
120 degrees F (49°C).
• The cylinder must be disconnected when the
stove is in storage.
To Store
Fig. 8

English-6

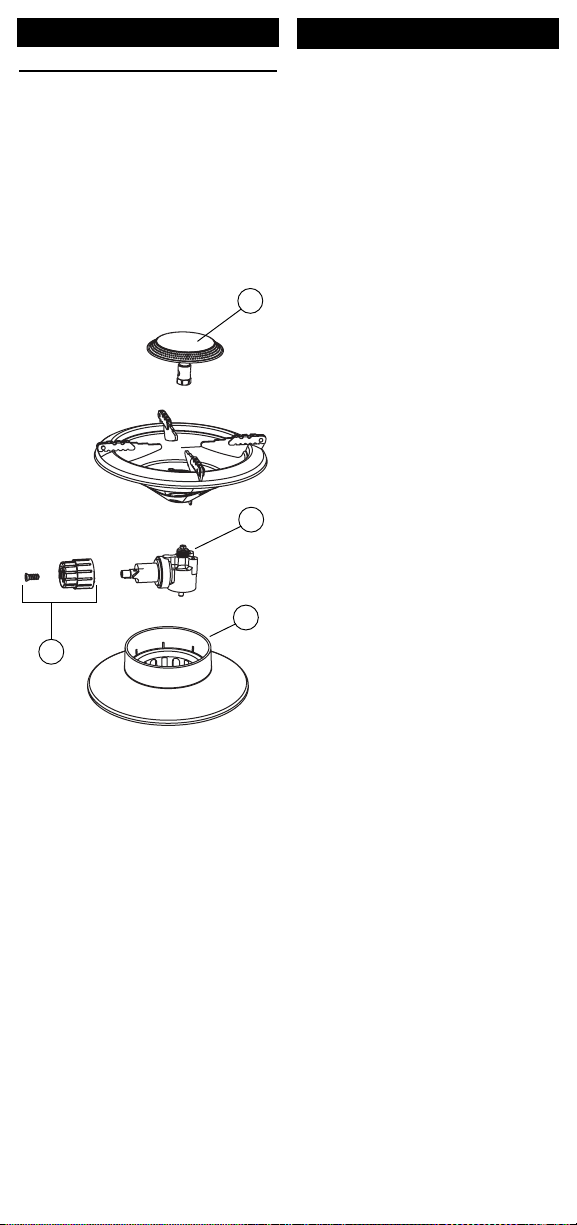

Parts List
No. Part Number Description
1 5431-1321 Burner Assy.
(matchlight)
2 5431-5261 Regulator Assembly
3 R438C545C Base
4 9950-1491 Knob Assembly
1
2
3
4
Warranty
Limited Five Year Warranty
The Coleman Company, Inc. (“Coleman”) warrants that for a
period of five years from the date of original retail purchase,
this product will be free from defects in material and workman-
ship. Coleman, at its option, will repair or replace this product
or any component of the product found to be defective during
the warranty period. Replacement will be made with a new or
remanufactured product or component. If the product is no
longer available, replacement may be made with a similar prod-
uct of equal or greater value. This is your exclusive warranty.
This warranty is valid for the original retail purchaser from
the date of initial retail purchase and is not transferable. Keep
the original sales receipt. Proof of purchase is required to
obtain warranty performance. Coleman dealers, service cen-
ters, or retail stores selling Coleman® products do not have the
right to alter, modify or in any way change the terms and condi-
tions of this warranty.
What This Warranty Does Not Cover
This warranty does not cover normal wear of parts, parts that
are not genuine Coleman® parts, or damage resulting from
any of the following: negligent use or misuse of the product;
use on improper voltage or current; commercial use of the
product; use contrary to the operating instructions; disassem-
bly, repair or alteration by anyone other than Coleman or an
authorized service center. Further, the warranty does not cover
Acts of God, such as fire, flood, hurricanes and tornadoes.
Warranty void if damage to product results from the use of a
part other than a genuine Coleman® part.
COLEMAN SHALL NOT BE LIABLE FOR DEFECTS THAT
ARE CAUSED BY THE USE OF UNAUTHORIZED PARTS OR
SERVICE. COLEMAN SHALL NOT BE LIABLE FOR ANY
INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY
THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY
OR CONDITIONS. EXCEPT TO THE EXTENT PROHIBITED
BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MER-
CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE
IS LIMITED IN DURATION TO THE DURATION OF THE
ABOVE WARRANTY OR CONDITIONS. SOME STATES,
PROVINCES, OR JURISDICTIONS DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSE-
QUENTIAL DAMAGES OR LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS
OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRAN-
TY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY
ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO
STATE OR PROVINCE TO PROVINCE.
How to Obtain Warranty Service
Take the product to an authorized Coleman service center.
You can find the nearest authorized Coleman service center by
visiting www.coleman.com or calling 1-800-835-3278 or TDD
316-832-8707 in the United States or 1 800 387-6161 in
Canada. If a service center is not conveniently located, attach
to the product a tag that includes your name, address, daytime
telephone number and description of the problem. Include a
copy of the original sales receipt. Carefully package the prod-
uct and send either by UPS or Parcel Post insured with ship-
ping and insurance prepaid to:
For products purchased in the United States:
The Coleman Company, Inc.
3600 North Hydraulic
Wichita, KS 67219
For products purchased in Canada:
Sunbeam Corporation (Canada) Limited
5975 Falbourne Street
Mississauga, Ontario
Canada L5R 3V8
The costs of transporting the product to Coleman or an
authorized service center for warranty service is the responsi-
bility of the purchaser.
Do not mail products with fuel in tanks, or with disposable
propane cylinders. Remove glass globes from lanterns and
wrap separately.
DO NOT RETURN THIS PRODUCT TO THE PLACE OF
PURCHASE.
If you have any questions regarding this warranty please call
1-800-835-3278 or TDD 316-832-8707 in the United States or
1 800 387-6161 in Canada.

5412A025T (5/2/05)
The Coleman Company, Inc. • 3600 N. Hydraulic • Wichita, KS 67219 U.S.A.
1-800-835-3278 • TDD: 316-832-8707
Sunbeam Corporation (Canada) Limited • 5975 Falbourne Street
Mississauga, Ontario, Canada L5R 3V8 • 1 800 387-6161
© 2005 The Coleman Company, Inc. All rights reserved. Coleman® and
are registered trademarks of The Coleman Company, Inc.
© 2005 The Coleman Company, Inc. Tous droits réservés. Coleman® et
sont des marques déposées de The Coleman Company, Inc.
© 2005 The Coleman Company, Inc. Todos los derechos reservados. Coleman® y
son marcas registradas de The Coleman Company, Inc.
www.coleman.com
