Coline TPR307+TPX307 User manual

ENGLISHSVENSKANORSKSUOMI
DEUTSCH
Wireless Meat
Thermometer
Ver. 20170904
Trådlös stektermometer
Trådløst steketermometer
Langaton paistolämpömittari
Kabelloses Ofenthermometer
English 2
Svenska 11
Norsk 20
Suomi 29
Deutsch 38
Art. No.: Model. No:
44-2239 TPR307+TPX307

ENGLISH
2
Wireless Meat Thermometer
Art.no 44-2239 Model TPR307+TPX307
Please read theentire instruction manual before using theproduct and then
save it for future reference. We reserve theright for any errors in text or
images and any necessary changes made to technical data. In theevent of
technical problems or other queries, please contact our Customer Services.
Safety
• Theproduct is only intended for normal domestic use and only in
themanner described in this instruction manual.
• Do not expose theproduct to rain or moisture.
• Theproduct’s temperature probe is only designed for measuring
theinternal temperature of foodstuffs. Never attempt to use theproduct
for other types of temperature measurement.
• Never mix old and new batteries. Never mix rechargeable and
non-rechargeable batteries.
• Do not subject theproduct to impacts or shocks.
• Theproduct should never be used if it is in any way damaged or
malfunctioning.
• Never immerse theproduct into water or other liquids. Wipe
theproduct dry immediately if it has become wet or damp.
• Never let children play with theproduct.

2 3
ENGLISH
51
6
7
2
3
4
8
9
Product description
Receiver
1. [ON/OFF ] Power button
2. [Minute ] Minutes setting
3. [►/■] Start/stop and
resetting thetimer
4. [Meat ▲] Meat settings or
selectable cooking
temperature
5. [Mode ] Thermometer or
timer settings
6. [Hour °C/°F ] Setting hours
and temperature units
7. [Taste ▼] Doneness levels
(Well Done, Medium etc.)
and selectable cooking
temperature
8. Belt clip/stand
9. Battery cover

ENGLISH
4
10
11
12
13
14
15
A
B
Transmitter
10. Probe socket
11. Wall mount
12. [°C/°F ] Connects thereceiver to thetransmitter
and selects temperature units
13. [ON/OFF ] Switch
14. Battery cover
15. Stand
Before initial use
Receiver
Belt clip/stand
1. Belt clip and stand with multiple
fastening options.
A) Used as abelt clip
B) Used as astand
2. Theclip is fastened onto thethermometer
securely. To remove or adjust its position,
bend it slightly using anappropriate tool
until it becomes loose and can be removed
or repositioned.

4 5
ENGLISH
Batteries
1. Open thereceiver’s battery compartment on theback and insert
2×AAA/LR03 batteries. Note themarkings on thebottom of
thebattery holder to ensure correct polarity.
2. Refit thebattery cover.
Transmitter

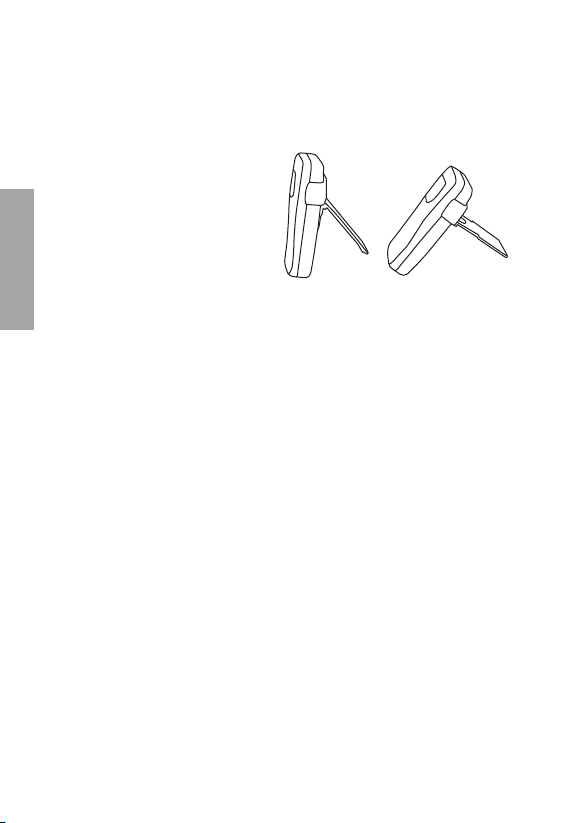

Table stand
Fold out thestand on theback of
thetransmitter. 2-position stand.
Note: If thestand is over-extended it will release its grip from its mount to
prevent damage. Refit thestand back into its mount and it will function
normally again.
Batteries
1. Open thereceiver’s battery compartment on theback and insert
2×AAA/LR03 batteries. Note themarkings on thebottom of
thebattery holder to ensure correct polarity.
2. Refit thebattery cover.
Connecting the transmitter to
the receiver
Things to consider:
• Other wireless equipment using thesame frequency can reduce
thetransmission range.
• Therange of all wireless equipment depends on thetype of obstacles
located between thetransmitter and thereceiver (e.g. aconcrete wall
will interfere with thesignal more than aplasterboard wall).
If you experience problems, try thefollowing:
• Turn off any other existing wireless equipment to check whether this
is thecause of theproblem.
• Reposition thewireless equipment, shorten thedistance between
thetransmitter and thereceiver or reduce thenumber of obstacles
(walls, furniture, etc.) between them.

ENGLISH
6
1. Plug theprobe into thetransmitter’s socket (10).
2. Turn thetransmitter on by setting its [OFF/ON] switch (13),
on theback, to theON position.
3. Turn thereceiver on by holding in its [ON/OFF] button until thedisplay
comes on.
Note: Thereceiver must be turned on within 2 min of thetransmitter
being turned on for asuccessful connection to be established.
4. Hold in the [°C/°F ] button on theback of transmitter until anaudible
signal is heard from thereceiver and thecurrent temperature is
displayed on thereceiver’s display. Thedevices are now paired.
Note:
• Themax range between thedevices is 30 m in optimal unobstructed
conditions. Indoor environments present multiple signal obstructions
such as walls, furniture, other objects, transmissions from other
wireless equipment, etc.
• If thedevices lose contact with each other, thereceiver will emit
anaudible signal every 4 sec and display “---”. When thedevices
come back into range they will automatically be paired again.
If theconnection is not re-established, place thedevices close to
each other and repeat thepairing procedure. Start by turning off
both devices and then follow thesteps listed in theConnecting
thetransmitter to thereceiver section above.
Operating instructions
Plug thetemperature probe into thethermometer.
Note: Stick thetip of theprobe into
thecentre of thethickest part of themeat.
Do not stick it in so far that it comes out
theother end. Avoid sticking it into any
fatty areas.
Warning:
• Use heat-resistant gloves/mitts if you need to handle
theprobe or its cable during thecooking process.
• Keep theprobe and its cable out of thereach of children.
• Clean theprobe thoroughly both before and after use.
• Don’t subject thedevices to rain and never immerse them
in water or other liquids.

6 7
ENGLISH
• Don’t subject thedevices to excessive heat or hot surfaces.
• Don’t expose theprobe or its cable to live flames.
• Never use thethermometer in microwave ovens.
Using the thermometer’s pre-set
temperature settings
Note:
You can still set thetemperature even if you have selected one of thepre-set
temperature settings by following theinstructions in theSelecting cooking
temperature section.
1. Hold in [MODE] until “Well done”, “Medium”, “Medium rare” or “Rare”
appears on screen.
2. Press [Meat ▲] to select thetype of meat:
3. Press [Taste ▼] to select thecooking temperature
4. Once theset temperature is reached anaudible signal will be
emitted and thetemperature light will flash.
5. Press any button to turn thealarm off.
6. Hold in [MODE ] to reset thedisplay.
Thetable below shows pre-set temperatures for different types of meat:
Meat type Displays Well done Medium Medium rare Rare
Beef BEEF 75 °C/167 °F 70 °C/158 °F60 °C/140 °F55 °C/
131 °F
Veal VEAL 75 °C/167 °F 70 °C/158 °F- -
Lamb LAMB 75 °C/167 °F 70 °C/158 °F- -
Pork PORK 77 °C/171 °F 71 °C/160 °F- -
Chicken CHICK 80 °C/176 °F- - -
Turkey TURKY 80 °C/176 °F- - -
Fish FISH 60 °C/140 °F- - -
Hamburger HAMBG 75 °C/167 °F- - -
Selecting cooking temperature
1. Make sure that “Well done”, “Medium”, “Medium rare” or “Rare” do not
appear on screen.
2. If any one of these doneness levels appear on screen, hold in [MODE ]
until theselection disappears.
3. Press or hold in [Meat ▲] or [ Taste ▼] to set thedesired temperature.

ENGLISH
8
Timer function
Press [MODE] until thetimer appears on screen. Thetimer has two modes,
timer and stopwatch.
Note: You can start thetimer and then select any of thepre-set cooking
temperatures mentioned above. Thetimer will then run in thebackground
without showing up on screen. You can interrupt thetimer at any time by
pressing the [Mode ] button.
Timer
1. Press [Minute ] to set theminutes and [Hour ] to set thehours.
2. Press [►/■] to start thetimer.
3. When theset time is reached anaudible signal will be emitted.
Press any button to turn thealarm off.
4. Thetimer will continue counting down even after thealarm has
been turned off. To turn thetimer off press [►/■].
5. Hold in [►/■] to reset.
Stopwatch
1. Press [►/■] to start thestopwatch.
2. Press [►/■] to stop thestopwatch.
3. Hold in [►/■] to reset.
Care and maintenance
• Clean theexterior of thethermometer by wiping it with adamp cloth.
Use only mild cleaning agents, never solvents or corrosive chemicals.
• Whenever thethermometer is not to be used for anextended period,
thebatteries should be removed and stored in adry, dust-free
environment, out of children’s reach.
Note:
Theprobe must never be put into adishwasher or washed in running water.
It must only be cleaned by wiping it with adamp cloth. Be careful not to get any
water inside thecable connection of theprobe. If water gets inside theprobe it
might damage it and cause inaccurate temperature readings.

8 9
ENGLISH
Troubleshooting guide
Thethermometer won’t turn
on/thedisplay is unclear.
Check that thebatteries are not flat and
that they are inserted correctly.
Change if necessary.
Thedisplayed temperature
is incorrect.
• Check that thetemperature probe is
properly plugged into thetransmitter.
• Check thebatteries in both devices
and change if necessary.
• Make sure that theprobe is properly
positioned into themeat.
Thedisplay shows “LLL”
or “HHH”.
Thetemperature range (0–300 °C/32–572 °F)
has been exceeded or is below range.
Allow theprobe to return to room tempera-
ture before attempting to use it again.
No temperature shows on
thedisplay.
Thedevices may have lost contact with
each other. Place thedevices closer
to each other or repeat thepairing
process according to theConnecting
thetransmitter to thereceiver section.
Responsible disposal
This symbol indicates that this product should not be disposed
of with general household waste. This applies throughout
theentire EU. In order to prevent any harm to theenvironment
or health hazards caused by incorrect waste disposal,
theproduct must be handed in for recycling so that thematerial
can be disposed of in aresponsible manner. When recycling
your product, take it to your local collection facility or contact
theplace of purchase. They will ensure that theproduct is
disposed of in anenvironmentally sound manner.

10
ENGLISH
10
Specifications
Transmitter
Batteries 2×AAA/LR03
Max display temperature 300 °C/572 °F
Temperature probe
Max probe temperature range 300 °C/572 °F
Cable length 105 cm
Operating probe
cable temperature range 380 °C
Receiver
Batteries 2×AAA/LR03
Max display temperature 300 °C/572 °F
Alarm temperature range 0–300 °C
Max timer range 0–23 h 59 min
