Colli FGB GP20 User manual

1
USER MANUAL GP20
OPERATION AND MAINTENANCE OF INDUSTRIAL MACHINERY
IN ACCORDANCE WITH ANNEX I OF THE NEW MACHINERY DIRECTIVE
2006/42/CE
MACHINERY FOR TRIMMING LININGS ON HOLES AND EYELETS
ON UPPERS AND/OR LASTED FOOTWEAR
MANUFACTURER: COLLI F.G.B. S.R.L. CONTACTS:TEL [phone]
VIA RUSSO, 25 FAX [phone]
VIGEVANO (PV) - ITALY E-MAIL: [e-mail]
URL: http://www.collifgb.it
KEEP THIS USER MANUAL FOR FUTURE REFERENCE AND FOR THE MACHINES ENTIRE LIFETIME
MACHINE CODE GP20
USER MANUALCODE GP20 ING
EDITION 01/2017

2
EC DECLARATION OF CONFORMITY
The Manufacturer
COLLI F.G.B. S.R.L.
Via Russo, 25 - 27029 Vigevano (PV) - ITALY
Declares that the machine
MACHIN
E
TRIMMER
MODEL
GP
20
conforms to all provisions of Directives
2006/42/EC - NEW MACHINERY DIRECTIVE
2014/35/EU LOW VOLTAGE DIRECTIVE
2014/30/EU - ELECTROMAGNETIC COMPATIBILITY
HARMONISED APPLIED STANDARDS
NON-HARMONISED APPLIED STANDARDS
and constitutes its technical file
The Managing Director
Seealso
attached
EC Declaration of Conformity

3
INTRODUCTION AND NOTE TO USERS
This operating manual provides all the necessary information allowing machine users to
correctly operate the machine.
Standards for routine periodic maintenance aimed at maintaining the machine in efficient
operating condition are listed herein.
The manufacturer recommends carefully reading this user handbook in all its parts
before using the machine for the first time.
Some information and illustrations in this manual may differ from the machine
actually delivered to the user, since all machine configurations are described and
illustrated, including OPTIONAL accessories: refer solely to the information
describing the machine configuration acquired.
This operating manual is compiled exclusively for use by the manufacturers customers,
providing users with the most up-to-date documentation on the use of the product on the
date of issue.
The use of this manual is under the users full responsibility.
No further guarantees will be conceded by the manufacturer for any defects,
incompleteness and/or operating difficulties, expressly excluding any liability by the
manufacturer for direct or indirect damages howsoever arising from the use of this
document.
COLLI F.G.B. S.R.L. reserves the right to make changes to the product described in this
manual at any time and without prior notice.
All reproduction rights reserved by COLLI F.G.B. S.R.L.

4
CONTENTS
1 GENERAL INFORMATION 6
1.1 IDENTIFICATION OF THE MANUFACTURER 6
1.2 MACHINE IDENTIFICATION 6
1.3 RECOMMENDATIONS ON THE MACHINES OPERATION AND MAINTENANCE 6
2 SPECIFICATIONS 7
2.1 GENERAL DESCRIPTION OF THE MACHINE 7
2.2 TECHNICAL SPECIFICATIONS 9
2.3 CONTROL PANEL 9
2.4 OPERATING CONDITIONS 10
2.5 IMPROPER OPERATING CONDITIONS 11
2.6 SCOPE 12
3 INSTALLATION AND ASSEMBLY 14

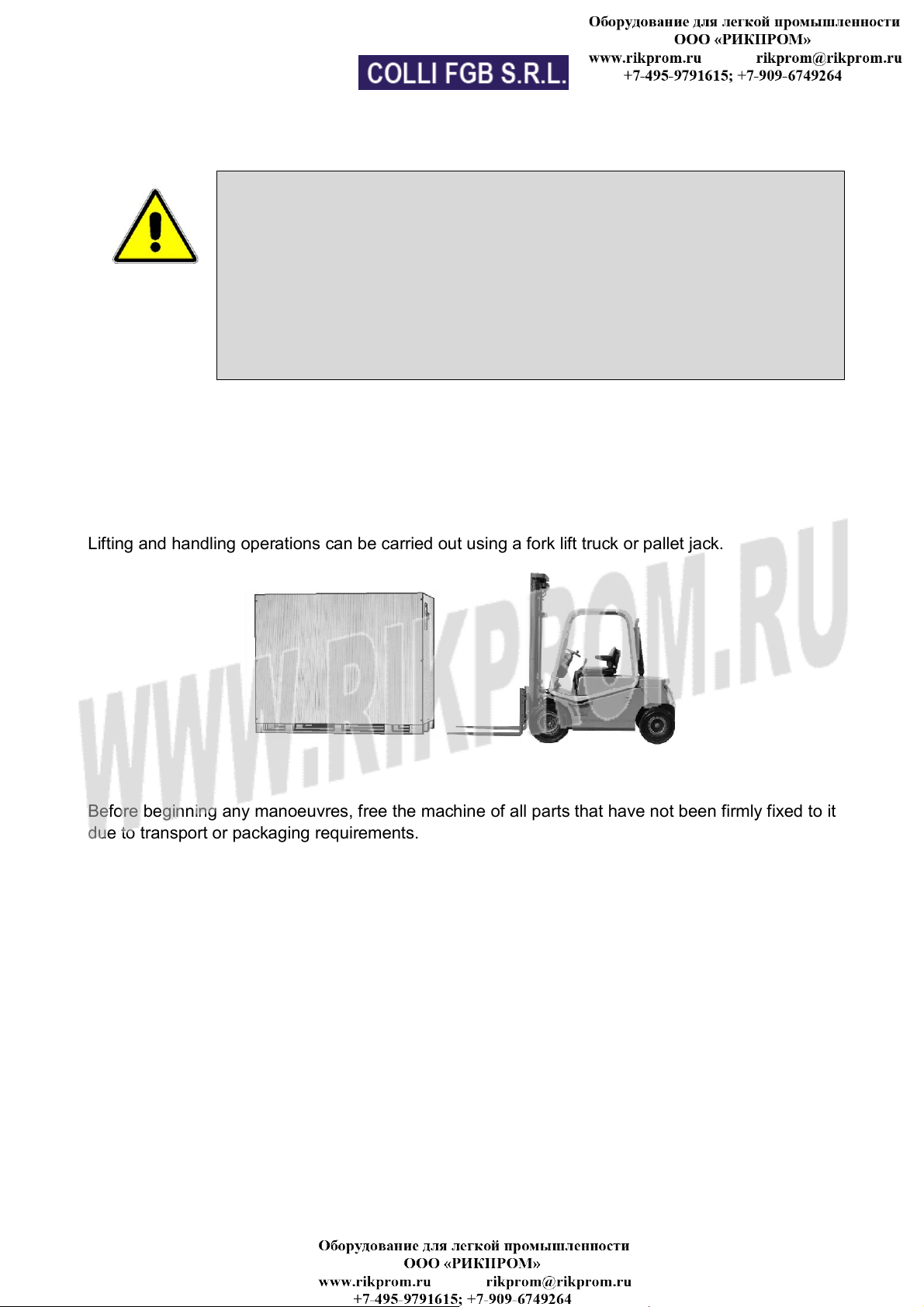

3.1 LIFTING AND HANDLING 14
3.2 MACHINE PLACEMENT 15
3.3 INSTALLATION 15
3.4 CONNECTING THE MACHINE TO THE POWER SUPPLY 16
4 STARTING UP THE MACHINE 17
4.1 SETTINGS 17
4.2 SETTING THE GUIDE 655/COUNTER-PUNCH TOOL 622 DISTANCE 18
4.3 ADJUSTING THE GUIDE655 19
4.4 ADJUSTING THE GUIDE SUPPORT 655 19
5 SAFETY DEVICES AND RESIDUAL RISKS 19
5.1 PREMISE 19
5.2 INFORMATION ON RESIDUAL RISKS 20
5.3 PERSONAL PROTECTIVE EQUIPMENT 20
5.4 SAFE WORKING PRACTICES 21
5.5 CHECKING THE SAFETY DEVICES 22
5.6 RISK DUE TO NOISE EMISSIONS 22
5.7 RISK DUE TO VIBRATIONS 23
5.8 SAFETY NOTIFICATIONS 23
6 MAINTENANCE 24
6.1 REPLACING THE TOOLS 24

5
7 TROUBLESHOOTING 24
8 SPARE PARTS AND MAINTENANCE 26
8.1 SHARPENING OR REPLACING THE PUNCH TOOL 621 26
8.2 SHARPENING OR REPLACING THE COUNTER-PUNCH TOOL 622 27
8.3 REPLACING THE GRINDSTONE 525 27
8.4 REPLACING THE DRIVE BELT 652 50 Hz - 653 60 Hz 28
9 CLEANING 29
9.1 DISCONTINUING AND DISPOSING OF THE MACHINE 29
10 WIRING DIAGRAM AND ELECTRICAL COMPONENTS 30
11 PNEUMATICDIAGRAM 31
12 WARRANTY 32
13 SPAREPARTS 33
13a COLUMN 33
13b WORKTOP 34
13c MAIN SHAFT 35
13d PUNCH TOOL 36
13e COUNTER-PUNCH TOOL 37
13f ELECTRICAL BOX 38
14 SPAREPARTS LIST 39
14.1 REQUESTING SPARE PARTS 43

6
1 GENERAL INFORMATION
1.1 IDENTIFICATION OF THE MANUFACTURER
Manufacturer: COLLI F.G.B. S.R.L.
Address: VIA RUSSO, 25
City: 27029 VIGEVANO (PV)
Country: ITALY
Tel: [phone]
Fax: [phone]
E-mail: [e-mail]
Website: http://www.collifgb.it
1.2 MACHINE IDENTIFICATION
The machines identification appears in detail on the nameplate situated on the motor safety guard.
When ordering spare parts or requesting recommendations on operation and maintenance, always
cite the machine model and serial number on the identification nameplate.
It is absolutely forbidden to remove the identification nameplate or alter its data.
1.3 RECOMMENDATIONS ON THE MACHINES OPERATION AND MAINTENANCE
This user manual describes all operations regarding the machines correct usage and normal
maintenance.
The machine must be operated only by qualified and trained operators of adult age.
The head of safety and production should ensure that the person assigned to the machines
operation has read and understood the information provided in this user manual.

7
Maintenance staff providing both routine and extraordinary machine maintenance are required to
possess proper mechanical and electrical knowledge.
It is advisable not to remove the safety protections during the machines operation.
The manufacturer recommends not carrying out any other type of workmanship, repairs or
intervention other than those indicated in this user manual.
All operations and interventions requiring the disassembly of machine parts must be entrusted to
authorized technicians.
Follow the instructions and indications contained in this manual for a correct usage of the machine.
The manufacturer recommends keeping this operating manual in good condition in a location
where it can be easily accessed for consultation by machine operators.
A careful and meticulous observance of the indications contained in this manual will ensure a safe
and correct usage of the machine.
2 SPECIFICATIONS
2.1 GENERAL DESCRIPTION OF THE MACHINE
This GP 20 trimming machine is designed to trim liners on holes and eyelets on uppers
and/orlasted footwear.
Thecolumn version of the machine consists of a column with anti-vibration supprt feet at the
base, an operating head base applied to the column with a soundproof plate inserted between
the two blocks, and anelectrical box mounted onto the column.
The motor is situated at the rear of the operating head base, protected by a closed casing.
The following components are mounted onto the operating head base: the machines operating
head with the punch tool group, and a movable counter-punch tool arm.
The grindstone for sharpening the punch tool and counter-punch tool is situated at the rear of
the machine.
Two lighting spots are mounted onto the operating head.
The machine is also equipped with a pedal situated at the base of the column, which is
necessary forthe machines operation.
The machines worktop version is supplied assembled onto a wooden worktop with a drawer,
anchored to a welded iron frame.
ANY MANIPULATION OR REMOVAL OF THE SAFETY ELEMENTS CAN CAUSE
SERIOUS ACCIDENTS: IT IS FORBIDDEN TO REMOVE, EXCLUDE OR ALTER
ANY OF THE SAFETY ELEMENTS ON BOARD THE MACHINE.
THE PERFECT OPERATION OF THE SAFETY ELEMENTS MUST BE
GUARANTEED AT ALL TIMES THROUGH PERIODIC CHECKS.
ANY DEFECTS OR PROBABLE MALFUNCTIONS ENCOUNTERED MUST BE
ELIMINATED IMMEDIATELY.

8
GP20 machine - Worktop version
A CONTROL PANEL WITH ELECTRICAL BOX
B WORKTOP
C CUTTING GROUP
D LED LIGHTING
E PEDAL
F COUNTER-PUNCH TOOL MOVABLE ARM
A
B
C
D
E
F
D

9
2.2 TECHNICAL SPECIFICATIONS
TECHNICAL SPECIFICATIONS
WEIGHT 110 Kg
WIDTH 50 cm
DEPTH 65 cm
HEIGHT 135 cm
LIGHTING SYSTEM LED driver 12V - 6W
VOLTAGE 220/380 V standard (other voltages on request)
FREQUENCY 50/60 Hz
NUMBEROF PHASES 3 standard (single phase on request)
MOTOR POWER 190W
AIR CONSUMPTION 0.2 mc/h
OPERATING PRESSURE 4 bar
NOISE EMISSIONS
Leq= 75 dB (A)
PUNCH TOOL STROKES
6500 pairs per minute
PRODUCTION Depends on type of workmanship
POWER ABSORPTION 0.5 kW
2.3 CONTROL PANEL
A - Power ON / OFF main switch
B - Power ON pilot light
C - Electrical box
A
B
DETAIL A
C

10
2.4 OPERATING CONDITIONS
- The machine is designed to be used by a single operator.
DETAIL OF WORKMANSHIP
Working
position

11
MACHINE EQUIPMENT
LIGHTING SPOT (part 36)
2
SPECIAL ALLEN KEY 4mm (part 661)
1
NASELLI COMPASS WRENCH 3mm
1
PLIERS
1
520cc GREASER WITH OIL FOR NEBULIZER
1
PUNCH TOOL (part 621)
2
COUNTER-PUNCH TOOL (part 622)
1
PUNCH TOOL INPUT (part 580)
1
CLAMP LOCK SCREW (part 616)
1
COUNTER-PUNCH TOOL LOCK SCREW (part 568)
1
ANTI-VIBRATION SUPPORT FEET Column version (part 362)
4
ANTI-VIBRATION SUPPORT FEET Worktop version(part 128)
4
SPARE PARTS CATALOGUE AND INSTRUCTIONS
1
2.5 IMPROPER OPERATING CONDITIONS
- The end user is responsible for damages caused by any usage of the machine differing from
that which is specified in this user manual, or using materials differing from those for which the
machine has been designed.
- It is forbidden to mishandle the safety protections and make use of the machine without
having correctly installed the protections.
- Any actions that do not respect the indications mentioned herein shall be considered improper
usage.
- Any alteration is prohibited and invalidates the machines Declaration of Conformity.
- The machine is identified by the data printed on the nameplate on the frame.
When ordering spare parts or requesting advice on the machines use or maintenance, always
cite the machine model and serial number on the nameplate.
The machine operator must be trained on the machines correct use, as well as on the operation
of the protection devices and all accessory equipment.
The devices mounted onto the machine must be correctly assembled and adjusted.
The entire machine must undergo routine and extraordinary maintenance procedures on a
regular basis, as required for its usage.
Anydamage to persons, animals or objects due to an improperusage of the machine
isnotattributable to the manufacturer.
Thistype of machinery can be hazardousunlessusedproperly.
Machine operators must
meticulouslyfollowallsafetyrelatedindications.

12
Prior to using the machine, make certain that you have read and properly understood the
operating manual supplied by the manufacturer.
Before performing any operation whatsoever on the machine, make certain that the work area
around the machine is clear of people or other obstacles that might be a source of danger.
Make certain that the power cable connecting to the mains line is whole, properly extended and
laid out straight rather than rolled up.
Any interventions on the machine must be performed with the electrical power switched off and
blocked.
Do not place flammable substances in the machines proximity, since any sparks produced can
cause an explosion or fire.
The operator must always reflect on all possible consequences before moving in with his/her
hands to the machines most dangerous areas.
Always keep the machine powered off when not in use, and for extended pauses in production
disconnect the machine from its electrical power source.
2.6 SCOPE
This GP 20 trimming machine is designed to trim liners on holes and eyelets on uppers and/or
lasted footwear.
The following is a brief list of the machines main operating characteristics:
-Easy operation.
The machines punch tool / counter-punch tool device and specially designed material guide allow
for fast and perfectly executed trimming operations.
-Highproduction.
-Punch tool / Counter-punch tool sharpening grindstone.
A specially shaped grindstone set directly at the rear of the machine allows for fast and easy
sharpening of the punch tool and counter-punch tool cutting edges when they are worn out.
-Material guide.
Cutting operations can be set according to the thickness of the material being trimmed, using a
specially designed material guide.
-Dual spotlighting systemfor properly illuminated working area.
Allsafetymeasurescited in thisusermanual are providedsolely and exclusively
in relation to the machinescorrectuses, asauthorized by the manufacturer.
Theseusesrefer to the proceduresinvolving the machinespreparation,
operation and maintenance.
Itisforbidden to use the machine for work processesnotauthorized by the
manufacturer.
Itisforbidden to alter the machine and/or any of itspartswithout the
priorconsent of the manufacturer.

13
-Low noise emissions.
Noise emissions are well tolerated by the machine operator and persons in the vicinity.
The knife tools oscillation has a swinging motion with an "oil bath" lubrication system, and special
attention has been paid to the machines design in order to reduce noise emissions to a minimum.
-Operating safety.
Special protective guards have been installed for the operators safety in the area of moving parts
(drive belt, grindstone, pulleys).
-Minimum maintenance.
Simple periodic maintenance operations allow the machine to keep running in perfect condition for
many years.
-All machine spare parts are readily available.
Refer to the spare parts drawings and their description when ordering parts, specifying the
machine type, part identification number and quantity of parts.
Use original spare parts only
- NEVER remove the machine’s safety protections during operation.
-Conforms to CE standards

14
3 INSTALLATION AND ASSEMBLY
3.1 LIFTING AND HANDLING
The machine arrives at its destination packed in a wooden crate, or wooden case or support.
Lifting and handling operations can be carried out using a fork lift truck or pallet jack.
Before beginning any manoeuvres, free the machine of all parts that have not been firmly fixed to it
due to transport or packaging requirements.
Check that the load bearing capacity of the lifting equipment used is suitable to the gross weight of
the machine (see data in the TECHNICAL SPECIFICATIONS).
For storage purposes, keep the machine in a dry place, away from rain, snow or humidity.
Use a fork lift truck or pallet truck for machine handling operations:
- if the machine is installed on a pallet, or inside a crate or case (4 M10 holes are available at the
base for anchoring the machine to a wooden pallet), insert the lifting forks on the fork lift truck (or
pallet truck) underneath the pallet until they protrude at the rear by at least 15 cm;
- lift slowly and handle with maximum care, avoiding oscillations to a minimum, and position the
machine in the pre-established work area.
-
Lifting and handlingoperations must be carried out by qualified,
speciallytrainedpersonnel.
- Makecertain the surrounding area is free of obstacles and that no oneis
in the immediate vicinity of the machine, or within the radius of the
equipmentbeingused for lifting, handling and/or transporting the
machine.
- Duringall lifting and handlingprocedures, use extremecaution to
avoidhazards to the machine people and property.

15
3.2 MACHINE PLACEMENT
The machine must be installed inside an industrial building that is well lit and ventilated, and has a
solid and level floor capable of supporting the machines weight, and not on a sloping floor.
The working environment should not be humid.
Set the machine in the most suitable position, according to production needs, positioning it in a
place where there is an easy connection to the mains line, and where there is sufficient lighting to
ensure that all parts of the machine are visible.
The lighting must comply with the laws in force in the country where the machine is installed, and
should provide good visibility at every point, without creating dangerous reflections, allowing a
clear view of the control panel and identification of the emergency buttons, without interfering with
any equipment installed on board the machine.
Make sure the machine is perfectly set on the floor.
Do not use solvents such as gasoline and diesel fuel when cleaning the machine, since these
substances can damage the paintwork and render it opaque, or produce rust on different parts.
3.3 INSTALLATION
- Remove the packing and check for any damage on the machine incurred during transport.
- Position the machine in a non-humid environment, on a stable non-sloping floor.
- Set a minimum clearance of 1 meter in order to allow for correct operation in safety conditions.
- Install the 4 anti-vibrating support feet supplied with the machine.
- Carefully clean the machine, removing grease from all non-painted parts.
- Lubricate the upper rocker arm guide support 3027 and greasers 3051.
- Assemble the machines lighting unit provided.
- Check to make sure the machines voltage corresponds to the power supply and connect to a
disconnecting switch.
- If the supply voltage does not match the machines voltage, change the connections on the motor
terminal block and transformer.
- Turn the main switch 3092 to the ON position.
- Press the pedal 361.
- Check the motors correct direction of rotation by making sure the grindstone 3282 turns in the
direction indicated by the arrow on the grinding wheel casing 113.
- If the direction of rotation is incorrect, invert two phase wires on the power cable.
- The machine is now ready for operation.

16
3.4 CONNECTING THE MACHINE TO THE POWER SUPPLY
The manufacturer recommends not connecting the machine to the power line until it has been
correctly set in its working location. Prior to connecting the machine to the power line, check to
make sure the electrical system meets the following power and safety requirements:
- Check to make sure the production plants grounding and trunk line to which the machine will be
connected are perfectly efficient.
- Make sure the trunk line to which the machine will be connected is protected upstream by a
differential switch.
- The mains must be provided with an efficient neutral and ground line (equipotential grounding).
- Ensure the presence of fuses or circuit breakers against short circuits on every RTD cable
conductor, except for the grounding.
- The electrical system must comply with CEI 64.8 (CENELEC HD 384, IEC364-4-41).
- Make sure the line voltage (V) and frequency (Hz) correspond to the machines design
specifications.
- If the voltage on the mains line is not identical with the machines voltage, change the
connections on the motor terminal and transformer.
Refer to the wiring diagrams annexed to this user manual for references.
After correctly connecting the machine to the mains line, start up the machine and check the
motors correct direction of rotation by making sure the grindstone 525 turns in the direction
indicated by the arrow on the grinding wheel casing 518.
If the direction of rotation is incorrect, invert two phase wires on the power cable (R-S-T or L1-L2-
L3); do not intervene on the Neutral and Ground connections when cutting off the voltage.
The machine is supplied with an electric cable without a plug; this allows the machine to be set to
the requirements of each country it is exported to.
WARNING: THE ELECTRICAL CONNECTION, OPERATING CHECKS AND
MAINTENANCE TO THE ELCTRICAL SYSTEM MUST BE PERFORMED BY
QUALIFIED AND TRAINED PERSONNEL ONLY
The manufacturerisnotliable for damage due to the machinesincorrect connection to the
mains line or problemsderiving from malfunctions to the mains line.

17
4 STARTING UP THE MACHINE
4.1 SETTINGS
To start up the machine:
- check to make sure the operating pressure is at 4 bar (check the gauge 516);
- turn the main switch 3092to the ON position;
- position an upper or shoe to be trimmed in the area of the punch tool
guide 624 and press the pedal 504 to half its stroke;
(the movable arm 559/569 will rise to the operating position).
- set the height of the movable arm 559 according to the thickness
of the material to be trimmed;
- proceed with the trimming operations, pressing the pedal 504 down completely and keeping the
upper set against the counter-punch tool 622.
Simultaneously with the machines start-up, the orange pilot light next to the main switch and the
lighting spots illuminating the machines cutting area will light up.
To stop the machine:
- turn the main switch 3092 to the OFF position.
The machine has a fixed cutting speed.

18
4.2 SETTING THE GUIDE 655 / COUNTER-PUNCH TOOL 622 DISTANCE
Power off the machine.
Turn the knob 1128 clockwise to increase the distance between the guide 624 and counter-punch
tool 622, or anti-clockwiseto to decrease it (Figure 1).
Start up the machine and check that the distance between the guide and counter-punch tool
isslightly greater than the thickness of the material to be trimmed.
PUNCH TOOL
CO
U
NT
E
R
PUNCH TOOL
Figure 2
Figure1

19
4.3 ADJUSTING THE GUIDE624
Power off the machine.
Turn the ring nut 566 on the guide 624 according to the thickness to be trimmed off (Figure 2).
4.4 ADJUSTING THE GUIDE SUPPORT655
After repeated sharpenings of the punch tool 621, the guide group will require adjusting.
Power off the machine.
Turn the knob 333 to set the punch tool shaft 617 at its highest point.
Turn the guide support 655 using the ring 618 to set the punch tool 621 inside the guide by about
1mm (Figure 2).
1. SAFETY DEVICES AND RESIDUAL RISKS
5.1 PREMISE
The machines risk analysis and related considerations, included in this section of the manual, are
based on the following notions:
- knowledge of normal operating conditions and the machines expected usage, as specified in this
user manual.
- the premise that the machine is designed to be used for trimming linings on holes and eyelets on
uppers and/or lasted footwear.
- the premise that machine operators have been suitably trained and made aware of specific risks.

20
Protective measures provided by the production manager to workers are: collective and individual.
5.2 INFORMATION ON RESIDUAL RISKS
In spite of the validity of the protection systems adopted by the manufacturer, the machine operator
is nonetheless exposed to the following hazards:
Contact with the machines operating tool.
Contact with moving parts (drive belts, cutting tools, gears, etc.).
Ejected inserts from the tool.
Electrocution due to contact with live parts.
Hazard related to an incorrect tool assembly.
5.3 PERSONAL PROTECTIVE EQUIPMENT
The manufacturer recommends the use of the following personal protective equipment to prevent
risks during installation, adjustments, operation, routine and extraordinary maintenance:
gloves (e.g. in handling machine parts and replacing the cutting tools);
protective non-slip safety footwear;
eye goggles or a face shield against possible splinters during processing or subsequent machine
cleaning;
dust masks.
! The use of eye goggles or a visor is mandatory during the
sharpening of the punch tool 621 and counter-punch tool 622 on the
grindstone 525.
Nevertouchanymoving part on the machine duringitsoperation, for
anyreason, whetherdirectly or indirectly.
Always makesurethat the machine isdisconnected from
allelectricalpowersourcesbeforecarrying out anycleaning, lubrication,
maintenance, repairs, adjustments or part replacements.
The operator mustntever, for whateverreason, leave the machine
unattendedwhen in use.
