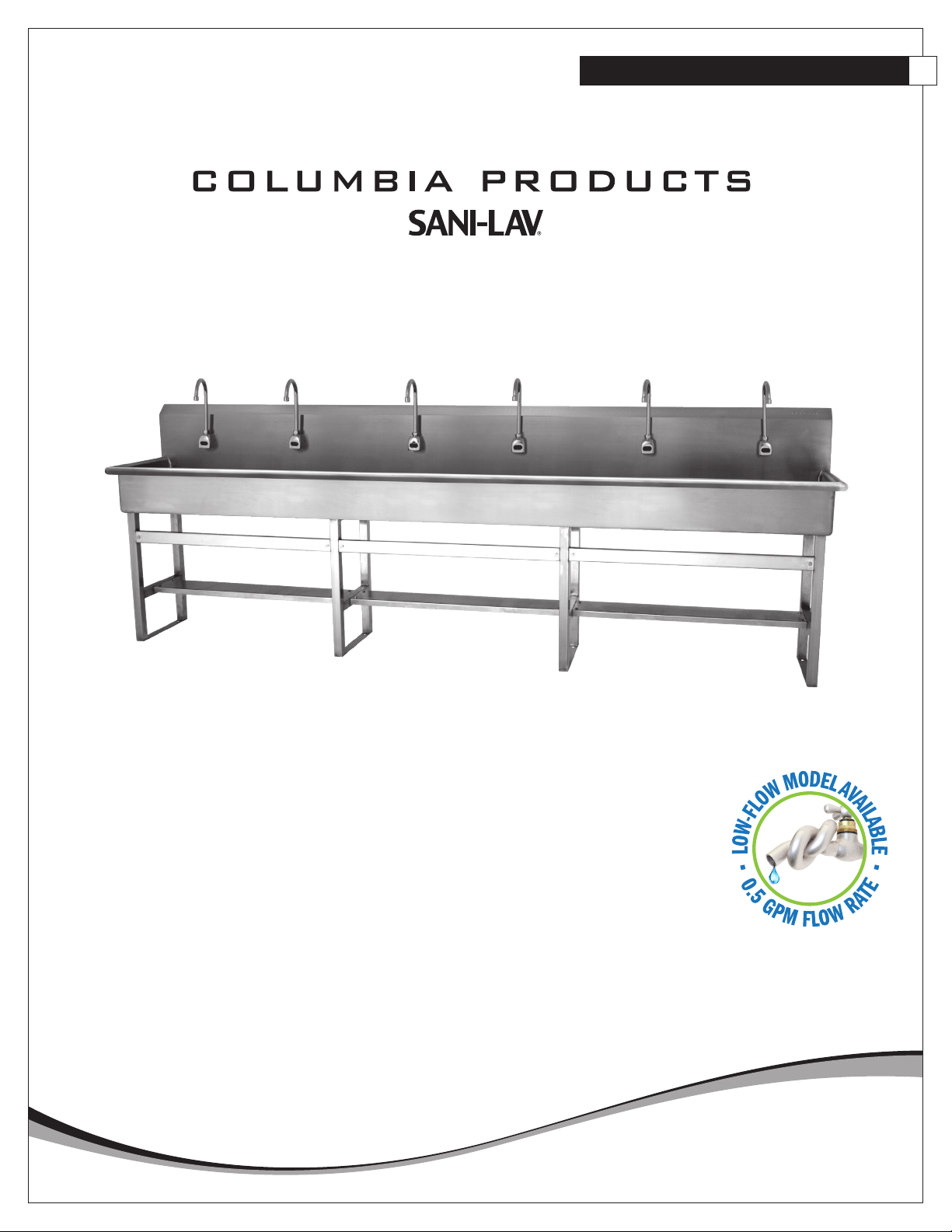

Columbia Products SANI-LAV 512FAL User manual

1
AC OR BATTERY POWERED
HANDS-FREE FLOOR MOUNTED WASH STATIONS
Columbia does not recommend use with harsh chemicals.
NSF/ANSI Standard 2 - Food Equipment and NSF/ANSI 372 low-lead.
Operating Manual for Six-Person Hands-Free Floor Mounted Wash Stations
AC Models 512FAL and 512FAL-0.5
Battery Models 512FBL and 512FBL-0.5

2
COLUMBIA SPECIFICATIONS
1622 Browning Irvine, CA 92606-4809 Phone: [phone] Toll Free: 800.626.2117 Fax: [phone] www.columbiasinks.com email: [e-mail]
©2019 Columbia Products
AC OR BATTERY POWERED
HANDS-FREE FLOOR MOUNTED WASH STATIONS
Tools Required
Tape Measure
Adjustable Wrench
Drill Motor and Drill Bits
Pipe Wrench
Level
Safety Glasses
Screw Drivers: 1 Phillips & 1 Standard
Pencil
Socket Wrench
Installation Instructions
Step 1
1. 2 and 3-Person models require leg assembly.
2. Place wash station sink on leg assembly and secure with hardware (provided).
3. Establish sink location.
4. Mark the floor where the four holes are at the base as shown in illustration A.
5. Drill holes as required for mounting hardware. (Hardware not included).
Step 2
1. Install strainer assembly.
2. Install faucets to the sink following the instructions provided with sensor unit.
3. Attach supply tube with elbow to back of faucet.
4. Install mixing check valve and compression fitting to control box of each sensor faucet.
Step 3
1. Secure wash station to floor.
2. Connect waste line to strainer assembly (s).
3. Mount sensor control boxes at desired location on wall.
4. Connect power line from sensor to control box.
5. Attach supply tube from faucet to control box.
6. Connect hot and cold water from the source to mixing check valve (s).
7. Remove aerator from the spout assemblies and flush water system. (see step 7 sensor
installation instructions)
8. Check connections for leaks.
9. Replace aerator onto the spout (s).
Step 4
1. Seal gap between bowl and leg assembly as shown in illustration B.
2. We recommend sealing top of backsplash to wall if applicable as shown in illustration C.
Parts List
(1) Floor mount wash station
(1) Leg assembly set
(8) Washers and nuts for connection sink to leg assembly set
(6) AC or Battery powered sensor faucet assembly
(6) Mixing check valve
(3) Strainer assembly with basket
WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds),
Lead, and Phthalates (DEHP) which are known to the State of California to cause cancer and birth defects
or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
NOTE: Lead content originates from Brass components in valves and faucets and is certied under
NSF/ANSI 372 as containing less than 0.25% lead in wetted surfaces.
Notice for California Consumers
Illustration A
Illustration B
Illustration C

3
COLUMBIA SPECIFICATIONS
1622 Browning Irvine, CA 92606-4809 Phone: [phone] Toll Free: 800.626.2117 Fax: [phone] www.columbiasinks.com email: [e-mail]
©2019 Columbia Products
AC OR BATTERY POWERED
HANDS-FREE FLOOR MOUNTED WASH STATIONS
1.5” (38mm)
15” (381mm)
512 Floor
10.25”
(267 mm)
120” (3048mm)
20” (508mm)20” (508mm) 40” (1016mm) 40” (1016mm)
117” (2972mm)
20”
(508mm)
2” drain hole
16.5”
(407mm)
10”
(254mm)
8” (203mm)
.5” R
(12.7mm)
.5” R
(12.7mm)
1.5” (38mm)
2” (51mm)
1.5” (38mm)
2” drain holes,(1.5” strainer)
.875” (22mm)
dia. holes (6)
11”
(280mm)
11”
(280mm)
18”
(457mm)
18”
(457mm)
18”
(457mm)
22”
(559mm)
22”
(559mm)
27” (686mm)
9” (229mm)
35” (889mm)
floor to rim
height
38” (965mm) 38” (965mm) 38” (965mm)
6.75”(171mm)
20” (508mm)
2” (51mm)
7.5” (191mm)
45º
2.875” (73.02mm)
.75” (20mm)
Side
Top
Front
Hole Configurations
Floor Mounting Detail
.5” dia.
Floor
Mounting
Holes
10.5” on
Center
1.5” Leg
Thickness
.75” From
Edge of Leg
to First Hole

4
COLUMBIA SPECIFICATIONS
1622 Browning Irvine, CA 92606-4809 Phone: [phone] Toll Free: 800.626.2117 Fax: [phone] www.columbiasinks.com email: [e-mail]
©2019 Columbia Products
AC OR BATTERY POWERED
HANDS-FREE FLOOR MOUNTED WASH STATIONS

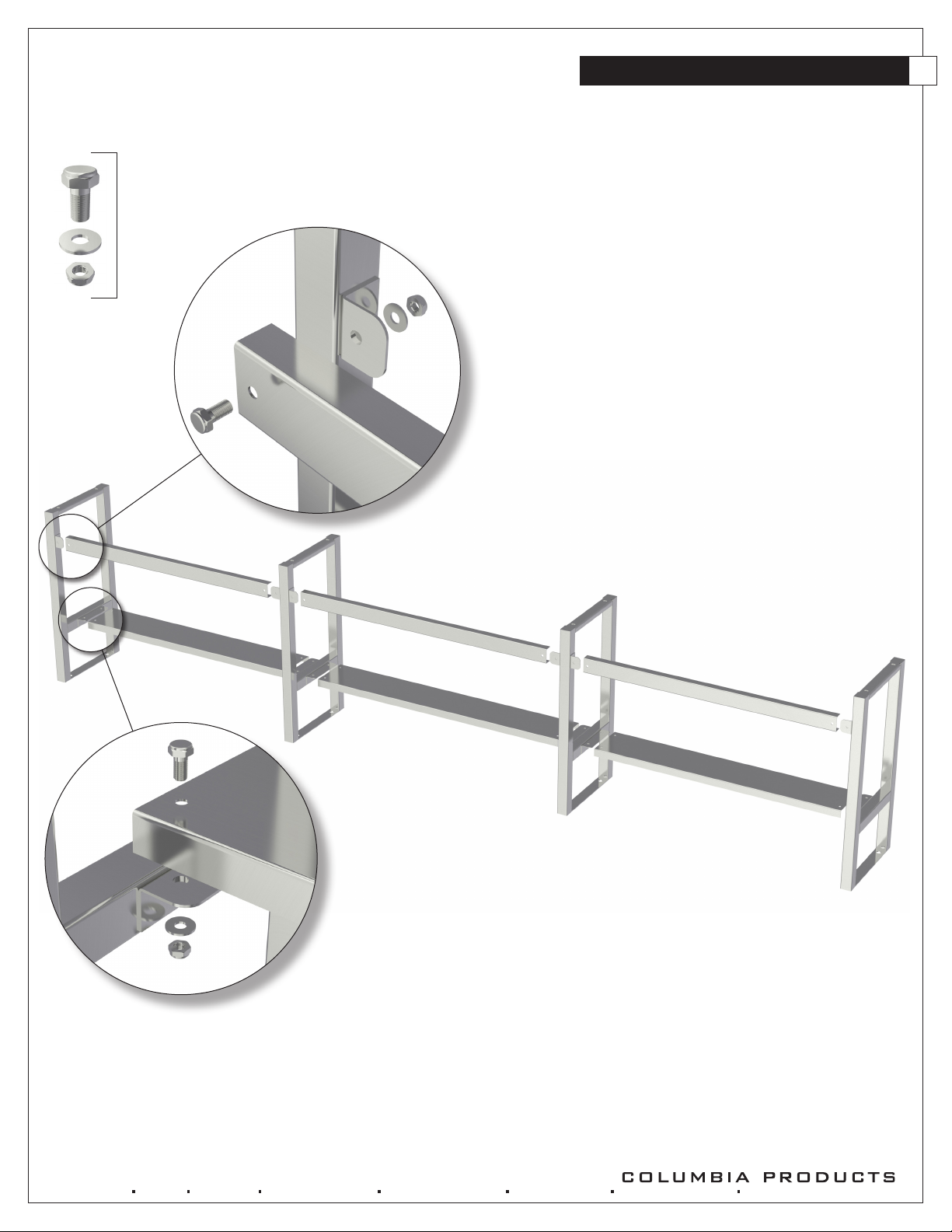

Leg Assembly
x 18

OPERATION & MAINTENANCE MANUAL
6700C Series Faucet
5055 Forsyth Commerce Rd, Ste 124, Orlando, FL 32807
Phone [phone] | Fax [phone]
www.hydrotekintl.com
Sensor Faucets and Flush Valves

ISO 9001 Cered

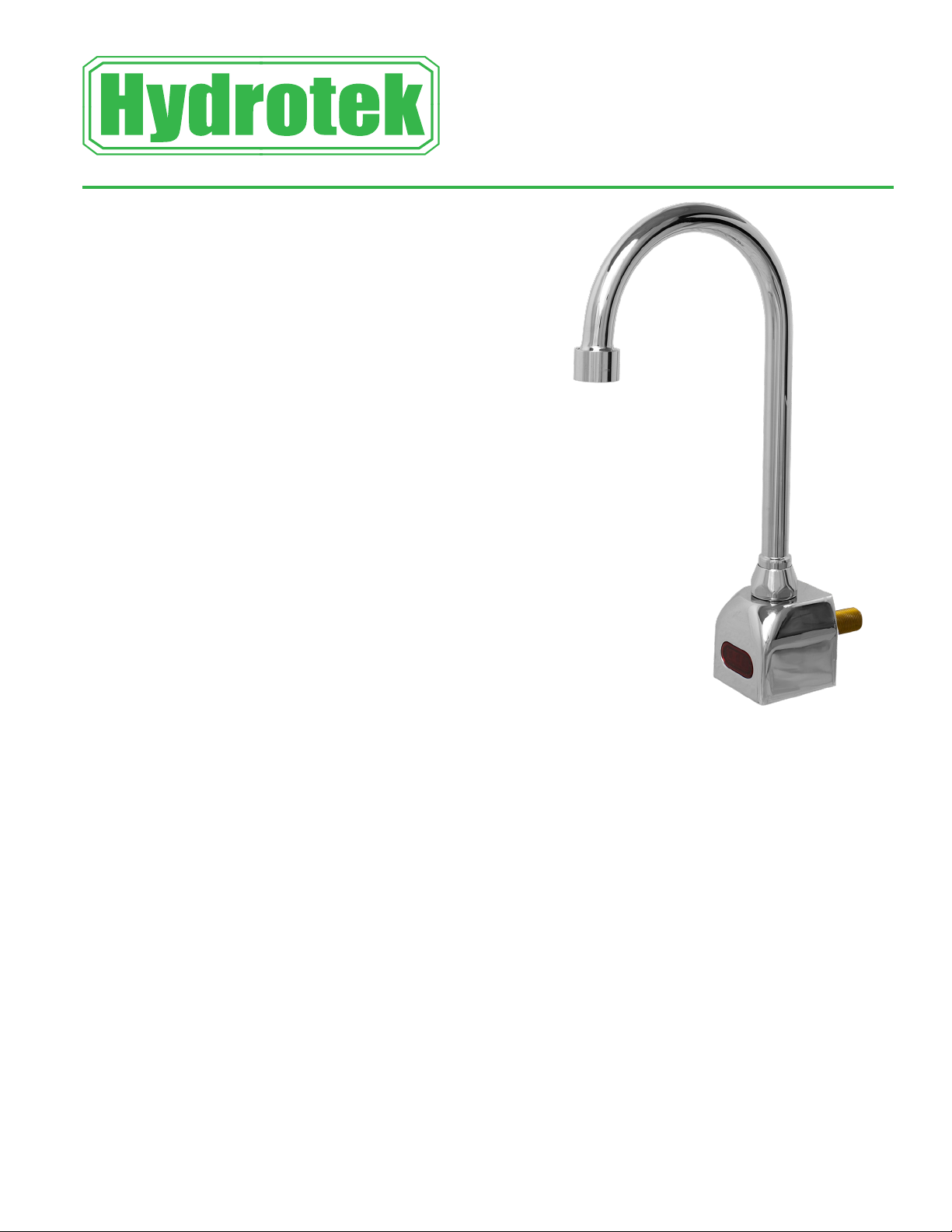

6700C Series
U.S. Patent 6192530B1
AC or Baery Powered Sensor Operated Faucet
The 6700C Series faucet is a piston operated, wall mounted
sensor faucet that provides a vandal resistant, no touch
soluon that promotes beer hygiene and energy savings.
Using Hydrotek’s patented gooseneck design, the 6700C
Series faucet is ideal in clinics, hospitals, and manufacturing
facilies for scrub staons.
• ADA Compliant. Meets all barrier free codes
• Conserves water and energy
• Easily installed in new or retrot applicaons
• Compevely priced for today’s commercial market
• Promotes cleanliness & hygiene
• Proven Hydrotek crasmanship and reliability
Available in:
DLow Lead, AC Powered (H-6700C-LR)
DLow Lead, Baery Powered (HB-6700C-LR)
DLow Lead, AC Powered with DC Backup (HB-6700C-LRDC)
•ACCU-SENSE adjustable sensor eyes.
•Chrome plated, solid brass construction.
•Wall mountable, waterproof control box with
armored, vandal resistant control and power
cables.
•Preset/adjustable sensor range of 6” - 30” for
various installation requirements.
•Standard automatic time-out feature. Preset
at 30 seconds, but adjustable to 10, 30, or 60
seconds. Prevents accidental sink overflow.
•Shut-off delay is adjustable from 1 (preset) to 8
seconds.
•Single-hole, wall/splash mounting
•Includes in-line filter with clean-out trap to
reduce maintenance costs.
•Standard 6” gooseneck spout and 1.5 GPM or 0.5
GPM Laminar flow control.
• All parts are eld-replaceable to ensure quick
and easy repair.
• Same faucet-eld switchable to AC or baery
powered.
• AC with DC backup models automacally switch
to baeries during a power outage.
• Slow closing, piston-operated solenoid valve
provides reliable and smooth operaon without
water hammer.
•Superior VSI silicone elastomer piston seals
are unaected by chlorine, chloromines, or
ammonia.
• Control module allows a unique self-check of all
electrical components.
• No-touch system enhances hygiene in medical,
instuonal, food service industries, etc.
Features:

Hydrotek Automac Faucets
6700C Series
Wall Mounted / Non-Mixing
Meets ANSI/ASME A112.18.1 M-1989
Operaon:
1. A connuous, invisible beam is emied from the sensor.
2. The faucet is acvated by placing hands under the spout within the eecve
range of the beam. Water starts to ow immediately for as long as the
user’s hands remain in the sensor range.
3. When hands are removed, the water ow stops. The sensor will
automacally reset and be ready for the next user.
4. In the baery powered version, a ashing red light will indicate a low baery
condion.
Specicaons:
Faucet Construcon: - Solid brass, chrome plated
Control Circuit: - Solid state, AC or baery, switchable
Auto. Time-out: - Preset at 20 seconds and adjustable
to 10, 30, or 60 seconds
Line Purge (request only): - 2 minute run every 12 hours or 24
hours
Scrub Mode Delay (request only): - 60, 120, 180 seconds
Sensor Range: - Preset and adjustable
Shut-o Delay: - Presets and adjustable from 1-8
seconds
Control Cable: - Armored, vandal resistant
Solenoid Valve: - 6V DC, normally closed
- Waage: 0.4W (idle), 5W (in use)
- Operang Pressure: 5 psi to 125 psi
Flow Control: - 2.0 or 0.5 GPM, Laminar Flow Control
ACMode
Power Adapter
Standard Plug-in: - Input AC 120V 60 Hz or 220V
(UL/CSA) - Output DC 12V, 0.8A/Class 2
Power Cable: - Armored, vandal resistant
Oponal Mul-Unit Adapter: - Serves up to 8 faucets
(UL/CSA) - Input AC 120V, Output DC 12V, 3A
BaeryMode
Baery Powered Models: - (4) AA Alkaline Baeries
Baery Service Life: - 400,000 on/o cycles, up to 4 years
Package Includes:
(1) Faucet with electronic sensor
(1) Control box w/6V DC solenoid
(1) 12V DC plug-in power adaptor (H-6700C, -DC, -LR and -LRDC only)
(1) In-line lter with clean-out trap
(1) 18” Flex, S.S. supply tube, 3/8”
(1) 6” Gooseneck Spout
(1) Mounng hardware
(1) 2.0 GPM Flow Control
(4) AA Alkaline baeries (HB-6700C, -DC, -LR, -LRDC only)
(1) Baery holder (HB-6700C, -DC, -LR, -LRDC only)
Dimensions:
Base Width (Outside Measurement) 2-1/4”
Base Depth 2-1/2”
Faucet Height (Aerator to Base) 8-3/4”
Faucet Height Overall 12-3/4”
Depth (Center of Aerator to Center of Faucet Base) 5-3/8”
Mounng Bolt Length 1-7/16”
Mounng Bolt Paern Single-hole mount
Oponal Variaons and Accessories
• 0.35, 0.5, 1.5, 2.2 GPM Laminar Flow
• HC-010 Mul-Unit Voltage Adapter (AC Powered Only) - 8 units
• HC-0104 Mul-Unit Voltage Adapter (AC Powered Only) - 4 units
• HC-001 Mixing/Check Valve (Mechanical)
• HBL-04-LR Thermostac Mixing Valve with Checks (Low Lead)
• 8” deep Gooseneck and 6” or 8” Swing Spout
H-6700C (AC Powered)
HB-6700C (Baery Powered)
HYDROTEK INTERNATIONAL, INC.
5055 Forsyth Commerce Rd., Ste 124
Orlando, FL 32807
800.922.9883 (Phone)
866.670.5580 (Fax)
www.hydrotekintl.com

6700C Series
DC Powered Sensor Operated Mixing Faucet
Installaon Instrucons
ISO 9001 Cered
6700C Series
Sensor Operated Faucet
Installaon Instrucons
HYDROTEK INTERNATIONAL, INC.
5055 Forsyth Commerce Rd., Ste 124
Orlando, FL 32807
800.922.9883 (Phone)
866.670.5580 (Fax)
www.hydrotekintl.com
1. Flow Control Device
2. Gooseneck Spout
3. Spout Nut
4. Split Washer
5. Body
6. LED Sensor Cover
7. Supply Rod
8. O-Ring
9. Washer
10. Mounng Nut
11. 90 Degree Elbow
12. Supply Tube
13. Compression Fing
14. Solenoid Valve
15. In-Line Filter
16. Nylon Washer
17. Sensor Eye Cable
18. Control Box
19. Power Adapter
Parts:
1. Prior to installaon, thoroughly ush all water lines and replace
stop washers, if required.
2. To ensure proper operaon, “DRY TEST” the faucet by plugging the
Sensor Eye Cable (17) into the matching connector on the PC board
inside of the Control Box (18).
a. AC Powered: Connect the Power Adapter (19) to the PC board
inside of the Control Box (18), then plug the Power Adapter
into a 120 V AC wall outlet. Place your hand in front of the
sensor eye and listen for a clicking sound. If there is no clicking
sound, call the factory.
b. Baery Powered: Properly install new baeries into the baery
holder and ensure the baery holder is connected to the PC
board. Place your hand in front of the sensor eye and listen for
a clicking sound. If there is no clicking sound, call the factory.
3. Aer a successful “DRY TEST”, unplug the Sensor Eye Cable (17) and
Power Adapter (19) or baery holder from the PC board.
4. Loosen Flow Control Device (1) and assemble the Gooseneck
Spout (2) using the Split Washers (4) and Spout Nut (3). Mount the
Gooseneck Spout (2) onto the Body (5). Feed the Sensor Eye Cable
(17) through the sink wall and ghten the faucet onto the sink using
the O-Ring (8), Washer (9), and Mounng Nut (10). Aach the
90-Degree Elbow (11) to the Supply Rod (7).
USE TEFLON TAPE ONLY, NO PIPE DOPE
5. Reconnect the Sensor Eye Cable (17) and Power Adapter (19)
connecons described in STEP #2, making sure the cables are
seang in the Control Box (18) housing properly.
6. Aach the Compression Fing (13) to the Solenoid Valve (14) and
connect it to the Elbow (11) usingn the Supply Tube (12). Insert the
Nylon Washer (16) into the swivel nut located on the In-Line Filter
(15).
a. Pre-tempered or cold water only: Use a union ng (not
supplied) to connect the supply line (not supplied) from the
supply stop to the In-Line Filter (15).
b. Tempered water: Aach an oponal Hydrotek HC-001 or HC-
003 mixing valveto the In-Line Filter (15). Connect the supply
lines (not supplied) to the mixing valve.
7. Turn on water and check for leaks. Plug the Power Adapter (19)
into a 120V AC outlet (for AC Powered). Push the reset buon
on the PC Board. Reinstall the cover for the Control Box (18) and
ghten screws to ensure water resistance. Place hands in front of
the sensor eye to acvate water ow. Remove hands and the water
should stop. If not, refer to the troubleshoong guide or call the
factory.
8. Periodically clean the lter element located inside the In-Line Filter
(15).
9. For minor adjustments, refer to the instrucons located inside the
cover of the Control Box (18).
10. IMPORTANT: The stop valve should never be opened to the point
where the water ow exceeds the ow capability of the xture. The
xture must be able to accommodate the connuous water ow
from the faucet in the event of a failure. Should the xture overow
due to water exceeding the capability of the xture and/or the drain
pipe, Hydrotek will not be responsible for any damages.

6700C Series
Sensor Operated Mixing Faucet
Troubleshoong Guide
Normal Operaon: When power is connected, the faucet will immediately perform diagnosc funcon. You
will hear a clicking sound and see lights ash. When the user’s hands are placed under the spout, the light
will ash once and water will start to ow. Water ow will stop when hands are removed. The red indicator
light will ash when the baeries are low.
Turn the manual handle clockwise to increase temperature and counter-clockwise to decrease.
Problem Possible Cause To Diagnose Remedy
Faucet will not turn on:
Water not turned on Check water supply Turn water on
Power supply failure
No light, no clicking:
• Check baeries
• Check power adapter
Reinstall or replace baeries/
Replace power adapter
Low baery Light connues to ash Replace baeries
Electronic PCB / Sensor is
defecve
No light, no clicking:
• Reinsert baeries
• Reaach power adapter
Replace electronic PCB
Solenoid valve is clogged Solenoid is clicking but no water
is coming out Clean solenoid
In-line lter is clogged Open clean-out trap and check
lter screen Clean or replace lter screen
Solenoid coil is defecve
Insert new baeries or reaach
power adapter. Light blinks but
no solenoid is clicking
Replace solenoid coil
Flow control is clogged Open ow control device and
check Celan the ow control device
Faucet will not shut o,
has low glow, or drips:
The solenoid valve is normally closed. Turn o water and acvate the faucet. If there is a clicking
sound, the solenoid valve is dirty. If there is no clicking sound, then check the solenoid valve. If
the faucet is dripping, clean the solenoid valve.
IMPORTANT: Periodic maintenance is required for smooth and trouble-free operaon of this faucet.
For service and inquiry about available repair kits, please call Hydrotek Technical Support at (800) 922-
9883.
Care and Cleaning Instrucons:
• WARNING! Using abrasive or chemical cleaners will damage the chrome or decorave nishes.
• Use only soap and water to clean the nish, then wipe dry with a clean cloth.
• If chemical cleaners are used for other parts of the lavatory, ensure that the faucet is protected from
potenal contact from those cleaners.

6700C Series
Sensor Operated Mixing Faucet
Solenoid Valve Cleaning
1. Turn o water supply at stop valve.
2. Remove control box (if possible) to gain access
to the solenoid valve.
3. Remove four Screws (#1) and separate the
valve from the box.
4. Remove four Coil Screws (#2) and separate Coil
(#3) from Valve Seat (#4).
5. Clean or replace Control Disc (#5), Disc Spring
(#6), Piston, Piston Spring, and check the Piston
Sleeve for corrosion.
6. Re-install all parts in same order as the diagram
below.
7. Re-install solenoid on the control box and re-
mount box in water line.
8. Check and clean Filter Screen (#24) in Filter
Body (#22).
9. Reset P.C. Board and make sure solenoid clicks
open and thumps closed.
10. Turn on water and check for leaks and proper
operaon.
(For further quesons, please call Hydrotek Tech
Support at 1-800-922-9883 ext. 103)
1
2
3
4
5
6

6700C Series
Sensor Operated Mixing Faucet
Control Module Sengs
IMPORTANT: Always push the Reset Buon aer any adjustments
1 2 3 4 5 6 7 8
Factory Preset
= Switch Position
Shut O Time Delay (Aer hands are removed)
Sw1 Sw2 Sw3 Delay
On On On 1 Sec
On On O 2 Sec
On O On 3 Sec
On O O 4 Sec
O On On 5 Sec
O On O 6 Sec
O O On 7 Sec
O O O 8 Sec
Automac Time O (maximum run me aer acvaon)
Sw4 Sw5 Time O
On On OFF
On O 15 Sec
O On 30 Sec
O O 60 Sec
Sensor Distance
Sw6 Mode Distance
On Std 4” - 12”
O Enhanced 10” - 12”
To increase distance, turn adjuster CLOCKWISE
To decrease distance, turn adjuster COUNTER-CLOCKWISE
Faucet Switch - DO NOT TOUCH
Sw7 Sw8 Mode
On O Auto Faucet
