Comcast XFINITY User manual

XFINITY™ Wireless Gateway
User Guide
D1UG 11/22/10

Table of Contents
About Your Wireless Gateway!3
Overview!4
..............................................................................................................................Front Panel 4
..............................................................................................................................Rear Panel 5
................................................................................................................................Top Panel 6
...........................................................................................................................Bottom Panel 6
...........................................................................................................................Bottom Label 7
WiFi Connection!8
......................................................................................Connecting to the Internet Wirelessly 8
...................................................................................Personalizing your Wireless Gateway 10
..........................................................................Setting Up and Securing Your WiFi Network 10
...............................................Setting up WiFi Connection for WPS-Compatible Computers 12
..................................................................................................Web Management Interface 13
............................................................................................................................At a Glance 15
............................................................................................................................Connection 16
...................................................................................................................Status 16
.........................................................................................Local IP Configuration 17
..................................................................................................Connection WiFi 18
.................................................................................................XFINITY Network 20
..................................................................................................................................Firewall 21
................................................................................................................................Software 22
...............................................................................................................................Hardware 23
................................................................................................System Hardware 23
.................................................................................................................Battery 24
.......................................................................................................LAN Ethernet 25
.....................................................................................................Hardware WiFi 26
...................................................................................................................................Wizard 26
Wireless Gateway User Guide!1

Connected Devices!27
.............................................................................................................................Computers 27
Parental Control!29
.......................................................................................................................Managed Sites 29
.......................................................................................................Blocked Sites 30
................................................................................................Blocked Keywords 31
.................................................................................................................Managed Services 32
.................................................................................................Blocked Services 33
..................................................................................................................Managed Devices 34
.................................................................................................................Reports 36
Advanced!37
.....................................................................................................................Port Forwarding 37
.......................................................................................................................Port Triggering 38
.......................................................................................................................................DMZ 39
...................................................................................................................Device Discovery 40
Troubleshooting!41
.......................................................................................................................................Logs 41
.....................................................................................................................Diagnostic Tools 42
.........................................................................................................Restore/Reset Gateway 43
.................................................................................................................Change Password 44
Regulatory Information!45
.........................................................................................................Compliance Statements 45
................................................................................FCC Interference Statement 45
.......................................................................................FCC Part 68 Statement 46
Wireless Gateway User Guide!2

About Your Wireless Gateway
The XFINITY™ Wireless Gateway is the next-generation cable modem and Voice-Over-IP (VoIP) adapter,
integrated with home gateway features. It combines a two-line Embedded Media Terminal Adapter with an
integrated WiFi router and four wired Gigabit Ethernet RJ45 ports for multiple device connection. Your
Wireless Gateway has been designed to meet DOCSIS®3.0 specifications.
Here’s what you get
...when you subscribe to both XFINITY Voice and Internet services:
•WiFi Technology — WiFi uses radio frequency to connect computers and other devices to a network
without wires. Your Wireless Gateway can connect to b, g and n clients simultaneously.
•Fast Download Speed — Your Wireless Gateway is DOCSIS 3.0 compliant with speeds up to eight
times faster than DOCSIS 2.0 cable modems.
•Easy Connectivity — Connect any WPS-compatible computer or device with just one button.
•Security — Because WiFi networks send information over radio waves, signals from your wireless
network can be intercepted by unauthorized users. Use the simple Home Network Wizard to securely set
up your WiFi broadband connection for WiFi enabled devices.
•Convenience — Simultaneously use four Ethernet ports for wired devices and 802.11b/g/n connectivity
for wireless devices. Choice between wireless LAN (WLAN) or wired Ethernet LAN connections.
•Flexibility — the ability to support two lines of telephone service, as well as high speed data; the ability to
use your existing router with your Wireless Gateway.
•Telephony Services — Complies with PacketCableTM 1.5
•Protection — Lithium Ion battery back-up (included with XFINITY Voice subscription)
Note: !If you haven’t already done so, please activate both XFINITY Voice and Internet
!services if you subscribe to both, or just XFINITY Internet services if you subscribe
!only to high-speed data services. Refer to the user guide you received with each of
!these services for activation instructions and information about XFINITY Voice and
!Internet features.
Wireless Gateway User Guide! ! 3

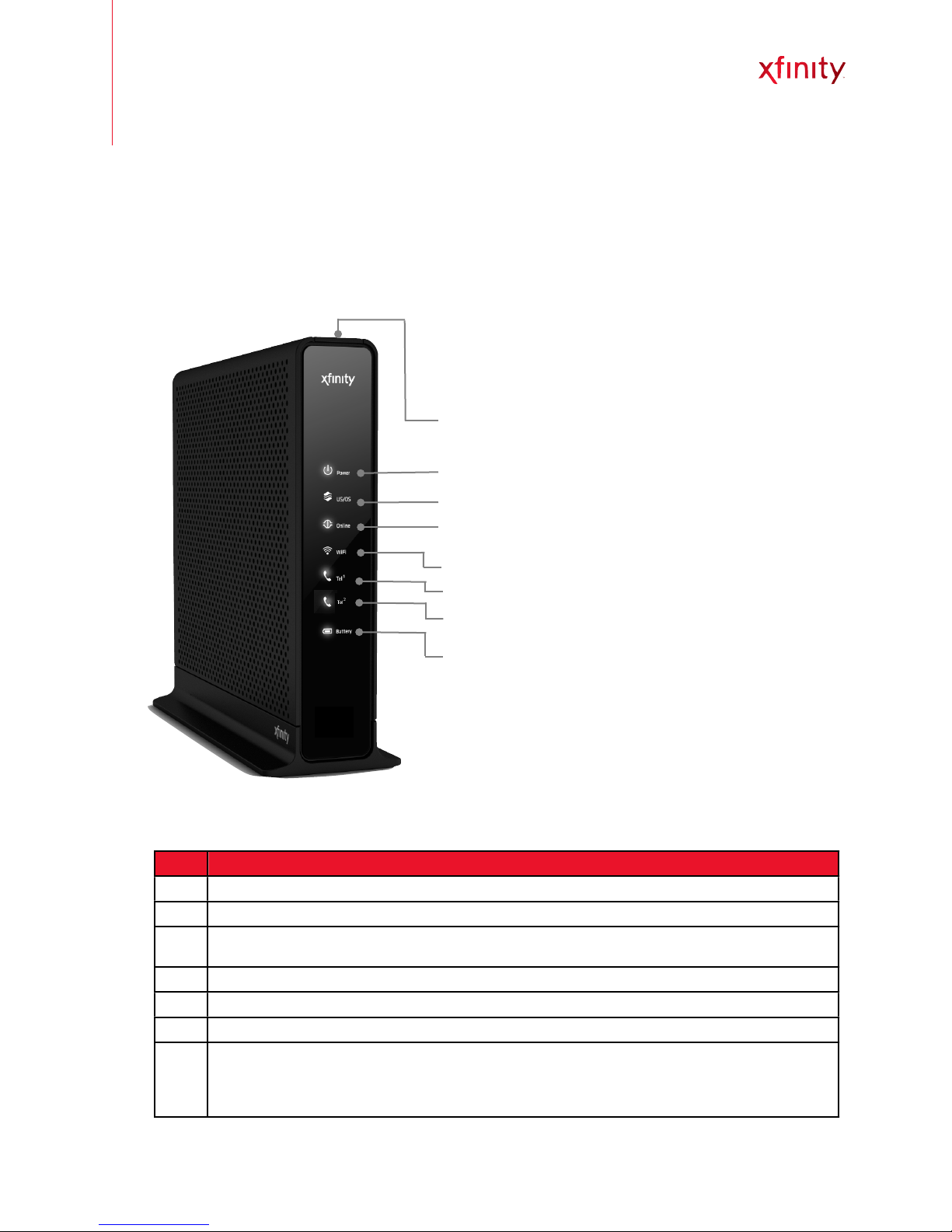

Overview
FRONT PANEL
The front panel, featuring a set of LED indicators, shows the status of your Wireless Gateway. Being familiar
with these indicators can help with troubleshooting.
The front of your Wireless Gateway (Fig. 1) has the
following LED indicators:
A!WPS button: WPS (WiFi Protected Setup) is active
!(Button with light ring is located on top panel)
B!Power: AC power status
C!US/DS: Upstream and downstream connectivity
D!Online: Internet connectivity status
E!WiFi: Status of the wireless LAN
F!Tel 1:Status of telephone line 1
G!Tel 2: Status of telephone line 2
H!Battery: Battery status
Fig. 1
Wireless Gateway User Guide! ! 4
LED
Table 1. Front Panel LED Indicators
Power
Blinking=power failure and during battery backup | ON=power being supplied | OFF=power is not being supplied
US/DS
Blinking=ranging is in progress | ON=ranging is complete on 1 channel only | OFF=scanning for DS channel
Online
Blinking=cable interface is acquiring IP address, Time of Day, Cable Modem configuration | ON=device is online |
OFF=device is offline
WiFi
Blinking=transmitting data to the WiFi interface | ON=WiFi is enabled | OFF=WiFi is disabled
Tel1
Blinking=Tel line 1 is in use | ON=Tel 1 port is online | OFF=Tel 1 port is offline
Tel2
Blinking=Tel line 2 is in use | ON=Tel 2 port is online | OFF=Tel 2 port is offline
Battery
Solid Glow=battery is charging | Blinking=battery power is low; use AC power as soon as possible | ON=operating
on AC power, battery not charging | OFF=(a) If Battery LED is off and Power LED is blinking, then device is in battery
backup mode. (b) When Battery LED is off and Power LED is solid, no battery is installed or is not functioning
properly.

REAR PANEL
The rear panel of your Wireless Gateway features a Reset button, as well as ports for attaching the supplied
power adapter and connecting additional devices.
Reset Button (Recessed to protect against accidental reset)
Pressing the Reset button for varying lengths of time performs two types of reset operations.
•Normal Reset – reboots the Wireless Gateway but retains current configuration settings.
Use a thin object, press the reset button for at least 2-5 seconds and release.
•Factory Reset – deletes all changes made to the original configuration settings and restores the Wireless
Gateway to the factory configuration.
Use a thin object, press and hold the reset button for 15 seconds or more before releasing.
You can also reset your Wireless Gateway using the Web Management Interface at http://10.0.0.1.
CAUTION: !If you select Restore Factory Settings, be certain you want to reset ALL settings (such as passwords,
!parental controls and firewall settings) before proceeding! All customized settings made to your Wireless
!Gateway will be lost. Also, a Factory Reboot will take your Wireless Gateway out of Bridge Mode if it
!had been previously enabled. Call 1-800-XFINITY to re-enable Bridge Mode.
!
Wireless Gateway User Guide! ! 5
LED
Table 1. Gigabit Ethernet Connectors LED Indicators
Green
Indicates Gigabit Ethernet in use
Orange
Indicates Fast Ethernet in use
The back of your Wireless Gateway (Fig. 1) has the following
connectors and controls:
A"Reset button: resets the Wireless Gateway (see details below)"
B!USB host connector [For Future Use]
C!Tel 1 connector for analog phone line
D!Tel 2 connector for analog phone line
E!Gigabit Ethernet (1 - 4) connectors for use with a computer
!LAN port (Each port has two LED lights. See Table 1 below.)
F!Cable connector for the coaxial cable
G!Power connector for the power cord
Fig. 1

TOP PANEL

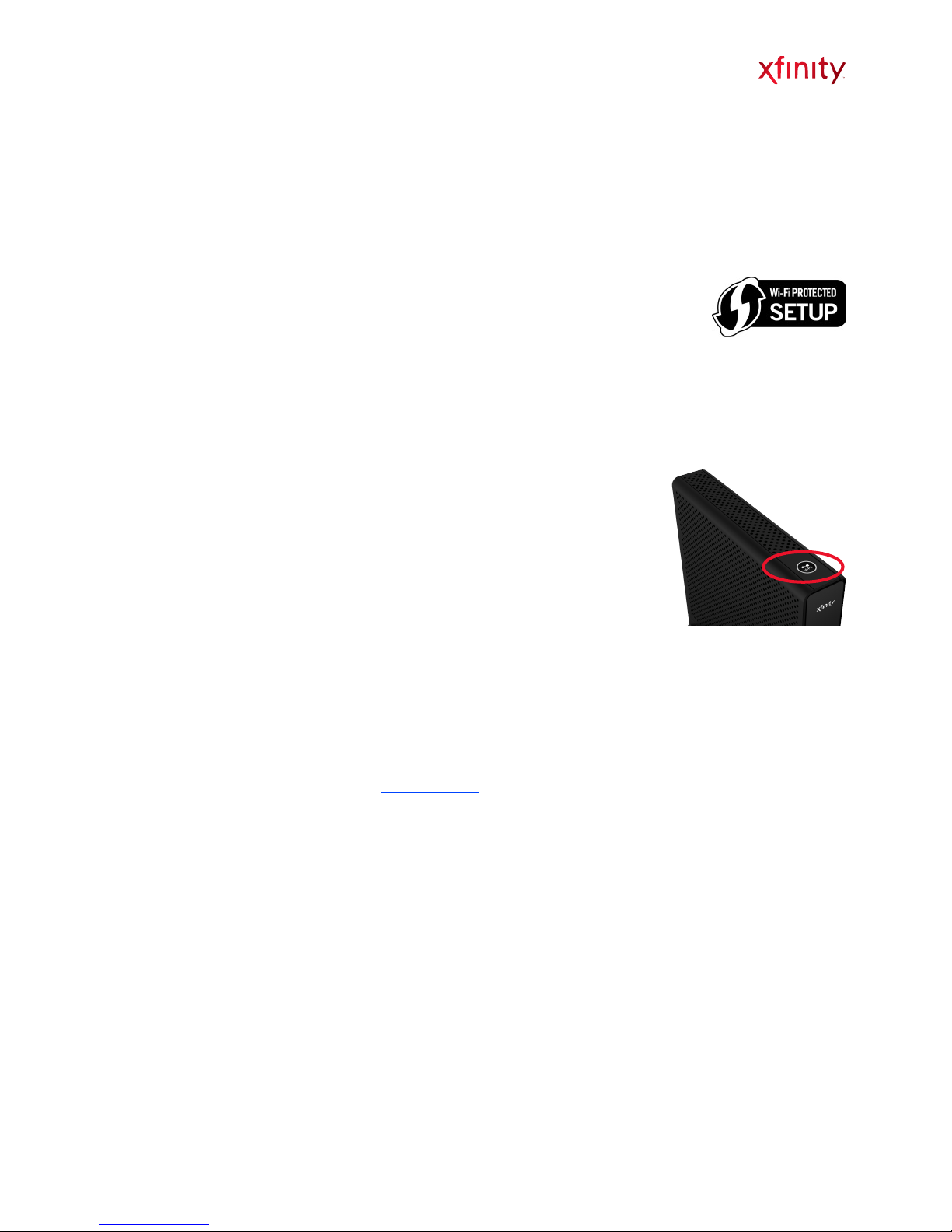

The top panel of your Wireless Gateway features a WPS button (Fig. 1). WPS (or WiFi Protection Setup)
enables you to securely set up a WiFi network without entering the Network Key/Password.
BOTTOM PANEL
The bottom panel of your Wireless Gateway has a panel for the battery. View battery status by accessing the
Battery menu from the Web Management Interface at http://10.0.0.1. The battery will provide backup for
voice service in case of an AC Power outage, but is not intended to replace the AC power for an extended
period.
To install a battery, use the following procedure.
1.Place the Wireless Gateway sideways on a table.
2.Remove the battery compartment door on the bottom panel and set it aside.
3.Insert the battery in the battery compartment with the corresponding polarity correctly in place.
4.Replace the battery compartment.
A battery is needed to enable voice service availability in the event of a power outage. A battery is included
with your Wireless Gateway only if you subscribe to XFINITY Voice. If you did not receive a battery and you are
an XFINITY Voice subscriber, please call 1-800-XFINITY.
CAUTION: !Do not unplug the power cord of your Wireless Gateway for an extended period.
!If left unplugged and the battery power supply is drained, you will not be able to make any phone
!calls, including 911 emergency calls.
Fig. 1
Wireless Gateway User Guide! ! 6

BOTTOM LABEL
The label located on the underside of the Wireless Gateway displays important information you need to
connect your computer.
Network Name
HOME - XXXX (where XXXX is the last 4 digits of the Cable Modem MAC)
Encryption
WPA-TKIP
Network Key
[Printed on the label]
WPS PIN
[Printed on the label]
URL
http://10.0.0.1
WPS
Enabled
Gateway IP
http://10.0.0.1
Firewall Configuration
Low (No ports are blocked)
UPnP
Enabled
All other features are disabled by default. In order to enable and modify other features, use the
Web Management Interface at http://10.0.0.1
All other features are disabled by default. In order to enable and modify other features, use the
Web Management Interface at http://10.0.0.1
DEFAULT CONFIGURATIONS
Following are the factory default configurations for the Wireless Gateway:
Wireless Gateway User Guide! ! 7

WiFi Connection
Learn how to create a WiFi connection from your computer to your Wireless Gateway for initial WiFi
connectivity or after a Factory Reset.
If your computer is already connected to the Internet, go to Step 2.
1.CONNECTING TO THE INTERNET WIRELESSLY

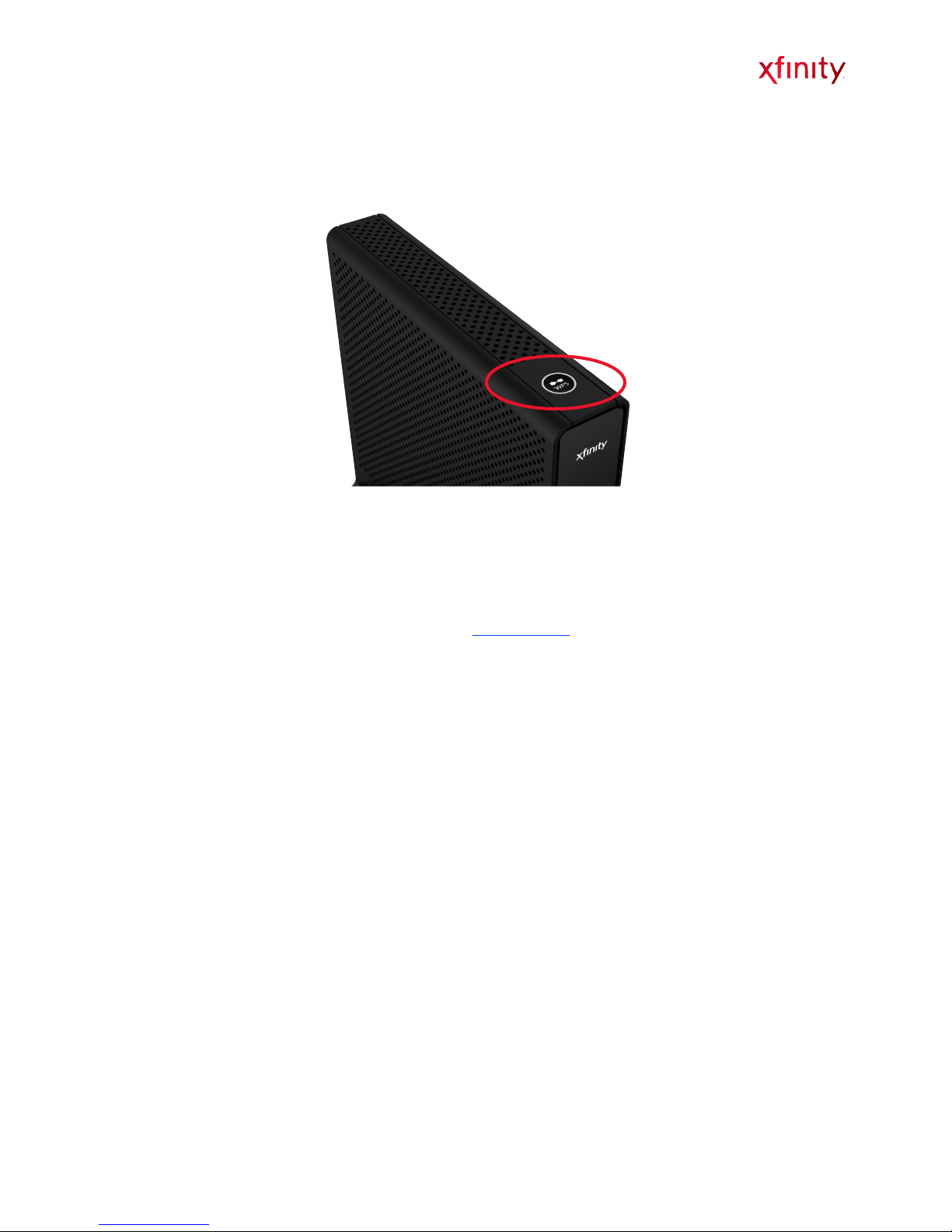

A. Lift the Wireless Gateway
(Fig. 1). Look for the white label
located on the underside of the
device (Fig. 2). Note the Network Name.
B. On your computer, view the list of available wireless networks.
Wireless Gateway User Guide! ! 8
•On Windows®OS (Fig. 3), click
the wireless connections icon
from the task bar.
•On Mac OS®(Fig. 4), click the wireless
connections icon from the menu bar.
Fig. 4
Fig. 3
Fig. 1
Fig. 2
Windows is a registered trademark of Microsoft Corporation in the United States and other countries. Mac OS is a registered trademark of Apple Inc.

C. Click (and Connect to) the Network Name from Fig. 2 in the list of available wireless networks.
D. Again, lift the Wireless Gateway (Fig. 1). Note the Network Key on the white label (Fig. 2).
E. Enter the Network Key (case-sensitive) in the Network Security Key field (on Windows) or
Password field (on Macs).
F. Click OK or Connect. You should now be connected to the Internet.
G. Test your connection by opening a web browser and typing in a valid URL (www.xfinity.com).
If you need help with WiFi connections, the following links to popular operating systems may help.
•Windows 7®
http://windows.microsoft.com/en-US/windows7/Add-a-device-or-computer-to-a-network
•Microsoft Windows XP®
http://www.microsoft.com/windowsxp/using/networking/setup/wireless.mspx
•Windows Vista®
http://windows.microsoft.com/en-us/windows-vista/Setting-up-a-wireless-network
•Apple Mac OS®X 10.0 or greater
http://support.apple.com/kb/HT2497
Continue to the Home Network Wizard as described in Steps 2 and 3. In the Home Network Wizard,
you’ll personalize your Wireless Gateway, set up and secure your new WiFi network. Securing your
WiFi network will prevent unauthorized access and may give you faster data speeds.
Wireless Gateway User Guide! ! 9

Personalization
2.PERSONALIZING YOUR WIRELESS GATEWAY
A. Log In
•Open a web browser. Type http://10.0.0.1
in the address line. The Wireless Gateway
Login page (Fig. 1) appears.
•Enter admin and password as shown.
•Click Login. The Home Network
Wizard-Step 1 page (Fig. 2) appears.
B. Wireless Gateway Name and Password
•Create a name for your Wireless Gateway.
•Enter password as shown.
•Create a new password of your choice and
re-enter to confirm. (Use this password to
change settings on your Wireless Gateway
in the future.)
•For future reference, write your Wireless Gateway password here:
•Click Next Step. The Home Network Wizard-Step 2 page (Fig. 3) appears.
3.SETTING UP AND SECURING YOUR WIFI NETWORK
A. WiFi Network Name
•Create a name for the WiFi Network. (This
is the name that will appear in the list of
available wireless networks.)
•For future reference, write your WiFi
Network Name here:
Wireless Gateway User Guide! ! 10
Fig. 3
* Username cannot be changed Fig. 1
Fig. 2
✴Your password must be at least 8
characters. It should contain both
upper and lower case letters and
at least 1 number.

B. Encryption Method
•Select an encryption method.
The encryption method encrypts the data between your computer and your Wireless Gateway.
WPA-TKIP is the encryption method that is compatible with most computers. WPA2-PSK (AES)
provides better performance and security and should be selected, but only if you are certain that
your computer is compatible. Otherwise, select WPA-TKIP.
C. WiFi Network Password
•Create a Network Password. (This will be required by any computer to access your secure wireless
network.)
•For future reference, write your WiFi Network Password here:
D. IMPORTANT Final Step in Setting Up Your Secure Network
•Click Finish. Since you have changed your WiFi settings, your computer will no longer be
connected to your Wireless Gateway.
•View Available Wireless Networks and select the WiFi Network Name you created in step 3A.
•Enter the WiFi Network Password (case-sensitive) you created in step 3C.
•You should now be connected to the Internet.
•Test your connection by opening a web browser and typing in a valid URL (www.xfinity.com).
Upon initial setup (or after a Factory Reset), when accessing in a http://10.0.0.1 web browser, the Home
Network Wizard appears. Subsequently, you will be directed to the Web Management Interface, where you
will be able to view and change settings on your Wireless Gateway.
When connecting additional computers and devices to your Wireless Gateway, use the personalized WiFi
Network Name and WiFi Network Password you created in Steps 3A and 3C.
Wireless Gateway User Guide! ! 11

SETTING UP WIFI CONNECTION FOR WPS-COMPATIBLE COMPUTERS
•WPS (WiFi Protected Setup) lets you easily set up secure WiFi networks without entering a Network Key.
•Most WPS-compatible devices will work with your Wireless Gateway. You can easily connect to your WiFi
Network using either the default Push Button Configuration (PBC) or the Personal Identification Network
(PIN) method. Both methods are described below.
•If you aren’t sure if your computer supports WPS, look for a WPS sticker or label
(Fig.1) on your computer or device. If none is found, your computer is probably NOT
compatible with WPS. In this case, follow the steps under WiFi Connection.
WPS via PBC Connectivity/One Button Connectivity (Recommended)
1. Press the WPS button on your computer or wireless device. (If your
computer doesn’t have a physical button, refer to your computer’s user guide
to enable WPS.)
2. Within 2 minutes, press the WPS button on the top of your
Wireless Gateway. (Fig. 2)
3. After a message displays that the connection was successful, your
computer/device is connected to your home network.
Note: !When the WPS button is pressed, it will stay lit for 5 minutes
!!(regardless of whether or not the connection was successful).
!!Please wait until the light turns off before retrying or connecting another
!!WPS device.
WPS via PIN Connectivity
1. Open your computer’s WPS utility and acquire a PIN number. Make a note of the PIN number. The WPS
utility will begin its countdown to 2 minutes.
2. Launch your web browser and type http://10.0.0.1 in the address line.
3. Log in using admin as the username and the password you created in the Home Network Wizard.
4. Select Gateway > Connection > WiFi.
5. Before the WPS Utility finishes its countdown, enter the PIN number from Step 1 above in the
Enter Wireless Client’s PIN field.
6. Click PAIR WITH MY WIFI CLIENT.
7. Your computer will communicate with your Wireless Gateway and establish a
connection.
Note: !If your WPS client prompts you to enter the Wireless Gateway’s PIN during the WPS Connection,
!!enter the WPN printed on the label on the underside of your Wireless Gateway.
Fig. 1
Fig. 2
Wireless Gateway User Guide! ! 12

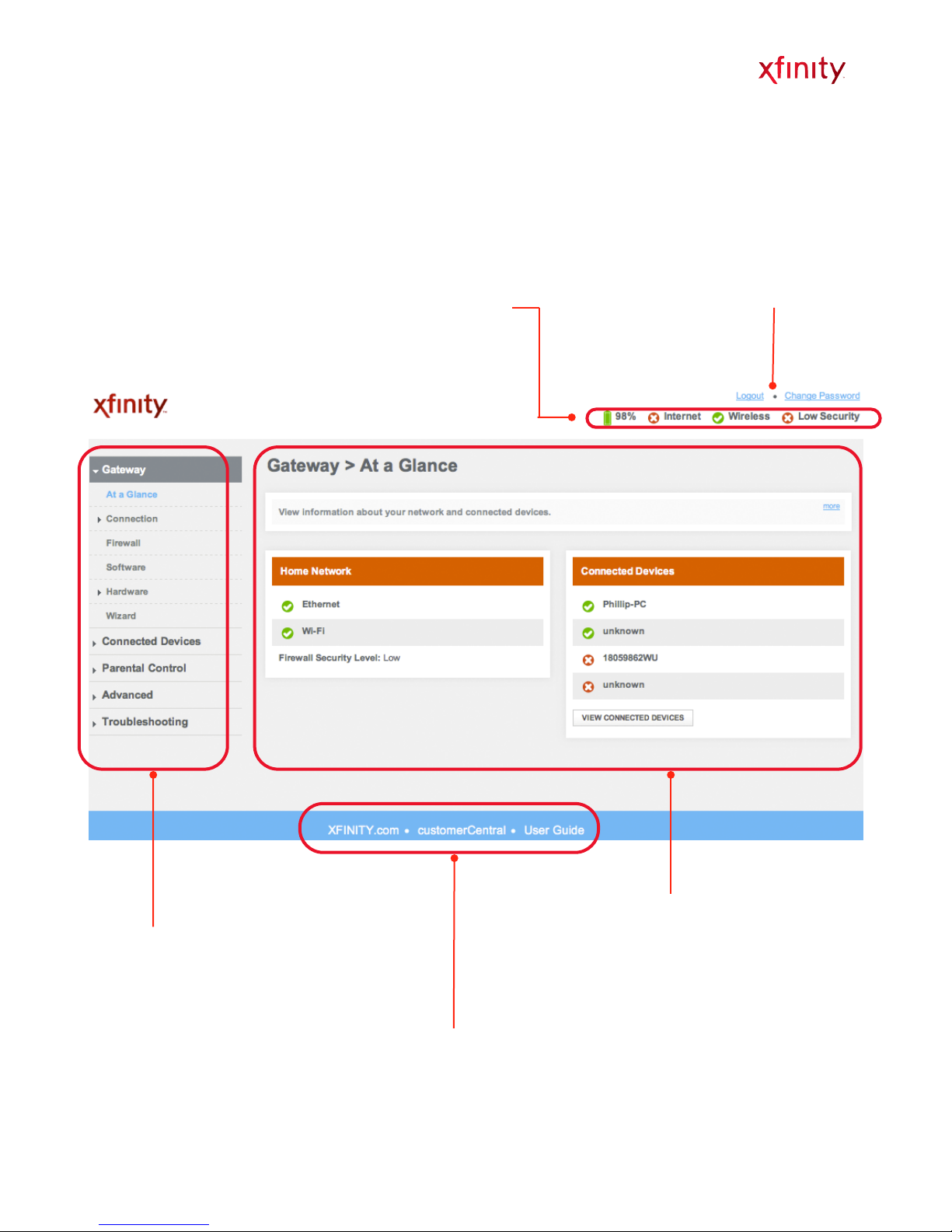

WEB MANAGEMENT INTERFACE
You can view or modify basic information about your Wireless Gateway by accessing the Web Management
Interface.
Wireless Gateway User Guide! ! 13
Select a category to view or
configure settings.
When you click a category from the left
menu bar, related information appears here.
From the links at the bottom of the page, you
can access XFINITY.com, customerCentral
and this User Guide.
Status Icons
‣Percentage of battery power
remaining
‣Gateway’s Internet
‣Status of the Gateway’s wireless
connection
‣Firewall security level access
Log out or change password.

Web Management Interface Menus
Access Menus and Submenus
Description
Gateway > At a Glance
Displays information about your home network, connected devices and
recent network updates
Gateway > Connection > Local IP
View and reset your local IPv4 settings
Gateway > Connection > WiFi
View and edit your wireless settings
Gateway > Connection > XFINITY
View XFINITY network settings and initialization procedures for cable modem,
downstream and upstream information
Gateway > Firewall
Configure the security level of the internal firewall
Gateway > Software
View software information
Gateway > Hardware > System
Hardware
View information about the system hardware
Gateway > Hardware > Battery
View information about the internal battery (for XFINITY Voice only)
Gateway > Hardware > LAN
View the link status and Media Access Control (MAC) address for each of the
4 Ethernet ports
Gateway > Hardware > WiFi
View the status and MAC address of the WiFi port
Gateway > Wizard
Helps you set up your home network
Parental Control > Managed Sites
Blocked sites, blocked keywords and trusted computers
Parental Control > Managed Services
Blocked services and trusted computers
Parental Control > Managed Devices
Managed and blocked devices
Parental Control > Reports
Generate reports containing selected Log Messages
Advanced > Port Forwarding
Enable/disable the port forwarding feature
Advanced > Port Triggering
Enable/disable the port triggering feature
Advanced > Port Blocking
Enable/disable the port blocking feature
Advanced > Device Discovery
Enable/disable the Universal Plug and Play (uPnP) feature
Troubleshooting > Logs
Configure log filters and download/print system logs
Troubleshooting > Diagnostic Tools
Test connectivity to an URL or IP address
Troubleshooting > Restore/Reboot
Gateway
Reset the Wireless Gateway or restore to factory settings
Troubleshooting > Change Password
Change the password for the Web Management Interface
Wireless Gateway User Guide! ! 14

AT A GLANCE
View information about the Wireless Gateway and edit configurations of connected devices
Access from the left navigation menu:
Gateway > At a Glance
If you would like to use your existing router instead of the routing functionality on your !Wireless Gateway, the
Bridge Mode on the Wireless Gateway will need to be !enabled. An XFINITY technician can do this during
installation, or call 1-800-XFINITY to enable this functionality.
Click View Connected Devices to view online and offline devices that
are connected to your Wireless Gateway.
Fig. 1
The Home Network section displays the states of both the
Ethernet (wired) and WiFi (wireless) networks. You can see
connected computers and devices.
Wireless Gateway User Guide! ! 15

CONNECTION
View information about your Connection Status, such as Local Configuration, WiFi and the XFINITY Network
Access from the left navigation menu:
Gateway > Connection
Status
Displays a summary of your Local IP, WiFi and XFINITY networks
Access from the left navigation menu:
Gateway > Connection > Status
Fig. 1
Wireless Gateway User Guide! ! 16

Local IP Configuration
View information about your local network and edit the LAN DHCP settings (for Advanced Users)
Access from the left navigation menu:
Gateway > Connection > Local IP Network (or click VIEW from Gateway > Connection > Status)
Fig. 1
Field
Description
IPv4
IPv4
Gateway Address
Local IP address of the router
Subnet Mask
Subnet address for the LAN (3 subnets to choose from)
DHCP Beginning Address
First available Local IP Address in the DHCP pool
DHCP Ending Address
Last available Local IP Address in the DHCP pool
DHCP Lease Time
Length of time a local device retains an IP Address before
checking back with the DHCP Server on the Wireless Gateway
Note: IPv6 parameters are not configurable at this time.
Wireless Gateway User Guide! ! 17

Connection WiFi
Modify the WiFi settings of your network computers or add additional devices to your network
Access from the left navigation menu:
Gateway > Connection > WiFi (or click VIEW from Gateway > Connection > Status)
Fig. 1
Click Add WiFi Protected Setup (WPS) Client to add a device. The Add Wireless Client
on the next page will appear.
Fig. 2
Click EDIT to modify
your 2.4 GHz Network
settings.
Wireless Gateway User Guide! ! 18

Fig. 1
Wireless Gateway User Guide! ! 19
