Comdek MD-680P User manual

Owner’s Manual
MD-680P
Palm Pulse Oximeter
COMDEK INDUSTRIAL CORPORATION
9F-1, No. 3, Yuan Qu Street,
Nan-Kang, Taipei 11503, Taiwan, R.O.C
Tel: [phone] Fax: [phone]
E-Mail: [email protected]

Dear Customer,
Thank you for purchasing the Comdek MD-680P
Portable Pulse Oximeter. This fully featured unit
will provide you the satisfactory in the performance
and quality.
If you have any questions regarding to this unit or
owner’s manual, please contact Comdek Service
Dept. E-mail: [e-mail], or call
886-2-26557810, or fax to 886-2-26557812.
It shall be grateful if you could also fill out the form
of “customer’s information”, and send it back for our
record. The feedback will help us to do the better
service to you.
If you have any questions, please do not hesitate to
contact the nearest distributors or COMDEK
directly.
Sincerely Yours,
Comdek Industrial Corporation
Customer Service Dept.

CONTENTS
CHAPTER ONE
Introduction……………………………………….. 1
Features…………………………………………… 3
General Specification……………………………... 4
CHAPTER TWO
Screen Panel Display………………………………5
Signal Description……………..………………….. 6
Power Requirement……………………………….. 7
Operation Steps…………………………………… 8
Accessory…………………………………………. 8

CHAPTER THREE
Things to Note…………….…………………. ….. 10
Warranty Information…………………………….. 11
Please read carefully before use.
Type BF equipment

Introduction
The Pulse Oximeters non-invasively monitor the
oxygen saturation (expressed as percentage of
decimal) of arterial hemoglobin by measuring light
absorbance changes resulting from arterial blood
flow pulsation. Their use allows continuous and
instantaneous monitoring of oxygenation; can
provide early detection of hypoxia before other
signs such as cyanosis, tachycardia, or bradycardia
are observed; and may reduce the frequency of
arterial puncture and laboratory blood gas analysis.
Comdek palm oximeter is a non-invasively
measurement to the SpO2and Pulse Rate. It is a
small and compact instrument for easy operating
and carrying. It is very useful for personal home
care spot-checking and short-term monitoring in
clinics.
- 1 -

It presents an optimal performance with easy one
touch operation, and the auto power off with low
power consumption saves the cost of the batteries.
Furthermore, the clear LED digital display brings
you an outstanding observation, and the built-in
finger probe makes it easier for measuring and
traveling.
- 2 -

Features
*Palm and compact design
*Easy carry for spot-checking
*Light and large LED display
*Quick response of SpO2& Pulse Rate
*Complete unit with build-in finger probe
*SpO2 and pulse signal indicator
*With audio and mute function
*Low power consumption
*Auto power off
*Low battery indication
- 3 -

General Specification
Display Light Large LED,
SpO2Saturation,
Pulse Rate,
Low battery indicator
SpO2Range, %
Accuracy, %
0- 100 %
80-100 ±1%
Pulse Rate Range, bpm
Accuracy, %
30bpm to 250bpm
1% of full scale
Audio Pulse Rate
Probe type With built-in Adult
Finger Probe
Operating Temperature 0℃~ 55℃
Power Management Power saving function
with 1 minute Auto cut
off
Power Requirement 3 AAA
Quick measurement 6~8 seconds
Dimensions, mm 90 x 62 x 22mm
Weight, g 90 g (Net)
Safety CE 0434 (Approved
#98-OSL-SD-0401)
-4 –

CHAPTER TWO

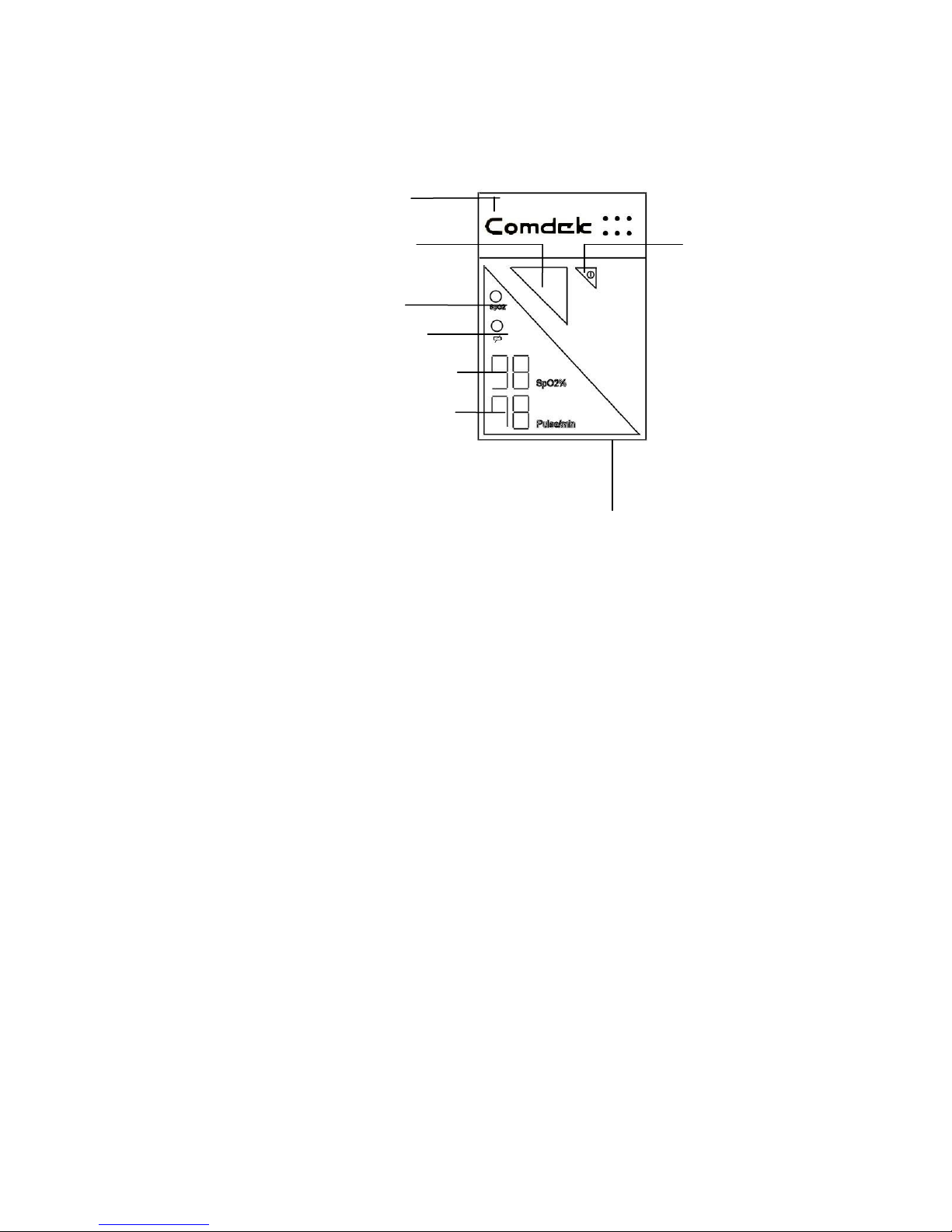

Screen Panel Display
- 5 -
Finger Sensor
Power
Switch
Mute / Sound
Pulse rate Display/
bpm
SpO2
/ Pulse Signal
Indicator
Low Battery
Indicator
SpO2Display / %
Battery Cover

Signal Description
SpO2%: the saturation of Oxygen
Pulse/min: the pulse rate per minute
SpO2indicator: when the light is not on, it means
the device is still on detecting. When the light is
flashing, it means the measuring result is
acceptable.
Low battery indicator: when the light is on, it
means the power is weak. The power will last for
about 30 minutes.
Pot: the finger is out of contact with the sensor
- 6 -

Power Requirement
Please use 3 pcs AAA batteries. (For best results,
please use the alkaline battery)
Warning: Please use the good quality batteries to
avoid the chemical leakage, and damage the
instrument. (The warranty will not cover this kind of
damage).
Do not dispose of empty batteries in household
waste; take them to local special collection sites.
- 7 -

Operation Steps
1. Open the battery cover at the bottom.
2. Insert 3 pcs AAA batteries.
3. Press the power button.
4. Insert a finger into the sensor clip
5. In the normal condition, after 6-8 seconds, the
acceptable measuring results will show on the
screen. The indicator of SpO2will flash with
beep sound.
6. Press mute button to turn off the beep sound if it
is necessary to be silent.
7. Finish the measuring, press power button to
switch off the power.
8. If it is not in detecting state, the instrument will be
auto power off in one minute.
Accessory
1. Carrying bag
2. 3 x AAA batteries
3. Owner’s manual
- 8 -

Things to Note
1. Please handling with care, do not drop it.
2. Avoid scraping the sensor
3. Do not store the device in the hot and humid
place.
4. Wipe away nail polish and dust on the finger
before measuring.
5. If the instrument is not using for long period of
time, please take the batteries out.
6. Only using soft clean cloth to wipe off the surface
of the device
7. Please using alcohol to clean the finger sensor if
needed
- 9 -

Europe Representative:
Comdek Computer System
Schwendistrasse 32,
Ch-8486 Rikon,
Switzerland
- 10 -

Warranty Information
Thank you for buying Comdek product, and we will offer one-year warranty.
Please keep the following warranty to be the evidence of after service.
Date Purchased or Received
Model No.: Product Serial No.:
User Name Information:
Mr./Ms.
Company Name:
Street Address:
City:
Country: Zip:
E-mail:
Telephone Number:
Fax Number:
Suggestion:
