Comet XRC-4501-OW User manual

COMET AG
Herrengasse 10, CH
-
3175 Flamatt
Tel. [phone], www.comet-xray.com
X C-4501-OW, Doc.-No. 50005553 Page 1 of 16
Industrial X-Ray
Cooler Manual XRC-4501-OW
4500 Watt oil to water cooler

COMET AG
Herrengasse 10, CH
-
3175 Flamatt
Tel. [phone], www.comet-xray.com
X C-4501-OW, Doc.-No. 50005553 Page 2 of 16
Document history
Version Date Author Amendment(s) Status
12/15/2008 St. Haferl released
1.0 07/22/2010 M. Schmid Layout / Structure
07/22/2010 St. Haferl released
2.0 05/19/2011 M. Schmid Oil descriptio
3.0 10/30/2012 R. Moser Layout / Structure
4.0 07/01/2013 R. Moser Update Chapter 3
5.0 07/09/2015 M. Schmid Cha ge Shell Diala
6.0 01/12/2015 M. Schmid New electrical drawi g

COMET AG
Herrengasse 10, CH
-
3175 Flamatt
Tel. [phone], www.comet-xray.com
X C-4501-OW, Doc.-No. 50005553 Page 3 of 16
Contents
1 Before you start 4
2 Product Descriptio 5
3 Tech ical data 6
3.1 Physical dime sio s 6
3.2 Performa ce data 6
3.3 E viro me tal specificatio s 6
3.4 Setti gs 6
3.5 Performa ce data a d overview 7
4 I stallatio 8
4.1 OMF Filter 9
4.2 Cha gi g the switchi g poi t of the flow switch 1 a d 2 10
5 Mai te a ce 11
6 Putti g out of operatio 11
7 Outli e Drawi g 12
8 Circuit Diagrams 13
8.1 Electrical Diagram 13
8.2 Flow diagram 14
9 Illustratio Cooler 15
10 Declaratio of co formity 16
Industrial X-Ray

COMET AG
Herrengasse 10, CH
-
3175 Flamatt
Tel. [phone], www.comet-xray.com
X C-4501-OW, Doc.-No. 50005553 Page 4 of 16
1 Before you start
 Read manual before setting into operation!
 Coolant: Oil Shell Diala S4 ZX-I
 Power supply 230 V 50/60 Hz!
 Run cooling unit always with correct coolant level otherwise cooling capaci-
ty is reduced!
 Clean filter regularly according to maintenance instructions otherwise
damage of pump may occur!
 Never operate cooling unit when ball cock is closed otherwise damage of
pump may occur!
 Only use cooling hoses with sufficient pressure resistance and with re-
sistance to used coolant!
 Never operate damaged or leaking equipment!
 Before starting any service work disconnect the cooling unit from the
mains.

COMET AG
Herrengasse 10, CH
-
3175 Flamatt
Tel. [phone], www.comet-xray.com
X C-4501-OW, Doc.-No. 50005553 Page 5 of 16
2 Product Description
The cooli g u it XRC-4501-OW is i te ded for the cooli g of a oil circuit. Oil circu-
lates betwee the cooli g u it a d the heat source. The oil is re-cooled by a water-
cooled heat excha ger. Cooli g hoses are co ected to the cooli g u it via screw
co ectio s (M 26 x 1.5). Coola t i let a d oil outlet are marked with symbols:
Inlet Oil:
O
↓
Outlet Oil:
O
↑
The oil flow is mo itored by a adjustable flow switch, the oil temperature by a
adjustable thermal switch. The sig als of the flow switch a d the thermal switch are
available at a pote tial free safety circuit. The oil pressure is limited by a adjustable
bypass valve.
The capacity of the cooli g u it depe ds o the temperature differe ce betwee the
Cooli g water temperature a d the oil outlet temperature.
You ca take it from diagram o page 7

COMET AG
Herrengasse 10, CH
-
3175 Flamatt
Tel. [phone], www.comet-xray.com
X C-4501-OW, Doc.-No. 50005553 Page 6 of 16
3 Technical data
3.1 Physical dimensions
Le gth: 621 mm
Width: 350 mm
Height: 551 mm
Weight: 65 kg with cooli g age t
Coola t capacity: 23 l
3.2 Performance data
Cooli g capacity: 4500 W (∆T ≤ 20 °K)
Oil flow: > 25 l/mi at 3,5 bar
Mai s Voltage: 230V ± 10%, 50/60Hz
I put power: 0,55 kW
Noise level: 60 dB(A) at 1 m dista ce
Safety class: IP 33
3.3 Environmental specifications
Operatio al temperature: 0°C... +40°C
Storage temperature: -25°C...+70°C (without water)
Air humidity: 20%...90% o co de si g
3.4 Settings
Maximum forward pressure: 9.5 bar
Flow switch ope : < 14.0 l/mi
Flow switch close: > 15.5 l/mi
Thermal switch ope : > 50°C
Thermal switch close: < 47°C

COMET AG
Herrengasse 10, CH
-
3175 Flamatt
Tel. [phone], www.comet-xray.com
X C
-
4501
-
OW, Doc.
-
No. 50005553
Page
7
of
16
Electrical Connector
Oil Inlet
Oil Outlet
Coolant Inlet
Coolant Outlet
3.5 Performance data and overview

COMET AG
Herrengasse 10, CH
-
3175 Flamatt
Tel. [phone], www.comet-xray.com
X C
-
4501
-
OW, Doc.
-
No. 50005553
Page
8
of
16
4 Installation
• Remove cover
• Remove cap of oil reservoir and fill
with oil up to the visible mark
Connect oil hoses to cooler.
• Connect water supply to cooler.
• Establish electrical connections
according wiring diagram, use
suitable leads.
• Start water supply to cooler.
• Start power supply for cooler
• Run oil cooler for approximately 0
minutes to remove air from the oil
circuit.
• Check oil level and refill if necessary
• Stop cooling unit
• Close cap of oil reservoir.
• Mount cover.
• Cooling unit is ready for use

COMET AG
Herrengasse 10, CH
-
3175 Flamatt
Tel. [phone], www.comet-xray.com
X C
-
4501
-
OW, Doc.
-
No. 50005553
Page
9
of
16

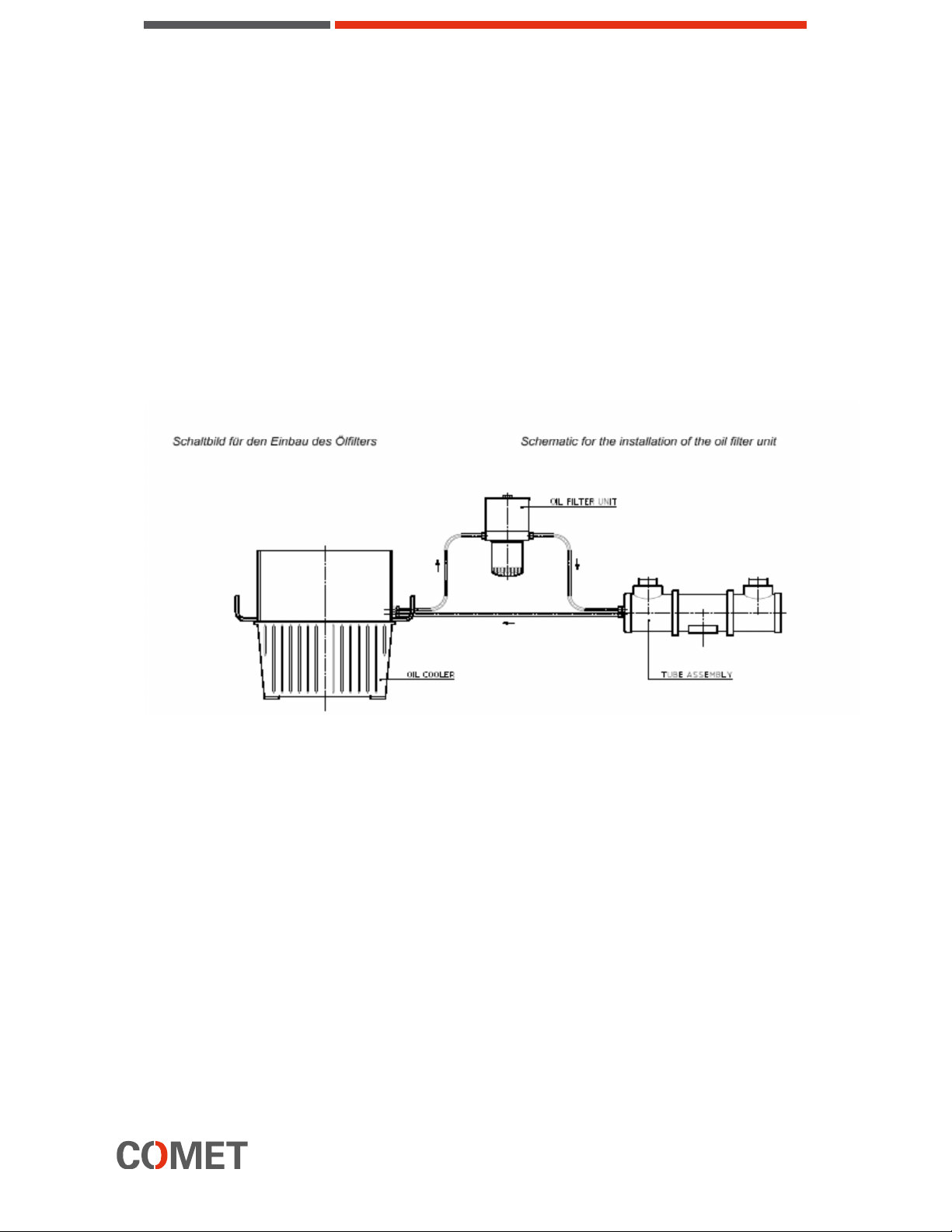

4.1 OMF Filter
We highly recommend using the OMF oil molecular filter unit with the XRC-4501-OW
cooler
We supply our bipolar XRS-Modules with OMF filter as a standard
For detailed information please refer to the corresponding manual of the OMF filter

COMET AG
Herrengasse 10, CH
-
3175 Flamatt
Tel. [phone], www.comet-xray.com
X C
-
4501
-
OW, Doc.
-
No. 50005553
Page
10
of
16
4.2 Changing the switching point of the flow switch 1 and 2
The flow switch and the temperature controller are factory adjusted and locked
according to specification. In order to change the switching point, proceed as
follows:
Changing from 22 l/min to 4 l/min
■ unlock finger screw at r/a plug
■ take plug off the 22 l - switch
■ put plug on 4 l/min - switch
■ lock finger screw again
to change from 4 l/min to 22 l/min reverse above instructions.
Venting System
■ Open bypass valve
■ Let system run for a few minutes
■ Close bypass valve
■ Check oil level and refill if necessary

COMET AG
Herrengasse 10, CH
-
3175 Flamatt
Tel. [phone], www.comet-xray.com
X C-4501-OW, Doc.-No. 50005553 Page 11 of 16
5 Maintenance
Check oil level at inspection glass monthly, or if necessary more often and refill oil
6 Putting out of operation
• - Stop oil circulatio by switchi g off pump.
• - Disco ect equipme t from mai s
• - Lock oil supply a d retur pipes.
• - Lock cooli g water supply a d retur pipes.
• - Drai water off the cooli g system for frost protectio

COMET AG
Herrengasse 10, CH
-
3175 Flamatt
Tel. [phone], www.comet-xray.com
X C-4501-OW, Doc.-No. 50005553 Page 12 of 16
7 Outline Dra ing

COMET AG
Herrengasse 10, CH
-
3175 Flamatt
Tel. [phone], www.comet-xray.com
X C-4501-OW, Doc.-No. 50005553 Page 13 of 16
8 Circuit Diagrams

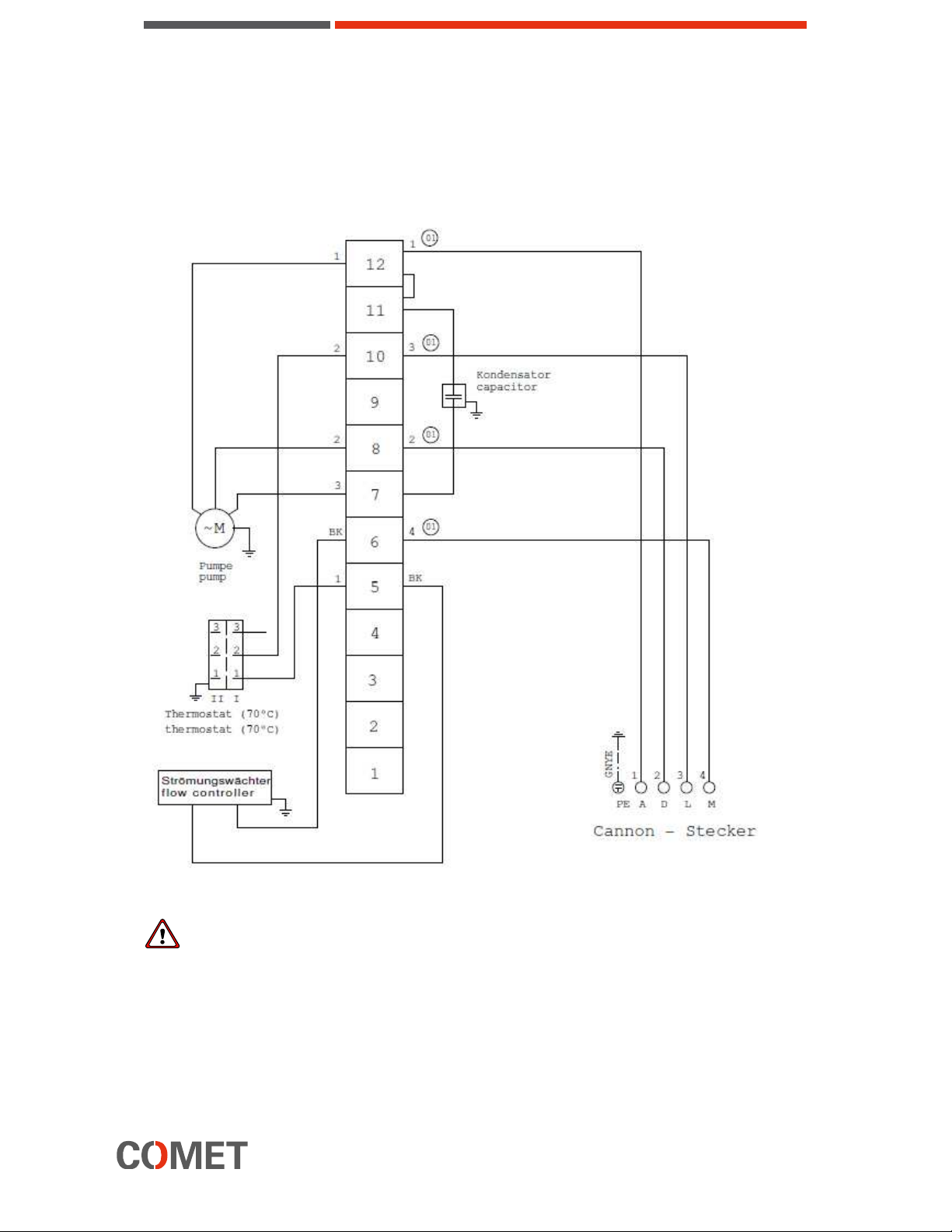

8.1 Electrical Diagram
Caution: The cooler has to be fused when used as a stand alone unit with 6 A, slow blow
type. The default plug is a Cannon plug.

COMET AG
Herrengasse 10, CH
-
3175 Flamatt
Tel. [phone], www.comet-xray.com
X C
-
4501
-
OW, Doc.
-
No. 50005553
Page
14
of
16

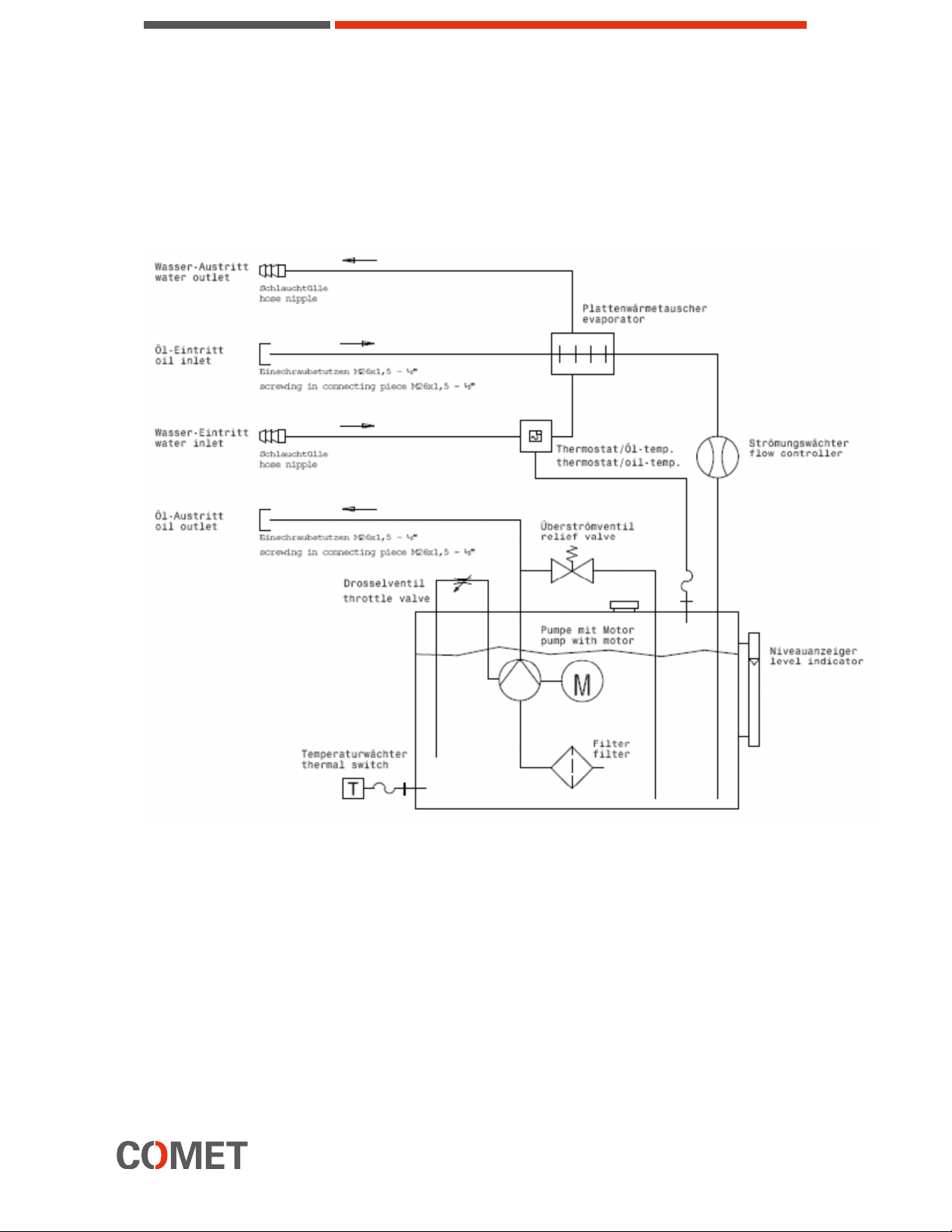

8.2 Flow diagram

COMET AG
Herrengasse 10, CH
-
3175 Flamatt
Tel. [phone], www.comet-xray.com
X C
-
4501
-
OW, Doc.
-
No. 50005553
Page
15
of
16

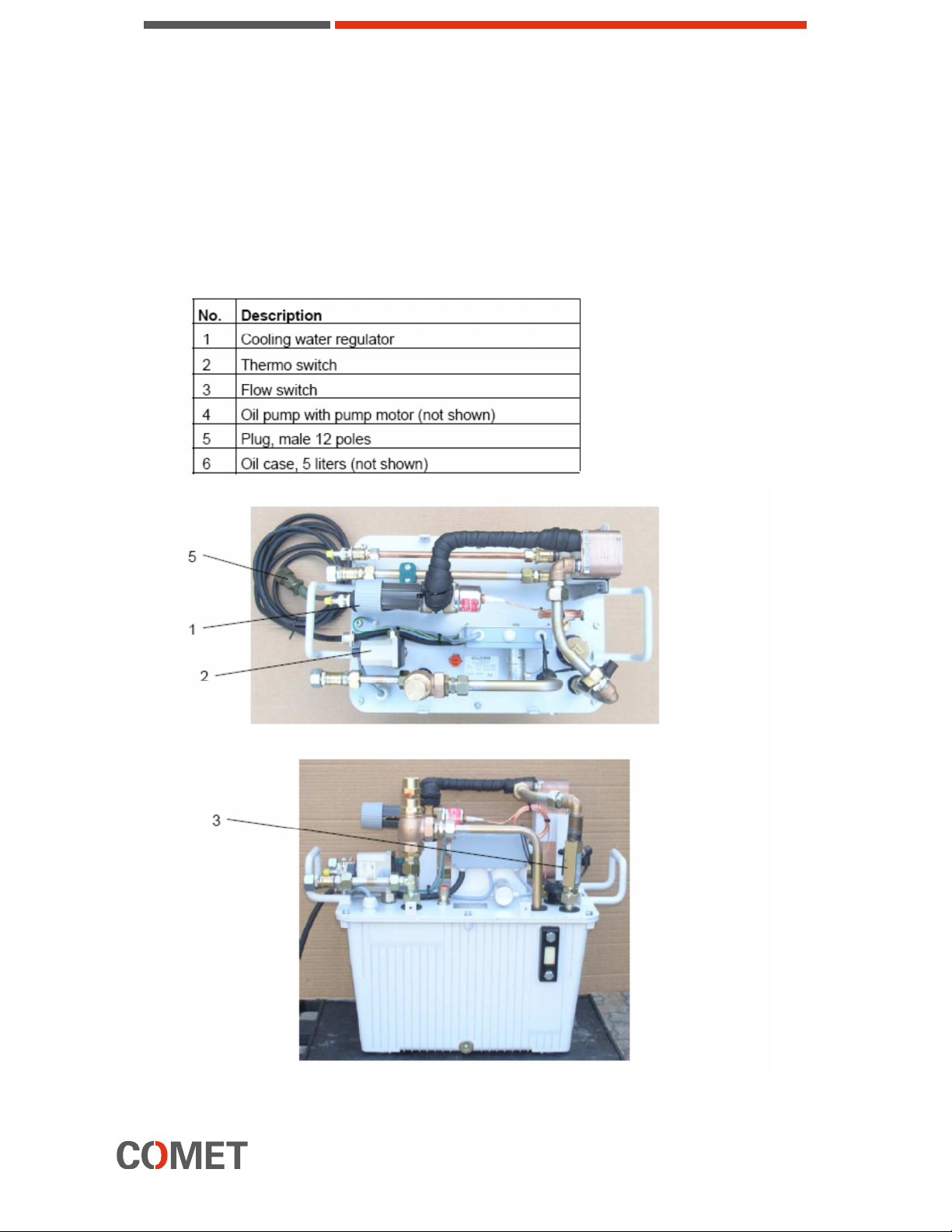

9 Illustration Cooler

COMET AG
Herrengasse 10, CH
-
3175 Flamatt
Tel. [phone], www.comet-xray.com
X C-4501-OW, Doc.-No. 50005553 Page 16 of 16

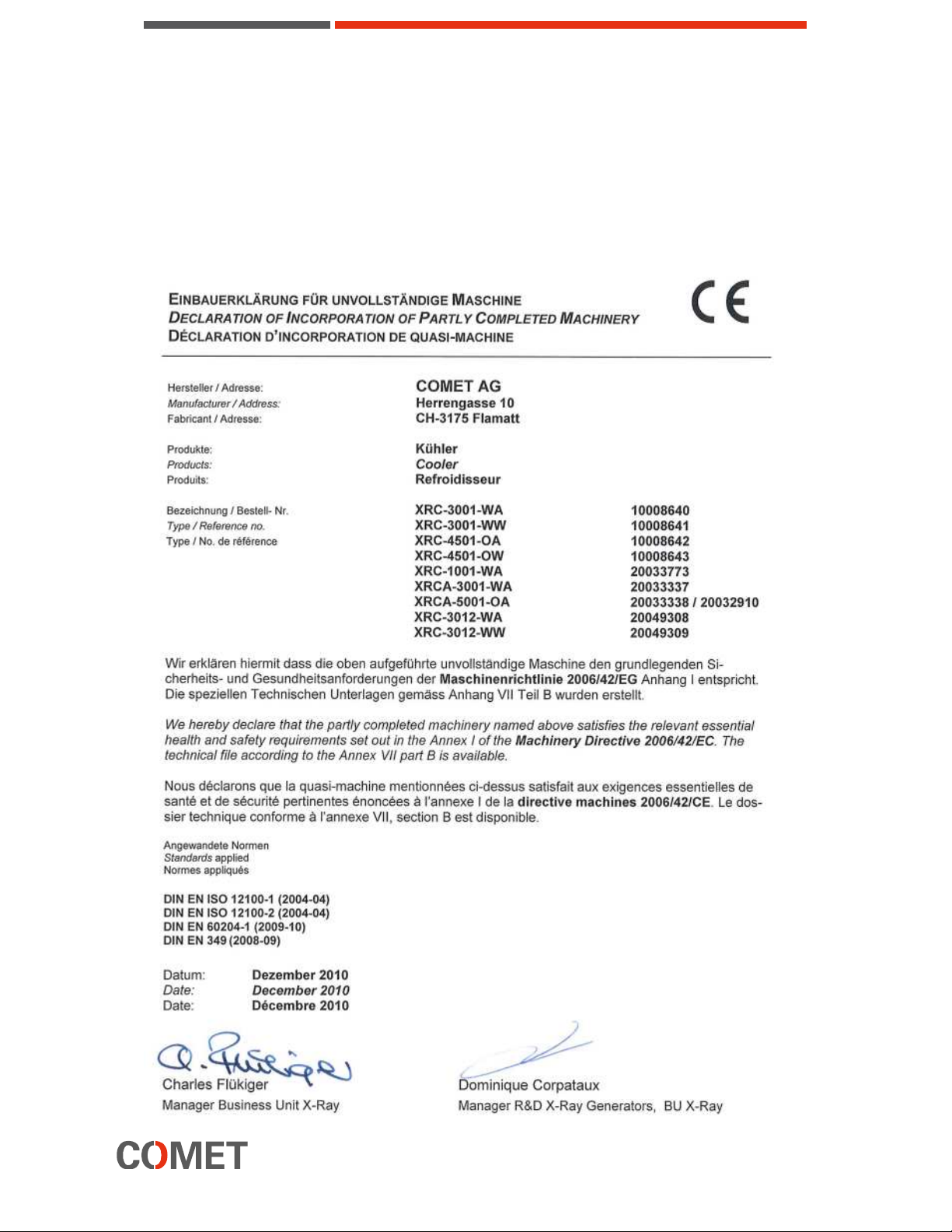

10 Declaration of conformity
