Comfort Glow CSM2618NR User manual
For more information, visit www.desatech.com
WARNING: If the information in this manual is not fol-
— WHAT TO DO IF YOU SMELL GAS
• Do not touch any electrical switch; do not use any
-
UNVENTED (VENT FREE) GAS LOG HEATER
OWNER’S OPERATION AND INSTALLATION MANUAL
MODELS CSM2618NR, CSM2618PR,
CSM3624NR AND CSM3624PR
www.desatech.com 120163-01A2
SAFETy INFORMATION
TAbLE OF CONTENTS
Safety Information ............................................... 2
Product Identication........................................... 4
Local Codes......................................................... 5
Unpacking............................................................ 5
Product Features................................................. 5
Air For Combustion and Ventilation..................... 5
Installation ........................................................... 8
Operating Heater............................................... 15
Inspecting Burners............................................. 19
Cleaning and Maintenance................................ 20
Wiring Diagram.................................................. 21
Service Hints ..................................................... 21
Technical Service............................................... 21
Specications .................................................... 21
Troubleshooting................................................. 22
Replacement Parts............................................ 26
Accessories ....................................................... 26
Parts Central...................................................... 27
Illustrated Parts Breakdown and Parts List........ 28
Warranty Information ...........................Back Cover
-
service or maintenance can
Refer to this manual for correct
additional information consult
for installation only in a solid-
-
installations in accordance with
-
WARNING: This is an
-
-
Air for Combus-
tion and Ventilation section on
-
facturer
chemicals known to the State
-
-
www.desatech.com
120163-01A 3
Early signs of
carbon monoxide poisoning resemble the u, with
headaches, dizziness or nausea. If you have these
signs, the log set may not be working properly.
Get fresh air at once! Have log set serviced.
Some people are more affected by carbon mon-
oxide than others. These include pregnant women,
people with heart or lung disease or anemia, those
under the inuence of alcohol and those at high
altitudes.
Natural & Propane/LP
gas are odorless. An odor-making agent is added
to the gas. The odor helps you detect a gas leak.
However, the odor added to the gas can fade. Gas
may be present even though no odor exists.
Make certain you read and understand all warnings.
Keep this manual for reference. It is your guide to
safe and proper operation of this log set.
-
-
WARNING: Do not allow fans
SAFETy INFORMATION
Continued
children and adults away from
remain hot for a time after shut-
-
dren when they are in the room
hand-held remote accessory,
-
-
-
www.desatech.com 120163-01A4
1. This appliance, as supplied, is only for use
with the type of gas indicated on the rating
plate. This appliance is not convertible for
use with other gases.
2. Do not place propane/LP supply tank(s) in-
side the structure. Locate propane/LP supply
tank(s) outdoors (propane/LP units only).
3. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do not use
any phone in your building
• immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions
• if you cannot reach your gas supplier, call
the re department
4. This heater shall not be installed in a bedroom
or bathroom, unless installed as a vented appli-
ance. See Installing Damper Clamp Accessory
for Vented Operation, page 12. This gas log set
may not be installed as a vented appliance in a
bedroom or bathroom in the Commonwealth
of Massachusetts.
5. Before installing in a solid fuel burning replace,
the chimney ue and rebox must be cleaned of
soot, creosote, ashes and loose paint by a qualied
chimney cleaner. Creosote will ignite if highly
heated. Inspect chimney ue for damage. If dam-
aged, repair ue before operating appliance.
6. If replace has glass doors, never operate with
glass doors closed, If you operate heater with
doors closed, heat buildup inside replace will
cause glass to burst. Also if replace opening
has vents at the bottom, you must open the
vents before operating heater.
7. To prevent the creation of soot, follow the instruc-
tions in Cleaning and Maintenance, page 20.
8. Before using furniture polish, wax, carpet
cleaner or similar products, turn heater off. If
heated, the vapors from these products may
create a white powder residue within the burner
box or on adjacent walls and furniture.
9. This heater needs fresh, outside air ventilation
to run properly this heater has an Oxygen De-
pletion Sensing (ODS) safety shutoff system.
The ODS shuts down the heater if enough fresh
air is not available. See Air Combustion and
Ventilation page 6. If the heater keeps shutting
off, see Troubleshooting, page 22.
SAFETy INFORMATION
Continued
10. Do not run heater where ammable liquids or
vapors are used or stored, or un d e r du s t y
conditions.
11. Do not use heater to cook food or burn paper
or other objects.
12. Do not use heater if any part has been exposed
to or under water. Immediately call a qualied
service technician to inspect the room heater
and to replace any part of the control system and
any gas control which has been under water.
13. Do not operate heater if any log is broken. Do
not operate heater if a log is chipped (dime-
size or larger).
14. Turn heater off and let cool before servicing,
installing or repairing. Make sure the selector
switch is in the OFF position. Only a quali-
ed service person should install, service or
repair heater.
15. Make sure the selector switch is in the OFF
position when you are away from home for
long periods of time.
16. Remote-ready heaters shall not be connected
to any external electrical source.
17. Operating heater above elevations of 4,500
feet may cause pilot outage.
18. To prevent performance problems, do not use
propane/LP tank(s) of less than 100 lb. capac-
ity (propane/LP units only).
19. Provide adequate clearances around air
openings.

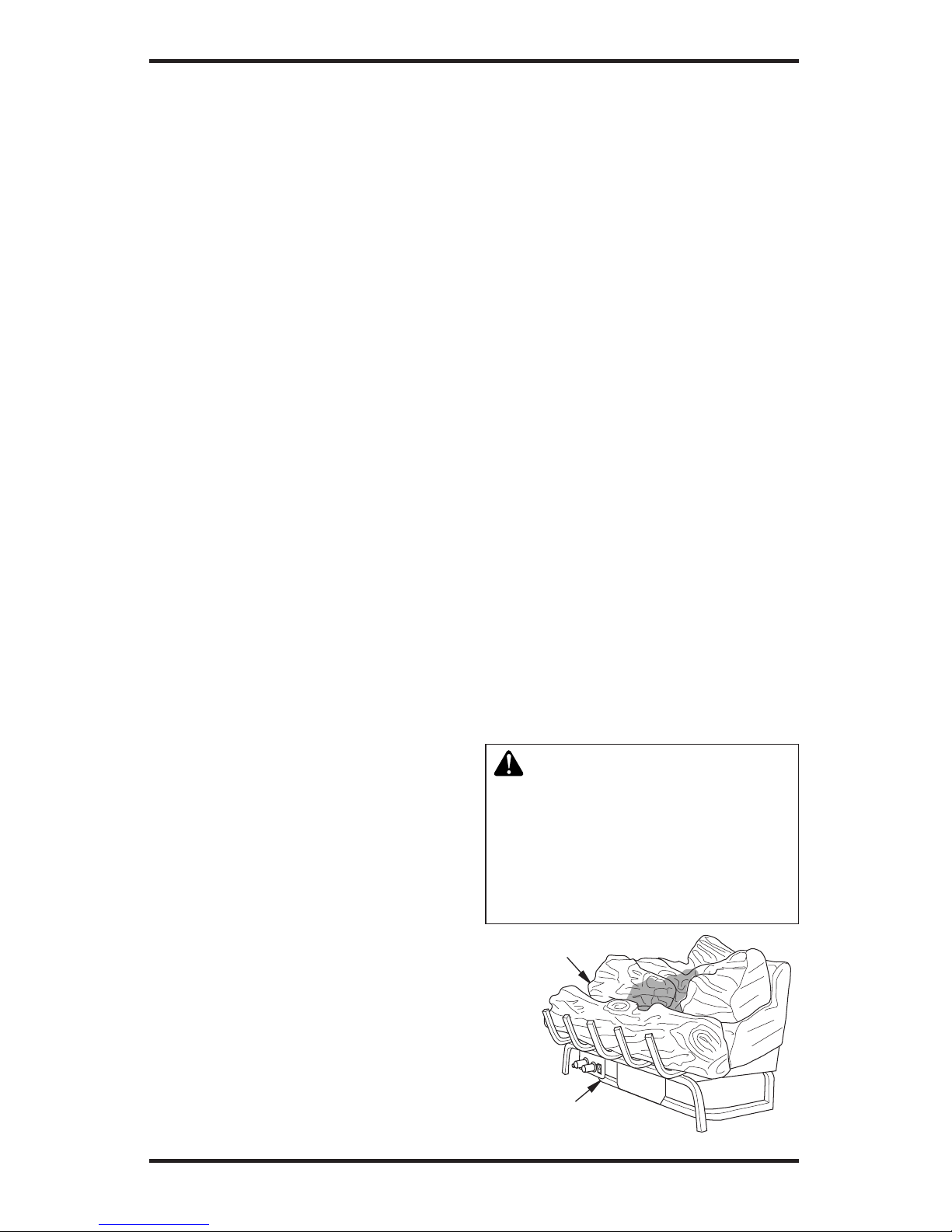

PRODUCT
IDENTIFICATION
-
Figure 1 - Product Identication
Log Set
Chassis
Assembly
www.desatech.com
120163-01A 5
LOCAL CODES
Install and use the heater with care. Follow all
local codes. In the absence of local codes, use the
latest edition of the National Fuel Gas Code ANSI
Z223.1/NFPA 54*
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Battery march park
Quincy, MA 02269
Note: Where listed vented decorative logs are
required, thermostat operations is not permitted.
The installation of appliances designed for manu-
factured home (U.S. only) or mobile home instal-
lation must conform with the Standard CAN/CSA
Z240 MH, Standard, Title 24 CFR, Part 3280, in
the United States or when such a Standard is not
applicable, ANSI/NCSBCS A225.1/NFPA 501A
Manufactured Home Installations Standard.
UNPACkING
-
1.
Remove log set assembly from carton.
Note: Do not pick up assembly by logs.
This could damage the unit. Always handle
assembly by grate.
2. Remove all protective packaging applied to
log set for shipment.
3. Check all items for any shipping damage. If
damaged, promptly inform dealer where you
bought appliance.
State of Massachusetts: The installation
must be made by a licensed plumber or
gas tter in the Commonwealth of Mas-
sachusetts.
Sellers of unvented propane or natural
gas-red supplemental room heaters shall
provide to each purchaser a copy of 527
CMR 30 upon sale of the unit.
Vent-free gas products are prohibited for
bedroom and bathroom installation in the
Commonwealth of Massachusetts.
PRODUCT FEATURES
This heater is clean burning. It requires no outside
venting. There is no heat loss out a vent or up a
chimney. Heat is generated by both realistic ames
and glowing coals. This heater is designed for
vent-free operation with ue damper closed. It
has been tested and approved to ANSI Z21.11.2
standard for unvented heaters. State and local
codes in some areas prohibit the use of vent-free
heaters. This heater may also be operated as a
vented decorative (ANSI Z21.60) product by
opening the ue damper.
This heater has a pilot with an Oxygen Deple-
tion Sensing (ODS) safety shut off system. The
ODS/pilot is a required feature for vent-free room
heaters. The ODS/pilot shuts off the heater if there
is not enough fresh air.
This heater has a piezo ignitor. This system re-
quires no matches, batteries or other sources to
light heater.
AIR FOR COMbUSTION
AND VENTILATION
WARNING: This heater shall
-
-
Today’s homes are built more energy efcient
than ever. New materials, increased insulation and
new construction methods help reduce heat loss
in homes. Home owners weather strip and caulk
around windows and doors to keep the cold air out
and the warm air in. During heating months, home
owners want their homes as airtight as possible.
While it is good to make your home energy ef-
cient, your home needs to breathe. Fresh air must
enter your home. All fuel-burning appliances need
fresh air for proper combustion and ventilation.
www.desatech.com 120163-01A6
Exhaust fans, replaces, clothes dryers and fuel
burning appliances draw air from the house to
operate. You must provide adequate fresh air for
these appliances. This will insure proper venting
of vented fuel-burning appliances.
VENTILATION
The following are excerpts from National Fuel
Gas Code, ANSI Z223.1/NFPA 54, Section 5.3,
Air for Combustion and Ventilation.
All spaces in homes fall into one of the three fol-
lowing ventilation classications:
1. Unusually Tight Construction
2. Unconned Space
3. Conned Space
The information on pages 5 through 7 will help
you classify your space and provide adequate
ventilation.
The air that leaks around doors and windows
may provide enough fresh air for combustion and
ventilation. However, in buildings of unusually
tight construction, you must provide additional
fresh air.
as construction where:
-
and
and

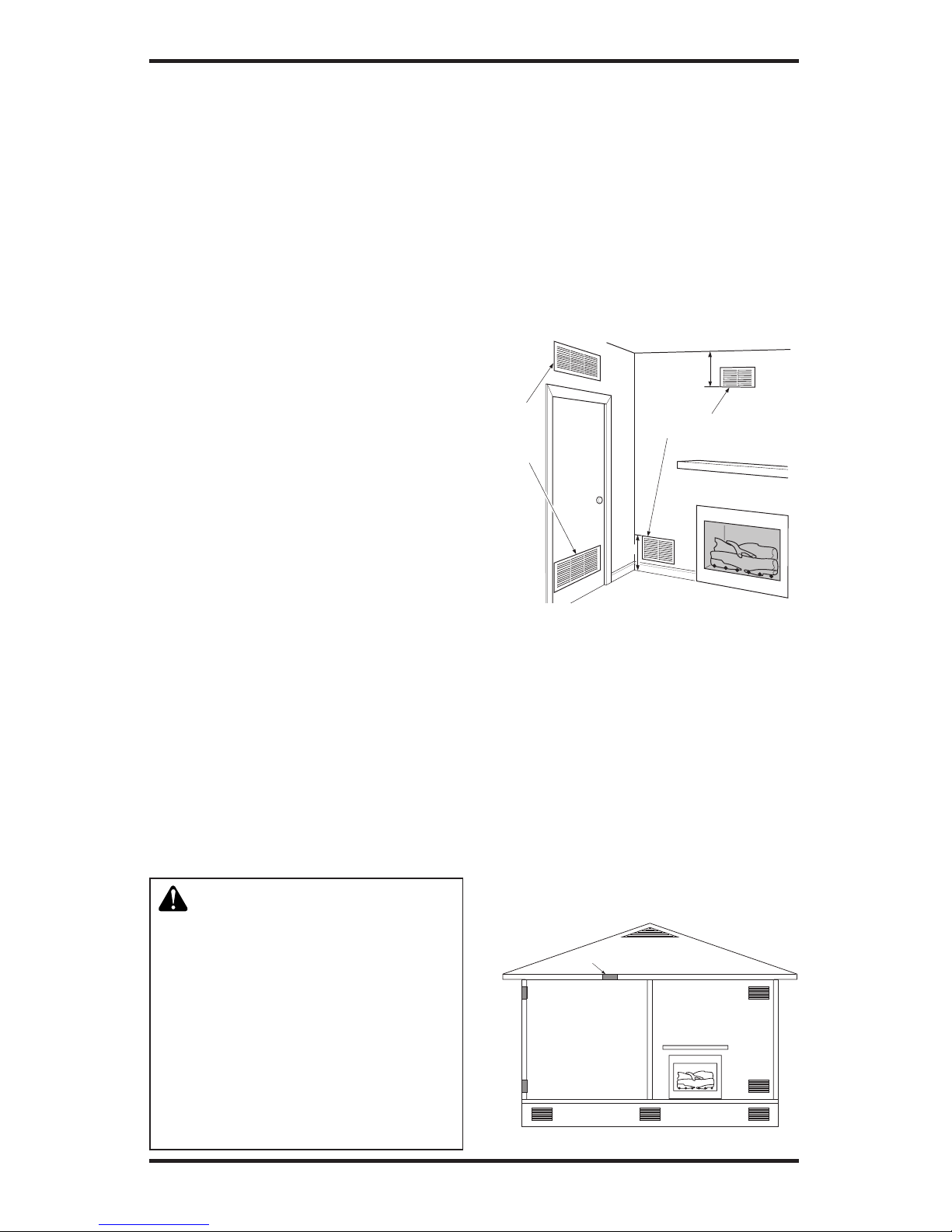

If your home meets all of the three
-
Ventilation Air
From Outdoors
If your home does not meet all of the three
Determining
Fresh-Air Flow For Appliance Location
The National Fuel Gas Code, ANSI Z223.1/NFPA
54 denes a conned space as a space whose vol-
ume is less than 50 cubic feet per 1,000 Btu per hour
(4.8 m3 per kw) of the aggregate input rating of all
appliances installed in that space and an unconned
space as a space whose volume is not less than 50
cubic feet per 1,000 Btu per hour (4.8 m3 per kw) of
the aggregate input rating of all appliances installed
in that space. Rooms communicating directly with
the space in which the appliances are installed*,
through openings not furnished with doors, are
considered a part of the unconned space.
* Adjoining rooms are communicating only if
there are odorless passageways or ventilation grills
between them.
DETERMINING FRESH-AIR FLOW
Use this work sheet to determine if you have a
conned or unconned space.
Includes the room in which you will install
appliance plus any adjoining rooms with door-
less passageways or ventilation grills between
the rooms.
1. Determine the volume of the space (length x
width x height).
Length x Width x Height =_________cu. ft.
(volume of space)
Example: Space size 20 ft. (length) x 16 ft.
(width) x 8 ft. (ceiling height) = 2560 cu. ft.
(volume of space)
If additional ventilation to adjoining room is sup-
plied with grills or openings, add the volume of
these rooms to the total volume of the space.
2. Multiply the space volume by 20 to determine
the maximum Btu/Hr the space can support.
____________(volume of space) x 20 =
(Maximum Btu/Hr the space can support)
Example: 2560 cu. ft. (volume of space) x
20 = 51,200 (maximum Btu/Hr the space can
support)
3. Add the Btu/Hr of all fuel burning appliances
in the space.
Vent-free appliance _________Btu/Hr
Gas water appliance* _________ Btu/Hr
Gas furnace _________Btu/Hr
Vented gas appliance _________Btu/Hr
Gas replace logs _________Btu/Hr
Other gas appliances* +_________Btu/Hr
Total =_________Btu/Hr
AIR FOR COMbUSTION
AND VENTILATION
Continued
www.desatech.com
120163-01A 7
* Do not include direct-vent gas appliances.
Direct-vent draws combustion air from the
outdoors and vents to the outdoors.
Example:
Gas water appliance _________Btu/Hr
Vent-free appliance +_________Btu/Hr
Total =_________Btu/Hr
4. Compare the maximum Btu/Hr the space can
support with the actual amount of Btu/Hr used.
___________ Btu/Hr (maximum the space
can support)
____________Btu/Hr (actual amount of
Btu/Hr used)
Example: 51,200 Btu/Hr (maximum the
space can support)
73,000 Btu/Hr (actual amount of
Btu/Hr used)
The space in the previous example is a conned
space because the actual Btu/Hr used is more than
the maximum Btu/Hr the space can support. You
must provide additional fresh air. Your options
are as follows:
A. Rework worksheet, adding the space of an
adjoining room. If the extra space provides an
unconned space, remove door to adjoining
room or add ventilation grills between rooms.
See Ventilation Air From Inside Building.
B. Vent room directly to the outdoors. See Ven-
tilation Air From Outdoors.
C. Install a lower Btu/Hr appliance, if lower
Btu/Hr size makes room unconned.
If the actual Btu/Hr used is less than the
maximum Btu/Hr the space can support, the
space is an unconned space. You will need
no additional fresh air ventilation.
WARNING:Iftheareainwhich
in the National Fuel Gas Code,
ANSI Z223.1/NFPA54 Section 5.3
VENTILATION AIR
This fresh air would come from an adjoining un-
conned space. When ventilating to an adjoining
unconned space, you must provide two perma-
nent openings: one within 12" of the ceiling and
one within 12" of the oor on the wall connecting
the two spaces (see options 1 and 2, Figure 2). You
can also remove door into adjoining room (see
option 3, Figure 2). Follow the National Fuel Gas
Code, ANSI Z223.1/NFPA 54, Section 5.3, Air for
Combustion and Ventilation for required size of
ventilation grills or ducts.
40,000
33,000
73,000
AIR FOR COMbUSTION
AND VENTILATION
Continued
Figure 2 - Ventilation Air from Inside
Building
Or
Remove
Door into
Adjoining
Room,
Option
3
Ventilation Grills
Into Adjoining Room,
Option 2
Ventilation
Grills Into
Adjoining
Room,
Option 1
12"
12"
Ventilation Air From Outdoors
Provide extra fresh air by using ventilation grills or
ducts. You must provide two permanent openings:
one within 12" of the ceiling and one within 12"
of the oor. Connect these items directly to the
outdoors or spaces open to the outdoors. These
spaces include attics and crawl spaces. Follow the
National Fuel Gas Code, ANSI Z223.1/NFPA 54,
Section 5.3, Air for Combustion and Ventilation for
required size of ventilation grills or ducts.
IMPORTANT: Do not provide openings for inlet
or outlet air into attic if attic has a thermostat-
controlled power vent. Heated air entering the attic
will activate the power vent.
Figure 3 - Ventilation Air from Outdoors
Outlet
Air
Ventilated
Attic
Outlet
A
ir
Inlet
Air
Inlet Air Ventilated
Crawl Space
To
Crawl
Space
To Attic
www.desatech.com 120163-01A8
INSTALLATION
-
-
-
WARNING: Make sure the
-
-
-
WARNING: Seal any fresh
air vents or ash clean-out doors
-
WARNING: Never install
the heater
•
unless installed as a vented
• in a recreational vehicle
• where curtains, furniture,
heater
• in windy or drafty areas
-
currents move heat to wall sur-
heater next to vinyl or cloth wall
-
the air exist, may discolor walls
IMPORTANT: Vent-free heaters add moisture to
the air. Although this is benecial, installing heater
in rooms without enough ventilation air may cause
mildew to form from too much moisture. See Air
for Combustion and Ventilation, page 5.
Use the correct gas type (natural or propane/LP) for
your unit. If your gas supply is not correct, do not
install in replace. Call dealer where you bought
the appliance for proper type of appliance.
www.desatech.com
120163-01A 9
INSTALLATION
Continued
-
WARNING: Maintain the
*Measured at 14" depth
Allow adequate clearances for accessibility for
purposes of servicing and proper operation
Carefully follow the instructions below. This will
ensure safe installation into masonry, UL127-
listed manufactured replace or listed vent-free
rebox.
A. Clearances from the side of the fireplace
cabinet to any combustible material and wall
should follow diagram in Figure 4.
Example: The face of a mantel, bookshelf,
etc. is made of combustible material must be
4" from the side of the replace to the cabinet
(see Figure 4).
B.
Clearances from the top of the replace open-
ing to the ceiling should not be less than 42".
SIDE WALL 16"
CEILING 42"
FLOOR 5"
MINIMUM FIREBOX SIZE
LOG
SIZE HEIGHT
FRONT
WIDTH
REAR
WIDTH
18" 18" 14" 30" 20.5"
24" 18" 14" 35" 24.5"
-
always run heater with chimney
-
Installing Damper Clamp Ac-
cessory for Vented Operation,
.
Note: If using a mantel proceed to If Using Mantel,
page 10. If not using mantel, follow the informa-
tion on this page.
You must have noncombustible material(s) above
the replace opening. Noncombustible materi-
als (such as slate, marble, tile, etc..) Must be at
least 1/2" thick. With sheet metal, you must have
noncombustible material behind it. Noncombus-
tible material must extend at least 8" up (for all
models). If noncombustible material is less than
12", you must install the replace hood accessory
(24" Models Only). See Figure 5, page 10, for
minimum clearances.
Figure 4 - Minimum Clearance for
Combustible to Wall
*Minimum 16 inches from Side Wall
*
Example
www.desatech.com 120163-01A10
INSTALLATION
Continued
Heat Resistant
Material
(A)
Figure 5 - Heat Resistant Material (Slate,
Marble, Tile, etc.) Above Fireplace
You must have noncombustible material(s) above
the replace opening. Noncombustible materials
(such as slate, marble, tile, etc.) must be at least
1/2" thick. With sheet metal, you must have non-
combustible material behind it. Noncombustible
material must extend at least 8" up (for all models).
If noncombustible material is less than 12", you
must install the replace hood accessory (24"
Models Only). Even if noncombustible material is
more than 12", you may need the hood accessory
to deect heat away from your mantel shelf. See
Figures 5, 6 and 7 for minimum clearances.
In addition to meeting noncombustible material
clearances, you must also meet required clearances
between replace opening and mantel shelf. If
you do not meet the clearances listed below, you
will need a hood.
If you meet minimum clearance between mantel
shelf and top of replace opening, a hood is not
required (see Figure 6).
If minimum clearances in Figure 6 are not met, you
must have a hood. When using a hood there are
still certain minimum mantel clearances required.
Follow minimum clearances shown in Figure 7
when using hood.
Figure 6 - Minimum Mantel Clearances
Without Using Hood
Figure 7 - Minimum Mantel Clearances
When Using Hood
12" or more Noncombustible
material OK.
Between 8" and 12" 24" Models:
Install replace hood
accessory (GA6050,
GA6052, GA6053, see
Accessories, page 26).
18" Model: Noncom-
bustible material OK.
Less than 8"
Noncombustible
material must be
extended to at least
8". See Between 8"
and 12", above. If you
cannot extend material,
you must operate
heater with ue damper
open and damper
clamp installed.
Minimum Non-
Combustible
Material
Minimum Non-
Combustible
Material Height
Distances to
Underside of
Mantel
Top of Fireplace
Opening
Underside of
Mantel Shelf
12"
(A)
28" 34 1/2" 38 5/8" 42"
All minimum
distances are
in inches
2 1/2"
6"
8"
10" Mantel Shelf
Minimum Non-
Combustible
Material 8"
Min.
14 1/2" 18 5/8" 22 1/2"All minimum
distances are
in inches
26"
2 1/2"
6"
8"
10"
12"
Distances to
Underside of
Mantel
Hood
(GA6050,
GA6052
or GA6053)
Top of Fireplace
Opening
Underside of
Mantel Shelf
IMPORTANT: If you cannot meet these minimum
clearances, you must operate heater with chimney
ue damper open. Go to Installing Damper Clamp
Accessory for Vented Operation, page 12.
www.desatech.com
120163-01A 11
INSTALLATION
Continued
-
-
Follow all minimum clearances
If your installation does
not meet the minimum clear-
ances shown, you must do one
• raise the mantel to an ac-
• remove the mantel
A. If installing appliance on floor level, you
must maintain minimum distance of 14" to
combustibles (see Figure 8).
B. If combustible materials are less than 14" to
replace, you must install appliance at least 5"
above combustible ooring (see Figure 9).
14"
Min.
Combustible
Material
Noncombustible
Material
Hearth
5"
Min.
Combustible
Material
Figure 8 - Minimum Fireplace Clearances
If Installed at Floor Level
Figure 9 - Minimum Fireplace Clearances
Above Combustible Flooring
Note: When used as a vented decorative, appliance
must be installed only in a solid-fuel burning
replace with a working ue and constructed of
noncombustible material.
For Massachusetts Residents Only: In-
stallation of this vented gas log set in the Com-
monwealth of Massachusetts requires the damper
be permanently removed or welded in the fully
open position.
If your heater is a non-thermostatically-controlled
model, you may use this heater as a vented product.
There are three reasons for operating your heater
in the vented mode.
1. The replace does not meet the clearance
to combustibles requirements for vent-free
operation.
2. State or local codes do not permit vent-free
operation.
3. You prefer vented operation.
If reasons number 1 or 2 above apply to you, you
must permanently open chimney ue damper. You
must install the damper clamp accessory (to order,
see Accessories, page 26). This will insure vented
operation (see Figure 10). The damper clamp will
keep damper open. Installation instructions are
included with clamp accessory.
See chart on page 12 for minimum permanent ue
opening you must provide. Attach damper clamp
so the minimum permanent ue opening will be
maintained at all times.
Figure 10 - Attaching Damper Clamp
Damper
Damper
Clamp
Damper
Manufactured
Masonry
Damper
Clamp
www.desatech.com 120163-01A12
INSTALLATION
Continued
If installing optional remote control accessory you
will need to install the remote accessory bracket
for the receiver.
Use screws provided to attach bracket to valve
bracket as shown in Figure 11.
Follow installation instructions included with
remote accessory.

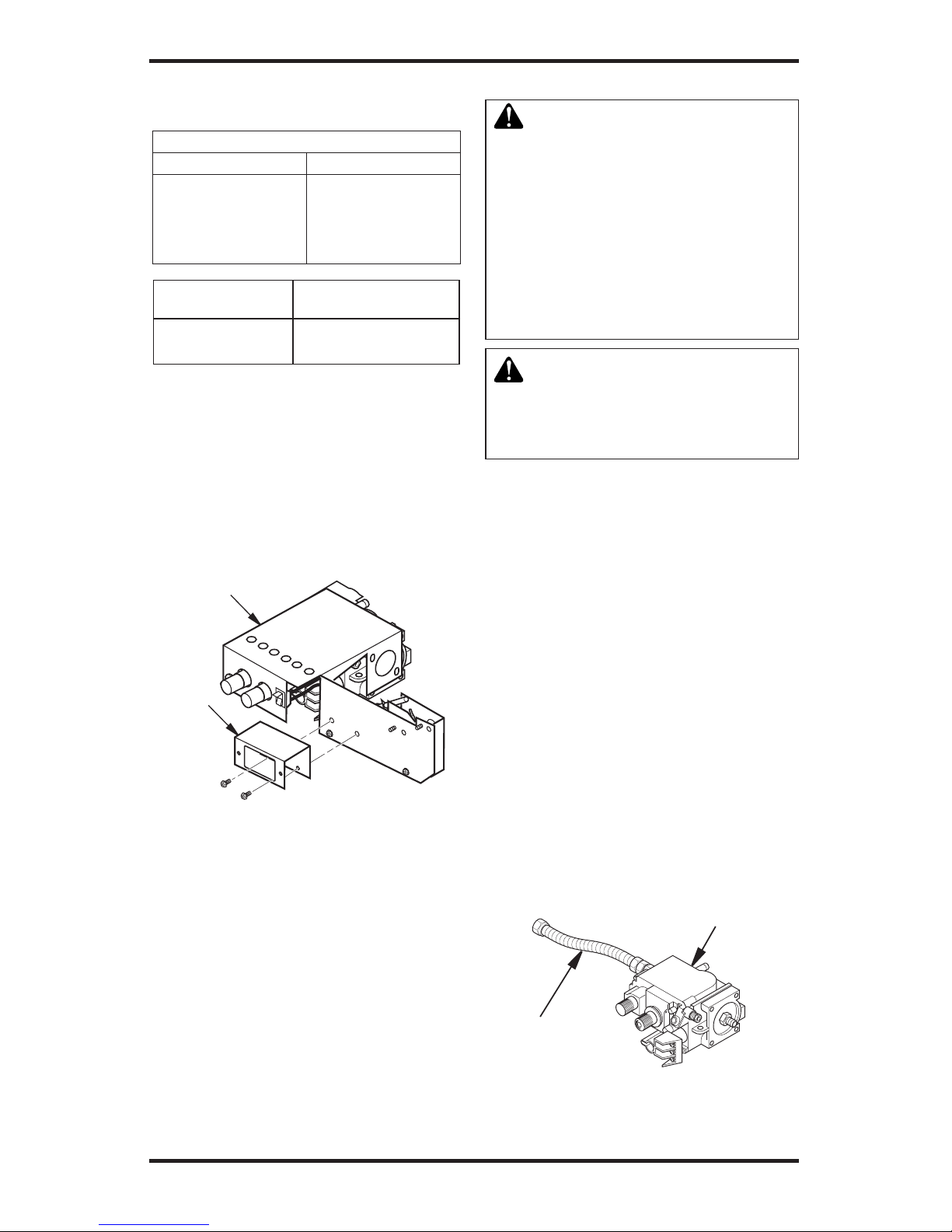

Figure 12 - Attaching Flexible Gas Hose
to Heater Gas Regulator
Gas Control Valve
Flexible Gas Hose
(if allowed by local
codes)
Area of Various Standard Round Flues
Diameter Area
5"
6"
7"
8"
20 sq. inches
29 sq. inches
39 sq. inches
51 sq. inches
6' to 15'
15' to 30'
39 sq. inches
29 sq. inches
Valve Bracket
Figure 11 - Attaching Remote Bracket to
Valve Bracket
Remote
Bracket
INSTALLING HEATER ASSEMBLY
-
IMPORTANT: Make sure the heater burners are
level. If heater is not level, heater will not work
properly.
Installation Items Needed
• control cover kit (provided with heater)
• approved exible gas hose and ttings (pro-
vided with heater) (if allowed by local codes)
• sealant (resistant to propane/LP gas, not
provided)
Note: Install HRC201 Receiver and Hand-Held
Remote Control Kit that is included before in-
stalling gas log heater. See installation instructions
included with the kit.
1. Apply pipe joint sealant lightly to male
threads of gas tting (not provided). Connect
approved exible gas hose to inlet side of gas
control (see Figure 12).
2. Position heater assembly in replace.
3. Connect to gas supply. See Connecting To
Gas Supply, page 13.
www.desatech.com
120163-01A 13
INSTALLATION
Continued
-
WARNING: Never connect
Installation Items Needed
Before installing heater, make sure you have the
items listed below.
• external regulator (supplied by installer)
• piping (check local codes)
• sealant (resistant to propane/LP gas)
• equipment shutoff valve *
• test gauge connection *
• sediment trap
• tee joint
• pipe wrench
• approved exible gas line with gas connector
(if allowed by local codes) (provided)
* A CSA design-certied equipment shutoff valve
with 1/8" NPT tap is an acceptable alternative to
test gauge connection. Purchase the optional CSA
design-certied equipment shutoff valve from your
dealer. See Accessories, page 26.

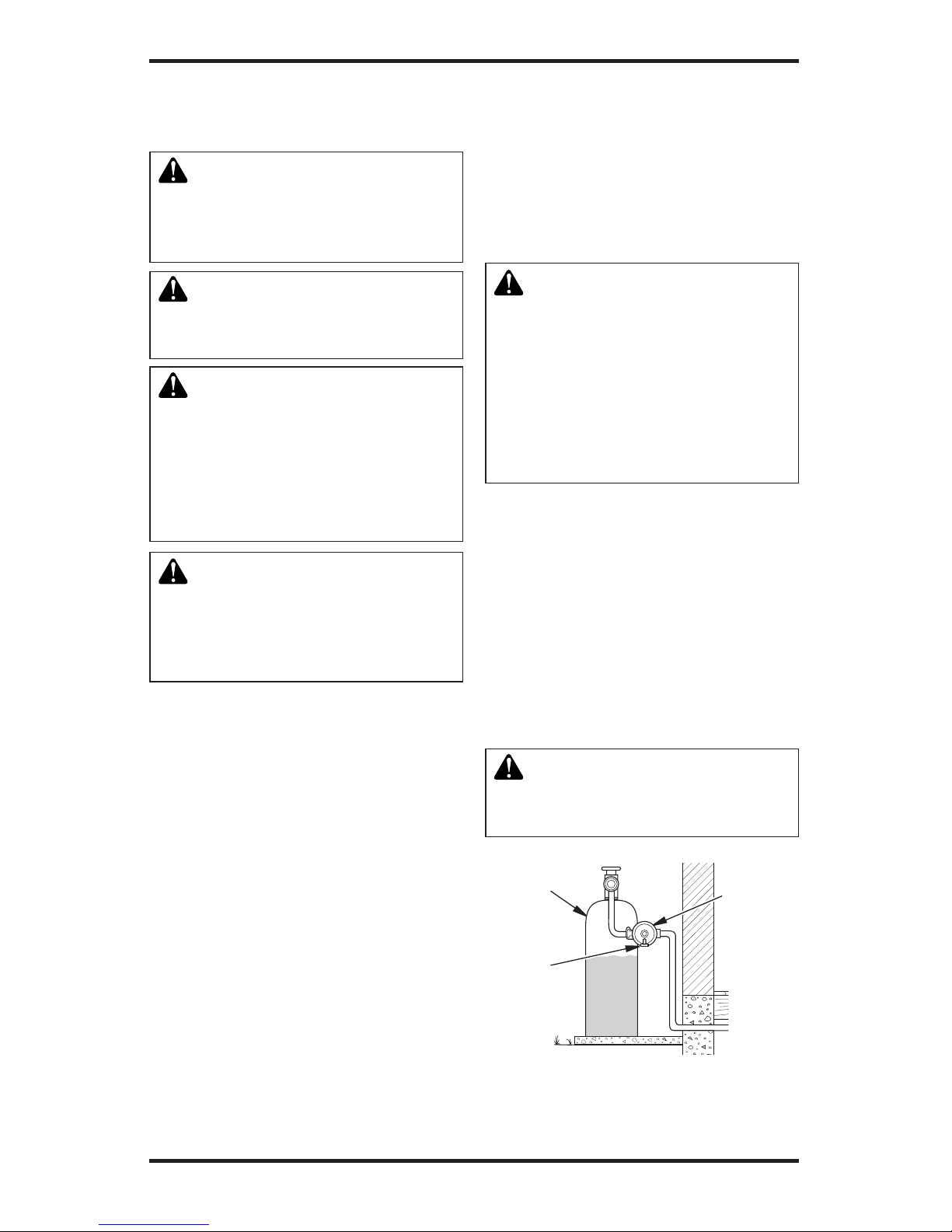

Propane/LP
Supply Tank External
Regulator
Figure 13 - External Regulator With Vent
Pointing Down
Vent
Pointing
Down
For propane/LP units, the installer must supply
an external regulator. The external regulator will
reduce incoming gas pressure. You must reduce
incoming gas pressure to between 11" and 14" of
water. If you do not reduce incoming gas pres-
sure, heater regulator damage could occur. Install
external regulator with the vent pointing down
as shown in Figure 13. Pointing the vent down
protects it from freezing rain or sleet.
-
Installation must include an equipment shutoff
valve, union and plugged 1/8" NPT tap. Locate
NPT tap within reach for test gauge hook up. NPT
tap must be upstream from heater (see Figure 14,
page 14).
IMPORTANT: Install equipment shutoff valve in
an accessible location within 6 feet of the appli-
ance. The equipment shutoff valve is for turning
on or shutting off the gas to the appliance.
Apply pipe joint sealant lightly to male NPT
threads. This will prevent excess sealant from
going into pipe. Excess sealant in pipe could result
in clogged heater valves.
www.desatech.com 120163-01A14
INSTALLATION
Continued
and connections for leaks after
WARNING: Never use an
-
-
-
-
lines under Connecting to Gas
Supply
1. Disconnect appliance with its appliance main
gas valve (control valve) and equipment
shutoff valve from gas supply piping system.
Pressures in excess of 1/2 psig will damage
heater regulator.
2. Cap off open end of gas pipe where equipment
shutoff valve was connected.
3. Pressurize supply piping system by either
opening propane/LP supply tank valve for
propane/LP gas or opening main gas valve
located on or near gas meter for natural gas
or using compressed air.
4. Check all joints of gas supply piping system.
Apply noncorrosive leak detection uid to all
joints. Bubbles forming show a leak.
5. Correct all leaks at once.
6. Reconnect heater and equipment shutoff
valve to gas supply. Check reconnected t-
tings for leaks.
* Purchase the optional CSA design-certified
equipment shutoff valve from your dealer. See
Accessories, page 26.
**Minimum inlet pressure for purpose of input
adjustment.

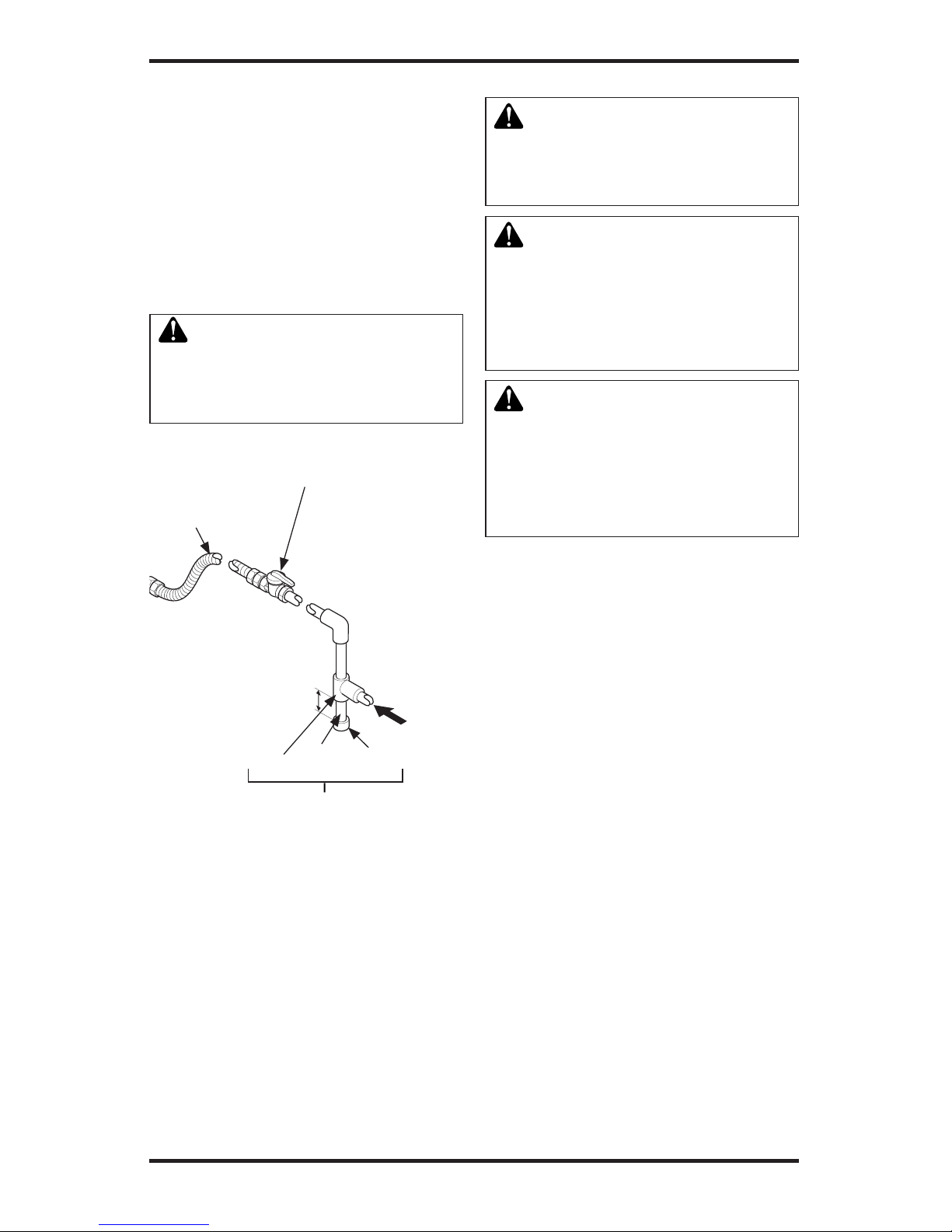

Figure 14 - Gas Connection
To Gas
Control
Valve
3" Minimum
Sediment Trap
- From External
Regulator (11"
W.C.** To 14"
W.C. Pressure)
Natural - From
Gas Meter (5"
W.C.**
To 10.5" W.C.
Pressure)
CSA Design-Certied
Equipment Shutoff Valve
With 1/8" NPT Tap*
Approved
Flexible Gas
Hose (if allowed
by local codes)
Tee Pipe Cap
Joint Nipple
We recommend that you install a sediment trap in
supply line as shown in Figure 14. Locate sediment
trap where it is within reach for cleaning. Install
in piping system between fuel supply and heater.
Locate sediment trap where trapped matter is not
likely to freeze. A sediment trap traps moisture and
contaminants. This keeps them from going into
heater controls. If sediment trap is not installed or
is installed wrong, heater may not run properly.
www.desatech.com
120163-01A 15
1. Close equipment shutoff valve (see Figure 15).
2. Pressurize supply piping system by either
opening propane/LP supply tank valve for
propane/LP gas or opening main gas valve
located on or near gas meter for natural gas
or using compressed air.
3.
Check all joints from gas meter to equipment
shutoff valve for natural gas or propane/LP sup-
ply to equipment shutoff valve for propane/LP
(see Figure 16 or 17). Apply noncorrosive leak
detection uid to all joints. Bubbles forming
show a leak.
4. Correct all leaks at once.
INSTALLATION
Continued

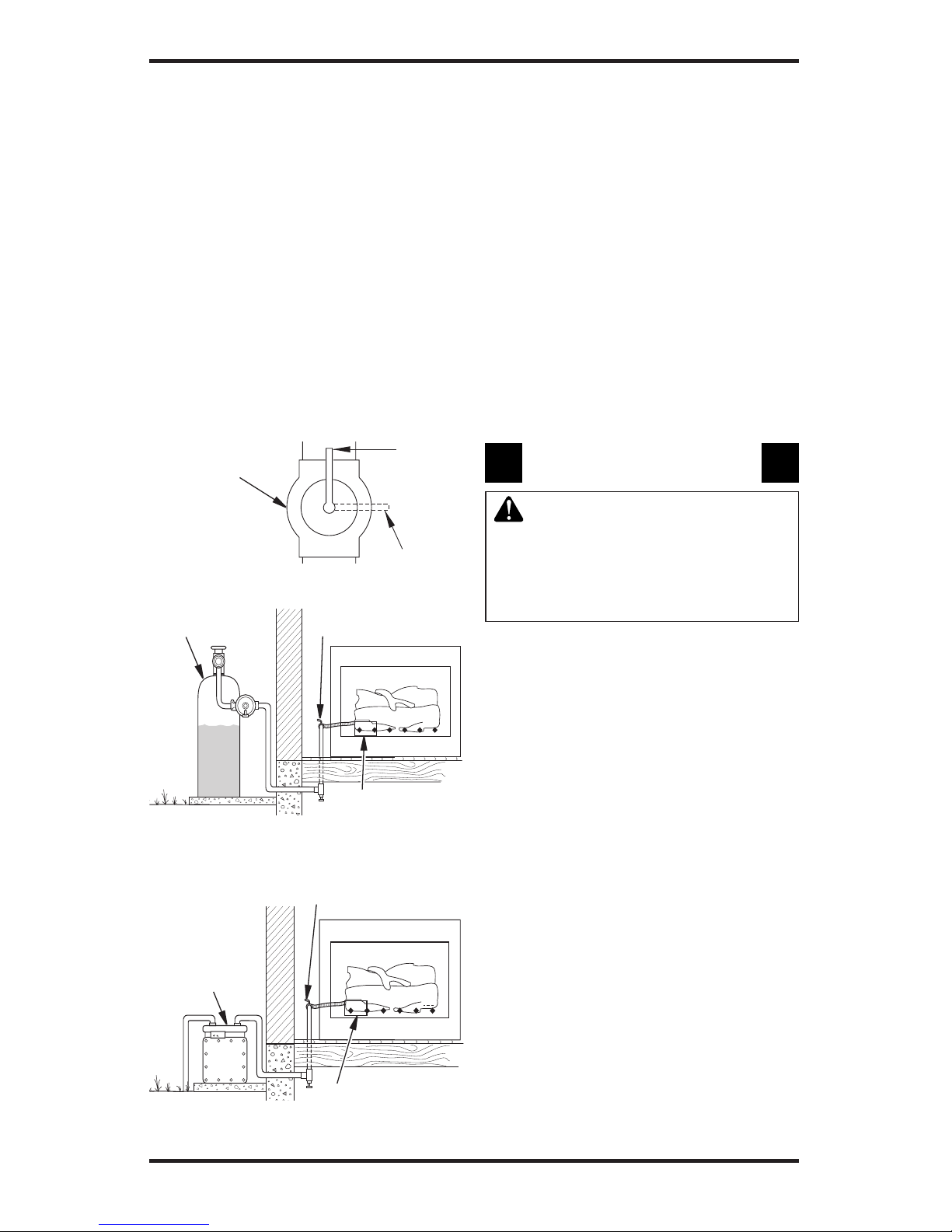

Figure 15 - Equipment Shutoff Valve
Figure 17 - Checking Gas Joints
(Natural Gas Only)
Control Valve
Location
Equipment
Shutoff Valve
Propane/LP
Supply Tank
Equipment
Shutoff Valve
Gas Meter
Figure 16 - Checking Gas Joints
(Propane/LP Gas Only)
Control Valve
Location
1. Open equipment shutoff valve (see Figure 15).
2. Open main gas valve located on or near gas
meter for natural gas or open propane/LP
supply tank valve.
3. Make sure control knob of heater is in the OFF
position.
4. Check all joints from equipment shutoff valve
to gas control (see Figures 16 and 17). Apply
noncorrosive leak detection uid to all joints.
Bubbles forming show a leak.
5. Correct all leaks at once.
6. Light heater (see Operating Heater, page 16).
Check all other internal joints for leaks.
7. Turn off heater.
Equipment
Shutoff
Valve
Open
Closed
OPERATING HEATER
FOR YOUR SAFETY
READ BEFORE LIGHTING
WARNING: If you do not fol-
low these instructions exactly,
-
A. This appliance has a pilot which must be
lighted by hand. When lighting the pilot,
follow these instructions exactly.
B. BEFORE LIGHTING smell all around the
appliance area for gas. Be sure to smell next
to the oor because some gas is heavier than
air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not
use any phone in your building.
• Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier, call
the re department.
C. Use only your hand to push in or turn the
gas control knob. Never use tools. If the
knob will not push in or turn by hand, don’t
try to repair it, call a qualied service tech-
nician or gas supplier. Force or attempted
repair may result in a re or explosion.
D. Do not use this appliance if any part has
been under water. Immediately call a
qualied service technician to inspect the
appliance and to replace any part of the
control system and any gas control which
has been under water.
www.desatech.com 120163-01A16
LIGHTING
WARNING
-
erate heater with doors closed,
-
-
Note: Home owners generally prefer to op-
erate their heater with the chimney damper
closed. This will put all the heat into the room.
However, there may be times you will desire
the full ames of the HI heat setting but will
nd the heat output excessive. You can open
the chimney damper (if you have one) fully or
partially to release some of the heat.
1.
STOP! Read the safety information,
page 15.
2. Make sure equipment shutoff valve is fully
open.
3. Set switch in the OFF position.
4. Press in and turn control knob clockwise
to the OFF position (see Figure 18).
WARNING: Burners will
come on automatically within
one minute when the switch
5. Wait ve (5) minutes to clear out any gas.
Then smell for gas, including near the oor.
If you smell gas, STOP! Follow “B” in the
safety information on page 15. If you don’t
smell gas, go to the next step.
6. Press in and turn control knob counter-
clockwise to the PILOT position.
Press in control knob for ve (5) seconds
(see Figure 18).
Note: You may be running this heater for
the rst time after hooking up to gas sup-
ply. If so, the control knob may need to be
pressed in for 30 seconds or more. This will
allow air to bleed from the gas system.
7. With control knob pressed in, press and
release ignitor button. This will light pilot.
The pilot is attached to the front burner. If
needed, keep pressing ignitor button until
pilot lights.
Note: If pilot does not stay lit, contact a
qualied service person or gas supplier for
repairs. Until repairs are made, light pilot
with match. To light pilot with match, see
Manual Lighting Procedure, page 18.
8. Keep control knob pressed in for 30 seconds
after lighting pilot.After 30 seconds, release
control knob.
• If control knob does not pop out when
released, contact a qualied service person
or gas supplier for repairs.
Note: If pilot goes out, repeat steps 4
through 8.
9. Slightly push in and turn control knob coun-
terclockwise to the ON position.

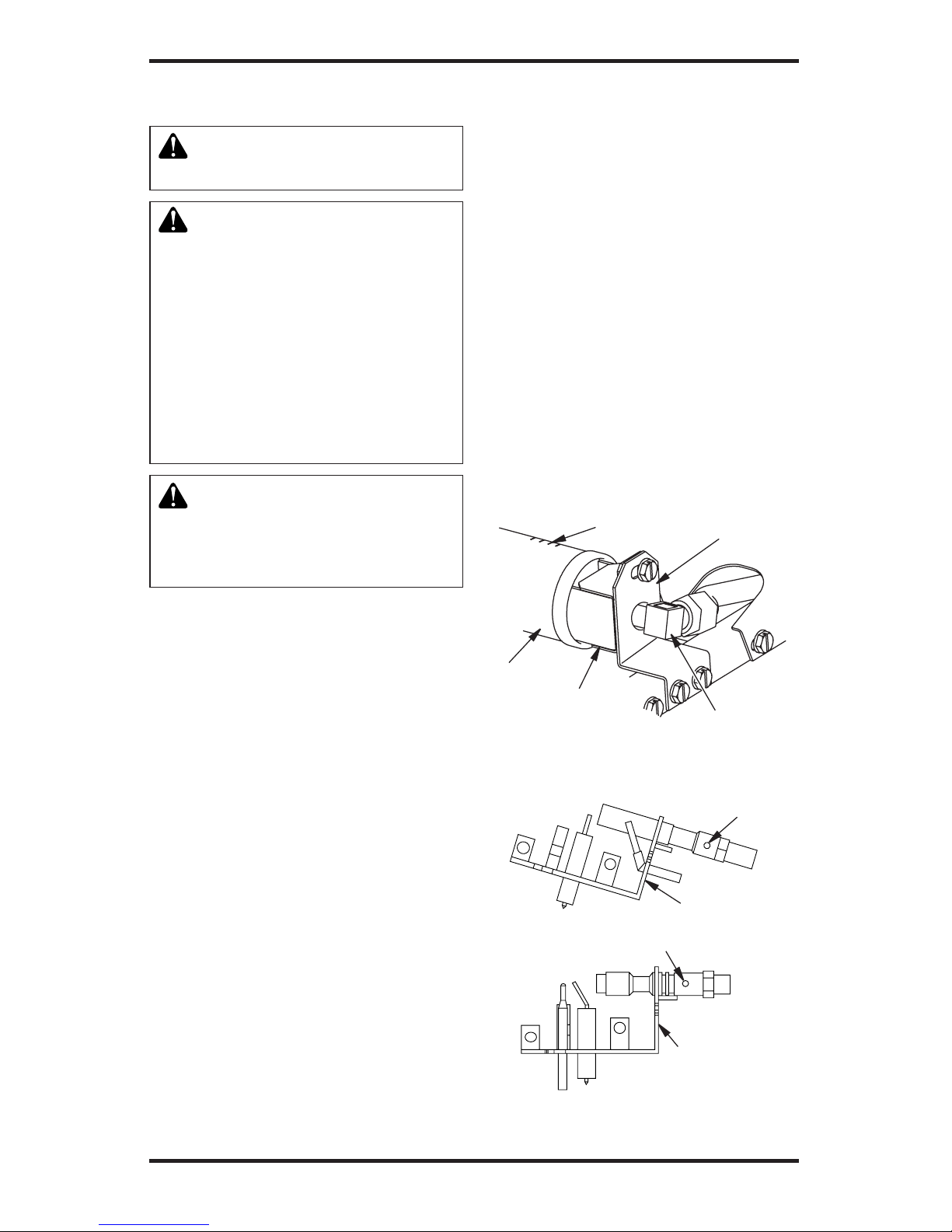

Figure 18 - Control Knob and Ignitor
Button Location, Manual Controlled
Piezo Ignitor
Switch
Control Knob
Flame Adjustment Knob
OPERATING HEATER
Continued
www.desatech.com
120163-01A 17
OPERATING HEATER
Continued
10. Wait one minute and switch selector switch
to the ON position to light burners. Note:
AUTO is only functional when using
GWMT1 or GWMS2 optional accessories.
11. Set ame adjustment knob to any level
between HI and LO.
12. To leave pilot lit and shut off burners only:
turn control knob clockwise to the
PILOT position, or use remote control
manual OFF button, or set selector switch
in the OFF position.
-
WARNING: Make sure the
selector switch is in the OFF
-
matically with selector switch in
Figure 18 - Pilot
Ignitor
Electrode
Pilot
Burner
Natural
Ignitor
Electrode
Pilot
Burner
TO TURN OFF GAS
1. Turn control knob clockwise to the
OFF position.
2a. Set selector switch in the OFF position.
2b. Set se-
lector switch in the OFF position to prevent
draining battery.
3. Close equipment shutoff valve (see Figure
15, page 15).
MANUAL LIGHTING
1. Follow steps 1 through 6 under Lighting
Instructions, page 16.
2. Depress control knob and light pilot with
match.
3. Keep control knob pressed in for 30 seconds
after lighting pilot.After 30 seconds, release
control knob. Now follow steps 9 through
11, Lighting Instructions, page 17.
Note: A thermostat remote control is included
with your unit. Follow instructions included
with the remote control.
-
Lighting
Instructions
After lighting, let pilot ame burn for about
one minute. Turn control knob to ON posi-
tion. Adjust ame adjustment knob anywhere
between HI and LO. Slide the selector switch
to the REMOTE position (see Figure 20).
Note: The burner may light if hand-held
remote was on when selector switch was last
turned off. You can now turn the burner on and
off with the hand-held remote control unit.
IMPORTANT: Do not leave the selector switch
in the REMOTE or ON position when the pilot
is not lit. This will drain the battery.
Figure 20 - Setting the Selector Switch,
Control Knob and Flame Adjustment
Knob for Remote Operation
Selector Switch in
REMOTE Position
REMOTE
OFF
ON
Piezo
Ignitor
Control Knob
Flame
Adjustment
Knob
www.desatech.com 120163-01A18
OPERATING HEATER
Continued
THERMOSTAT SERIES (MODEL
The hand-held remote can be operated using
either the manual mode (MANU) or thermo-
static mode (AUTO) (see Figure 21). To select
Fahrenheit/Centigrade mode display, carefully
press the ˚C/˚F mode button with the end of a
paper clip or similar blunt object.
Manual Mode
1. Press the POWER and LOCK buttons
together to turn on the hand-held remote
control.
2. Press the MANU button to turn on the
replace.
3. Press the POWER and LOCK buttons
together to turn off the replace.
1. Press the POWER and LOCK buttons
together to turn on the hand-held remote
control.
2. Press AUTO button to select this mode.
3. Set the desired room temperature by press-
ing the TEMP + or - buttons.
4. Press the POWER and LOCK buttons
together to turn off the replace.
Note: Do not leave the hand-held remote in the
AUTO mode close to the replace. The radiant
heat from the replace will turn off the replace.
Ideally, place the hand-held remote in the center
of the room facing towards the replace.
Note: Do not hold the hand-held remote for
a long time. Body temperature will affect its
operation in the AUTO mode.
Safety Features
When away from home for an extended period
of time or as a child safety feature to prevent
accidental ignition of the replace, the receiver
ON/OFF/REMOTE switch should be in the
OFF position.
Auto Shutoff Feature
1. If the average room temperature reaches a
range of 82° F (28° C) to 92° F (33° C), the
hand-held remote control will perform a
safety override and shut the replace off.
This feature is not available in the MANU
mode.
2. The receiver continuously receives signals
from the hand-held remote to control the
room temperature. If the hand-held remote
is misplaced, obstructed or for any reason
cannot transmit to the receiver, the receiver
will shut off the replace. This will occur
in eight or more minutes depending upon
location of remote transmitter and strength
of batteries.
This feature allows the user to lock/unlock
the keypad on the hand-held remote in the
MANU or AUTO mode to prevent inadvertent
operation (i.e. children operating the hand-held
remote control, etc.). The keypad is locked in
either on or off. Press the POWER and LOCK
buttons together to turn the unit on or off.

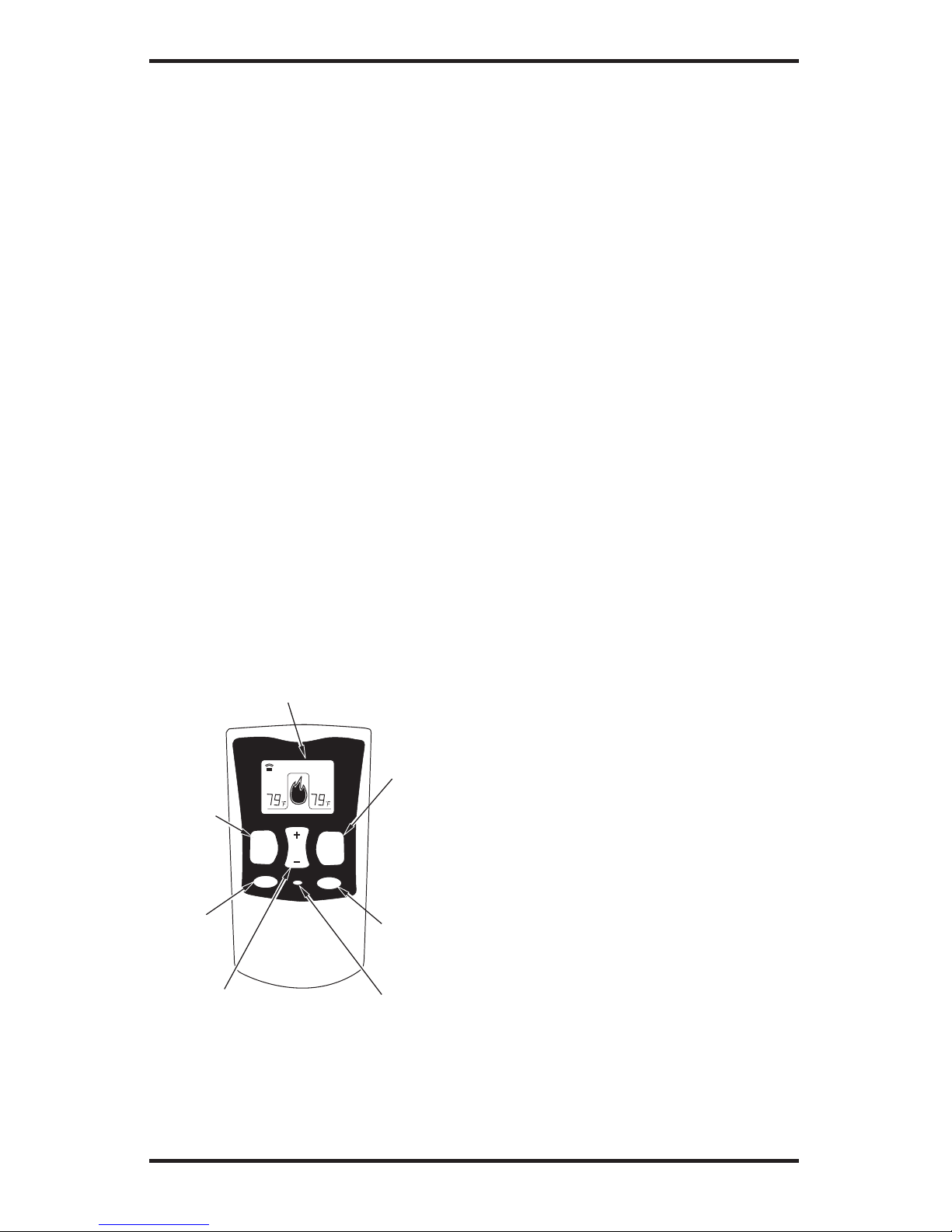

Figure 21 - Thermostat Hand-Held
Remote Control Unit (HRC201)
LOCK
MANU AUTO
ºC/ºF
TEMP POWER
ROOM
TEMP
SET
TEMP
AUTO
Turns Hand-
Held Remote
On or Off and
Allows You
to Choose
the Manual
Setting
Selects
AUTO
Mode
°C/°F Mode
Button
Locks
System to
Prevent
Accidental
Ignition
Turns
Burners
On or Off
Increases or Decreases
Room Temperature in AUTO
Mode
Digital Display Shows
Temperature and Settings
www.desatech.com
120163-01A 19

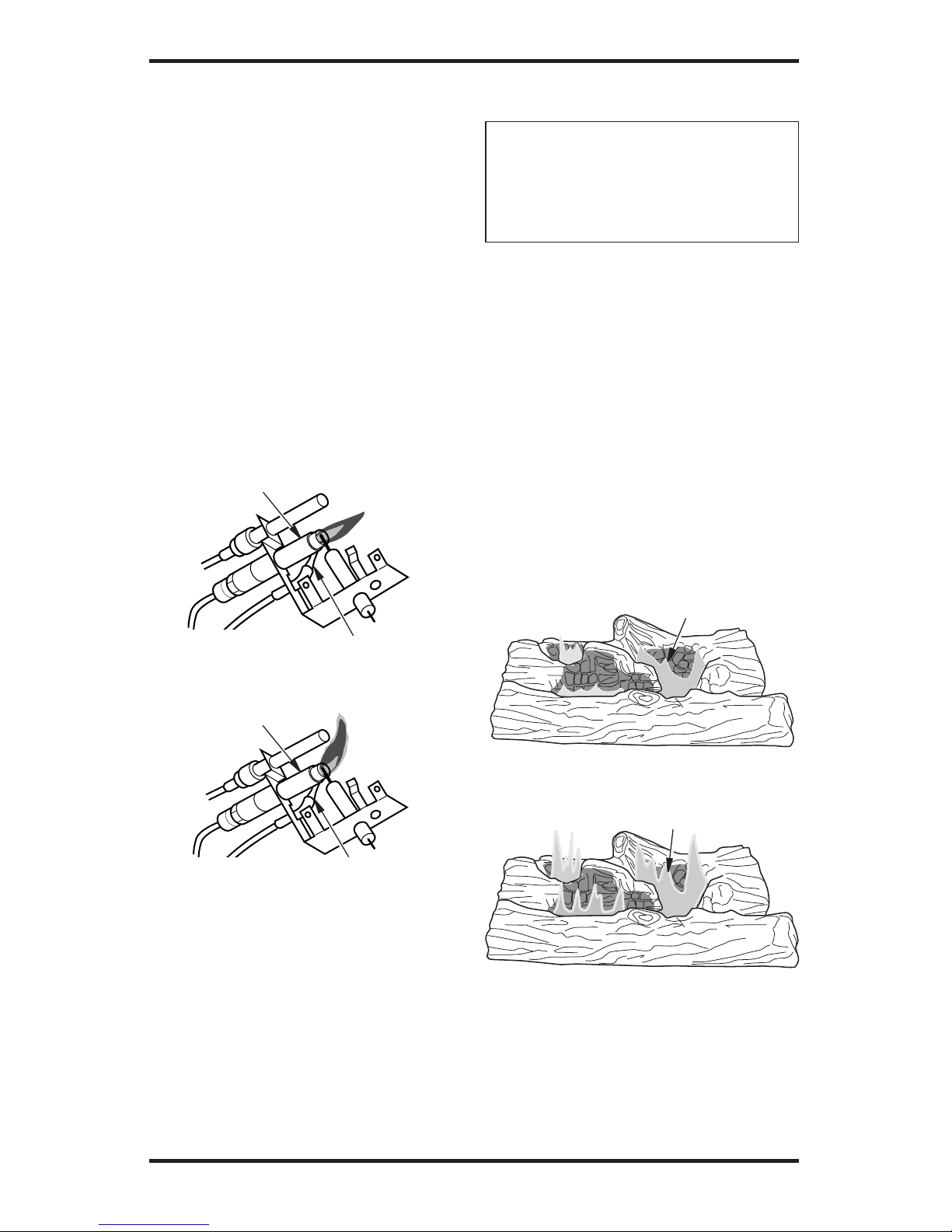

Figure 22 - Correct Pilot Flame Pattern
(Your pilot may vary from pilot shown)
Pilot Burner
Thermocouple
Figure 23 - Incorrect Pilot Flame Pattern
(Your pilot may vary from pilot shown)
Pilot Burner
Thermocouple
Figure 24 shows correct burner ame pattern.
If burner ame pattern is incorrect, as shown in
Figure 25
• turn heater off (see To Turn Off Gas to Appli-
ance, page 17)
• see Troubleshooting, page 22
The ames from the burner travel horizontally
through the log set and emerge at the middle and
rear of the set against the back logs.
The ames are blue off the burner and as they
progress through the log set, change to a light
yellow color, yellow decorative ames are visible
as the ames exit the log set.
The base of the log set and the underside of the
top logs glow red. Natural gas models will burn
with more blue ame, while propane gas model
will burn with bright yellow ame.
Figure 24 - Correct Burner Flame Pattern
Figure 25 - Incorrect Burner Flame
Pattern
Blue and Bright
Yellow Flames
Darker Orange
Flames
INSPECTING bURNERS
Check pilot ame pattern and burner ame pat-
terns often.
Figure 22 shows a correct pilot ame pattern.
Figure 23 shows an incorrect pilot ame pattern.
The incorrect pilot flame is not touching the
thermocouple. This will cause the thermocouple
to cool. When the thermocouple cools, the heater
will shut down.
If pilot ame pattern is incorrect, as shown in
Figure 23, page 19
• turn heater off (see To Turn Off Gas to Appli-
ance, page 17)
• see Troubleshooting, page 22
Note: The pilot ame on natural gas units will
have a slight curve, but ame should be blue and
have no yellow or orange color.
www.desatech.com 120163-01A20
CLEANING AND
MAINTENANCE
WARNING: Turn off heater
-
The primary air inlet openings allow the proper
amount of air to mix with the gas. This provides
a clean burning ame. Keep these holes clear of
dust, dirt, lint and pet hair. Clean these air inlet
openings prior to each heating season. Blocked
air openings will create soot. We recommend
that you clean the unit every three months during
operation and have heater inspected yearly by a
qualied service person.
We also recommend that you keep the burner
tube and pilot assembly clean and free of dust and
dirt. To clean these parts we recommend using
compressed air no greater than 30 PSI. Your local
computer store, hardware store or home center
may carry compressed air in a can. You can use a
vacuum cleaner in the blow position. If using com-
pressed air in a can, please follow the directions on
the can. If you don't follow directions on the can,
you could damage the pilot assembly.
1. Shut off the unit, including the pilot. Allow
the unit to cool for at least thirty minutes.
2. Inspect burner, pilot and primary air inlet
opening on injector holder for dust and dirt
(see Figure 26).
Figure 26 - Injector Holder On Outlet
Burner Tube
Burner
Tube
Injector
Holder
Injector
Primary Air
Inlet Opening
(At Bottom)
Ports
Slots
Figure 27 - Pilot Inlet Air Hole (Your pilot
may vary from pilots shown)
Pilot Assembly
Pilot Air Inlet Hole
Pilot Assembly
Pilot Air Inlet Hole
3. Blow air through the ports/slots and holes in
the burner.
4. Check the injector holder located at the end
of the burner tube again. Remove any large
particles of dust, dirt, lint or pet hair with a
soft cloth or vacuum cleaner nozzle.
5. Blow air into the primary air opening on the
injector holder.
6. In case any large clumps of dust have now been
pushed into the burner repeat steps 3 and 4.
Clean the pilot assembly also. A yellow tip on the
pilot ame indicates dust and dirt in the pilot as-
sembly. There is a small pilot air inlet hole about
two inches from where the pilot ame comes out
of the pilot assembly (see Figure 27). With the
unit off, lightly blow air through the air inlet hole
in the same direction as gas ow. You may blow
through a drinking straw if compressed air is not
available. This hole is accessible from the front
of the unit through an L-shaped hole in the valve
bracket (see Figure 28, page 20).
Natural
This manual suits for next models
3
Table of contents
Other Comfort Glow Gas Heater manuals
Comfort Glow
Comfort Glow HFVMR18 Quick start guide
Comfort Glow
Comfort Glow CGR18PT Quick start guide
Comfort Glow
Comfort Glow CGN20TB Quick start guide
Comfort Glow
Comfort Glow Brentwood LCF18 User manual
Comfort Glow
Comfort Glow GLD1856T User manual
Comfort Glow
Comfort Glow CGP20T Quick start guide
Comfort Glow
Comfort Glow CCL3018NR Quick start guide
Comfort Glow
Comfort Glow CGP20TB Quick start guide
Comfort Glow
Comfort Glow CGS2718N Quick start guide
Comfort Glow
Comfort Glow GHN 18 Manual
Comfort Glow
Comfort Glow CCL3018N Quick start guide
Comfort Glow
Comfort Glow (VENT-FREE) GAS STOVE HEATER Operation manual
Comfort Glow
Comfort Glow CCL3018NR Quick start guide
Comfort Glow
Comfort Glow GLD2466R User manual
Comfort Glow
Comfort Glow CGD3924NR Quick start guide
Comfort Glow
Comfort Glow CGD3924PRA Quick start guide
Comfort Glow
Comfort Glow Comfort Glow RFN28TC Quick start guide
Comfort Glow
Comfort Glow CRP16, CRP16T, CRN18, CRN18T CRP26 User manual
Comfort Glow
Comfort Glow CGR18N Quick start guide
Comfort Glow
Comfort Glow KWD216 User manual
Popular Gas Heater manuals by other brands
variolux
variolux V-GBF 4.2 Original instructions
COZY
COZY BFT101 and Installation and operation instructions
SignitePro
SignitePro CA30000 manual
New Buck Corporation
New Buck Corporation 384 owner's manual
Desa
Desa Vanguard GVC50NA OWNER'S OPERATION AND INSTALLATION MANUAL
Golden Blount
Golden Blount CBF18VF+OMEGA18NM Installation and operating instructions
HearthRite
HearthRite HRSQ25MV User's manual and operating instructions
DutchWest
DutchWest 2466 Installation and operating manual
Vermont Castings
Vermont Castings 3926 Homeowner's installation and operating manual
Illusion
Illusion Esprit EGL63NG Owner's instructions & installation manual
Superior Fireplaces
Superior Fireplaces BGE18NE Installation and operation instruction
HearthStone
HearthStone 8050 Owner's manual & installation guide
