WARNING: If the information in this manual is not fol-
— WHAT TO DO IF YOU SMELL GAS
• Do not touch any electrical switch; do not use any
-
VENTED DECORATIVE NATURAL GAS LOGS
OWNER’S OPERATION AND INSTALLATION MANUAL
RGA 2-72
APPROVED
TESTED AND
LISTED BY
SEDONA
MODELS LSLR18 AND LSLR24
www.desatech.com 115006-01C2
-
-
-
-
National Fuel Gas Codes, ANSI
Z233.1/NFPA 54, Section 5.3, Air for Combustion and
Ventilation.
-
-
TAbLE OF CONTENTS
Safety Information ............................................... 3
Product Identication........................................... 4
Local Codes......................................................... 4
Unpacking............................................................ 4
Installation ........................................................... 5
Operating Appliance ............................................ 9
Cleaning and Maintenance................................ 10
Service Hints ..................................................... 10
Technical Service............................................... 10
Replacement Parts ............................................ 10
Troubleshooting..................................................11
Accessories ....................................................... 13
Illustrated Parts Breakdown and Parts List........ 14
Warranty Information ...........................Back Cover
www.desatech.com
115006-01C 3
SAFETy INFORMATION
-
known to the State of California
Early signs of carbon
monoxide poisoning resemble the u, with head-
aches, dizziness or nausea. If you have these signs,
the log set may not be working properly. Get fresh
air at once! Have log set serviced. Some people
are more affected by carbon monoxide than others.
These include pregnant women, people with heart
or lung disease or anemia, those under the inuence
of alcohol and those at high altitudes.
Natural Gas: Natural gas is odorless. An odor-
making agent is added to the gas. The odor helps
you detect a gas leak. However, the odor added to
the gas can fade. Gas may be present even though
no odor exists.
Make certain you read and understand all warnings.
Keep this manual for reference. It is your guide to
safe and proper operation of this log set.
-
-
WARNING: Do not allow fans
WARNING: Installed decora-
away from hot surface to avoid
-
ancewill remain hot foratimeafter
-
dren when they are in the room
-
-
www.desatech.com 115006-01C4
1. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do not use
any phone in your building
• immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions
• if you cannot reach your gas supplier, call
the re department
2. Never install the log set
• in a recreational vehicle
• where curtains, furniture, clothing, or other
ammable objects are less than 42 inches
from the front, top, or sides of the log set
• in high trafc areas
• in windy or drafty areas
3. Before installing in a solid fuel burning replace,
the chimney ue and rebox must be cleaned of
soot, creosote, ashes and loose paint by a qualied
chimney cleaner. Creosote will ignite if highly
heated. Inspect chimney ue for damage. If dam-
aged, repair ue before operating appliance.
4. This log set is designed to be smokeless. If
logs ever appear to smoke, turn off appliance
and call a qualied service person. Note:
During initial operation, slight smoking could
occur due to log curing and the burning of
manufacturing residues. You may wish to add
more ventilation by opening a window.
5. To reduce the creation of soot, follow the
instructions in Cleaning and Maintenance,
page 10.
6. The installation and provisions for combustion and
ventilation air must conform with the National
Fuel Gas Code, ANSI Z233.1/NFPA 54, Section
5.3, Air for Combustion and Ventilation.
7. Do not run log set
• where ammable liquids or vapors are used
or stored
• under dusty conditions
8. Do not burn solid fuel in the replace after
installing the log set. Do not use this log set to
cook food or burn paper or other objects.
9. Do not use appliance if any part has been
exposed to or under water. Immediately call
a qualied service technician to inspect the
room appliance and to replace any part of the
control system (if using GA9200) and any gas
control which has been under water.
SAFETy INFORMATION
Continued
Figure 1 - Product Identication
(Ramp Pan Burner)
Hearth Kit Model ____________________
Serial Number ______________________
Log Set Model ______________________
Grate
Burner Pan Burner Inlet
(Under Pan)
LOCAL CODES
Install and use log set with care. Follow all local
codes. In the absence of local codes, use the lat-
est edition of The National Fuel Gas Code ANSI
Z223.1/NFPA 54*.
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
UNPACkING
CAUTION: Do not remove the
1. Remove logs, hearth kit, pan materials, and
hardware from carton.
10. To help prevent breakage, new logs must be
broken-in (see Curing Logs page 9).
11. Turn log set off and let cool before servicing,
installing, or repairing. Only a qualied service
person should install, service, or repair log set.
12. Provide adequate clearances around air
openings.
13. This vented gas log set may not be installed
in a bedroom or bathroom in the Common-
wealth of Massachusetts.
PRODUCT
IDENTIFICATION
www.desatech.com
115006-01C 5
CHECK GAS TYPE
Use only natural gas. If your gas supply is not
natural gas, you must install ON/OFF Safety
Valve/Pilot Kit (see Accessories, page 13). Call
dealer where you bought log set.
If the replace does not have a gas supply shutoff
valve, one must be installed.
VENTING SPECIFICATIONS FOR
INSTALLATION
The replace chimney ue and vent must be draft-
ing properly. To check the vent for proper drafting:
Light a tightly rolled newspaper on one end and
place it at the inside front edge of the replace.
Observe the smoke and be sure the vent is properly
drawing it up the chimney. If the smoke spills out
into the room, extinguish the ame and remove any
obstruction until proper venting is achieved.
The chimney ue must remain open a minimum
of 3" at all times during the operation of this
log set.
For Massachusetts Residents Only
Installation of this vented gas log set in the Com-
monwealth of Massachusetts requires the damper
be permanently removed or welded in the fully
open position.
BURNER ORIFICE
LOG
SIZE
NATURAL
18" .120 31
24" .140 28
MINIMUM FIREBOX SIZES
MODEL FRONT
WIDTH
BACK
DEPTH HEIGHT
LSLR18 28" 18" 16" 18"
LSLR24 32" 24" 16" 18"
Model
Burner
-
tion
Natural
Gas
Minimum
Vent
LSLR18 18" Ramp 60,000 8" dia.
LSLR24 24" Ramp 85,000 8" dia.
*At depth indicated
FUEL INLET PRESSURE
Min. Max.
NG 5.5" 10.5"
LP 11" 13"
Figure 2 - Technical Information Charts
The replace must include a working ue and
venting system with the minimum openings shown
in the Figure 2.
UNPACkING
Continued
2. Remove all protective packaging applied to
logs and base for shipment.
3. Check all items for any shipping damage. If
damaged, promptly inform dealer where you
bought the product.
INSTALLATION
-
-
NOTICE:Installation,service,and
listed in these instructions may
or accessory items will void the
FLUE OPENING SPECIFICATIONS
Note: This vented appliance must be installed only
in a solid-fuel burning replace with a working ue
and constructed of noncombustible material.
The charts in Figure 2 indicate technical information
regarding the installation of your gas log set. Please
make sure that all of the specications shown are
applicable before installation is attempted.
www.desatech.com 115006-01C6
INSTALLING DAMPER CLAMP
Secure the damper stop clamp provided to the leading
edge of the damper as shown in Figure 3. If for any rea-
son this clamp doesn't work on your replace, another
suitable clamp or permanent stop must be installed, or
the damper blade must be cut or removed.
Damper
Clamp
Damper
Clamp
Damper
Manufactured
Figure 3 - Attaching Damper Clamp
INSTALLATION
Continued
Damper
CONNECTING TO GAS SUPPLY
Installation Items Needed
Before installing log set, make sure you have the
items listed below.
• piping (check local codes)
• sealant (resistant to Propane/LP gas)
• equipment shutoff valve
• test gauge connection
• adjustable (crescent) wrench or pliers
• sediment trap
• tee joint
• pipe wrench
-
Installation must include an equipment shutoff
valve, union, and plugged 1/8" NPT tap. Locate
NPT tap within reach for test gauge hook up. NPT
tap must be upstream from log set (see Figure 4).
IMPORTANT: Install equipment shutoff valve
in an accessible location. The equipment shutoff
valve is for turning on or shutting off the gas to
the appliance.
Apply pipe joint sealant lightly to male NPT
threads. This will prevent excess sealant from
going into pipe. Excess sealant in pipe could result
in a clogged burner injector.
We recommend that you install a sediment trap in
supply line as shown in Figure 4. Locate sediment
trap where it is within reach for cleaning. Install in
piping system between fuel supply and appliance.
Locate sediment trap where trapped matter is not
likely to freeze. A sediment trap traps moisture and
contaminants. This keeps them from going into log
set controls. If sediment trap is not installed or is
installed wrong, log set may not run properly.
Figure 4 - Gas Connection

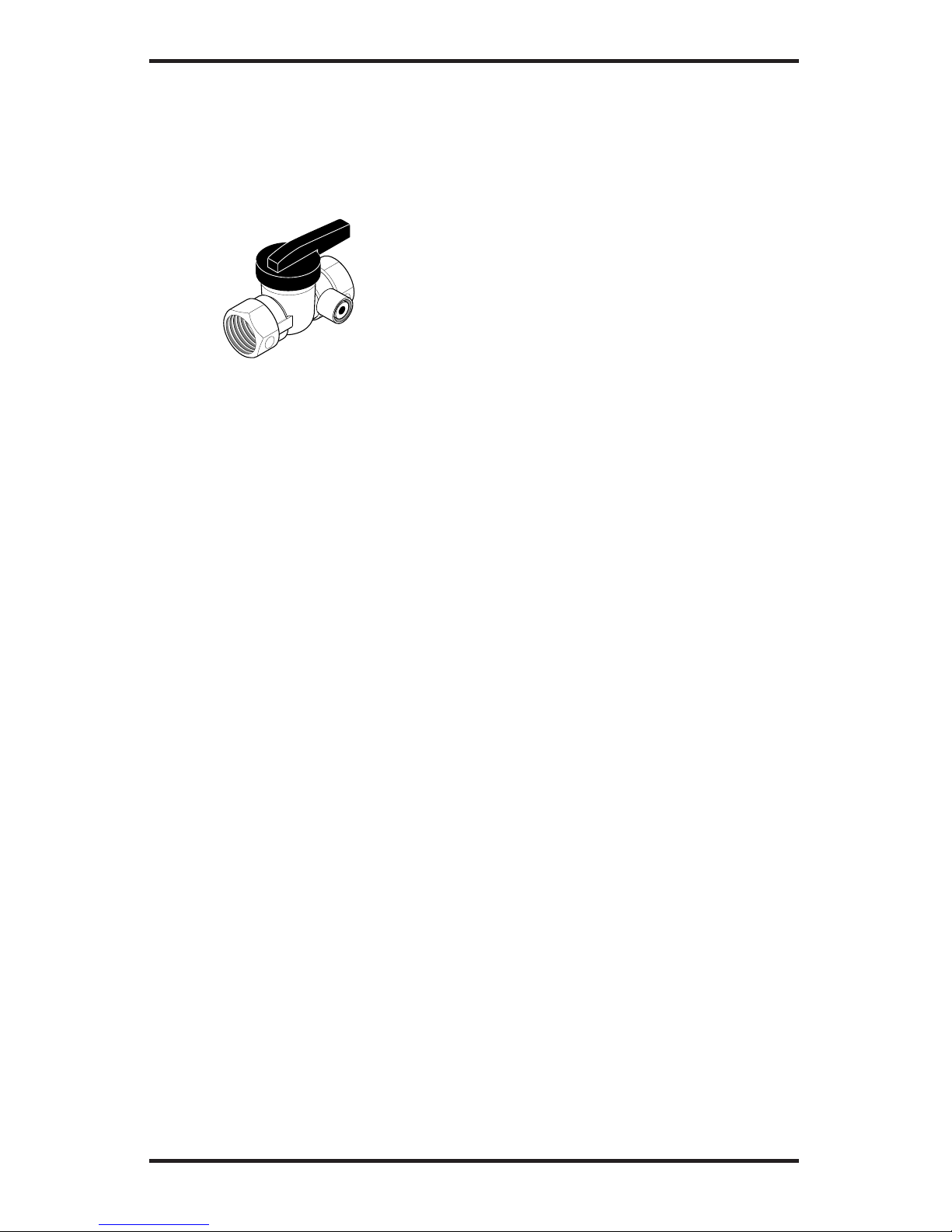

* Purchase the optional CSA design-certified
equipment shutoff valve from your dealer. See
Accessories, page 13.
** Minimum inlet pressure for purpose of input
adjustment.
3" Minimum
Sediment Trap
From Gas Meter
(5" W.C.** to
10.5" W.C.
Pressure)
CSA Design-Certied
Equipment Shutoff Valve
With 1/8" NPT Tap*
Approved Flexible Gas Hose
(if allowed by local codes)
Tee
Joint
Pipe
Nipple
Cap
www.desatech.com
115006-01C 7
CHECKING GAS CONNECTIONS
and connections, internal and
external to unit, for leaks after
PRESSURE TESTING GAS SUPPLY
PIPING SYSTEM
1. Disconnect log set and its individual equipment
shutoff valve from gas supply piping system.
2. Cap off open end of gas pipe where equipment
shutoff valve was connected.
3. Pressurize supply piping system by either us-
ing compressed air or opening main gas valve
located on or near gas meter.
4. Check all joints of gas supply piping system.
Apply noncorrosive leak detection uid to gas
joints. Bubbles forming show a leak.
5. Correct all leaks at once.
6. Reconnect log set and equipment shutoff
valve to gas supply. Check reconnected t-
tings for leaks.
1. Close equipment shutoff valve (see Figure 5).
2. Pressurize supply piping system by either us-
ing compressed air or opening main gas valve
located on or near gas meter.
INSTALLATION
Continued
Figure 5 - Checking Gas Joints
Gas Meter
Equipment Shutoff Valve
Burner Orice
(Factory Installed)
Burner Inlet Venturi
(Attached to Pan
Bottom)
Gas Connector
Tube
Figure 6 - Connecting Gas to Appliance
Adapter
Fitting
Burner Inlet Fitting
(Factory Installed)
3. Check all joints from gas meter to equipment
shutoff valve (see Figure 5). Apply noncorro-
sive leak detection uid to gas joints. Bubbles
forming show a leak.
4. Correct all leaks at once.
HEARTH KIT ASSEMBLY AND
INSTALLATION
1. Determine which side the gas line feeds into
the replace. This log set is factory set up for
right side (facing) gas feed. If your gas line is
on the right side, go to the Installation and Gas
Connection section below. If your gas line is
on the left side of the replace, proceed with
steps 2 through 4 below. Note: Pilot kit can
only be installed on the right (facing) side.
2. Remove the nuts securing the gas inlet venturi
to the bottom of the burner (see Figure 6).
3. Remove the venturi from the pan taking care
not to damage the gasket between the venturi
and the pan.
4. Reverse the direction of the venturi and re-attach
to the bottom of the pan using factory nuts.
Installation and Gas Connection
1. Place the ramp burner assembly in the center
of the replace oor. Make sure the front of
pan faces forward.
2. Thread the gas supply tting to the replace
gas supply pipe. Use thread sealant.
3. Install the gas connector tube to the gas supply
tting. Carefully shape tube to attach to adapter
tting. Be careful not to cause kinks in tube.
4. Attach opposite end of gas connector tube to
the gas inlet tting on the end of the venturi.
www.desatech.com 115006-01C8
INSTALLATION
Continued
SAFETY VALVE/PILOT KIT
For additional convenience and safety an optional
ON/OFF safety valve/pilot kit is available. See Ac-
cessories, page 13.
Parts are available in this kit for propane/LP conver-
sion. See kit instruction sheet for detailed installation
instructions.
WARNING: You must use an
TESTING BURNER FOR LEAKS
1. Generously apply noncorrosive leak detec-
tion uid to all connections.
WARNING: Never check for
2. Light the burner with the shutoff valve no
more than half open and holding a match
slightly in front of the pan (see Lighting
Instructions, page 9).
3. Inspect all connections for bubbles, raw gas
odor, or ame from any area other than the
burner (leaks). If leaks are detected, shut off
the gas valve immediately. Tighten, or reas-
semble the loose connection(s) using pipe joint
compound until burner system is leak free.
4. When the burner is tested and leak free, ob-
serve the individual tongues of ame on the
burner. Make sure that all ports are clear and
producing ame evenly across the burner.
If any ports appear blocked, clear them by
removing the burner manifold and reaming
the ports with a modied paper clip or other
suitable tool.
5. When nished testing, turn the gas shutoff
valve OFF to extinguish all ames.
ADDING PAN MATERIAL
1. Open the bag of glowing embers and spread
it evenly over the burner ramp.
2. Open the small bag of platinum embers and
place them randomly throughout the ember
bed; more heavily near the front of the
ramp.
INSTALLING THE GRATE AND LOGS
1. Place the grate over the burner pan where the
two outer horizontal supports on the grate t
into the two pan positioning tabs on the outer
edges of the pan.
2. Place the large back log on the grate at the top
tier (rear) of the ramp (see Figure 7).
3. Figure 7 and Figure 8 on page 9 show a recom-
mended log arrangement, however you may
arrange the logs as you wish. Leave as much
open space between logs as possible to mini-
mize ame impingement and sooting. Note:
Logs may chip if they are handled roughly or
if hit together while being placed.

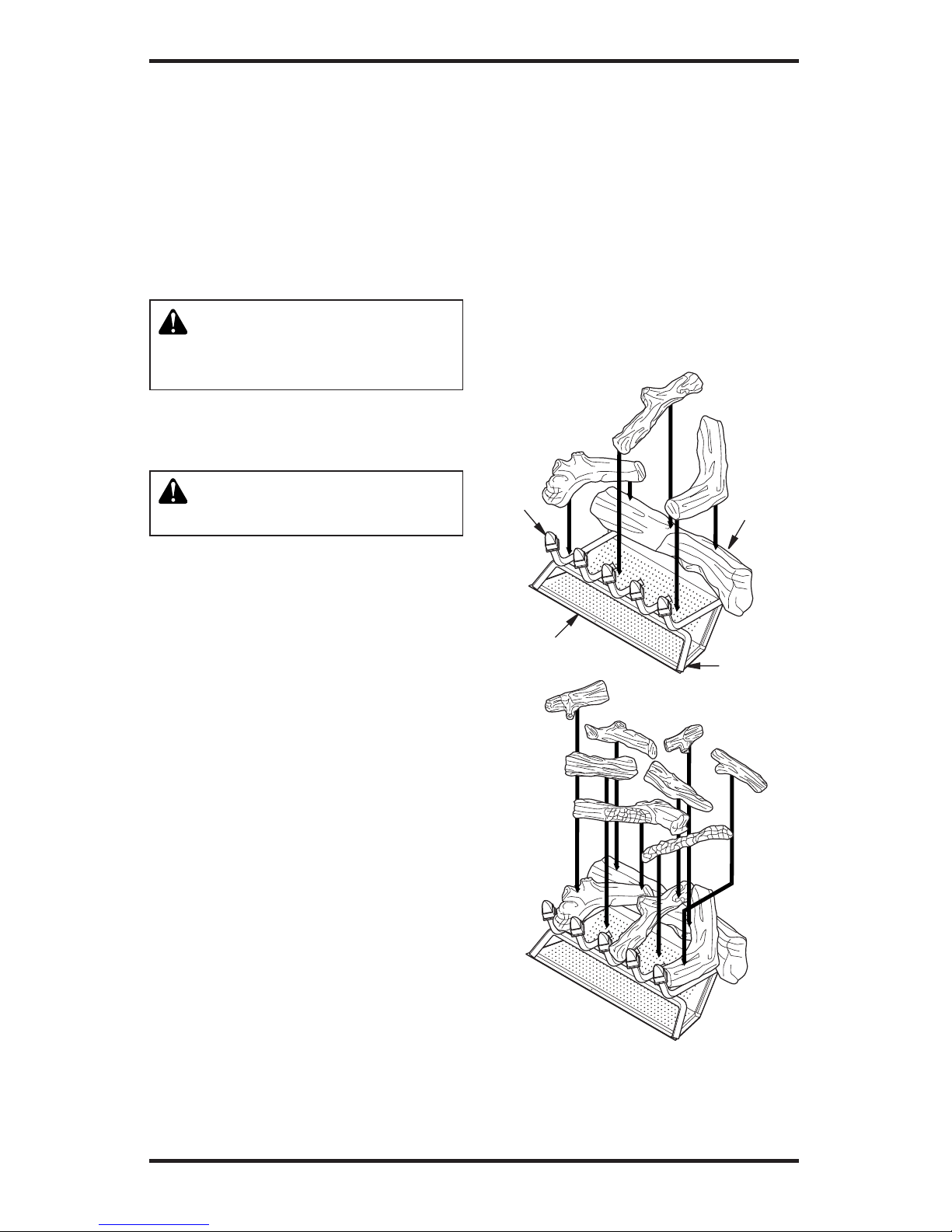

Figure 7 - Installing Logs
Burner Pan
Grate
Pan
Positioning
Tab
Back Log
www.desatech.com
115006-01C 9
INSTALLATION
Continued
Figure 8 - Placement of Top Logs
OPERATING APPLIANCE
FOR YOUR SAFETY
READ BEFORE LIGHTING
WARNING: If you do not fol-
low these instructions exactly,
-
BEFORE LIGHTING smell all around the
appliance area for gas. Be sure to smell next to
the oor because some gas is heavier than air
and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the
re department.
LIGHTING
INSTRUCTIONS
1. STOP! Read the safety information
above.
2. Turn the gas shutoff valve to OFF.
3. Wait ve (5) minutes to clear out any gas. If
you then smell gas STOP! Follow the safety
information column 1. If you don't smell
gas, go on to the next step.
4. Light a match and lay it on top of the pan
material about 2" from the end of the sup-
ply side of the pan
5. Slowly turn the gas shutoff valve ON until
the burner ignites. If the burner doesn’t
ignite within 10 seconds with the match
burning, turn the shutoff valve OFF and
repeat steps 1 through 4 again.
GAS SHUTOFF
VALVE OPERATION
Adjust the ame ON/OFF by turning the gas
shutoff valve counterclockwise to open
or clockwise to close, as necessary.
Turn gas shutoff valve clockwise to the
OFF position.
CURING
LOGS
During the 2-3 hour appliance break-in period,
you may detect an odor from the appliance
as the various paints and compounds used in
the manufacturing of this log set cure. This is
a normal and temporary situation that is not
cause for alarm. However, you may want to
provide extra ventilation to the room during
this time.
To ensure proper curing of the logs:
• Ignite a 2" flame and maintain it for 1
hour.
• Burn the logs in consecutive 1 hour periods
raising the ame an additional 2" to full
ame height for a total of three hours.
www.desatech.com 115006-01C10
CLEANING AND
MAINTENANCE
• Keep the area around the log set clean and clear
of debris.
• Occasionally, you may use a soft bristle brush
to clean logs.
• Once every year a qualied agency or certied
chimney sweep should examine and clean the
venting system of the replace.
SERVICE HINTS
When Gas Pressure is Too Low
• pilot will not stay lit
• burners will have delayed ignition
• appliance will not produce specied heat
You may feel your gas pressure is too low. If so,
contact your local natural gas supplier.
TECHNICAL SERVICE
You may have further questions about installation,
operation, or troubleshooting. If so, contact DESA’s
Technical Service Department at 1-866-672-6040.
When calling please have your model and serial
numbers of your appliance ready.
You can also visit DESA’s technical services web
site at .
REPLACEMENT PARTS
Note: Use only original replacement parts. This
will protect your warranty coverage for parts
replaced under warranty.
PARTS UNDER WARRANTY
Contact authorized dealers of this product. If they
can’t supply original replacement part(s), call DESA’s
Technical Service Department at 1-866-672-6040.
When calling DESA, have ready
• your name and address
• model and serial numbers of your log set
• how log set was malfunctioning
• type of gas used (propane/LP or natural gas)
• purchase date
Usually, we will ask you to return the part to the
factory.
PARTS NOT UNDER WARRANTY
Contact authorized dealers of this product. If they
can’t supply original replacement part(s), call
DESA at 1-866-672-6040 for referral information.
When calling DESA, have ready
• model number of your log set
• the replacement part number
www.desatech.com
115006-01C 11
TROUbLESHOOTING
Note: All troubleshooting items are listed in order of operation.
POSSIBLE CAUSE
1. Poor fuel quality
2. Fireplace venting system not
drafting properly
3. Excessive ame impingement
or blockage
4. Improper fuel/air mixture
5. Excessive gas supply/pressure
1. Passage of air/gas across ir-
regular surfaces
1. Incorrect gas supply or
pressure
2. Blocked burner orifice or
burner manifold ports
3. Improper burner orice size
REMEDY
1. Contact local natural gas
company
2. Adjust damper wide open
and/or have replace and vent-
ing professionally cleaned and
checked
3. Separate the logs to allow more
ame passage
4. Remove any foreign items from
the ame pattern and/or check
for proper orice sizing
5. Preheat flue in very cold
weather
1. Relieve any tight bends or
kinks in gas supply line
1. Check for proper gas supply
pressure
2. Free burner orice and mani-
fold ports of any burrs, paint,
or other blockage
3. Verify proper burner orifice
sizing (see Figure 2, page 5)
OBSERVED PROBLEM
Log set is smoking/sooting
excessively (Note: It is natural
and unavoidable for vented gas
log sets to produce moderate
levels of carbon (soot) where
ames contact the logs.)
Burner is excessively noisy
(Note: The movement and com-
bustion of gas will create low,
unavoidable levels of noise.)
Burner ame is too low or too
high
www.desatech.com 115006-01C12
POSSIBLE CAUSE
1. Metal expanding while heating
or contracting while cooling
1. Log set burning vapors from
paint, hair spray, glues, clean-
ers, chemicals, new carpet,
etc. (See IMPORTANT state-
ment above)
2. Gas leak. See
1. Gas leak.
2. Control valve defective
1. Gas leak.
REMEDY
1. This is common with most log
sets. If noise is excessive, con-
tact qualied service person
1. Open ue to maximum. Stop
using odor causing products
while log set is running
2. Locate and correct all leaks
(see Checking Gas Connec-
tions, page 7)
1. Locate and correct all leaks
(see Checking Gas Connec-
tions, page 7)
2. Replace control valve
1. Locate and correct all leaks
(see Checking Gas Connec-
tions, page 7)
OBSERVED PROBLEM
Log set produces a clicking/tick-
ing noise just after burner is lit
or shut off
Log set produces unwanted
odors
Gas odor even when control knob
is in OFF position
Gas odor during combustion
-
IMPORTANT: Operating log set where impurities in air exist may create odors. Cleaning supplies,
paint, paint remover, cigarette smoke, cements and glues, new carpet or textiles, etc., create fumes. These
fumes may mix with combustion air and create odors. These odors will disappear over time.
TROUbLESHOOTING
Continued
www.desatech.com
115006-01C 13
ACCESSORIES
Purchase these log set accessories from your local
dealer. If they can not supply these accessories,
call DESA at 1-866-672-6040 for referral infor-
mation. You can also write to the address listed
on the back page of this manual.
EQUIPMENT SHUTOFF VALVE
For all models. Equipment shutoff valve with
1/8" NPT tap. Fits 1/2" NPT pipe.
For decorative purposes only. Not to be used as ad-
ditional logs on unit.
For decorative purposes only. Not to be used as ad-
ditional logs on unit.
For all models. Use for additional decoration only.
(3 pine cones per box).
ASH BED MATERIAL
For all models. Use for rebox decoration only.
For all models. Use for rebox decoration only.
For all models. Use for rebox decoration only.
For all models. Use for rebox decoration only.
DECORATIVE ASH BED CONTROL
COVER CDABKA
An attractive way to cover control knob and
piezo ignitor.
For 18" models only. Additional decoration for
front grate.
For 24" models only. Additional decoration for
front grate.
FIRE CRACKLE - CF6-A
For all models. Creates the sound of a real burn-
ing re.
MANUAL CONTROL ON/OFF SAFETY
For all models. Contains components for pro-
pane/LP conversion.
www.desatech.com 115006-01C14
ILLUSTRATED PARTS bREAkDOWN
23
19
18
12
14
11
15
16
13
17
20
21
22
1
8
9
10
3
2
4
5
6
7
www.desatech.com
115006-01C 15
PARTS LIST
This list contains replaceable parts used in your log set. When ordering parts, follow the instructions
listed under Replacement Parts on page 10 of this manual.
KEY
DESCRIPTION
1 901056-01 3/8 FLR x 1/2 FPT Adapter • • 1
2 901059-01 3/8 FLR x 3/8 FPT Adapter • • 1
3 101628-01 Gas Line - 10" Flex • • 1
4 104506-27 Natural Gas Injector • 1
104506-28 Natural Gas Injector • 1
5 14538 Venturi • • 1
6 14527 Venturi Gasket • • 1
7 ** Burner Pan • 1
** Burner Pan • 1
8 901242-01 Damper Clamp - Std. Assy • • 1
9 11209 Nut #10/24 • • 2
10 114986-04 Log Grate • 1
114986-05 Log Grate • 1
11 901481-01 Bottom Log • 1
109128-02 Bottom Log • 1
12 114994-01 Lg. Top Log • 1
114994-02 Lg. Top Log • 1
13 114994-04 Lg. Top Log • 1
14 109131-01 Lg. Top Log • 1
15 114994-05 Sm. Top Log • • 1
16 111960-01 Sm. Top Log • • 1
17 114994-03 Sm. Top Log • 1
114994-01 Sm. Top Log • 1
18 109130-01 Lg. Top Log • • 1
19 114994-02 Sm. Top Log • 1
114994-03 Sm. Top Log • 1
20 111962-01 Sm. Top Log • 1
21 111961-01 Sm. Top Log • • 1
22 111930-01 Sm. Top Log • • 1
23 115044-01 Pine Cones • • 6
PARTS AVAILABLE — NOT SHOWN
901156-01 .125# Bag Embers • • 2
114751-01 Platinum Embers • • 1
901157-02 Lava Cinders • • 1
**Not a eld replaceable part,
2701 Industrial Drive
P.O. Box 90004
Bowling Green, KY 42102-9004
www.desatech.com
NOT A UPC
115006-01
Rev. C
10/06
115006 01
WARRANTy INFORMATION
kEEP THIS WARRANTy
Model
Serial No.
Date Purchased
Always specify model and serial numbers when communicating with the factory.
The only warranty applicable is our standard written warranty. We make no other warranty, expressed or implied.
LIMITED LIFETIME WARRANTy - VENTED GAS LOGS
DESA warrants this product to be free from defects in materials and components of the burner system for two (2)
years and a lifetime on logs from the date of rst purchase, provided that the product has been properly installed,
operated and maintained in accordance with all applicable instructions. To make a claim under this warranty the
Bill of Sale or cancelled check must be presented.
This warranty is extended only to the original retail purchaser. This warranty covers the cost of part(s) required to
restore this log set to proper operating condition and an allowance for labor when provided by a DESA Authorized
Service Center. Warranty part(s) MUST be obtained through authorized dealers of this product and/or DESA who
will provide original factory replacement parts. Failure to use original factory replacement parts voids this war-
ranty. The log set MUST be installed by a qualied installer in accordance with all local codes and instructions
furnished with the unit.
This warranty does not apply to parts that are not in original condition because of normal wear and tear, or parts
that fail or become damaged as a result of misuse, accidents, lack of proper maintenance or defects caused by
improper installation. Travel, diagnostic cost, labor, transportation and any and all such other costs related to
repairing a defective log set will be the responsibility of the owner.
TO THE FULL EXTENT ALLOWED BY THE LAW OF THE JURISDICTION THAT GOVERNS THE SALE
OF THE PRODUCT; THIS EXPRESS WARRANTY EXCLUDES ANY AND ALL OTHER EXPRESSED
WARRANTIES AND LIMITS THE DURATION OF ANY AND ALL IMPLIED WARRANTIES, INCLUDING
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE TO TWO (2)
YEARS ON BURNER SYSTEM AND A LIFETIME ON LOGS FROM THE DATE OF FIRST PURCHASE;
AND DESA’S LIABILITY IS HEREBY LIMITED TO THE PURCHASE PRICE OF THE PRODUCT AND
DESA SHALL NOT BE LIABLE FOR ANY OTHER DAMAGES WHATSOEVER INCLUDING INDIRECT,
INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow a limitation on how long an implied warranty lasts or an exclusion or limitation of
incidental or consequential damages, so the above limitation on implied warranties, or exclusion or limitation on
damages may not apply to you.
This warranty gives you specic legal rights, and you may also have other rights that vary from state to state.
For information about this warranty write:
This manual suits for next models
1
Table of contents
Other Comfort Glow Gas Heater manuals
Comfort Glow
Comfort Glow CSM2618NR User manual
Comfort Glow
Comfort Glow CRL2718PA Quick start guide
Comfort Glow
Comfort Glow CGP20T Quick start guide
Comfort Glow
Comfort Glow CRL2718PA Quick start guide
Comfort Glow
Comfort Glow RADIANT FLAME RFN28TD Quick start guide
Comfort Glow
Comfort Glow CGN10LA Quick start guide
Comfort Glow
Comfort Glow CGN10A Quick start guide
Comfort Glow
Comfort Glow Comfort Glow CGD3924N Quick start guide
Comfort Glow
Comfort Glow 18 Quick start guide
Comfort Glow
Comfort Glow CGS2718P Quick start guide
Comfort Glow
Comfort Glow CCL3924NRA User manual
Comfort Glow
Comfort Glow HFVMR18 Quick start guide
Comfort Glow
Comfort Glow CGP28TB Quick start guide
Comfort Glow
Comfort Glow KWD155 User manual
Comfort Glow
Comfort Glow CGR18N Quick start guide
Comfort Glow
Comfort Glow GCH480 and Manual
Comfort Glow
Comfort Glow Comfort Glow RGA 2-72 Quick start guide
Comfort Glow
Comfort Glow CGD3924NT Quick start guide
Comfort Glow
Comfort Glow CGD3924PR Operation manual
Comfort Glow
Comfort Glow CGG2618N Quick start guide
Popular Gas Heater manuals by other brands
Empire Comfort Systems
Empire Comfort Systems VFSUR18-3 Installation instructions and owner's manual
Vermont Castings
Vermont Castings RADVT Series Homeowner's installation & operating manual
Monessen Hearth
Monessen Hearth TPB18 Installation and operating instructions
Vermont Castings
Vermont Castings EYF18 Installation and operating instructions
habitat et jardin
habitat et jardin Prestige Relax manual
Empire
Empire VFDR18LBW10N-4 Installation instructions and owner's manual
Hargrove
Hargrove AKXRG5/8CPCNG Installation and operation guide
patio
patio F210017-B2 quick start guide
Dyna-Glo
Dyna-Glo DGPH901ATBR manual
Trane
Trane GMND-SVX01B-EN Installation, operation and maintenance manual
Vermont Castings
Vermont Castings 3380 operating manual
Desa
Desa CGS2718PA OWNER'S OPERATION AND INSTALLATION MANUAL
Desa
Desa Comfort Glow CGN10RL OWNER'S OPERATION AND INSTALLATION MANUAL
FMI
FMI HDL24NA OWNER'S OPERATION AND INSTALLATION MANUAL
Burley
Burley G4121 mk2 Installation, servicing & user instructions
Roberts Gorden
Roberts Gorden CORAYVAC CRVB12PN instructions
Modine Manufacturing
Modine Manufacturing BAE Installation and service manual
Desa
Desa CLD3018PT OWNER'S OPERATION AND INSTALLATION MANUAL
