Comfort Glow CGF265NV Quick start guide

Save this manual for future reference.
OWNER’S OPERATION AND INSTALLATION MANUAL
(Variably Controlled)
UNVENTED (VENT-FREE)
NATURAL GAS FIREPLACE
WARNING:Iftheinformationinthismanualisnotfollowedexactly,
a fire or explosion may result causing property damage, personal
injury, or loss of life.
— Do not store or use gasoline or other flammable vapors and liquids
in the vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your
building.
• Immediately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
— Installation and service must be performed by a qualified installer,
service agency, or the gas supplier.
WARNING: This is an unvented gas-fired heater. It uses air (oxygen)
from the room in which it is installed. Provisions for adequate
combustion and ventilation air must be provided. Refer to “Air for
Combustion and Ventilation” section in this manual.
Shown with optional cabinet
mantel and hearth base
accessories.
®

2
101920
CONTENTS SECTION PAGE
SAFETY
INFORMATION WARNINGICON G 001 WARNINGS
IMPORTANT: Read this owner’s manual carefully and completely before
trying to assemble, operate, or service this fireplace. Improper use of this
fireplace can cause serious injury or death from burns, fire, explosion,
electrical shock, and carbon monoxide poisoning.
WARNINGICON G001 DANGER
Carbon monoxide poisoning may lead to death!
Carbon Monoxide Poisoning: Early signs of carbon monoxide poisoning resemble
theflu,withheadaches,dizziness,ornausea.Ifyouhavethesesigns, the fireplace may not
be working properly. Get fresh air at once! Have fireplace serviced. Some people are
more affected by carbon monoxide than others. These include pregnant women, people
withheartorlungdiseaseoranemia,thoseundertheinfluenceofalcohol,andthoseathigh
altitudes.
NaturalGas:Naturalgasisodorless.Anodor-makingagentisaddedtothegas.Theodor
helpsyoudetectagasleak.However,theodoraddedtothegascanfade.Gasmaybepresent
even though no odor exists.
Make certain you read and understand all Warnings. Keep this manual for reference. It is
your guide to safe and proper operation of this fireplace.
Safety Information continues on next page
Safety Information................................................................................... 2
Product Identification .............................................................................. 4
Local Codes ............................................................................................. 5
Unpacking................................................................................................ 5
Product Features ...................................................................................... 5
Air for Combustion and Ventilation........................................................ 6
Installing .................................................................................................. 9
Check Gas Type ............................................................................... 9
Assembling and Attaching Brass Trim ............................................ 10
Installation Clearances ..................................................................... 11
Conventional Fireplace Installation ................................................. 11
Built-In Fireplace Installation .......................................................... 13
Installing Gas Piping to Fireplace Location ..................................... 16
Connecting Fireplace to Gas Supply ................................................ 17
Checking Gas Connections .............................................................. 18
Installing Logs.................................................................................. 20
Operating Fireplace ................................................................................. 22
Inspecting Burners................................................................................... 25
Cleaning and Maintenance ...................................................................... 26
Troubleshooting....................................................................................... 26
Technical Service .................................................................................... 30
Service Hints ........................................................................................... 30
Specifications .......................................................................................... 30
Replacement Parts ................................................................................... 31
Accessories .............................................................................................. 31
Illustrated Parts Lists ............................................................................... 32-35
Warranty Information .............................................................................. Back Cover

3
101920
SAFETY
INFORMATION
Continued
WARNING ICON G 001
WARNINGS Continued
WARNING: Any change to this fireplace or its controls can be dangerous.
1. Use only natural gas. Do not convert fireplace to use different fuel type.
2. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do not use any phone in your building
• immediately call your gas supplier from a neighbor’s phone. Follow the gas
supplier’s instructions
• if you cannot reach your gas supplier, call the fire department
3. This fireplace shall not be installed in a bedroom or bathroom.
4. Never install the fireplace
• in a recreational vehicle
• where curtains, furniture, clothing, or other flammable objects are less than 36
inches from the front, top, or sides of the fireplace
• in high traffic areas
• in windy or drafty areas
5. Do not use this fireplace as a wood-burning fireplace. Use only the logs provided
with the fireplace.
6. Do not add extra logs or ornaments such as pine cones, vermiculite, or rock wool.
Using these added items can cause sooting. Do not add lava rock around base. Rock
and debris could fall into the control area of fireplace.
7. You must operate this fireplace with the fireplace screen in place. Make sure
fireplace screen is in place before running fireplace.
8. This fireplace is designed to be smokeless. If logs ever appear to smoke, turn off
fireplace and call a qualified service person. Note: During initial operation, slight
smoking may occur due to log curing and fireplace burning manufacturing residues.
9. Avoid any drafts that alter burner flame patterns. Do not allow fans to blow directly
into fireplace. Do not place a blower inside burn area of firebox. Use only the
blowers provided with this fireplace. Ceiling fans may create drafts that alter burner
flame patterns. Sooting and improper burning will occur. Sooting can settle on
household surfaces outside the fireplace.
10. This fireplace needs fresh air ventilation to run properly. This fireplace has an
oxygen depletion sensor (ODS) pilot light safety system. The ODS shuts down the
fireplace if not enough fresh air is available. See Air for Combustion and Ventila-
tion, pages 6 through 8. If fireplace keeps shutting off, see Troubleshooting, pages
26 through 29.
11. Do not run fireplace
• where flammable liquids or vapors are used or stored
• under dusty conditions
12. Do not use this fireplace to cook food or burn paper or other objects.
13. Never place any objects in the fireplace or on logs.
14. Fireplace front and screen becomes very hot when running fireplace. Keep children
and adults away from hot surfaces to avoid burns or clothing ignition. Fireplace will
remain hot for a time after shut-down. Allow surfaces to cool before touching.
15. Carefully supervise young children when they are in the room with fireplace.
16. Do not use fireplace if any part has been exposed to or under water. Immediately
call a qualified service technician to inspect the fireplace and to replace any part of
the control system and any gas control which has been under water.
17. Do not operate fireplace if any log is broken. Do not operate fireplace if a log is
chipped (dime-sized or larger).
18. Turn fireplace off and let cool before servicing. Only a qualified service person
should service and repair fireplace.
19. Operating fireplace above elevations of 4,500 feet may cause pilot outage.

4
101920
PRODUCT
IDENTIFICATION
Figure 2 - Fireplace
Louver
Hood
Bottom Louver
Assembly
Screen
Assembly
Top Outer
Casing
Firebox
Support
Side
Access
Door
Rear
Access
Door
Base
Front
Burner
Front Log (#1) Rear Log (#2)
Gas Valve
Bracket
Gas
Regulator
Gas Valve
Assembly
Figure 1 - Log Base Assembly
Control Knob
Piezo
Ignitor
Rear Burner

5
101920
LOCAL CODES Install and use fireplace with care. Follow all local codes. In the absence of local
codes, use the latest edition of The National Fuel Gas Code ANSI Z223, also
known as NFPA 54*.
*Available from: American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
UNPACKING 1. Remove trim kit. Place the carton containing the fireplace unit on its back. Hold
fireplace and pull the carton and pallet away.
2. Remove fireplace screen. Remove two screws that hold fireplace screen in place
for shipping. These screws are located near top of screen. Discard screws. Lift
fireplace screen up and pull out to remove. Remove packing containing logs.
3. You may not want to remove protective plastic on front of fireplace until after
installing. This will protect fireplace from dust, debris, and damage during
installation.
4. Check all items for any shipping damage. If damaged, promptly inform dealer
where you bought fireplace.
PRODUCT
FEATURES
Operation
Thisvent-freefireplaceiscleanburning.Itrequiresnooutsideventing.Thereisnoheat
lossouta vent orup a chimney.Heat is generatedby both realisticflames and glowing
embers.
Safety Device
This fireplace has a pilot with an Oxygen Depletion Sensor Shutoff System (ODS).
The ODS/pilot is a required feature for vent-free room heaters. The ODS system
shuts off the fireplace if there is not enough fresh air.
Piezo Ignition System
This fireplace has a piezo ignitor. This system requires no matches, batteries, or
other sources to light fireplace.
Variable Control
This fireplace has a variable control valve which allows the user to choose any heat
setting and flame height they desire by simply turning the valve control knob. Even
the lowest setting provides realistic flames and glowing embers from two burners.
Selecting higher comfort settings produces greater heat output. This results in
increased heating comfort.

6
101920
AIR FOR
COMBUSTION
AND
VENTILATION
WARNING ICON G 001
WARNING
Thisfireplacemusthavefresh airforproperoperation.
If not, poor fuel combustion could result. Read the
followinginstructionstoinsureproperfreshairforthis
and other fuel-burning appliances in your home.
Unconfined Space
An unconfined space has a minimum air volume of 50 cubic feet for each 1000
BTU/Hr input rating of all appliances in the space (cubic feet equals length x width
x height of space). Include adjoining rooms only if there are doorless passageways
or ventilation grills between the rooms.
If the BTU per 50 cubic feet is less than 1000 BTU/Hr, then the fresh air will be
provided by the natural air flow into the house.
Confined Space
A confined space has an air volume of less than 50 cubic feet for each 1000 BTU/
Hr input rating of all appliances in the space (cubic feet equals length x width x
height of space). Include adjoining rooms only if there are doorless passageways or
ventilation grills between the rooms.
PROVIDING ADEQUATE VENTILATION
In the absence of local codes, use the following excerpts from the National Fuel Gas
Code NFPA 54/ANSI Z223.1, Section 5.3, Air for Combustion and Ventilation.
All spaces in homes fall into one of the three following ventilation classifications:
1. Unusually Tight Construction; 2. Unconfined Space; 3. Confined Space.
The information on pages 6 through 8 will help you classify your space and provide
adequate ventilation.
Unusually Tight Construction
The air that leaks around doors and windows may provide enough fresh air for com-
bustion and ventilation. However, in buildings of unusually tight construction, you
must provide additional fresh air.
Unusually tight construction is defined as construction where:
a. walls and ceilings exposed to the outside atmosphere have a continu-
ous water vapor retarder with a rating of one perm or less with open-
ings gasketed or sealed
and
b. weather stripping has been added on openable windows and doors and
c. caulking or sealants are applied to areas such as joints around window
and door frames, between sole plates and floors, between wall-ceiling
joints, between wall panels, at penetrations for plumbing, electrical, and
gas lines, and at other openings.
If your home meets all of the three criteria above, you must provide additional
fresh air. See
Ventilation Air From Outdoors , page 8 .
If your home does not meet all of the three criteria above, proceed to page 7.
Today’s homes are built more energy efficient than ever. New materials, increased
insulation, and new construction methods help reduce heat loss in homes. Home
owners weather strip and caulk around windows and doors to keep the cold air out and
the warm air in. During heating months, home owners want their homes as airtight as
possible.
While it is good to make your home energy efficient, your home needs to breathe.
Fresh air must enter your home. Fresh air enters the home through and around doors
and windows. This may provide enough fresh air for combustion and ventilation. All
fuel-burning appliances need fresh air for proper combustion and ventilation.
Exhaust fans, fireplaces, clothes dryers, and fuel burning appliances draw air from the
house to operate. You must provide adequate fresh air for these appliances. This will
insure proper venting of vented fuel-burning appliances.

7
101920
AIR FOR
COMBUSTION
AND
VENTILATION
Continued
DETERMINING AIR FLOW FOR FIREPLACE LOCATION
Determining if You Have a Confined or Unconfined Space
Use this work sheet to determine if you have a confined or unconfined space.
Space: Includes the room in which you will install fireplace plus any adjoining rooms
with doorless passageways or ventilation grills between the rooms.
1. Determine the volume of the space (length x width x height).
Length x Width x Height = ___________________ cu. ft. (volume of space)
Example: Space size 22 ft. (length) x 18 ft. (width) x 8 ft. (ceiling height) =
3168 cu. ft. (volume of space)
If additional ventilation to adjoining room is supplied with grills or openings, add the
volume of these rooms to the total volume of the space.
2. Divide the space volume by 50 cubic feet to determine the maximum BTU/Hr the space
can support.
____________ (volume of space) ÷50 cu. ft. = (Maximum BTU/Hr
the space can support)
Example: 3168 cu. ft. (volume of space) ÷50 cu. ft. = 63.3 or 63,300 (maximum
BTU/Hr the space can support)
3. Add the BTU/Hr of all fuel burning appliances in the space.
Vent-free fireplace ___________________ BTU/Hr
Gas water heater* ___________________ BTU/Hr
Gas furnace ___________________ BTU/Hr
Vented gas heater ___________________ BTU/Hr
Gas fireplace logs ___________________ BTU/Hr
Other gas appliances* +___________________ BTU/Hr
Total =___________________ BTU/Hr
Example: Gas water heater 40,000 BTU/Hr
Vent-free fireplace +26,500 BTU/Hr
Total =66,500 BTU/Hr
* Do not include direct-vent gas appliances. Direct-vent draws combustion air from the
outdoors and vents to the outdoors.
4. Compare the maximum BTU/Hr the space can support with the actual amount of BTU/
Hr used.
_________________ BTU/Hr (maximum the space can support)
_________________ BTU/Hr (actual amount of BTU/Hr used)
Example: 63,300 BTU/Hr (maximum the space can support)
66,500 BTU/Hr (actual amount of BTU/Hr used)
The space in the above example is a confined space because the actual BTU/Hr used is
more than the maximum BTU/Hr the space can support. You must provide additional fresh
air. Your options are as follows:
A. Rework work sheet, adding the space of an adjoining room. If the extra space provides
an unconfined space, remove door to adjoining room or add ventilation grills between
rooms. See Ventilation Air from Inside Building, page 8.
B. Vent room directly to the outdoors. See Ventilation Air from Outdoors, page 8.
C. Install a lower BTU/Hr fireplace, if lower BTU/Hr size makes room unconfined.
If the actual BTU/Hr used is less than the maximum BTU/Hr the space can support, the
space is an unconfined space. You will need no additional fresh air ventilation.
WARNING ICON G 001
WARNING
You must provide additional ventilation air in a
confined space.
Continued

8
101920
AIR FOR
COMBUSTION
AND
VENTILATION
Continued
VENTILATION AIR
Ventilation Air from Inside Building
This fresh air would come from an adjoining unconfined space. When ventilating to an
adjoining unconfined space, you must provide two permanent openings: one within 12"
of the ceiling and one within 12" of the floor on the wall connecting the two spaces (see
options 1 and 2, Figure 3). Follow the National Fuel Gas Code NFPA 54/ANSI Z223.1,
Section 5.3, Air for Combustion and Ventilation for required size of ventilation grills or
ducts. You can also remove door into adjoining room (see option 3, Figure 3).
Outlet
Air Ventilated
Attic
Outlet
Air
Inlet
Air
Inlet Air Ventilated
Crawl Space
To
Crawl
Space
To Attic
Figure 4 - Ventilation Air from Outdoors
Ventilation Air from Outdoors
Provide extra fresh air by using ventilation grills or ducts. You must provide two
permanent openings: one within 12" of the ceiling and one within 12" of the floor.
Connect these items directly to the outdoors or spaces open to the outdoors. These
spaces include attics and crawl spaces. Follow the National Fuel Gas Code NFPA 54/
ANSI Z223.1, Section 5.3, Air for Combustion and Ventilation for required size of
ventilation grills or ducts. IMPORTANT: Do not provide openings for inlet or outlet air
into attic if attic has a thermostat-controlled power vent. Heated air entering the attic
will activate the power vent.

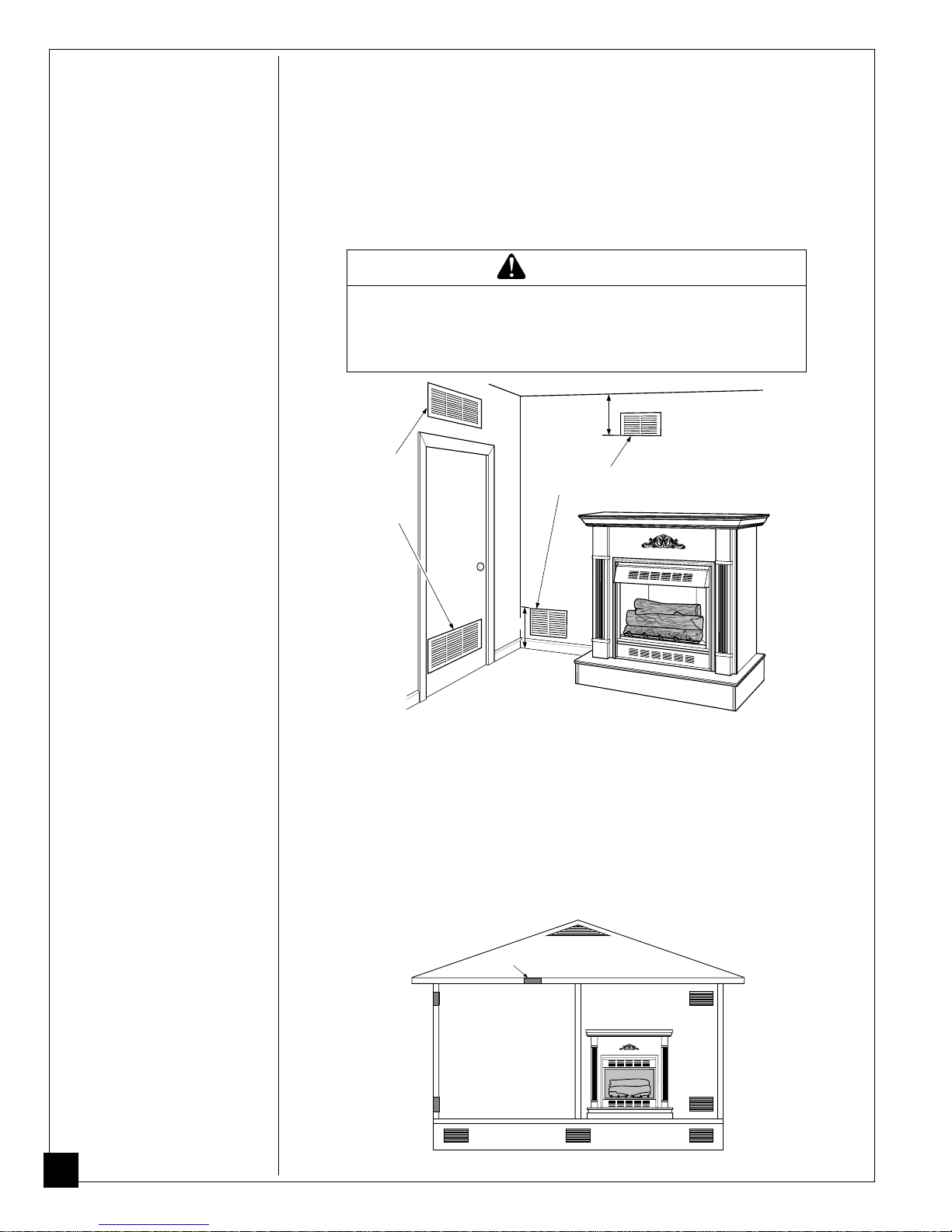

Figure 3 - Ventilation Air from Inside Building
WARNING ICON G 001
WARNING
Re-calculate work sheet, adding the space of the
adjoining unconfined space. The combined spaces
must have enough fresh air to supply all appliances in
both spaces.
Or
Remove
Door into
Adjoining
Room,
Option
3
Ventilation Grills
Into Adjoining Room,
Option 2
Ventilation
Grills
Into Adjoining
Room,
Option 1
12"
12"

9
101920
INSTALLING NOTICE
A qualified service person must install fireplace. Fol-
low all local codes.
WARNING ICON G 001
WARNING
Never install the fireplace
• in a bedroom or bathroom
• in a recreational vehicle
• where curtains, furniture, clothing, or other flam-
mable objects are less than 36 inches from the
front, top, or sides of the fireplace
• in high traffic areas
• in windy or drafty areas
IMPORTANT: Vent-free heaters add moisture to the air. Although this is beneficial,
installing fireplace in rooms without enough ventilation air may cause mildew to
form from too much moisture. See Air for Combustion and Ventilation, pages 6
through 8.
IMPORTANT: Make sure the fireplace is level. If fireplace is not level, log set will
not work properly.
Continued
WARNING ICON G 001
CAUTION
This fireplace creates warm air currents. These cur-
rents move heat to wall surfaces next to fireplace.
Installingfireplacenexttovinylorclothwallcoverings
oroperatingfireplacewhereimpuritiesintheair(such
as tobacco smoke) exist, may discolor walls.
CHECK GAS TYPE
Use only natural gas. If your gas supply is not natural gas, do not install fireplace.
Call dealer where you bought fireplace for proper type fireplace.

10
101920
INSTALLING
Continued
ASSEMBLING AND ATTACHING BRASS TRIM
Note: The instructions below show assembling and attaching brass trim to fireplace.
You cannot attach the brass trim as described below for built-in installation (see
page 13).
1. Remove packaging from three pieces of brass trim.
2. Locate four brass screws, two adjusting plates with set screws, and two shims
in the hardware packet.

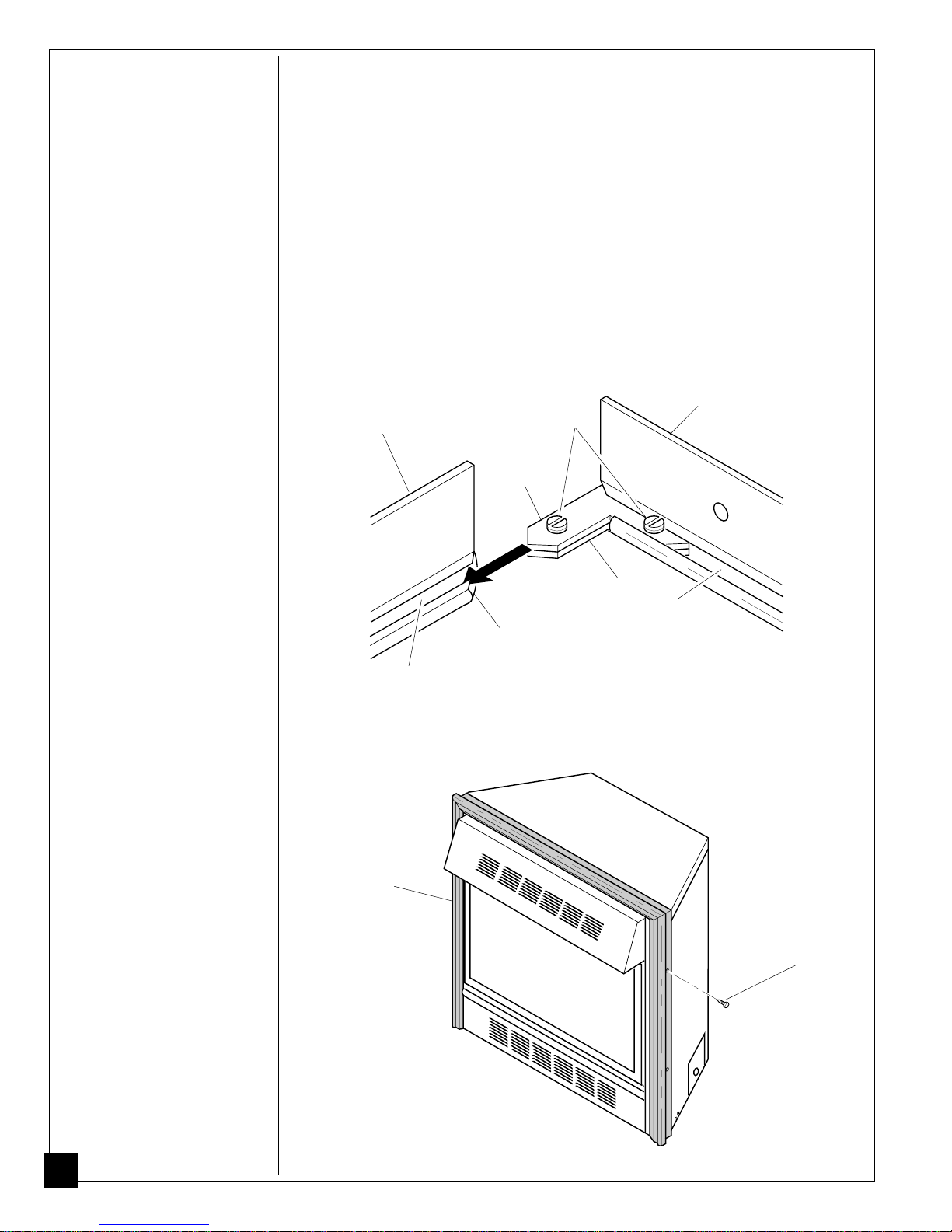

3. Align shim under adjusting plate as shown in Figure 5.
4. Slide one end of adjusting plate/shim in slot on mitered edge of top brass trim
(see Figure 5).
5. Slide other end of adjusting plate/shim in slot on mitered edge of side brass
trim (see Figure 5).
6. While firmly holding edges of brass trim together, tighten both set screws on
the adjusting plate with slotted screwdriver.
7. Repeat steps 1 through 6 for other side.
Figure 6 - Attaching Brass Trim to Fireplace
Screws
Assembled
Brass Trim
Side Brass Trim Top Brass Trim
Slot
Mitered Edge
Slot
Shim
Set Screws
Adjusting
Plate
Figure 5 - Assembling Brass Trim
8. Place the assembled trim onto fireplace cabinet. Attach to fireplace with brass
screws included in hardware package (see Figure 6).

11
101920
INSTALLING
Continued
INSTALLATION CLEARANCES
Note:
Clearances are
the same if
using optional
cabinet mantel
or built-in
installation.
Carefully follow the instructions below. This will ensure safe installation.
Minimum Wall and Ceiling Clearances (see Figure 7)
A. Clearances from the side of the fireplace opening to any combustible wall
should not be less than 16 inches.
B. Clearances from the top of the fireplace opening to the ceiling should not be
less than 42 inches.
WARNING ICON G 001
WARNING
Maintain the minimum clearances. If you can, pro-
vide greater clearances from floor, ceiling, and
adjoining wall.
Continued
Note: The instructions below show installation using the cabinet mantel and hearth
base accessories. The hearth base accessory is optional for this installation. You can
install fireplace and cabinet mantel directly on the floor.
1. Assemble cabinet mantel and hearth base. Assembly instructions are included
with each accessory.
WARNING ICON G 001
WARNING
For conventional installation, it is recommended
you use the cabinet mantel or hearth base specified
in this manual. Surface clearances may not be
sufficient with other cabinet mantels and hearth
bases. This may create a fire hazard. See Accesso-
ries, page 31 for correct cabinet mantel and hearth
base.
CONVENTIONAL FIREPLACE INSTALLATION
Conventional installation of this fireplace involves installing fireplace along with the
cabinet mantel with hearth base accessories against a wall in your home. Follow the
instructions below to install the fireplace in this manner.
42"
16"
Figure 7 - Minimum Clearance to Wall and Ceiling
MINIMUM CLEARANCE
Side Wall - 16 "
Ceiling - 42"
Floor - 0"

12
101920
INSTALLING
Continued
2. Install gas piping to fireplace location. This installation includes an approved
flexible gas line (if allowed by local codes) after the manual shutoff valve. The
flexible gas line must be the last item installed on the gas piping. See Installing
Gas Piping to Fireplace Location, page 16.

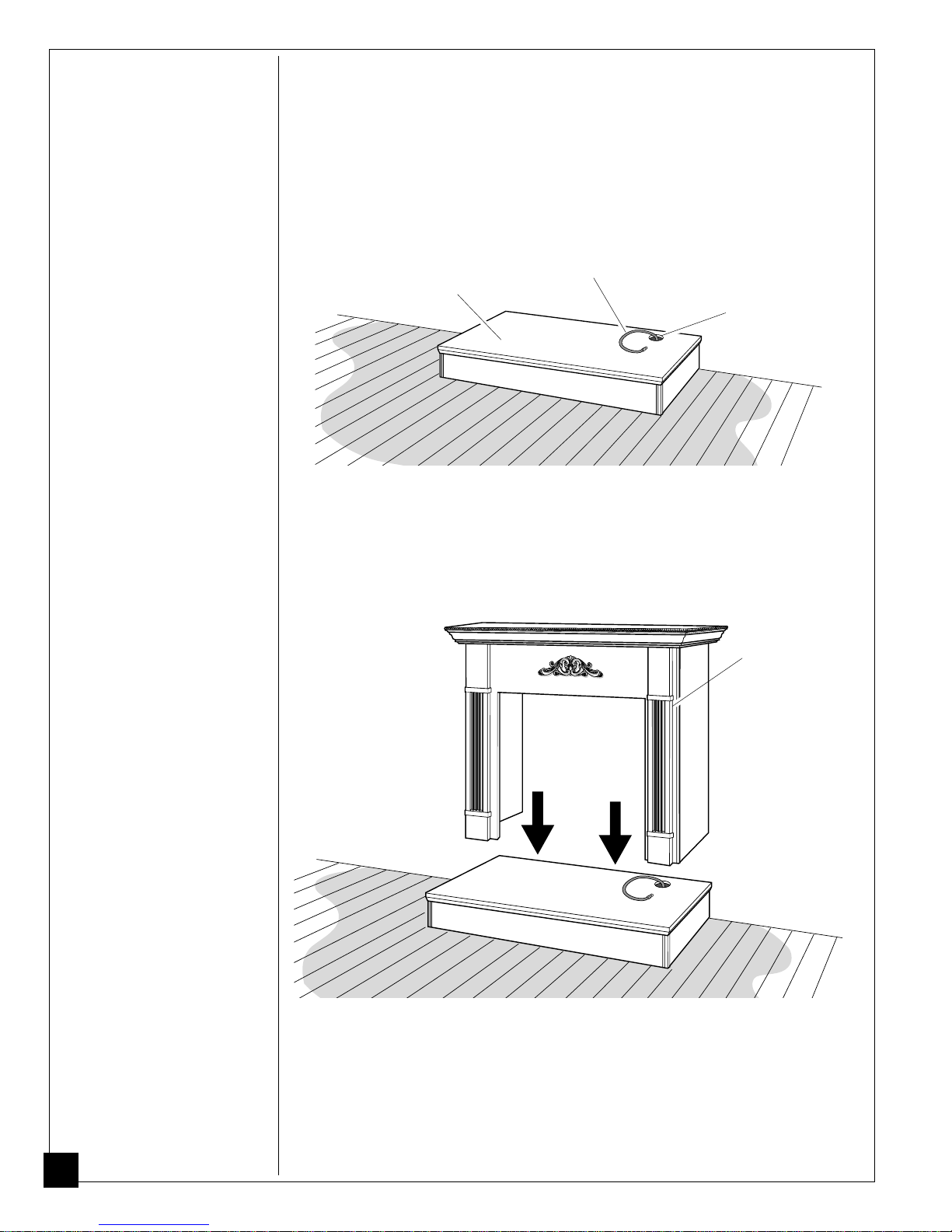

3. Place hearth base accessory against wall at installation location. Cut an access
hole in hearth top to run flexible gas line to fireplace (see Figure 8). Make sure
to locate access hole so cabinet mantel will cover it when installed.
Note: You can secure base to floor using wood screws. Countersink screw
heads and putty over.
Gas Line Access
Hole
Flexible Gas Line
Hearth Base
Figure 8 - Placing Hearth Base Accessory Against Wall
4. Route flexible gas line through access hole in hearth base.
5. Center cabinet mantel on hearth base (see Figure 9). Make sure mantel is flush
against wall.
Cabinet Mantel
Figure 9 - Installing Cabinet Mantel
6. Place cardboard or other protective material on top of hearth base. Carefully set
fireplace on protective material, with back of fireplace inside mantel opening.
7. Attach flexible gas line to fireplace gas regulator. See Connecting Fireplace to
Gas Supply, page 17.

13
101920
INSTALLING
Continued

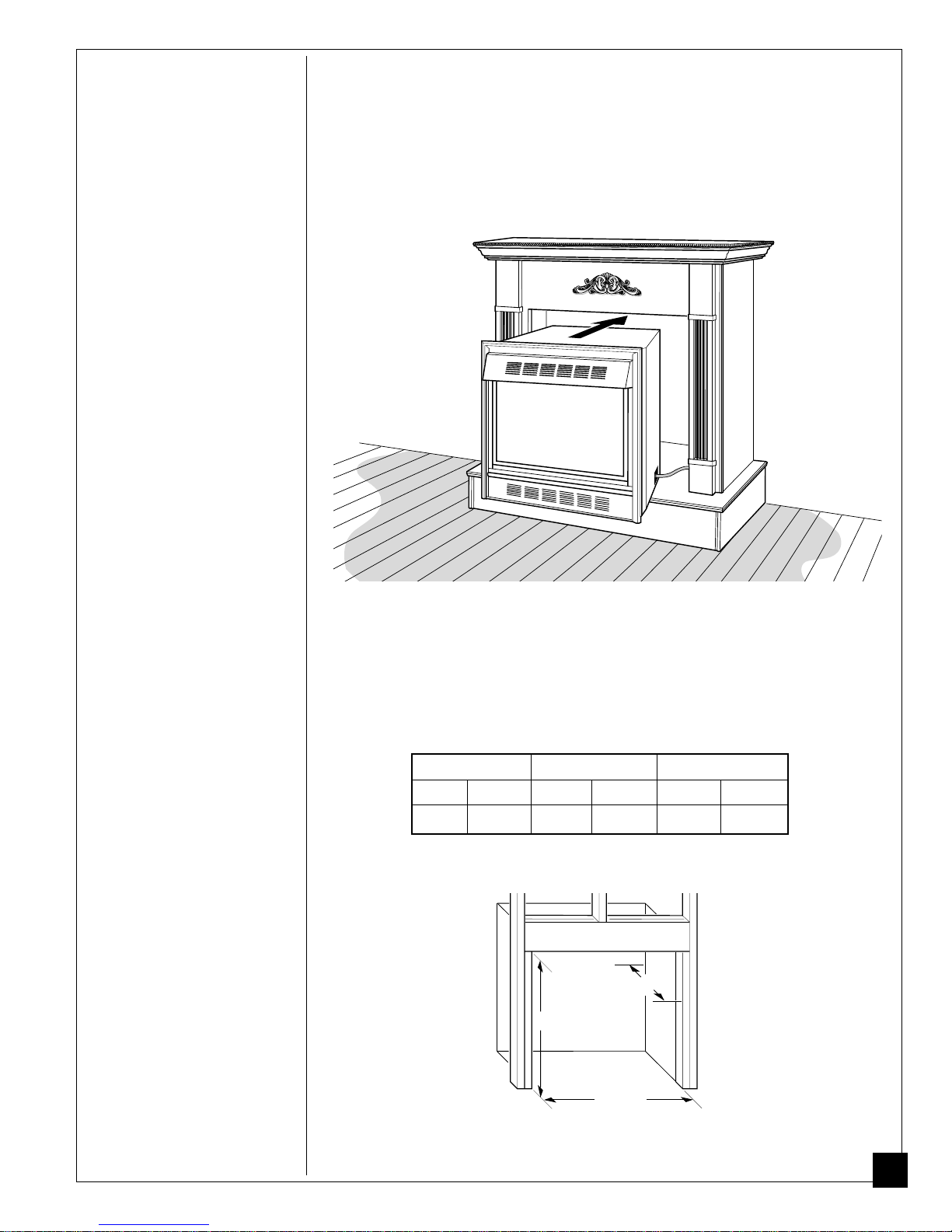

8. Carefully insert fireplace into cabinet mantel. Be careful not to scratch or
damage hearth base, cabinet mantel, or any laminate trim on hearth base.
Remove protective material from top of hearth base and from front of fireplace
(if any).
Note: You can secure fireplace to hearth or floor. Open lower louver.
Locate screw holes in bottom of base. Tighten wood screws through these
holes and into hearth or floor.
9. Check all gas connections for leaks. See Checking Gas Connections, page 18.
Figure 10 - Inserting Fireplace Into Cabinet Mantel
BUILT-IN FIREPLACE INSTALLATION
Built-in installation of this fireplace involves installing fireplace into a framed-in
enclosure.Thismakesthefrontoffireplaceflushwithwall.Ifinstallingamantelabove
the fireplace, but you must follow the clearances shown in Figure 15, page 15. Follow
the instructions below to install the fireplace in this manner.
Figure 11 - Rough Opening for Installing in Wall
35 1/2"
17 3/4"
33"
1. Frame in rough opening. Use dimensions shown in Figure 11 for the rough
opening.
Height Front Width Depth
Actual Framing Actual Framing Actual Framing
32 3/8" 33" 34 5/16" 35 1/2" 16 11/16" 17 3/4"
Continued

14
101920
INSTALLING
Continued
If installing in a corner, use dimensions shown in Figure 12 for the rough opening.
The height is 33" which is the same as the wall opening on page 13.
39 3/8" 27 7/8"
55 5/8"
35 1/2"
Figure 12 - Rough Opening for Installing in Corner
2. Install gas piping to fireplace location. This installation includes an approved
flexible gas line (if allowed by local codes) after the manual shutoff valve. The
flexible gas line must be the last item installed on the gas piping. See Installing
Gas Piping to Fireplace Location, page 16.
3. Carefully set fireplace in front of rough opening with back of fireplace inside
wall opening.
4. Attach flexible gas line to fireplace gas regulator. See Connecting Fireplace to
Gas Supply, page 17.
5. Carefully insert fireplace into rough opening.
6. Attach fireplace to floor using wood screws through holes in bottom of base.
Open lower louver to locate screw holes (see Figure 13)
7. Check all gas connections for leaks. See Checking Gas Connections, page 18.
Figure 13 - Floor/Hearth Mounting Holes
Mounting Holes

15
101920
INSTALLING
Continued
Mantel Clearances for Built-In Installation
Ifplacingmantelabovebuilt-infireplace,youmustmeetminimumclearancebetween
mantel shelf and top of fireplace opening.
Distances to
Underside of
Mantel
Underside of
Mantel Shelf
20" 24
1
/2 " 27
1
/2 " 30"
All minimum
distances are
in inches
Top of
Fireplace
Opening
2
1/2
"
6"
8"
10"
Figure 15 - Minimum Mantel Clearances for Built-In Installation
If your installation does not meet the above minimum clearances, you must:
• raise the mantel to an acceptable height, OR
• remove the mantel. Continued
Mantel Shelf
Nailing Flange
Figure 14 - Installing and Attaching Nailing Flange Accessory
Alternate Built-In Attachment Method: Nailing Flange Accessory
If desiring to attach heater to wall studs, use nailing flange accessory. Note: You
can not use brass trim if using the nailing flange.
1. Attach nailing flange accessory to each side of fireplace (see Figure 14). See
Accessories, page 31, for nailing flange.
2. Carefully insert fireplace into rough opening.
3. Attach fireplace to wall studs using nails or wood screws through holes in
nailing flange (see Figure 14).
4. Check all gas connections for leaks. See Checking Gas Connections, page 18.

16
101920
INSTALLING
Continued
INSTALLING GAS PIPING TO FIREPLACE LOCATION
Installation Items Needed
Before installing fireplace, make sure you have the items listed below.
• piping (check local codes)
• sealant (resistant to propane gas)
• manual shutoff valve *
• test gauge connection *
• sediment trap
• tee joint
• pipe wrench
• approved flexible gas line with
gas connector (if allowed by
local codes) (not provided)
NOTICE
A qualified service person must connect fireplace to
gas supply. Follow all local codes.
* An A.G.A. design-certified manual shutoff valve with 1/8" NPT tap is an acceptable
alternativetotestgaugeconnection.PurchasetheoptionalA.G.A.design-certifiedmanual
shutoff valve from your dealer. See Accessories, page 31.
WARNING ICON G 001
WARNING
Never connect fireplace to private (non-utility) gas
wells. This gas is commonly known as well-head gas.
WARNING ICON G 001
CAUTION
Use only new, black iron or steel pipe. Internally-
tinned copper tubing may be used in certain areas.
Check your local codes. Use pipe of 1/2" diameter
or greater to allow proper gas volume to fireplace. If
pipe is too small, undue loss of pressure will occur.
Installation must include a manual shutoff valve, union, and plugged 1/8" NPT tap.
Locate NPT tap within reach for test gauge hook up. NPT tap must be upstream
from fireplace (see Figure 16, page 17).
Check your building codes for any special requirements for locating manual shutoff
valve to fireplaces.
Apply pipe joint sealant lightly to male threads. This will prevent excess sealant
from going into pipe. Excess sealant in pipe could result in clogged fireplace
valves.
WARNING ICON G 001
CAUTION
Use pipe joint sealant that is resistant to liquid
petroleum (LP) gas.
Install sediment trap in supply line as shown in Figure 16, page 17. Locate sediment
trap where it is within reach for cleaning. Locate sediment trap where trapped
matter is not likely to freeze. A sediment trap traps moisture and contaminants. This
keeps them from going into fireplace gas controls. If sediment trap is not installed
or is installed wrong, fireplace may not run properly.

17
101920
INSTALLING
Continued
A.G.A. Design-Certified Manual Shutoff Valve
With 1/8" NPT Tap*
3" Minimum
From Gas Meter
(5" W.C. to 10.5" W.C.
Pressure)
Approved
Flexible
Gas Line
Tee Joint
Pipe Nipple
Cap
Sediment
Trap
Figure 16 - Gas Connection
*PurchasetheoptionalA.G.A.design-certifiedmanualshutoffvalvefromyourdealer.
See Accessories, page 31.
CONNECTING FIREPLACE TO GAS SUPPLY
Figure 17 - Removing Log Base Assembly From Fireplace
Installation Items Needed
• 5/16" hex socket wrench or nut-driver
• Phillips screwdriver
• sealant (resistant to propane gas, not provided)
1. Remove fireplace screen. Remove two screws that hold fireplace screen in place
for shipping. These screws are located near top of screen. Discard screws. Lift
fireplace screen up and pull out to remove.
2. Remove access door from rear or side of fireplace. See Product Identification,
page 4, for access door locations.
3. Remove screws that attach log base assembly to fireplace (see Figure 17).
Carefully lift up log base assembly and remove from fireplace (see Figure 17).
WARNING ICON G 001
CAUTION
Do not pick up log base assembly by burners. This
could damage burners. Only handle base by grates.
Continued

18
101920
INSTALLING
Continued
4. Routeflexiblegaslinefrommanualshutoffvalveintofireplacethroughsideorrear
access panel. Route flexible gas supply line through fireplace access door.
Flexible Gas Line
from Fireplace Gas
Regulator
To Fireplace
Gas Regulator Gas Connector
Flexible Gas Line from
Manual Shutoff Valve
Manual Shutoff Valve
Figure 18 - Attaching Flexible Gas Lines Together
5. Apply pipe joint sealant lightly to male threads of gas connector attached to
flexible gas line (see Figure 18). Connect flexible gas line to flexible gas line
attached to gas regulator of fireplace (see Figure 18).
6. Check all gas connections for leaks. See Checking Gas Connections, below.
7. Replace log base assembly back into fireplace. Feed flexible gas line into
fireplace base area while replacing log base assembly. Make sure the entire
flexible gas line is in fireplace base area. Reattach log base assembly to fire-
place with screws removed in step 3.
NOTICE
Most building codes do not permit concealed gas
connections. A flexible gas line is provided to allow
accessibility from the fireplace. The flexible gas
supply line connection to the manual shutoff valve
should be accessible.
➞
➞
To Gas
Meter
CHECKING GAS CONNECTIONS
WARNING ICON G 001
WARNING
Test all gas piping and connections for leaks after
installing or servicing. Correct all leaks at once.
WARNING ICON G 001
WARNING
Never use an open flame to check for a leak. Apply a
mixture of liquid soap and water to all joints. Bubbles
forming show a leak. Correct all leaks at once.
Pressure Testing Gas Supply Piping System
Test Pressures In Excess Of 1/2 PSIG
1. Disconnect fireplace and its individual manual shutoff valve from gas supply
piping system. Pressures in excess of 1/2 psig will damage fireplace gas regulator.
2. Cap off open end of gas pipe where manual shutoff valve was connected.
3. Pressurize supply piping system by either using compressed air or opening main
gas valve located on or near gas meter.
4. Check all joints of gas supply piping system. Apply mixture of liquid soap and
water to gas joints. Bubbles forming show a leak.
5. Correct all leaks at once.
6. Re-connect fireplace and manual shutoff valve to gas supply. Check re-con-
nected fittings for leaks.

19
101920
INSTALLING
Continued
Test Pressures Equal To or Less Than 1/2 PSIG
1. Close manual shutoff valve (see Figure 19).
2. Pressurize supply piping system by either using compressed air or opening main
gas valve located on or near gas meter.
3. Check all joints from gas meter to manual shutoff valve (see Figure 20). Apply
mixture of liquid soap and water to gas joints. Bubbles forming show a leak.
4. Correct all leaks at once.
Pressure Testing Fireplace Gas Connections
1. Open manual shutoff valve (see Figure 19).
2. Open main gas valve located on or near gas meter.
3. Make sure control knob of fireplace is in the OFF position.
4. Check all joints from manual shutoff valve to gas valve (see Figure 20). Apply
mixture of liquid soap and water to gas joints. Bubbles forming show a leak.
5. Correct all leaks at once.
6. Light fireplace (see Operating Fireplace, pages 22 through 24). Check all other
internal joints for leaks.
7. Turn off fireplace (see To Turn Off Gas to Appliance, page 24).
Figure 19 - Manual Shutoff Valve
ON
POSITION
OFF
POSITION
Open
Closed
Manual
Shutoff
Valve
Manual Shutoff Valve
Figure 20 - Checking Gas Joints
Gas Valve
Gas Meter
Continued

20
101920
INSTALLING
Continued
INSTALLING LOGS
Figure 22 - Installing Rear Log
WARNING ICON G 001
WARNING
Do not add extra logs or ornaments such as pine
cones, vermiculite, or rock wool. Using these added
items can cause sooting.
Do not add lava rock around base. Rock and debris
could fall into the control area of fireplace.
Each log is marked with a number. These numbers will help you identify the log
when installing. It is very important to install these logs exactly as instructed. Do
not modify logs. Only use logs supplied with fireplace.
1. Slide front log (#1) into place behind front burner. Make sure tabs at bottom of
log are behind front burner (see Figure 21).
Rear Log (#2)
Figure 21 - Installing Front Log
Front Log (#1)
2. Slide rear log (#2) into place behind rear burner (see Figure 22).
Tab
