Comfort Glow EQS5145 User manual

1
SANIBEL
20 IN. INFRARED
ELECTRIC STOVE
MODEL# EQS5140
MODEL# EQS5145
MODEL# EQS5147
Questions, problems, missing parts? Before returning to your retailer, call our
customer service department at 1-800-776-9425, 8:30 a.m. –5:00 p.m. EST,
Monday – Friday.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
WARNING!
IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY,
AN ELECTRICAL SHOCK OR FIRE MAY RESULT
CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
IMPORTANT INSTRUCTIONS
PLEASE READ THIS MANUAL BEFORE INSTALLING AND USING APPLIANCE
Español p. 14
ATTACH YOUR RECEIPT HERE
Serial Number ________________________________ Purchase Date _________________________________
Francais p. 27
20-10-211 Rev. 03/15/2018

2
IMPORTANT: Read all instructions and warnings carefully before starting installation.
Failure to follow these instructions may result in a possible electric shock, injury to
persons, re hazard and will void the warranty.
Please read the Installation & Operating Instructions before using this appliance.
TABLE OF CONTENTS
Safety Information .........................................................................................................................3-4
Package Contents............................................................................................................................5
Hardware Contents .........................................................................................................................5
Stove Dimensions ...........................................................................................................................6
Safety Information ...........................................................................................................................7
Preparation ......................................................................................................................................7
Assembly Instructions .....................................................................................................................7
Operating Instructions......................................................................................................................8
Care and Maintenance .....................................................................................................................9
Electric Wiring Diagram..................................................................................................................10
Troubleshooting..............................................................................................................................11
Warranty .........................................................................................................................................12
Replacement Parts.........................................................................................................................13
PRODUCT DAMAGE MAY OCCUR.
Never attempt to disassemble or alter the product in any way not instructed by this manual.
CAUTION
WARNING
This Product can expose you to chemicals including
Di(2-ethylhexyl)phthalate (DEHP) which is known to the State
of California to cause cancer and developmental harm.
For more information go to www.p65Warnings.ca.gov

3
Please read and understand this entire manual before attempting to assemble, operate or install the product.
1. Read all instructions before using this appliance.
2. This appliance is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.
If provided, use handles when moving this appliance. Keep combustible materials, such as
furniture, pillows, bedding, papers, clothes and curtains at least 3 ft. (914 mm) from the front
of this appliance and keep them away from the sides and rear.
3. CAUTION: Extreme caution is necessary when any heater is used by or near
children, invalids, or pets and whenever the heater is left operating unattended.
4. If possible always unplug this appliance when not in use.
5. Do not operate any heater with a damaged cord or plug or after the appliance malfunctions,
has been dropped or damaged in any manner.
6. Any repairs to this appliance should be carried out by a qualified service person.
7. Under no circumstances should this appliance be modified. Parts having to be removed for
servicing must be replaced prior to operating this appliance again.
8. Do not use outdoors.
9. This heater is not intended for use in bathrooms, laundry areas and similar indoor locations.
Never place this appliance where it may fall into a bathtub or other water container.
10. Do not use this heater in elevated locations, such as on shelves, raised platforms, etc.
11. Do not run cord under carpeting. Do not cover cord with throw rugs, runners or the like.
Arrange cord away from traffic areas and where it will not be tripped over.
12. To disconnect this appliance, turn controls to the off position, then remove plug from outlet.
13. Connect to properly grounded outlets only.
14. This appliance, when installed, must be electrically grounded in accordance with local
codes, with the current CSA C22.1 Canadian Electrical codes or for USA installations, follow
local codes and the National Electric Code, ANSI/NFPA No. 70.
15. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may
cause an electric shock, fire or damage to the appliance.
16. To prevent possible fire, do not block air intakes or exhaust in any manner. Do not use on
soft surfaces, like a bed, where openings may become blocked.
17. This appliance has hot and arcing or sparking parts inside. Do not use it in areas where
gasoline, paint or flammable liquids are used or stored. This appliance should not be used
as a drying rack for clothing, nor should Christmas stockings or decorations be hung on or
near it.
18. Use this appliance only as described in this manual. Any other use not recommended by the
manufacturer may cause fire, electric shock or injury to persons.
19. Always plug heaters directly into a wall outlet/receptacle. An extension cord or re-locatable
power tap, (outlet/power strip), should never be used.
20. Do not use this heater with missing, damaged, or broken legs.
21. "SAVE THESE INSTRUCTIONS"
SAFETY INFORMATION SAVE THESE INSTRUCTIONS

4

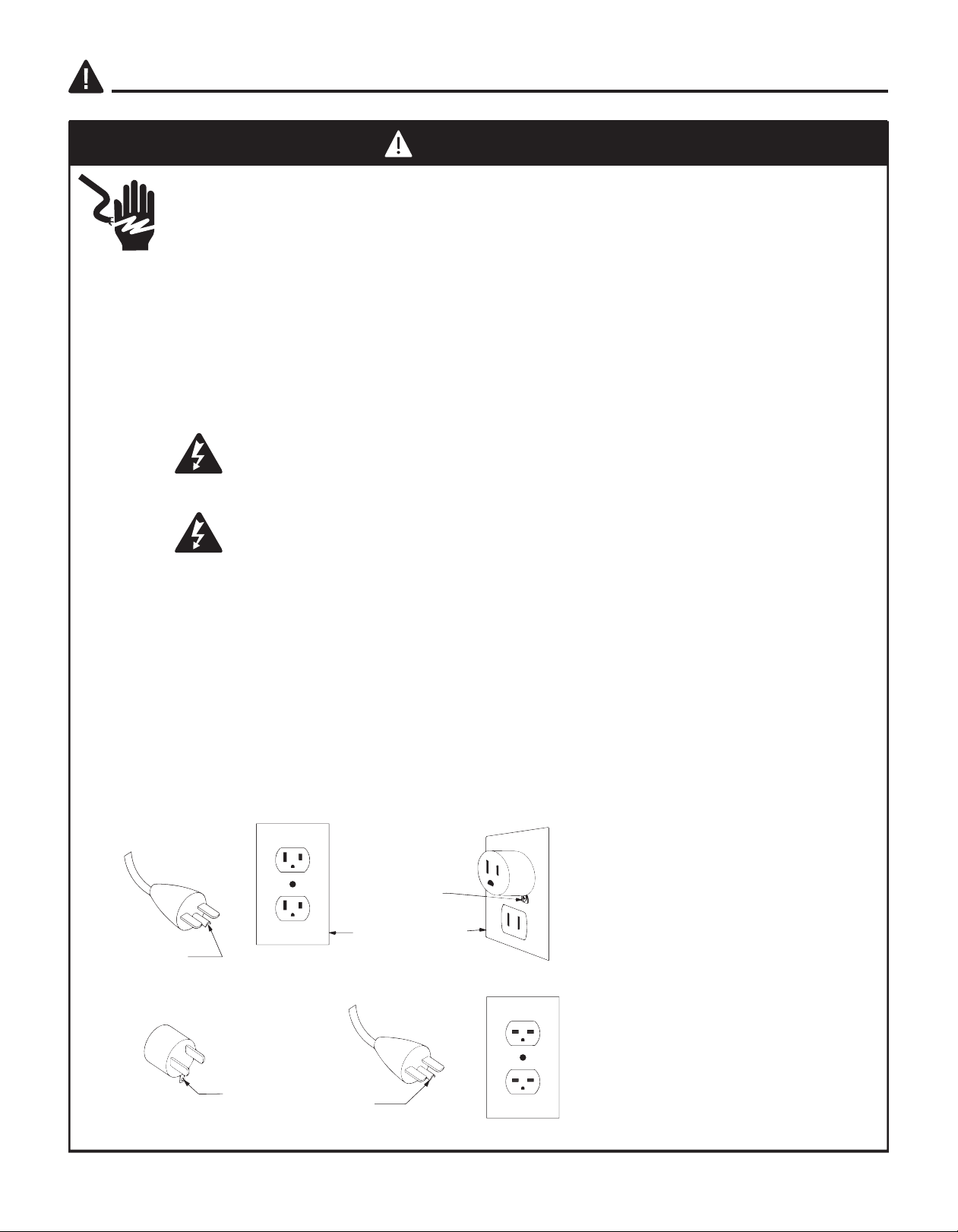

SAFETY INFORMATION
Electrical Connection
Grounding Instructions
This heater is for use on 120 volts. The cord has a plug as shown at (A) in gure 1.
An adaptor as shown at (C) is available for connecting three-blade grounding-type
plugs to two-slot receptacles. The green grounding lug extending from the adaptor
must be connected to a permanent ground such as a properly grounded outlet box.
The adaptor should not be used if a three-slot grounded receptacle is available.
NOTE: Adaptors are NOT
for use in Canada.
DANGER
A 15 Amp, 120 Volt, 60 Hz circuit with a properly grounded outlet is required.
Preferably, the replace will be on a dedicated circuit as other appliances on the
same circuit may cause the circuit breaker to trip or the fuse to blow when the heater
is in operation. The unit comes standard with a 6 ft. (1.8 m) long, three-wire cord,
exiting the right side of the replace. Always plug the unit into a wall outlet/receptacle.
An extension cord or re-locatable power tap, (outlet/power strip), should never be
used.
Electrical outlet wiring must comply with local building codes and other
applicable regulations to reduce the risk of re, electrical shock and injury
to persons.
Do not use this replace if any part of it has been under water. Immediately
call a qualied service technician to inspect the replace and replace any part
of the electrical system which has been under water.
Figure 1
GROUNDING
PIN
METAL SCREW
GROUNDING
MEANS
COVER OF GROUNDED
OUTLET BOX
ADAPTER
GROUNDING
PIN
(A)
(B)
(D)
(C)

5

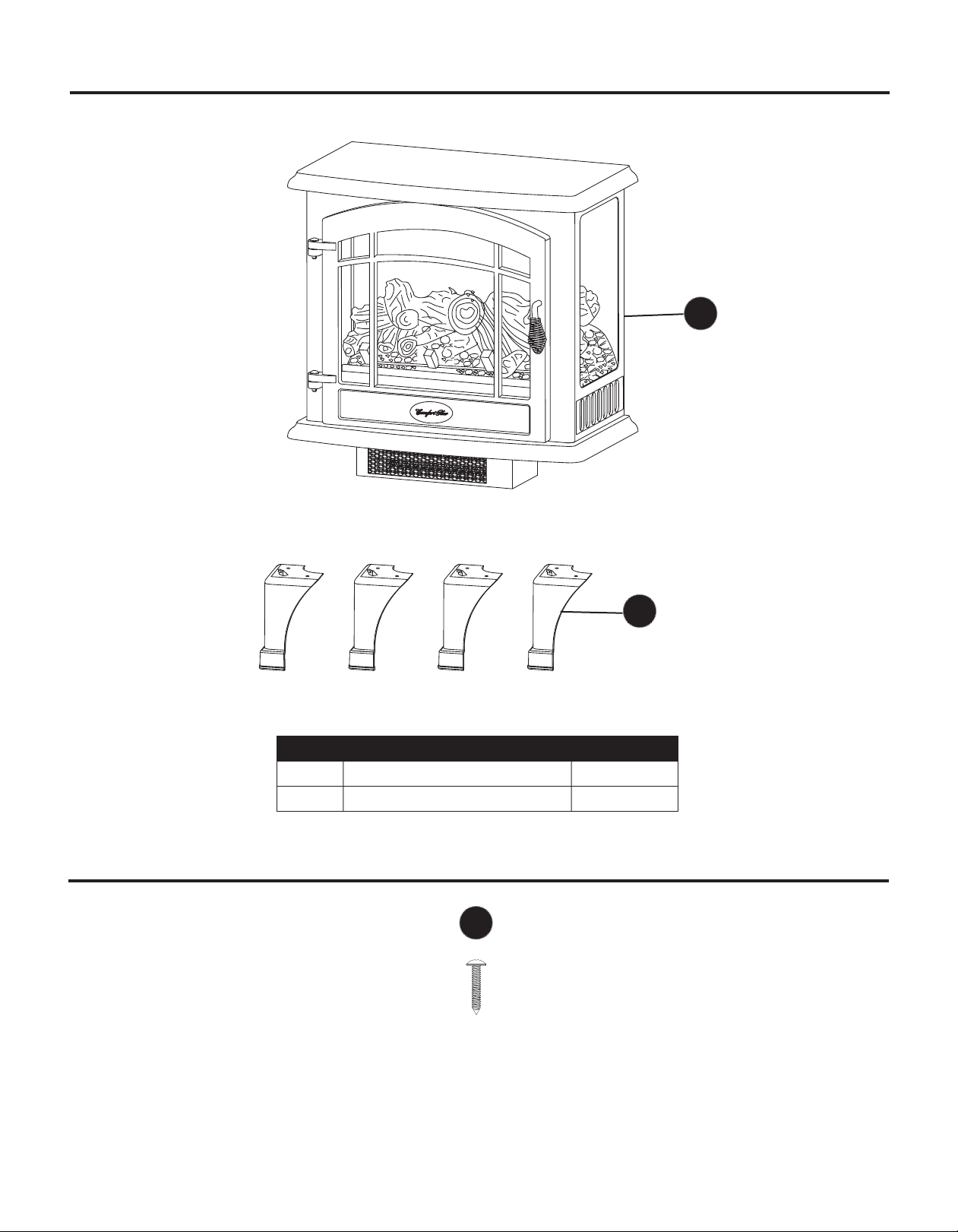

PACKAGE CONTENTS
A
B
A Electric Stove 1
B Leg 4
PART DESCRIPTION QUANTITY
HARDWARE CONTENTS (shown actual size)
Screw
Qty. 8
AA

6
STOVE DIMENSIONS
TECHNICAL SPECIFICATIONS
Voltage 120V AC
Frequency 60Hz
Amps 12.5A
Rating 1500W
REF. EQS5140
A 11 in. (27.94 cm)
B 23 in. (58.42 cm)
C 20 in. (50.8 cm)
A
B
C

7

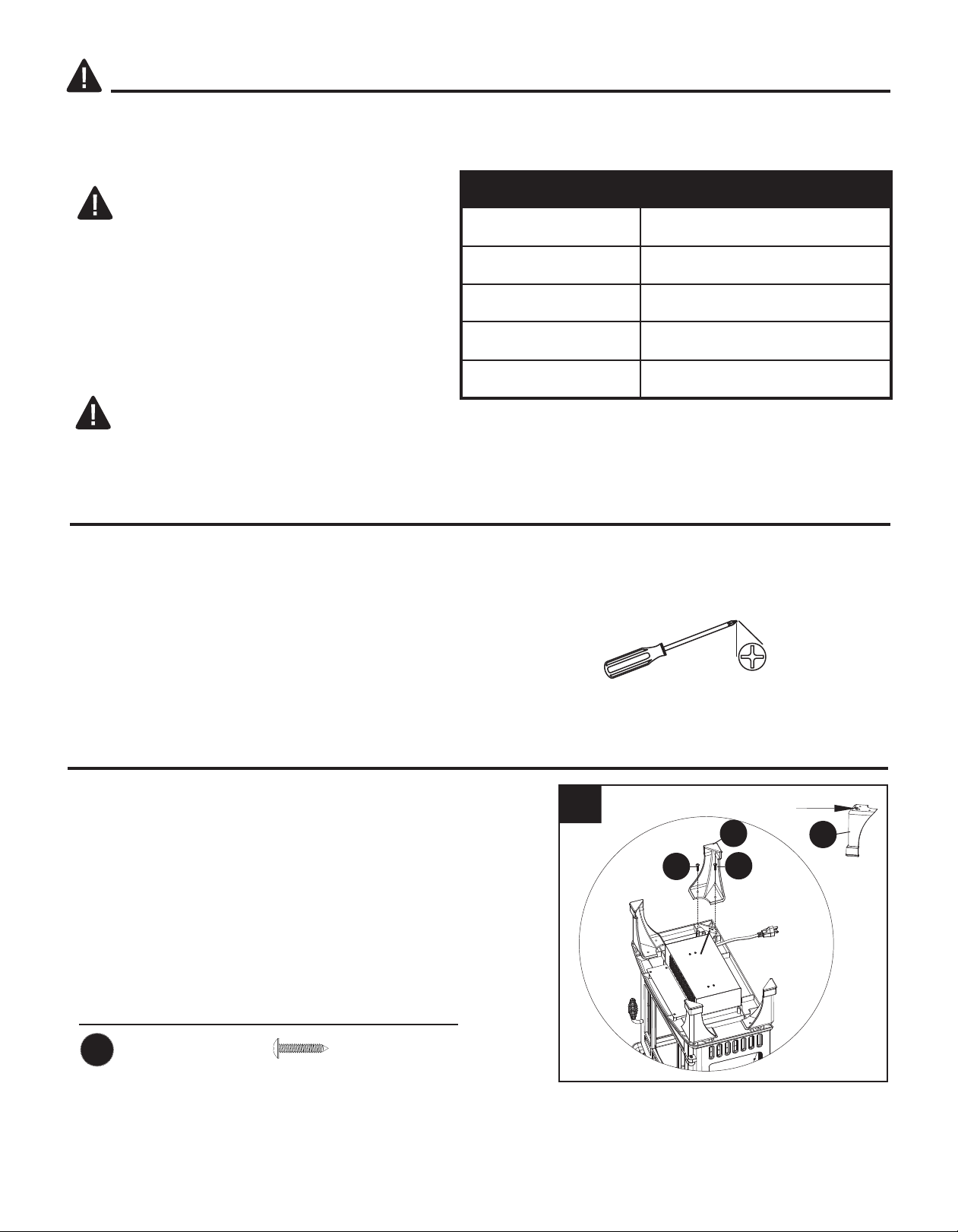

Warning: Do not install unit on shelves, raised platforms, beds, blankets, pillows etc.
Keep combustible materials such as furniture, bedding, papers, clothes and curtains at least
3 feet (914 mm) from the stove.
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product. If you have any questions regarding the product, please call customer service at 1-800-776-9425,
8:30 a.m. –5:00 p.m. EST, Monday - Friday.
WARNING
• Stove is heavy and should be assembled
near its desired location.
• It is recommended that two people move
the assembled stove to prevent injury.
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents above. If any part is missing or damaged, do not attempt to as-
semble the product. Contact customer service for replacement parts.
Estimated Assembly Time: 20 minutes
Tools Required for Assembly (not included): Phillips screwdriver
PREPARATION
ASSEMBLY INSTRUCTIONS
Hardware Used
1. Lay stove (A) upside down on a padded surface
with the underside accessible. Attach leg (B) to
stove by inserting the tab on the top of the leg (B)
into the corresponding slot on the bottom of the
stove (A). Insert two screws (AA) into predrilled
holes and tighten securely.
Repeat with remaining three legs.
Screw x 8
AA
1B
AA AA
CLEARANCE TO COMBUSTIBLES
Sides 4 in. (10.16 cm)
Floor 0 in. (0 cm)
Top 36 in. (91.44 cm)
Front 36 in. (91.44 cm)
Rear 0 in. (0 cm)
TAB
SLOT
B

8
OPERATING INSTRUCTIONS
Read All Instructions Before Use
Check that the heater outlet grill is not covered or obstructed in anyway, and make sure the power to
the unit is switched on.
NOTE: When the heat function is used for the rst time, a slight odor may be present. This is normal
and should not occur again unless the heater is not used for an extended period of time.
Power
The Power Switch supplies power to all of the functions of the stove. This switch must be in the
ON position for any functions to work.
Flame Effect
Toggle POWER Switch ON. The POWER indicator light will glow. Flame effect will be visible through
the front glass.
Temperature
Toggle Temperature Switch ON, the Temperature control knob regulates the temperature level of
the room. The further the knob is rotated clockwise, the higher the temperature setting. Turning the
knob counter-clockwise will lower the temperature setting. Use this function to help regulate the
ambient temperature level.
Temperature Limiting Control
This heater is equipped with a Temperature Limiting Control. Should the heater reach an unsafe
temperature, the heater will automatically turn off. To reset: Unplug the power cord from the outlet.
Wait 5 minutes. With the POWER switch in the OFF position, plug the power cord back into the outlet.
Control Panel
The control panel is located behind the door of the
stove.

9
To inspect or replace the bulbs, rst unplug the power cord from the outlet. Locate the access panel
on the back of the stove. Remove the screws and the panel. Check the bulbs to be sure they are
nger tight and in working order. Replace any damaged or faulty bulbs. Reattach the access panel.
Do not operate this heater without the access panel in place. Do not remove the back cover of this
heater. There are no serviceable parts inside.
CARE AND MAINTENANCE
Cleaning
Always turn the heater OFF and unplug the power cord from the outlet before cleaning. Use a vacuum
or duster to remove dust and dirt from the heater and vent areas. To maintain the nish, clean with a
soft, slightly damp cloth and buff with a dry cloth. Never use abrasive cleansers, liquid sprays, or any
cleaner that could scratch the surface.
Never drag the unit across a oor. The added stress from dragging the unit may cause the legs to
break.
Glass Information (some models)
1. Under no circumstances should this product be operated with broken glass.
2. Do not strike or slam the glass.
3. Do not use abrasive cleaners to clean the glass.
4. This product uses tempered glass. Replacement of the glass supplied by the manufacturer
should be done by a qualied service person.
Light Bulb Inspection and Replacement
The ame effect is created by two 40-Watt light bulbs with an E-12 (small) socket base. Use only this
type of light bulb. If the ame effect does not work, the bulbs may have come loose or been damaged
during shipping.
Light bulbs become very hot during use. Allow at least 10 minutes for the bulbs to cool
before touching.
WARNING: Do not exceed 40 watts per bulb. Use of higher rated
bulbs may result in a re, causing property damage or personal injury.
Maintenance of Motors
Always disconnect the appliance from the main power supply and allow it to cool before any
servicing operation.
The motors used on the fan heater and ame effect are pre-lubricated for extended bearing life and
require no further lubrication. However, periodic cleaning/vacuuming of the appliance around the air
intake and exhaust, as well as the fan heater is recommended. For heavy or continuous use, periodic
cleaning must be done more frequently. If the heater blows alternating cold and warm air, check the
fan for free movement and for debris restricting air ow. If the fan does not move freely, the unit must
be turned off and the fan replaced immediately in order to prevent further damage to the unit.

10
Disconnect power before servicing.
Any electrical re-wiring of this appliance must be done by a qualied electrician.
This wiring must be done in accordance with local codes and/or in Canada with
the current CSA C22.1 Canadian Electrical Code, and for US installations, the
National Electrical Code ANSI/NFPA No. 70.
If repairing or replacing any electrical component or wiring, the original
wire routing, color coding and securing locations must be followed.
DANGER
Any electrical repairs or rewiring of this unit should be carried out by a licensed electrician in
accordance with national and local codes.
ELECTRIC WIRING DIAGRAM
CIRCUIT DIAGRAM
AC120V /
60HZ
L
N
S1
FLAME EFFECT
MOTOR
BULB 1
40W
BULB 2
40W S2 HEATER
ELEMENT
FAN
MOTOR
THERMAL
FUSE
THERMAL
CUTOFF
GND
TEMPERATURE
CONTROL

11
TROUBLESHOOTING
If you have any questions regarding the product, please call customer service at 1-800-776-9425,
8:30 a.m. –5:00 p.m. EST, Monday – Friday.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Stove does
not operate.
Power light is ON
but the ame effect
is not visible.
Excessive noise
when the heater
is operating.
Heater is not
operating.
1. The stove is not
plugged in.
2. A circuit breaker is tripped
or a fuse blown.
3. Defective ON/OFF switch.
4. Loose wiring.
1. Incorrect operation.
2. Loose light bulb(s).
3. Burnt out light bulb(s).
1. Defective fan.
2. Defective heater assembly.
3. Dirt/dust on fan.
1. Incorrect operation.
2. Defective heater switch.
3. Defective heater assembly.
4. Loose wiring.
5. Dirty or clogged vents.
6. The thermostat is satised.
1. Make sure the stove is plugged in
to a standard 120V outlet.
2. Check additional appliances on the
circuit; ideally the stove should be
on a dedicated 15 Amp circuit.
3. Call customer service.
4. Call customer service.
1. Refer to operating instructions.
2. Tighten light bulb(s).
3. Replace light bulb(s).
1. Call customer service.
2. Call customer service.
3. Refer to maintenance section.
1. Refer to operating instructions.
2. Call customer service.
3. Call customer service.
4. Call customer service.
5. Unplug the unit. Clear vent area of dust
and debris. Wait ten minutes, plug the
unit in again and turn on the heater.
6. Adjust thermostat clockwise to make
room warmer.

12
The manufacturer warrants that your new electric stove is free from manufacturing and material
defects for a period of one year from date of purchase, subject to the following conditions and
limitations.
1. This electric stove must be installed and operated at all times in accordance with the instructions
furnished with the product. Any alteration, willful abuse, accident, or misuse of the product shall
nullify this warranty.
2. This warranty is non-transferrable, and is made to the original owner, provided that the purchase
was made through an authorized supplier of the manufacturer.
3. This warranty is limited to the repair or replacement of part(s) found to be defective in material
or workmanship, provided that such part(s) have been subjected to normal conditions of use and
service, after said defect is conrmed by the manufacturer’s inspection.
4. The manufacturer may, at its discretion, fully discharge all obligations with respect to this
warranty by refunding the wholesale price of the defective part(s).
5. Any installation, labor, construction, transportation, or other related costs/expenses arising from
defective part(s), repair, replacement, or otherwise of same, will not be covered by this warranty,
nor shall the manufacturer assume responsibility for same. Further, the manufacturer will not be
responsible for any incidental, indirect, or consequential damages, except as provided by law.
6. All other warranties - expressed or implied - with respect to the product, its components and
accessories, or any obligations/liabilities on the part of the manufacturer are hereby expressly
excluded.
7. The manufacturer neither assumes, nor authorizes any third party to assume, on its behalf,
any other liabilities with respect to the sale of this product.
8. The warranties as outlined within this document do not apply to non-manufacturer accessories
used in conjunction with the installation of this product.
9. This warranty does not cover the lightbulb(s) included with the replace.
This warranty is void if:
a) The stove has been operated in atmospheres contaminated by chlorine, uorine or other
damaging chemicals.
b) The stove is subjected to prolonged periods of dampness or condensation.
c) Any alteration, willful abuse, accident, or misuse of the product.
IF WARRANTY SERVICE IS NEEDED . . .
1) Contact customer service at 1-800-776-9425, 8:30 a.m. –5:00 p.m. EST, Monday – Friday.
Make sure you have your warranty, your sales receipt, and the model/serial number of your
product.
2) DO NOT ATTEMPT TO DO ANY SERVICE WORK YOURSELF.
WARRANTY
World Marketing of America, Inc.
P.O. Box 192, Mill Creek, PA, 17060-0192

13
REPLACEMENT PARTS LIST - ALL MODELS
For replacement parts, please call customer service at 1-800-776-9425, 8:30 a.m. –5:00 p.m. EST,
Monday – Friday.
20-10-211 Printed in China
Some parts and specications may change without notice.
PART DESCRIPTION PART #
EQS5140 EQS5145 EQS5147
1 Back panel EFES323001ST
2 Screen EFEST332T001ST
3 Flame panel EFEST332T002ST
4 Logset EFEST332T003ST
5 Top panel EFES323005ST EFES323005ST-RED EFES323005ST-BRZ
6 Cabinet panel EFEST332T004ST EFEST332T004ST-RED EFEST332T004ST-BRZ
7 Bottom panel EFES323007ST EFES323007ST-RED EFES323007ST-BRZ
8 Access panel EFES323008ST
9Flame reector EFEST332T005ST
10 Door glass EFEST333T001ST
11 Door EFEST333T002ST EFEST333T002ST-RED EFEST333T002ST-BRZ
12 Side glass EFEST332T008ST
13 Handle EFES323012ST-14 EFES323012ST-14-RED EFES323012ST-14-BRZ
14 Hinge Pin EFES323013ST EFES323013ST-RED EFES323013ST-BRZ
15 Leg (Design 3) EFEST333T003ST EFEST333T003ST-RED EFEST333T003ST-BRZ
16 Fan heater box EFES323015ST
17 Light barrier panel EFEST332T018ST
18 Control panel switch EFES323017ST
19 Thermostat EFES322006ST
20 Power cord & connector EFES323018ST
21 Heater (IR) EFES322007ST-14
22 Motor EFES323020ST
23 Lamp socket & bracket EFES323021ST

14
¡ADVERTENCIA!
SI NO SE SIGUE CON PRECISIÓN LA INFORMACIÓN DE ESTE MANUAL, SE
PUEDE PRODUCIR UNA DESCARGA ELÉCTRICA O UN INCENDIO QUE PRODUZCA
DAÑOS A LA PROPIEDAD, LESIONES PERSONALES O MUERTE.
INSTRUCCIONES IMPORTANTES
LEA ESTE MANUAL ANTES DE INSTALAR Y USAR EL ELECTRODOMÉSTICO
¿Preguntas, problemas, piezas faltantes? Antes de volver a la tienda, comuníquese
con nuestro departamento de Servicio al Cliente llamando al 1-800-776-9425, de 8:30
a.m. a 5:00 p.m. hora este estándar, de lunes a viernes.
ADJUNTE SU RECIBO AQUÍ
Número de serie _____________________________ Fecha de compra _____________________________
INSTALADOR: Deje este manual con el electrodoméstico.
CONSUMIDOR: Conserve este manual para referencia futura.
ESTUFA INFRARROJA
PANORÁMICA DE 50 CM
SANIBEL
MODELO# EQS5140
MODELO# EQS5145
MODELO# EQS5147
20-10-211 Rev. 03/15/2018
English p. 1
Francais p. 27

15
IMPORTANTE: lea con atención todas las instrucciones y advertencias antes de
comenzar la instalación. Si no se siguen las instrucciones, se puede provocar una
descarga eléctrica, lesiones a personas, riesgo de incendio, lo que anulará la garantía.
ÍNDICE
Información de seguridad .........................................................................................................16-17
Contenido del paquete .....................................................................................................................18
Aditamentos .................................................................................................................................... 18
Dimensiones de la chimenea .........................................................................................................19
Información de seguridad ..............................................................................................................20
Preparación ....................................................................................................................................20
Instrucciones de ensemblaje..........................................................................................................20
Instrucciones de operación............................................................................................................21
Cuidado y mantenimiento ..............................................................................................................22
Diagrama del cableado eléctrico.................................................................................................... 23
Solución de problemas ..................................................................................................................24
Garantía..........................................................................................................................................25
Lista de piezas de repuesto ...........................................................................................................26
Lea estas instrucciones de instalación y funcionamiento
antes de utilizar el electrodoméstico.
EL DAÑO DEL PRODUCTO PUEDE OCURRIR.
Nunca trate de desarmar o alterar este producto sin seguir las instrucciones de este manual.
PRECAUCIÓN
ADVERTENCIA
Este producto puede exponerlo a sustancias químicas como el
di(2-etilhexil) ftalato (DEHP) que, según el estado de California,
puede provocar cáncer y daños del desarrollo.
Para obtener más información, visite www.p65Warnings.ca.gov

16
Lea y comprenda completamente este manual antes de intentar ensamblar, usar o instalar el producto.
1. Lea todas las instrucciones antes de usar este electrodoméstico.
2. Este electrodoméstico se calienta cuando está en funcionamiento. Para evitar quemaduras, no toque
supercies calientes con la piel desnuda. Si se incluyen, utilice las manijas para trasladar el electro-
doméstico. Mantenga materiales inamables, como muebles, almohadas, ropa de cama, papeles,
ropa y cortinas al menos a 914,4 mm (3 pies) de la parte delantera de este electrodoméstico y man-
tenerlos alejados de los costados y parte trasera..
3. PRECAUCIÓN: Extrema precaución es necesario cuando cualquier calentador este
usado o cerca de niños, inválidos, o mascotas y cuando el calentador se deje
funcionando sin vigilancia.
4. Si es posible, siempre desenchufe este electrodoméstico cuando no lo use.
5. No opere ningún calentador con un cable o enchufe dañados, o después de fallas del mismo,
de que se haya dejado caer o dañado de cualquier forma.
6. Toda reparación de este electrodoméstico debe realizarla un técnico calicado.
7. Bajo ninguna circunstancia se debe modicar este electrodoméstico. Las piezas que se deben retirar
para reparación se deben reemplazar antes de volver a hacer funcionar este electrodoméstico.
8. No lo use en exteriores.
9. Este calentador no se debe usar en el baño, lavadero y en espacios húmedos similares interiores.
Nunca coloque este calentador donde se pueda caer dentro de una bañera u otro contenedor de
agua.
10. No utilice este calentador en lugares elevados como por ejemplo sobre repisas, plataformas elevadas,
etc.
11. No coloque el cable debajo de una alfombra. No cubra el cable con alfombras, tapetes o
similares. Coloque el cable lejos de zonas de tránsito en donde nadie se pueda tropezar y caer.
12. Para desconectar este electrodoméstico, gire los controles a la posición de apagado y luego retire el
enchufe del tomacorriente.
13. Conecte únicamente a un tomacorriente con la debida puesta a tierra.
14. Cuando está instalado, este electrodoméstico se debe poner a tierra según los códigos locales,
según los Códigos de Electricidad de Canadá CSA C22.1 o, para instalaciones en EE.UU., siga los
códigos locales y el código nacional de electricidad, ANSI/NFPA No. 70.
15. No introduzca objetos extraños ni permita que entren en las aberturas de escape o ventilación, ya
que pueden provocar descargas eléctricas, incendios o daños en el electrodoméstico.
16. Para evitar incendios, no bloquee las entradas ni salidas de aire de ninguna manera. No use sobre
supercies blandas, como una cama, donde las aberturas se puedan bloquear.
17. Este electrodoméstico tiene en su interior piezas calientes y piezas que forman arcos eléctricos o
que echan chispas. No lo use en áreas donde se use o almacene gasolina, pintura o líquidos inam-
ables. Este electrodoméstico no se debe usar como una rejilla para secar ropa, ni tampoco se deben
colgar calcetas navideñas o decoraciones en el electrodoméstico o cerca de éste.
18. Utilice este electrodoméstico sólo como se describe en este manual. Cualquier otro uso no reco-
mendado por el fabricante puede causar incendios, descargas eléctricas o lesiones personales.
19. Siempre conecte las estufas directamente al enchufe/toma de electricidad de la pared. Nunca de-
ben usarse una extensión eléctrica ni un tomacorriente de alimentación reubicable (tomacorri-
ente/enchufe múltiple).
20. No utilice este calentador cuando le falten patas o estén dañadas o rotas.
21. GUARDE ESTAS INSTRUCCIONES.
INFORMACIÓN DE SEGURIDAD GUARDE ESTAS INSTRUCCIONES

17
INFORMACIÓN DE SEGURIDAD
Conexión eléctrica
Instrucciones de puesta a tierra
Este calentador fue diseñado para su uso en 120 voltios. El cable tiene un enchufe,
como se muestra en (A) de la gura 1. Hay disponible un adaptador, como se muestra
en (C), para conectar enchufes con puesta a tierra de tres clavijas a receptáculos de dos
ranuras. La orejeta verde de puesta a tierra que sale del adaptador se debe conectar
permanentemente a tierra, como a través de una caja de un tomacorriente correctamente
puesto a tierra. El adaptador no se debe usar si hay disponible un receptáculo de tres
ranuras puesto a tierra.
PELIGRO
NOTA:
Los adaptadores NO son
para ser utilizados en Canadá
Se requiere un circuito de 15 amperios, 120 voltios, 60 Hz con un tomacorriente
correctamente puesto a tierra. De preferencia, la chimenea debe estar en un circuito
dedicado, ya que la conexión de otros electrodomésticos al mismo circuito puede
provocar que el interruptor de circuito se desconecte o que el fusible se funda cuan-
do el calentador esté en funcionamiento. Se incluye como estándar con la unidad un
cable de tres conductores de 1,83 m (6 pies) de largo, que sale del lado derecho de
la chimenea. Siempre enchufe la unidad en untomacorriente/receptáculo de la pared.
Nunca deben usarse una extensión eléctrica ni un tomacorriente de alimentación
reubicable (tomacorriente/enchufe múltiple).
El cableado del tomacorriente debe cumplir con los códigos de construcción
locales y con otras normas que correspondan para reducir el riesgo de incendio,
descarga eléctrica y lesiones a personas.
No utilice esta chimenea si alguna de sus piezas estuvo sumergida en agua.
Llame de inmediato a un técnico en mantenimiento calicado a n de que
inspeccione la chimenea y reemplace cualquier pieza del sistema eléctrico
que haya estado bajo agua.
CLAVIJA CON
PUESTA A
TIERRA
PUESTA A
TIERRA
TORNILLO DE
METAL
CLAVIJA CON
PUESTA A
TIERRA
ADAPTADOR
(A)
(C)
(D)
TAPA DE LA CAJA
DEL TOMACORRIENTE
PUESTO A TIERRA
Figura 1
(B)

18
CONTENIDO DEL PAQUETE
A Estufa Eléctrica 1
B Pata 4
PIEZA DESCRIPCIÓN CANTIDAD
ADITAMENTOS (se muestran en tamaño real)
Tornillo
Cant. 8
AA
A
B

19
DIMENSIONES DE LA CHIMENEA
ESPECIFICACIONES TÉCNICAS
Voltaje 120V AC
Frecuencia 60Hz
Amperaje 12.5A
Potencia de Servicio
del Calentador 1500W
REF. EQS5140
A 27.94 cm (11 in.)
B 58.42 cm (23 in.)
C 50.8 cm (20 in.)
A
B
C

20
PRECAUCIÓN: No instale la unidad en los estantes, plataformas elevadas, camas, mantas,
almohadas, etc Mantenga los materiales combustibles, tales como muebles, ropa de cama,
papeles, ropa y cortinas por lo menos 3 pies (914 mm) de la estufa.
Lea y comprenda completamente este manual antes de intentar ensamblar, usar o instalar elproducto. Si
tiene preguntas relacionadas con el producto, llame al Servicio al Cliente al1-877-447-4768, de lunes a
viernes de 8:30 a.m. a 4:30 p.m., hora central estándar.
PRECAUCIÓN:
• Estufa es pesado y debe ser montado
cerca de su ubicación deseada.
• Se recomienda que dos personas se
desplazan la estufa se reunieron para
prevenir lesiones.
Antes de comenzar a ensamblar el producto, asegúrese de tener todas las piezas. Compare las
piezas con la lista del contenido del paquete y los aditamentos anteriores. No intente ensamblar el
producto si falta alguna pieza o si éstas están dañadas. Póngase en contacto con el Departamento
de Servicio al Cliente para obtener piezas de repuesto.
Tiempo estimado de ensamblaje: 20 minutos
Herramientas necesarias para el ensamblaje: destornillador Phillips (no se incluye).
PREPARACIÓN
INSTRUCCIONES DE ENSAMBLAJE
Aditamentos utilizados
1. Coloque la estufa (A) boca abajo sobre una
supercie acolchada con la parte inferior
accesible. Coloque la pierna (B) a la estufa
mediante la inserción de la lengüeta en la
parte superior de la pierna (B) en la ranura
correspondiente en la parte inferior de la estufa
(A). Inserte dos tornillos (AA) en los agujeros
pre-perforados y apriete bien.
Repita con el resto de tres patas.
Tornillo x 8
AA
INFORMACIÓN DE SEGURIDAD
DISTANCIA DE SEPARACIÓN CON ELEMENTOS INFLAMABLES
Lateral 10.16 cm (4 in.)
Piso 0 cm (0 in.)
Parte superior 91.44 cm (36 in.)
Parte delantera 91.44 cm (36 in.)
Trasero 0 cm (0 in.)
1B
AA AA
TABULACIÓN
B
RANURA
