Comfort Glow SL30NT Series Quick start guide

WARNING:Iftheinformationinthismanualis
not followed exactly, a fire or explosion may
result causing property damage, personal in-
jury, or loss of life.
— Do not store or use gasoline or other
flammablevaporsandliquidsinthevicinity
of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier, call
the fire department.
— Installation and service must be per-
formed by a qualified installer, service
agency, or the gas supplier.
WARNING:Improperinstallation,adjustment,
alteration,service,ormaintenancecancause
injury or property damage. Refer to this
manual for correct installation and opera-
tional procedures. For assistance or addi-
tionalinformationconsultaqualifiedinstaller,
service agency, or the gas supplier.
WARNING: This is an unvented gas-fired
heater. It uses air (oxygen) from the room in
which it is installed. Provisions for adequate
combustion and ventilation air must be pro-
vided. Refer to Air for Combustion and Ven-
tilation section on page 4 of this manual.
Patent Pending
Model SL30NT Series Thermostat Control Gas Log Heater
(Burner System For Cast Iron Stoves)
WARNING: The SL30NT series vent-free gas log
heater is only approved for use in the Comfort
Glow series cast iron stove models CISC and
CISG.
SL30NT
This appliance may be installed in an aftermarket*, permanently located, manufactured (mobile)
home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This appli-
ance is not convertible for use with other gases.
* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer
(VENT-FREE) NATURAL
GAS STOVE HEATER
OWNER’S OPERATION AND
INSTALLATION MANUAL
Save this manual for future reference.
Save this manual for future reference.
For more information, visit www.desatech.com
For more information, visit www.desatech.com

104463-01E
For more information, visit www.desatech.com
For more information, visit www.desatech.com
2
SAFETY INFORMATION
IMPORTANT: Read this owner’s manual carefully and
completely before trying to assemble, operate, or ser-
vice this heater. Improper use of this heater can cause
serious injury or death from burns, fire, explosion,
electrical shock, and carbon monoxide poisoning.
Carbon Monoxide Poisoning: Early signs of carbon monoxide
poisoningresembletheflu,withheadaches,dizziness,ornausea.Ifyou
havethesesigns,theheatermaynotbeworkingproperly.Getfreshair
at once! Have heater serviced. Some people are more affected by
carbonmonoxide than others. Theseincludepregnant women, people
with heart or lung disease or anemia, those under the influence of
alcohol, and those at high altitudes.
Natural Gas: Natural gas is odorless. An odor-making agent is
addedtothegas.The odorhelpsyoudetect agasleak.However,the
odor added to the gas can fade. Gas may be present even though no
odor exists.
Make certain you read and understand all warnings. Keep this
manual for reference. It is your guide to safe and proper operation
of this heater.
WARNINGICON G001
WARNINGS
DANGER: Carbon monoxide poisoning may lead
to death!
WARNING: Any change to this heater or its
controls can be dangerous.
WARNING:Do notallowfans to blowdirectly into
the stove. Avoid any drafts that alter burner flame
patterns. Ceiling fans can create drafts that alter
burner flame patterns. Altered burner patterns can
cause sooting.
WARNING: Do not use a blower insert, heat
exchanger insert or other accessory not approved
for use with this heater.
Due to high temperatures, the appliance should be
located out of traffic and away from furniture and
draperies.
Do not place clothing or other flammable material on
ornear theappliance.Never placeany objectson the
heater.
Stove becomes very hot when running heater. Keep
children and adults away from hot surface to avoid
burns or clothing ignition. Heater will remain hot for
a time after shutdown. Allow surface to cool before
touching.
Carefully supervise young children when they are in
the room with fireplace.
Keepthe appliance areaclear and freefrom combus-
tiblematerials,gasoline,andotherflammablevapors
and liquids.
WARNING:Thisproductcontainsand/orgenerates
chemicals known to the State of California to cause
cancer or birth defects, or other reproductive harm.
TABLE OF CONTENTS
SAFETY INFORMATION
TABLE OF CONTENTS
SAFETY INFORMATION ............................................................ 2
PRODUCT IDENTIFICATION ..................................................... 3
LOCAL CODES........................................................................... 3
PRODUCT FEATURES .............................................................. 4
AIR FOR COMBUSTION AND.................................................... 4
VENTILATION............................................................................. 4
INSTALLATION ........................................................................... 6
OPERATING HEATER .............................................................. 13
INSPECTING BURNERS.......................................................... 14
CLEANING AND MAINTENANCE ............................................ 14
SPECIFICATIONS .................................................................... 15
TROUBLESHOOTING .............................................................. 16
SERVICE HINTS....................................................................... 19
TECHNICAL SERVICE ............................................................. 19
REPLACEMENT PARTS .......................................................... 19
ACCESSORIES ........................................................................ 19
ILLUSTRATED PARTS BREAKDOWN AND PARTS LIST ....... 20
PARTS CENTRALS .................................................................. 24
OWNER’S REGISTRATION FORM.......................................... 25
WARRANTY INFORMATION...................................... Back Cover

104463-01E
For more information, visit www.desatech.com
For more information, visit www.desatech.com
3
3
1. This appliance is only for use with the type of gas indicated on
the rating plate. This appliance is not convertible for use with
other gases.
2. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do not use any phone in
your building
• immediately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s instructions
• if you cannot reach your gas supplier, call the fire department
3. This heater shall not be installed in a bedroom or bathroom.
4. Do not place stove directly on carpeting, vinyl tile, or any
combustible material other than wood. The stove must set on
a metal or wood panel extending the full width and depth of
the appliance.
5. Do not use this stove as a wood burning fireplace. Use only
model SL30NT series vent-free gas log heater.
6. Do not add extra logs or ornaments such as pine cones, vermicu-
lite, or rock wool. Using these added items can cause sooting.
7. This log heater is designed to be smokeless. If logs ever appear
to smoke, turn off heater and call a qualified service person.
Note: During initial operation, slight smoking could occur due
to log curing and heater burning manufacturing residues.
8. To prevent thecreationof soot, followtheinstructions in Clean-
ing and Maintenance, pages 14 and 15.
9. Before using furniture polish, wax, carpet cleaners, or similar
products, turn heater off. If heated, the vapors from these prod-
ucts may create a white powder residue within burner box or
on adjacent walls or furniture.
10. This heater needs fresh, outside air ventilation to run properly.
This heater has an Oxygen Depletion Sensing (ODS) safety
shutoff system. The ODS shuts down the heater if not enough
fresh air is available. See Air for Combustion and Ventilation,
pages 4 through 6. If heater keeps shutting off, see Trouble-
shooting, pages 16 through 18.
11. Do not run heater
• where flammable liquids or vapors are used or stored
• under dusty conditions
12. Do not use this stove to cook food or burn paper or other objects.
13. Do not use heater if any part has been exposed to or under
water. Immediately call a qualified service technician to in-
spect the room heater and to replace any part of the control
system and any gas control which has been under water.
14. Do not operate heater if any log is broken. Do not operate
heater if a log is chipped (dime-sized or larger).
15. Turn heater off and let cool before servicing. Only a qualified
service person should service and repair heater.
16. Operating heater above elevations of 4,500 feet could cause
pilot outage.
17. Provide adequate clearances around air openings.
SAFETY INFORMATION
Continued
LOCAL CODES
Installanduseheaterwithcare.Followalllocal codes.Intheabsence
of local codes, use the latest edition of The National Fuel Gas Code
ANSI Z223.1/NFPA 54*.
*Available from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
PRODUCT IDENTIFICATION
Figure 1 - Typical Stove Cabinet Model with Comfort Glow Gas
Log Heater
Stove
Body
Stove Door
(Shown in the
open position)
Piezo
Ignitor Control Knob
One Piece
Log Set
Inside
Stove
Cavity
SAFETY INFORMATION
PRODUCT IDENTIFICATION
LOCAL CODES

104463-01E
For more information, visit www.desatech.com
For more information, visit www.desatech.com
4
AIR FOR COMBUSTION AND
VENTILATION
Today’s homes are built more energy efficient than ever. New mate-
rials,increased insulation, and newconstructionmethods help reduce
heat loss in homes. Home owners weather strip and caulk around
windowsanddoorstokeepthecoldairoutandthewarmairin.During
heatingmonths,homeownerswanttheirhomesasairtightaspossible.
While it is good to make your home energy efficient, your home
needs to breathe. Fresh air must enter your home. All fuel-burning
appliances need fresh air for proper combustion and ventilation.
Exhaustfans,fireplaces,clothesdryers,andfuelburningappliances
drawairfromthehousetooperate.Youmustprovideadequatefresh
air for these appliances. This will insure proper venting of vented
fuel-burning appliances.
PROVIDING ADEQUATE VENTILATION
The following are excerpts from National Fuel Gas Code, ANSI
Z223.1/NFPA 54, Section 5.3, Air for Combustion and Ventilation.
All spaces in homes fall into one of the three following ventilation
classifications:
1. Unusually Tight Construction
2. Unconfined Space
3. Confined Space
The information on pages 4 through 6 will help you classify your
space and provide adequate ventilation.
Confined and Unconfined Space
The National Fuel Gas Code ANSI Z223.1/NFPA 54 defines a
confined space as a space whose volume is less than 50 cubic feet
per 1,000 Btu per hour (4.8 m3per kw) of the aggregate input rating
of all appliances installed in that space and an unconfined space as
aspacewhosevolumeisnotlessthan50cubicfeetper1,000Btuper
hour (4.8 m3per kw) of the aggregate input rating of all appliances
installed in that space. Rooms communicating directly with the
space in which the appliances are installed*, through openings not
furnishedwithdoors,areconsidereda part of the unconfined space.
* Adjoining rooms are communicating only if there are doorless
passageways or ventilation grills between them.
WARNING: This heater shall not be installed in
a confined space or unusually tight construction
unless provisions are provided for adequate com-
bustion and ventilation air. Read the following in-
structions to insure proper fresh air for this and
other fuel-burning appliances in your home.
OPERATION
Thisheater is cleanburning. It requiresno outside venting.There is no
heat loss out a vent or up a chimney. Heat is generated by realistic,
dancingyellowflames.Thisheaterisdesignedforvent-freeoperation.
Stateandlocalcodesinsomeareasprohibittheuseofvent-freeheaters.
SAFETY PILOT
This heater has a pilot with an Oxygen Depletion Sensing (ODS)
safety shutoff system. The ODS/pilot is a required feature for vent-
free room heaters. The ODS/pilot shuts off the heater if there is not
enough fresh air.
PIEZO IGNITION SYSTEM
This heater has a piezo ignitor. This system requires no matches,
batteries, or other sources to light heater.
PRODUCT FEATURES Unusually Tight Construction
The air that leaks around doors and windows may provide enough
fresh air for combustion and ventilation. However, in buildings of
unusually tight construction, you must provide additional fresh air.
Unusually tight construction is defined as construction
where:
a. walls and ceilingsexposed totheoutside atmosphere
have a continuous water vapor retarder with a rating
of one perm (6 x 10-11 kg per pa-sec-m2) or less with
openings gasketed or sealed
and
b. weather stripping has been added on openable win-
dows and doors and
c. caulking or sealants are applied to areas such as
joints around window and door frames,between sole
platesandfloors,between wall-ceilingjoints,between
wall panels, at penetrations for plumbing, electrical,
and gas lines, and at other openings.
If your home meets all of the three criteria above, you
must provide additional fresh air. See Ventilation Air
From Outdoors , page 6.
Ifyour home doesnot meet allof the threecriteria above,
proceed to Determining Fresh-Air Flow For Heater Loca-
tion, page 5.
PRODUCT FEATURES
AIR FOR COMBUSTION AND VENTILATION
Providing Adequate Ventilation

104463-01E
For more information, visit www.desatech.com
For more information, visit www.desatech.com
5
5
AIR FOR COMBUSTION AND
VENTILATION
Continued
DETERMINING FRESH-AIR FLOW FOR
HEATER LOCATION
Determining if You Have a Confined or
Unconfined Space
Use this work sheet to determine if you have a confined or uncon-
fined space.
Space:Includes the room in which you will install heater plus any
adjoining rooms with doorless passageways or ventilation grills
between the rooms.
1. Determine the volume of the space (length x width x height).
Length x Width x Height = _________ cu.ft.(volumeofspace)
Example: Space size 20 ft. (length) x 16 ft. (width) x 8 ft.
(ceiling height) = 2560 cu. ft. (volume of space)
Ifadditional ventilation toadjoiningroom is suppliedwithgrills
or openings, add the volume of these rooms to the total vol-
ume of the space.
2. Multiply the space volume by 20 to determine the maximum
Btu/Hr the space can support.
_________________ (volume of space) x 20 = (maximum
Btu/Hr the space can support)
Example: 2560 cu. ft. (volume of space) x 20 = 51,200 (maxi-
mum Btu/Hr the space can support)
3. Add the Btu/Hr of all fuel burning appliances in the space.
Vent-free heater _______________Btu/Hr
Gas water heater* _______________Btu/Hr
Gas furnace _______________Btu/Hr
Vented gas heater _______________Btu/Hr
Gas fireplace logs _______________Btu/Hr
Other gas appliances* + ______________Btu/Hr
Total = ______________Btu/Hr
* Do not include direct-vent gas appliances. Direct-vent draws
combustion air from the outdoors and vents to the outdoors.
Example:
Gas water heater 40,000 Btu/Hr
Vent-free heater +30,000 Btu/Hr
Total =70,000 Btu/Hr
WARNING: If the area in which the heater may be
operated is smaller than that defined as an uncon-
fined space or if the building is of unusually tight
construction,provideadequatecombustionandven-
tilation air by one of the methods described in the
National Fuel Gas Code, ANSI Z223.1/NFPA 54, Sec-
tion 5.3 or applicable local codes.
4. Compare the maximum Btu/Hr the space can support with the
actual amount of Btu/Hr used.
_____________ Btu/Hr (maximum the space can support)
_____________ Btu/Hr (actual amount of Btu/Hr used)
Example: 51,200 Btu/Hr (maximum the space can support)
70,000 Btu/Hr (actual amount of Btu/Hr used)
The space in the above example is a confined space because the
actualBtu/Hr used ismorethan the maximumBtu/Hrthe space can
support. You must provide additional fresh air. Your options are as
follows:
A. Rework worksheet, adding the space of an adjoining room. If
the extra space provides an unconfined space, remove door to
adjoining room or add ventilation grills between rooms. See
Ventilation Air From Inside Building, page 6.
B. Vent room directly to the outdoors. See Ventilation Air From
Outdoors, page 6.
C. Install a lower Btu/Hr heater, if lower Btu/Hr size makes room
unconfined.
Iftheactual Btu/Hr used is less than the maximum Btu/Hr the space
can support, the space is an unconfined space. You will need no
additional fresh air ventilation.
AIR FOR COMBUSTION AND VENTILATION
Determining Fresh-Air Flow for Heater Location

104463-01E
For more information, visit www.desatech.com
For more information, visit www.desatech.com
6
WARNING: Never install the heater
•in a bedroom or bathroom
•in a recreational vehicle
•where curtains, furniture, clothing, or other flam-
mable objects are less than 42 inches from the
front, top, or sides of the heater
•in high traffic areas
•in windy or drafty areas
INSTALLATION
WARNING: A qualified service person must in-
stall heater. Follow all local codes.
NOTICE: State or local codes may only allow opera-
tionofthisapplianceinaventedconfiguration.Check
your state or local codes.
NOTICE: This heater is intended for use as supple-
mental heat. Use this heater along with your primary
heating system. Do not install this heater as your
primary heat source. If you have a central heating
system, you may run system’s circulating blower
while using heater. This will help circulate the heat
throughoutthehouse.Intheeventofapoweroutage,
you can use this heater as your primary heat source.
AIR FOR COMBUSTION AND
VENTILATION
Continued
Figure 3 - Ventilation Air from Outdoors
Figure 2 - Ventilation Air from Inside Building
VENTILATION AIR
Ventilation Air From Inside Building
This fresh air would come from an adjoining unconfined space.
When ventilating to an adjoining unconfined space, you must
provide two permanent openings: one within 12" of the ceiling and
one within 12" of the floor on the wall connecting the two spaces
(see options 1 and 2, Figure 2). You can also remove door into
adjoining room (see option 3, Figure 2). Follow the National Fuel
Gas Code, ANSI Z223.1/NFPA 54, Section 5.3, Air for Combustion
and Ventilation for required size of ventilation grills or ducts.
Ventilation Air From Outdoors
Provideextrafreshairbyusingventilationgrillsorducts.Youmust
provide two permanent openings: one within 12" of the ceiling and
one within 12" of the floor. Connect these items directly to the
outdoorsorspacesopentotheoutdoors. Thesespacesinclude attics
and crawl spaces. Follow the National Fuel Gas Code, ANSI
Z223.1/NFPA 54, Section 5.3, Air for Combustion and Ventilation
for required size of ventilation grills or ducts.
IMPORTANT: Do not provide openings for inlet or outlet air
into attic if attic has a thermostat-controlled power vent. Heated
air entering the attic will activate the power vent.
Outlet
Air Ventilated
Attic
Outlet
Air
Inlet
Air
Inlet Air Ventilated
Crawl Space
To
Crawl
Space
To Attic
Or
Remove
Door into
Adjoining
Room,
Option
3
Ventilation Grills
Into Adjoining Room,
Option 2
Ventilation
Grills
Into Adjoining
Room,
Option 1
12"
12"
AIR FOR COMBUSTION AND VENTILATION
Ventilation Air
INSTALLATION

104463-01E
For more information, visit www.desatech.com
For more information, visit www.desatech.com
7
7
CAUTION: This heater creates warm air currents.
These currents move heat to wall surfaces next to
heater. Installing heater next to vinyl or cloth wall
coveringsoroperatingheaterwhereimpurities(such
as, but not limited to, tobacco smoke, aromatic
candles, cleaning fluids, oil or kerosene lamps, etc.)
in the air exist, may discolor walls or cause odors.
CHECK GAS TYPE
Use only natural gas. If your gas supply is not natural gas, do not
install heater. Call dealer where you bought heater for proper
type heater.
IMPORTANT: Vent-free heaters addmoistureto the air.Although
this is beneficial, installing heater in rooms without enough venti-
lation air may cause mildew to form from too much moisture. See
Air for Combustion and Ventilation, pages 4 through 6.
CLEARANCES TO COMBUSTIBLES
(Vent-Free Operation Only)
WARNING: Maintain the minimum clearances. If
you can, provide greater clearances from floor, ceil-
ing, and adjoining side and back walls.
Carefullyfollowtheinstructionsbelow.Thisstoveisafreestanding
unit designed to set directly on the floor. IMPORTANT: You must
maintain minimum wall and ceiling clearances during installation.
The minimum clearances are shown in Figure 4. Measure from
outermost point of stove top.
Minimum Wall and Ceiling Clearances (see Figure 4)
A. Clearances from outermost point of stove top to any combus-
tible side wall should not be less than 12 inches.
B. Clearances from outermost point of stove top to any combus-
tible back wall should not be less than 6 inches (Includes Cor-
ner Installations).
C. Clearances from the stove top to the ceiling should not be less
than 48 inches.
INSTALLATION
Continued
Figure 4 - Minimum Clearance to Walls and Ceiling (Stove May
Vary Depending on Model)
Front View
Top View
Side View
Front of
Stove Unit
12"
Minimum 12" Minimum
48"
Minimum
Ceiling
Side Wall Side Wall
Back Wall
Side Wall Side Wall
12 "
Minimum 12
"
Minimum
6
"
Minimum
6"
Minimum
48"
Minimum
Ceiling
Floor
Back Wall
Corner
Wall
Wall
6 "
Minimum
6
"
Minimum
Front of
Stove Unit
Front of
Stove Unit
INSTALLATION
Check Gas Type
Clearances to Combustibles

104463-01E
For more information, visit www.desatech.com
For more information, visit www.desatech.com
8
INSTALLATION
Continued
Figure 6 - Laying Down Stove On Side (Stove Style May Vary Depending on Model)
Front of
Stove Unit
Pallet Wood
Bolted to
Stove Body
Bottom
Top of Stove Unit Front of
Stove Unit
Top of
Stove Unit
Drop Cloth/
Blanket
STOVE CAVITY ASSEMBLY
1. Lift off corrugated box enclosing stove body crating.
2. Remove all screws fastening the wood frame enclosure.
Spread wood frame open and lift away from plastic-bagged
stove body. The bottom pieces of pallet wood will remain
bolted to the stove body.
3. Remove plastic bag from stove body.
4. Remove back panel from stove (see Figure 5). Use an adjust-
ablewrench or a10 mm socket.Remove six (6)bolts and wash-
ers. Keep bolts and washers to reattach back panel later.
5. Remove all contentsfrom inside stovecavity.Contents include:
(1) - Stove bottom
(4) - Legs
(1) - Bottom door
(1) - Top grate
(1) - Hardware kit bag with fasteners
6. Carefully lay stove body on back to attach bottom components
to stove body (see Figure 6). Rest stove on drop cloth or blan-
ket to avoid scratching stove edges.
Figure7-RemovingPalletWoodFromTheBottomofTheStove
Figure8-LocatingThreadedHolesforStoveBottom,Legs,and
Door Attachment (Appearance May Vary Depending on Model)
Figure 5 - Removing Back Panel
Bolt
Product
Identification
Label
Back Stove
Panel
Pallet
Wood
Bolt
Bottom Of
Stove Unit
Front
7. Remove remaining pallet wood attached to bottom of stove
body (see Figure 7). Use an adjustable wrench to remove bolts.
8. Fasten each leg to stove with four (4) bolts. Use a flat screw
driver to tighten bolt to leg. Thread bolt in tapped holes on
stove body (see Figure 8 and Figure 9, page 9).
Leg Hole
Leg Hole
Leg Hole
Leg Hole
Door Hinge
Step Bolt Hole Door Catch Bolt
With Adjustable
Hex Nuts Hole
Stove
Bottom
Holes
Front
Bottom Of
Stove Unit
Pallet Wood
INSTALLATION
Stove Cavity Assembly
INSTALLATION
Stove Cavity Assembly

104463-01E
For more information, visit www.desatech.com
For more information, visit www.desatech.com
9
9
INSTALLATION
Continued
Figure 9 - Attaching Stove Legs
Bottom Of
Stove Unit
Leg
Bolt
Figure 10 - Attaching Stove Bottom
Bottom Of
Stove Unit
Bolt
Washers
Stove
Bottom
9. Fasten stove bottom to stove with four (4) M6 x 1 - 25mm bolts.
Use a flat washer and lock washer with each bolt. Tighten bolts
into threaded holes on stove body (see Figure 10 and Figure 8
on page 8). Use an adjustable wrench or a 10mm socket.
10. Attach stove door by inserting step bolt through door hinge
pivot holes and into threaded hole in stove body (see Figure
11). Use an adjustable wrench or a 12mm socket to fasten step
bolt. Tighten step bolt until snug. Make sure door moves freely.
11. Install door catch bolt (M8 x 1.25-55mm with two M8 hex
nuts) into threaded hole on stove body (see Figure 8, page 8).
Use an adjustable wrench or a 12mm socket. The catch bolt
has two hex nuts attached to it (see Figure 12). The top nut is a
bolt stop and the bottom nut is for door leveling adjustment.
12. Check general catch bolt alignment with door claw. Make fi-
nal adjustment and door leveling after stove is in normal stand-
ing position.
13. Carefully lift stove back up on its four attached legs.
14. If available, install gas log heater inside stove cavity before
installing the back panel (see Installing Gas Log Heater Into
Stove, page 10).
15. Fasten back panel to stove with six (6) M6 x 1 - 20mm bolts
and washers. Make sure product identification label is located
on the outside in lower left-hand corner.
Figure 11 - Attaching Stove Door (Appearance May Vary
Depending on Model)
Step
Bolt
Door
Hinge
Threaded
Hole
Stove
Door
Stove Bottom
Bolt
Shoulder
Door
Hinge
Step
Bolt
Bolt
Shoulder
Stove
Door
Adjusting Nut
Bolt Stop
Catch Bolt
Door Claw
Door
Figure 12 - Catch Bolt and Door Claw Orientation
INSTALLATION
Stove Cavity Assembly (Cont.)
INSTALLATION
Stove Cavity Assembly (Cont.)

104463-01E
For more information, visit www.desatech.com
For more information, visit www.desatech.com
10
INSTALLING GAS LOG HEATER INTO STOVE
1. Remove log and gas log heater from carton. Note: Do not pick
upgas log heaterby theburneritself.This could damageheater.
Always handle the gas log heater by the heater base only.
2. Removeall protective packaging applied to log and gas logheater
for shipment.
3. Check all itemsforany shipping damage.If damaged, promptly
inform dealer where you bought heater.
4. If not already removed, remove back panel from assembled
stove body (see Figure 5, page 8). Use an adjustable wrench or
a 10 mm socket. Remove six (6) bolts and washers. Keep bolts
and washers to reattach back panel later.
5. Set gas log heater inside stove (see Figure 13). Make sure control
knob extensions pass through bottom front opening.
6. Align outside holeson heater basewith four (4)mounting holes
on the stove bottom (see Figure 13).
7. Fasten heater base to stove bottom with #10-24 x .50 bolts and
hex nuts provided with gas log heater (see Figure 14).Attach-
ment hardware is factory packed inside plastic bag with instal-
lation manual and owner’s registration card. Push bolt through
heater base mounting hole and through stove bottom. Connect
hex nut to bolt on underside of stove bottom. The bolt hex
head is for a 5/16" socket and the hex nuts are for a 3/8" socket.
If sockets are not available, use adjustable wrenches.
8. Set one-piece log on heater base as shown in Figure 15. Make
sure middle section at bottom of log is seated into "U" shaped
cutout in center of heater base. Log will fit securely on base.
IMPORTANT: Make sure log does not cover any burner ports
and does not touch the stove cavity (see Figure 16).
9. Fasten back panel to stove with six (6) M6 x 1.20mm bolts and
washers. Make sure product identification label is located on the
outside lower left-hand corner.
10. Place freestanding stove in desired position in room. Be sure
to maintain clearances to combustibles as outlined on page 7.
INSTALLATION
Continued
Figure 13 - Placing Heater Base In Stove Cavity (Appearance
May Vary Depending on Model)
Bottom
Front
Opening Stove Bottom
Burner
Bolt
Heater Base
LO
PILOT
OFF
HI
Figure 14 - Fastening Heater Base to Stove Drop Bottom
Stove Bottom
Heater
Base
Bolt
Hex Nut
Figure 15 - Installing One-Piece Stove Log Set
Burner Porting Areas
(double slotted
rectangular openings
Figure 16 - Top View of One-Piece Log Set on Gas Log Heater
Safety Pilot Location
One-Piece
Log Set
One-Piece
Log Set
Heater
Base
"U" Shaped
Cutout in
Chassis
Burner
Middle Section
at Bottom of
Log Set
INSTALLATION
Installing Gas Log Heater Into Stove

104463-01E
For more information, visit www.desatech.com
For more information, visit www.desatech.com
11
11
CAUTION: Use only new, black iron or steel pipe.
Internally-tinnedcoppertubingmaybeusedincertain
areas. Check your local codes. Use pipe of 1/2" diam-
eter or greater to allow proper gas volume to heater. If
pipe is too small, undue loss of volume will occur.
Installation must include a equipment shutoff valve, union, and
plugged 1/8" NPT tap. Locate NPT tap within reach for test gauge
hook up. NPT tap must be upstream from heater (see Figure 18).
IMPORTANT: Install equipment shutoff valve in an accessible
location. The equipment shutoff valve is for turning on or shutting
off the gas to the appliance.
Checkyourbuildingcodesforanyspecialrequirementsforlocating
equipment shutoff valve to fireplaces.
Apply pipe joint sealant lightly to male NPT threads. This will
prevent excess sealant from going into pipe. Excess sealant in pipe
could result in clogged heater valves.
WARNING: Never connect heater to private (non-
utility) gas wells. This gas is commonly known as
wellhead gas.
INSTALLATION
Continued
CONNECTING TO GAS SUPPLY
WARNING: This appliance requires a 1/2" NPT
(National Pipe Thread) inlet connection to the pres-
sure regulator.
Installation Items Needed
Beforeinstallingheater,makesure you have the items listed below.
• piping (check local codes)
• sealant (resistant to propane/LP gas)
• equipment shutoff valve *
• test gauge connection *
• sediment trap
• tee joint
• pipe wrench
* A CSA design-certified equipment shutoff valve with 1/8" NPT
tap is an acceptable alternative to test gauge connection. Purchase
the optional CSA design-certified equipment shutoff valve from
your dealer. See Accessories, page 19.
The gas inlet connection for the stove heater is located on the lower
right-hand side of the stove when viewed from the front of the unit.
Thegasconnectioncanbemadeeitherthroughthebottomrightside
orthrough the lowerbackopeningasillustratedinFigure 17. Make
sure gas log heater is secured to the stove cavity assembly.
WARNING: A qualified service person must con-
nect heater to gas supply. Follow all local codes.
Figure 18 - Gas Connection
* Purchase the optional CSA design-certified equipment shutoff
valve from your dealer. See Accessories, page 19.
**Minimum inlet pressure for purpose of input adjustment.
WARNING: Usepipe jointsealantthat isresistant
to liquid petroleum (LP) gas.
Werecommendthatyouinstallasedimenttrapinsupplylineasshown
inFigure18.Locatesedimenttrapwhereitiswithinreachforcleaning.
Install in piping system between fuel supply and heater. Locate
sediment trap where trapped matter is not likely to freeze. A sediment
traptrapsmoistureandcontaminants.Thiskeepsthemfromgoinginto
heater controls. If sediment trap is not installed or is installed wrong,
heater may not run properly.
Figure 17 - Gas Regulator Location and Gas Line Access Into
Stove Cabinet
Back
Stove
Panel
Front
of
Stove
Unit
Gas Inlet
Connection
Access
Product
Identification
Label
Gas Log Heater
Back View
Side View From Gas Meter
(5" W.C.** to
10.5" W.C.
Pressure)
Tee Joint Pipe Nipple Cap
3"
Minimum
Sediment Trap
Gas
Regulator
CSA Design-Certified Equipment
Shutoff Valve With 1/8" NPT Tap*
Approved Flexible
Gas Hose (if allowed
by local codes)
CAUTION: Avoid damage to regulator. Hold gas
regulator with wrench when connecting it to gas
piping and/or fittings.
INSTALLATION
Connecting to Gas Supply

104463-01E
For more information, visit www.desatech.com
For more information, visit www.desatech.com
12
INSTALLATION
Continued
WARNING: Neveruseanopenflametocheck for
a leak. Apply a noncorrosive leak detection fluid to
all joints. Bubbles forming show a leak. Correct all
leaks at once.
WARNING: Test all gas piping and connections ,
internal and external to unit, for leaks after installing
or servicing. Correct all leaks at once.
CHECKING GAS CONNECTIONS
Pressure Testing Gas Supply Piping System
Test Pressures In Excess Of 1/2 PSIG (3.5 kPa)
1. Disconnect appliance with its appliance main gas valve (control
valve) and equipment shutoff valve from gas supply piping sys-
tem. Pressures in excess of 1/2 psig will damage heater regulator.
2. Cap off open end of gas pipe where equipment shutoff valve
was connected.
3. Pressurize supply piping system by either using compressed
air or opening main gas valve located on or near gas meter.
4. Check all joints of gas supply piping system.Apply noncorrosive
leak detection fluid to gas joints. Bubbles forming show a leak.
5. Correct all leaks at once.
6. Reconnect heater and equipment shutoff valve to gas supply.
Check reconnected fittings for leaks.
Test Pressures Equal To or Less Than 1/2 PSIG (3.5 kPa)
1. Close equipment shutoff valve (see Figure 19).
2. Pressurize supply piping system by either using compressed
air or opening main gas valve located on or near gas meter.
3. Check all joints from gas meter to equipment shutoff valve
(see Figure 19).Apply noncorrosive leak detection fluid to gas
joints. Bubbles forming show a leak.
4. Correct all leaks at once.
O
N
POSI
T
O
PO
S
Figure 19 - Equipment Shutoff Valve
Closed
Equipment
Shutoff
Valve
Figure 20 - Checking Gas Joints
Open
Gas Meter
Equipment
Shutoff Valve
Control Valve Location
Pressure Testing Heater Gas Connections
1. Open equipment shutoff valve (see Figure 19).
2. Open main gas valve located on or near gas meter.
3. Make sure control knob of heater is in the OFF position.
4. Check all joints from equipment shutoff valve to control valve
(see Figure 20). Apply noncorrosive leak detection fluid to
gas joints. Bubbles forming show a leak.
5. Correct all leaks at once.
6. Light heater (see Operating Heater, page 13). Check all other
internal joints for leaks.
7. Turn off heater (see To Turn Off Gas to Appliance, page 13).
INSTALLATION
Checking Gas Connections

104463-01E
For more information, visit www.desatech.com
For more information, visit www.desatech.com
13
13
LIGHTING
INSTRUCTIONS
OPERATING HEATER
FOR YOUR SAFETY
READ BEFORE LIGHTING
WARNING:Ifyoudonotfollowtheseinstructions
exactly, a fire or explosion may result causing prop-
erty damage, personal injury or loss of life.
A. This appliance has a pilot which must be lighted by hand.
When lighting the pilot, follow these instructions exactly.
B. BEFORE LIGHTING smell all around the appliance area
for gas. Be sure to smell next to the floor because some gas
is heavier than air and will settle on the floor.
WHAT TO DO IFYOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone in
your building.
• Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire
department.
C. Useonlyyourhand to push inor turnthegas controlknob.
Never use tools. If the knob will not push in or turn by
hand, don’t try to repair it, call a qualified service techni-
cian or gas supplier. Force or attempted repair may result
in a fire or explosion.
D. Do not use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system and
any gas control which has been under water.
NOTICE:Duringinitialoperationofnewheater,burning
logs will give off a paper-burning smell. Orange flame
will also be present. This will only last a few hours.
TO TURN OFF GAS
TO APPLIANCE
Shutting Off Heater
Turn control knob clockwise to the OFF position.
Shutting Off Burners Only (pilot stays lit)
Turn control knob clockwise to the PILOT position.
1. STOP! Read the safety information, above.
2. Make sure equipment shutoff valve is fully open.
3. Turn control knob clockwise to the OFF position.
4. Wait five (5) minutes to clear out any gas. Then smell for
gas, including near the floor. If you smell gas, STOP! Fol-
low “B”in the safety information, above. If you don’t smell
gas, go to the next step.
5. Turn control knob counterclockwise
C-clockwise
to the PI-
LOT position. Press in control knob for five (5) seconds
(see Figure 21).
Note: You may be running this heater for the first time
after hooking up to gas supply. If so, the control knob may
need to be pressed in for 30 seconds or more. This will al-
low air to bleed from the gas system.
Figure 22 - Pilot

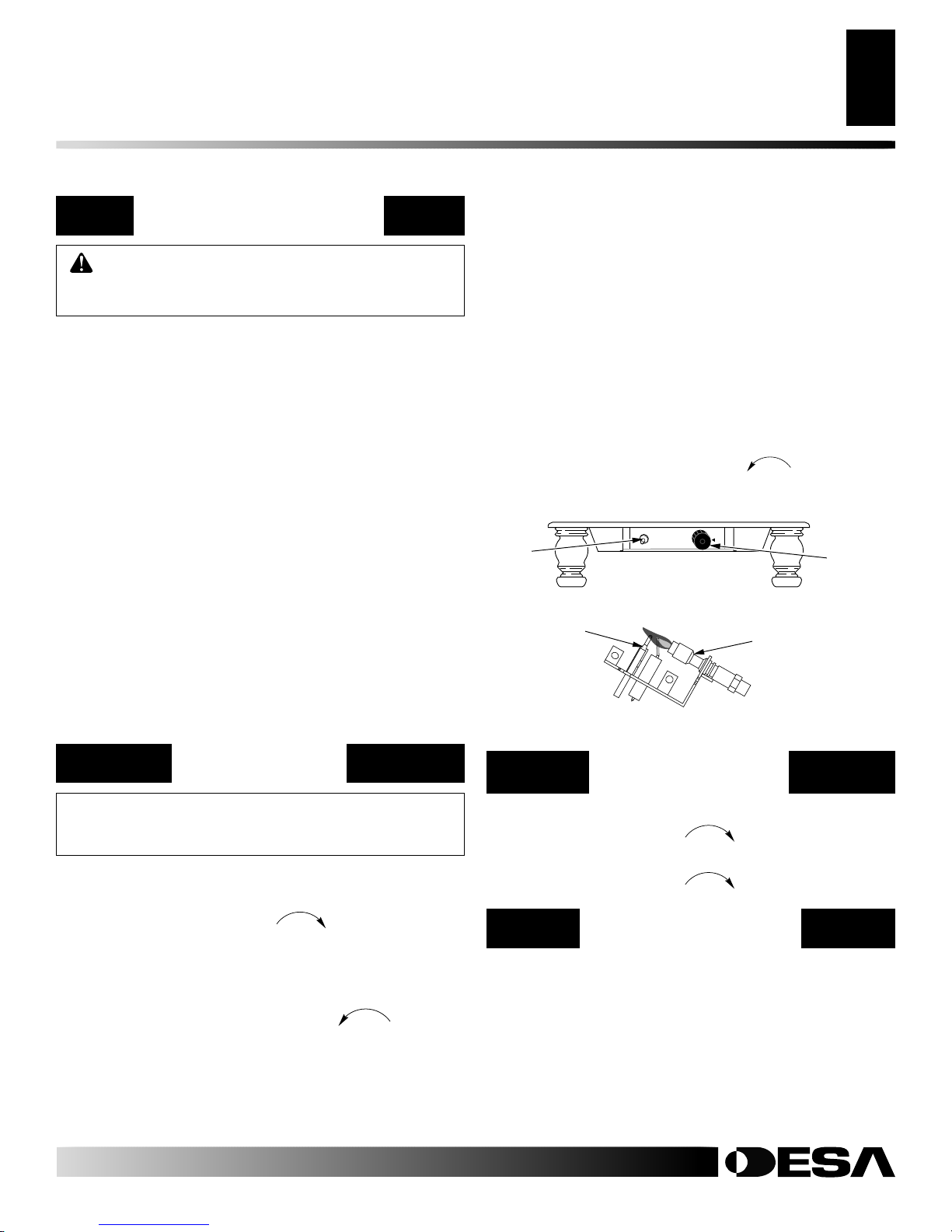

Figure 21- Control Knob and Ignitor Button Location
Control
Knob
Ignitor
Button
Thermocouple Pilot Burner
6. With control knob pressed in, press and release ignitor but-
ton. This will light pilot. The pilot is attached to the front
burner.Ifneeded,keeppressingignitorbuttonuntilpilotlights.
Note: If pilot does not stay lit, contact a qualified service
person or gas supplier for repairs. Until repairs are made,
lightpilot withmatch.Tolight pilotwith match, seeManual
Lighting Procedure on page 14.
7. Keep control knob pressed in for 30 seconds after lighting
pilot. After 30 seconds, release control knob.
• If control knob does not pop out when released, contact
a qualified service person or gas supplier for repairs.
Note: Ifpilot goesout,repeatsteps3 through7.Thisheater
has a safety interlock system. Wait one (1) minute for sys-
tem to reset before lighting pilot again.
8. Turncontrolknob counterclockwise
C-clockwise
todesiredheat-
ing level. The burners should light. Set control knob to any
heat level between HI and LO.
OPERATING HEATER
For Your Safety Read Before Lighting
Lighting Instructions
To Turn Off Gas To Appliance
Thermostat Control Operation
THERMOSTAT
CONTROL OPERATION
The thermostat control knob can be set to any comfort level
between HI and LO. The thermostat will gradually modulate the
heatoutputandflameheightfromhighertolowersettings,orpilot,
inordertomaintainthecomfortlevelyouselect.Theidealcomfort
settingwillvarybyhouseholddependingupontheamountofspace
to be heated, the output of the central heating system, etc.
Note: Selecting theHIsetting withthecontrol knobwill cause the
burnertoremainfullyon,withoutmodulatingdowninmostcases.

104463-01E
For more information, visit www.desatech.com
For more information, visit www.desatech.com
14
CLEANING AND
MAINTENANCE
WARNING: Turn off heater and let cool before
cleaning.
CAUTION:Youmustkeepcontrolareas,burner,and
circulating air passageways of heater clean. Inspect
these areas of heater before each use. Have heater
inspected yearly by a qualified service person. Heater
may need more frequent cleaning due to excessive lint
from carpeting, pet hair, bedding material, etc.
CLEANING BURNER INJECTOR HOLDER
AND PILOT AIR INLET HOLE
The primary air inlet holes allow the proper amount of air to mix with
thegas.Thisprovidesaclean burningflame.Keepthese holesclearof
dust, dirt, lint, and pet hair. Clean these air inlet holes prior to each
heatingseason.Blockedairholeswillcreatesoot.Werecommendthat
youcleantheuniteverythreemonthsduringoperationandhaveheater
inspected yearly by a qualified service person.
We also recommend that you keep the burner tube and pilot
assembly clean and free of dust and dirt. To clean these parts we
recommendusingcompressedairnogreaterthan30PSI.Yourlocal
computer store, hardware store, or home center may carry com-
pressed air in a can. You can use a vacuum cleaner in the blow
position. If using compressed air in a can, please follow the direc-
tionsonthecan.Ifyoudon'tfollowdirectionsonthecan, youcould
damage the pilot assembly. Note: Removing the rear panel and top
grates of your stove will make cleaning easier.
1. Shut off the unit, including the pilot.Allow the unit to cool for
at least thirty minutes.
2. Inspect burner, pilot, and primary air inlet holes on injector
holder for dust and dirt (see Figure 25).
3. Blow air through the ports/slots and holes in the burner.
Figure 25 - Injector Holder On Outlet Burner Tube
1. Followsteps1through5underLightingInstructions,page13.
2. Depress control knob and light pilot with match.
3. Keep control knob pressed in for 30 seconds after lighting
pilot. After 30 seconds, release control knob. Now follow
step 8, Lighting Instructions, page 13.
MANUAL LIGHTING
PROCEDURE
OPERATING HEATER
Continued
INSPECTING BURNERS
Check pilot flame pattern and burner flame patterns often.
PILOT FLAME PATTERN
Figure 23 shows a correct pilot flame pattern. Figure 24 shows an
incorrectpilotflamepattern.Theincorrectpilotflameisnottouching
thethermocouple.Thiswillcausethethermocoupletocool.Whenthe
thermocouple cools, the heater will shut down.
If pilot flame pattern is incorrect, as shown in Figure 24
• turn heater off (see To Turn Off Gas to Appliance, page 13)
• see Troubleshooting, pages 16 through 18
Note: The pilot flame on natural gas units will have a slight curve,
but flame should be blue and have no yellow or orange color.
Figure23-CorrectPilotFlame
Pattern Figure 24 - Incorrect Pilot
Flame Pattern
Thermocouple Pilot Burner
Burner Tube
Injector Holder
(May Be Brass
or Aluminum
Depending on
Model)
Primary Air Inlet Holes
(Shape of Holes May
Vary by Model)
Thermocouple Pilot Burner
OPERATING HEATER
Manual Lighting Procedure
INSPECTING BURNERS
CLEANING AND MAINTENANCE
Cleaning Burner Injector Holder and Pilot Air Inlet Hole

104463-01E
For more information, visit www.desatech.com
For more information, visit www.desatech.com
15
15
LOGS
• If you remove logs for cleaning, refer to Installing Gas Log
Heater into Stove, page 10, to properly replace logs.
• Replace log(s) if broken or chipped (dime-sized or larger).
MAIN BURNER
Periodicallyinspectallburnerflameholeswiththeheaterrunning.All
slottedburnerflameholes should be open withyellow flame present.
All round burner flame holes should be open with a small blue flame
present. Some burner flame holes may become blocked by debris or
rust,with no flamepresent.Ifso,turnoff heater andletcool.Remove
blockage. Blocked burner flame holes will create soot.
Figure 26 - Pilot Inlet Air Hole
Burner
Tube
Pilot Assembly
Pilot Air Inlet Hole
Ports/Slots
CLEANING AND
MAINTENANCE
Continued
CLEANING AND MAINTENANCE
Logs
Main Burner
SPECIFICATIONS
4. Check the injector holder located at the end of the burner tube
again. Remove any large particles of dust, dirt, lint, or pet hair
with a soft cloth or vacuum cleaner nozzle.
5. Blow air into the primary air holes on the injector holder.
6. In case any large clumps of dust have now been pushed into
the burner repeat steps 3 and 4.
Clean the pilot assembly also. A yellow tip on the pilot flame
indicates dust and dirt in the pilot assembly. There is a small pilot
airinletholeabouttwoinchesfromwherethepilotflamecomesout
ofthepilotassembly (see Figure 26). Withthe unit off,lightly blow
airthroughtheairinlethole.Youmayblowthroughadrinkingstraw
if compressed air is not available.
SPECIFICATIONS
Btu (Variable) 16,000/30,000
Type Gas Natural Gas Only
Ignition Piezo
Pressure Manifold 3.5" W.C.
Inlet Gas Pressure (in. of water)
Maximum 10.5"
Minimum* 5"
Shipping Weight 28 lbs.
* For input adjustment

104463-01E
For more information, visit www.desatech.com
For more information, visit www.desatech.com
16
TROUBLESHOOTING
WARNING: Turn off heater
andletcoolbeforeservicing.Only
aqualifiedservicepersonshould
service and repair heater.
CAUTION: Never use a wire,
needle, or similar object to clean
ODS/pilot.ThiscandamageODS/
pilot unit.
POSSIBLE CAUSE
1. Ignitor electrode not connected to igni-
tor cable
2. Ignitor cable pinched or wet
3. Broken ignitor cable
4. Bad piezo ignitor
5. Ignitor electrode broken
6. Ignitor electrode positioned wrong
1. Gas supply turned off or equipment
shutoff valve closed
2. Control knob not in PILOT position
3. Control knob not pressed in while in
PILOT position
4. Air in gas lines when installed
5. ODS/pilot is clogged
6. Gas regulator setting is not correct
1. Control knob not fully pressed in
2. Control knob notpressed in longenough
3. Equipment shutoff valve not fully open
4. Pilot flame not touching thermocouple,
which allows thermocouple to cool,
causing pilot flame to go out. This prob-
lem could be caused by one or both of
the following:
A) Low gas pressure
B) Dirty or partially clogged ODS/pilot
5. Thermocouple connection loose at con-
trol valve
6. Thermocouple damaged
7. Control valve damaged
REMEDY
1. Reconnect ignitor cable
2. Free ignitor cable if pinched by any
metal or tubing. Keep ignitor cable dry
3. Replace ignitor cable
4. Replace piezo ignitor
5. Replace pilot assembly
6. Replace pilot assembly
1. Turn on gas supply or open equipment
shutoff valve
2. Turn control knob to PILOT position
3. Press in control knob while in PILOT
position
4. Continue holdingdown controlknob.Re-
peatigniting operationuntilairisremoved
5. Clean ODS/pilot (see Cleaning and
Maintenance, pages 14 and 15) or re-
place ODS/pilot assembly
6. Replace gas control
1. Press in control knob fully
2. After ODS/pilot lights, keep control
knob pressed in 30 seconds
3. Fully open equipment shutoff valve
4. A) Contact local natural gas company
B) Clean ODS/pilot (see Cleaning and
Maintenance, pages 14 and 15) or re-
place ODS/pilot assembly
5. Hand tighten until snug, then tighten
1/4 turn more
6. Replace pilot assembly
7. Replace control valve
OBSERVED PROBLEM
When ignitor button is pressed, there is no
spark at ODS/pilot
When ignitor button is pressed, there is
spark at ODS/pilot but no ignition
ODS/pilot lights but flame goes out when
control knob is released
Note: For additional help, visit DESA
International’stechnicalservicewebsite
at www.desatech.com.
Note: Alltroubleshootingitemsarelistedin
order of operation.
TROUBLESHOOTING

104463-01E
For more information, visit www.desatech.com
For more information, visit www.desatech.com
17
17
OBSERVED PROBLEM
Burner does not light after ODS/pilot is lit
Delayed ignition burner
Burner backfiring during combustion
Slightsmokeorodor during initial operation
Moisture/condensationnoticedonwindows
Heater produces a whistling noise when
burner is lit
Dark residue on logs or inside of fireplace
Whitepowderresidueformingwithinburner
box or on adjacent walls or furniture
REMEDY
1. Clean burner (see Cleaning and Main-
tenance, pages 14 and 15) or replace
burner orifice
2. Contact local natural gas company
1. Contact local natural gas company
2. Clean burner (see Cleaning and Main-
tenance, pages 14 and 15) or replace
burner orifice
1. Clean burner (see Cleaning and Main-
tenance, pages 14 and 15) or replace
burner orifice
2. Replace damaged burner
3. Replace gas control
1. Check burner for dirt and debris. If
found, clean burner (see Cleaning and
Maintenance, pages 14 and 15)
2. Replace gas control
3. Problem will stop after a few hours of
operation
1. Refer to Air for Combustion and Venti-
lation requirements (page 4)
1. Turn control knob to LO position and
let warm up for a minute
2. Operate burner until air is removed from
line. Have gas line checked by local
natural gas company
3. Observe minimum installation clear-
ances (see page 7)
4. Clean burner (see Cleaning and Main-
tenance, pages 14 and 15) or replace
burner orifice
1. Properly locate logs (see Installing Gas
Log Heater Into Stove, page 10 )
2. Eliminate source of drafts around heater
3. Clean out air holes at burner inlet. Peri-
odically repeat as needed
4. Remove blockage
1. Turn heater off when using furniture
polish, wax, carpet cleaners, or similar
products
TROUBLESHOOTING
Continued
POSSIBLE CAUSE
1. Burner orifice clogged
2. Inlet gas pressure is too low
1. Manifold pressure is too low
2. Burner orifice clogged
1. Burner orifice is clogged or damaged
2. Damaged burner
3. Gas regulator defective
1. Not enough air
2. Gas regulator defective
3. Residues from manufacturing processes
and logs curing
1. Not enough combustion/ventilation air
1. Turning control knob to HI position
when burner is cold
2. Air in gas line
3. Air passageways on heater blocked
4. Dirty or partially clogged burner orifice
1. Improper log placement
2. Drafts or other air currents affecting
flame pattern
3. Air holes at burner inlet blocked
4. Burner flame holes blocked
1. When heated, vaporsfrom furniture pol-
ish, wax, carpet cleaners, etc. may turn
into white powder residue
TROUBLESHOOTING

104463-01E
For more information, visit www.desatech.com
For more information, visit www.desatech.com
18
WARNING: If you smell gas
•Shut off gas supply.
•Do not try to light any appliance.
•Do not touch any electrical switch; do not use any phone in
your building.
•Immediately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s instructions.
•Ifyoucannotreachyourgassupplier,callthefiredepartment.
POSSIBLE CAUSE
1. Metal expanding while heating or con-
tracting while cooling
1. Heater burning vapors from paint, hair
spray, glues, cleaners, chemicals, new
carpet, etc. (See IMPORTANT state-
ment above)
2. Gas leak. SeeWarning statement at
top of page
1. Not enough fresh air is available
2. Low line pressure
3. ODS/pilot is partially clogged
1. Gas leak. SeeWarning statement at
top of page
2. Control valve defective
1. Foreign matter between control valve
and burner
2. Gas leak. SeeWarning statement at
top of page
OBSERVED PROBLEM
Heater produces a clicking/ticking noise
just after burner is lit or shut off
Heater produces unwanted odors
Heater shuts off in use (ODS operates)
Gas odor even when control knob is in OFF
position
Gas odor during combustion
REMEDY
1. This is common with most heaters. If
noise is excessive, contact qualified ser-
vice person
1. Open window and ventilate room. Stop
usingodor causing productswhile heater
is running
2. Locate and correct all leaks (see Check-
ing Gas Connections, page 12)
1. Open window and/ordoor forventilation
2. Contact local natural gas company
3. Clean ODS/pilot (see Cleaning and
Maintenance, pages 14 and 15)
1. Locate and correct all leaks (see Check-
ing Gas Connections, page 12)
2. Replace control valve
1. Take apart gas tubing and remove for-
eign matter
2. Locate and correct all leaks (see Check-
ing Gas Connections, page 12)
IMPORTANT: Operating heater where impurities in air exist may create odors.
Cleaningsupplies,paint,paintremover,cigarettesmoke,cementsandglues,new
carpet or textiles, etc., create fumes. These fumes may mix with combustion air
and create odors. These odors will disappear over time.
TROUBLESHOOTING
Continued
TROUBLESHOOTING

104463-01E
For more information, visit www.desatech.com
For more information, visit www.desatech.com
19
19
ACCESSORIES
Purchasetheseheateraccessoriesfromyourlocaldealer.Iftheycannot
supply these accessories, call DESA International at 1-866-672-6040
for referral information. You can also write to the address listed on the
back page of this manual.
EQUIPMENT SHUTOFF VALVE - GA5010
For all models. Equipment shutoff valve with 1/8" NPT tap. Fits
1/2" NPT pipe.
CLEANING KIT - CCK
(Not Shown)
For all models. Your vent-free gas appliance requires regular
cleaning and maintenance to prevent performance problems. This
kit gives you the tools and instructions to make it easy to clean all
critical areas of your appliance.
INFORMATION VIDEO - 108917-01
Forallmodels.Acareand maintenance video is available bycalling
1-866-672-6040.
SERVICE HINTS
TECHNICAL SERVICE
REPLACEMENT PARTS
ACCESSORIES
TECHNICAL SERVICE
You may have further questions about installation, operation, or
troubleshooting. If so, contact DESA International’s Technical Ser-
viceDepartmentat1-866-672-6040.Whencalling,pleasehaveyour
model and serial numbers of your heater ready.
You can also visit DESA International’s technical service web site
at www.desatech.com.
SERVICE HINTS
When Gas Pressure Is Too Low
• pilot will not stay lit
• burners will have delayed ignition
• heater will not produce specified heat
You may feel your gas pressure is too low. If so, contact your local
natural gas supplier.
REPLACEMENT PARTS
Note: Use only original replacement parts. This will protect your
warranty coverage for parts replaced under warranty.
PARTS UNDER WARRANTY
Contact authorized dealers of this product. If they can’t supply
original replacement part(s), call DESA International’s Technical
Service Department at 1-866-672-6040.
When calling DESA International, have ready
• your name
• your address
• model and serial numbers of your heater
• how heater was malfunctioning
• type of gas used (propane/LP or natural gas)
• purchase date
Usually, we will ask you to return the part to the factory.
PARTS NOT UNDER WARRANTY
Contact authorized dealers of this product. If they can’t supply
original replacement part(s), either contact your nearest Parts Cen-
tral(seepage 24) or callDESA Internationalat 1-866-672-6040for
referral information.
When calling DESA International, have ready
• model number of your heater
• the replacement part number

104463-01E
For more information, visit www.desatech.com
For more information, visit www.desatech.com
20
ILLUSTRATED PARTS
BREAKDOWN
SL30NT
14 16
3
4
15
5
11
6
12
7
10
15
8
9
1
17 2
18
18
18
13
ILLUSTRATED PARTS BREAKDOWN
SL30NT
