#1544 HUGGIE CONNECT ELECTRIC RECLINING WASHLOUNGE WITH MASSAGE
huggie
connect

help.comfortel.com.au
2
Listed below are important safety precautions:
GENERAL SAFETY
• Read and retain these instructions in a secure location.
• Use the product only for its intended purpose and
avoid using attachments not recommended by the
manufacturer.
• Do not use the product outdoors.
PLUMBING
Ensure that a licensed plumber handles the plumbing
installation of this unit.
ELECTRICAL APPLIANCE SAFETY GUIDELINES
• Professional Installation: Have a qualified electrician install all
power outlets (GPO's) according to local electrical standards.
• Power O and Unplug: Always turn o the power and
remove the plug when the appliance is not in use.
• Cleaning Precautions: Prior to cleaning chair cushions,
power o and unplug the appliance.
• Cord Protection: Avoid damaging the power cord by
avoiding twisting, pulling, or pinching.
• Heat Sources: Keep the power cord away from heat
sources to prevent potential damage.
• Extension Cord Safety: If needed, use an extension cord
that complies with local electrical safety standards.
• Cord Inspection: Regularly inspect the power cord for signs
of damage. Discontinue use if any damage is found and
arrange for repairs or replacement.
• Damaged Cord Warning: Never operate an electrical item
with a damaged power cord. Ensure the cord is in good
condition before operating.
IMPORTANT PLEASE READ THESE SAFETY INSTRUCTIONS
SLIDING
BASIN
TILTING BASIN
RECLINE LEG
SUPPORT
RECLINE BACK SUPPORT
COMFORTEL COMFORT
SERIES ‘MEMORY FOAM’
TECHNOLOGY
PULSATING MASSAGE
FOR BEST SUPPORT PLEASE ADVISE
CLIENT TO SIT WELL BACK INTO THE SEAT.
GET STARTED
IMPORTANT PLEASE READ THESE SAFETY INSTRUCTIONS
GET STARTED: MEET HUGGIE
Experience maximum relaxation with our electric washlounges.
Eortlessly adjust the recline position using the handheld remote
for personalized comfort.
IMPORTANT
IMPORTANT
DO NOT ALLOW CHILDREN AROUND THE
UNIT WHEN IN USE
DO NOT ALLOW CHILDREN TO OPERATE THE
ELECTRIC MOTORS THAT MOVE THE UNIT

help.comfortel.com.au
3
WELS RATING
HUGGIE
Electric reclining wash lounge with massage.
Optional basin colour of black or white.
120
550
530
890
600
450
1900
560
900
50
375
180
270
TITLE:
PROJECT:
HUGGIE
#1544
ALL DIMENSIONS GIVEN IN mm
810
120
550
530
890
600
450
1900
560
900
50
375
180
270
TITLE:
PROJECT:
HUGGIE
#1544
ALL DIMENSIONS GIVEN IN mm
810
120
550
530
890
600
450
1900
560
900
50
375
180
270
TITLE:
PROJECT:
HUGGIE
#1544
ALL DIMENSIONS GIVEN IN mm
810
120
550
530
890
600
450
1900
560
900
50
375
180
270
TITLE:
PROJECT:
HUGGIE
#1544
ALL DIMENSIONS GIVEN IN mm
810
GET STARTED

help.comfortel.com.au
4

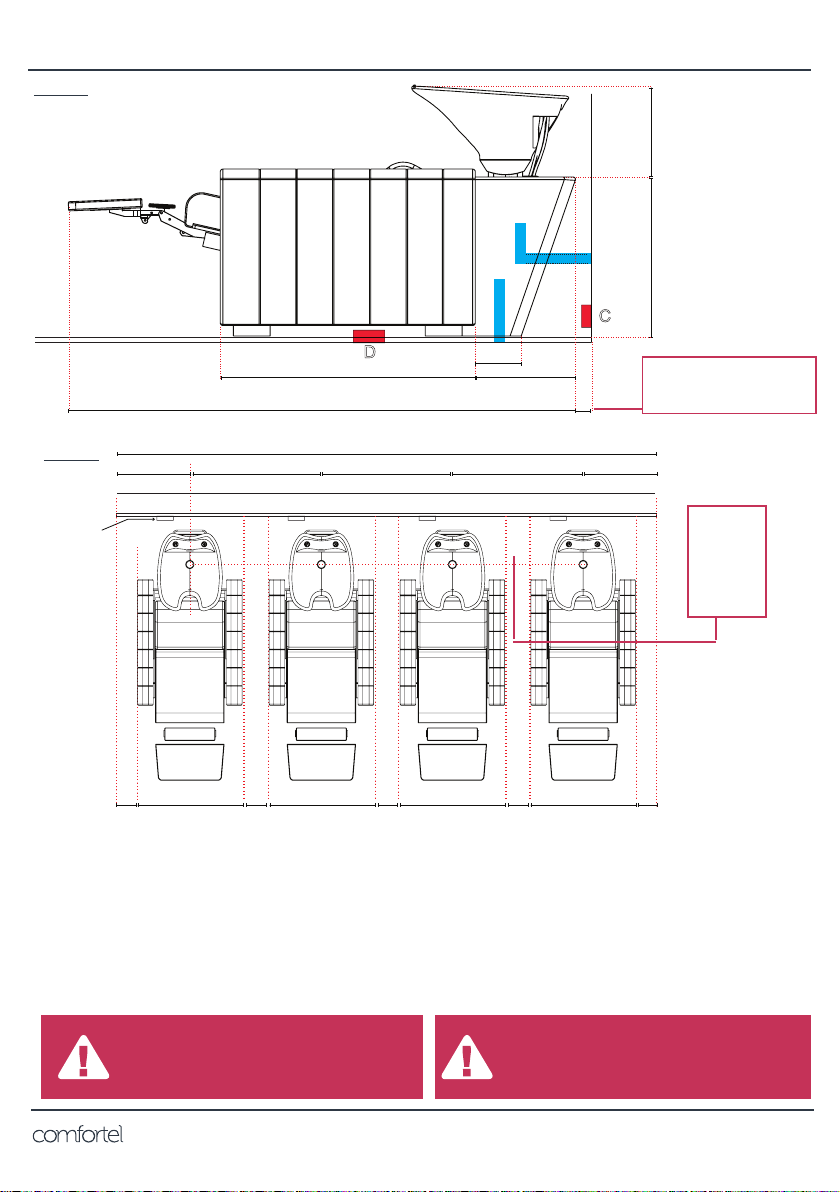

DIAGRAM A
DIAGRAM B
All measurements are in mm.
It is mandatory that all plumbing work be carried
out exclusively by a licensed plumber.
All power outlets (GPO's) must be installed by
a licensed electrician in compliance with local
electrical standards.
IMPORTANT ELECTRICAL SAFETY NOTICE
CRITICAL PLUMBING NOTICE
PLUMBING ACCESS OPTIONS
Determine the best way to connect plumbing
OPTION 1: PLUMBING
From behind the basin stand connect plumbing to
the wall. From the back of the stand, plumbing can be
installed from a maximum height of 400mm from the floor.
OPTION 2: PLUMBING
From under the basin stand connect plumbing to the floor.
ELECTRICAL ACCESS FOR RECLINE AND MASSAGE
Determine the best way to connect Power.
OPTION C+D: POWER OUTLET GPO
Install Power Outlet (GPO) to the wall (option C) or under the
chair (option D).
GPO
810 810 810 810
100 100 10050 50
455 455
910 910 910
3640
Wall
A
B
80
300
600
890 450
245
1900
C
D
If washing
from the
side add
400mm
between
each chair.
POSITIONING
If washing from rear of
stand, add extra distance of
400mm from wall.

help.comfortel.com.au
5

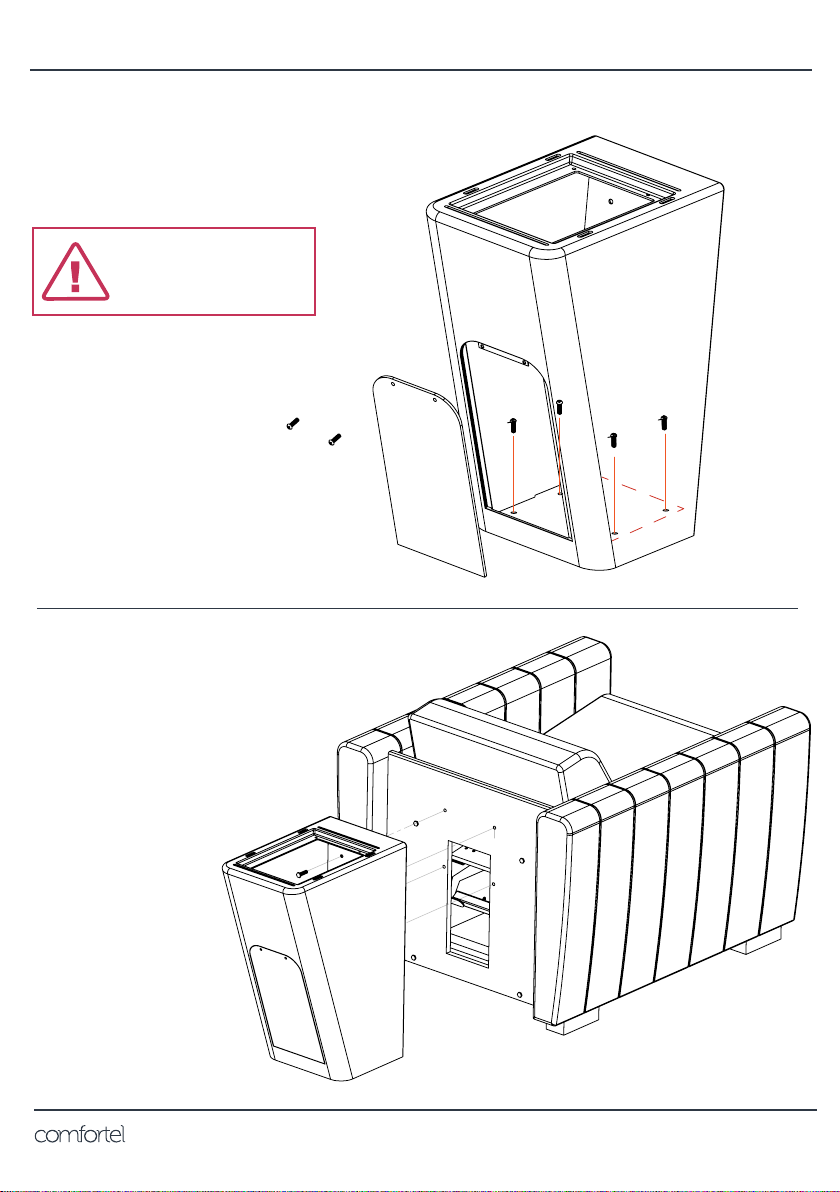

INSTALLATION & ASSEMBLY : BASIN STAND & CHAIR
SECURE AND BOLT DOWN BASIN STAND
BEFORE PLUMBING INSTALLATION
INSTALL BASIN STAND
TO BACK OF THE CHAIR
Using the provided bolts, secure the basin
support to the back of the chair, preparing
it for plumbing installation.
Secure the basin stand base to the oor
using appropriate xings (not supplied).
DRAWN
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
TOLERANCES:
LINEAR: 0.5mm
ANGULAR: 0.5
DEBURR AND BREAK SHARP EDGES
DATE DO NOT SCALE DRAWING
REVISION
TITLE:
DWG NO.
SCALE:1:20 SHEET 1 OF 1
A3
TM
1
HUGGIE
PROJECT
BACK PANEL/BASIN
STAND ASSEMBLY
FINISH:
MATERIAL:
COLOUR:
ALL DESIGNS SHOWN ARE REGISTERED AND
COPYRIGHTED TO COMFORTEL PTY LTD ALL RIGHTS
RESERVED. THESE DESIGNS ARE CONFIDENTIAL
AND ARE NOT TO BE USED OR SHOWN TO A THIRD
PART WITHOUT EXPRESSED WRITTEN
AUTHORIZATION BY COMFORTEL. ALL DESIGNS
REMAIN THE SOLE PROPERTY OF COMFORTEL AND
ANY UNAUTHORIZED USE OF THESE DESIGNS WILL
BE CONSIDERED AN INFRINGEMENT OF
COPYRIGHT AND WILL BE PROSECUTED.
A A
B B
C C
D D
E E
F F
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
DRAWN
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
TOLERANCES:
LINEAR: 0.5mm
ANGULAR: 0.5
DEBURR AND BREAK SHARP EDGES
DATE DO NOT SCALE DRAWING
REVISION
TITLE:
DWG NO.
SCALE:1:10 SHEET 1 OF 1
A3
TM
1
BASIN STAND FOR
PLUMBING
PROJECT
EXPLODED VIEW
FINISH:
MATERIAL:
COLOUR:
ALL DESIGNS SHOWN ARE REGISTERED AND
COPYRIGHTED TO COMFORTEL PTY LTD ALL RIGHTS
RESERVED. THESE DESIGNS ARE CONFIDENTIAL
AND ARE NOT TO BE USED OR SHOWN TO A THIRD
PART WITHOUT EXPRESSED WRITTEN
AUTHORIZATION BY COMFORTEL. ALL DESIGNS
REMAIN THE SOLE PROPERTY OF COMFORTEL AND
ANY UNAUTHORIZED USE OF THESE DESIGNS WILL
BE CONSIDERED AN INFRINGEMENT OF
COPYRIGHT AND WILL BE PROSECUTED.
A A
B B
C C
D D
E E
F F
8
8
7
7
6
6
5
5
4
4
3
3
2
2
1
1
THE BASIN STAND
MUST BE SECURED
TO THE FLOOR.

help.comfortel.com.au
6
15
14
13
17
12
11
16
10
9
8
7
5 6
22
21
19
18
20
2
1
34
MUST USE
‘P’ TRAP
REAR
23
INSERT
BEFORE INSTALLING YOU SHOULD CONSIDER THE
FOLLOWING:
Allow for the necessary room around the unit for free
movement.
• If installing against a wall, a minimum distance of
80mm between wall and bottom back of stand is
required to allow free backward movement of basin.
• If plumbing location is in wall (see Diagram A), drill a
hole in rear wall of stand. For neatness of finish it is
preferable to bring water and waste into the stand in
the same hole.
• If plumbing location is on floor (see Diagram A),
place stand over.
1Flick Mixer
2Showerhead
3Showerhose basin collar
4Comfortneck
5Foam washers
6Plastic nut
7Showerhead hose
8Flat seal
9Fitted flange
10 Flexible waste pipe
11 Flange
12 Seal

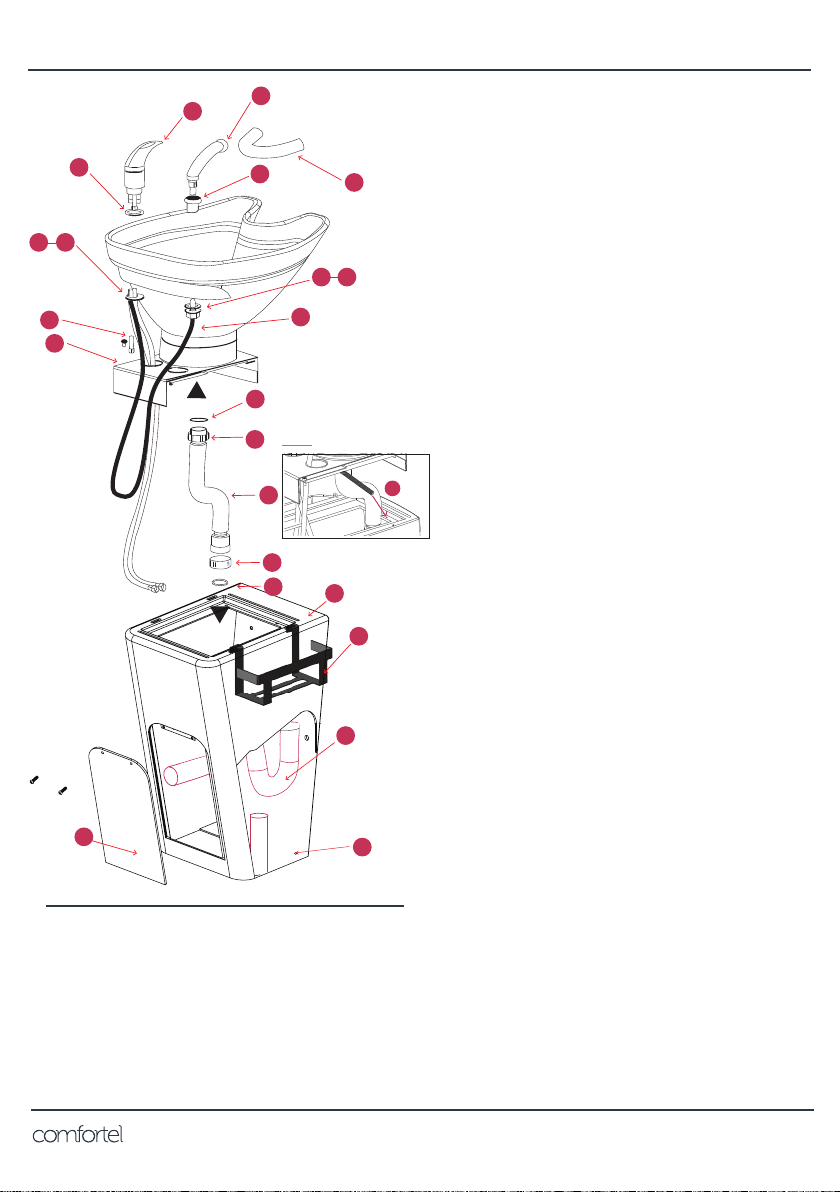

BASIN ASSEMBLY
STAND ASSEMBLY
1. Position stand as required. If plumbing location is in
wall drill hole in rear of stand; if plumbing location is
on the floor place stand over. (P trap not supplied).
2. Basin stand MUST be secured to the floor. Use the
floor mount holes (Fasteners not supplied). Rear
Access Panel may be removed to facilitate access.
BASIN ASSEMBLY
3. Install Flick Mixer using O-ring, plastic and metal
washers & (Long Nut) and Shower Head using the
Showerhose Basin Collar, O-ring, Foam Washer &
Plastic Nut as indicated.
4. Place Flick Mixer Hot & Cold Hoses in the Vinyl Strap.
Shower Hoses remain outside the Basin Stand.
5. Connect Flexible Waste Pipe to Plug and Waste
which is already installed making use of the with Flat
Seal and fitted Flange.
STAND-BASIN ASSEMBLY PLUMBING CONNECTION
6. Connect Flexible Waste Pipe to P trap (not supplied)
making use of Seal and Flange.
7. Using four screws found on top of Stand, fix
assembled Basin to stand making use of holes at
end of rail channels.
8. Connect hot and cold (½” connection) water
braided hoses to respective supplies.
9. Connect Basin Spring which is already connected
to the tilt and slide plate to the hole in the stand at
the top left corner. (See insert)
10. Place both ends of Vinyl Cover into the slots
provided on front and back of Stand.
11. Please attach Comfortneck to the basin.
12. Fit Shampoo Tray (optional extra) to the side of
your choice.
13 Stand
14 P trap (not supplied)
15 Floor Mount Holes
16 Rear Access Panel
17 Shampoo tray
(optional extra)
18 Vinyl strap
19 Long nut
20 Plastic washers
21 Metal washers
22 O-ring
23 Basin Spring
PLUMBING

help.comfortel.com.au
7
FUNCTIONS
4
9 10
1 2
3
7
5 6
8
1. Massage Power
2. Massage Intensity Level 1
3. Massage Intensity Level 2
4. Massage Intensity Level 3
/Pairing mode
5. Auto Recline & Massage
6. Auto Recline
7. Manual Recline Down
8. Manual Recline Up
9. Battery Indication
10. Magnet Pairing Mode
OPERATION: HAND REMOTE
MASSAGE & RECLINE
PULSTATING MASSAGE CONTROL
Experience the ultimate relaxation at
your fingertips with the massage power
function. Activate and deactivate the
massage feature eortlessly, tailored to
your comfort and convenience.
CUSTOMISABLE MASSAGE INTENSITY:
Indulge in a personalized massage
experience with adjustable intensity levels.
Choose from three distinct intensity
settings (Level 1, Level 2, Level 3) to find
your perfect balance of relaxation and
rejuvenation.
SEAMLESS AUTO RECLINE & MASSAGE
Immerse yourself in pure bliss with the
auto recline and massage function.
Eortlessly activate both features
simultaneously, allowing the chair to gently
recline while the massage melts away your
stress and tension.
EFFORTLESS AUTO RECLINE
Experience unparalleled comfort with
the auto recline feature. Let the chair
eortlessly adjust to your desired position,
providing luxurious relaxation at the touch
of a button.
MANUAL RECLINE LEG ADJUSTMENT
Fine-tune your seating position with
precision using the manual recline leg
adjustment. Raise or lower the leg rest
to find the perfect angle of support and
relaxation.
SEAMLESS BLUETOOTH
MAGNET KEYRING PAIRING
Connect and control your massage chair
with ease using the Bluetooth magnet
key pairing function. Eortlessly pair
your remote with the chair's innovative
Bluetooth technology for seamless
operation.
OPERATION: HAND HELD BLUETOOTH REMOTE CONTROL
BATTERY INDICATION
When the battery power level falls below 20%, the LED will flash 4 times
when a key is pressed.
When the battery has been changed, the LED will be lit for 4 seconds
after the first keypress.
CHANGING THE BATTERY
A standard CR2032 coin cell battery is required.
Open the battery cover on the back using a coin or a similar tool to turn
the arrow counterclockwise from the locked state to the unlocked state.

help.comfortel.com.au
8
CLEANING & CARE
UPHOLSTERY
All upholstery needs some care; good housekeeping will help to prolong the life of any upholstered products.
Avoid extreme temperatures. Extreme cold can make your vinyl prone to cracking, while extreme heat can cause
permanent stretching. Avoid exposing your products to direct sunlight for prolonged periods of time.
ALWAYS FOLLOW THE CLEANING INSTRUCTIONS
• Wipe with a clean colour fast cloth dampened with mild alkaline free soap and luke warm water. Do not wet excessively.
• Remove all traces of any cleaning product by wiping with fresh water and a clean cloth.
• Dry with a soft, clean cloth.
• Stubborn grime may require gentle scrubbing with a soft brush.
Do not use:
• hot or boiling water
• hydrocarbons including alcohol
• acetone
• furniture polishes
• bleach
• concentrated detergents
• abrasive powder or paste cleaners
• steel wool
• silicon or petroleum-based cleaners
• solvent based or abrasive cleaning agents
MAINTENANCE
A periodic inspection of all components and fasteners should be made to ensure that your Comfortel Product is structurally
intact and functioning properly.
Damaged and broken parts should be replaced and loose fasteners tightened.
All maintenance to be carried out by a suitably qualified trades person.

help.comfortel.com.au
9

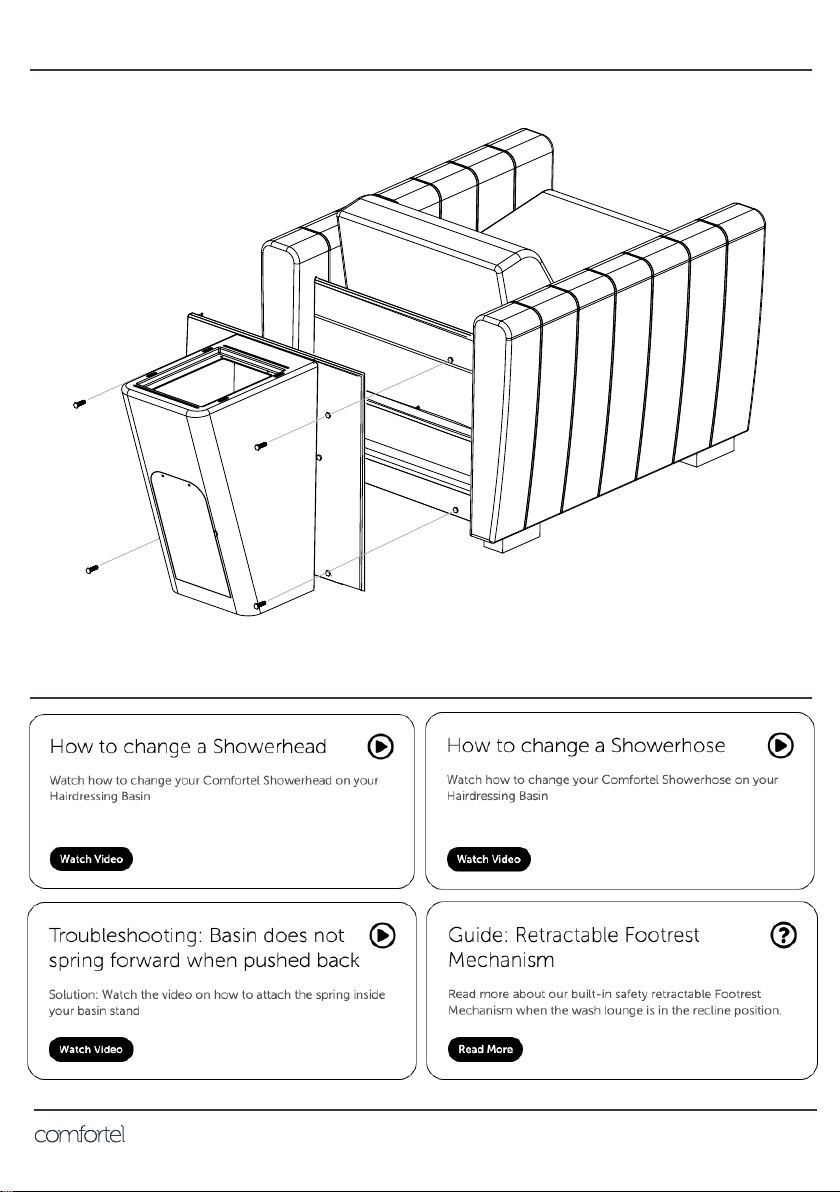

MAINTENANCE: ACCESS TO CHAIR
Unscrew the four bolts on the back panel
of the chair. Once removed, detach the
chair from the back panel and slide the
chair forward.
https://help.comfortel.com.au/videos/how-to-change-a-comfortel-shower-head/ https://help.comfortel.com.au/how-to-change-a-comfortel-shower-hose/
https://help.comfortel.com.au/videos/how-to-attach-the-spring-in-basin-stand/ https://help.comfortel.com.au/why-is-my-footrest-collapsing-on-the-electric-reclining-wash-lounges/
SOLUTIONS & TIPS: SEE MORE AT HELP.COMFORTEL.COM.AU

https://help.comfortel.com.au/comfortel-warranty-information/
PURCHASE DATE INVOICE NUMBER
NOTE YOUR PURCHASE DATE & INVOICE NUMBER FOR FUTURE REFERENCE
PRODUCT CODE The information contained in this document is subject to change without notice and
should not be construed as a commitment by Comfortel Furniture Pty Ltd.
Comfortel Furniture Pty Ltd. assumes no responsibility for any errors that may appear in
this document nor does it make expressed or implied warranty of any kind with regard
to this material, including, but not limited to, the implied warranties of merchantability
and fitness for a particular purpose.
Comfortel Furniture Pty Ltd. shall not be liable for incidental or consequential damages
in connection with or arising out of the use of this document and the program material.
PLEASE RETAIN THIS INFORMATION FOR FUTURE REFERENCE
help.comfortel.com.au
©Comfortel Furniture. All rights are reserved. No part
of this document may be photocopied, reproduced or
translated to another language without written consent
of Comfortel Furniture Pty Ltd.
WARRANTY PERIOD
TERMS AND CONDITIONS. For more information about our warranty, please refer to our website:
WARRANTY
https://onelink.to/w89ahn
#1544 HUGGIE CONNECT WASH LOUNGE
WITH MASSAGE
AU/NZ POWER: 240V, 5060HZ, MAX 2.4A
UK/EU POWER: 240V, 5060HZ, MAX 2.4A
US/CAN POWER: 110V, 5060HZ, MAX 2.4A
MAX LOAD: 150KG 330Ibs
https://
onelink.
to/
w89ahn
https://
onelink.
to/
w89ahn
ONECONNECT APP: SIMPLIFIED SUPPORT & TROUBLESHOOTING
Our OneConnect app is designed to provide you with streamlined support and troubleshooting.
Benefits of OneConnect:
• Simplified Support: Connect directly with our service technicians for quick issue identification and resolution.
From help content to remote troubleshooting, our team is just a tap away.
• Real-Time System Status: Stay informed about your devices. View live status information, including troubleshooting needs,
cleaning requirements, service alerts, and low battery notifications.
• Bluetooth® Access System Data: Wirelessly access usage history, feedback status, and diagnose problems in real-time with
simple troubleshooting tools.
• Remote Access System Data: Retrieve system data from anywhere via the cloud. Check usage history, feedback status, and
troubleshoot systems globally for optimized technical support.
With the OneConnect app, you'll enjoy simplified support and troubleshooting for your Comfortel Connect Series product.
Maximize its potential by leveraging the app's features and seamless connectivity with our service technicians.
Experience hassle-free technical support today!
DOWNLOAD AND SETUP:
• Download the App: Visit the App Store or Google Play Store on
your smartphone or tablet and search for "OneConnect."
Download and install the app.
• Create an Account: Follow the in-app instructions to create a new
account or log in if you already have one.
• Pairing Devices: Pair your Comfortel Connect Series product with
the app by following the on-screen instructions and ensuring
Bluetooth is enabled.
• Explore Features: Once paired, access system status, view data,
and utilize support and troubleshooting resources within the app.
HELP & SUPPORT: ONE CONNECT APP
DOWNLOAD
ONECONNECT
https://onelink.to/w89ahn
