CommScope BUDI-M-TH User manual

BUDI-M-TH
INSTALLATION INSTRUCTION
Building distributor

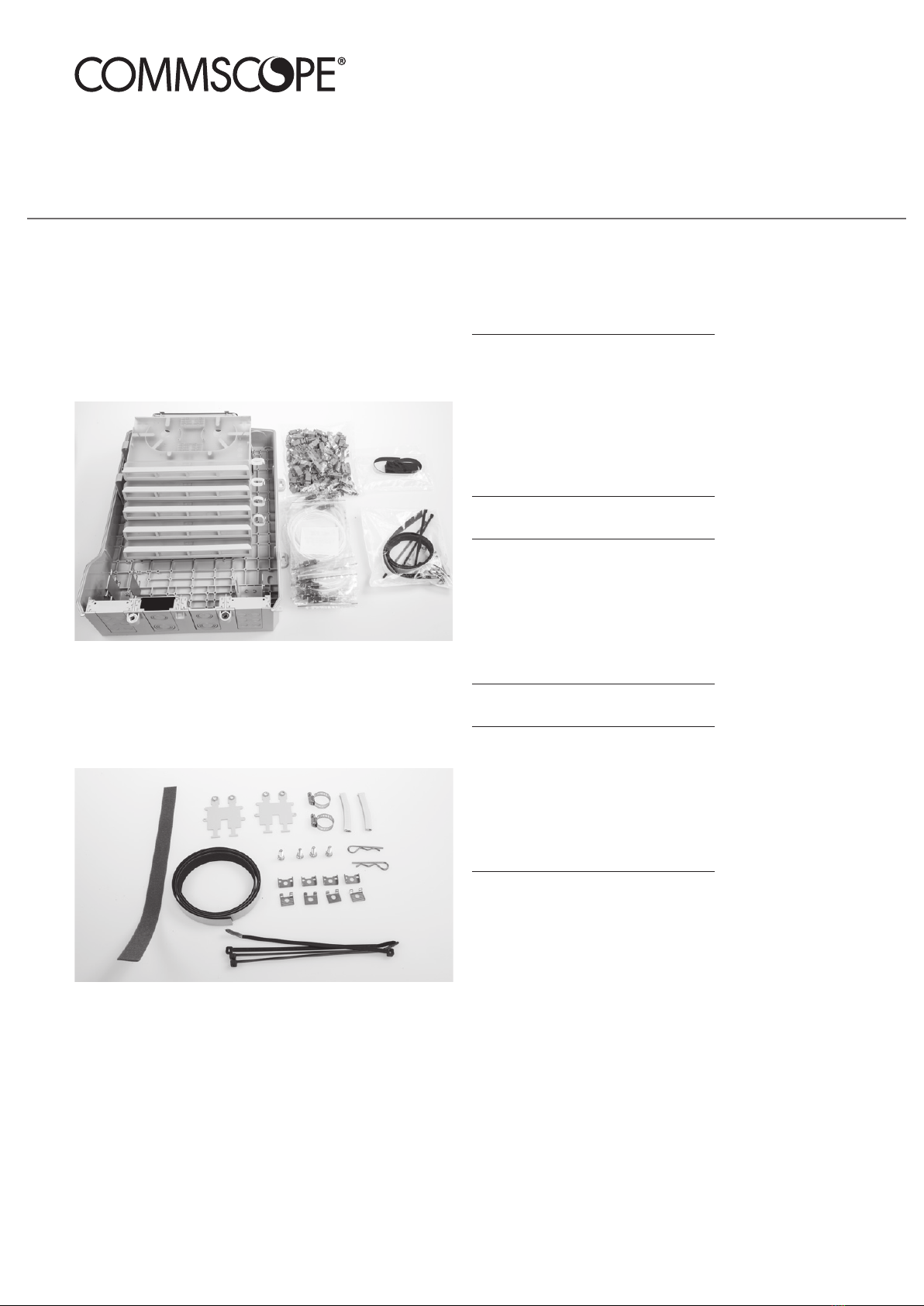

Box
• SC/APC adapters (100 pieces)
• = SC/APC 2 m pigtails (96 pieces)
• Foam (1 mm)
• Hook and loop fastener (6 pieces)
Suitable for FTTH applications where easily pre-connectorized splitters
modules can be built-in. The box is designed to accommodate both
spliced and connectorized riser cable solutions, while maximizing the
box’s capacity.
Looped cable accessories
Seals
Seals
Wrap-around cable seals
Sealblock 6 x 10 mm
Cable diameter (mm) Foam (± 5 mm)
3 95
4 90
5 80
6 75
7 70
8 60
9 50
10 40
Sealblock 6 x 15 mm
Cable diameter (mm) Foam (± 5 mm)
9 125
10 115
11 105
12 95
13 85
14 70
15 60
Sealblock 3 x 20 mm
Cable diameter (mm) Foam (± 5 mm)
14 155
15 140
16 125
17 110
18 95
19 85
20 75
Sealblock 24 x 7 mm
Cable range A 1.8 – 5 mm
B 5 – 7 mm
Inline seal 1 x 18
To use in ports S6-S7 only
Cable range 3 – 18 mm
Standard gland
PG 16
PG 21
PG 29
PG 29 (PTS 24)
2 Kit content
1. Introduction
TC-1242-IP
Rev A, Apr 2017
www.commscope.com

2
3.1 Install adapters into top 4 trays. The bottom tray is used for the
loose tube to be spliced to the splitter inputs.

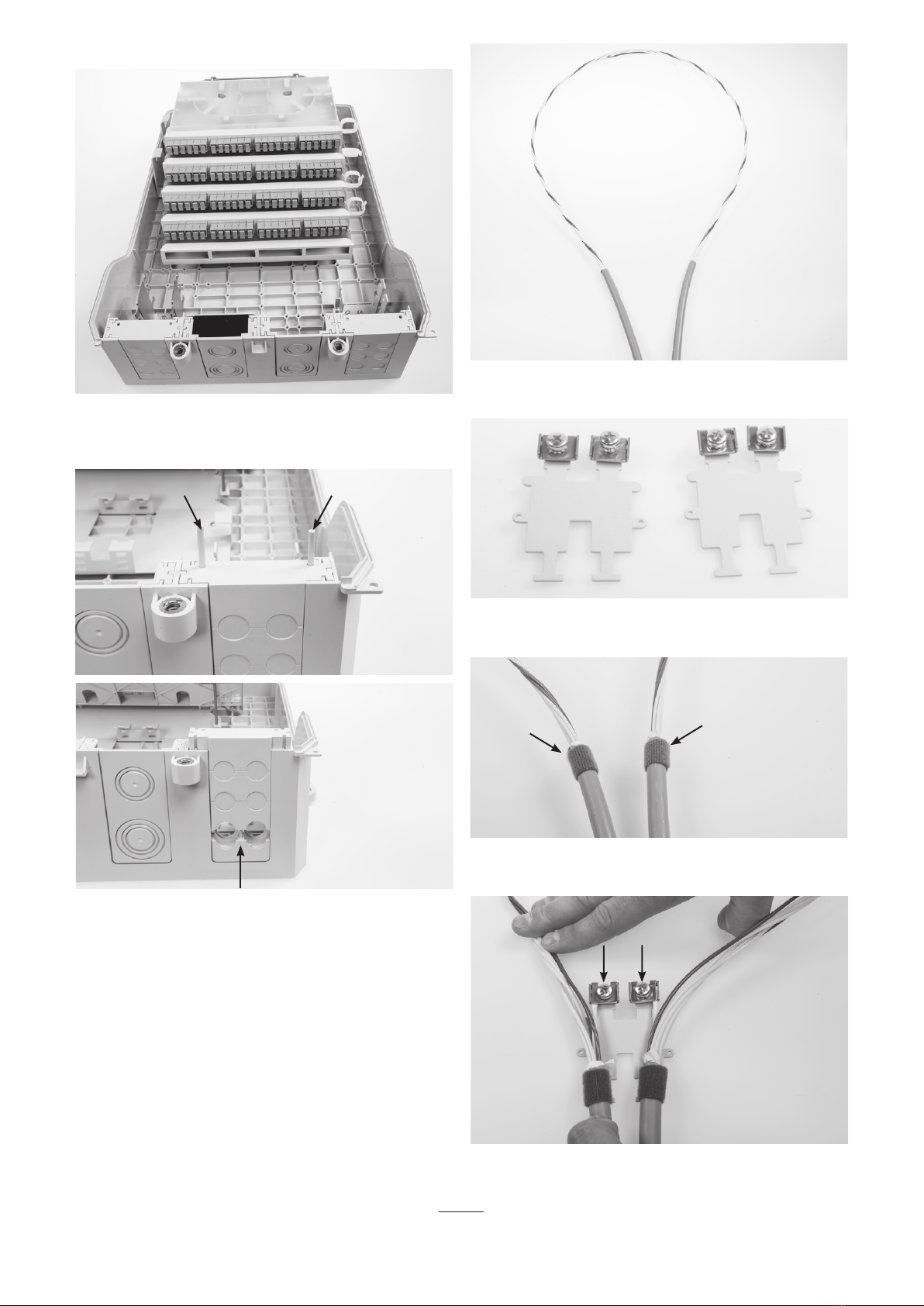

3 Installation of feeder cable
3.2 Use the two guiding pins found on the inside of the box cover
to open the ports. Cut out the plastic.
3.3 Make a window cut of 2.7 m.
3.4 Prepare the two cable brackets as shown.
3.5 Apply the hook and loop fastener.
3.6 Cut strength members to the length of 5.5 cm and secure them
under the two metal plates.

3

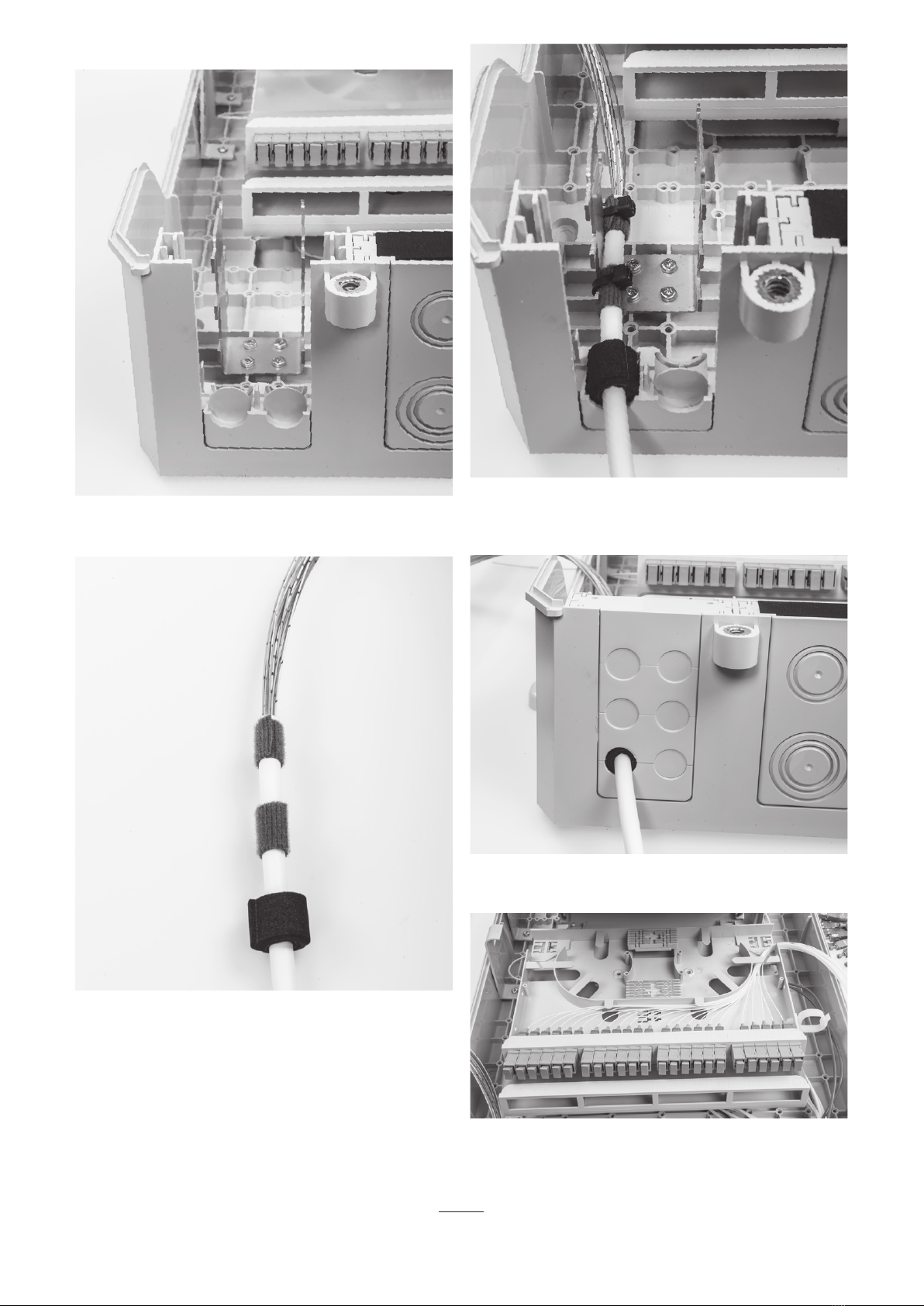

3.7 Secure the looped cable with the two hose clamps.
3.8 Apply the foam around the looped cable.
3.9 Install the looped cable into the ports and close the seal.
3.10 Install the second cable bracket and secure together with two
pins (slide through holes).
3.11 Install the edge protection.
3.12 Take out one loose tube.
3.13 Use a wedge to support the trays. Store the loop on the looped
bracket below the trays and secure the loop with two tie-wraps.

4

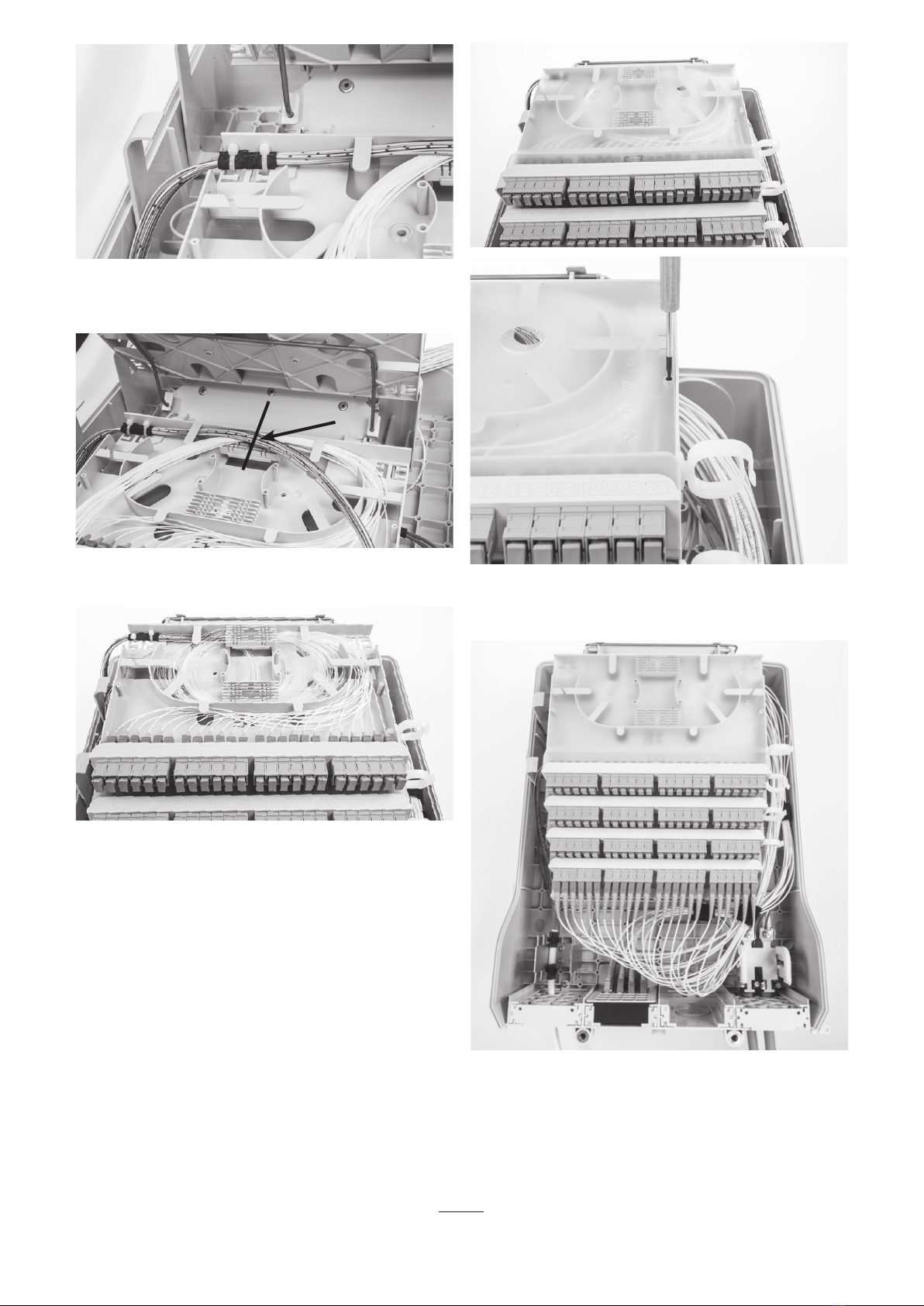

4 Installation of OCM6 splitter
3.15 Apply the foam and secure the loose tubes together with the
two tie wraps. Select the fibers to be spliced to the inputs of the OCM6
splitters and cut them off (do not cut the feeder side).
3.14 Mark the loose tube at marked position and shave the tube
(make sure that the unshaved part of the tube is long enough to be
able lift the tray).
3.16 Store the unused fibers into the tray as shown.

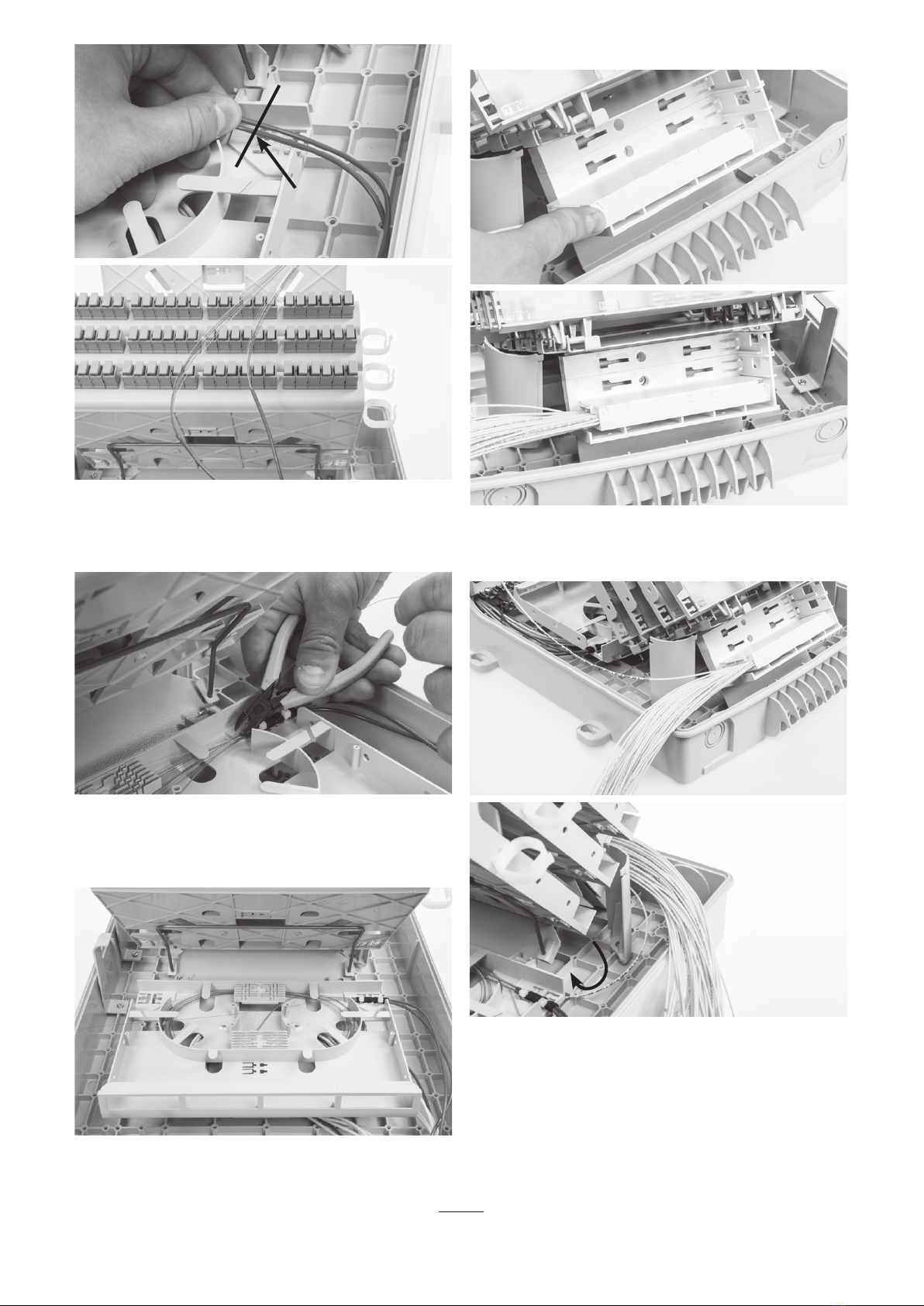

4.1 Install the OCM6 splitter. Up to the three OCM6 splitters can
be installed.
4.2 Guide the input of the OCM6 splitter under the base plate
towards to the bottom tray.

5
4.3 Strip the OCM6 splitter input at the marked position, apply the
foam and secure with the tie wrap.
Splice the fibers and store the overlength into the tray.
4.4 Install the cover and secure with the two screws.
4.5 Guide the outputs of the OCM6 splitters through the wire
saddle.
4.6 Connect the outputs of the OCM6 splitter to the designated
adapters.
4.7 The unused outputs of the OCM6 splitter can be parked at the
bottom of the box in the parking lots. Use the hook and loop fastener for
better fiber arrangement.

6

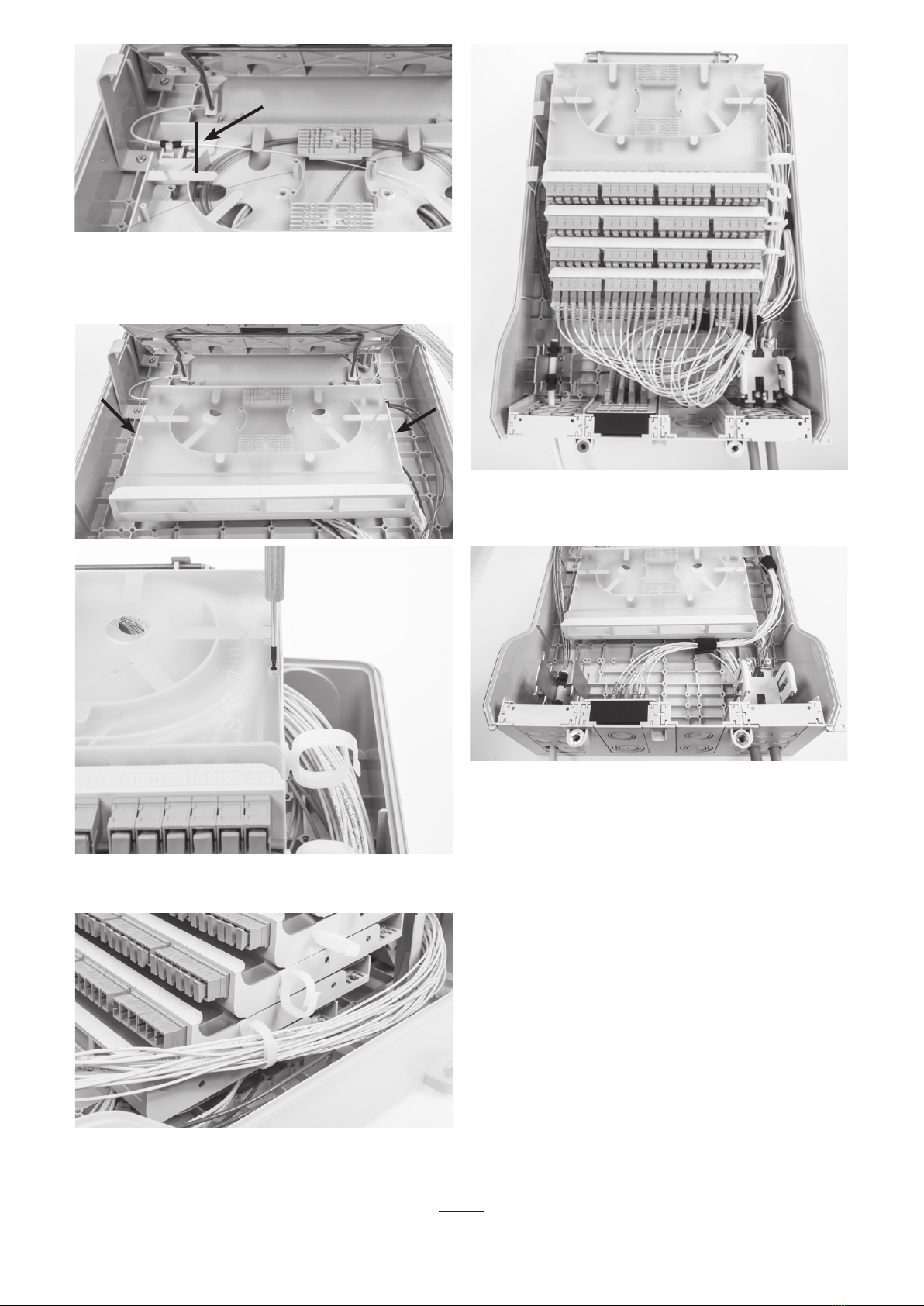

5 Installation of riser cable
5.1 Prepare the seal port.
5.2 Prepare the riser cable to be installed into the box.
5.3 Install the riser cable into the box on the metal bracket and
secure with the two tie-wraps.
5.4 Close the seal.
5.5 Install the 900 µm pigtails into the tray.

7
5.6 Secure the riser cable fibers into the tray with the foam and two
tie-wraps.
5.7 Strip the pigtails at the marked position.
5.8 Splice all the fibers and store the overlength into the tray.
5.9 Install the cover onto the tray and secure with the two screws.
5.9 Install the cover onto the tray and secure with the two screws.
