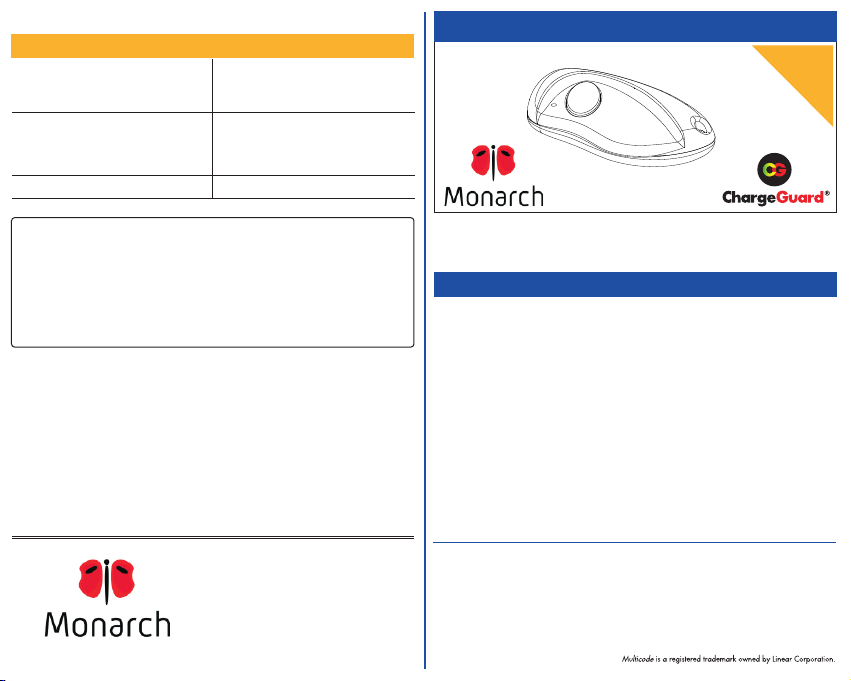

Community Controls Monarch 300MCP21KC User manual

1A- General information
The Community Controls - Monarch transmitter is a key chain style mini
transmitter operating at 300 MHz. It has been designed for use
with automated gates, security and access control systems operating
with a 300 MHz frequency receiver.
The code sent by the transmitter is MultiCode® compatible and
includes a 10 bit security code which allows up to 1024 code
combinations.
CONTENTS
1A- General information
1B- Technicalspecifications
1C- Maincomponents
1 - TRANSMITTER OVERVIEW
2 - NUMBERING
3 - PROGRAMMING
4 - OPERATION
5 - BATTERY ACCESS
6 - TROUBLESHOOTING
Manual
MONARCH 300MCP21KC
Community Controls
Thank you for choosing a Community Controls product.
Please read this manual carefully before using the product.
Made in Italy. Copyright© 2013 by Community Controls.
6 - TROUBLESHOOTING
PROBLEM SOLUTION
The operating range is reduced
Check to verify the
transmitter is programmed
into your system
Replace the transmitter
batteries
Replace the transmitter batteries
The warranty period of 300MCP21KC transmitter is 24 months,
beginning from the manufacturing date of the transmitter. During this period, if the
product does not operate correctly , due to a defective component, the product
will be repaired or replaced at the sole discretion of Community Controls.
The warranty does not extend to the transmitter case which can be damaged by
conditions outside the control of Community Controls or to battery life.
Community Controls
WARRANTY
Community Controls - Type: 300MCP21KC
FCC ID : SU7300MCP21KC
This device complies with FCC Rules
Operation is subject to the following two conditions:
(1) This devicemaynot cause harmful interference, and
(2) this device must accept interference received, including
interference that may cause undesired operation.
Part. 15 of the
Notice
Any changes or modifications not expressly approved by the party responsible
for compliance (or Community Controls) could void the user’s authority to
operate this equipment.
The system does not receiver the
transmitter signal.
The transmitter LED is ON
The system does not receiver the
transmitter signal.
The transmitter LED will not light
COMMUNITY CONTROLS
2500 South 3850 West, Suite A
Salt Lake City, UT 84120
(800) 284-2837 - (866) 867-3637 Fax
www.communitycontrols.com
with Patented
ChargeGuard
2 - NUMBERING
To access the battery open the case with a screwdriver acting on the slot between
the cover and the bottom and remove the bottom, as shown in fig. 3a and 3b.
Slide out the old batteries and replace them with the new ones [CR2016]
respecting the polarity, withthe positive (+) sidefacing up.
NOTE : Please dispose of the batteries properly according to local laws and
regulations.
Test proper battery installation by verifying that the red LED illuminates when the button
is pushed.
5 - BATTERY ACCESS
3 - PROGRAMMING
Each transmitter is manufactured and sold with a different factory- set serial
number.
The transmitter must be programmed into your system memory.
Your own installer or reseller will provide you the necessary instructions for your
system.
4 - OPERATION
A- Firmly depress the button until the small red LED illuminates.
B - After the LED has illuminated, release the button.
If the device you are attempting to activate does not respond, repeat steps A and B
or consult section 6( Troubleshooting ) of this manual.
Fig. 3a
Fig. 3b
1B - Technical specifications
Operating frequency 300 MHz
Number of keys: 1
Battery : 2 x 3V lithium batteries CR2016
Battery life: 18 ÷ 24 months
Number combinations : 1024
Operating temperature: -20°F÷+131°F (-20°C÷+55°C)
Overall dimensions: 2.4”x1.4”x0.51” (61x36x13 mm)
Weight: 0.49 oz. (14 gr.)
The CR2016 lithium batteries of the transmitter have a shelf life of
about 6 months.
The product fully complies with Part 15 of FCC Regulations and
the European Directives 99/5/CE, 89/336/CEE,73/23/CEE.
1C - Main components
Red
LED
Key
holder
ring
Grey
push-button
Light grey
case
Fig. 2
BATTERY STATUS
Led GREEN Normal level ~6000 pulses [*] - Normal range
Led ORANGE Attention level Max 300 pulses - L ow range[*]
Led RED Lowlevel Replace battery - Norange
Led color Battery level TX Status
