H525 Art Island Top/Floor Easel
H520 Junior Art Island
Figure A
Operation
WARNING
cUnit may tip when rolled sideways. Always push
from an end. Never move with children nearby.
Always disengage wheels after moving.
CAUTION
cRemoving the easel frame or engaging the
mobility needs two people.
To remove the easel frame, press the two yellow
buttons at the end and lift.
To install the tray, place it flat on the shelf and cen-
tered between the white brackets. Press back firmly,
one end at a time, until the tray snaps into place.
To remove the tray (see figure B) use fingers and
thumb to lever the tray away from the easel.
Recommended Use
This easel supports a wide variety of activities:
• children’s paintings
• dry-erase markers directly on the whiteboard
• big book display
• flip chart presentations
Floor Easel 1-3 years of age
Junior Art Island 2-5 years of age
WARNING
cThis product is intended for use by children of
immature judgement, therefore supervision is
required at all times. Never reconfigure the Art
Island with children nearby.
cOnly use Floor Easel on the floor, not on a table-
top. It may slide off.
Assembly
Products consist of the following:
H525 Art Island Top / Floor Easel containing:
• 1 frame
• 2 whiteboards
• 4 trays
• 4 shelf assemblies
• 10 magnets (for attaching paper)
H520 Junior Art Island includes:
• 1 H525 Art Island Top / Floor Easel
• 1 H521 Art Island Low Storage Unit containing:
1 low storage unit
1 wooden adjustable shelf
2 plastic tote dividers
If your shipment is incomplete, please contact
Customer Service.
To assemble the Art Island:
1. Open the easel frame all the way so the stays
are straight.
2. Place the easel frame on the storage unit (if
applicable) making sure all four latches engage.
3. Hang the four shelf/tray assemblies on the
lower cross-member.
4. Place the bottom edge of the whiteboard panel
in the white hooks.
5. Secure the whiteboard by positioning and
screwing the white clips tight to catch the sides
of the board (see Figure A).
Figure B

© 2010 by Community Products, LLC
TF45 DC6783 Revision D
CUSTOMER SERVICE:
United States
PO Box 2
Ulster Park, NY 12487
Office hours: 9-5 EST
Phone [phone]
Fax [phone]
[phone]
www.CommunityPlaythings.com
[e-mail]
Page 2
User and
Maintenance
Information
(cont’d)
H525 Art Island Top/
Floor Easel
H520 Junior Art Island
Mobility
It is important to understand how to operate the
mobility feature, which can be easily engaged and
disengaged using the following procedure:
1. With one person at each end of the unit tip
slightly forward or back, allowing the toe trim
to pivot.
2. One person keeps the item tipped while the other
rotates the toe trim to the desired position by
pulling or pushing on one of the handholds at

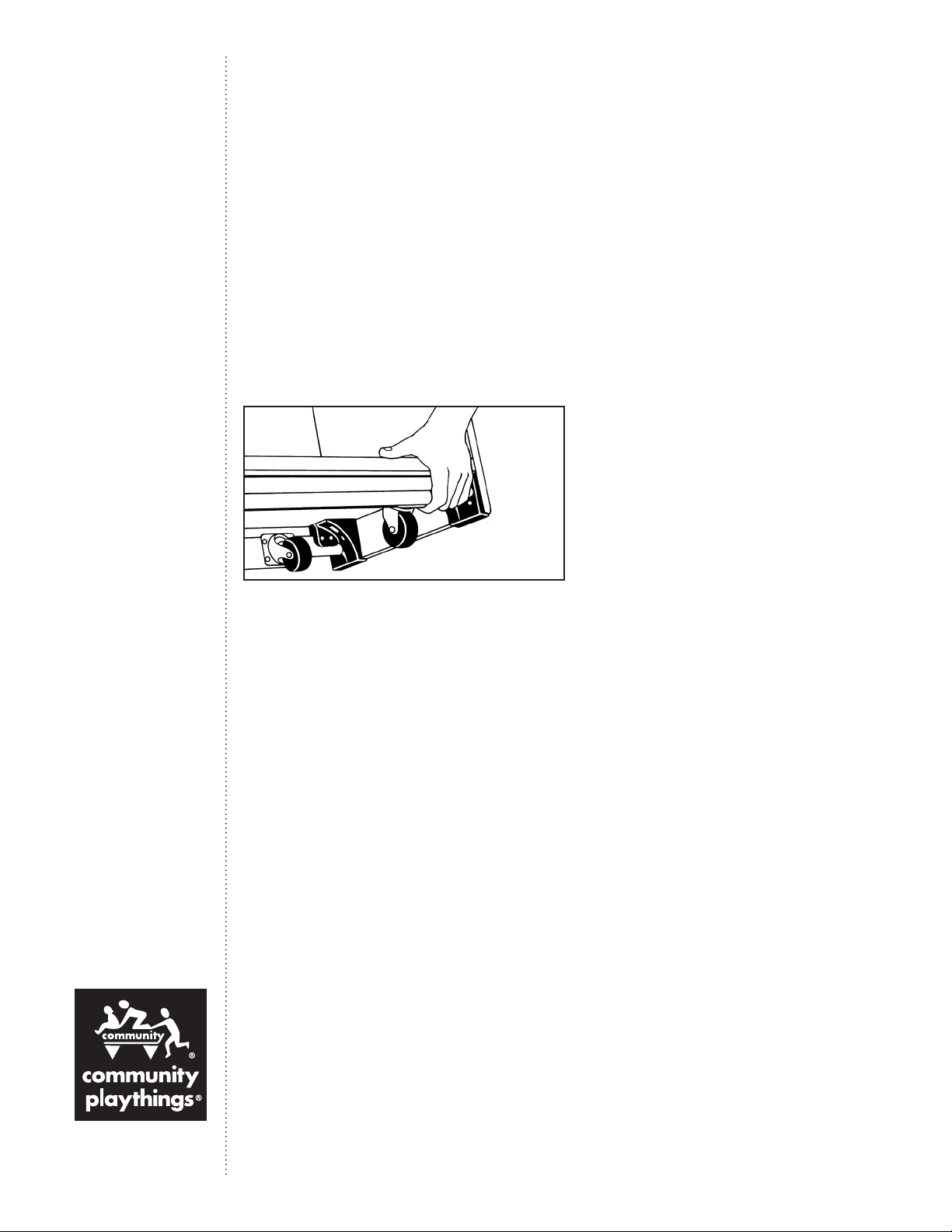

each end of the toe trim. (Figure C)
3. Tip the unit slightly to the other side and repeat
the procedure with the other toe trim.
4. Always use the handholds provided at each end
of the toe trim. (Figure C)
Adjustable Shelving
The plywood shelf fits into the grooves on the sides.
It is removed by lifting it up and sliding it out.
Tote Box Shelving
Tote Boxes are supported by plastic dividers which
snap into holes in the sides of the unit.
To put in a tote divider:
Slide the divider into the shelf (at an angle).
Insert two pins into the holes in the side. Push
up on the divider until the pins snap into the
slots in the partition.
To remove a divider:
Push up under one side of the divider until the
pins snap out of the holes.
Accessories
Magnets for holding paper, and tote pans, 3” and
6” deep, are available from Customer Service. We do
not provide whiteboard markers, magnetic shapes,
paint and paper, etc.
Maintenance
The wooden parts of this product are not fully water-
proof and therefore should not be left outdoors.
Periodically inspect for cracks, breaks, loose parts,
missing parts, and/or malfunctions. The housing of
the magnets may crack if they are dropped repeat-
edly. Remove the product or parts from service
when any condition develops that might make
operation unsafe.
Construction
The easel frame and storage unit are constructed of
solid hardwood with a clear nontoxic finish.
The whiteboards are steel with a foam core.
The trays and other plastic parts are injection-molded.
Cleaning
The whiteboard can be cleaned using a soft dry cloth.
If the ink has been left on for a long time, rub clean
with a dry cloth and then use a cleaner recom-
mended by the supplier of your whiteboard markers
or a non-abrasive general purpose cleaner. Stub-
born stains may need some extra effort to remove
completely. Wipe off residual paint with warm
water. Too much water may harm the finish of the
wooden parts.
Do not immerse whiteboards in water.
Abrasive cleaning agents will damage the white-
board surface.
Steel magnets may scratch the whiteboard.
User Modifications
We are not responsible for modifications made by
customers to our products in the field without our
supervision, testing, or evaluation.
Ordering Parts
To order replacement parts, contact Customer
Service with a description of the part(s) needed
and the ID Code from the product.
Use only replacement parts supplied by
Community Playthings.
Figure C
