INSTALLATION AND OPERATION MANUAL
CNGE2+2SMS[POE][HO]
10/100/1000 MBPS INTELLIGENT REDUNDANT RING
GIGABIT SWITCH WITH OPTIONAL POE+
The ComNet CNGE2+2SMS[POE][HO] is a four port intelligent switch with light
management functionality. It provides two 10/100/1000Base-T(X) copper ports and
two 100/1000Base-FX SFP ports. The CNGE2+2SMS[POE][HO] provides exclusive
functionality for easy field deployment including DIP switch based operation of
RSTP for creating redundant network topologies as well as preventing network video
flooding of multicast traffic with IGMP snooping. Ports 1 and 2 can optionally supply
up to thirty (30) watts of power per port based on the IEEE 802.3at standard. An
optional High Output (HO) version is also available that can supply up to sixty (60)
watts of PoE from ports 1 and 2. This product is fully compatible with the ComNet
exclusive CopperLine® SFP modules for operation over extended distance UTP or Coax
cable. The ComNet exclusive Port Guardian feature provides additional cyber security
protection by enabling physical port lockout in the event that an existing cable is
disconnected and prevents a potential network incursion using common spoofing
techniques. The intrusion event is reported back to the operator using SNMP.
This manual serves the following
ComNet Model Numbers:
CNGE2+2SMS
CNGE2+2SMSPOE
CNGE2+2SMSPOEHO

INS_CNGE2+2SMS_REV– 02/19/13 PAGE 2
INSTALLATION AND OPERATION MANUAL CNGE2+2SMS[POE][HO]
TECH SUPPORT: 1.888.678.9427
Contents
Regulatory Compliance Statement 4
Warranty 4
Disclaimer 4
Safety Indications 4
Overview 5
Introduction 5
Software Features 5
Hardware Features 6
Hardware Overview 7
Side Panels 7
Indicating LEDs 10
Cables 11
Ethernet Cables 11
10/100/1000BASE-T(X) Pin Assignments 11
SFP 13
Console Cable 13
DIP Switches 14
WEB Management 22
Configuration by Web Browser 22
System Information 25
Switch Port Configuration 26
Port Statistics 27
RSTP System Configuration 28
RSTP Port Configuration 29
LLDP 30
Active Ping Check Configuration 31
Non PoE Model CNGE2+2SMS 31
PoE Model CNGE2+2SMSPOE and CNGE2+2SMSPOEHO 32
Authentication Username and Password Configuration 33
Upgrade Firmware 34

INS_CNGE2+2SMS_REV– 02/19/13 PAGE 3
INSTALLATION AND OPERATION MANUAL CNGE2+2SMS[POE][HO]
TECH SUPPORT: 1.888.678.9427
Factory Defaults 35
System Reset 36
Network Interface Configuration 37
SNMP 38
SNMP – Config 38
CNGE2+2SMSPOE[HO] PoE-PSE-Status Information 39
CNGE2+2SMSPOE[HO] PoE Contact Information 40
Port Guardian 41
Port Guardian – CLI Reset 42
Static Multicast MAC Routing Per Port 43
Static MAC Lock Configuration 44
IGMPv2 Snooping 45
Jumbo Frame support 47
Command Line Interface Management 48
Configuration by Command Line Interface (CLI). 48
Firmware Upgrade Procedure 51
Technical Specifications 52

INS_CNGE2+2SMS_REV– 02/19/13 PAGE 4
INSTALLATION AND OPERATION MANUAL CNGE2+2SMS[POE][HO]
TECH SUPPORT: 1.888.678.9427
Regulatory Compliance Statement
Product(s) associated with this publication complies/comply with all applicable regulations. Please
refer to the Technical Specifications section for more details.
Warranty
ComNet warrants that all ComNet products are free from defects in material and workmanship
for a specified warranty period from the invoice date for the life of the installation. ComNet will
repair or replace products found by ComNet to be defective within this warranty period, with
shipment expenses apportioned by ComNet and the distributor. This warranty does not cover
product modifications or repairs done by persons other than ComNet-approved personnel, and
this warranty does not apply to ComNet products that are misused, abused, improperly installed,
or damaged by accidents.
Please refer to the Technical Specifications section for the actual warranty period(s) of the
product(s) associated with this publication.
Disclaimer
Information in this publication is intended to be accurate. ComNet shall not be responsible for its
use or infringements on third-parties as a result of its use. There may occasionally be unintentional
errors on this publication. ComNet reserves the right to revise the contents of this publication
without notice.
Safety Indications
»The equipment can only be accessed by trained ComNet service personnel.
»This equipment should be installed in secured location.

INS_CNGE2+2SMS_REV– 02/19/13 PAGE 5
INSTALLATION AND OPERATION MANUAL CNGE2+2SMS[POE][HO]
TECH SUPPORT: 1.888.678.9427
Overview
Introduction
The CNGE2+2SMS is a light managed, hardened Ethernet switch that contains many features.
The switch will work under a wide variety of temperature, dirty and humid conditions. It can be
managed through WEB, USB Console or other third-party SNMP software. With the easy to use
and intuitive web and CLI interfaces, the switch can be easily monitored by a utility called eVision,
which is part of the ComNet eConsole software suite.
eConsole is network management software that is very effective. With easy to use and intuitive
interface, you can easily monitor the status of the switches.
Software Features
»Supports SNMPv1/v2c
»Event notification by SNMP trap and Relay Output (Relay Output for PoE models only)
»Web-based GUI and USB Console CLI configuration
»Enable/disable ports
»LLDP (Link Layer Discovery Protocol) support (802.1AB)
»PoE status monitoring and health check
»RSTP (802.1w)
»IGMP snooping v2 (64 groups)
»Jumbo Frame support (10240 MTU)
»Static MAC lock (per port)
»Static multicast MAC routing
»Field firmware upgrade capable
»Port Guardian physical port lockout feature
»Active ping check with SNMP trap, port reset & port shutdown capability

INS_CNGE2+2SMS_REV– 02/19/13 PAGE 6
INSTALLATION AND OPERATION MANUAL CNGE2+2SMS[POE][HO]
TECH SUPPORT: 1.888.678.9427
Hardware Features
»7 ×DIP Switches for quick feature selection
»2 ×Redundant DC power inputs
»Operating Temperature: -40 – 75ºC
»Storage Temperature: -40 – 85ºC
»Operating Humidity: 5% – 95%, non-condensing
»2 ×10/100/1000Base-T(X) Gigabit Ethernet port
»2 ×100/1000Base-X SFP
»2 ×Dry Contact Inputs (PoE models only)
»2 ×Form A Relays (PoE models only)
»USB Console Port
»Dimensions: 4.1 × 3.7 × 1.46 in (10.4 × 9.4 × 3.7 cm)

INS_CNGE2+2SMS_REV– 02/19/13 PAGE 7
INSTALLATION AND OPERATION MANUAL CNGE2+2SMS[POE][HO]
TECH SUPPORT: 1.888.678.9427
Hardware Overview
Side Panels
The following table describes the ports that are on the sides of the CNGE2+2SMS.
Port Description
10/100/1000Base-T(X)
RJ-45 Ethernet ports
2 ×10/100/1000Base-T(X) RJ-45 fast Ethernet ports support
auto-negotiation.
Default Settings:
Speed: auto
Duplex: auto
Flow control: disable
SFP Ports 2 ×100/1000Base-X SFP
USB Console Use the included mini USB cable to manage the switch.

INS_CNGE2+2SMS_REV– 02/19/13 PAGE 8
INSTALLATION AND OPERATION MANUAL CNGE2+2SMS[POE][HO]
TECH SUPPORT: 1.888.678.9427
98 3 4 5
2
7
10 6
1

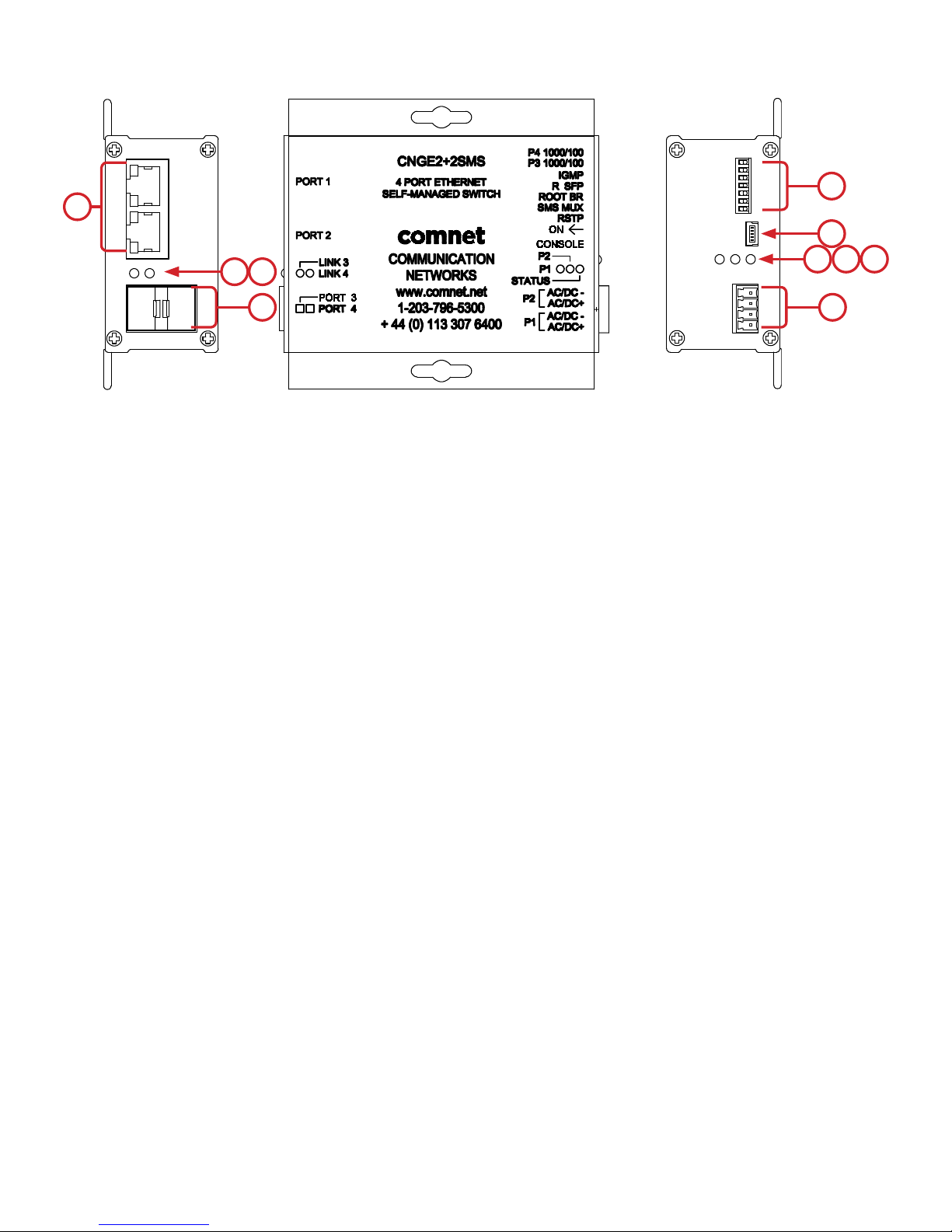

CNGE2+2SMS
1. Configuration DIP switches
2. Console Mini USB
3. LED for PWR1
4. LED for PWR2
5. LED for STATUS
6. Power Connections
7. RJ-45 Ports
8. Link/Activity LEDs for SFP Port 3
9. Link/Activity LEDs for SFP Port 4
10. SFP Ports

INS_CNGE2+2SMS_REV– 02/19/13 PAGE 9
INSTALLATION AND OPERATION MANUAL CNGE2+2SMS[POE][HO]
TECH SUPPORT: 1.888.678.9427
12 6 7 8
5
3
2
9
13 1
4
10
11

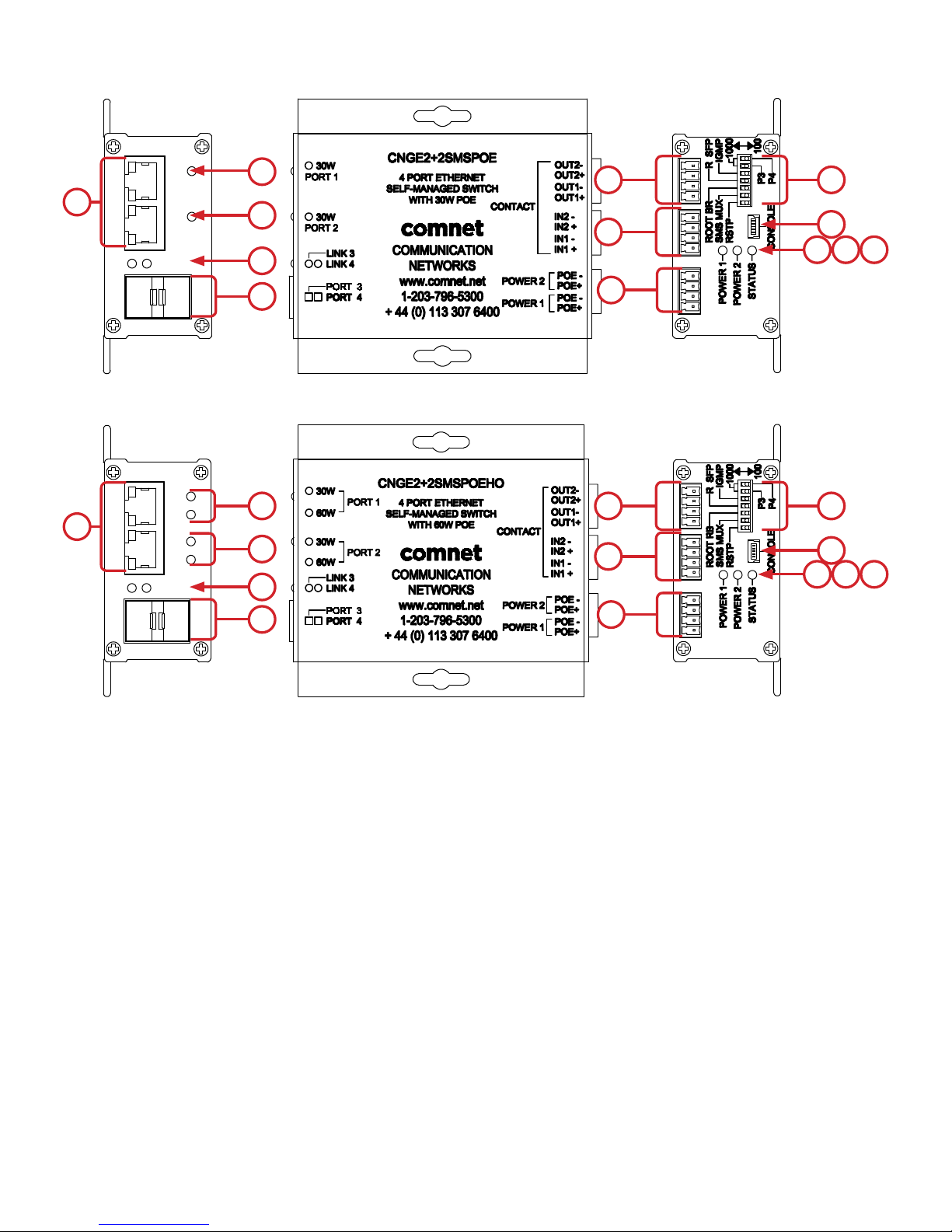

CNGE2+2SMSPOE
12 6 7 8
5
3
2
9
13 1
4
10
11
CNGE2+2SMSPOEHO
1. Power connections
2. Contact IN terminal block
3. Contact OUT terminal block
4. Configuration DIP switches
5. Console Mini USB
6. LED for Power 1
7. LED for Power 2
8. LED for Status
9. RJ-45 Ports
10. PoE Status LEDs for RJ-45 Port 1
11. PoE Status LEDs for RJ-45 Port 2
12. Link/Activity LEDs for SFP Ports 3 and 4
13. SFP Ports 3 and 4

INS_CNGE2+2SMS_REV– 02/19/13 PAGE 10
INSTALLATION AND OPERATION MANUAL CNGE2+2SMS[POE][HO]
TECH SUPPORT: 1.888.678.9427
Indicating LEDs
LED Color Status Description
PWR1 Green On DC Power Input 1 Good
Off No power detected
PWR2 Green On DC Power Input 2 Good
Off No power detected
STATUS Green On Initialization passed
Red On Failed
10/100/1000Base-T(X) Ethernet ports
LNK /ACT Green On Port link up
Blinking Data transmitting
1000 Mbps indicator Amber On Port speed is 1000 Mbps
30W Green On 30W PoE power being supplied (POE units only)
60W Green On 60W PoE power being supplied (POEHO units only)
SFP
LNK /ACT Green On Port link up.
Blinking Data transmitted.

INS_CNGE2+2SMS_REV– 02/19/13 PAGE 11
INSTALLATION AND OPERATION MANUAL CNGE2+2SMS[POE][HO]
TECH SUPPORT: 1.888.678.9427
Cables
Ethernet Cables
The CNGE2+2SMS switches have standard Ethernet ports. According to the link type, the switches
use CAT 3, 4, 5, & 5e UTP cables to connect to any other network device (PCs, servers, switches,
routers, or hubs). Please refer to the following table for cable specifications.
Cable Types and Specifications
Cable Type Max. Length Connector
10BASE-T Cat. 3, 4, 5 100Ω UTP 100m (328ft) RJ-45
100BASE-TX Cat. 5 100Ω UTP UTP 100m (328ft) RJ-45
1000BASE-TX Cat. 5/Cat. 5e 100Ω UTP UTP 100m (328ft) RJ-45
10/100/1000BASE-T(X) Pin Assignments
With 100BASE-T(X)/10BASE-T cable, pins 1 and 2 are used for transmitting data, and pins 3 and 6
are used for receiving data.
10/100 Base-T RJ-45 Pin Assignments
Pin Number Assignment
1TD+
2TD-
3RD+
4Not used
5Not used
6RD-
7Not used
8Not used
Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair.

INS_CNGE2+2SMS_REV– 02/19/13 PAGE 12
INSTALLATION AND OPERATION MANUAL CNGE2+2SMS[POE][HO]
TECH SUPPORT: 1.888.678.9427
1000 Base-T RJ-45 Pin Assignments
Pin Number Assignment
1BI_DA+
2BI_DA-
3BI_DB+
4BI_DC+
5 BI_DC-
6 BI_DB-
7BI_DD+
8 BI_DD-
The CNGE2+2SMS switches support auto MDI/MDI-X operation. You can use a straight-through
cable to connect PC to switch. The following table below shows the 10/100BASE-T(X) MDI and
MDI-X port pin-outs:
10/100 Base-T MDI/MDI-X pin assignments
Pin Number MDI port MDI-X port
1TD+ (transmit) RD+ (receive)
2TD- (transmit) RD- (receive)
3RD+ (receive) TD+ (transmit)
4Not used Not used
5Not used Not used
6RD- (receive) TD- (transmit)
7Not used Not used
8Not used Not used
1000 Base-T MDI/MDI-X pin assignments
Pin Number MDI port MDI-X port
1BI_DA+ BI_DB+
2BI_DA- BI_DB-
3BI_DB+ BI_DA+
4BI_DC+ BI_DD+
5 BI_DC- BI_DD-
6 BI_DB- BI_DA-
7BI_DD+ BI_DC+
8 BI_DD- BI_DC-

INS_CNGE2+2SMS_REV– 02/19/13 PAGE 13
INSTALLATION AND OPERATION MANUAL CNGE2+2SMS[POE][HO]
TECH SUPPORT: 1.888.678.9427
SFP
The Switch has fiber optic ports that utilize SFP connectors. ComNet offers a wide selection of SFP
modules that offer different fiber type, connector type and distances. Please remember that the
TX port of Switch A should be connected to the RX port of Switch B.
Switch A Fiber Cord Switch B
Console Cable
Each CNGE2+2SMS switch can have the initial network settings configured by the management
console port. You can connect them to a PC with USB Ports using the supplied USB to USB Mini B
male plug cable.
USB to USB Mini B Cable

INS_CNGE2+2SMS_REV– 02/19/13 PAGE 14
INSTALLATION AND OPERATION MANUAL CNGE2+2SMS[POE][HO]
TECH SUPPORT: 1.888.678.9427
DIP Switches
The CNGE2+2SMS’s dip switches configure switch features. The DIP Switches are numbered from
left to right when viewing the side of the Switch with the backplate on the bottom and the power
connections on the left. If “Web Management Enable” is selected in the management software
under System Settings, the DIP switch settings will be overridden by any settings made in the
browser interface.
DIP Switch
Position Description
1 RSTP enable (down = disabled, up enabled)
2 Port SMS Mux
3 Root Bridge Select
4 Redundant SFP mode
5IGMP enable
6SFP Port 3 speed. Up: 1000M/Down: 100M
7SFP Port 4 speed. Up: 1000M/Down: 100M
Switch Function Listing
The switch functions may be set individually or may be combined in the following order to perform
enhanced functions above the individual operation. The table below describes the operation of the
switch functions. This same table is also available in the help menu of the system webpage.
Summary of the switch configurations (in order of switch priority)
RSTP
(Switch 1)
SMS MUX
(Switch 2)
ROOT BR
(Switch 3)
R SFP
(Switch 4) Resulting Mode Comment
ON OFF OFF OFF RSTP All ring configurations
ON OFF ON OFF RSTP RSTP this bridge set to root
OFF ON OFF OFF SMS Port4 is uplink (traffic from
ports 1-3 is sent only to port 4)
OFF ON OFF ON SMS with
Redundant SFP
Fiber fail over
with Port1 and Port2 isolation
OFF OFF OFF ON Redundant SFP Fiber fail over
Port 4 is primary port

INS_CNGE2+2SMS_REV– 02/19/13 PAGE 15
INSTALLATION AND OPERATION MANUAL CNGE2+2SMS[POE][HO]
TECH SUPPORT: 1.888.678.9427
SMS MUX Disabled (DIP Switch 2 in OFF Position)
SMS MUX Enabled (DIP Switch 2 in On Position)

INS_CNGE2+2SMS_REV– 02/19/13 PAGE 16
INSTALLATION AND OPERATION MANUAL CNGE2+2SMS[POE][HO]
TECH SUPPORT: 1.888.678.9427
Redundant SFP (RSFP) Enabled (DIP Switch 4 in On Position)
Note: There is no port isolation between Ports 1 & 2 as shown. Ports 1 & 2 are free to send traffic
between each other as per a normal switch.
Redundant SFP (RSFP) Enabled (DIP Switch 4 in On Position)
Note: There is no port isolation between Ports 1 & 2 as shown. Ports 1 & 2 are free to send traffic
between each other as per a normal switch.
When Port 4 comes back online all traffic from Ports 1 & 2 is switched back to transmit
over Port 4 in less than 1 second.

INS_CNGE2+2SMS_REV– 02/19/13 PAGE 17
INSTALLATION AND OPERATION MANUAL CNGE2+2SMS[POE][HO]
TECH SUPPORT: 1.888.678.9427
Redundant SFP (RSFP) Enabled (3rd Party Switch) (DIP Switch 4 in On Position)
Note: Disabling MAC Address Learning on the 3rd party switch (if supported) can sometimes
allow for faster port switchover times.
There is no port isolation between Ports 1 & 2 as shown. Ports 1 & 2 are free to send traffic
between each other as per a normal switch.
Redundant SFP (RSFP) Enabled (3rd Party Switch) (DIP Switch 4 in On Position)
Note: Disabling MAC Address Learning on the 3rd party switch (if supported) can sometimes
allow for faster port switchover times.
There is no port isolation between Ports 1 & 2 as shown. Ports 1 & 2 are free to send traffic
between each other as per a normal switch.
When Port 4 comes back online all traffic from Ports 1 & 2 is switched back to transmit
over Port 4 in less than 1 second.

INS_CNGE2+2SMS_REV– 02/19/13 PAGE 18
INSTALLATION AND OPERATION MANUAL CNGE2+2SMS[POE][HO]
TECH SUPPORT: 1.888.678.9427
Redundant SFP (RSFP) Enabled + SMS MUX Enabled (3rd Party Switch) (DIP Switch 2 & 4 ON)
Note: Disabling MAC Address Learning on the 3rd party switch (if supported) can sometimes
allow for faster port switchover times.
Multicast traffic is diverted only to port 4 preventing flooding on the local device between
Ports 1 & 2. Ports 1 & 2 are isolated from each other.
Redundant SFP (RSFP) Enabled + SMS MUX Enabled (3rd Party Switch) (DIP Switch 2 & 4 ON)
Note: Disabling MAC Address Learning on the 3rd party switch (if supported) can sometimes
allow for faster port switchover times.
Multicast traffic is diverted only to port 4 preventing flooding on the local device between
Ports 1 & 2. Ports 1 & 2 are isolated from each other.
When Port 4 comes back online all traffic from Ports 1 & 2 is switched back to transmit
over Port 4 in less than 1 second.

INS_CNGE2+2SMS_REV– 02/19/13 PAGE 19
INSTALLATION AND OPERATION MANUAL CNGE2+2SMS[POE][HO]
TECH SUPPORT: 1.888.678.9427

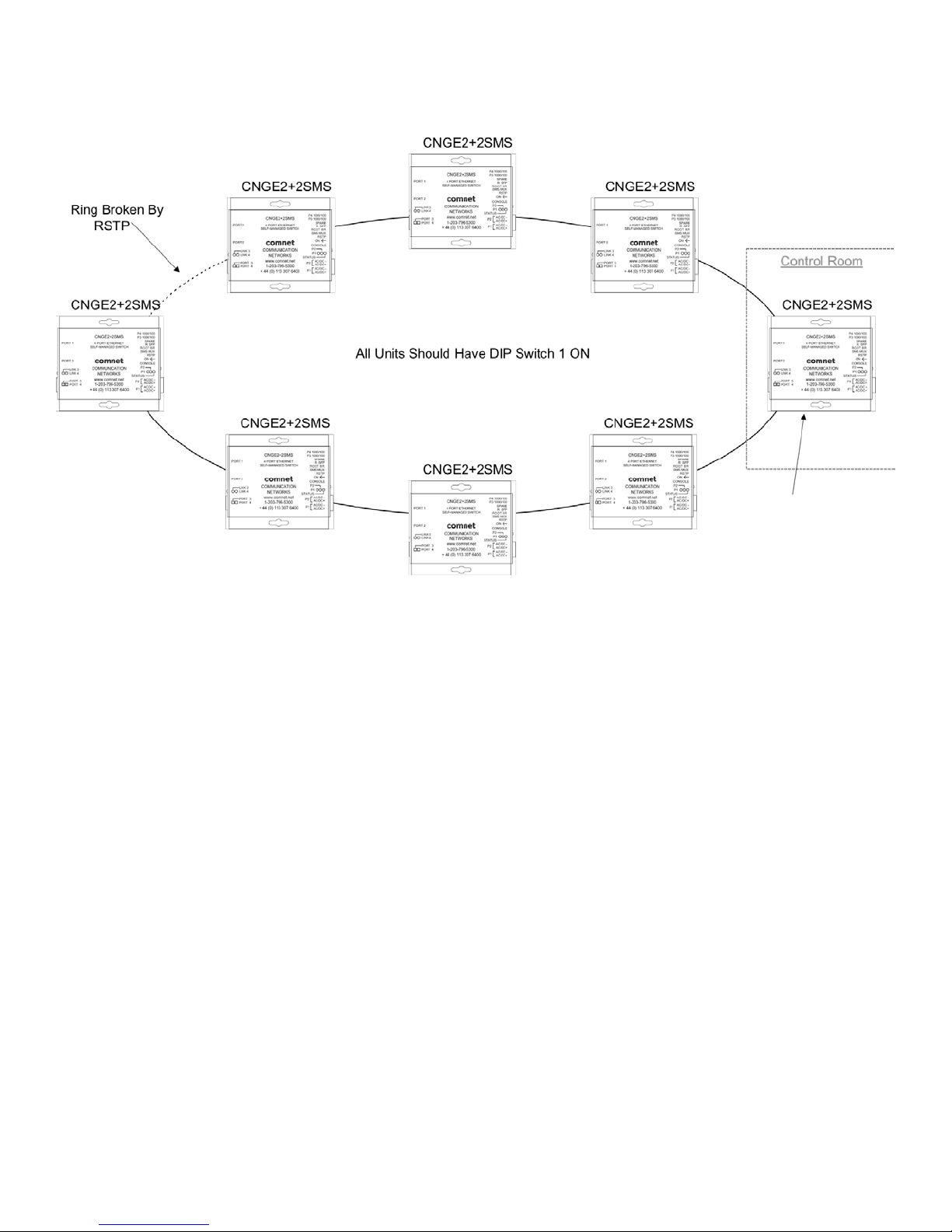

RSTP Enabled (Single Ring) (DIP Switch 1 ON)
Attention: ComNet recommends maximum number of units per ring is limited to 20 devices.
Numbers higher than this may cause undesired performance and are not supported
by ComNet.
Note: The unit at the control room location should have DIP switch 3 ON (ROOT BR). This will
force the ring to break at the half way point and ensure most effective load sharing on the
network.
See Note
Below

INS_CNGE2+2SMS_REV– 02/19/13 PAGE 20
INSTALLATION AND OPERATION MANUAL CNGE2+2SMS[POE][HO]
TECH SUPPORT: 1.888.678.9427

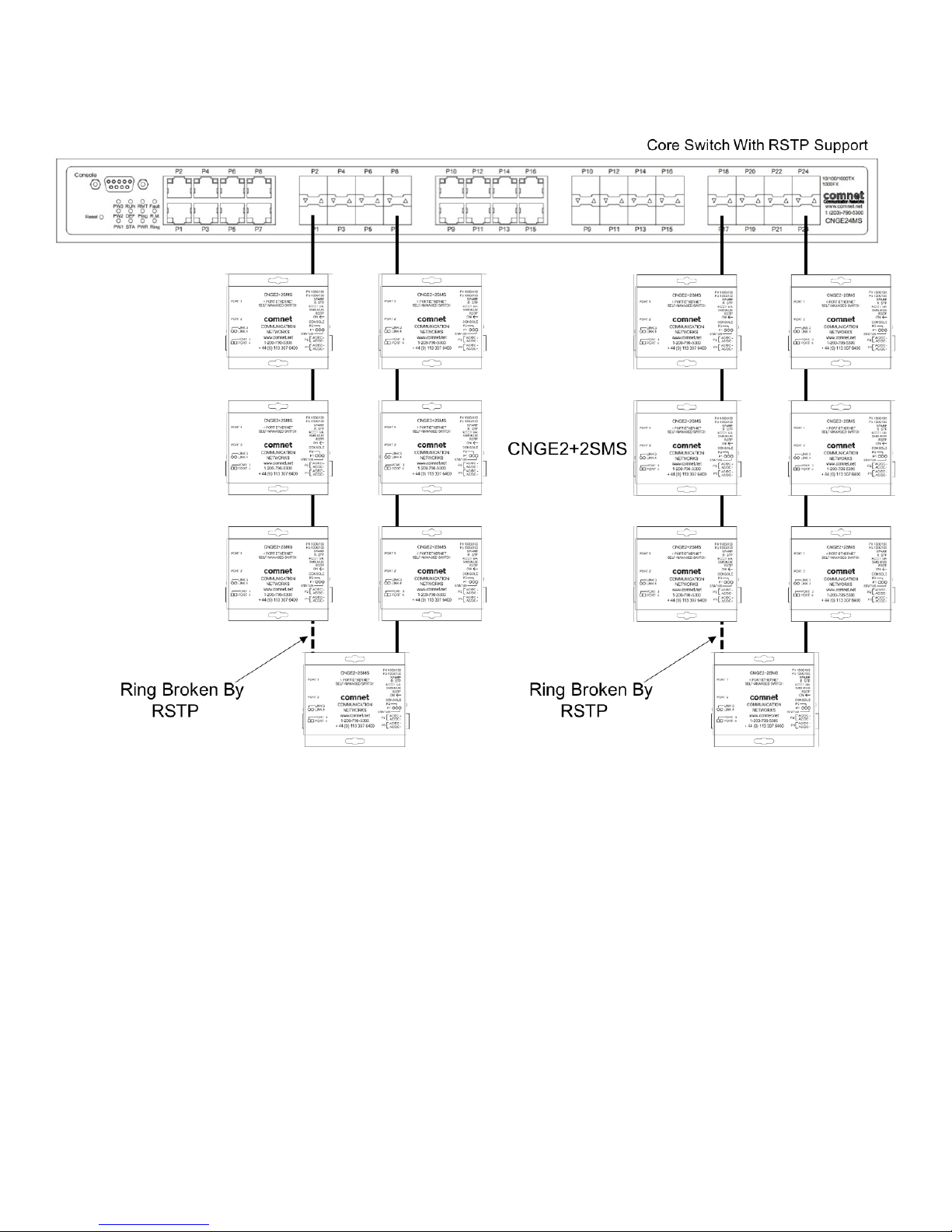

RSTP Enabled (Multiple Rings) (DIP Switch 1 ON)
Attention: ComNet recommends maximum number of units per ring is limited to 20 devices.
Numbers higher than this may cause undesired performance and are not supported
by ComNet.
Attention: Central switch must be manually configured to be the root bridge. This requirement is
mandatory for correct performance in a multiple ring scenario.
Attention: ComNet recommends maximum number of rings per core switch is limited to 3-4.
The actual number supported will depend on the processing power of the core switch
used and other features that may be enabled on the core switch. Please contact
ComNet Technical Support to discuss your application prior to ordering.
