Comnet CNGE2FE16MS User manual

INSTALLATION AND OPERATION MANUAL
CNGE2FE16MS
MANAGED ETHERNET SWITCH WITH (16) 10/100TX +
(2) CONFIGURABLE 10/100/1000TX / 100/1000FX PORTS
v2.01 Jan 2012
The ComNet™ CNGE2FE16MS Managed Ethernet Switch provides robust transmission
of (16) 10/100 BASE-TX and (2) 10/100/1000TX or 100/1000FX combo ports, of gigabit
Ethernet data. Unlike most Ethernet switches, these environmentally hardened units
are designed for direct deployment in difficult out-of-plant or roadside operating
environments, and are available for use with either conventional CAT-5e copper or
optical transmission media. Diverse media selection allows for easy implementation
of point-to-point, linear add-drop, drop-and-repeat, star, or true self-healing ring and
mesh network system architectures. The 16 electrical ports support the 10/100 Mbps
Ethernet IEEE 802.3 protocol, and auto-negotiating and auto-MDI/ MDIX features are
provided for simplicity and ease of installation. 2 ports are 10/100/1000 configurable
for copper or fiber media for use with multimode or single mode optical fiber, selected
by optional SFP modules. These network managed layer 2 switches are optically
(100/1000 BASE-FX) and electrically compatible with any IEEE 802.3 compliant
Ethernet devices. Plug-and-play design ensures ease of installation, and no electrical
or optical adjustments are ever required. The CNGE2FE16MS incorporates LED
indicators for monitoring the operating status of the managed switch and network.
These units are DIN-rail or wall mountable.

INS_CNGE2FE16MS_REV–
01/11/12 PAGE 2
INSTALLATION AND OPERATION MANUAL CNGE2FE16MS
TECh SUPPORT: 1.888.678.9427
Contents
FCC Warning 3
CE Mark Warning 3
Overview 4
Introduction 4
Features 5
Technical Specifications 6
Packing List 8
Safety Precaution 8
Hardware Description 9
Physical Dimensions 9
LED Indicators 10
Installation 11
RJ-45 Cabling 11
SFP Cabling 15
Grounding the CNGE2FE16MS 17
Wiring the Power Inputs 18
Wiring the P-Fail Alarm Contacts 19
DIN-Rail Mounting 20
Wall Mounting 22
Installation Steps 23
Configuration 24
RS-232 Console 24
Login in the Console Interface 25
SSH 27
Configuring PuTTY 27
Web-Based Management 32
X-Ring2 88
Troubleshooting 105
Appendix A—Command Sets 106
Command Level 106

INS_CNGE2FE16MS_REV–
01/11/12 PAGE 3
INSTALLATION AND OPERATION MANUAL CNGE2FE16MS
TECh SUPPORT: 1.888.678.9427
FCC Warning
This equipment has been tested and found to comply with the limits for a Class-A digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy. It may cause harmful interference to radio communications if the
equipment is not installed and used in accordance with the instructions. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
»Reorient or relocate the receiving antenna.
»Increase the separation between the equipment and receiver.
» Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
»Consult the dealer or an experienced radio/TV technician for help.
CE Mark Warning
This is a Class-A product. In a domestic environment this product may cause radio interference in
which case the user may be required to take adequate measures.

INS_CNGE2FE16MS_REV–
01/11/12 PAGE 4
INSTALLATION AND OPERATION MANUAL CNGE2FE16MS
TECh SUPPORT: 1.888.678.9427
Overview
Introduction
To create the reliability in your network, the CNGE2FE16MS comes equipped with a proprietary
redundant network protocol, X-Ring II, which provides users with an easy way to establish a
redundant Ethernet network with ultra high-speed recovery time of less than 10ms. Also, the
extended MTBF (Mean Time Between Failures) ensures that the CNGE2FE16MSwill continue to
operate until a Gigabit network infrastructure has been established without requiring any extra
upgrade costs.
The CNGE2FE16MS also comes equipped with 2 Gbps (gigabit) Ethernet combo ports; each
combo port consists of a copper and a SFP sockets. The combo ports can be used for the
application of wideband uploading and especially long distance transmission by connecting the
SFP socket to fit the field request flexibility.
Heavy Duty
Designed with metal housing, the CNGE2FE16MS provides the rugged construction that complies
with IP30 standards.
Dual Power Inputs
The redundant power input design for the CNGE2FE16MS provides a backup power solution.
With both the power inputs supplied, if a failure occurs the other supply will be activated to keep
the system continually operating. When one of the power inputs fails, the P-Fail LED indicator
illuminates and sends an alarm through the relay output as notification.
Flexible Mounting
The CNGE2FE16MS can be mounted on the wall or on a standard DIN rail, so it is suitable for any
space-constrained environment.
Wide Operating Temperature
The operating temperature range of the CNGE2FE16MS is between -40 and +75ºC. With such a
wide range, you can deploy the CNGE2FE16MS in some of the harshest industrial environments.
Easy Troubleshooting
LED indicators make solving any challenges easy. Users can identify the status of the switch by
observing the LED indicators with the definition table.
N-Key Quick Installation
An optional accessory is offered for the CNGE2FE16MS for quick installation especially when you
are planning to do routine tasks. Users can simply plug the accessory known as N-Key into the
console port for system configuration backup/restoration.

INS_CNGE2FE16MS_REV–
01/11/12 PAGE 5
INSTALLATION AND OPERATION MANUAL CNGE2FE16MS
TECh SUPPORT: 1.888.678.9427
Features
»7.2Gbps back-plane (switching fabric)
»2 x 1000Base-T/1000Base-FX Combo ports
»Wide-range redundant power
»Power polarity reversal protection
»X-Ring II path redundant supported
»TFTP firmware update and system configuration restoration/backup
»N-Key for configuration restoration/backup (optional)

INS_CNGE2FE16MS_REV–
01/11/12 PAGE 6
INSTALLATION AND OPERATION MANUAL CNGE2FE16MS
TECh SUPPORT: 1.888.678.9427
Technical Specifications
Communications
Standard IEEE 802.3, 802.3u, 802.3x, 802.3ad
IEEE 802.1d, 802.1p, 802.1Q, 802.1w, 802.1x
LAN 10/100/1000BaseT, 1000BaseFX
Transmission Speed Up to 1000 Mbps
Interface
Ethernet 16 x RJ-45 (10/100TX)
2 x RJ-45/SFP (mini-GBIC) combo ports
(1000T/1000FX)
Console 1 x RJ-45 (RS-232)
Power & Relay Alarm
Receptacle
1 x 6-plug terminal block
LED Indicators System: Power1, Power2, P-Fail, R-Master
10/100BaseTX port: Link/Active, Full duplex/Collision
1000T: Link/Active, Speed
SFP: Link/Activity
Management
Configuration Web browser, serial console, SNMP v1/v2c/v3, Telnet, TFTP, N-Key (optional),
IPv6, SNTP
SNMP MIB RFC 1215 Trap, RFC1213 MIBII, RFC 1157 SNMP MIB, RFC 1493 Bridge MIB,
RFC 2674 VLAN MIB, RFC1643 , RFC 1757, RSTP MIB, LLDP MIB, Private MIB
VLAN IEEE 802.1Q tagged, double-tagged VLAN, GVRP
Redundancy 802.1w/d RSTP/STP
X-Ring II (Recovery time < 10ms)
Security SSL, SSH, DHCP Server with Port-IP binding, IP access security, user
authentication, multi-user login, 802.1X port access control
Traffic Control Port trunking with LACP, rate limit and storm control, IGMP Snooping/Query
for multicast group, multicast filtering, IEEE 802.3x flow control, IEEE 802.1p
QoS
Diagnostics Port mirroring, real-time traffic statistics, MAC address table, system event log,
E-mail alert, SNMP trap, RMON, LLDP/LLDP-MED, DMI for SFP

INS_CNGE2FE16MS_REV–
01/11/12 PAGE 7
INSTALLATION AND OPERATION MANUAL CNGE2FE16MS
TECh SUPPORT: 1.888.678.9427
Power
Power Consumption 10.75 watts max.
Power Input 12 ~ 48 VDC
Mechanical
Dimensions (WxHxD) 72 x 152 x 106.2 mm
Enclosure IP30 protection, aluminum shell
Installation Wall/DIN-rail mounting
Environment
Operating Temperature -40º ~ 75ºC (-40º ~ 167ºF)
Operating Humidity 5% ~ 95% (non-condensing)
Storage Temperature -40º ~ 85ºC (-40º ~ 185ºF)
Storage Humidity 5% ~ 95% (non-condensing)
MTBF 218490 hrs
Certifications
Safety UL, cUL, CE/EN60950-1; (suitable for use in Class I, Division 2, Groups A, B, C,
and D locations)
EMC CE, FCC Class A
CE EN61000-6-2
CE EN61000-6-4
CE EN61000-4-2 (ESD)
CE EN61000-4-3 (RS)
CE EN61000-4-4 (EFT)
CE EN61000-4-5 (Surge)
CE EN61000-4-6 (CS)
CE EN61000-4-8 (Magnetic Field)
Free Fall IEC60068-2-32
Shock IEC61373
Vibration IEC61373

INS_CNGE2FE16MS_REV–
01/11/12 PAGE 8
INSTALLATION AND OPERATION MANUAL CNGE2FE16MS
TECh SUPPORT: 1.888.678.9427
Packing List
»1 x CNGE2FE16MS
»1 x RJ-45 to D-sub 9 female console cable
»1 x User Manual (CD-ROM)
»1 x Wall-mount kit
Compare the contents of the CNGE2FE16MS with the standard checklist above. If any item is
damaged or missing, please contact the local dealer for service.
Safety Precaution
Attention If DC voltage is supplied by an external circuit, please use a protection device on
the power supply input.

INS_CNGE2FE16MS_REV–
01/11/12 PAGE 9
INSTALLATION AND OPERATION MANUAL CNGE2FE16MS
TECh SUPPORT: 1.888.678.9427
Hardware Description
This section is intended to introduce the industrial switch’s hardware specification, port, cabling
and wiring information.
Physical Dimensions

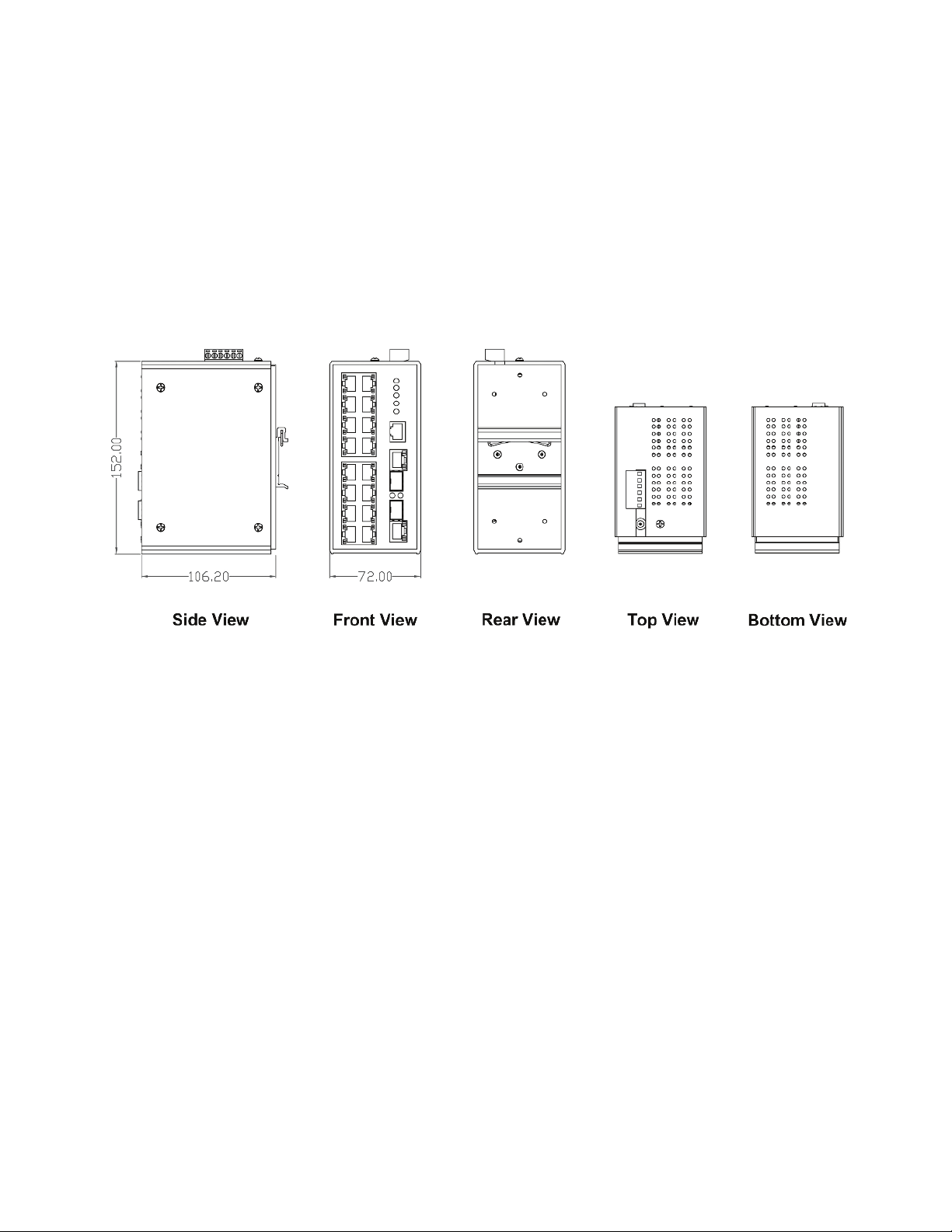

Figure 1 illustrates the dimensions 72 × 152 × 106.2mm (W × H × D) for the CNGE2FE16MS.
Figure 1 – Mechanical Dimensions

INS_CNGE2FE16MS_REV–
01/11/12 PAGE 10
INSTALLATION AND OPERATION MANUAL CNGE2FE16MS
TECh SUPPORT: 1.888.678.9427
LED Indicators
LED indicators located on the front panel display the power status and network status of the
CNGE2FE16MS. Please Table 1 for further details.
LED Color Description
PWR Green On System power on
Off No power inputs
R.M. Green On The switch is the master device of the X-ring group
Off Non-master device
PWR1 Green On Power input 1 is active
Off Power input 1 is inactive
PWR2 Green On Power input 2 is active
Off Power input 2 is inactive
P-Fail
(depends on the Fault
Relay Alarm configuration)
Red On Power or Ethernet port linking failure occurs
Off No failure occurs
P1 ~ P16 Green On Connected to network
Blinking Data is transmitting or receiving
Off Not connected to network
Amber On Full duplex
Blinking Collision of packets occurs
Off Half duplex or not connected to network
P17, P18
(10/100/1000T)
Green
(Upper LED)
On Connected to network
Blinking Data is transmitting or receiving
Off Not connected to network
Green
(Lower LED)
On Operating at speed of 1000M
Off Disconnected or operating at speed of 10/100M
P17, P18
(100/1000 SFP)
Green On Connected to network
Blinking Data is transmitting or receiving
Off Not connected to network
Table 1 – Definition of LED indicators

INS_CNGE2FE16MS_REV–
01/11/12 PAGE 11
INSTALLATION AND OPERATION MANUAL CNGE2FE16MS
TECh SUPPORT: 1.888.678.9427
Installation
RJ-45 Cabling
Use four twisted-pair, Category 5e or above cabling for the RJ-45 port connection.
The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less
than 100 meters (328 feet) long.
The RJ-45 copper ports will auto-sense for 10Base-T, 100Base-TX, or 1000Base-T connections.
Auto MDI/MDIX means that the switch can connect to another switch or workstation without
changing straight through or crossover cabling.
Pin Number MDI-X Signal Name MDI Signal Name
1 Receive Data plus (RD+) Transmit Data plus (TD+)
2 Receive Data minus (RD-) Transmit Data minus (TD-)
3 Transmit Data plus (TD+) Receive Data plus (RD+)
6 Transmit Data minus (TD-) Receive Data minus (RD-)
Table 2 – 10/100Base-TX Pinouts
Note “+” and “-” signs represent the polarity of the wires that make up each wire pair.

INS_CNGE2FE16MS_REV–
01/11/12 PAGE 12
INSTALLATION AND OPERATION MANUAL CNGE2FE16MS
TECh SUPPORT: 1.888.678.9427
10/100Base-TX Cable Schema
Figure 2 – Straight Through Cable Schematic
Figure 3 – Cross Over Cable Schematic
10/100/1000Base-T Pinouts
Pin Signal name Description
1 BI_DA+ Bi-directional pair A+
2 BI_DA- Bi-directional pair A-
3 BI_DB+ Bi-directional pair B+
4 BI_DC+ Bi-directional pair C+
5 BI_DC- Bi-directional pair C-
6 BI_DB- Bi-directional pair B-
7 BI_DD+ Bi-directional pair D+
8 BI_DD- Bi-directional pair D-
Table 3 – Gigabit Ethernet RJ-45 pinouts

INS_CNGE2FE16MS_REV–
01/11/12 PAGE 13
INSTALLATION AND OPERATION MANUAL CNGE2FE16MS
TECh SUPPORT: 1.888.678.9427
10/100/1000Base-T Cable Schema
The following two figures illustrate the 10/100/1000Base-T cable schema.
Figure 4 – Straight Through Cable Schema
Figure 5 – Crossover Cable Schema

INS_CNGE2FE16MS_REV–
01/11/12 PAGE 14
INSTALLATION AND OPERATION MANUAL CNGE2FE16MS
TECh SUPPORT: 1.888.678.9427
Gigabit Copper/SFP Combo Port
The CNGE2FE16MS is equipped with Gigabit Copper/SFP combo ports. The Gigabit Copper
(10/100/1000T) ports should use Category 5e or above UTP/STP cable for the connection speed
up to 1000Mbps. SFP slots supporting dual mode to toggle the connection speed between 100
and 1000Mbps are used for connecting to the network segment with single or multi-mode fiber
optics. You can choose the appropriate SFP transceiver to plug into the SFP socket with proper
multi-mode or single-mode fiber cable according to that transceiver.
Note The particular SFP/Copper Combo port is deemed to be a single port that either the SFP or
Copper port operates; the SFP and Copper ports cannot both operate at the same time.
The SFP port has the higher priority than the corresponding copper port; if you insert the
1000M SFP transceiver (which has connected a fiber cable between that transceiver and the
remote node) into the SFP port, the connection of the corresponding copper port will link
down.
If you insert the 100M SFP transceiver into the SFP port even without a fiber cable between
that transceiver and the remote node, the connection of the corresponding copper port will
link down immediately.

INS_CNGE2FE16MS_REV–
01/11/12 PAGE 15
INSTALLATION AND OPERATION MANUAL CNGE2FE16MS
TECh SUPPORT: 1.888.678.9427
SFP Cabling
SFP Connection

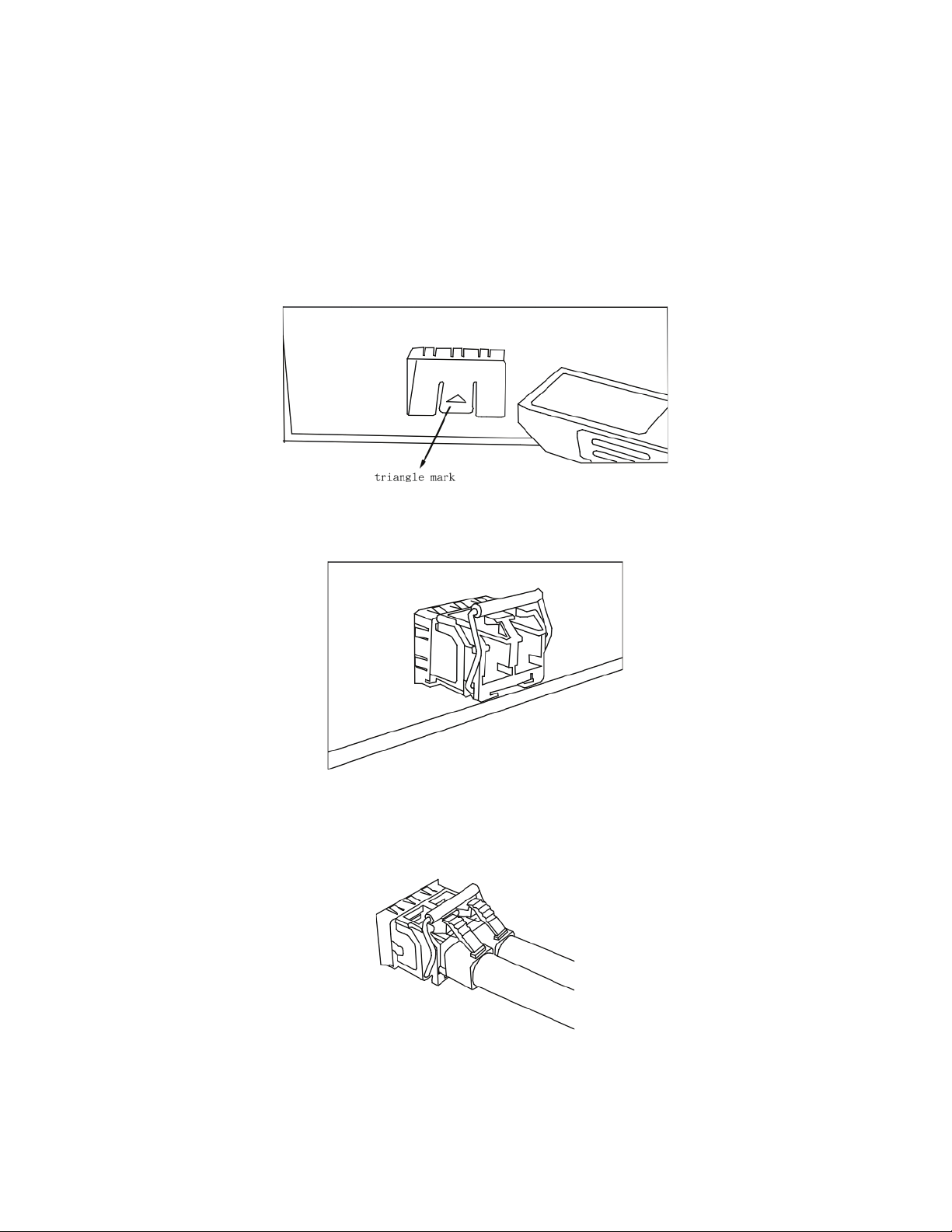

To connect the transceiver and the LC cable, please follow the steps shown in Figures 6 – 8.
» First, insert the transceiver into the SFP slot. Notice that the triangle mark indicates the bottom
of the slot.
Figure 6 – Insert transceiver into the SFP slot
Figure 7 –Transceiver Inserted
»Second, insert LC connector of the fiber cable into the transceiver.
Figure 8 – LC connector to the transceiver

INS_CNGE2FE16MS_REV–
01/11/12 PAGE 16
INSTALLATION AND OPERATION MANUAL CNGE2FE16MS
TECh SUPPORT: 1.888.678.9427
SFP Disconnection

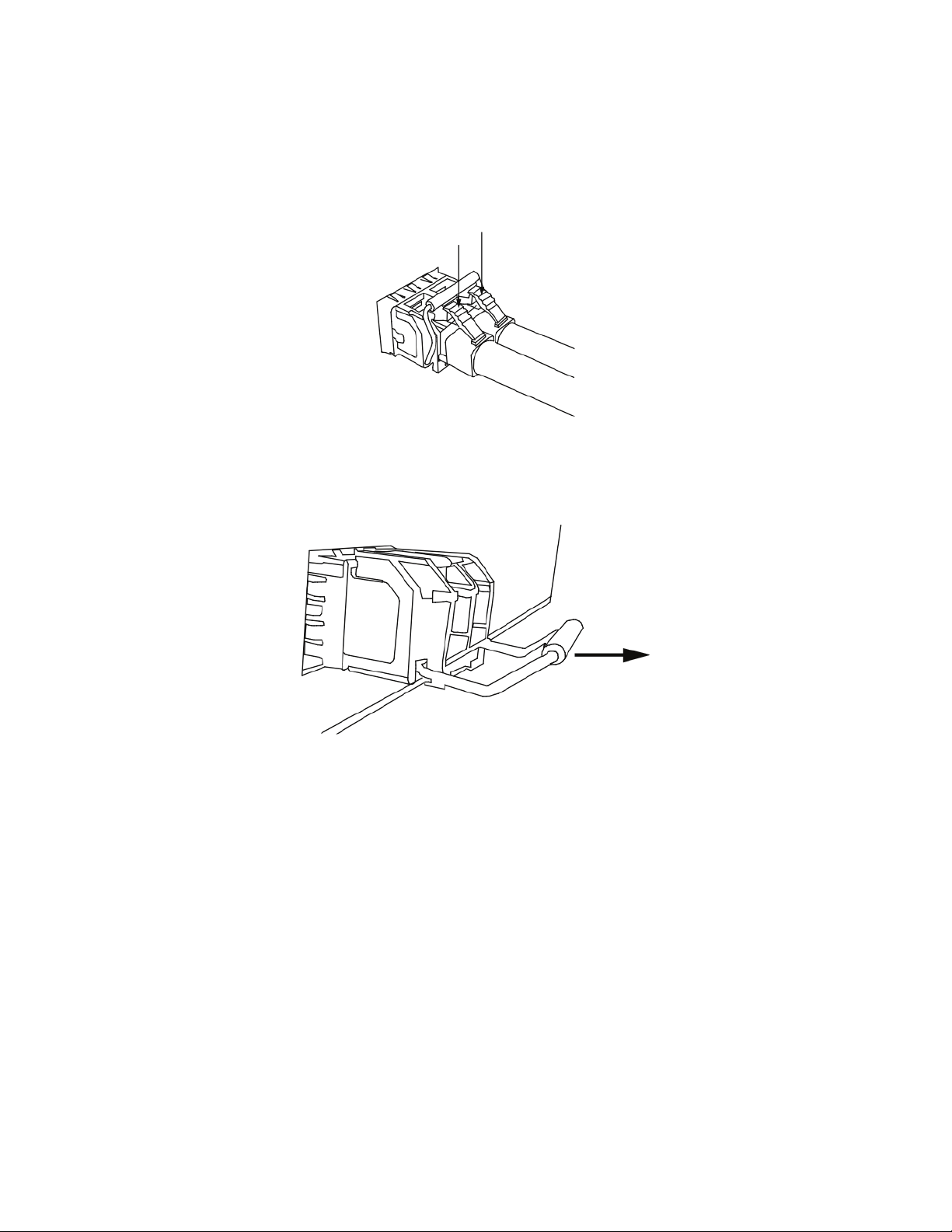

To remove the LC connector from the transceiver, follow the steps showin in Figures 9 and 10.
»First, press down the latches and pull the LC connector out of the transceiver.
Figure 9 – Press down the latches to remove the LC connector
»Second, push down the metal loop and pull out the transceiver by the handle.
Figure 10 – Pull the transceiver out of the slot

INS_CNGE2FE16MS_REV–
01/11/12 PAGE 17
INSTALLATION AND OPERATION MANUAL CNGE2FE16MS
TECh SUPPORT: 1.888.678.9427
Grounding the CNGE2FE16MS
Follow the instructions below to attach the CNGE2FE16MS to ground.
Attention When installing the CNGE2FE16MS, the ground connection must always be made
first and disconnected last.
» On the top of the CNGE2FE16MS, locate and remove the dome screw that has a ground
symbol beside it.
»Attach the ground wire to the screw hole with the dome screw.
Figure 11 – Top plate of CNGE2FE16MS

INS_CNGE2FE16MS_REV–
01/11/12 PAGE 18
INSTALLATION AND OPERATION MANUAL CNGE2FE16MS
TECh SUPPORT: 1.888.678.9427
Wiring the Power Inputs
Please follow these steps to connect power lines from the terminal block to the compliant external
DC power source.
»Before wiring, make sure the power source is disconnected.
» Using a wire-stripping tool, remove a short piece of insulation from the output wires of the DC
power source.
» Identify the positive and negative polarity feed positions for the terminal block connection.
See the symbols printed on the panel indicating the polarities and DC input power range in
voltage.
Figure 12 – Plugs for Power 1 & Power 2
» Insert the exposed wires into the terminal block plugs. Only wires with insulation should extend
from the terminal block plugs. Note that the polarities between the wires and the terminal
block plugs must be positive-to-positive and negative-to-negative.
»Use a slotted screwdriver to tighten the captive screws.
Figure 13 Captive Screws for Fixing Wires
Attention: Use Copper Conductors Only, 60/75°C, tightening to 5 lb-in
The wire gauge for the terminal block should be in the range between 12~ 24 AWG.

INS_CNGE2FE16MS_REV–
01/11/12 PAGE 19
INSTALLATION AND OPERATION MANUAL CNGE2FE16MS
TECh SUPPORT: 1.888.678.9427
Wiring the P-Fail Alarm Contacts
The “P-Fail” alarm relay is provided to signal critical error conditions that may occur on the switch.
The contacts are energized upon powering up of the switch and remain energized until a critical
error occurs including power failure, Ethernet port disconnection and MAC violation. Take the
wiring illustration below as an example that illustrates the proper relay connection forming a
normally closed circuit, and the connection is to be broken when an error occurs.
Figure 14 – Terminal Block Plugs for Fault Alarm Contacts
Figure 15 – Fault Alarm Wiring Example
24Vdc, 1A
Resistance

INS_CNGE2FE16MS_REV–
01/11/12 PAGE 20
INSTALLATION AND OPERATION MANUAL CNGE2FE16MS
TECh SUPPORT: 1.888.678.9427
DIN-Rail Mounting
Assembling the DIN-Rail Clip
The DIN-rail clip is screwed on the CNGE2FE16MS when out of factory. If not, please refer to the
following steps to secure the DIN-rail clip on the switch.
»Use the included screws to secure the DIN-rail clip on the CNGE2FE16MS.
»To remove the DIN-rail clip, remove the screws from the clip to separate it from the unit.
Figure 16 – Rear Side of the Switch
DIN-Rail Clip
